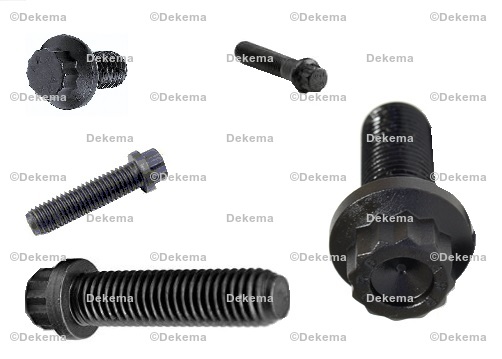

Class 9 Steel 12 Point Bolts
| 12 Point Steel Bolts, Class 9, ASTM A574 | |||||||
| Part # | Thread Size | Overall Length | Flange Diameter | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Fully Threaded | |||||||
| Bolt-001 | 1/4"-20 | .500" | .375" | 1/4" | 1/4" | 50 | $21.08 |
| Bolt-002 | 1/4"-20 | .625" | .375" | 1/4" | 1/4" | 50 | $26.33 |
| Bolt-003 | 1/4"-20 | .750" | .375" | 1/4" | 1/4" | 50 | $24.08 |
| Bolt-004 | 1/4"-20 | .875" | .375" | 1/4" | 1/4" | 50 | $21.08 |
| Bolt-005 | 1/4"-20 | 1.00" | .375" | 1/4" | 1/4" | 50 | $21.08 |
| Bolt-006 | 1/4"-20 | 1.25" | .375" | 1/4" | 1/4" | 50 | $24.08 |
| Bolt-012 | 1/4"-28 | .750" | .375" | 1/4" | 1/4" | 50 | $27.09 |
| Bolt-013 | 1/4"-28 | 1.00" | .375" | 1/4" | 1/4" | 50 | $24.59 |
| Bolt-014 | 1/4"-28 | 1.25" | .375" | 1/4" | 1/4" | 50 | $24.08 |
| Bolt-017 | 5/16"-18 | .500" | .468" | 5/16" | 5/16" | 50 | $28.47 |
| Bolt-018 | 5/16"-18 | .750" | .468" | 5/16" | 5/16" | 50 | $27.06 |
| Bolt-019 | 5/16"-18 | .875" | .468" | 5/16" | 5/16" | 50 | $27.09 |
| Bolt-020 | 5/16"-18 | 1.00" | .468" | 5/16" | 5/16" | 50 | $36.28 |
| Bolt-021 | 5/16"-18 | 1.25" | .468" | 5/16" | 5/16" | 50 | $36.28 |
| Bolt-022 | 5/16"-18 | 1.50" | .468" | 5/16" | 5/16" | 25 | $21.08 |
| Bolt-026 | 5/16"-24 | .750" | .468" | 5/16" | 5/16" | 50 | $32.84 |

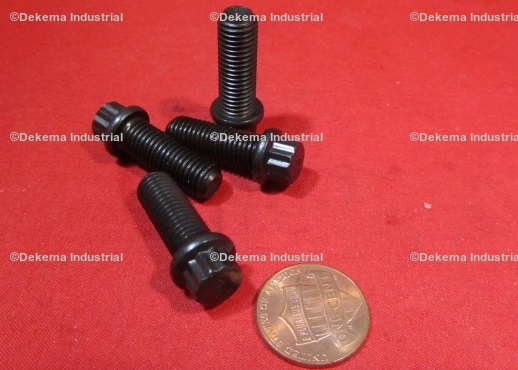

| Bolt-027 | 5/16"-24 | .875" | .468" | 5/16" | 5/16" | 25 | $21.10 |
| Bolt-028 | 5/16"-24 | 1.00" | .468" | 5/16" | 5/16" | 50 | $36.12 |
| Bolt-029 | 5/16"-24 | 1.25" | .468" | 5/16" | 5/16" | 25 | $21.08 |
| Bolt-030 | 5/16"-24 | 1.50" | .468" | 5/16" | 5/16" | 25 | $21.08 |
| Bolt-032 | 3/8"-16 | .750" | .562" | 3/8" | 3/8" | 25 | $27.09 |

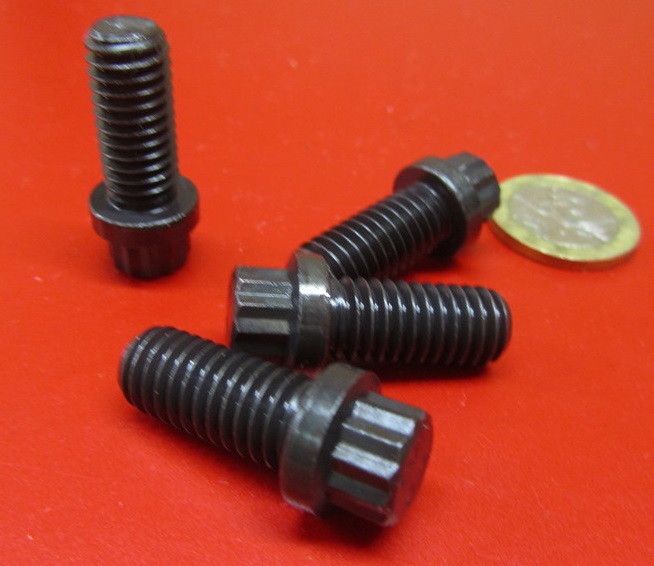

| Bolt-033 | 3/8"-16 | .875" | .562" | 3/8" | 3/8" | 10 | $21.08 |
| Bolt-034 | 3/8"-16 | 1.00" | .562" | 3/8" | 3/8" | 25 | $27.06 |
| Bolt-035 | 3/8"-16 | 1.25" | .562" | 3/8" | 3/8" | 25 | $28.60 |
| Bolt-036 | 3/8"-16 | 1.50" | .562" | 3/8" | 3/8" | 25 | $31.47 |
| Bolt-043 | 3/8"-24 | 1.00" | .562" | 3/8" | 3/8" | 25 | $30.07 |
| Bolt-044 | 3/8"-24 | 1.25" | .562" | 3/8" | 3/8" | 25 | $28.56 |
| Bolt-045 | 3/8"-24 | 1.50" | .562" | 3/8" | 3/8" | 25 | $42.06 |
| Bolt-049 | 7/16"-14 | 1.25" | .656" | 7/16" | 7/16" | 10 | $24.76 |
| Bolt-050 | 7/16"-14 | 1.50" | .656" | 7/16" | 7/16" | 10 | $21.06 |
| Bolt-054 | 1/2"-13 | 1.00" | .750" | 1/2" | 1/2" | 10 | $25.20 |
| Bolt-055 | 1/2"-13 | 1.25" | .750" | 1/2" | 1/2" | 10 | $22.11 |
| Bolt-056 | 1/2"-13 | 1.50" | .750" | 1/2" | 1/2" | 10 | $23.62 |

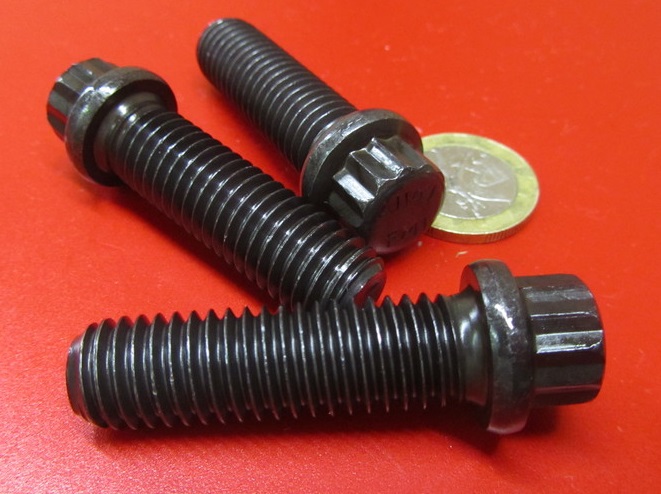

| Bolt-057 | 1/2"-13 | 1.75" | .750" | 1/2" | 1/2" | 10 | $29.82 |
| Bolt-058 | 1/2"-13 | 2.00" | .750" | 1/2" | 1/2" | 10 | $26.33 |
| Bolt-065 | 1/2"-20 | 1.00" | .750" | 1/2" | 1/2" | 10 | $24.82 |
| Bolt-066 | 1/2"-20 | 1.25" | .750" | 1/2" | 1/2" | 10 | $27.19 |
| Bolt-067 | 1/2"-20 | 1.50" | .750" | 1/2" | 1/2" | 10 | $27.49 |
| Bolt-068 | 1/2"-20 | 1.75" | .750" | 1/2" | 1/2" | 10 | $27.93 |
| Bolt-069 | 1/2"-20 | 2.00" | .750" | 1/2" | 1/2" | 10 | $31.12 |
| Bolt-072 | 5/8"-11 | 1.25" | .937" | 5/8" | 5/8" | 10 | $37.12 |
| Bolt-073 | 5/8"-11 | 1.50" | .937" | 5/8" | 5/8" | 10 | $35.78 |
| Bolt-074 | 5/8"-11 | 1.75" | .937" | 5/8" | 5/8" | 10 | $35.86 |
| Bolt-075 | 5/8"-11 | 2.00" | .937" | 5/8" | 5/8" | 10 | $35.95 |
| Bolt-076 | 5/8"-11 | 2.25" | .937" | 5/8" | 5/8" | 10 | $39.64 |
| Bolt-084 | 3/4"-10 | 1.50" | 1.125" | 3/4" | 3/4" | 5 | $29.14 |
| Bolt-085 | 3/4"-10 | 2.00" | 1.125" | 3/4" | 3/4" | 5 | $37.14 |
| Bolt-086 | 3/4"-10 | 2.50" | 1.125" | 3/4" | 3/4" | 5 | $40.19 |
| 12 Point Steel Bolts, Class 9, Partial Threaded | |||||||
| Part # | Thread Size | Overall Length | Flange Diameter | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Partially Threaded | |||||||
| Bolt-007 | 1/4"-20 | 1.50" | .375" | 1/4" | 1/4" | 50 | $24.10 |
| Bolt-008 | 1/4"-20 | 1.75" | .375" | 1/4" | 1/4" | 50 | $33.05 |
| Bolt-009 | 1/4"-20 | 2.00" | .375" | 1/4" | 1/4" | 50 | $36.07 |
| Bolt-010 | 1/4"-20 | 2.50" | .375" | 1/4" | 1/4" | 20 | $30.82 |
| Bolt-011 | 1/4"-20 | 3.00" | .375" | 1/4" | 1/4" | 25 | $33.07 |
| Bolt-015 | 1/4"-28 | 1.50" | .375" | 1/4" | 1/4" | 50 | $33.07 |
| Bolt-016 | 1/4"-28 | 1.75" | .375" | 1/4" | 1/4" | 25 | $26.31 |
| Bolt-023 | 5/16"-18 | 1.75" | .468" | 5/16" | 5/16" | 25 | $21.08 |
| Bolt-024 | 5/16"-18 | 2.00" | .468" | 5/16" | 5/16" | 25 | $25.43 |
| Bolt-025 | 5/16"-18 | 2.50" | .468" | 5/16" | 5/16" | 25 | $28.58 |
| Bolt-031 | 5/16"-24 | 2.00" | .468" | 5/16" | 5/16" | 25 | $28.58 |
| Bolt-037 | 3/8"-16 | 1.75" | .562" | 3/8" | 3/8" | 25 | $33.09 |
| Bolt-038 | 3/8"-16 | 2.00" | .562" | 3/8" | 3/8" | 25 | $33.03 |
| Bolt-039 | 3/8"-16 | 2.25" | .562" | 3/8" | 3/8" | 20 | $33.68 |
| Bolt-040 | 3/8"-16 | 2.50" | .562" | 3/8" | 3/8" | 20 | $35.23 |
| Bolt-041 | 3/8"-16 | 3.00" | .562" | 3/8" | 3/8" | 20 | $37.25 |
| Bolt-042 | 3/8"-16 | 3.50" | .562" | 3/8" | 3/8" | 20 | $45.65 |
| Bolt-046 | 3/8"-24 | 1.75" | .562" | 3/8" | 3/8" | 20 | $31.41 |

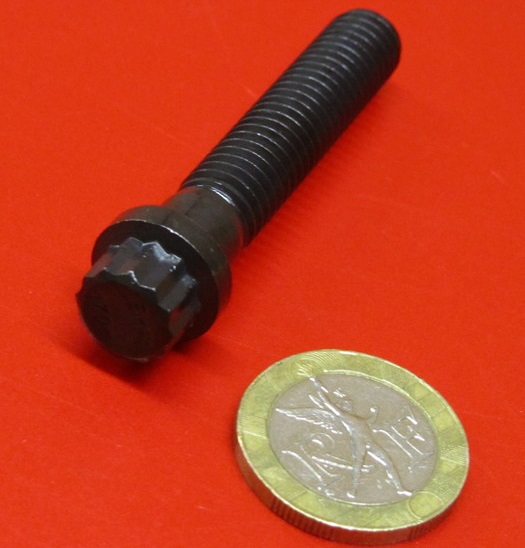

| Bolt-047 | 3/8"-24 | 2.00" | .562" | 3/8" | 3/8" | 20 | $36.07 |
| Bolt-048 | 3/8"-24 | 2.50" | .562" | 3/8" | 3/8" | 10 | $19.86 |
| Bolt-051 | 7/16"-14 | 2.00" | .656" | 7/16" | 7/16" | 10 | $25.89 |
| Bolt-052 | 7/16"-14 | 2.25" | .656" | 7/16" | 7/16" | 10 | $27.06 |
| Bolt-053 | 7/16"-14 | 2.50" | .656" | 7/16" | 7/16" | 10 | $28.33 |
| Bolt-059 | 1/2"-13 | 2.25" | .750" | 1/2" | 1/2" | 10 | $28.43 |
| Bolt-060 | 1/2"-13 | 2.50" | .750" | 1/2" | 1/2" | 10 | $30.03 |
| Bolt-061 | 1/2"-13 | 3.00" | .750" | 1/2" | 1/2" | 10 | $29.77 |
| Bolt-062 | 1/2"-13 | 3.50" | .750" | 1/2" | 1/2" | 5 | $19.78 |
| Bolt-063 | 1/2"-13 | 4.00" | .750" | 1/2" | 1/2" | 10 | $37.42 |
| Bolt-064 | 1/2"-13 | 5.00" | .750" | 1/2" | 1/2" | 5 | $27.32 |
| Bolt-070 | 1/2"-20 | 2.25" | .750" | 1/2" | 1/2" | 10 | $37.80 |
| Bolt-071 | 1/2"-20 | 2.50" | .750" | 1/2" | 1/2" | 10 | $33.30 |
| Bolt-077 | 5/8"-11 | 2.50" | .937" | 5/8" | 5/8" | 5 | $21.33 |
| Bolt-078 | 5/8"-11 | 2.75" | .937" | 5/8" | 5/8" | 5 | $20.07 |
| Bolt-079 | 5/8"-11 | 3.00" | .937" | 5/8" | 5/8" | 5 | $22.93 |
| Bolt-080 | 5/8"-11 | 3.50" | .937" | 5/8" | 5/8" | 5 | $24.17 |
| Bolt-081 | 5/8"-11 | 4.00" | .937" | 5/8" | 5/8" | 5 | $31.83 |
| Bolt-082 | 5/8"-18 | 1.50" | .937" | 5/8" | 5/8" | 10 | $36.28 |
| Bolt-083 | 5/8"-18 | 2.00" | .937" | 5/8" | 5/8" | 5 | $23.08 |
| Bolt-087 | 3/4"-10 | 3.00" | 1.125" | 3/4" | 3/4" | 5 | $37.99 |
| Bolt-088 | 3/4"-10 | 3.50" | 1.125" | 3/4" | 3/4" | 5 | $41.87 |
| Bolt-089 | 3/4"-10 | 4.00" | 1.125" | 3/4" | 3/4" | 5 | $46.07 |
