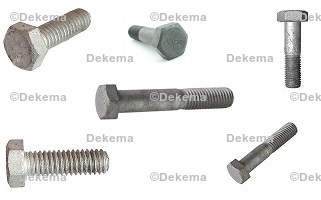

Galvanized Steel Bolts
Structural, ASME B18.2.6, ASTM A325 Type 1
| Galvanized A325 Steel Bolts Fully Threaded | ||||||
| Part # | Thread Size | Overall Length | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|
| Bolt-5056 | 5/8"-11 | 1.50" | 1-1/16" | 25/64" | 10 | $36.77 |
| Bolt-5066 | 3/4"-10 | 1.50" | 1-1/4" | 15/32" | 5 | $29.06 |
| Bolt-5067 | 3/4"-10 | 1.75" | 1-1/4" | 15/32" | 5 | $30.99 |
| Bolt-5081 | 7/8"-9 | 2.00" | 1-7/16" | 35/64" | 5 | $47.12 |
| Galvanized A325 Steel Bolts Partially Threaded | ||||||||
| Part # | Thread Length | Thread Size | Overall Length | Head Width | Head Height | Grip Length | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Bolt-5050 | 1" | 1/2"-13 | 1.50" | 7/8" | 5/16" | 1/2" | 20 | $42.88 |
| Bolt-5051 | 1" | 1/2"-13 | 1.75" | 7/8" | 5/16" | 3/4" | 20 | $46.87 |
| Bolt-5052 | 1" | 1/2"-13 | 2.00" | 7/8" | 5/16" | 1" | 10 | $25.62 |
| Bolt-5053 | 1" | 1/2"-13 | 2.50" | 7/8" | 5/16" | 1-1/2" | 10 | $28.68 |
| Bolt-5054 | 1" | 1/2"-13 | 3.00" | 7/8" | 5/16" | 2" | 10 | $34.67 |
| Bolt-5055 | 1" | 1/2"-13 | 4.00" | 7/8" | 5/16" | 3" | 10 | $40.23 |
| Bolt-5057 | 1-1/4" | 5/8"-11 | 1.75" | 1-1/16" | 25/64" | 1/2" | 10 | $39.43 |
| Bolt-5058 | 1-1/4" | 5/8"-11 | 2.00" | 1-1/16" | 25/64" | 3/4" | 10 | $42.37 |
| Bolt-5059 | 1-1/4" | 5/8"-11 | 2.50" | 1-1/16" | 25/64" | 1-1/4" | 5 | $24.97 |
| Bolt-5060 | 1-1/4" | 5/8"-11 | 3.00" | 1-1/16" | 25/64" | 1-3/4" | 5 | $28.22 |
| Bolt-5061 | 1-1/4" | 5/8"-11 | 3.50" | 1-1/16" | 25/64" | 2-1/4" | 5 | $33.20 |
| Bolt-5062 | 1-1/4" | 5/8"-11 | 4.00" | 1-1/16" | 25/64" | 2-3/4" | 5 | $36.56 |
| Bolt-5063 | 1-1/4" | 5/8"-11 | 4.50" | 1-1/16" | 25/64" | 3-1/4" | 5 | $47.75 |
| Bolt-5064 | 1-1/4" | 5/8"-11 | 5.00" | 1-1/16" | 25/64" | 3-3/4" | 5 | $51.53 |
| Bolt-5065 | 1-1/4" | 5/8"-11 | 6.00" | 1-1/16" | 25/64" | 4-3/4" | 5 | $61.51 |
| Bolt-5068 | 1-3/8" | 3/4"-10 | 2.00" | 1-1/4" | 15/32" | 5/8" | 5 | $32.97 |
| Bolt-5069 | 1-3/8" | 3/4"-10 | 2.25" | 1-1/4" | 15/32" | 7/8" | 5 | $35.23 |
| Bolt-5070 | 1-3/8" | 3/4"-10 | 2.50" | 1-1/4" | 15/32" | 1-1/8" | 5 | $38.13 |
| Bolt-5071 | 1-3/8" | 3/4"-10 | 2.75" | 1-1/4" | 15/32" | 1-3/8" | 5 | $40.55 |
| Bolt-5072 | 1-3/8" | 3/4"-10 | 3.00" | 1-1/4" | 15/32" | 1-5/8" | 5 | $43.45 |
| Bolt-5073 | 1-3/8" | 3/4"-10 | 3.25" | 1-1/4" | 15/32" | 1-7/8" | 5 | $49.01 |
| Bolt-5074 | 1-3/8" | 3/4"-10 | 3.50" | 1-1/4" | 15/32" | 2-1/8" | 5 | $50.38 |
| Bolt-5075 | 1-3/8" | 3/4"-10 | 3.75" | 1-1/4" | 15/32" | 2-3/8" | 5 | $52.79 |
| Bolt-5076 | 1-3/8" | 3/4"-10 | 4.00" | 1-1/4" | 15/32" | 2-5/8" | 5 | $55.31 |
| Bolt-5077 | 1-3/8" | 3/4"-10 | 4.25" | 1-1/4" | 15/32" | 2-7/8" | 5 | $57.41 |
| Bolt-5078 | 1-3/8" | 3/4"-10 | 4.50" | 1-1/4" | 15/32" | 3-1/8" | 5 | $61.72 |
| Bolt-5079 | 1-3/8" | 3/4"-10 | 5.00" | 1-1/4" | 15/32" | 3-5/8" | 5 | $70.33 |
| Bolt-5080 | 1-3/8" | 3/4"-10 | 6.00" | 1-1/4" | 15/32" | 4-5/8" | 5 | $69.80 |
| Bolt-5082 | 1-1/2" | 7/8"-9 | 2.50" | 1-7/16" | 35/64" | 1" | 5 | $53.95 |
| Bolt-5083 | 1-1/2" | 7/8"-9 | 2.75" | 1-7/16" | 35/64" | 1-1/4" | 5 | $57.10 |
| Bolt-5084 | 1-1/2" | 7/8"-9 | 3.00" | 1-7/16" | 35/64" | 1-1/2" | 5 | $60.25 |
| Bolt-5085 | 1-1/2" | 7/8"-9 | 3.50" | 1-7/16" | 35/64" | 2" | 5 | $69.49 |
| Bolt-5086 | 1-1/2" | 7/8"-9 | 3.75" | 1-7/16" | 35/64" | 2-1/4" | 5 | $70.54 |
| Bolt-5087 | 1-1/2" | 7/8"-9 | 4.00" | 1-7/16" | 35/64" | 2-1/2" | 5 | $71.27 |
| Bolt-5088 | 1-1/2" | 7/8"-9 | 5.00" | 1-7/16" | 35/64" | 3-1/2" | 5 | $85.03 |
| Bolt-5089 | 1-1/2" | 7/8"-9 | 6.00" | 1-7/16" | 35/64" | 4-1/2" | 5 | $103.51 |
| Bolt-5090 | 1-3/4" | 1"-8 | 2.50" | 1-5/8" | 39/64" | 3/4" | 5 | $70.85 |
| Bolt-5091 | 1-3/4" | 1"-8 | 3.00" | 1-5/8" | 39/64" | 1-1/4" | 5 | $81.88 |
| Bolt-5092 | 1-3/4" | 1"-8 | 3.50" | 1-5/8" | 39/64" | 1-3/4" | 5 | $97.00 |
| Bolt-5093 | 1-3/4" | 1"-8 | 4.00" | 1-5/8" | 39/64" | 2-1/4" | 5 | $105.08 |
| Bolt-5094 | 1-3/4" | 1"-8 | 4.50" | 1-5/8" | 39/64" | 2-3/4" | 5 | $114.11 |
| Bolt-5095 | 1-3/4" | 1"-8 | 5.00" | 1-5/8" | 39/64" | 3-1/4" | 1 | $24.76 |
| Bolt-5096 | 1-3/4" | 1"-8 | 5.50" | 1-5/8" | 39/64" | 3-3/4" | 1 | $28.35 |
| Bolt-5097 | 1-3/4" | 1"-8 | 6.00" | 1-5/8" | 39/64" | 4-1/4" | 1 | $29.94 |
| Bolt-5098 | 2" | 1-1/4"-7 | 3.00" | 2" | 25/32" | 1" | 1 | $27.40 |
| Bolt-5099 | 2" | 1-1/4"-7 | 4.00" | 2" | 25/32" | 2" | 1 | $31.81 |
| Bolt-5100 | 2" | 1-1/4"-7 | 5.00" | 2" | 25/32" | 3" | 1 | $37.82 |
| Bolt-5101 | 2" | 1-1/4"-7 | 6.00" | 2" | 25/32" | 4" | 1 | $42.67 |
