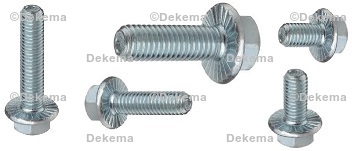

Vibration Resistant Serrated Large Diameter Flange Head Bolts
Zinc Plated Steel, Grade 5, Uncoated, Fully Threaded, SAE J429
| Grade 5 Vibration Resistant Serrated Large Diameter Flange Head Bolts | |||||||
| Part # | Thread Size | Overall Length | Flange Diameter | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Bolt-236 | 1/4"-20 | .750" | .630" | 3/8" | 9/32" | 100 | $47.83 |
| Bolt-237 | 1/4"-20 | 1.00" | .630" | 3/8" | 9/32" | 50 | $30.07 |
| Bolt-238 | 5/16"-18 | .750" | .820" | 1/2" | 21/64" | 50 | $29.48 |
| Bolt-239 | 5/16"-18 | 1.00" | .820" | 1/2" | 21/64" | 50 | $33.39 |
| Bolt-240 | 3/8"-16 | .750" | .915" | 9/16" | 25/64" | 25 | $29.73 |
| Bolt-241 | 3/8"-16 | 1.00" | .915" | 9/16" | 25/64" | 25 | $33.68 |
