Vibration Resistant Serrated Flange Head Bolts
Zinc Plated Steel, Grade 5, Fully Threaded, SAE J429
.JPG)
| Vibration Resistant Serrated Flange Head Bolts | |||||||
| Part # | Thread Size | Overall Length | Flange Diameter | Head Width | Head Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|
| Bolt-162 | 6-32 | .250" | .359" | 1/4" | 5/32" | 100 | $27.46 |
| Bolt-163 | 6-32 | .375" | .359" | 1/4" | 5/32" | 100 | $27.46 |
| Bolt-164 | 6-32 | .500" | .359" | 1/4" | 5/32" | 100 | $27.46 |
| Bolt-165 | 6-32 | .625" | .359" | 1/4" | 5/32" | 100 | $27.46 |
| Bolt-166 | 6-32 | .750" | .359" | 1/4" | 5/32" | 100 | $27.46 |
| Bolt-167 | 6-32 | 1.00" | .359" | 1/4" | 5/32" | 100 | $27.46 |
| Bolt-168 | 8-32 | .250" | .375" | 1/4" | 3/16" | 100 | $27.46 |
| Bolt-169 | 8-32 | .375" | .375" | 1/4" | 3/16" | 100 | $27.46 |
| Bolt-170 | 8-32 | .500" | .375" | 1/4" | 3/16" | 100 | $36.62 |
| Bolt-171 | 8-32 | .625" | .375" | 1/4" | 3/16" | 100 | $36.62 |
| Bolt-172 | 8-32 | .750" | .375" | 1/4" | 3/16" | 100 | $36.62 |
| Bolt-173 | 8-32 | 1.00" | .375" | 1/4" | 3/16" | 100 | $36.62 |
| Bolt-174 | 10-24 | .375" | .453" | 5/16" | 7/32" | 100 | $11.88 |

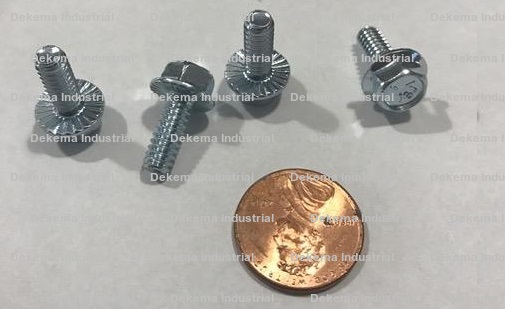

| Bolt-175 | 10-24 | .500" | .453" | 5/16" | 7/32" | 100 | $12.83 |
| Bolt-176 | 10-24 | .625" | .453" | 5/16" | 7/32" | 100 | $36.62 |
| Bolt-177 | 10-24 | .750" | .453" | 5/16" | 7/32" | 100 | $14.80 |
| Bolt-178 | 10-24 | 1.00" | .453" | 5/16" | 7/32" | 100 | $45.69 |
| Bolt-179 | 10-32 | .375" | .453" | 5/16" | 7/32" | 100 | $27.51 |
| Bolt-180 | 10-32 | .500" | .453" | 5/16" | 7/32" | 100 | $36.58 |
| Bolt-181 | 10-32 | .625" | .453" | 5/16" | 7/32" | 100 | $16.00 |
| Bolt-182 | 10-32 | .750" | .453" | 5/16" | 7/32" | 100 | $45.78 |
| Bolt-183 | 10-32 | 1.00" | .453" | 5/16" | 7/32" | 100 | $45.69 |
| Bolt-184 | 1/4"-20 | .375" | .562" | 3/8" | 9/32" | 100 | $45.06 |
| Bolt-185 | 1/4"-20 | .500" | .562" | 3/8" | 9/32" | 100 | $35.21 |
| Bolt-186 | 1/4"-20 | .625" | .562" | 3/8" | 9/32" | 100 | $42.08 |
| Bolt-187 | 1/4"-20 | .750" | .562" | 3/8" | 9/32" | 100 | $36.28 |
| Bolt-188 | 1/4"-20 | .875" | .562" | 3/8" | 9/32" | 100 | $29.12 |
| Bolt-189 | 1/4"-20 | 1.00" | .562" | 3/8" | 9/32" | 50 | $28.47 |
| Bolt-190 | 1/4"-20 | 1.25" | .562" | 3/8" | 9/32" | 50 | $26.34 |
| Bolt-191 | 1/4"-20 | 1.50" | .562" | 3/8" | 9/32" | 50 | $31.58 |
| Bolt-192 | 1/4"-20 | 1.75" | .562" | 3/8" | 9/32" | 50 | $31.58 |
| Bolt-193 | 1/4"-20 | 2.00" | .562" | 3/8" | 9/32" | 50 | $33.22 |
| Bolt-194 | 1/4"-20 | 2.25" | .562" | 3/8" | 9/32" | 50 | $43.05 |
| Bolt-195 | 1/4"-20 | 2.50" | .562" | 3/8" | 9/32" | 25 | $24.57 |
| Bolt-196 | 1/4"-20 | 2.75" | .562" | 3/8" | 9/32" | 25 | $29.17 |
| Bolt-197 | 1/4"-20 | 3.00" | .562" | 3/8" | 9/32" | 25 | $30.15 |
| Bolt-198 | 5/16"-18 | .500" | .687" | 1/2" | 21/64" | 50 | $28.72 |
| Bolt-199 | 5/16"-18 | .625" | .687" | 1/2" | 21/64" | 50 | $38.07 |

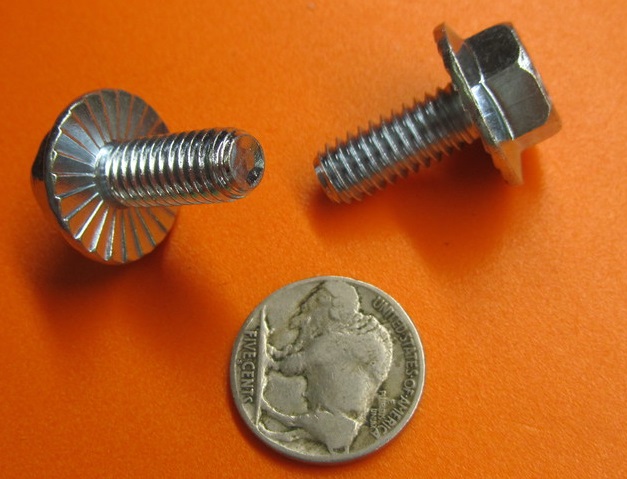

| Bolt-200 | 5/16"-18 | .750" | .687" | 1/2" | 21/64" | 50 | $29.48 |
| Bolt-201 | 5/16"-18 | .875" | .687" | 1/2" | 21/64" | 50 | $36.28 |
| Bolt-202 | 5/16"-18 | 1.00" | .687" | 1/2" | 21/64" | 50 | $33.39 |
| Bolt-203 | 5/16"-18 | 1.25" | .687" | 1/2" | 21/64" | 50 | $40.44 |
| Bolt-204 | 5/16"-18 | 1.50" | .687" | 1/2" | 21/64" | 25 | $26.73 |
| Bolt-205 | 5/16"-18 | 1.75" | .687" | 1/2" | 21/64" | 25 | $23.94 |
| Bolt-206 | 5/16"-18 | 2.00" | .687" | 1/2" | 21/64" | 25 | $27.59 |
| Bolt-207 | 5/16"-18 | 2.50" | .687" | 1/2" | 21/64" | 25 | $32.76 |
| Bolt-208 | 5/16"-18 | 3.00" | .687" | 1/2" | 21/64" | 20 | $29.90 |
| Bolt-209 | 3/8"-16 | .500" | .812" | 9/16" | 25/64" | 25 | $23.94 |
| Bolt-210 | 3/8"-16 | .625" | .812" | 9/16" | 25/64" | 25 | $30.68 |
| Bolt-211 | 3/8"-16 | .750" | .812" | 9/16" | 25/64" | 25 | $33.41 |
| Bolt-212 | 3/8"-16 | .875" | .812" | 9/16" | 25/64" | 25 | $33.60 |
| Bolt-213 | 3/8"-16 | 1.00" | .812" | 9/16" | 25/64" | 25 | $35.09 |
| Bolt-214 | 3/8"-16 | 1.25" | .812" | 9/16" | 25/64" | 25 | $37.71 |
| Bolt-215 | 3/8"-16 | 1.50" | .812" | 9/16" | 25/64" | 25 | $48.28 |
| Bolt-216 | 3/8"-16 | 1.75" | .812" | 9/16" | 25/64" | 20 | $38.34 |
| Bolt-217 | 3/8"-16 | 2.00" | .812" | 9/16" | 25/64" | 20 | $39.85 |
| Bolt-218 | 3/8"-16 | 2.25" | .812" | 9/16" | 25/64" | 20 | $39.98 |
| Bolt-219 | 3/8"-16 | 2.50" | .812" | 9/16" | 25/64" | 20 | $40.06 |
| Bolt-220 | 3/8"-16 | 2.75" | .812" | 9/16" | 25/64" | 20 | $46.28 |
| Bolt-221 | 3/8"-16 | 3.00" | .812" | 9/16" | 25/64" | 10 | $26.16 |
| Bolt-222 | 7/16"-14 | 1.00" | .937" | 5/8" | 15/32" | 20 | $34.35 |
| Bolt-223 | 7/16"-14 | 1.25" | .937" | 5/8" | 15/32" | 20 | $36.49 |
| Bolt-224 | 7/16"-14 | 1.50" | .937" | 5/8" | 15/32" | 20 | $44.81 |
| Bolt-225 | 1/2"-13 | .750" | 1.078" | 3/4" | 33/64" | 10 | $24.44 |
| Bolt-226 | 1/2"-13 | 1.00" | 1.078" | 3/4" | 33/64" | 10 | $26.81 |
| Bolt-227 | 1/2"-13 | 1.25" | 1.078" | 3/4" | 33/64" | 10 | $27.93 |
| Bolt-228 | 1/2"-13 | 1.50" | 1.078" | 3/4" | 33/64" | 10 | $34.92 |
| Bolt-229 | 1/2"-13 | 1.75" | 1.078" | 3/4" | 33/64" | 10 | $27.91 |
| Bolt-230 | 1/2"-13 | 2.00" | 1.078" | 3/4" | 33/64" | 10 | $39.90 |
| Bolt-231 | 1/2"-13 | 2.50" | 1.078" | 3/4" | 33/64" | 5 | $23.77 |
| Bolt-232 | 1/2"-13 | 3.00" | 1.078" | 3/4" | 33/64" | 5 | $28.58 |
| Bolt-233 | 5/8"-11 | 1.50" | 1.328" | 15/16" | 5/8" | 5 | $35.36 |
| Bolt-234 | 5/8"-11 | 1.75" | 1.328" | 15/16" | 5/8" | 5 | $33.47 |
| Bolt-235 | 5/8"-11 | 2.00" | 1.328" | 15/16" | 5/8" | 5 | $38.20 |
