.187" Thickness U-Channels
304 SS: Annealed. Operating Temperature -320° to 1600°F, ASTM A276, A479. 30,000 PSI Yield Sold in lengths of 84".
Aluminum 6063-T52: Meets ASTM-B221, ADMS-QQA-200/9.
Fiberglass GP03: High Strength, Non Conductive, Paintable, Operating Temperature: 0° to +285°F., UL 94VO Flame Retardant. Opaque Red.
Fiberglass: High Strength, Non Conductive, Paintable. Operating Temperature: -45° to +140°F. Sold in 5' lengths
Polypropylene: Chemical Resistant, Semi Flexible, UL 94 HB Rated, Operating Temperature 40° to +210°F. Sold in 5' lengths. Semi Translucent White in Color
PTFE: White, Low Friction, Impact Resistant, Insulating, UL94VO Rated Flame Retardant, FDA, 3A, ASTM D1710 AMS 3651
.187" Thickness U-Channels |
|||||
| Part # | Material | Outside Width | Height | Length | Price |
|---|---|---|---|---|---|
| U Channel-188 | 304 Stainless Steel | 3.00" | 1.50" | 84" | $436.96 |
| U Channel-446 | Aluminum Alloy 2024 | 2.00" | 2.50" | 36" | $637.43 |
| U Channel-447 | Aluminum Alloy 2024 | 2.00" | 2.50" | 72" | $1,118.26 |
| U Channel-452 | Aluminum Alloy 2024 | 2.50" | 1.75" | 36" | $559.66 |
| U Channel-453 | Aluminum Alloy 2024 | 2.50" | 1.75" | 72" | $981.83 |
| U Channel-425 | Aluminum Alloy 6063 | 5.00" | 2.00" | 48" | $250.84 |
| U Channel-358 | Fiberglass GPO-3 | 3.660" | 2.562" | 36" | $142.54 |
| U Channel-364 | Fiberglass GPO-3 | 3.660" | 2.562" | 72" | $237.49 |
| U Channel-360 | Fiberglass GPO-3 | 4.75" | 1.63" | 36" | $95.87 |
| U Channel-366 | Fiberglass GPO-3 | 4.75" | 1.63" | 72" | $159.84 |

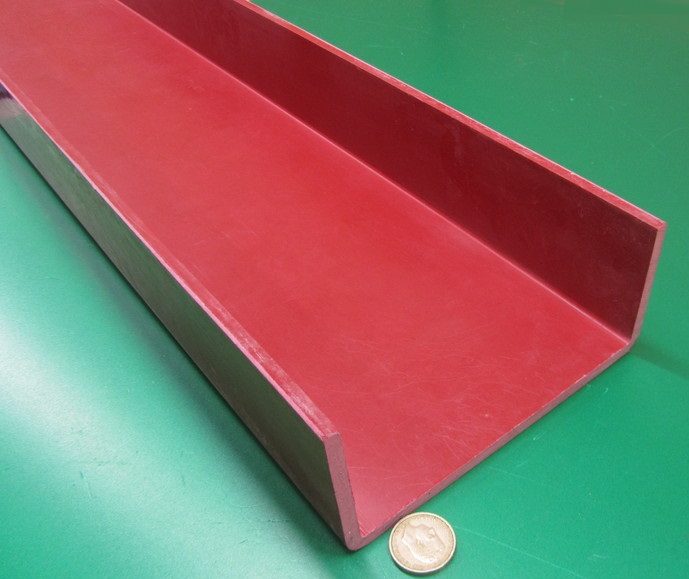

| U Channel-362 | Fiberglass GPO-3 | 6.50" | 2.75" | 36" | $178.16 |
| U Channel-377 | Fiberglass-Olive Green | 3.50" | 1.50" | 60" | $186.27 |
| U Channel-335 | Polyply GPO-3 | 3.656" | 2.562" | 76" | $16.04 |
| U Channel-337 | Polyply GPO-3 | 4.25" | 2.00" | 76" | $15.28 |
| U Channel-336 | Polyply GPO-3 | 4.75" | 1.625" | 76" | $15.28 |
| U Channel-338 | Polyply GPO-3 | 6.75" | 1.625" | 82" | $21.14 |
| U Channel-405 | Polypropylene | 2.50" | 2.25" | 60" | $289.49 |
| U Channel-406 | Polypropylene | 2.50" | 3.25" | 60" | $352.05 |
| U Channel-390 | PTFE | 1.880" | 2.50" | 60" | $1,569.27 |
