18/8 Stainless Steel Dowel Pins
| 18-8 Stainless Steel Dowel Pins, Metric Ends Chamfered, Bright Finish, Rockwell Hardness B80 |
|||||
| Part # | Diameter | Diameter Tolerance | Length | Pkg. Qty | Pkg. Price |
|---|---|---|---|---|---|
| DP-925 | 1mm | -0.006 | 3mm | 200 | $23.94 |
| DP-924 | 1mm | -0.006 | 4mm | 200 | $25.36 |
| DP-911 | 1mm | -0.006 | 5mm | 200 | $28.00 |
| DP-922 | 1mm | -0.006 | 6mm | 200 | $28.64 |
| DP-934 | 1mm | -0.006 | 8mm | 200 | $30.68 |
| DP-920 | 1mm | -0.006 | 10mm | 100 | $18.34 |
| DP-919 | 1mm | -0.006 | 20mm | 100 | $22.60 |
| DP-918 | 1.5mm | -0.006 | 5mm | 200 | $28.16 |
| DP-917 | 1.5mm | -0.006 | 6mm | 200 | $27.24 |
| DP-916 | 1.5mm | -0.006 | 8mm | 100 | $17.40 |
| DP-915 | 1.5mm | -0.006 | 10mm | 100 | $17.80 |
| DP-914 | 1.5mm | -0.006 | 12mm | 100 | $23.56 |
| DP-913 | 1.5mm | -0.006 | 14mm | 100 | $18.50 |
| DP-945 | 1.5mm | -0.006 | 20mm | 100 | $24.96 |
| DP-921 | 2mm | -0.006 | 4mm | 200 | $25.64 |
| DP-923 | 2mm | -0.006 | 5mm | 200 | $26.48 |
| DP-957 | 2mm | -0.006 | 6mm | 200 | $33.40 |
| DP-956 | 2mm | -0.006 | 8mm | 100 | $21.12 |
| DP-955 | 2mm | -0.006 | 10mm | 100 | $24.50 |
| DP-954 | 2mm | -0.006 | 12mm | 100 | $23.56 |
| DP-953 | 2mm | -0.006 | 14mm | 100 | $22.32 |
| DP-952 | 2mm | -0.006 | 16mm | 100 | $22.70 |
| DP-951 | 2mm | -0.006 | 18mm | 100 | $20.74 |
| DP-950 | 2mm | -0.006 | 20mm | 100 | $24.14 |
| DP-949 | 2mm | -0.006 | 24mm | 100 | $26.24 |
| DP-948 | 2.5mm | -0.006 | 6mm | 100 | $24.52 |
| DP-935 | 2.5mm | -0.006 | 8mm | 100 | $25.82 |
| DP-946 | 2.5mm | -0.006 | 10mm | 100 | $25.92 |
| DP-958 | 2.5mm | -0.006 | 14mm | 100 | $27.20 |
| DP-944 | 2.5mm | -0.006 | 20mm | 50 | $17.50 |
| DP-943 | 2.5mm | -0.006 | 24mm | 50 | $20.66 |
| DP-942 | 3mm | -0.006 | 6mm | 100 | $30.20 |
| DP-941 | 3mm | -0.006 | 8mm | 100 | $24.60 |
| DP-940 | 3mm | -0.006 | 10mm | 100 | $27.56 |
| DP-939 | 3mm | -0.006 | 12mm | 100 | $27.68 |
| DP-938 | 3mm | -0.006 | 14mm | 100 | $32.60 |
| DP-937 | 3mm | -0.006 | 16mm | 100 | $33.32 |
| DP-789 | 3mm | -0.006 | 18mm | 50 | $18.92 |
| DP-995 | 3mm | -0.006 | 20mm | 50 | $18.22 |
| DP-840 | 3mm | -0.006 | 24mm | 50 | $21.34 |
| DP-693 | 3mm | -0.006 | 32mm | 50 | $25.28 |
| DP-692 | 3mm | -0.006 | 40mm | 25 | $20.36 |
| DP-691 | 4mm | -0.008 | 6mm | 100 | $28.36 |
| DP-690 | 4mm | -0.008 | 8mm | 100 | $29.04 |
| DP-689 | 4mm | -0.008 | 10mm | 50 | $20.40 |
| DP-688 | 4mm | -0.008 | 12mm | 25 | $25.16 |
| DP-687 | 4mm | -0.008 | 14mm | 50 | $20.70 |
| DP-686 | 4mm | -0.008 | 16mm | 50 | $29.72 |
| DP-685 | 4mm | -0.008 | 20mm | 50 | $24.60 |
| DP-684 | 4mm | -0.008 | 24mm | 25 | $17.46 |
| DP-671 | 4mm | -0.008 | 28mm | 25 | $16.80 |
| DP-682 | 4mm | -0.008 | 32mm | 25 | $20.10 |
| DP-694 | 4mm | -0.008 | 40mm | 25 | $23.90 |
| DP-680 | 4mm | -0.008 | 50mm | 10 | $29.90 |
| DP-679 | 5mm | -0.008 | 8mm | 50 | $21.04 |
| DP-678 | 5mm | -0.008 | 10mm | 50 | $23.72 |
| DP-677 | 5mm | -0.008 | 12mm | 50 | $24.60 |
| DP-676 | 5mm | -0.008 | 14mm | 50 | $25.20 |
| DP-675 | 5mm | -0.008 | 16mm | 50 | $24.68 |
| DP-674 | 5mm | -0.008 | 20mm | 25 | $19.96 |
| DP-673 | 5mm | -0.008 | 24mm | 25 | $20.94 |
| DP-705 | 5mm | -0.008 | 28mm | 25 | $23.40 |
| DP-681 | 5mm | -0.008 | 32mm | 10 | $23.92 |

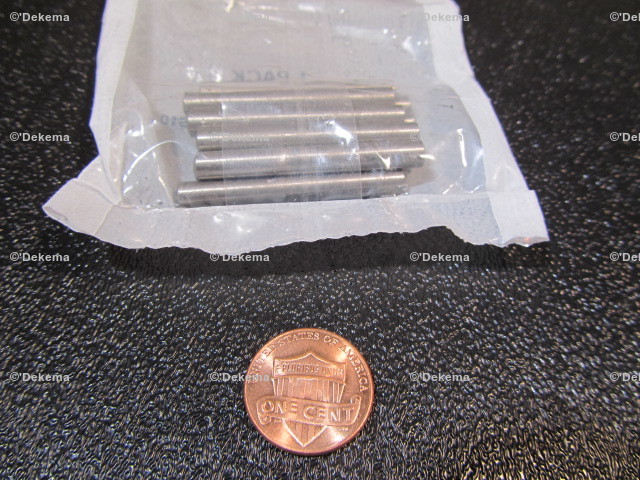

| DP-662 | 5mm | -0.008 | 40mm | 20 | $28.04 |
| DP-661 | 5mm | -0.008 | 45MM | 20 | $29.64 |
| DP-660 | 5mm | -0.008 | 50mm | 20 | $30.68 |
| DP-647 | 5mm | -0.008 | 60mm | 5 | $25.70 |
| DP-658 | 6mm | -0.008 | 10mm | 50 | $31.00 |
| DP-670 | 6mm | -0.008 | 12mm | 25 | $21.02 |
| DP-656 | 6mm | -0.008 | 14mm | 25 | $21.62 |
| DP-655 | 6mm | -0.008 | 16mm | 25 | $21.96 |
| DP-654 | 6mm | -0.008 | 18mm | 25 | $22.10 |
| DP-653 | 6mm | -0.008 | 20mm | 25 | $22.48 |
| DP-652 | 6mm | -0.008 | 24mm | 20 | $19.12 |
| DP-651 | 6mm | -0.008 | 28mm | 20 | $27.16 |
| DP-650 | 6mm | -0.008 | 32mm | 20 | $29.36 |
| DP-649 | 6mm | -0.008 | 36mm | 20 | $27.24 |
| DP-648 | 6mm | -0.008 | 40mm | 10 | $18.18 |
| DP-741 | 6mm | -0.008 | 50mm | 10 | $17.52 |
| DP-803 | 6mm | -0.008 | 60mm | 10 | $19.92 |
| DP-696 | 6mm | -0.008 | 70mm | 5 | $34.40 |
| DP-788 | 6mm | -0.008 | 80mm | 5 | $47.20 |
| DP-787 | 8mm | -0.009 | 10mm | 20 | $25.00 |
| DP-786 | 8mm | -0.009 | 12mm | 20 | $21.68 |
| DP-785 | 8mm | -0.009 | 14mm | 20 | $30.40 |
| DP-784 | 8mm | -0.009 | 16mm | 20 | $27.92 |
| DP-783 | 8mm | -0.009 | 20mm | 20 | $30.12 |
| DP-782 | 8mm | -0.009 | 24mm | 10 | $17.72 |
| DP-781 | 8mm | -0.009 | 28mm | 10 | $22.40 |
| DP-780 | 8mm | -0.009 | 32mm | 10 | $22.76 |
| DP-767 | 8mm | -0.009 | 36mm | 10 | $23.46 |
| DP-778 | 8mm | -0.009 | 40mm | 10 | $24.58 |
| DP-790 | 8mm | -0.009 | 50mm | 10 | $29.64 |
| DP-776 | 8mm | -0.009 | 60mm | 10 | $32.88 |
| DP-775 | 8mm | -0.009 | 70mm | 5 | $21.50 |
| DP-774 | 8mm | -0.009 | 80mm | 5 | $52.20 |
| DP-773 | 10mm | -0.009 | 14mm | 10 | $28.16 |
| DP-772 | 10mm | -0.009 | 20mm | 10 | $27.36 |
| DP-771 | 10mm | -0.009 | 32mm | 5 | $18.58 |
| DP-770 | 10mm | -0.009 | 36mm | 5 | $19.48 |
| DP-769 | 10mm | -0.009 | 40mm | 5 | $22.02 |
| DP-801 | 10mm | -0.009 | 50mm | 5 | $23.10 |
| DP-777 | 10mm | -0.009 | 60mm | 5 | $22.70 |
| DP-779 | 10mm | -0.009 | 70mm | 5 | $50.20 |
| DP-813 | 10mm | -0.009 | 80mm | 5 | $71.40 |
| DP-812 | 10mm | -0.009 | 90mm | 2 | $31.40 |
| DP-811 | 12mm | -0.009 | 20mm | 5 | $27.70 |
| DP-810 | 12mm | -0.009 | 36mm | 5 | $25.80 |
| DP-809 | 12mm | -0.009 | 40mm | 5 | $29.50 |
| DP-1012 | 12mm | -0.009 | 50mm | 5 | $38.50 |
