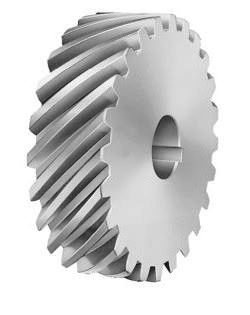

Steel Helical Gears
NOTE: 14.5 and 20 degree pressure angles are not compatible.
| Steel Helical Gears, 14.5 Degree Pressure Angle | |||||||||
| Part # | Pitch | No. of Teeth | Pitch Diameter | Helical OD | Bore Size | Face Width | Keyway | LH-RH | Price |
|---|---|---|---|---|---|---|---|---|---|
| Gear-014 | 16 | 16 | 1.00" | 1.088" | .500" | .500" | 1/8" | RH | $80.83 |
| Gear-046 | 16 | 48 | 3.00" | 3.088" | .500" | .500" | 1/8" | LH | $182.33 |
| Gear-009 | 20 | 20 | 1.00" | 1.071" | .500" | .375" | 1/8" | RH | $77.30 |
