Acetal Spur Gears
Bores +/-.0015", Metal insert +.001"/-.0005", OD Tooth Form +/-.005"
NOTE: 14.5 and 20 degree pressure angles are not compatible.
Acetal Spur Gears, 20 Degree pressure angle * with metal insert |
|||||||||
| Part # | Pitch | No. of Teeth | Pitch Diameter | Hub Diameter | Helical OD | Bore Size | Face Width | Pkg. Qty | Pkg. Price |
|---|---|---|---|---|---|---|---|---|---|
| Gear-337 | 20 | 12 | .600" | .470" | .700" | .250" | .380" | 2 | $20.74 |
| Gear-339 | 20 | 14 | .700" | .560" | .800" | .312" | .380" | 2 | $23.92 |
| Gear-340 | 20 | 15 | .750" | .590" | .850" | .312" | .380" | 2 | $25.02 |
| Gear-342 | 20 | 16 | .800" | .610" | .900" | .312" | .380" | 2 | $26.32 |
| Gear-343 | 20 | 17 | .850" | .670" | .950" | .312" | .380" | 2 | $27.46 |
| Gear-344 | 20 | 18 | .900" | .610" | 1.0" | .312" | .380" | 2 | $28.84 |
| Gear-345 | 20 | 19 | .950" | .730" | 1.05" | .375" | .380" | 2 | $29.34 |
| Gear-346 | 20 | 20 | 1.00" | .730" | 1.10" | .375" | .380" | 2 | $31.28 |
| Gear-347 | 20 | 21 | 1.05" | .730" | 1.15" | .375" | .380" | 2 | $31.90 |
| Gear-348 | 20 | 22 | 1.10" | .750" | 1.20" | .375" | .380" | 2 | $33.62 |
| Gear-349 | 20 | 23 | 1.15" | .730" | 1.25" | .375" | .380" | 2 | $34.84 |
| Gear-350 | 20 | 24 | 1.20" | .730" | 1.30" | .375" | .380" | 2 | $36.36 |
| Gear-351 | 20 | 25 | 1.25" | .730" | 1.35" | .375" | .380" | 2 | $37.36 |
| Gear-352 | 20 | 26 | 1.30" | .730" | 1.40" | .375" | .380" | 2 | $38.34 |
| Gear-353 | 20 | 28 | 1.40" | .730" | 1.40" | .375" | .380" | 2 | $39.92 |
| Gear-354 | 20 | 30 | 1.50" | .730" | 1.60" | .375" | .380" | 1 | $21.11 |
| Gear-355 | 20 | 32 | 1.60" | .730" | 1.70" | .375" | .380" | 1 | $22.73 |
| Gear-356 | 20 | 35 | 1.75" | .730" | 1.85" | .375" | .380" | 1 | $23.00 |
| Gear-357 | 20 | 36 | 1.80" | .730" | 1.90" | .375" | .380" | 1 | $25.11 |
| Gear-358 | 20 | 38 | 1.90" | .730" | 2.00" | .375" | .380" | 1 | $25.67 |
| Gear-359 | 20 | 40 | 2.00" | .730" | 2.10" | .375" | .380" | 1 | $26.37 |
| Gear-360 | 20 | 41 | 2.05" | .730" | 2.15" | .375" | .380" | 1 | $28.19 |
| Gear-361 | 20 | 42 | 2.10" | .730" | 2.20" | .375" | .380" | 1 | $28.87 |
| Gear-362 | 20 | 44 | 2.20" | .730" | 2.30" | .375" | .380" | 1 | $30.17 |
| Gear-363 | 20 | 45 | 2.25" | .730" | 2.35" | .375" | .380" | 1 | $30.74 |
| Gear-364 | 20 | 46 | 2.30" | .730" | 2.40" | .375" | .380" | 1 | $31.39 |
| Gear-365 | 20 | 48 | 2.40" | .730" | 2.50" | .375" | .380" | 1 | $32.66 |
| Gear-366 | 20 | 50 | 2.50" | .750" | 2.60" | .375" | .380" | 1 | $33.82 |
| Gear-367 | 20 | 70 | 3.50" | .750" | 3.60" | .375" | .380" | 1 | $43.13 |
| Gear-369 | 24 | 15 | .625" | .480" | .709" | .187" | .250" | 2 | $20.74 |
| Gear-370 | 24 | 16 | .667" | .480" | .750" | .187" | .250" | 2 | $21.78 |
| Gear-371 | 24 | 17 | .709" | .550" | .791" | .187" | .250" | 2 | $23.32 |
| Gear-372 | 24 | 18 | .750" | .550" | .833" | .187" | .250" | 2 | $24.52 |
| Gear-374 | 24 | 21 | .875" | .550" | .959" | .187" | .250" | 2 | $27.46 |
| Gear-375 | 24 | 22 | .917" | .550" | 1.00" | .187" | .250" | 1 | $32.24 |
| Gear-376 | 24 | 23 | .959" | .550" | 1.041" | .187" | .250" | 2 | $29.80 |
| Gear-377 | 24 | 24 | 1.00" | .630" | 1.083" | .250" | .250" | 2 | $30.56 |
| Gear-378 | 24 | 25 | 1.041" | .610" | 1.125" | .250" | .250" | 2 | $31.60 |
| Gear-379 | 24 | 26 | 1.083" | .630" | 1.167" | .250" | .250" | 2 | $32.72 |
| Gear-380 | 24 | 27 | 1.125" | .630" | 1.208" | .250" | .250" | 2 | $33.62 |
| Gear-381 | 24 | 28 | 1.167" | .630" | 1.25" | .250" | .250" | 2 | $34.74 |
| Gear-382 | 24 | 30 | 1.25" | .630" | 1.333" | .250" | .250" | 2 | $36.94 |
| Gear-384 | 24 | 33 | 1.375" | .610" | 1.458" | .250" | .250" | 2 | $39.92 |
| Gear-385 | 24 | 34 | 1.416" | .610" | 1.50" | .250" | .250" | 1 | $20.50 |
| Gear-386 | 24 | 36 | 1.50" | .630" | 1.583" | .250" | .250" | 1 | $21.47 |
| Gear-391 | 24 | 45 | 1.875" | .670" | 1.958" | .312" | .250" | 1 | $59.13 |
| Gear-396 | 24 | 56 | 2.333" | .670" | 2.417" | .312" | .250" | 1 | $31.84 |
| Gear-397 | 24 | 60 | 2.50" | .670" | 2.583" | .312" | .250" | 1 | $33.86 |
| Gear-398 | 32 | 12 | .375" | .280" | .438" | .156" | .188" | 3 | $25.65 |

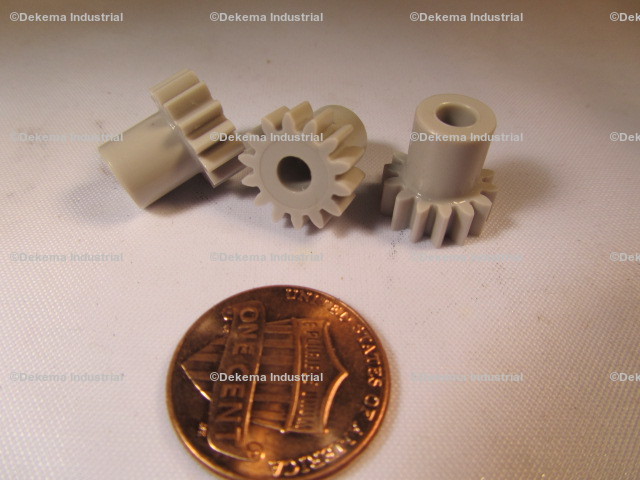

| Gear-399 | 32 | 14 | .438" | .310" | .500" | .156" | .188" | 3 | $25.65 |
| Gear-401 | 32 | 18 | .562" | .340" | .625" | .156" | .188" | 3 | $28.89 |
| Gear-402 | 32 | 20 | .625" | .470" | .688" | .187" | .188" | 1 | $20.74 |
| Gear-403 | 32 | 22 | .688" | .500" | .750" | .187" | .188" | 2 | $23.08 |
| Gear-404 | 32 | 24 | .750" | .500" | .813" | .187" | .188" | 2 | $24.70 |
| Gear-405 | 32 | 26 | .813" | .560" | .875" | .187" | .188" | 2 | $26.32 |
| Gear-406 | 32 | 28 | .875" | .500" | .938" | .187" | .188" | 2 | $27.94 |
| Gear-407 | 32 | 30 | .938" | .560" | 1.00" | .187" | .188" | 2 | $29.80 |
| Gear-408 | 32 | 32 | 1.00" | .630" | 1.062" | .250" | .188" | 2 | $31.28 |
| Gear-410 | 32 | 38 | 1.187" | .610" | 1.25" | .250" | .188" | 2 | $36.36 |
| Gear-411 | 32 | 40 | 1.25" | .610" | 1.312" | .250" | .188" | 2 | $28.08 |
| Gear-465* | 32 | 42 | 1.312" | .610" | 1.375" | .250" | .188" | 1 | $22.48 |
| Gear-413 | 32 | 44 | 1.375" | .610" | 1.438" | .250" | .188" | 1 | $20.57 |
| Gear-414 | 32 | 48 | 1.50" | .630" | 1.563" | .250" | .188" | 1 | $21.62 |
| Gear-466* | 32 | 48 | 1.50" | .630" | 1.563" | .250" | .188" | 1 | $24.35 |
| Gear-416 | 32 | 52 | 1.625" | .670" | 1.688" | .312" | .188" | 1 | $22.73 |
| Gear-467* | 32 | 52 | 1.625" | .670" | 1.688" | .312" | .188" | 1 | $25.31 |
| Gear-468* | 32 | 53 | 1.656" | .670" | 1.719" | .312" | .188" | 1 | $25.67 |
| Gear-469* | 32 | 56 | 1.75" | .670" | 1.813" | .312" | .188" | 1 | $26.37 |
| Gear-418 | 32 | 64 | 2.00" | .670" | 2.063" | .312" | .188" | 1 | $26.37 |
| Gear-470* | 32 | 64 | 2.00" | .670" | 2.063" | .312" | .188" | 1 | $29.00 |
| Gear-421 | 32 | 72 | 2.25" | .810" | 2.313" | .312" | .188" | 1 | $28.87 |
| Gear-471* | 32 | 72 | 2.25" | .810" | 2.063" | .312" | .188" | 1 | $31.59 |
| Gear-472* | 32 | 80 | 2.50" | .810" | 2.563" | .312" | .188" | 1 | $34.16 |
| Gear-419 | 32 | 96 | 3.00" | .810" | 3.063" | .312" | .188" | 1 | $36.61 |
| Gear-423 | 48 | 18 | .375" | .310" | .417" | .156" | .125" | 2 | $26.65 |
| Gear-474* | 48 | 18 | .375" | .313" | .417" | .125" | .125" | 2 | $22.60 |
| Gear-424 | 48 | 19 | .396" | .310" | .438" | .156" | .125" | 3 | $25.65 |
| Gear-475* | 48 | 19 | .396" | .313" | .438" | .125" | .125" | 2 | $22.60 |
| Gear-426 | 48 | 20 | .417" | .340" | .458" | .156" | .125" | 3 | $25.65 |
| Gear-477* | 48 | 20 | .417" | .340" | .458" | .125 | .125" | 2 | $22.60 |
| Gear-427 | 48 | 21 | .438" | .340" | .479" | .156" | .125" | 3 | $25.65 |
| Gear-478* | 48 | 21 | .438" | .340" | .479" | .125" | .125" | 2 | $22.60 |
| Gear-479* | 48 | 22 | .458" | .380" | .500" | .125" | .125" | 2 | $22.60 |
| Gear-429 | 48 | 23 | .479" | .380" | .521" | .156" | .188" | 3 | $25.86 |
| Gear-480* | 48 | 23 | .479" | .380" | .542" | .125" | .125" | 2 | $22.64 |
| Gear-430 | 48 | 24 | .500" | .410" | .542" | .156" | .188" | 3 | $26.25 |
| Gear-481* | 48 | 24 | .500" | .410" | .542" | .125" | .125" | 2 | $23.00 |
| Gear-482* | 48 | 24 | .521" | .410" | .562" | .125" | .125" | 2 | $23.32 |
| Gear-431 | 48 | 25 | .521" | .410" | .562" | .156" | .188" | 3 | $26.73 |
| Gear-432 | 48 | 26 | .542" | .450" | .583" | .156" | .188" | 3 | $26.88 |
| Gear-483* | 48 | 26 | .542" | .450" | .583" | .187" | .125" | 2 | $21.40 |
| Gear-433 | 48 | 27 | .562" | .450" | .604" | .156" | .125" | 3 | $27.21 |
| Gear-484* | 48 | 27 | .562" | .450" | .604" | .187" | .125" | 2 | $23.56 |
| Gear-434 | 48 | 28 | .583" | .480" | .625" | .156" | .125" | 3 | $27.96 |
| Gear-435 | 48 | 29 | .604" | .480" | .646" | .156" | .125" | 3 | $28.29 |
| Gear-486* | 48 | 29 | .604" | .480" | .646" | .187" | .125" | 2 | $24.30 |

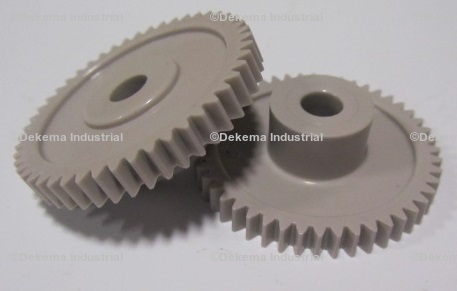

| Gear-436 | 48 | 30 | .625" | .500" | .667" | .156" | .125" | 3 | $29.16 |
| Gear-437 | 48 | 31 | .646" | .550" | .688" | .187" | .125" | 3 | $29.91 |
| Gear-488* | 48 | 31 | .646" | .550" | .688" | .187" | .125" | 2 | $25.34 |
| Gear-438 | 48 | 32 | .667" | .550" | .708" | .187" | .125" | 2 | $20.34 |
| Gear-489* | 48 | 32 | .667" | .550" | .708" | .187" | .125" | 2 | $25.60 |
| Gear-383 | 48 | 32 | 1.333" | .610" | 1.416" | .250" | .250" | 2 | $38.80 |
| Gear-439 | 48 | 33 | .688" | .550" | .729" | .187" | .125" | 2 | $20.64 |
| Gear-490* | 48 | 33 | .688" | .550" | .729" | .187" | .125" | 2 | $25.92 |
| Gear-440 | 48 | 34 | .708" | .550" | .750" | .187" | .125" | 2 | $21.16 |
| Gear-491* | 48 | 34 | .708" | .550" | .750" | .187" | .125" | 2 | $26.42 |
| Gear-441 | 48 | 35 | .729" | .550" | .771" | .187" | .125" | 2 | $21.16 |
| Gear-492* | 48 | 35 | .729" | .550" | .771" | .187" | .125" | 2 | $26.42 |
| Gear-442 | 48 | 36 | .750" | .550" | .792" | .187" | .125" | 2 | $21.70 |
| Gear-443 | 48 | 37 | .771" | .550" | .813" | .187" | .125" | 2 | $26.96 |
| Gear-444 | 48 | 39 | .813" | .550" | .875" | .187" | .125" | 2 | $23.18 |
| Gear-496* | 48 | 39 | .813" | .550" | .854" | .187" | .125" | 2 | $28.66 |
| Gear-387 | 48 | 39 | 1.625" | .670" | 1.708" | .312" | .250" | 1 | $23.13 |
| Gear-445 | 48 | 40 | .833" | .550" | .875" | .187" | .188" | 1 | $23.13 |
| Gear-497* | 48 | 40 | .833" | .550" | .875" | .187" | .125" | 2 | $29.16 |
| Gear-464* | 48 | 40 | 1.25" | .610" | 1.312" | .250" | .188" | 1 | $21.71 |
| Gear-446 | 48 | 42 | .875" | .550" | .917" | .187" | .125" | 2 | $25.52 |
| Gear-498* | 48 | 42 | .875" | .550" | .917" | .187" | .125" | 2 | $29.98 |
| Gear-389 | 48 | 42 | 1.75" | .670" | 1.833" | .312" | .250" | 1 | $24.62 |
| Gear-447 | 48 | 44 | .917" | .550" | .958" | .187" | .125" | 2 | $25.12 |
| Gear-499* | 48 | 44 | .917" | .550" | .958" | .187" | .125" | 2 | $30.60 |
| Gear-390 | 48 | 44 | 1.833" | .670" | 1.917" | .312" | .250" | 1 | $25.67 |
| Gear-500* | 48 | 45 | .938" | .550" | .979" | .187" | .125" | 2 | $31.60 |
| Gear-449 | 48 | 48 | 1.00" | .610" | 1.042" | .250" | .125" | 2 | $26.64 |
| Gear-392 | 48 | 48 | 2.00" | .670" | 2.083" | .312" | .250" | 1 | $27.70 |
| Gear-393 | 48 | 50 | 2.083" | .670" | 2.167" | .312" | .250" | 1 | $28.76 |
| Gear-450 | 48 | 52 | 1.083" | .610" | 1.125" | .250" | .125" | 2 | $27.86 |
| Gear-501* | 48 | 52 | 1.083" | .610" | 1.125" | .250" | .125" | 2 | $33.21 |
| Gear-394 | 48 | 52 | 2.166" | .670" | 2.25" | .312" | .250" | 1 | $29.81 |
| Gear-451 | 48 | 54 | 1.125" | .610" | 1.168" | .250" | .125" | 2 | $28.74 |
| Gear-502* | 48 | 54 | 1.125" | .610" | 1.167" | .250" | .125" | 2 | $33.94 |
| Gear-395 | 48 | 54 | 2.25" | .670" | 2.333" | .312" | .250" | 1 | $30.78 |
| Gear-503* | 48 | 56 | 1.167" | .610" | 1.208" | .250" | .125" | 2 | $34.68 |
| Gear-452 | 48 | 56 | 1.168" | .610" | 1.208" | .250" | .125" | 2 | $29.48 |
| Gear-453 | 48 | 60 | 1.25" | .610" | 1.292" | .250" | .125" | 2 | $29.98 |
| Gear-504* | 48 | 60 | 1.25" | .610" | 1.292" | .250" | .125" | 2 | $35.14 |
| Gear-454 | 48 | 64 | 1.333" | .610" | 1.375" | .250" | .125" | 2 | $32.00 |
| Gear-455 | 48 | 66 | 1.375" | .610" | 1.417" | .250" | .125" | 2 | $33.62 |
| Gear-506* | 48 | 66 | 1.375" | .610" | 1.1416" | .250" | .125" | 2 | $39.10 |
| Gear-456 | 48 | 72 | 1.50" | .610" | 1.542" | .250" | .125" | 2 | $35.24 |
| Gear-507* | 48 | 72 | 1.50" | .610" | 1.542" | .250" | .125" | 1 | $20.41 |
| Gear-457 | 48 | 80 | 1.667" | .610" | 1.708" | .250" | .125" | 2 | $38.70 |
| Gear-508* | 48 | 80 | 1.667" | .610" | 1.708" | .250" | .125" | 1 | $22.07 |
| Gear-509* | 48 | 84 | 1.75" | .610" | 1.792" | .250" | .125" | 1 | $22.93 |
| Gear-459 | 48 | 96 | 2.00" | .610" | 2.042" | .250" | .125" | 1 | $21.83 |
| Gear-510* | 48 | 96 | 2.00" | .610" | 2.042" | .250" | .125" | 1 | $24.50 |
| Gear-460 | 48 | 100 | 2.083" | .610" | 2.125" | .468" | .250" | 1 | $22.73 |
| Gear-511* | 48 | 100 | 2.083" | .610" | 2.125" | .250" | .125" | 1 | $25.31 |
| Gear-512* | 48 | 108 | 2.25" | .610" | 2.292" | .250" | .250" | 1 | $27.05 |
| Gear-463 | 48 | 120 | 2.50" | .610" | 2.542" | .468" | .250" | 1 | $26.84 |
| Gear-513* | 48 | 120 | 2.50" | .610" | 2.542" | .250" | .125" | 1 | $29.48 |
