M10 Thread Steel Hex Nuts
Hex Nuts M10 & M10 Threads 18-8 Stainless Steel |
||||||||
| Thread Size | Pitch (mm) | Height | Direction | Specifications Met | Width | Part # | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| M10 | 1.00 | 5mm | Right Hand | DIN 439B | 17mm | DHN-1796 | 1 | $15.18 |
| M10 | 1.25 | 5mm | Right Hand | DIN 439B | 17mm | DHN-1795 | 1 | $7.45 |
| M10 | 1.50 | 5mm | Right Hand | DIN 439B | 17mm | DHN-853 | 25 | $19.72 |

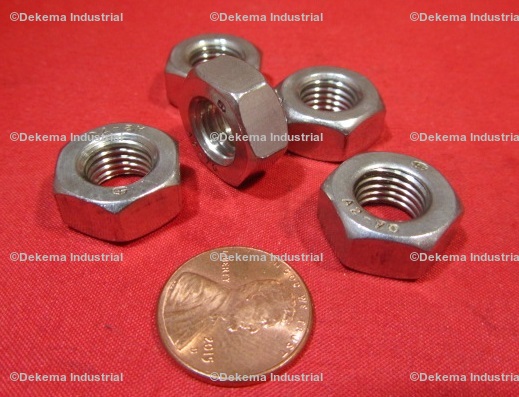

| M10 | 1.50 | 8mm | Right Hand | DIN 934 | 17mm | DHN-484 | 50 | $26.14 |
| M10 | 1.50 | 8mm | Left Hand | DIN 934L | 17mm | DHN-581 | 5 | $17.87 |
| M10 | 1.0 | 8mm | Right Hand | DIN 134 | 17mm | DHN-559 | 10 | $32.80 |

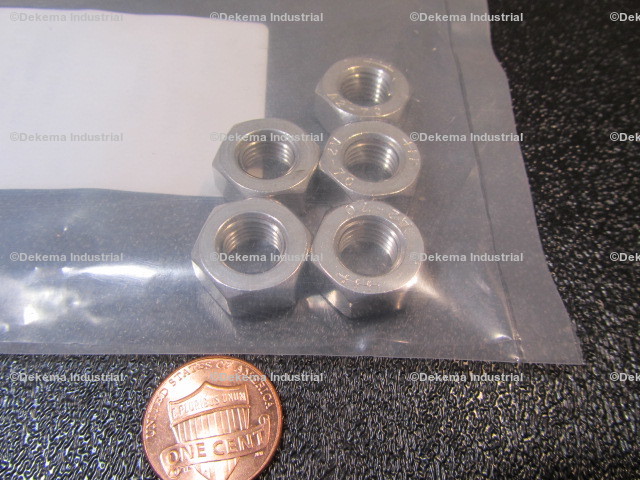

| M10 | 1.25 | 8mm | Right Hand | DIN 134 | 17mm | DHN-560 | 5 | $23.56 |
