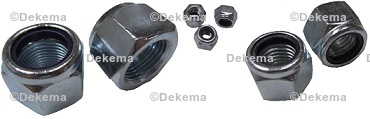

Grade 5 Steel Lock Nuts
Insert has a maximum temperature of 220°F
Zinc Plated
Zinc Plated
| Part # | Thread Size | Width | Height | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|
| DHN-1171 | 1/4"-20 | 7/16" | 5/16" | 100 | $16.88 |
| DHN-1172 | 1/4"-28 | 7/16" | 5/16" | 100 | $22.08 |
| DHN-1173 | 5/16"-18 | 1/2" | 11/32" | 100 | $24.72 |
| DHN-1174 | 5/16"-24 | 1/2" | 11/32" | 100 | $22.32 |
| DHN-1175 | 3/8"-16 | 9/16" | 29/64" | 100 | $22.51 |
| DHN-1176 | 3/8"-24 | 9/16" | 29/64" | 100 | $23.71 |
| DHN-1177 | 7/16"-14 | 5/8" | 29/64" | 100 | $30.26 |
| DHN-1178 | 7/16"-20 | 5/8" | 29/64" | 100 | $31.21 |
| DHN-1179 | 1/2"-13 | 3/4" | 19/32" | 50 | $25.26 |
| DHN-1180 | 1/2"-20 | 3/4" | 19/32" | 50 | $25.26 |
| DHN-1181 | 9/16"-12 | 7/8" | 41/64" | 25 | $21.06 |
| DHN-1182 | 9/16"-18 | 7/8" | 41/64" | 25 | $27.78 |
| DHN-1183 | 5/8"-11 | 15/16" | 3/4" | 25 | $24.41 |
| DHN-1402 | 5/8"-11 | 15/16" | 25/64" | 25 | $23.81 |
| DHN-1184 | 5/8"-18 | 15/16" | 3/4" | 25 | $27.00 |
| DHN-1403 | 5/8"-18 | 15/16" | 25/64" | 25 | $24.61 |
| DHN-1185 | 3/4"-10 | 1 1/16" | 7/8" | 10 | $27.84 |
| DHN-1404 | 3/4"-10 | 1 1/16" | 13/32" | 10 | $27.20 |

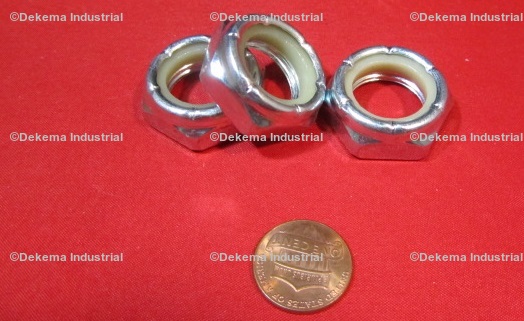

| DHN-1405 | 3/4"-16 | 1 1/16" | 13/32" | 10 | $27.72 |
| DHN-1186 | 3/4"-16 | 1 1/16" | 7/8" | 10 | $27.84 |
| DHN-1187 | 7/8"-9 | 1 1/4" | 63/64" | 5 | $24.24 |
| DHN-1188 | 7/8"-14 | 1 1/4" | 63/64" | 5 | $23.84 |
| DHN-1406 | 7/8"-14 | 1 1/4" | 15/32" | 5 | $21.60 |
| DHN-1189 | 1"-8 | 1 7/16" | 1 3/64" | 5 | $23.08 |
| DHN-1407 | 1"-8 | 1 7/16" | 35/64" | 1 | $23.34 |
| DHN-1408 | 1"-14 | 1 7/16" | 35/64" | 1 | $21.90 |
| DHN-1190 | 1"-14 | 1 7/16" | 1 3/64" | 5 | $24.73 |
| DHN-1191 | 1 1/8"-7 | 1 5/8" | 1 11/64" | 1 | $25.80 |
| DHN-1409 | 1 1/8"-7 | 1 5/8" | 41/64" | 1 | $24.72 |
| DHN-1410 | 1 1/4"-7 | 1 13/16" | 3/4" | 1 | $24.26 |
| DHN-1192 | 1 1/4"-7 | 1 13/16" | 1 25/64" | 1 | $17.30 |
| DHN-1411 | 1 1/4"-12 | 1 13/16" | 3/4" | 1 | $51.83 |
| DHN-1412 | 1 1/2"-6 | 2 3/16" | 51/64" | 1 | $26.88 |
| DHN-1193 | 1 1/2"-6 | 2 13/64" | 1 39/64" | 1 | $29.46 |
