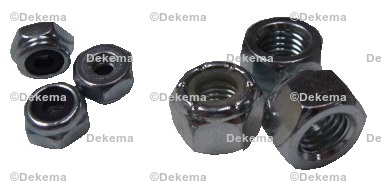

Zinc Plated Metric Lock Nuts
Zinc Plated Lock Nuts, Class 8, DIN985
Insert has a maximum temperature of 220°F
| Part # | Thread Size | Pitch (mm) | Width (mm) | Height (mm) | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|
| DHN-1194 | M3 | 0.5 | 5.5 | 4 | 100 | $6.38 |
| DHN-1195 | M4 | 0.7 | 7 | 5 | 100 | $8.44 |
| DHN-1196 | M5 | 0.8 | 8 | 5 | 100 | $8.75 |
| DHN-1197 | M6 | 1 | 10 | 6 | 100 | $6.44 |
| DHN-1208 | M8 | 1 | 13 | 8 | 25 | $18.81 |
| DHN-1198 | M8 | 1.25 | 13 | 8 | 100 | $28.91 |
| DHN-1209 | M10 | 1.25 | 17 | 10 | 25 | $13.42 |

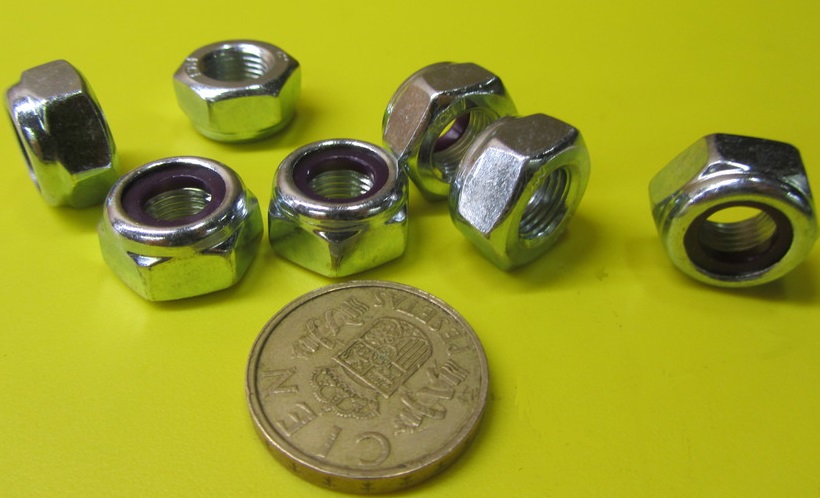

| DHN-1210 | M10 | 1 | 17 | 10 | 50 | $22.13 |
| DHN-1199 | M10 | 1.5 | 17 | 10 | 50 | $13.73 |

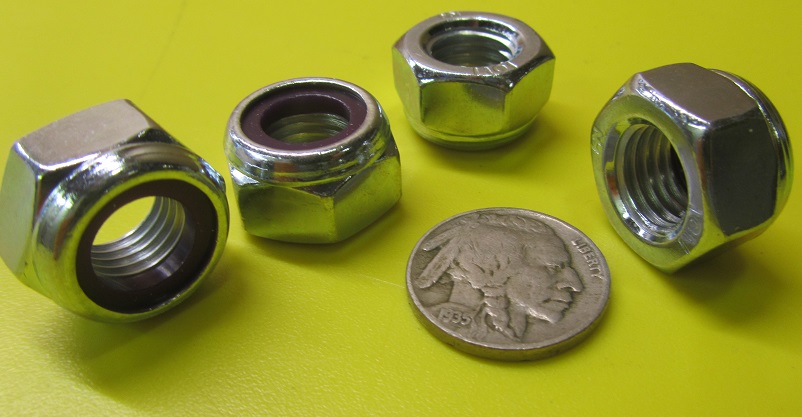

| DHN-1211 | M12 | 1.5 | 19 | 12 | 50 | $24.04 |
| DHN-1213 | M12 | 1 | 19 | 12 | 10 | $22.28 |
| DHN-1212 | M12 | 1.25 | 19 | 12 | 25 | $33.74 |
| DHN-1200 | M12 | 1.75 | 19 | 12 | 50 | $18.77 |
| DHN-1214 | M14 | 1.5 | 22 | 14 | 25 | $26.33 |

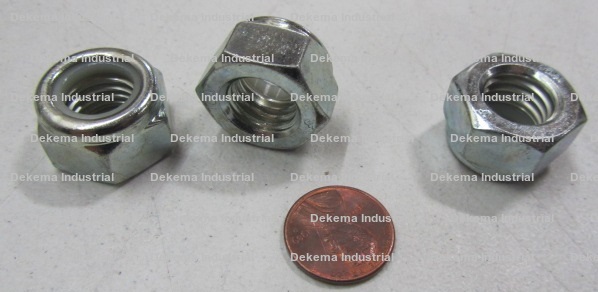

| DHN-1201 | M14 | 2 | 22 | 14 | 50 | $31.56 |
| DHN-1215 | M16 | 1.5 | 24 | 16 | 25 | $21.86 |
| DHN-1202 | M16 | 2 | 24 | 16 | 25 | $19.95 |

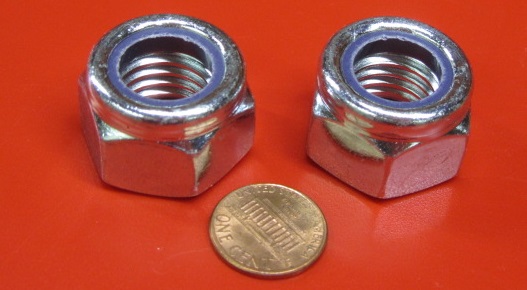

| DHN-1203 | M18 | 2.5 | 27 | 18.5 | 25 | $31.56 |
| DHN-1204 | M20 | 2.5 | 30 | 20 | 10 | $14.36 |
| DHN-1205 | M24 | 3 | 36 | 24 | 5 | $39.69 |
| DHN-1206 | M27 | 3 | 41 | 27 | 1 | $21.02 |
| DHN-1207 | M30 | 3.5 | 46 | 30 | 1 | $22.45 |
| Zinc Plated Lock Nuts, Class 10, DIN985 | |||||||
| Part # | Thread Size | Pitch (mm) | Width (mm) | Height (mm) | Pkg. Qty. | Pkg. Price | |
|---|---|---|---|---|---|---|---|
| DHN-1158 | M4 | 0.7 | 7 | 5 | 100 | $27.73 | |
| DHN-1159 | M5 | 0.8 | 8 | 5 | 100 | $32.78 | |
| DHN-1160 | M6 | 1 | 10 | 6 | 100 | $26.43 | |
| DHN-1161 | M8 | 1.25 | 13 | 8 | 50 | $32.76 | |
| DHN-1169 | M10 | 1 | 17 | 10 | 25 | $25.68 | |
| DHN-1162 | M10 | 1.5 | 17 | 10 | 25 | $24.98 | |
| DHN-1170 | M12 | 1.5 | 19 | 12 | 10 | $24.44 | |
| DHN-1163 | M12 | 1.75 | 19 | 12 | 10 | $21.76 | |
| DHN-1164 | M14 | 2 | 22 | 14 | 10 | $29.81 | |
| DHN-1165 | M16 | 2 | 24 | 16 | 10 | $35.33 | |
| DHN-1166 | M18 | 2.5 | 27 | 18.5 | 5 | $27.96 | |
| DHN-1167 | M20 | 2.5 | 30 | 20 | 5 | $31.10 | |
| DHN-1168 | M24 | 3 | 36 | 24 | 1 | $21.04 | |
