1"-8, 1"-12, 1"-14 Inch Thread Hex Nuts
Hex Nut 1"- 8, 1"-12, & 1"-14 Thread Standard Threads 60 Degrees, ANSI/ASME B12.2.2 |
||||||||
| Thread Size | Height | Finish | Direction | Grade-Class | Width | Part # | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| 1"-8 | 35/64 | Plain | Left Hand | Grade 2 | 1.50" | DHN-827 | 5 | $37.61 |
| 1"-8 | 35/64 | Plain | Right Hand | Grade 2 | 1.50" | DHN-769 | 20 | $28.60 |
| 1"-8 | 35/64 | Plain | Right Hand | Grade 2 | 1.625" | DHN-2050 | 25 | $25.36 |
| 1"-8 | 35/64 | Plain | Right Hand | Grade 2H | 1.625" | DHN-2017 | 1 | $12.64 |
| 1"-8 | 63/64 | Plain | Right Hand | Grade C | 1.625" | DHN-2002 | 5 | $26.65 |
| 1"-8 | 63/64 | Plain | Right Hand | Grade DH | 1.625" | DHN-1994 | 1 | $8.04 |
| 1"-8 | 63/64 | Plain | Right Hand | Grade 2 | 1.625" | DHN-967 | 10 | $35.42 |
| 1"-8 | 55/64 | Plain | Left Hand | Grade 2 | 1.50" | DHN-1756 | 25 | $33.40 |

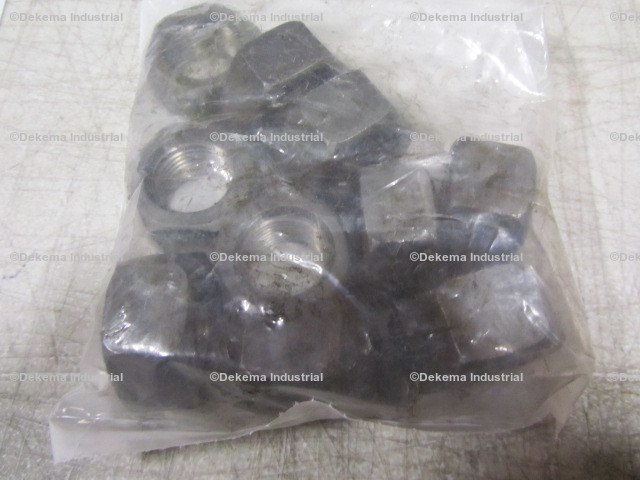

| 1"-8 | 55/64 | Plain | Right Hand | Grade 2 | 1.50" | DHN-207 | 10 | $39.62 |
| 1"-8 | 55/64 | Black-Oxide | Right Hand | Grade 5 | 1.50" | DHN-298 | 5 | $33.64 |
| 1"-8 | 55/64 | Plain | Right Hand | Grade 5 | 1.50" | DHN-1640 | 5 | $6.38 |
| 1"-8 | 55/64 | Plain | Left Hand | Grade 5 | 1.50" | DHN-1721 | 50 | $20.83 |
| 1"-8 | 63/64 | Plain | Right Hand | Grade 5 | 1.625" | DHN-1946 | 1 | $7.79 |
| 1"-8 | 63/64 | Plain | Left Hand | Grade 5 | 1.625" | DHN-1953 | 1 | $15.75 |
| 1"-8 | 55/64 | Plain | Right Hand | Grade 8 | 1.50" | DHN-101 | 10 | $35.89 |
| 1"-8 | 1 5/16" | Plain | Right Hand | Grade 8 | 1.50" | DHN-2068 | 1 | $33.72 |
| 1"-8 | 1.0" | Cadmium Chromate | Right Hand | Grade 9 | 1.500" | DHN-1593 | 1 | $28.04 |
| 1"-12 | 55/64 | Plain | Right Hand | Grade 2 | 1.50" | DHN-208 | 10 | $33.18 |
| 1"-14 | 55/64 | Plain | Right Hand | Grade 2 | 1.50" | DHN-209 | 10 | $17.26 |
| 1"-14 | 55/64 | Plain | Left Hand | Grade 2 | 1.50" | DHN-1756 | 25 | $33.32 |
| 1"-14 | 35/64 | Plain | Left Hand | Grade 2 | 1.50" | DHN-828 | 5 | $59.03 |
| 1"-14 | 35/64 | Plain | Right Hand | Grade 2 | 1.50" | DHN-770 | 10 | $17.26 |
| 1"-12 | 55/64 | Plain | Right Hand | Grade 5 | 1.50" | DHN-1641 | 1 | $7.87 |
| 1"-12 | 55/64 | Plain | Right Hand | Grade 8 | 1.50" | DHN-102 | 1 | $7.72 |
| 1"-14 | 55/64 | Plain | Right Hand | Grade 8 | 1.50" | DHN-103 | 10 | $17.93 |
| 1"-14 | 1 5/16" | Plain | Right Hand | Grade 8 | 1.437" | DHN-2069 | 5 | $50.48 |
| 1"-14 | 1 7/16 | Plain | Right Hand | Grade 8 | 1.312" | DHN-1075 | 5 | $33.56 |
| 1"-14 | 1.0" | Cadmium Chromate | Right Hand | Grade 9 | 1.500" | DHN-1594 | 1 | $34.66 |
