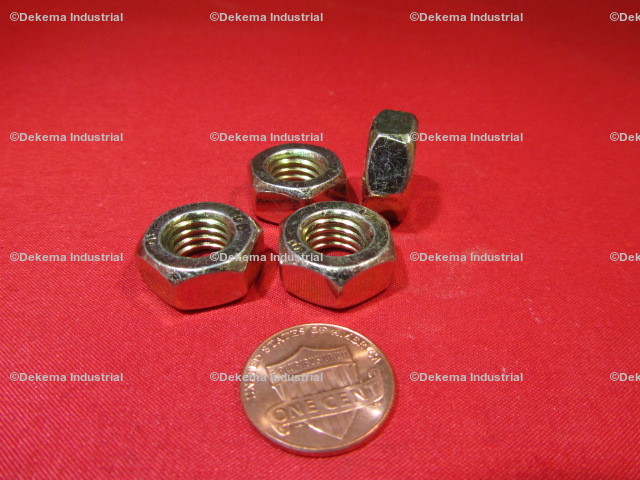

M10 Thread Hex Nuts Zinc Plated Steel
Zinc Plated Hex Nut M10 Thread |
|||||||||
| Thread Size | Pitch (mm) | Height | Width (mm) | Direction | Grade-Class | Specifications Met | Part # | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|---|
| M10 | 1.50 | 10mm | 17mm | Right Hand | Class 8 | ANSI/ASME B18.2.2 | DHN-1052 | 25 | $36.76 |
| M10 | 1.50 | 5mm | 17mm | Right Hand | Class 4 | DIN 439B | DHN-880 | 100 | $27.06 |
| M10 | 1.50 | 8mm | 17mm | Right Hand | Class 8 | DIN 934 | DHN-1663 | 100 | $26.28 |
| M10 | 1.50 | 10mm | 17mm | Right Hand | Class 8 | DIN 934 | DHN-2079 | 50 | $36.83 |
| M10 | 1.00 | 8mm | 17mm | Right Hand | - | DIN 134 | DHN-571 | 5 | $19.88 |
| M10 | 1.00 | 8mm | 17mm | Right Hand | Class 8 | DIN 934 | DHN-1691 | 50 | $18.98 |
| M10 | 1.25 | 8mm | 17mm | Right Hand | Class 8 | DIN 934 | DHN-1690 | 50 | $30.55 |
| M10 | 1.50 | 8mm | 17mm | Left Hand | Class 8 | DIN 934L | DHN-592 | 25 | $21.08 |
