M12 Thread Hex Nuts Zinc Plated Steel
Zinc Plated Hex Nut M12 Thread 19mm width |
|||||||||
| Thread Size | Pitch (mm) | Height | Width (mm) | Direction | Grade-Class | Specifications Met | Part # | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|---|
| M12 | 1.75 | 6mm | 19mm | Right Hand | Class 4 | DIN 439B | DHN-881 | 50 | $25.36 |
| M12 | 1.00 | 10mm | 19mm | Right Hand | Class 8 | DIN 934 | DHN-1694 | 10 | $22.28 |
| M12 | 1.25 | 10mm | 19mm | Right Hand | Class 8 | DIN 934 | DHN-1693 | 25 | $17.93 |
| M12 | 1.50 | 10mm | 19mm | Right Hand | Class 8 | DIN 934 | DHN-1692 | 25 | $12.16 |
| M12 | 1.75 | 10mm | 19mm | Right Hand | Class 8 | DIN 934 | DHN-1664 | 100 | $43.08 |
| M12 | 1.75 | 12mm | 19mm | Right Hand | Class 8 | DIN 934 | DHN-2080 | 20 | $27.68 |
| M12 | 1.25 | 10mm | 19mm | Right Hand | - | DIN 134 | DHN-573 | 1 | $12.07 |
| M12 | 1.75 | 10mm | 19mm | Left Hand | Class 8 | DIN 934L | DHN-593 | 25 | $31.58 |

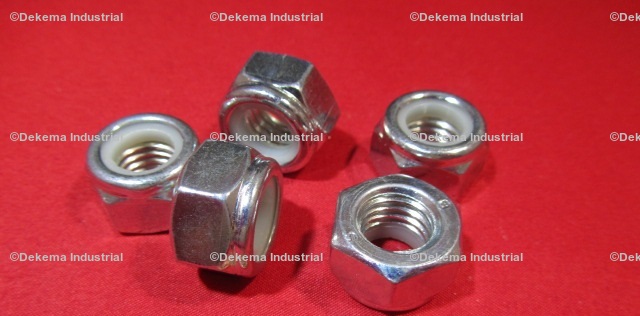

| M12 | 1.75 | 12mm | 19mm | Right Hand | Class 8 | ANSI/ASME B18.2.2 | DHN-1053 | 10 | $20.64 |
| M12 | 1.75 | 10mm | 22mm | Right Hand | Class 10 | - | DHN-1932 | 10 | $34.02 |
