Acetal Tubing (Delrin®, Acetron®)

Acetal, has dimensional stability, lower moisture acetalorption, and easier machinability than nylon, but is not as good in slide wear. It is FDA/USDA/NSF/3A Dairy Approved, has continuous-use temperature of 180°F, and is available in three types of Acetal Tubing (Homopolymers-Delrin, Copolymers-Acetron.

ASTM D-4181 POM111, 21CFR177.2480, NSF61, ASTM-D-6100 S-POM111, USDA, 3A

Delrin Acetal Tube

Product Technical Data

Chemical Resistance Chart

Acetal Dupont Delrin® Tubes White

Standard Length: 5 Feet

OD/+.050" ID/-.050"
O.D. (in.) I.D. (in.) Wall (in.) Part # Price Per 5 ft
0.250 .125 .0625 DPT-956 $19.13
0.500 .250 .125 DPT-957 $52.73
0.625 .375 .125 DPT-2319 $62.71
0.625 .500 .062 DPT-959 $59.48
0.625 .250 .187 DPT-958 $80.18
0.750 .250 .250 DPT-960 $116.63
0.750 .500 .125 DPT-961 $100.28
0.875 .625 .125 DPT-2320 $93.23
1.00 .500 .250 DPT-962 $148.73
1.25 .750 .250 DPT-963 $162.38

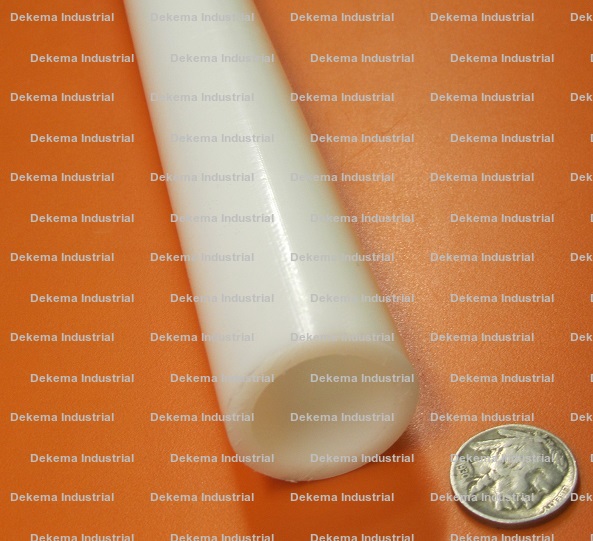

1.25 1.00 .125 DPT-964 $124.73
1.50 1.00 .250 DPT-965 $175.43
1.50 1.25 .125 DPT-966 $168.53
1.75 1.25 .250 DPT-967 $263.33

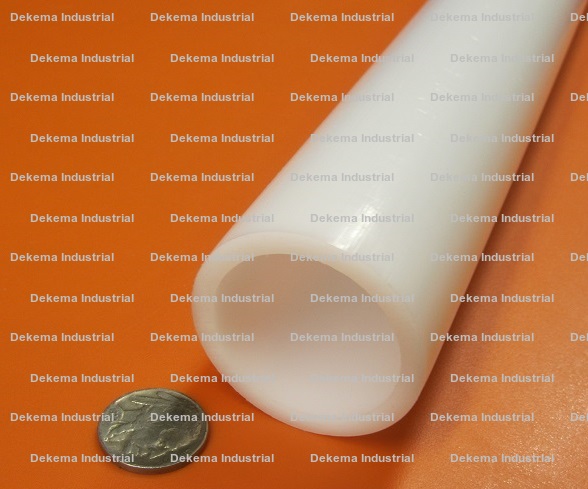

1.75 1.50 .125 DPT-2321 $219.83
2.00 1.50 .250 DPT-968 $297.38
2.00 1.75 .125 DPT-969 $188.93

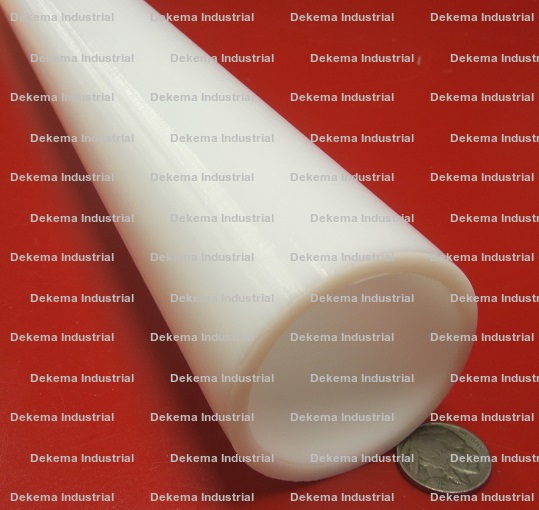

2.25 2.00 .125 DPT-970 $236.48

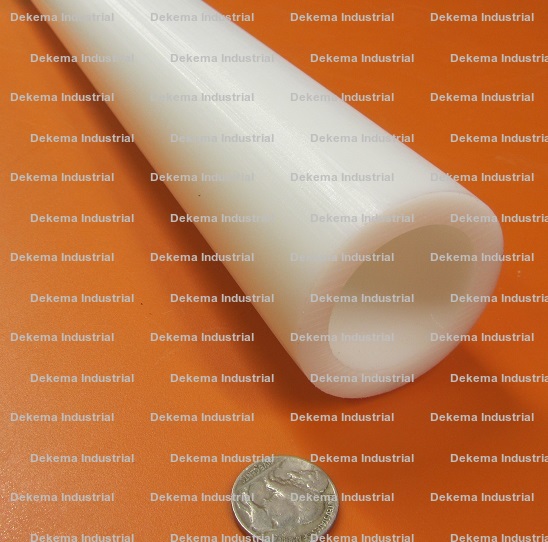

2.50 2.00 .250 DPT-971 $382.13

Acetal Copolymer Tubes White

5 Ft Standard Lengths
O.D. (in.) I.D. (in.) Wall (in.) Part # Price Per Foot
.250 .125 .063 DPT-4910 $3.92
.500 .250 .125 DPT-4909 $13.22
.625 .250 .188 DPT-4908 $19.94

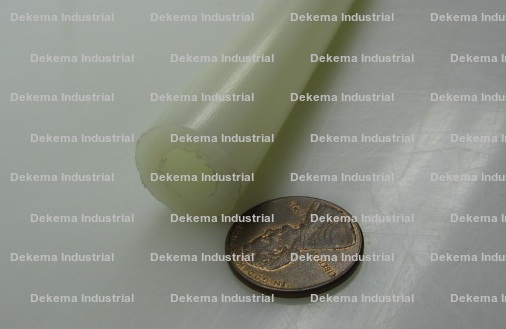

.625 .375 .125 DPT-4907 $12.02

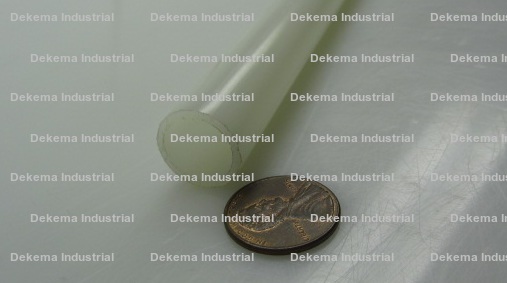

.625 .500 .063 DPT-4948 $14.21
.750 .250 .250 DPT-4918 $28.82

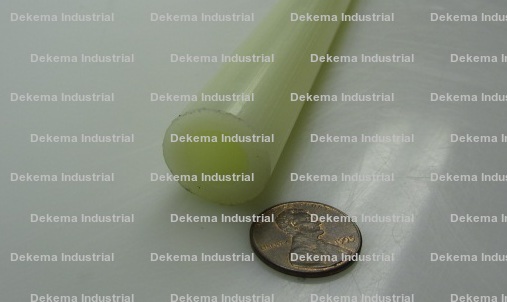

.750 .500 .125 DPT-4920 $24.35
.875 .625 .125 DPT-4963 $16.22

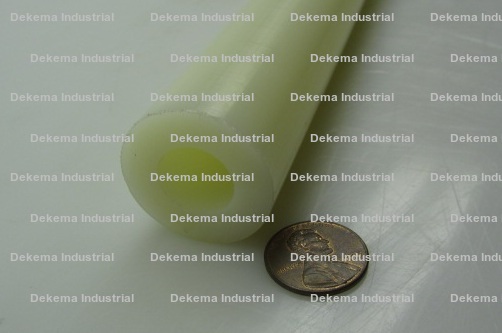

1.125 .625 .250 DPT-4961 $22.98
1.00 .500 .250 DPT-4962 $34.91
1.25 .500 .375 DPT-4960 $26.59
1.25 1.00 .125 DPT-4958 $30.86
1.50 1.00 .250 DPT-4957 $49.52
1.75 1.25 .250 DPT-4956 $45.68

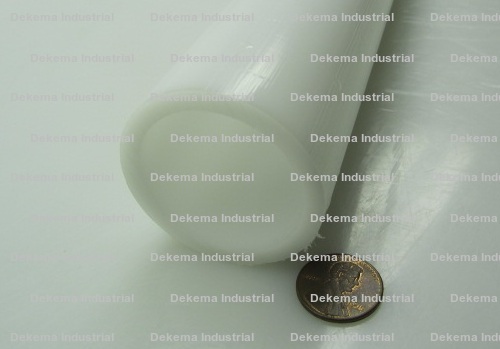

1.75 1.50 .125 DPT-4955 $38.12

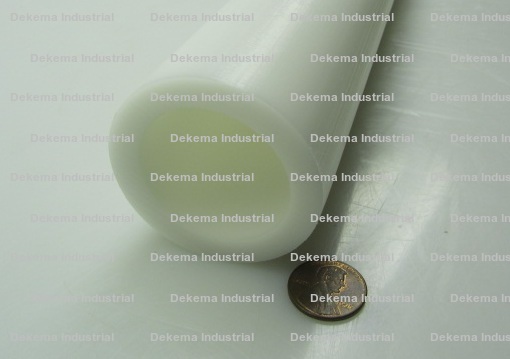

2.00 1.50 .250 DPT-4954 $66.98
2.00 1.75 .125 DPT-4953 $32.78
2.25 2.00 .125 DPT-4952 $41.00

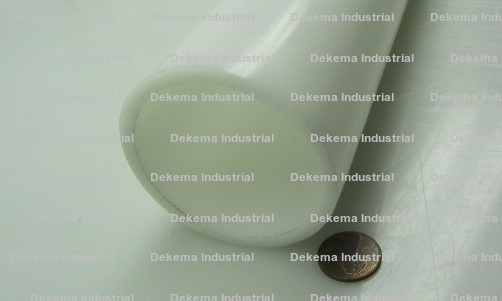

2.50 2.00 .250 DPT-4951 $66.23
