Canvas Fabric Reinforced Phenolic
Canvas C Canvas Fabric
Reinforced Phenolic - natural (light tan to
brown)
Technical Data Sheet
This grade is composed of a continuous cotton woven cloth
impregnated with a phenolic resin binder. This grade contains a medium weave
canvas and is known primarily for it's mechanical properties. This grade is not
recommended for primary insulation.
NEMA grades C, and CE Canvas Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. C and CE grades are composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation.
NEMA C certs to MIL-I-24768/16 Type FBM, IEC 60893-3 Type 4, PF CC 201
Chemical
Resistance Chart

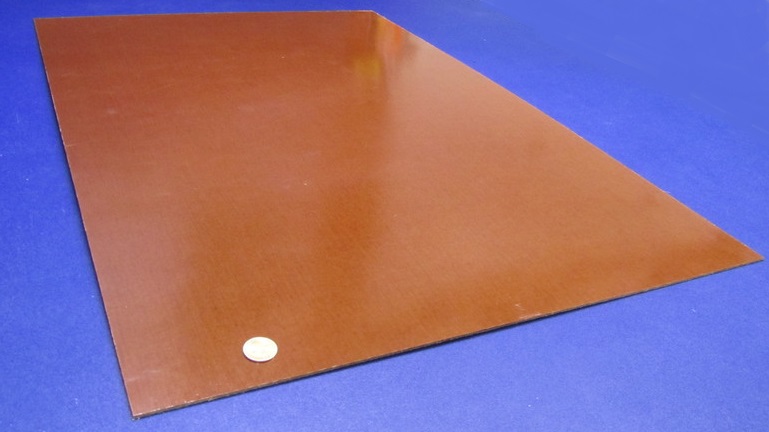

C, CE Sheets and Plate |
||||
| Part # | Thickness (in.) | Width (in.) | Length (in.) | Price |
|---|---|---|---|---|
| DPS-5929 | 0.031 | 12 | 12 | $2.15 |
| DPS-2222 | 0.063 | 12 | 12 | $3.84 |
| DPS-2229 | 0.094 | 12 | 12 | $5.77 |
| DPS-2236 | 0.125 | 12 | 12 | $7.48 |
| DPS-2243 | 0.188 | 12 | 12 | $10.95 |
| DPS-2250 | 0.250 | 12 | 12 | $14.59 |
| DPS-2257 | 0.313 | 12 | 12 | $18.15 |
| DPS-2264 | 0.375 | 12 | 12 | $21.86 |
| DPS-2271 | 0.500 | 12 | 12 | $29.11 |
| DPS-2278 | 0.625 | 12 | 12 | $113.38 |
| DPS-2285 | 0.750 | 12 | 12 | $162.58 |
| DPS-2299 | 1.000 | 12 | 12 | $145.12 |
| DPS-2306 | 1.250 | 12 | 12 | $215.79 |
| DPS-2313 | 1.500 | 12 | 12 | $253.66 |
| DPS-2320 | 2.000 | 12 | 12 | $255.38 |
| DPS-2223 | 0.063 | 12 | 24 | $7.57 |
| DPS-2230 | 0.094 | 12 | 24 | $11.47 |
| DPS-2237 | 0.125 | 12 | 24 | $14.89 |
| DPS-2244 | 0.188 | 12 | 24 | $21.79 |
| DPS-2251 | 0.250 | 12 | 24 | $29.13 |
| DPS-2258 | 0.313 | 12 | 24 | $36.21 |
| DPS-2265 | 0.375 | 12 | 24 | $43.64 |
| DPS-2272 | 0.500 | 12 | 24 | $58.15 |
| DPS-2279 | 0.625 | 12 | 24 | $155.81 |
| DPS-2286 | 0.750 | 12 | 24 | $186.91 |
| DPS-2300 | 1.000 | 12 | 24 | $315.45 |
| DPS-2307 | 1.250 | 12 | 24 | $311.56 |
| DPS-2314 | 1.500 | 12 | 24 | $375.01 |
| DPS-2321 | 2.000 | 12 | 24 | $498.43 |
| DPS-2224 | 0.063 | 12 | 36 | $11.08 |
| DPS-2231 | 0.094 | 12 | 36 | $16.78 |
| DPS-2238 | 0.125 | 12 | 36 | $21.82 |
| DPS-2245 | 0.188 | 12 | 36 | $31.94 |
| DPS-2252 | 0.250 | 12 | 36 | $42.67 |
| DPS-2259 | 0.313 | 12 | 36 | $53.08 |
| DPS-2266 | 0.375 | 12 | 36 | $63.95 |
| DPS-2273 | 0.500 | 12 | 36 | $85.24 |
| DPS-2225 | 0.063 | 12 | 48 | $14.75 |
| DPS-2232 | 0.094 | 12 | 48 | $22.32 |
| DPS-2239 | 0.125 | 12 | 48 | $29.05 |
| DPS-2246 | 0.188 | 12 | 48 | $42.54 |
| DPS-2253 | 0.250 | 12 | 48 | $56.86 |
| DPS-2260 | 0.313 | 12 | 48 | $70.74 |
| DPS-2267 | 0.375 | 12 | 48 | $85.24 |
| DPS-2274 | 0.500 | 12 | 48 | $113.62 |
| DPS-2302 | 1.000 | 12 | 48 | $355.02 |
| DPS-5930 | 0.031 | 24 | 24 | $8.18 |
| DPS-2226 | 0.063 | 24 | 24 | $14.75 |
| DPS-2233 | 0.094 | 24 | 24 | $22.32 |
| DPS-2240 | 0.125 | 24 | 24 | $29.05 |
| DPS-2247 | 0.188 | 24 | 24 | $42.54 |
| DPS-2254 | 0.250 | 24 | 24 | $56.86 |
| DPS-2261 | 0.313 | 24 | 24 | $70.74 |
| DPS-2268 | 0.375 | 24 | 24 | $85.24 |
| DPS-2275 | 0.500 | 24 | 24 | $113.62 |
| DPS-2282 | 0.625 | 24 | 24 | $488.98 |
| DPS-2289 | 0.750 | 24 | 24 | $415.98 |
| DPS-2303 | 1.000 | 24 | 24 | $355.02 |
| DPS-2310 | 1.250 | 24 | 24 | $655.91 |
| DPS-2317 | 1.500 | 24 | 24 | $785.96 |
| DPS-2324 | 2.000 | 24 | 24 | $1,094.25 |
| DPS-5931 | 0.031 | 24 | 36 | $11.97 |
| DPS-2234 | 0.094 | 24 | 36 | $32.70 |
| DPS-2241 | 0.125 | 24 | 36 | $42.54 |
| DPS-2248 | 0.188 | 24 | 36 | $62.34 |
| DPS-2255 | 0.250 | 24 | 36 | $83.33 |
| DPS-2262 | 0.313 | 24 | 36 | $103.67 |
| DPS-2269 | 0.375 | 24 | 36 | $124.93 |
| DPS-2276 | 0.500 | 24 | 36 | $166.53 |
| DPS-2283 | 0.625 | 24 | 36 | $409.85 |
| DPS-2290 | 0.750 | 24 | 36 | $543.16 |
| DPS-2304 | 1.000 | 24 | 36 | $839.26 |
| DPS-2311 | 1.250 | 24 | 36 | $904.03 |
| DPS-2318 | 1.500 | 24 | 36 | $1,093.32 |
| DPS-2325 | 2.000 | 24 | 36 | $1,643.00 |
| DPS-2228 | 0.063 | 24 | 48 | $28.74 |
| DPS-2235 | 0.094 | 24 | 48 | $43.57 |
| DPS-2242 | 0.125 | 24 | 48 | $56.69 |
| DPS-2249 | 0.188 | 24 | 48 | $83.09 |
| DPS-2256 | 0.250 | 24 | 48 | $111.06 |
| DPS-2263 | 0.313 | 24 | 48 | $138.20 |
| DPS-2270 | 0.375 | 24 | 48 | $166.53 |
| DPS-2277 | 0.500 | 24 | 48 | $222.00 |
| DPS-2284 | 0.625 | 24 | 48 | $304.88 |
| DPS-2291 | 0.750 | 24 | 48 | $1,022.86 |
| DPS-2305 | 1.000 | 24 | 48 | $487.60 |
| DPS-2319 | 1.500 | 24 | 48 | $1,604.98 |
| DPS-2326C | 2.000 | 24 | 48 | $2,702.78 |
| DPS-5928 | 0.031 | 36 | 48 | $22.18 |
| DPS-2227 | 0.062 | 36 | 48 | $40.08 |
| DPS-6025 | 0.093 | 36 | 48 | $60.76 |
| DPS-5932 | 0.125 | 36 | 48 | $79.08 |
| DPS-5933 | 0.187 | 36 | 48 | $115.90 |
| DPS-3931 | 0.250 | 36 | 48 | $154.94 |
| DPS-6027 | 0.313 | 36 | 48 | $192.80 |
| DPS-5934 | 0.375 | 36 | 48 | $232.34 |
| DPS-6028 | 0.438 | 36 | 48 | $286.63 |
| DPS-5935 | 0.500 | 36 | 48 | $309.74 |
| DPS-5936 | 0.625 | 36 | 48 | $400.03 |
| DPS-5937 | 0.750 | 36 | 48 | $426.26 |
| DPS-6029 | 0.875 | 36 | 48 | $559.43 |
| DPS-5938 | 1.00 | 36 | 48 | $1,099.46 |
| DPS-5939 | 1.25 | 36 | 48 | $710.36 |
| DPS-5940 | 1.50 | 36 | 48 | $852.42 |
| DPS-6030 | 1.75 | 36 | 48 | $995.32 |
| DPS-5941 | 2.00 | 36 | 48 | $3,121.08 |
Tolerances for Sheet Thickness (Inches)
| .010-.030 ±.004" | .093±.007" | .188±.010" | .375±.034" | .625±.053" | 1.00±.065" | 1.75±.093" | 3.00±.120" |
| .031 ±.005" | .125±.008" | .250±.024" | .438±.039" | .750±.058" | 1.25±.073" | 2.00±.097" | 3.50±.130" |
| .062 ±.006" | .156±.009" | .313±.029" | .500±.048" | .875±.062" | 1.50±.081" | 2.50±.110" | 4.00±.140" |
C/CE Canvas Phenolic Rods |
||
| Part # | DIA (in.) | Price Per Foot |
|---|---|---|
| DPR-1312B | .125" | $1.43 * |
| DPR-1312 | .187" | $1.81 |
| DPR-1313 | .250" | $2.00 |
| DPR-1314 | .312" | $4.44 |
| DPR-1315 | .375" | $4.92 |
| DPR-1312C | .437" | $5.52 * |
| DPR-1316 | .500" | $5.66 |
| DPR-1317 | .562" | $7.24 |
| DPR-1318 | .625" | $8.86 |
| DPR-1319 | .750" | $11.00 |
| DPR-1320 | .875" | $14.04 |
| DPR-1321 | 1.000" | $16.93 |
| DPR-1322 | 1.125" | $18.18 |
| DPR-1323 | 1.250" | $22.49 |
| DPR-1324 | 1.375" | $21.32 |
| DPR-1325 | 1.500" | $25.12 |
| DPR-1326 | 1.625" | $31.90 |
| DPR-1327 | 1.750" | $38.89 |
| DPR-1328 | 2.000" | $47.98 |
| DPR-1329 | 2.250" | $68.50 |
| DPR-1330 | 2.500" | $82.80 |
| DPR-1331 | 2.750" | $101.78 |
| DPR-1332 | 3.000" | $107.52 |
| DPR-1333 | 3.250" | $136.84 |
| DPR-1334 | 3.500" | $140.40 |
| DPR-1335 | 3.750" | $176.17 |
| DPR-1336 | 4.000" | $183.24 |
| DPR-1337 | 4.500" | $213.80 |
| DPR-1338 | 5.000" | $289.00 |
| DPR-1339 | 6.000" | $346.82 |
Under 1.375" Dia. |
||
1.375" Dia. & Over |
||
| Canvas CE Graphite Filled Sheets, Black Thickness Tolerances: 1/16" to 1/4" +/- 15%, 1/2" to 1" +/- 10% Length and Width Tolerances: 12" x 12" Sheets +/-.250", 18 x 39 and 39 x 39 +/- 1.0" Lead Time and Minimums May Apply |
||||
| Part # | Thickness (in.) | Width (in.) | Length (in.) | Price |
|---|---|---|---|---|
| DPS-17565C | 0.062 | 12 | 12 | $20.60 |
| DPS-17566C | 0.125 | 12 | 12 | $34.69 |
| DPS-17567C | 0.250 | 12 | 12 | $79.64 |
| DPS-17568C | 0.500 | 12 | 12 | $125.47 |
| DPS-17570C | 1.00 | 12 | 12 | $207.58 |
| DPS-17571C | 0.062 | 18 | 39 | $80.68 |
| DPS-17572C | 0.125 | 18 | 39 | $136.05 |
| DPS-17575C | 0.750 | 18 | 39 | $651.34 |
| DPS-17576C | 1.00 | 18 | 39 | $815.26 |
| DPS-17577C | 0.062 | 39 | 39 | $146.60 |
| DPS-17578C | 0.125 | 39 | 39 | $247.31 |
| DPS-17579C | 0.250 | 39 | 39 | $568.41 |
| DPS-17580C | 0.500 | 39 | 39 | $895.76 |
| DPS-17581C | 0.750 | 39 | 39 | $1,184.21 |
| DPS-17582C | 1.00 | 39 | 39 | $1,482.22 |
