G10 FR4 Glass Reinforced Sheets
(Micarta) (High Pressure Laminates) G10 FR4 Glass
Reinforced - natural (yellowish to
light green) Technical
Data Sheet Chemical
Resistance Chart
The most versatile all-around laminate and composite,
this grade is a continuous glass woven fabric base impregnated with an epoxy
resin binder.
It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC
4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC
202
| G10 FR4 Sheets, Yellow - Olive Green Tint, unless noted |
||||
| Thickness (in.) | Width (in.) | Length (in.) | Part # | Price |
|---|---|---|---|---|
| 0.005 | 12 | 12 | DPS-6346 | $5.32 |
| 0.010 | 12 | 12 | DPS-6378 | $3.14 |
| 0.015 | 12 | 12 | DPS-6352 | $3.39 |
| 0.020 | 12 | 12 | DPS-6383 | $3.77 |
| 0.025 | 12 | 12 | DPS-6381 | $3.91 |
| 0.031 | 12 | 12 | DPS-5727 | $5.19 |

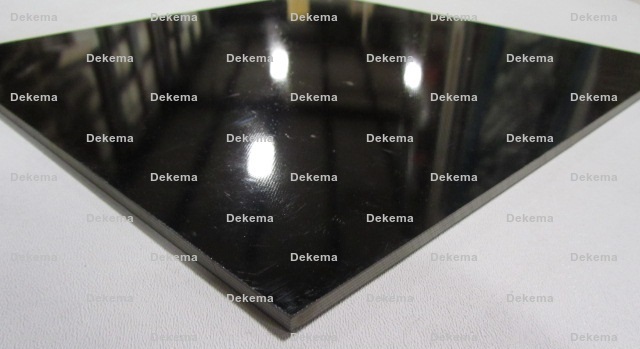

| 0.063 Black | 12 | 12 | DPS-15096 | $32.71 |
| 0.063 | 12 | 12 | DPS-2945 | $8.20 |
| 0.094 | 12 | 12 | DPS-2952 | $12.16 |
| 0.125 | 12 | 12 | DPS-2959 | $15.72 |
| 0.125 Black | 12 | 12 | DPS-15133 | $66.19 |
| 0.188 | 12 | 12 | DPS-2966 | $23.50 |
| 0.188 Black | 12 | 12 | DPS-15147 | $89.54 |
| 0.250 | 12 | 12 | DPS-2973 | $30.75 |
| 0.250 Black | 12 | 12 | DPS-15143 | $97.15 |

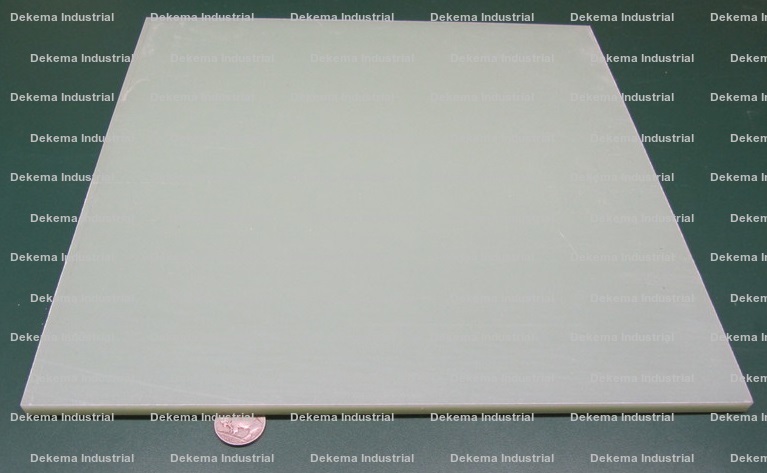

| 0.313 | 12 | 12 | DPS-2980 | $39.14 |

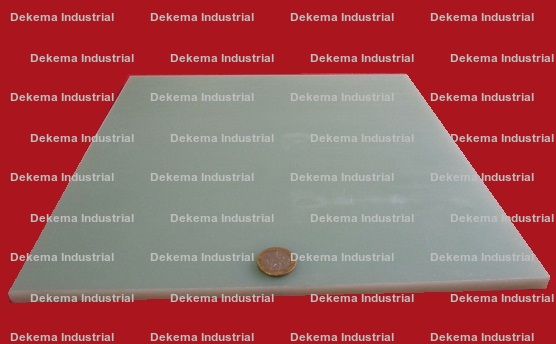

| 0.375 | 12 | 12 | DPS-2987 | $44.04 |
| 0.375 Black | 12 | 12 | DPS-15138 | $183.48 |

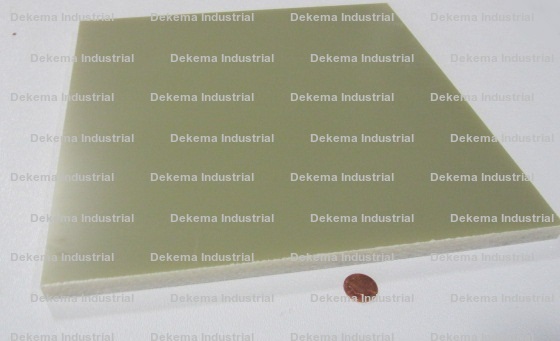

| 0.500 | 12 | 12 | DPS-2994 | $62.34 |

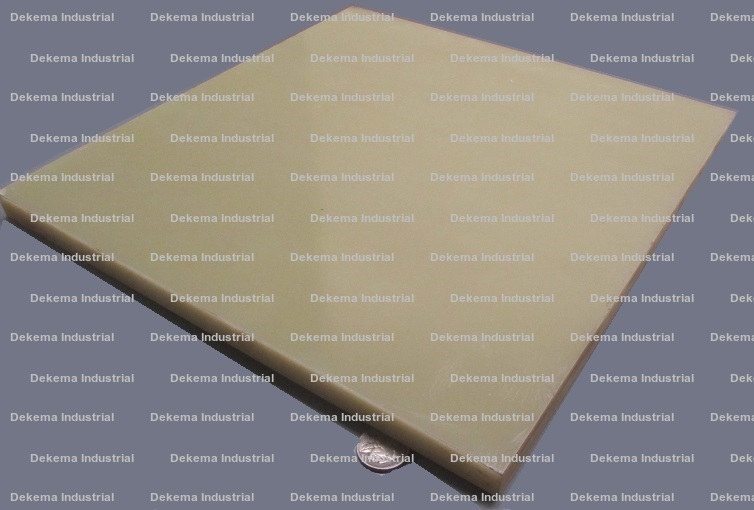

| 0.625 | 12 | 12 | DPS-3001 | $179.76 |

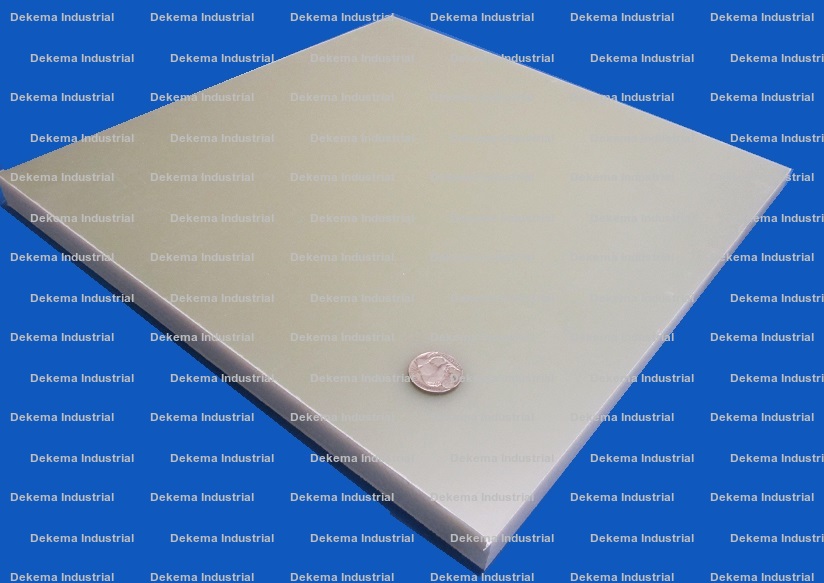

| 0.750 | 12 | 12 | DPS-3007 | $210.84 |

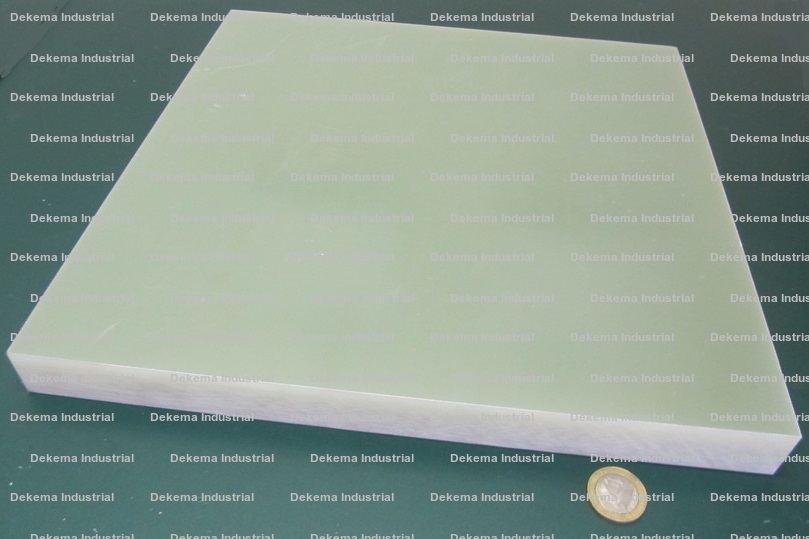

| 1.000 | 12 | 12 | DPS-3021 | $295.35 |

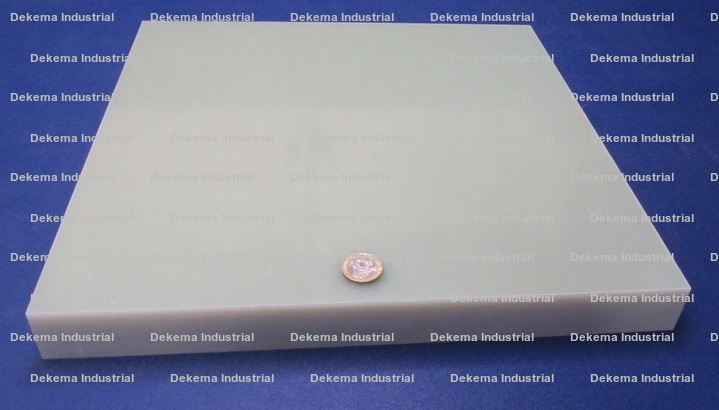

| 1.250 | 12 | 12 | DPS-3028A | $455.04 |
| 1.500 | 12 | 12 | DPS-3035A | $358.12 |

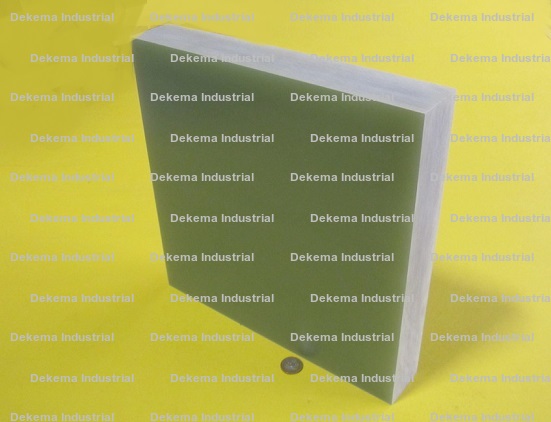

| 2.000 | 12 | 12 | DPS-3042A | $326.67 |
| 0.031 | 12 | 24 | DPS-5756 | $10.27 |

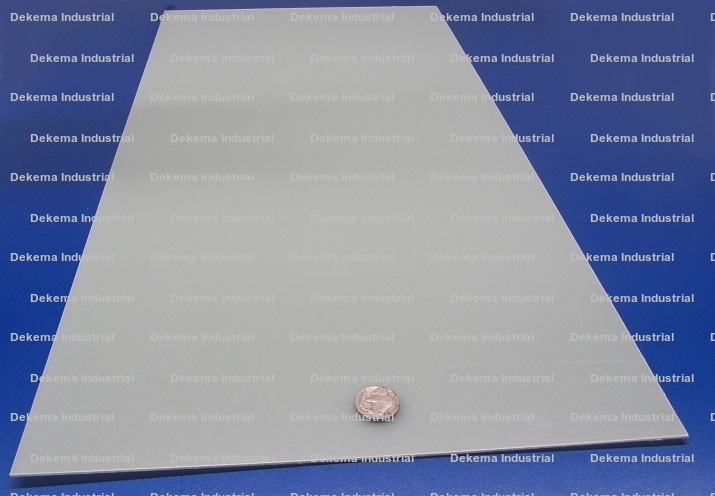

| 0.063 | 12 | 24 | DPS-2946 | $16.35 |

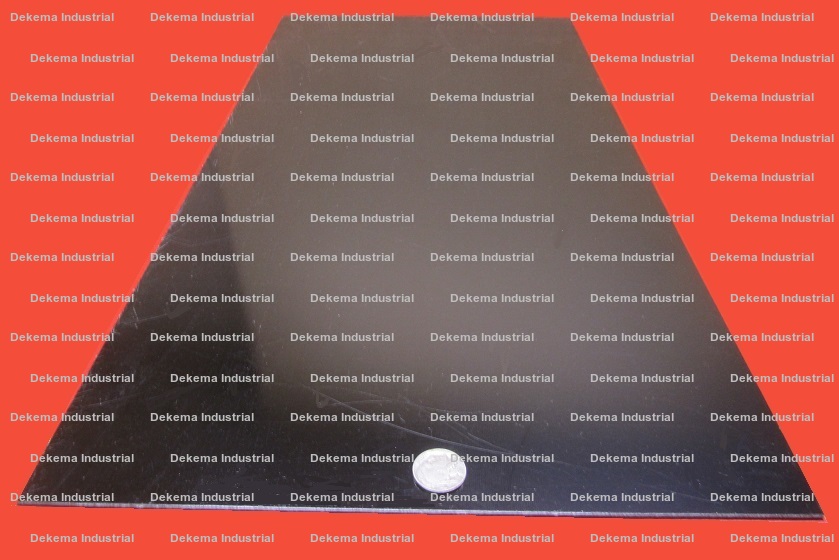

| 0.063 Black | 12 | 24 | DPS-15097 | $60.63 |
| 0.094 | 12 | 24 | DPS-2953 | $24.27 |
| 0.125 | 12 | 24 | DPS-2960 | $31.36 |
| 0.125 Black | 12 | 24 | DPS-15134 | $129.37 |
| 0.188 | 12 | 24 | DPS-2967 | $46.95 |
| 0.188 Black | 12 | 24 | DPS-15139 | $159.16 |
| 0.250 | 12 | 24 | DPS-2974 | $61.39 |
| 0.250 Black | 12 | 24 | DPS-15144 | $187.03 |
| 0.313 | 12 | 24 | DPS-2981 | $78.22 |
| 0.375 | 12 | 24 | DPS-2988 | $88.01 |
| 0.375 Black | 12 | 24 | DPS-15116 | $263.17 |
| 0.500 | 12 | 24 | DPS-2995 | $124.57 |
| 0.625 | 12 | 24 | DPS-3002 | $427.22 |
| 0.750 | 12 | 24 | DPS-3008 | $413.20 |
| 1.000 | 12 | 24 | DPS-3022A | $298.12 |
| 1.250 | 12 | 24 | DPS-3029A | $639.34 |
| 1.500 | 12 | 24 | DPS-3036A | $753.50 |
| 2.000 | 12 | 24 | DPS-3043A | $901.56 |
| 0.063 | 12 | 36 | DPS-2947 | $23.93 |
| 0.094 | 12 | 36 | DPS-2954 | $35.54 |
| 0.125 | 12 | 36 | DPS-2961 | $45.95 |
| 0.188 | 12 | 36 | DPS-2968 | $68.81 |
| 0.250 | 12 | 36 | DPS-2975 | $90.02 |
| 0.313 | 12 | 36 | DPS-2982 | $114.68 |
| 0.375 | 12 | 36 | DPS-2989 | $129.04 |
| 0.500 | 12 | 36 | DPS-2996 | $186.82 |
| 0.063 | 12 | 48 | DPS-2948 | $31.87 |

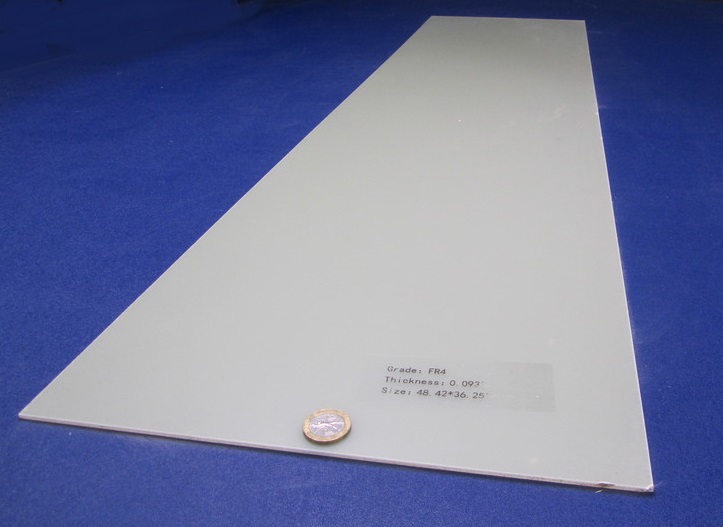

| 0.094 | 12 | 48 | DPS-2955 | $47.36 |
| 0.125 | 12 | 48 | DPS-2962 | $61.24 |
| 0.188 | 12 | 48 | DPS-2969 | $91.71 |
| 0.250 | 12 | 48 | DPS-2976 | $119.98 |
| 0.313 | 12 | 48 | DPS-2983 | $152.89 |
| 0.375 | 12 | 48 | DPS-2990 | $172.03 |
| 0.500 | 12 | 48 | DPS-2997 | $249.08 |
| 0.625 | 12 | 48 | DPS-3004F | $654.32 |
| 0.750 | 12 | 48 | DPS-3010 | $762.82 |
| 1.000 | 12 | 48 | DPS-3024A | $1,012.54 |
| 1.250 | 12 | 48 | DPS-3031A | $1,240.48 |
| 1.500 | 12 | 48 | DPS-3038A | $1,499.46 |
| 2.000 | 12 | 48 | DPS-3045A | $1,972.22 |
| 0.031 | 24 | 24 | DPS-5770 | $20.01 |
| 0.063 | 24 | 24 | DPS-2949 | $31.87 |
| 0.063 Black | 24 | 24 | DPS-15121 | $93.20 |
| 0.094 | 24 | 24 | DPS-2956 | $177.63 |
| 0.125 | 24 | 24 | DPS-2963 | $61.24 |
| 0.125 Black | 24 | 24 | DPS-15135 | $208.43 |
| 0.188 | 24 | 24 | DPS-2970 | $91.71 |
| 0.188 Black | 24 | 24 | DPS-15131 | $304.93 |
| 0.250 | 24 | 24 | DPS-2977 | $119.98 |
| 0.250 Black | 24 | 24 | DPS-15145 | $323.29 |
| 0.313 | 24 | 24 | DPS-2984 | $152.89 |
| 0.375 | 24 | 24 | DPS-2991 | $172.03 |
| 0.375 Black | 24 | 24 | DPS-15117 | $481.42 |
| 0.500 | 24 | 24 | DPS-2998 | $249.08 |
| 0.625 | 24 | 24 | DPS-3004 | $627.02 |
| 0.750 | 24 | 24 | DPS-3011 | $577.40 |
| 1.000 | 24 | 24 | DPS-3025A | $1,012.54 |
| 1.250 | 24 | 24 | DPS-3032A | $1,263.24 |
| 1.500 | 24 | 24 | DPS-3039A | $1,499.46 |
| 2.000 | 24 | 24 | DPS-3046A | $1,972.22 |
| 0.031 | 24 | 36 | DPS-6308 | $29.32 |
| 0.063 | 24 | 36 | DPS-2950 | $46.69 |
| 0.063 Black | 24 | 36 | DPS-15146 | $147.40 |
| 0.094 | 24 | 36 | DPS-2957 | $69.40 |
| 0.125 | 24 | 36 | DPS-2964 | $89.76 |
| 0.125 Black | 24 | 36 | DPS-15136 | $265.63 |
| 0.188 | 24 | 36 | DPS-2971 | $137.54 |
| 0.188 Black | 24 | 36 | DPS-15141 | $380.85 |
| 0.250 | 24 | 36 | DPS-2978 | $175.84 |
| 0.250 Black | 24 | 36 | DPS-15123 | $465.88 |
| 0.313 | 24 | 36 | DPS-2985 | $224.09 |
| 0.375 | 24 | 36 | DPS-2992 | $252.15 |
| 0.375 Black | 24 | 36 | DPS-15118 | $625.74 |
| 0.500 | 24 | 36 | DPS-2999 | $365.79 |
| 0.625 | 24 | 36 | DPS-3005 | $1,026.60 |
| 0.750 | 24 | 36 | DPS-3012 | $1,342.18 |
| 1.000 | 24 | 36 | DPS-3026A | $2,008.98 |
| 1.250 | 24 | 36 | DPS-3033A | $1,992.98 |
| 1.500 | 24 | 36 | DPS-3040A | $2,134.20 |
| 2.000 | 24 | 36 | DPS-3047A | $2,910.04 |
| 0.063 | 24 | 48 | DPS-2951 | $62.24 |
| 0.094 | 24 | 48 | DPS-2958 | $92.49 |
| 0.125 | 24 | 48 | DPS-2965 | $119.64 |
| 0.188 | 24 | 48 | DPS-2972 | $179.20 |
| 0.250 | 24 | 48 | DPS-2979 | $234.43 |
| 0.313 | 24 | 48 | DPS-2986 | $298.74 |
| 0.375 | 24 | 48 | DPS-2993 | $336.17 |
| 0.500 | 24 | 48 | DPS-3000 | $487.68 |
| 0.625 | 24 | 48 | DPS-3006 | $1,092.70 |
| 0.750 | 24 | 48 | DPS-3013 | $1,225.06 |
| 1.000 | 24 | 48 | DPS-3027A | $2,167.02 |
| 1.250 | 24 | 48 | DPS-3034A | $2,461.98 |
| 1.500 | 24 | 48 | DPS-3041A | $2,551.66 |
| 2.000 | 24 | 48 | DPS-3048A | $3,575.94 |
| .005 | 36 | 48 | DPS-5673 | $29.83 |
| .010 | 36 | 48 | DPS-5678 | $32.76 |
| .015 | 36 | 48 | DPS-5679 | $35.30 |
| .020 | 36 | 48 | DPS-5680 | $39.44 |
| .025 | 36 | 48 | DPS-5697 | $40.90 |
| .031 | 36 | 48 | DPS-5700 | $54.46 |
| .046 | 36 | 48 | DPS-8923 | $71.88 |
| .062 | 36 | 48 | DPS-5702 | $86.80 |
| .062 Black | 36 | 48 | DPS-15107 | $152.63 |
| .078 | 36 | 48 | DPS-4118U | $121.28 |
| .093 | 36 | 48 | DPS-8961 | $129.02 |
| .093 Black | 36 | 48 | DPS-8967TG | $112.58 |
| .125 | 36 | 48 | DPS-5801 | $166.90 |
| .156 | 36 | 48 | DPS-5963** | $147.69 |
| .188 | 36 | 48 | DPS-5802 | $250.00 |
| .188 Black | 36 | 48 | DPS-15142 | $207.08 |
| .250 | 36 | 48 | DPS-5803 | $327.08 |
| .250 Black | 36 | 48 | DPS-15140 | $262.58 |
| .312 | 36 | 48 | DPS-5964** | $308.40 |
| .375 | 36 | 48 | DPS-5804 | $469.04 |
| .375 Black | 36 | 48 | DPS-15119 | $414.08 |
| .438 | 36 | 48 | DPS-5965** | $451.18 |
| .500 | 36 | 48 | DPS-5805 | $622.56 |
| .625 | 36 | 48 | DPS-5806 | $817.58 |
| .750 | 36 | 48 | DPS-5807 | $981.08 |

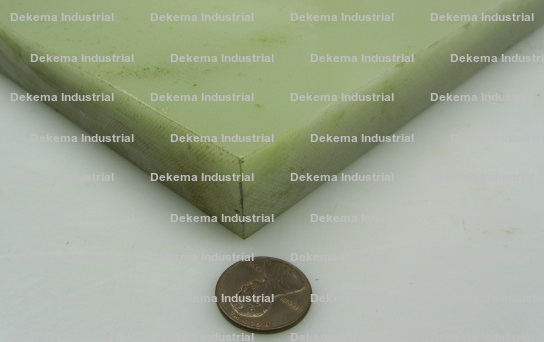

| .875 | 36 | 48 | DPS-5966 | $1,144.58 |
| 1.00 | 36 | 48 | DPS-5808 | $1,245.30 |
| 1.25 | 36 | 48 | DPS-5809 | $1,635.08 |
| 1.50 | 36 | 48 | DPS-5810 | $1,962.08 |
| 1.75 | 36 | 48 | DPS-5967 | $2,289.08 |
| 2.00 | 36 | 48 | DPS-5811 | $2,616.08 |
| 2.50 | 36 | 48 | DPS-5968 | $3,043.96 |

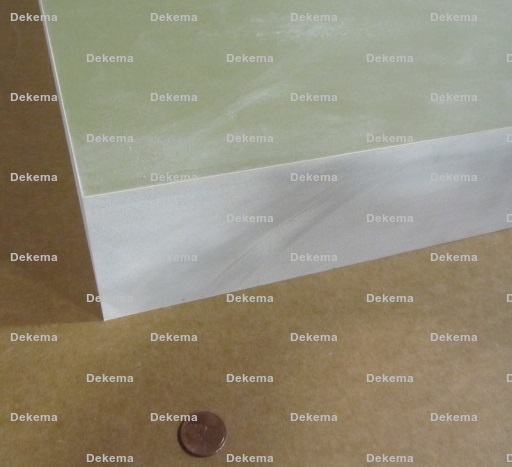

| 3.00 | 36 | 48 | DPS-5969 | $4,732.08 |
Tolerances for Sheet Thickness Inches
| .020-.030 ±.004" | .093±.009" | .250±.022" | .500±.036" | .875±.046" | 1.50±.061" |
| .031 ±.005" | .125±.012" | .313±.026" | .625±.040" | 1.00±.046" | 1.75±.065" |
| .062 ±.0075" | .188±.019" | .375±.030" | .750±.043" | 1.25±.049" | 2.00±.069" |
| G10 FR4 Sheets Blue and Tan Tints Thickness Toleances: 1/16" +/-.008", 1/8" +/-.012", 1/4" +/-.022", 3/8" +/-.038" Minimums and Lead Time May Apply |
|||||
| Thickness (in.) | Width (in.) | Length (in.) | Color | Part # | Price |
|---|---|---|---|---|---|

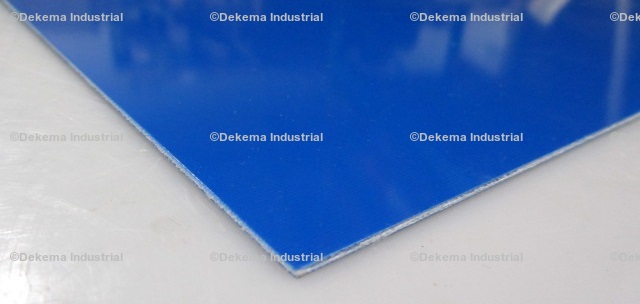

| .062 | 12 | 12 | Blue | DPS-17545 | $32.71 |
| .125 | 12 | 12 | Blue | DPS-17546 | $66.19 |
| .250 | 12 | 12 | Blue | DPS-17547 | $97.15 |
| .375 | 12 | 12 | Blue | DPS-17548 | $183.48 |
| .062 | 12 | 24 | Blue | DPS-17549 | $60.63 |
| .125 | 12 | 24 | Blue | DPS-17550 | $129.37 |
| .250 | 12 | 24 | Blue | DPS-17551 | $187.03 |
| .375 | 12 | 24 | Blue | DPS-17552 | $263.17 |
| .062 | 24 | 24 | Blue | DPS-17553 | $104.84 |
| .125 | 24 | 24 | Blue | DPS-17554 | $208.43 |
| .250 | 24 | 24 | Blue | DPS-17555 | $323.29 |
| .375 | 24 | 24 | Blue | DPS-17556 | $481.42 |
| .062 | 24 | 36 | Blue | DPS-17557 | $165.82 |
| .125 | 24 | 36 | Blue | DPS-17558 | $265.63 |
| .250 | 24 | 36 | Blue | DPS-17559 | $465.88 |
| .375 | 24 | 36 | Blue | DPS-17560 | $625.74 |
| .062 | 36 | 48 | Blue | DPS-17561 | $241.46 |
| .125 | 36 | 48 | Blue | DPS-17562 | $532.58 |
| .250 | 36 | 48 | Blue | DPS-17563 | $825.08 |
| .375 | 36 | 48 | Blue | DPS-17564 | $1,242.03 |

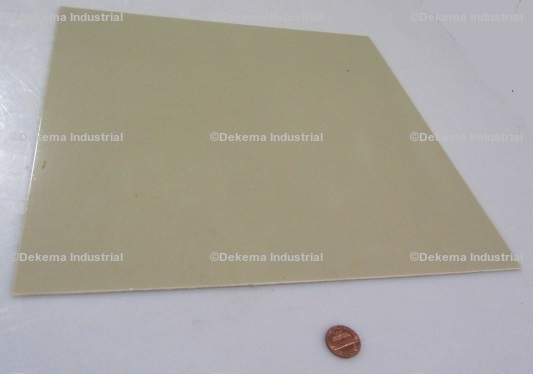

| .062 | 12 | 12 | Tan | DPS-17565 | $32.71 |
| .125 | 12 | 12 | Tan | DPS-17566 | $66.19 |
| .250 | 12 | 12 | Tan | DPS-17567 | $97.15 |
| .375 | 12 | 12 | Tan | DPS-17568 | $183.48 |
| .062 | 12 | 24 | Tan | DPS-17569 | $60.63 |
| .125 | 12 | 24 | Tan | DPS-17570 | $129.37 |
| .250 | 12 | 24 | Tan | DPS-17571 | $187.03 |
| .375 | 12 | 24 | Tan | DPS-17572 | $263.17 |
| .062 | 24 | 24 | Tan | DPS-17573 | $104.84 |
| .125 | 24 | 24 | Tan | DPS-17574 | $208.43 |
| .250 | 24 | 24 | Tan | DPS-17575 | $266.19 |
| .375 | 24 | 24 | Tan | DPS-17576 | $481.42 |
| .062 | 24 | 36 | Tan | DPS-17577 | $165.82 |
| .125 | 24 | 36 | Tan | DPS-17578 | $265.63 |
| .250 | 24 | 36 | Tan | DPS-17579 | $465.88 |
| .375 | 24 | 36 | Tan | DPS-17580 | $625.74 |
| .062 | 36 | 48 | Tan | DPS-17581 | $277.66 |
| .125 | 36 | 48 | Tan | DPS-17582 | $532.58 |
| .250 | 36 | 48 | Tan | DPS-17583 | $681.33 |
| .375 | 36 | 48 | Tan | DPS-17584 | $1,242.03 |
