Paper X, XX, XXX Paper Reinforced Phenolic
Paper X/XX/XXX Paper Reinforced Phenolic - natural (tan)
Technical Data Sheet
This grade is composed of a paper base impregnated with
a phenolic resin binder. It has good electric strength properties with fair
mechanical strength. Outstanding for use as template material and or backup
material.
NEMA X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF
CP 201
NEMA XX certs to MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
NEMA grades X, XX and XXX Paper Reinforced Phenolic -- natural color is
typically light tan to brown. These grades are composed of a paper base
impregnated with a phenolic resin binder. (Phenolics are the oldest, best-known
general purpose thermoset resins. They are among the lowest in cost and easiest
to process. Phenolics are quite adequate for a fair percentage of electrical
applications. Generally speaking, they are not equivalent to epoxies in
resistance to moisture, humidity, dimensional stability, shrinkage and retention
of electrical properties in extreme environments.) The paper reinforced phenolic
has good electric strength properties with fair mechanical strength and are
outstanding for use as template material and/or back-up material.
Click Here for X, XX, XXX or Sheets, Tubes

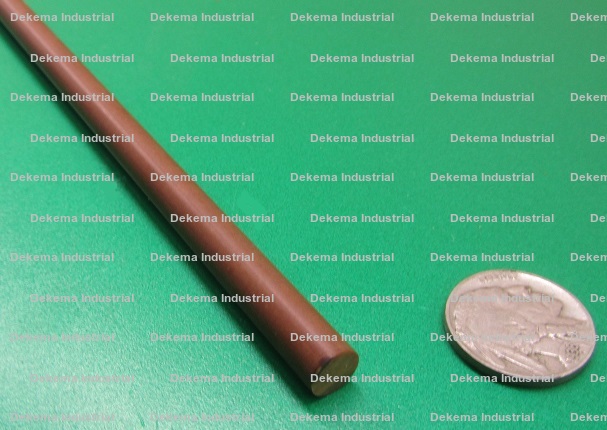

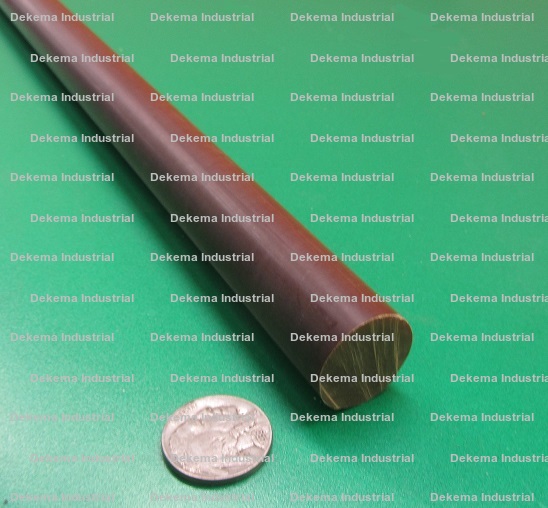

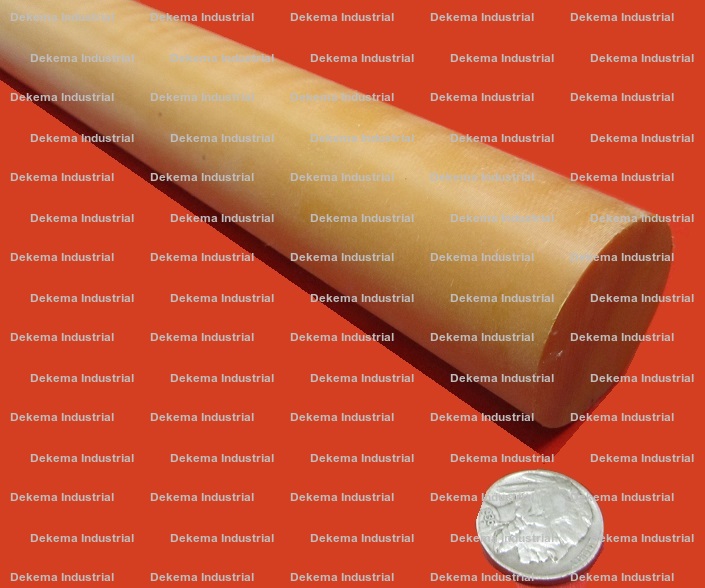

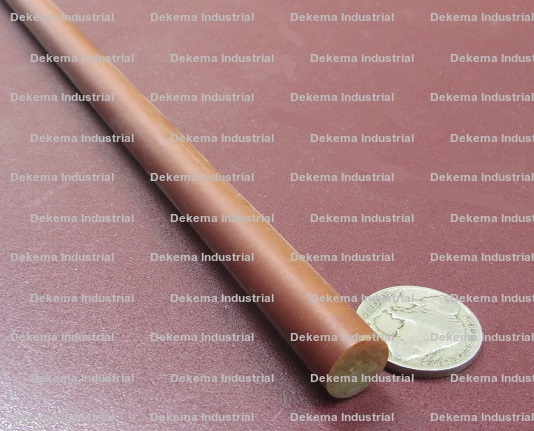

X, XX, XXX Paper Reinforced Rods |

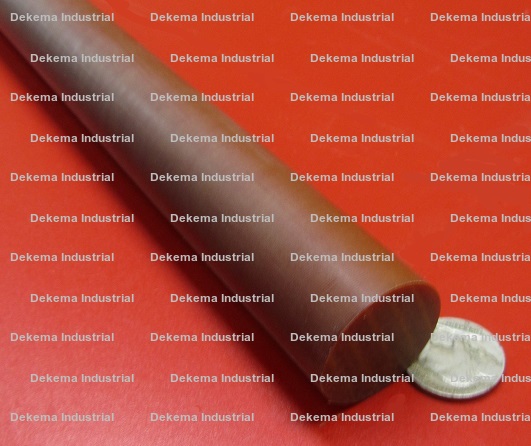

||
| Part # | Diameter (in.) | Price Per Foot |
|---|---|---|
| DPR-1289 | .062" | $1.45 |
| DPR-1290 | .093" | $1.32 |
| DPR-1291 | .125" | $1.36 |
| DPR-1292 | .156" | $1.66 |
| DPR-1293 | .187" | $1.88 |
| DPR-1294 | .250" | $2.11 |
| DPR-1295 | .312" | $2.48 |
| DPR-1296 | .375" | $2.78 |
| DPR-1297 | .437" | $3.56 |
| DPR-1298 | .500" | $4.48 |
| DPR-1299 | .562" | $5.26 |
| DPR-1300 | .625" | $6.00 |
| DPR-1301 | .750" | $7.98 |
| DPR-3159 | .875" | $10.16 |
| DPR-1302 | 1.000" | $13.00 |
| DPR-1303 | 1.125" | $15.82 |
| DPR-1304 | 1.250" | $20.17 |
| DPR-1305 | 1.375" | $21.62 |
| DPR-1306 | 1.500" | $27.98 |
| DPR-1307 | 1.625" | $31.63 |
| DPR-1308 | 1.750" | $38.51 |
| DPR-1309 | 2.000" | $48.52 |
| Tolerances | |
| Under 1.375" Dia. | ±.001" |
| 1.375" Dia. & Over | ±.003" |

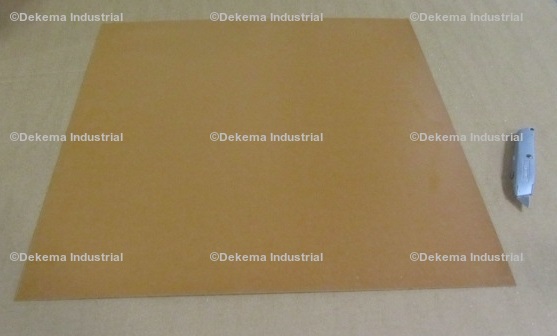

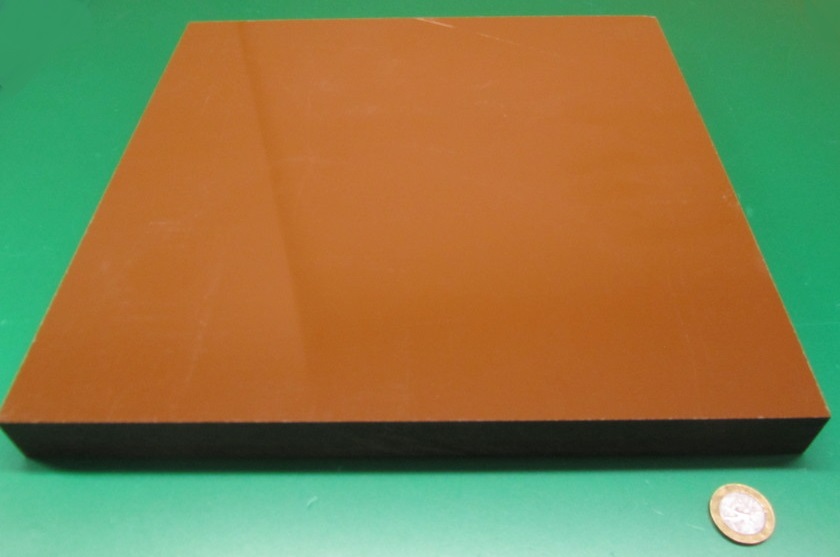

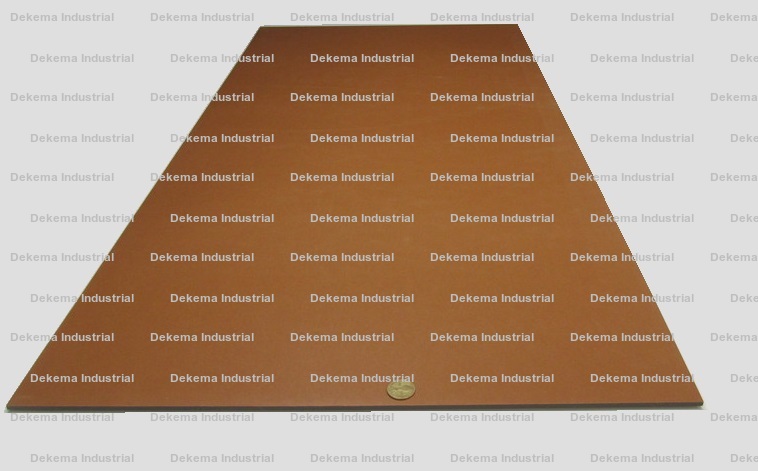

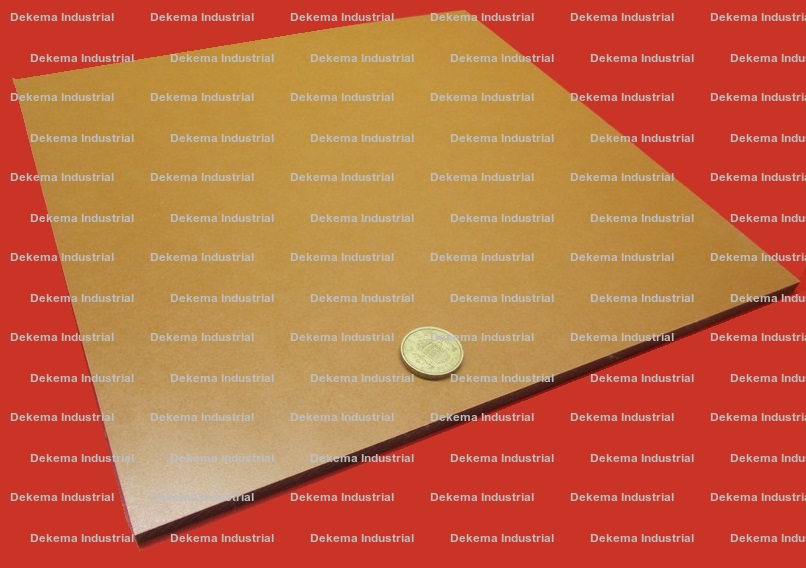

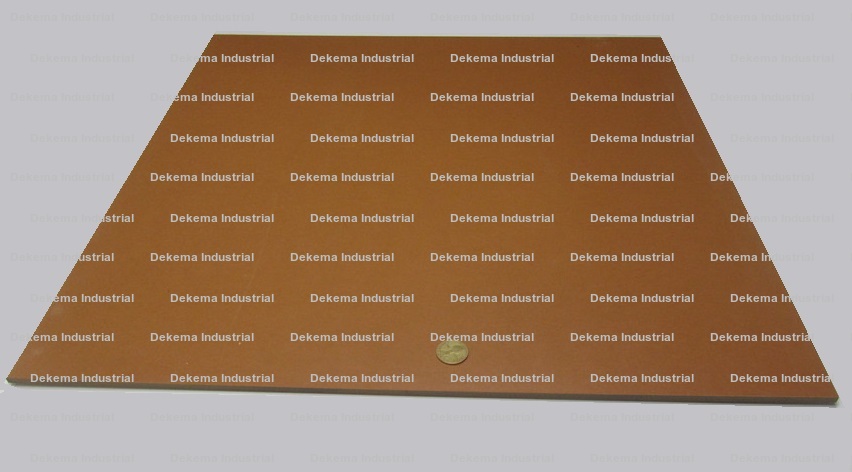

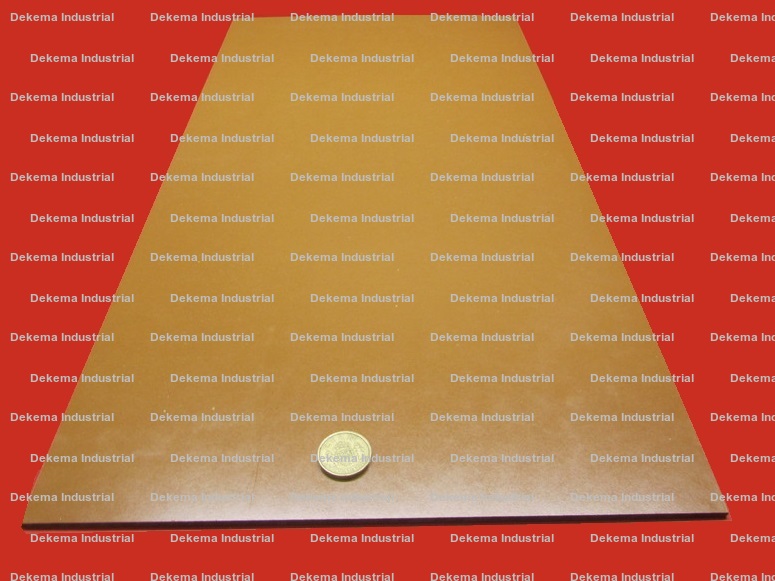

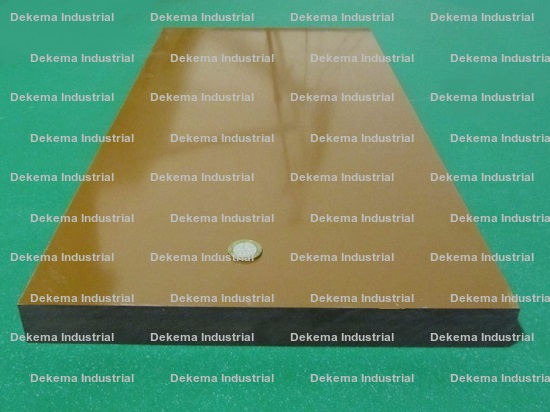

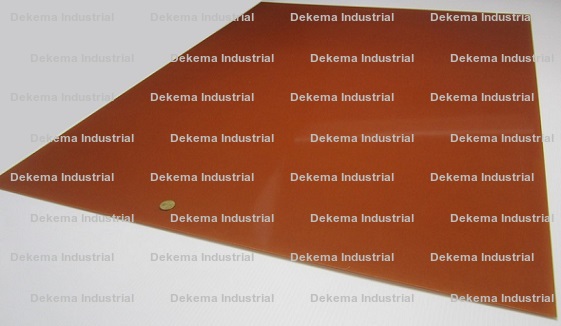

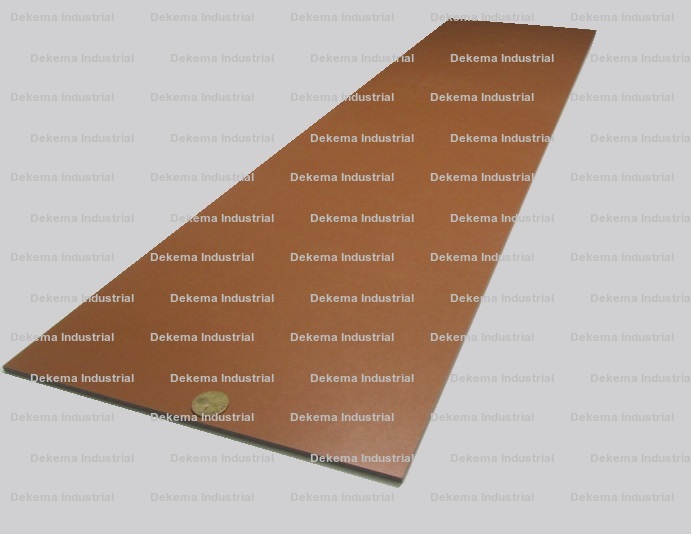

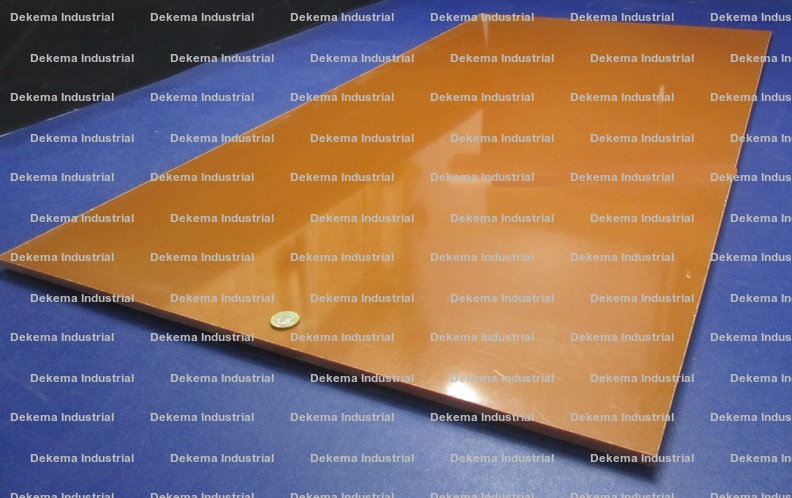

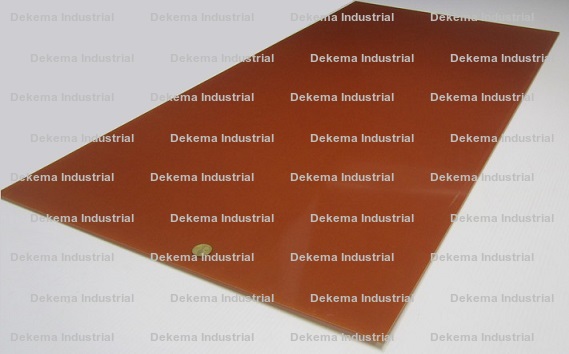

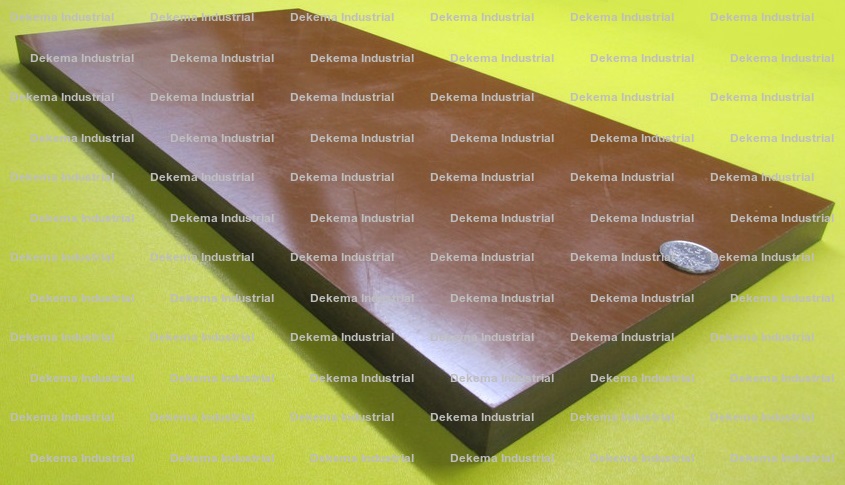

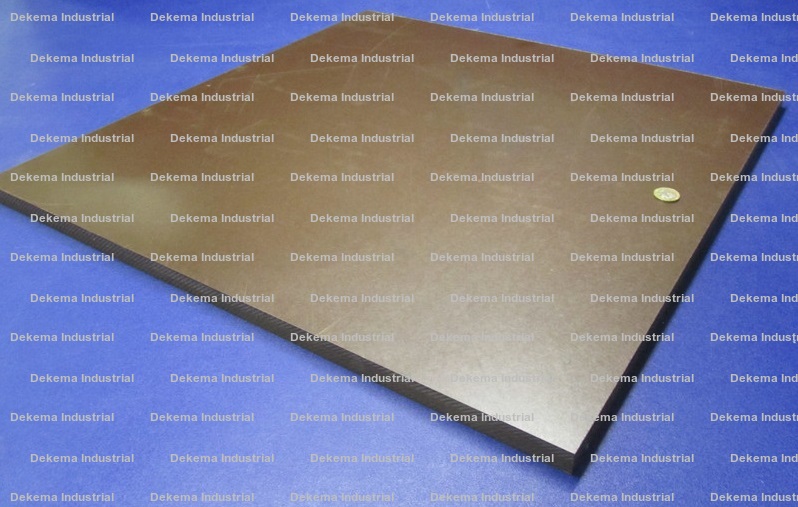

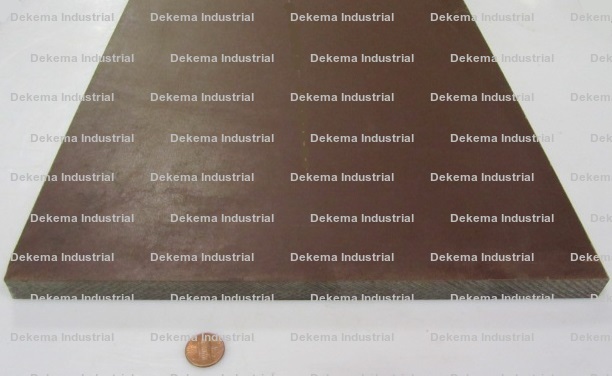

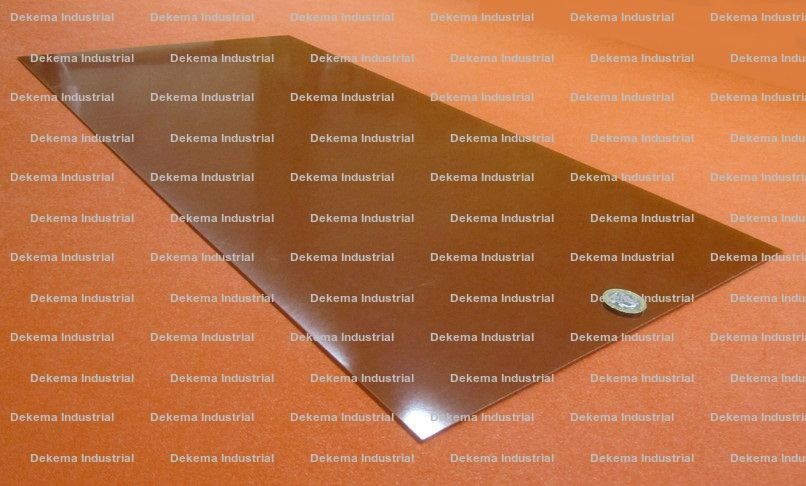

X, XX, XXX Paper Reinforced Sheets & Plates |

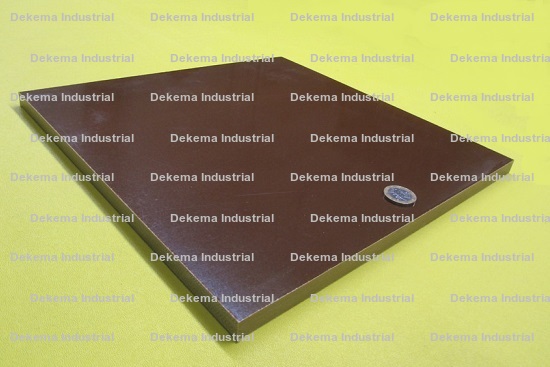

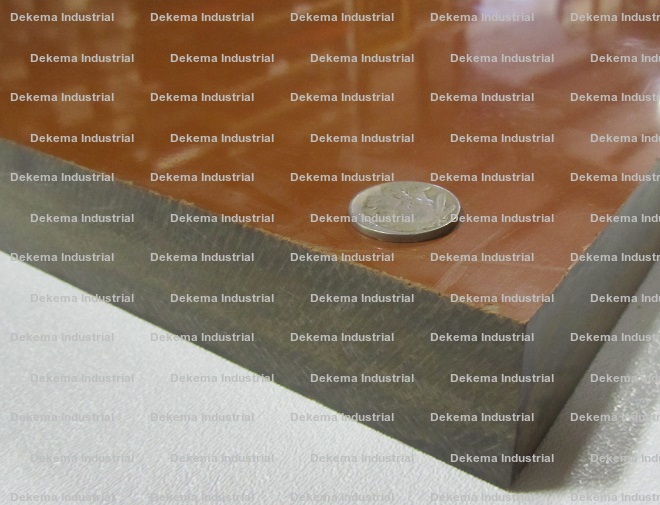

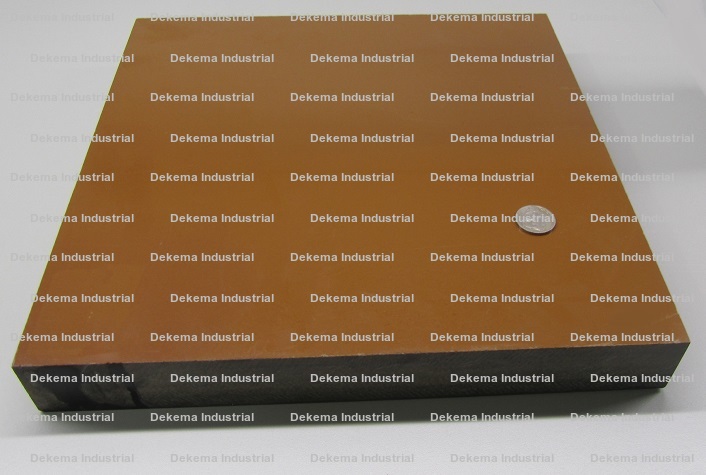

||||
| Part # | Thickness (in.) | Width (in.) | Length (in.) | Price |
|---|---|---|---|---|
| DPS-5942 | .031 | 12 | 12 | $5.01 |
| DPS-2128 | .063 | 12 | 12 | $6.18 |
| DPS-2135 | .094 | 12 | 12 | $7.39 |
| DPS-2142 | .125 | 12 | 12 | $5.41 |
| DPS-2149 | .188 | 12 | 12 | $11.04 |
| DPS-2156 | .250 | 12 | 12 | $15.72 |
| DPS-2163 | .313 | 12 | 12 | $16.48 |
| DPS-2170 | .375 | 12 | 12 | $20.89 |
| DPS-2177 | .500 | 12 | 12 | $27.85 |
| DPS-2184 | .625 | 12 | 12 | $40.18 |
| DPS-2191 | .750 | 12 | 12 | $68.28 |
| DPS-2198 | 1.000 | 12 | 12 | $73.50 |
| DPS-2205 | 1.250 | 12 | 12 | $91.86 |
| DPS-2212 | 1.500 | 12 | 12 | $88.90 |
| DPS-5943 | .031 | 12 | 24 | $9.94 |
| DPS-2129 | .063 | 12 | 24 | $12.28 |
| DPS-2136 | .094 | 12 | 24 | $14.71 |
| DPS-2143 | .125 | 12 | 24 | $10.75 |
| DPS-2150 | .188 | 12 | 24 | $21.99 |
| DPS-2157 | .250 | 12 | 24 | $31.33 |
| DPS-2164 | .313 | 12 | 24 | $32.89 |
| DPS-2171 | .375 | 12 | 24 | $41.68 |
| DPS-2178 | .500 | 12 | 24 | $55.59 |
| DPS-2185 | .625 | 12 | 24 | $114.28 |
| DPS-2192 | .750 | 12 | 24 | $138.26 |
| DPS-2199 | 1.000 | 12 | 24 | $211.08 |
| DPS-2206 | 1.250 | 12 | 24 | $247.30 |
| DPS-2213 | 1.500 | 12 | 24 | $193.14 |
| DPS-2130 | .063 | 12 | 36 | $17.99 |
| DPS-2137 | .094 | 12 | 36 | $21.53 |
| DPS-2151 | .188 | 12 | 36 | $32.22 |

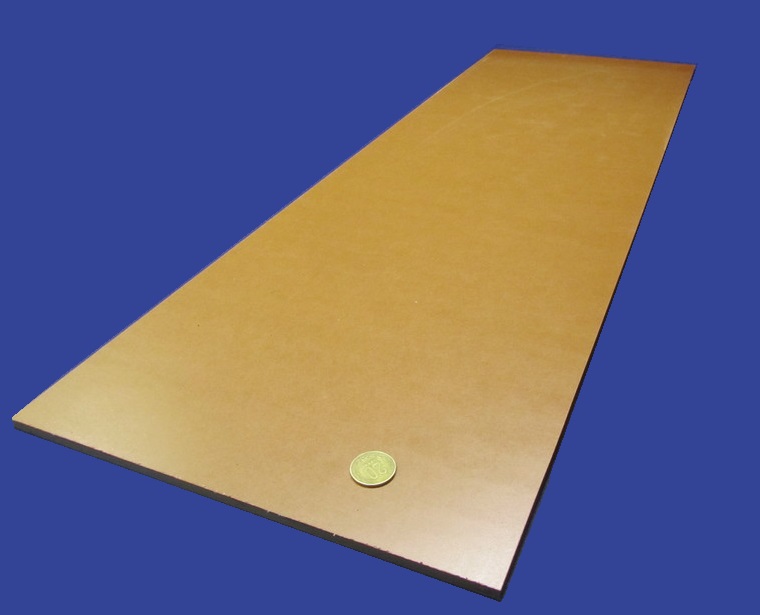

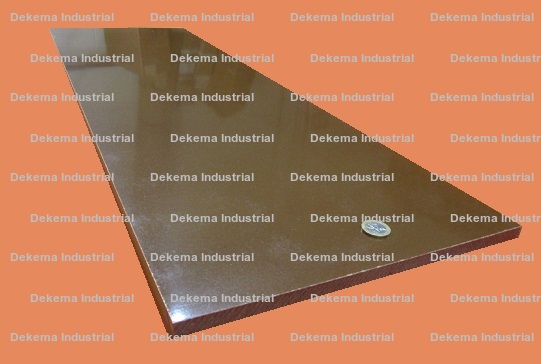

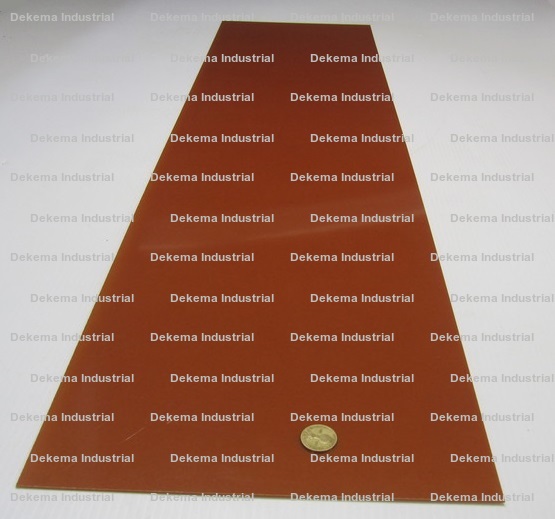

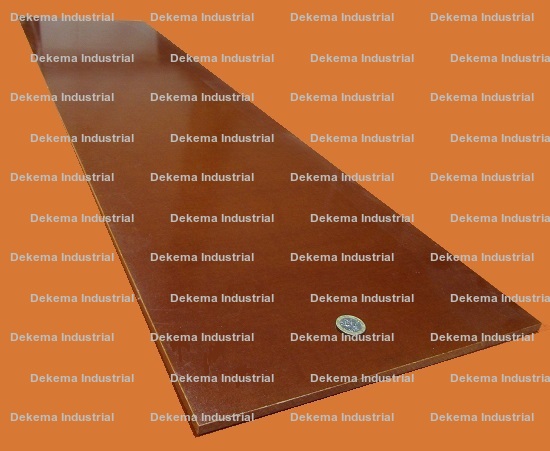

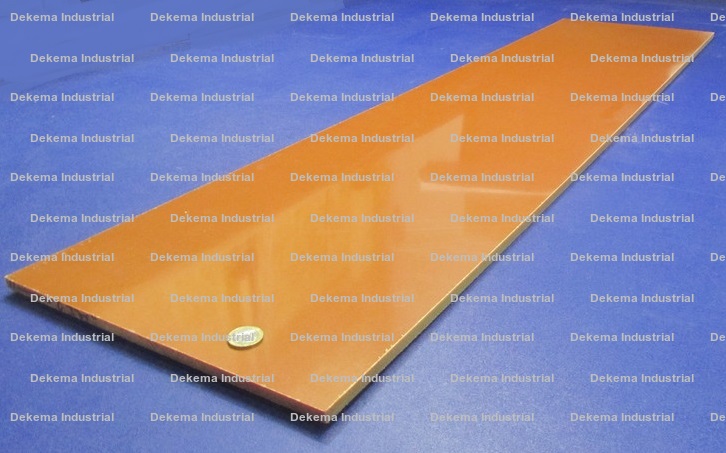

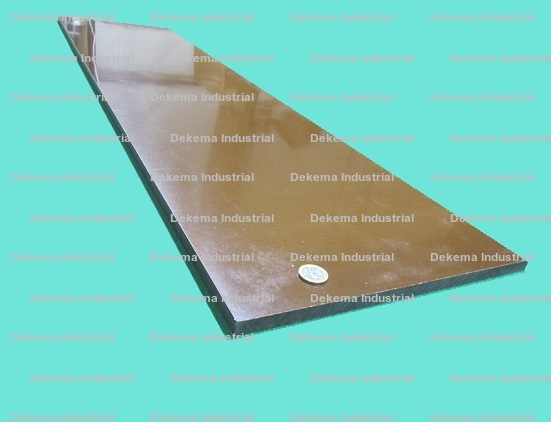

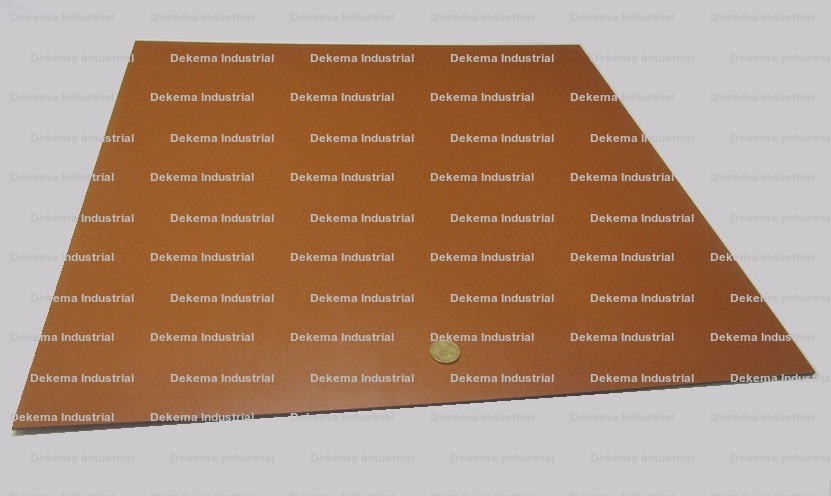

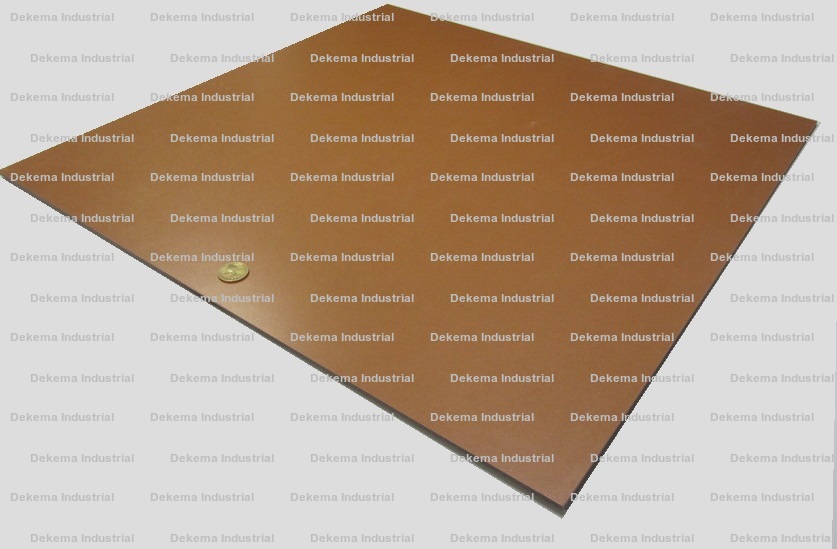

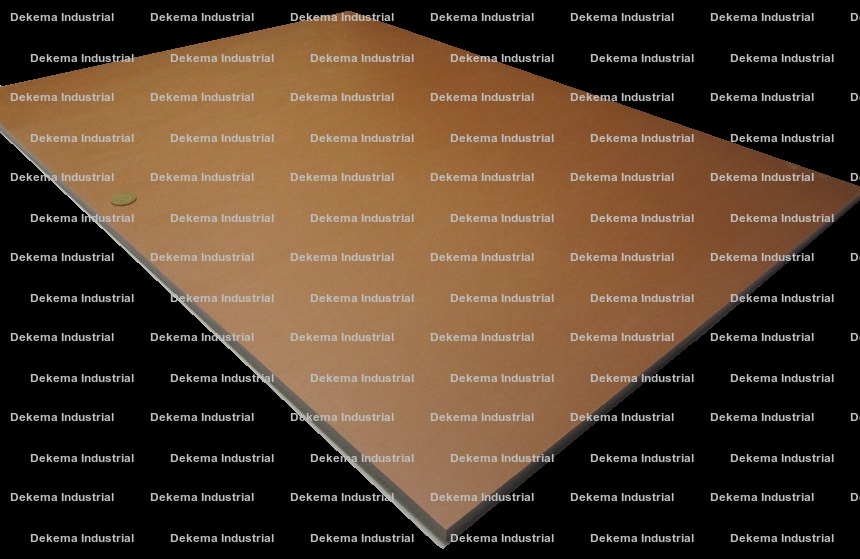

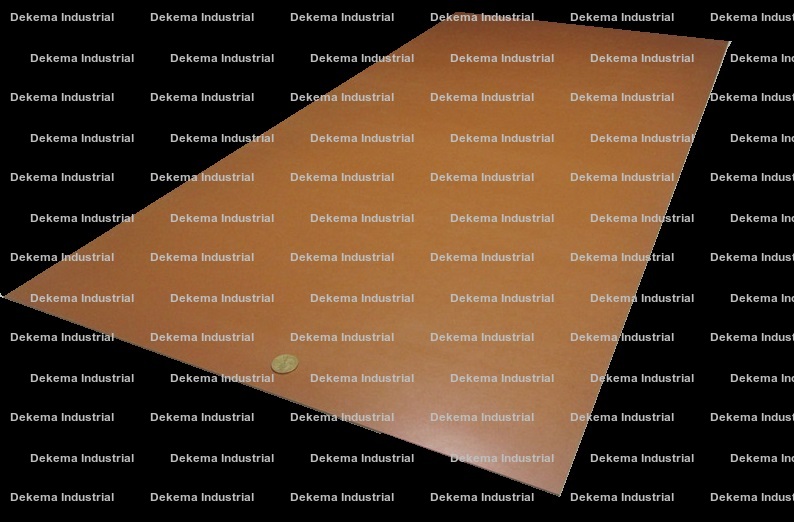

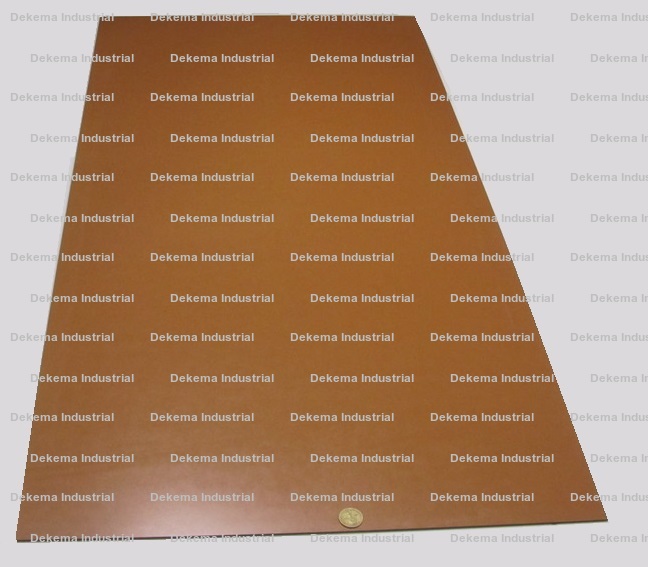

| DPS-2158 | .250 | 12 | 36 | $45.93 |
| DPS-2165 | .313 | 12 | 36 | $48.19 |
| DPS-2172 | .375 | 12 | 36 | $61.11 |
| DPS-2179 | .500 | 12 | 36 | $81.50 |
| DPS-2131 | .063 | 12 | 48 | $23.95 |
| DPS-2138 | .094 | 12 | 48 | $28.68 |
| DPS-2152 | .188 | 12 | 48 | $42.94 |
| DPS-2166 | .313 | 12 | 48 | $64.23 |
| DPS-2173 | .375 | 12 | 48 | $81.44 |
| DPS-2180 | .500 | 12 | 48 | $108.63 |
| DPS-2187 | .625 | 12 | 48 | $272.92 |
| DPS-2194 | .750 | 12 | 48 | $338.22 |
| DPS-2201 | 1.000 | 12 | 48 | $424.90 |
| DPS-2208 | 1.250 | 12 | 48 | $562.98 |
| DPS-2215 | 1.500 | 12 | 48 | $745.68 |
| DPS-5944 | .031 | 24 | 24 | $19.35 |
| DPS-2132 | .063 | 24 | 24 | $23.95 |
| DPS-2139 | .094 | 24 | 24 | $28.68 |
| DPS-2146 | .125 | 24 | 24 | $20.94 |
| DPS-2153 | .188 | 24 | 24 | $42.94 |
| DPS-2160 | .250 | 24 | 24 | $61.20 |
| DPS-2167 | .313 | 24 | 24 | $64.23 |
| DPS-2174 | .375 | 24 | 24 | $81.44 |
| DPS-2181 | .500 | 24 | 24 | $108.63 |
| DPS-2188 | .625 | 24 | 24 | $277.73 |
| DPS-2195 | .750 | 24 | 24 | $261.92 |
| DPS-2202 | 1.000 | 24 | 24 | $246.08 |
| DPS-2209 | 1.250 | 24 | 24 | $468.54 |
| DPS-2216 | 1.500 | 24 | 24 | $551.98 |
| DPS-5945 | .031 | 24 | 36 | $28.35 |
| DPS-2133 | .063 | 24 | 36 | $35.06 |
| DPS-2140 | .094 | 24 | 36 | $42.00 |
| DPS-2147 | .125 | 24 | 36 | $30.67 |
| DPS-2154 | .188 | 24 | 36 | $62.92 |
| DPS-2161 | .250 | 24 | 36 | $89.67 |
| DPS-2168 | .313 | 24 | 36 | $94.12 |
| DPS-2175 | .375 | 24 | 36 | $119.34 |
| DPS-2182 | .500 | 24 | 36 | $159.20 |
| DPS-2189 | .625 | 24 | 36 | $204.22 |
| DPS-2196 | .750 | 24 | 36 | $275.96 |
| DPS-2203 | 1.000 | 24 | 36 | $327.36 |
| DPS-2210 | 1.250 | 24 | 36 | $408.38 |
| DPS-2217 | 1.500 | 24 | 36 | $804.86 |
| DPS-2134 | .063 | 24 | 48 | $46.71 |
| DPS-2141 | .094 | 24 | 48 | $55.98 |
| DPS-2148 | .125 | 24 | 48 | $40.87 |
| DPS-2155 | .188 | 24 | 48 | $83.87 |

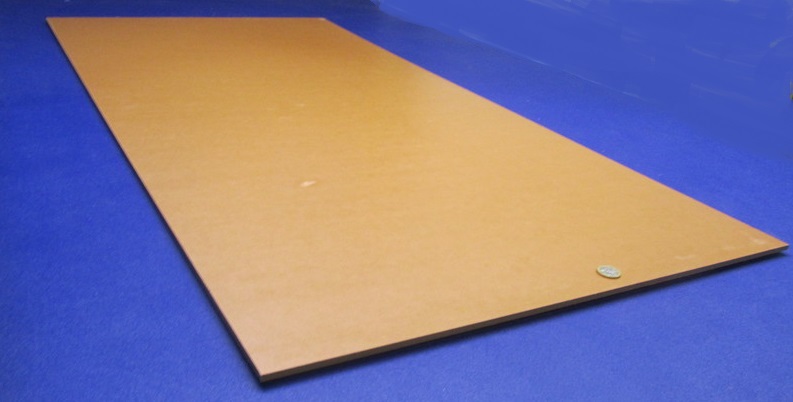

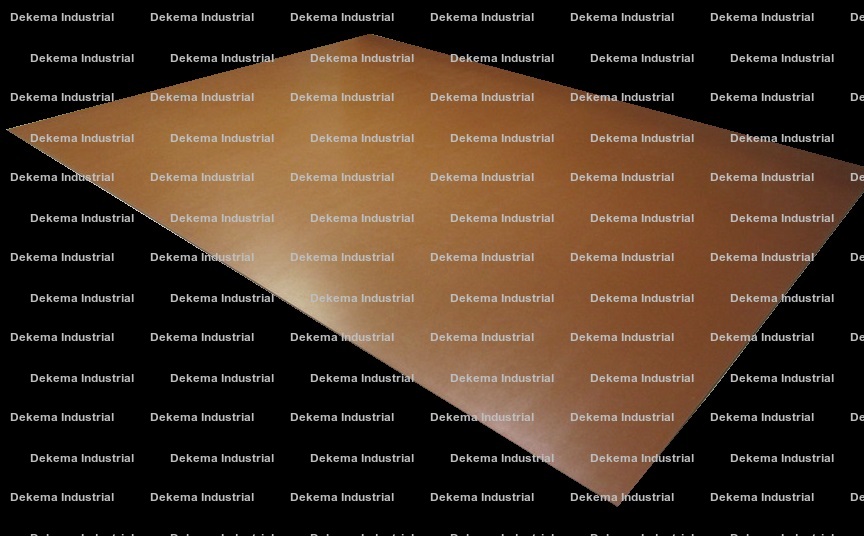

| DPS-2162 | .250 | 24 | 48 | $119.53 |
| DPS-2169 | .313 | 24 | 48 | $125.45 |
| DPS-2176 | .375 | 24 | 48 | $159.09 |
| DPS-2183 | .500 | 24 | 48 | $212.24 |
| DPS-2190 | .625 | 24 | 48 | $530.76 |
| DPS-2197 | .750 | 24 | 48 | $660.72 |
| DPS-2204 | 1.000 | 24 | 48 | $834.82 |
| DPS-2211 | 1.250 | 24 | 48 | $1,112.58 |
| DPS-2218 | 1.500 | 24 | 48 | $1,468.78 |
| DPS-5715 | .031 | 36 | 48 | $52.66 |
| DPS-5718 | .062 | 36 | 48 | $65.16 |
| DPS-6017 | .093 | 36 | 48 | $78.08 |
| DPS-5946 | .125 | 36 | 48 | $56.98 |
| DPS-6018 | .156 | 36 | 48 | $87.14 |
| DPS-5947 | .188 | 36 | 48 | $116.98 |
| DPS-5948 | .250 | 36 | 48 | $166.76 |
| DPS-6019 | .313 | 36 | 48 | $175.02 |
| DPS-5949 | .375 | 36 | 48 | $221.96 |
| DPS-6020 | .437 | 36 | 48 | $245.08 |
| DPS-5950 | .500 | 36 | 48 | $296.12 |
| DPS-17996 | .562 | 36 | 48 | $315.16 * |
| DPS-4035 | .625 | 36 | 48 | $614.32 |
| DPS-4038 | .750 | 36 | 48 | $444.16 |
| DPS-6021 | .875 | 36 | 48 | $490.64 |
| DPS-5951 | 1.00 | 36 | 48 | $460.56 |
| DPS-17994 | 1.125 | 36 | 48 | $520.08 * |
| DPS-5952 | 1.25 | 36 | 48 | $747.40 |
| DPS-17993 | 1.375 | 36 | 48 | $770.96 * |
| DPS-5953 | 1.50 | 36 | 48 | $896.88 |
| DPS-6023 | 1.75 | 36 | 48 | $981.22 |
| DPS-6024 | 2.00 | 36 | 48 | $1,120.58 |
Tolerances for Sheet Thickness Inches
| .020-.030 ±.004" | .093±.009" | .250±.022" | .500±.036" | .875±.046" | 1.50±.061" |
| .031 ±.005" | .125±.012" | .313±.026" | .625±.040" | 1.00±.046" | 1.75±.065" |
| .062 ±.0085" | .188±.019" | .375±.030" | .750±.043" | 1.25±.049" | 2.00±.069" |
