Hardened Metric Shafts
1055 Steel - Straightness Tolerance .03 mm per 300 mm, Case Hardened.
1566 Steel - Straightness Tolerance .3048 mm per 305 mm
440 Stainless Steel - .03 mm per 300 mm, Case Hardened.
52100 Steel - .025/.050 mm per 300 mm, Case Hardened.
Metric Hardened Shafts with Chamfered Ends
| Part # | Material | Shaft OD | OD Tolerance | Length | Price |
|---|---|---|---|---|---|
| Shaft-352 | 1055 Steel | 4 mm | +.001/-.008 mm | 200 mm | $16.78 |
| Shaft-353 | 1055 Steel | 4 mm | +.001/-.008 mm | 400mm | $32.26 |
| Shaft-354 | 1055 Steel | 5mm | +.001/-.008 mm | 200mm | $22.04 |
| Shaft-355 | 1055 Steel | 5mm | +.001/-.008 mm | 400mm | $41.62 |
| Shaft-356 | 1055 Steel | 5mm | +.001/-.008 mm | 600mm | $69.02 |
| Shaft-357 | 1055 Steel | 5mm | +.001/-.008 mm | 800mm | $86.48 |
| Shaft-358 | 1055 Steel | 5mm | +.001/-.008 mm | 1200mm | $150.88 |
| Shaft-359 | 1055 Steel | 6mm | +.001/-.008 mm | 200mm | $12.78 |
| Shaft-360 | 1055 Steel | 6mm | +.001/-.008 mm | 400mm | $26.04 |
| Shaft-361 | 1055 Steel | 6mm | +.001/-.008 mm | 600mm | $37.42 |
| Shaft-362 | 1055 Steel | 6mm | +.001/-.008 mm | 1200mm | $78.18 |
| Shaft-363 | 1055 Steel | 8mm | +.001/-.009 mm | 200mm | $14.50 |
| Shaft-364 | 1055 Steel | 8mm | +.001/-.009 mm | 400mm | $29.56 |
| Shaft-365 | 1055 Steel | 8mm | +.001/-.009 mm | 600mm | $44.40 |
| Shaft-366 | 1055 Steel | 8mm | +.001/-.009 mm | 800mm | $59.10 |
| Shaft-367 | 1055 Steel | 8mm | +.001/-.009 mm | 1200mm | $88.88 |
| Shaft-368 | 1055 Steel | 10mm | +.001/-.009 mm | 200mm | $15.06 |
| Shaft-369 | 1055 Steel | 10mm | +.001/-.009 mm | 400mm | $30.78 |
| Shaft-370 | 1055 Steel | 10mm | +.001/-.009 mm | 500mm | $36.70 |
| Shaft-371 | 1055 Steel | 10mm | +.001/-.009 mm | 1000mm | $73.50 |
| Shaft-372 | 1055 Steel | 12mm | +.001/-.011 mm | 200mm | $15.34 |
| Shaft-373 | 1055 Steel | 12mm | +.001/-.011 mm | 400mm | $31.42 |
| Shaft-374 | 1055 Steel | 12mm | +.001/-.011 mm | 500mm | $39.20 |
| Shaft-375 | 1055 Steel | 12mm | +.001/-.011 mm | 1000mm | $78.40 |
| Shaft-376 | 1055 Steel | 12mm | +.001/-.011 mm | 1200mm | $94.12 |
| Shaft-377 | 1055 Steel | 12mm | +.001/-.011 mm | 1500mm | $117.56 |
| Shaft-378 | 1055 Steel | 12mm | +.001/-.011 mm | 2500mm | $156.92 |

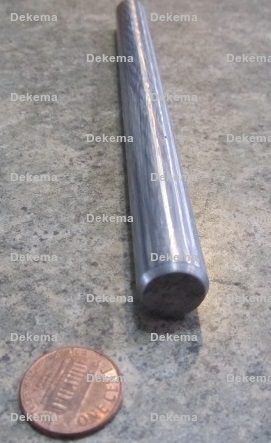

| Shaft-384 | 1055 Steel | 15mm | +.001/-.011 mm | 200mm | $19.34 |
| Shaft-385 | 1055 Steel | 15mm | +.001/-.011 mm | 400mm | $38.40 |
| Shaft-386 | 1055 Steel | 15mm | +.001/-.011 mm | 500mm | $49.10 |
| Shaft-387 | 1055 Steel | 15mm | +.001/-.011 mm | 1000mm | $98.04 |
| Shaft-388 | 1055 Steel | 15mm | +.001/-.011 mm | 1200mm | $117.76 |
| Shaft-389 | 1055 Steel | 15mm | +.001/-.011 mm | 1500mm | $147.10 |
| Shaft-390 | 1055 Steel | 15mm | +.001/-.011 mm | 2000mm | $187.50 |
| Shaft-391 | 1055 Steel | 16mm | +.001/-.011 mm | 200mm | $19.98 |
| Shaft-392 | 1055 Steel | 16mm | +.001/-.011 mm | 400mm | $40.68 |
| Shaft-393 | 1055 Steel | 16mm | +.001/-.011 mm | 500mm | $53.34 |
| Shaft-394 | 1055 Steel | 16mm | +.001/-.011 mm | 1000mm | $105.06 |
| Shaft-395 | 1055 Steel | 16mm | +.001/-.011 mm | 1200mm | $122.08 |
| Shaft-396 | 1055 Steel | 16mm | +.001/-.011 mm | 1500mm | $152.54 |
| Shaft-397 | 1055 Steel | 16mm | +.001/-.011 mm | 2000mm | $203.52 |
| Shaft-398 | 1055 Steel | 20mm | +.001/-.013 mm | 200mm | $24.54 |
| Shaft-399 | 1055 Steel | 20mm | +.001/-.013 mm | 400mm | $49.02 |
| Shaft-400 | 1055 Steel | 20mm | +.001/-.013 mm | 500mm | $64.32 |
| Shaft-401 | 1055 Steel | 20mm | +.001/-.013 mm | 1000mm | $128.42 |
| Shaft-402 | 1055 Steel | 20mm | +.001/-.013 mm | 1200mm | $153.94 |
| Shaft-403 | 1055 Steel | 20mm | +.001/-.013 mm | 1500mm | $192.52 |
| Shaft-404 | 1055 Steel | 20mm | +.001/-.013 mm | 2000mm | $244.74 |
| Shaft-405 | 1055 Steel | 24mm | +.001/-.013 mm | 200mm | $79.14 |
| Shaft-406 | 1055 Steel | 24mm | +.001/-.013 mm | 500mm | $186.78 |
| Shaft-407 | 1055 Steel | 24mm | +.001/-.013 mm | 1000mm | $373.56 |
| Shaft-408 | 1055 Steel | 24mm | +.001/-.013 mm | 1200mm | $448.26 |
| Shaft-412 | 1055 Steel | 25mm | +.001/-.013 mm | 200mm | $32.50 |
| Shaft-413 | 1055 Steel | 25mm | +.001/-.013 mm | 500mm | $81.52 |
| Shaft-414 | 1055 Steel | 25mm | +.001/-.013 mm | 1000mm | $162.50 |
| Shaft-415 | 1055 Steel | 25mm | +.001/-.013 mm | 1200mm | $195.10 |
| Shaft-416 | 1055 Steel | 25mm | +.001/-.013 mm | 1500mm | $244.08 |
| Shaft-417 | 1055 Steel | 25mm | +.001/-.013 mm | 2000mm | $317.72 |
| Shaft-418 | 1055 Steel | 25mm | +.001/-.013 mm | 2500mm | $426.42 |
| Shaft-419 | 1055 Steel | 30mm | +.001/-.013 mm | 200mm | $44.50 |
| Shaft-420 | 1055 Steel | 30mm | +.001/-.013 mm | 500mm | $106.16 |
| Shaft-421 | 1055 Steel | 30mm | +.001/-.013 mm | 1000mm | $212.26 |
| Shaft-422 | 1055 Steel | 30mm | +.001/-.013 mm | 1200mm | $254.62 |
| Shaft-423 | 1055 Steel | 30mm | +.001/-.013 mm | 1500mm | $318.40 |
| Shaft-424 | 1055 Steel | 30mm | +.001/-.013 mm | 2000mm | $389.84 |
| Shaft-425 | 1055 Steel | 30mm | +.001/-.013 mm | 2500mm | $582.42 |
| Shaft-426 | 1055 Steel | 35mm | +.001/-.016 mm | 200mm | $60.12 |
| Shaft-427 | 1055 Steel | 35mm | +.001/-.016 mm | 500mm | $157.54 |
| Shaft-428 | 1055 Steel | 35mm | +.001/-.016 mm | 1000mm | $315.16 |
| Shaft-429 | 1055 Steel | 35mm | +.001/-.016 mm | 1200mm | $378.12 |
| Shaft-430 | 1055 Steel | 35mm | +.001/-.016 mm | 1500mm | $473.20 |
| Shaft-431 | 1055 Steel | 35mm | +.001/-.016 mm | 2000mm | $630.22 |
| Shaft-432 | 1055 Steel | 40mm | +.001/-.016 mm | 200mm | $69.28 |
| Shaft-433 | 1055 Steel | 40mm | +.001/-.016 mm | 500mm | $181.44 |
| Shaft-434 | 1055 Steel | 40mm | +.001/-.016 mm | 1000mm | $363.10 |
| Shaft-435 | 1055 Steel | 40mm | +.001/-.016 mm | 1200mm | $435.68 |
| Shaft-436 | 1055 Steel | 40mm | +.001/-.016 mm | 1500mm | $519.10 |
| Shaft-437 | 1055 Steel | 40mm | +.001/-.016 mm | 2000mm | $692.32 |
| Shaft-438 | 1055 Steel | 40mm | +.001/-.016 mm | 2500mm | $907.74 |
| Shaft-439 | 1055 Steel | 50mm | +.001/-.016 mm | 200mm | $121.20 |
| Shaft-440 | 1055 Steel | 50mm | +.001/-.016 mm | 500mm | $260.60 |
| Shaft-441 | 1055 Steel | 50mm | +.001/-.016 mm | 1000mm | $521.12 |
| Shaft-442 | 1055 Steel | 50mm | +.001/-.016 mm | 1200mm | $625.36 |
| Shaft-443 | 1055 Steel | 50mm | +.001/-.016 mm | 1500mm | $783.44 |
| Shaft-444 | 1055 Steel | 50mm | +.001/-.016 mm | 2000mm | $964.96 |
| Shaft-445 | 1055 Steel | 50mm | +.001/-.016 mm | 2500mm | $1,588.62 |
| Shaft-1149 | 1566 Steel | 10mm | +0/-.0762 mm | 200mm | $19.28 |
| Shaft-1150 | 1566 Steel | 10mm | +0/-.0762 mm | 400mm | $21.46 |
| Shaft-1151 | 1566 Steel | 10mm | +0/-.0762 mm | 500mm | $39.60 |
| Shaft-1152 | 1566 Steel | 10mm | +0/-.0762 mm | 1000mm | $60.90 |
| Shaft-1153 | 1566 Steel | 10mm | +0/-.0762 mm | 1200mm | $63.08 |
| Shaft-1154 | 1566 Steel | 10mm | +0/-.0762 mm | 1500mm | $66.34 |
| Shaft-1155 | 1566 Steel | 10mm | +0/-.0762 mm | 2000mm | $71.78 |
| Shaft-1156 | 1566 Steel | 12mm | +0/-.0762 mm | 200mm | $20.12 |
| Shaft-1157 | 1566 Steel | 12mm | +0/-.0762 mm | 400mm | $23.32 |
| Shaft-1158 | 1566 Steel | 12mm | +0/-.0762 mm | 500mm | $42.80 |
| Shaft-1159 | 1566 Steel | 12mm | +0/-.0762 mm | 1000mm | $65.22 |
| Shaft-1160 | 1566 Steel | 12mm | +0/-.0762 mm | 1200mm | $68.34 |
| Shaft-1161 | 1566 Steel | 12mm | +0/-.0762 mm | 1500mm | $72.82 |
| Shaft-1162 | 1566 Steel | 12mm | +0/-.0762 mm | 2000mm | $80.48 |
| Shaft-1163 | 1566 Steel | 16mm | +0/-.0762 mm | 200mm | $21.90 |
| Shaft-1164 | 1566 Steel | 16mm | +0/-.0762 mm | 400mm | $27.12 |
| Shaft-1165 | 1566 Steel | 16mm | +0/-.0762 mm | 500mm | $46.38 |
| Shaft-1166 | 1566 Steel | 16mm | +0/-.0762 mm | 1000mm | $76.22 |
| Shaft-1167 | 1566 Steel | 16mm | +0/-.0762 mm | 1200mm | $81.34 |
| Shaft-1168 | 1566 Steel | 16mm | +0/-.0762 mm | 1500mm | $89.30 |
| Shaft-1169 | 1566 Steel | 16mm | +0/-.0762 mm | 2000mm | $102.26 |
| Shaft-1170 | 1566 Steel | 20mm | +0/-.0762 mm | 200mm | $24.64 |
| Shaft-1171 | 1566 Steel | 20mm | +0/-.0762 mm | 400mm | $32.68 |
| Shaft-1172 | 1566 Steel | 20mm | +0/-.0762 mm | 500mm | $53.34 |
| Shaft-1173 | 1566 Steel | 20mm | +0/-.0762 mm | 1000mm | $76.22 |
| Shaft-1174 | 1566 Steel | 20mm | +0/-.0762 mm | 1200mm | $98.00 |
| Shaft-1175 | 1566 Steel | 20mm | +0/-.0762 mm | 1500mm | $109.94 |
| Shaft-1176 | 1566 Steel | 20mm | +0/-.0762 mm | 2000mm | $130.04 |
| Shaft-1177 | 1566 Steel | 25mm | +0/-.0762 mm | 200mm | $30.74 |
| Shaft-1178 | 1566 Steel | 25mm | +0/-.0762 mm | 400mm | $44.68 |
| Shaft-1179 | 1566 Steel | 25mm | +0/-.0762 mm | 500mm | $68.30 |
| Shaft-1180 | 1566 Steel | 25mm | +0/-.0762 mm | 1000mm | $115.52 |
| Shaft-1181 | 1566 Steel | 25mm | +0/-.0762 mm | 1200mm | $133.82 |
| Shaft-1182 | 1566 Steel | 25mm | +0/-.0762 mm | 1500mm | $154.74 |
| Shaft-1183 | 1566 Steel | 25mm | +0/-.0762 mm | 2000mm | $189.68 |
| Shaft-1184 | 1566 Steel | 30mm | +0/-.0762 mm | 200mm | $37.16 |
| Shaft-1185 | 1566 Steel | 30mm | +0/-.0762 mm | 400mm | $57.78 |
| Shaft-1186 | 1566 Steel | 30mm | +0/-.0762 mm | 500mm | $84.60 |
| Shaft-1187 | 1566 Steel | 30mm | +0/-.0762 mm | 1000mm | $152.52 |
| Shaft-1188 | 1566 Steel | 30mm | +0/-.0762 mm | 1200mm | $173.04 |
| Shaft-1189 | 1566 Steel | 30mm | +0/-.0762 mm | 1500mm | $203.90 |
| Shaft-446 | 400 Stainless Steel | 6mm | +.001/-.008 mm | 200mm | $31.94 |
| Shaft-447 | 400 Stainless Steel | 6mm | +.001/-.008 mm | 400mm | $64.08 |
| Shaft-448 | 400 Stainless Steel | 6mm | +.001/-.008 mm | 600mm | $95.98 |
| Shaft-449 | 400 Stainless Steel | 6mm | +.001/-.008 mm | 800mm | $127.98 |
| Shaft-450 | 400 Stainless Steel | 6mm | +.001/-.008 mm | 1000mm | $160.14 |
| Shaft-451 | 400 Stainless Steel | 6mm | +.001/-.008 mm | 1200mm | $192.72 |
| Shaft-452 | 400 Stainless Steel | 10mm | +.001/-.009 mm | 200mm | $34.44 |
| Shaft-453 | 400 Stainless Steel | 10mm | +.001/-.009 mm | 400mm | $69.04 |
| Shaft-454 | 400 Stainless Steel | 10mm | +.001/-.009 mm | 600mm | $103.62 |
| Shaft-455 | 400 Stainless Steel | 10mm | +.001/-.009 mm | 800mm | $138.08 |
| Shaft-456 | 400 Stainless Steel | 10mm | +.001/-.009 mm | 1000mm | $172.42 |
| Shaft-457 | 400 Stainless Steel | 10mm | +.001/-.009 mm | 1200mm | $206.92 |
| Shaft-458 | 400 Stainless Steel | 12mm | +.001/-.011 mm | 200mm | $28.28 |
| Shaft-459 | 400 Stainless Steel | 12mm | +.001/-.011 mm | 400mm | $56.32 |
| Shaft-460 | 400 Stainless Steel | 12mm | +.001/-.011 mm | 600mm | $84.42 |
| Shaft-461 | 400 Stainless Steel | 12mm | +.001/-.011 mm | 800mm | $112.58 |
| Shaft-462 | 400 Stainless Steel | 12mm | +.001/-.011 mm | 1000mm | $140.78 |
| Shaft-463 | 400 Stainless Steel | 12mm | +.001/-.011 mm | 1200mm | $168.84 |
| Shaft-464 | 400 Stainless Steel | 15mm | +.001/-.011 mm | 200mm | $33.48 |
| Shaft-465 | 400 Stainless Steel | 15mm | +.001/-.011 mm | 400mm | $66.88 |
| Shaft-466 | 400 Stainless Steel | 15mm | +.001/-.011 mm | 600mm | $100.28 |
| Shaft-467 | 400 Stainless Steel | 15mm | +.001/-.011 mm | 800mm | $133.78 |
| Shaft-468 | 400 Stainless Steel | 15mm | +.001/-.011 mm | 1000mm | $167.18 |
| Shaft-469 | 400 Stainless Steel | 15mm | +.001/-.011 mm | 1200mm | $200.48 |
| Shaft-470 | 400 Stainless Steel | 16mm | +.001/-.011 mm | 200mm | $41.18 |
| Shaft-471 | 400 Stainless Steel | 16mm | +.001/-.011 mm | 400mm | $82.54 |
| Shaft-472 | 400 Stainless Steel | 16mm | +.001/-.011 mm | 600mm | $123.74 |
| Shaft-473 | 400 Stainless Steel | 16mm | +.001/-.011 mm | 800mm | $165.18 |
| Shaft-474 | 400 Stainless Steel | 16mm | +.001/-.011 mm | 1000mm | $206.38 |
| Shaft-475 | 400 Stainless Steel | 16mm | +.001/-.011 mm | 1200mm | $247.48 |
| Shaft-476 | 400 Stainless Steel | 20mm | +.001/-.013 mm | 500mm | $116.84 |
| Shaft-477 | 400 Stainless Steel | 20mm | +.001/-.013 mm | 600mm | $139.98 |
| Shaft-478 | 400 Stainless Steel | 20mm | +.001/-.013 mm | 800mm | $186.74 |
| Shaft-479 | 400 Stainless Steel | 20mm | +.001/-.013 mm | 1000mm | $233.38 |
| Shaft-480 | 400 Stainless Steel | 20mm | +.001/-.013 mm | 1200mm | $279.94 |
| Shaft-481 | 400 Stainless Steel | 20mm | +.001/-.013 mm | 1500mm | $333.46 |
| Shaft-482 | 400 Stainless Steel | 25mm | +.001/-.013 mm | 500mm | $165.24 |
| Shaft-483 | 400 Stainless Steel | 25mm | +.001/-.013 mm | 600mm | $198.08 |
| Shaft-484 | 400 Stainless Steel | 25mm | +.001/-.013 mm | 800mm | $251.60 |
| Shaft-485 | 400 Stainless Steel | 25mm | +.001/-.013 mm | 1000mm | $314.46 |
| Shaft-486 | 400 Stainless Steel | 25mm | +.001/-.013 mm | 1200mm | $377.46 |
| Shaft-487 | 400 Stainless Steel | 25mm | +.001/-.013 mm | 1500mm | $471.66 |
| Shaft-488 | 400 Stainless Steel | 30mm | +.001/-.013 mm | 500mm | $213.88 |
| Shaft-489 | 400 Stainless Steel | 30mm | +.001/-.013 mm | 600mm | $244.46 |
| Shaft-490 | 400 Stainless Steel | 30mm | +.001/-.013 mm | 800mm | $325.98 |
| Shaft-491 | 400 Stainless Steel | 30mm | +.001/-.013 mm | 1000mm | $407.42 |
| Shaft-492 | 400 Stainless Steel | 30mm | +.001/-.013 mm | 1200mm | $488.94 |
| Shaft-493 | 400 Stainless Steel | 30mm | +.001/-.013 mm | 1500mm | $611.28 |
| Shaft-494 | 400 Stainless Steel | 40mm | +.001/-.016 mm | 500mm | $327.74 |
| Shaft-495 | 400 Stainless Steel | 40mm | +.001/-.016 mm | 600mm | $381.80 |
| Shaft-496 | 400 Stainless Steel | 40mm | +.001/-.016 mm | 800mm | $524.32 |
| Shaft-497 | 400 Stainless Steel | 40mm | +.001/-.016 mm | 1000mm | $611.82 |
| Shaft-498 | 400 Stainless Steel | 40mm | +.001/-.016 mm | 1200mm | $733.94 |
| Shaft-499 | 400 Stainless Steel | 40mm | +.001/-.016 mm | 1500mm | $917.64 |
| Shaft-500 | 400 Stainless Steel | 50mm | +.001/-.016 mm | 500mm | $545.18 |
| Shaft-350 | 52100 Steel | 3 mm | -0.002 to -0.008mm | 200 mm | $42.38 |
| Shaft-351 | 52100 Steel | 3 mm | -0.002 to -0.008mm | 400 mm | $84.70 |
| Shaft-379 | 52100 Steel | 13mm | -0.006to -0.017mm | 200mm | $31.34 |
| Shaft-380 | 52100 Steel | 13mm | -0.006to -0.017mm | 400mm | $62.56 |
| Shaft-381 | 52100 Steel | 13mm | -0.006to -0.017mm | 500mm | $73.72 |
| Shaft-382 | 52100 Steel | 13mm | -0.006to -0.017mm | 1000mm | $172.50 |
| Shaft-383 | 52100 Steel | 13mm | -0.006to -0.017mm | 1200mm | $194.80 |
