Chrome Coated Steel Shafts
1045 Steel - OD Tolerance, .250-.375" OD, +0/-.001", .500-2.00" OD, +0/-.0015", .0001-.0005" Chrome Plating, 10-16rms Micron Finish
1566 Steel - OD Tolerance, .500-1.25" OD, -.0005/-.001", 1.50" OD, -.0006/-.0011", .0005" Chrome Plating, 12rms Micron Finish, Case Hardened
Chrome Steel Precision Shafts, Chamfered Ends
| Part # | Material | Shaft OD | Length | Straightness Tol | Price |
|---|---|---|---|---|---|
| Shaft-1190 | 1045 Steel | .250" | 12.00" | .003" per Ft | $17.88 |
| Shaft-1191 | 1045 Steel | .250" | 18.00" | .003" per Ft | $21.88 |
| Shaft-1192 | 1045 Steel | .250" | 24.00" | .003" per Ft | $30.28 |
| Shaft-1193 | 1045 Steel | .250" | 36.00" | .003" per Ft | $38.48 |
| Shaft-1194 | 1045 Steel | .250" | 48.00" | .003" per Ft | $61.96 |
| Shaft-1195 | 1045 Steel | .375" | 12.00" | .003" per Ft | $19.08 |
| Shaft-1196 | 1045 Steel | .375" | 18.00" | .003" per Ft | $23.68 |

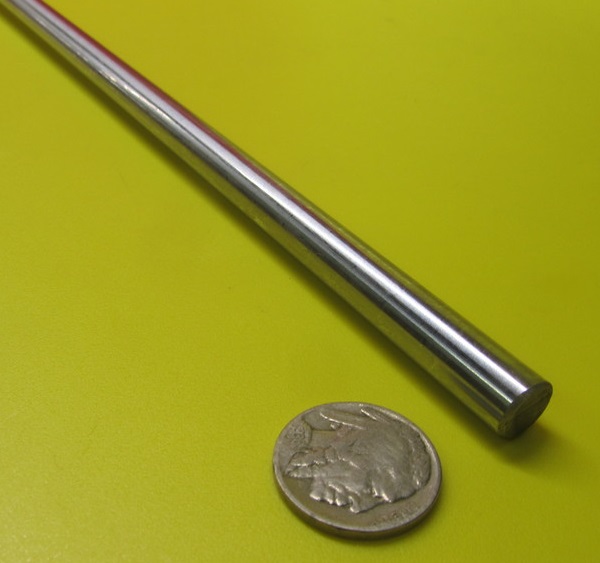

| Shaft-1197 | 1045 Steel | .375" | 24.00" | .003" per Ft | $32.68 |
| Shaft-1198 | 1045 Steel | .375" | 36.00" | .003" per Ft | $41.88 |
| Shaft-1199 | 1045 Steel | .375" | 48.00" | .003" per Ft | $67.58 |
| Shaft-1200 | 1045 Steel | .500" | 12.00" | .1875" per Ft | $24.80 |
| Shaft-1201 | 1045 Steel | .500" | 18.00" | .1875" per Ft | $36.92 |
| Shaft-1202 | 1045 Steel | .500" | 24.00" | .1875" per Ft | $49.06 |
| Shaft-1203 | 1045 Steel | .500" | 36.00" | .1875" per Ft | $70.62 |
| Shaft-1204 | 1045 Steel | .500" | 48.00" | .1875" per Ft | $105.65 |
| Shaft-1205 | 1045 Steel | .625" | 12.00" | .125" per 10 Ft | $32.42 |
| Shaft-1206 | 1045 Steel | .625" | 18.00" | .125" per 10 Ft | $48.38 |
| Shaft-1207 | 1045 Steel | .625" | 24.00" | .125" per 10 Ft | $64.30 |
| Shaft-1208 | 1045 Steel | .625" | 36.00" | .125" per 10 Ft | $91.94 |
| Shaft-1209 | 1045 Steel | .625" | 48.00" | .125" per 10 Ft | $137.71 |
| Shaft-1210 | 1045 Steel | .750" | 12.00" | .125" per 10 Ft | $39.04 |
| Shaft-1211 | 1045 Steel | .750" | 18.00" | .125" per 10 Ft | $58.16 |
| Shaft-1212 | 1045 Steel | .750" | 24.00" | .125" per 10 Ft | $77.26 |
| Shaft-1213 | 1045 Steel | .750" | 36.00" | .125" per 10 Ft | $109.54 |
| Shaft-1214 | 1045 Steel | .750" | 48.00" | .125" per 10 Ft | $164.04 |
| Shaft-1215 | 1045 Steel | .875" | 12.00" | .125" per 10 Ft | $48.20 |
| Shaft-1216 | 1045 Steel | .875" | 18.00" | .125" per 10 Ft | $71.82 |
| Shaft-1217 | 1045 Steel | .875" | 24.00" | .125" per 10 Ft | $95.54 |
| Shaft-1218 | 1045 Steel | .875" | 36.00" | .125" per 10 Ft | $134.70 |
| Shaft-1219 | 1045 Steel | .875" | 48.00" | .125" per 10 Ft | $201.73 |
| Shaft-1220 | 1045 Steel | 1.00" | 12.00" | .125" per 10 Ft | $48.96 |
| Shaft-1221 | 1045 Steel | 1.00" | 18.00" | .125" per 10 Ft | $72.98 |
| Shaft-1222 | 1045 Steel | 1.00" | 24.00" | .125" per 10 Ft | $96.96 |
| Shaft-1223 | 1045 Steel | 1.00" | 36.00" | .125" per 10 Ft | $134.30 |
| Shaft-1224 | 1045 Steel | 1.00" | 48.00" | .125" per 10 Ft | $201.14 |

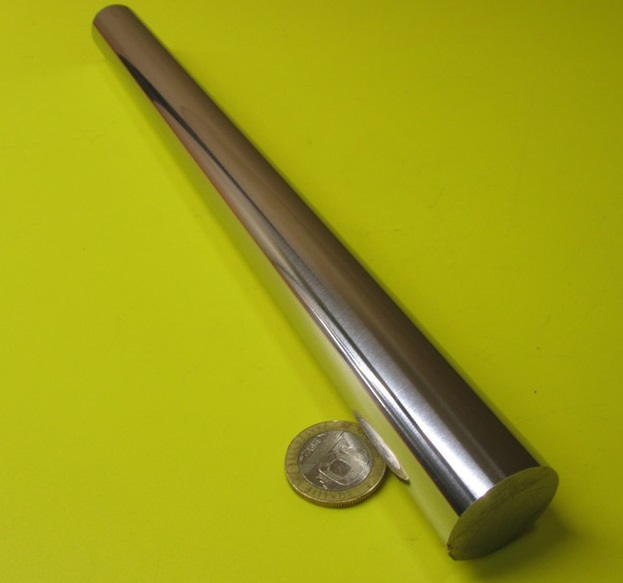

| Shaft-1225 | 1045 Steel | 1.125" | 12.00" | .125" per 10 Ft | $60.54 |

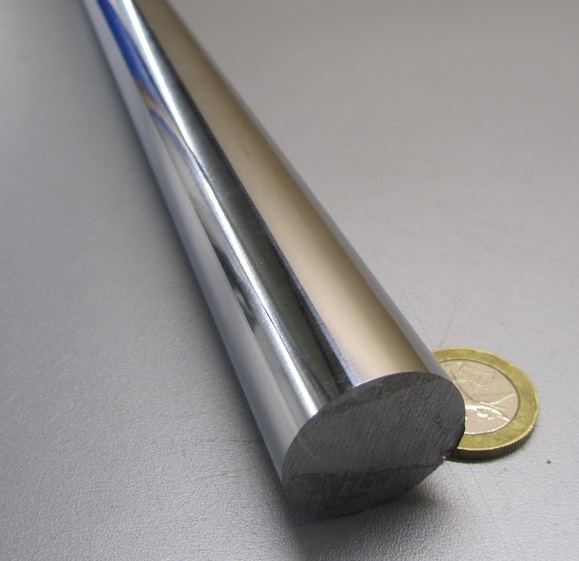

| Shaft-1226 | 1045 Steel | 1.125" | 18.00" | .125" per 10 Ft | $90.24 |
| Shaft-1227 | 1045 Steel | 1.125" | 24.00" | .125" per 10 Ft | $119.94 |
| Shaft-1228 | 1045 Steel | 1.125" | 36.00" | .125" per 10 Ft | $165.86 |

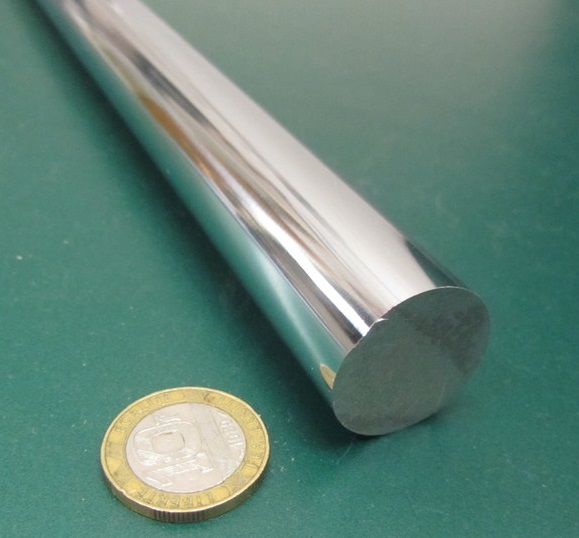

| Shaft-1229 | 1045 Steel | 1.125" | 48.00" | .125" per 10 Ft | $248.41 |
| Shaft-1230 | 1045 Steel | 1.25" | 12.00" | .125" per 10 Ft | $68.04 |
| Shaft-1231 | 1045 Steel | 1.25" | 18.00" | .125" per 10 Ft | $101.74 |
| Shaft-1232 | 1045 Steel | 1.25" | 24.00" | .125" per 10 Ft | $135.28 |
| Shaft-1233 | 1045 Steel | 1.25" | 36.00" | .125" per 10 Ft | $185.60 |
| Shaft-1234 | 1045 Steel | 1.25" | 48.00" | .125" per 10 Ft | $277.91 |
| Shaft-1235 | 1045 Steel | 1.50" | 12.00" | .125" per 10 Ft | $97.26 |
| Shaft-1236 | 1045 Steel | 1.50" | 18.00" | .125" per 10 Ft | $144.92 |
| Shaft-1237 | 1045 Steel | 1.50" | 24.00" | .125" per 10 Ft | $192.78 |
| Shaft-1238 | 1045 Steel | 1.50" | 36.00" | .125" per 10 Ft | $264.26 |
| Shaft-1239 | 1045 Steel | 1.50" | 48.00" | .125" per 10 Ft | $395.70 |
| Shaft-1240 | 1045 Steel | 1.75" | 12.00" | .125" per 10 Ft | $129.52 |
| Shaft-1241 | 1045 Steel | 1.75" | 18.00" | .125" per 10 Ft | $192.34 |
| Shaft-1242 | 1045 Steel | 1.75" | 24.00" | .125" per 10 Ft | $256.74 |
| Shaft-1243 | 1045 Steel | 1.75" | 36.00" | .125" per 10 Ft | $349.20 |
| Shaft-1244 | 1045 Steel | 1.75" | 48.00" | .125" per 10 Ft | $526.00 |
| Shaft-1245 | 1045 Steel | 2.00" | 12.00" | .125" per 10 Ft | $166.36 |
| Shaft-1246 | 1045 Steel | 2.00" | 18.00" | .125" per 10 Ft | $248.48 |
| Shaft-1247 | 1045 Steel | 2.00" | 24.00" | .125" per 10 Ft | $329.80 |
| Shaft-1248 | 1045 Steel | 2.00" | 36.00" | .125" per 10 Ft | $453.70 |
| Shaft-1249 | 1045 Steel | 2.00" | 48.00" | .125" per 10 Ft | $674.65 |
| Shaft-253 | 1566 Steel | .500" | 6.00" | .002" per Ft | $27.74 |
| Shaft-254 | 1566 Steel | .500" | 12.00" | .002" per Ft | $55.40 |
| Shaft-255 | 1566 Steel | .500" | 18.00" | .002" per Ft | $83.04 |
| Shaft-256 | 1566 Steel | .500" | 24.00" | .002" per Ft | $110.84 |
| Shaft-257 | 1566 Steel | .500" | 36.00" | .002" per Ft | $125.66 |
| Shaft-258 | 1566 Steel | .500" | 48.00" | .002" per Ft | $249.34 |
| Shaft-259 | 1566 Steel | .625" | 6.00" | .002" per Ft | $34.48 |
| Shaft-1119 | 1566 Steel | .625" | 12.00" | .002" per Ft | $68.88 |
| Shaft-261 | 1566 Steel | .625" | 18.00" | .002" per Ft | $103.36 |
| Shaft-262 | 1566 Steel | .625" | 24.00" | .002" per Ft | $104.92 |
| Shaft-263 | 1566 Steel | .625" | 36.00" | .002" per Ft | $206.50 |
| Shaft-264 | 1566 Steel | .625" | 48.00" | .002" per Ft | $309.84 |
| Shaft-265 | 1566 Steel | .750" | 6.00" | .002" per Ft | $42.04 |
| Shaft-266 | 1566 Steel | .750" | 12.00" | .002" per Ft | $64.72 |
| Shaft-267 | 1566 Steel | .750" | 18.00" | .002" per Ft | $125.70 |
| Shaft-268 | 1566 Steel | .750" | 24.00" | .002" per Ft | $167.76 |
| Shaft-269 | 1566 Steel | .750" | 36.00" | .002" per Ft | $251.28 |
| Shaft-270 | 1566 Steel | .750" | 48.00" | .002" per Ft | $376.98 |
| Shaft-271 | 1566 Steel | 1.00" | 6.00" | .002" per Ft | $52.54 |
| Shaft-272 | 1566 Steel | 1.00" | 12.00" | .002" per Ft | $104.98 |
| Shaft-273 | 1566 Steel | 1.00" | 18.00" | .002" per Ft | $118.82 |
| Shaft-274 | 1566 Steel | 1.00" | 24.00" | .002" per Ft | $163.14 |

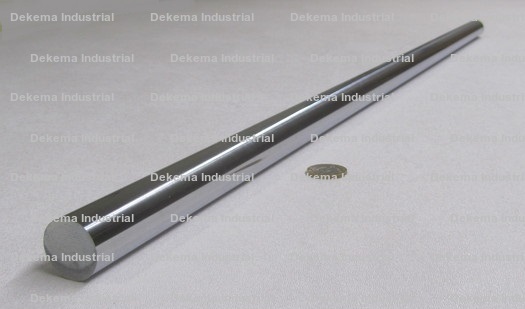

| Shaft-275 | 1566 Steel | 1.00" | 36.00" | .002" per Ft | $314.94 |
| Shaft-276 | 1566 Steel | 1.00" | 48.00" | .002" per Ft | $356.32 |
| Shaft-277 | 1566 Steel | 1.25" | 6.00" | .002" per Ft | $69.30 |
| Shaft-278 | 1566 Steel | 1.25" | 12.00" | .002" per Ft | $138.68 |
| Shaft-279 | 1566 Steel | 1.25" | 18.00" | .002" per Ft | $208.04 |
| Shaft-280 | 1566 Steel | 1.25" | 24.00" | .002" per Ft | $277.18 |
| Shaft-281 | 1566 Steel | 1.25" | 36.00" | .002" per Ft | $415.78 |
| Shaft-282 | 1566 Steel | 1.25" | 48.00" | .002" per Ft | $623.65 |
| Shaft-283 | 1566 Steel | 1.50" | 6.00" | .002" per Ft | $84.48 |
| Shaft-284 | 1566 Steel | 1.50" | 12.00" | .002" per Ft | $168.84 |
| Shaft-285 | 1566 Steel | 1.50" | 18.00" | .002" per Ft | $253.14 |
| Shaft-286 | 1566 Steel | 1.50" | 24.00" | .002" per Ft | $337.56 |
| Shaft-287 | 1566 Steel | 1.50" | 36.00" | .002" per Ft | $506.26 |
| Shaft-288 | 1566 Steel | 1.50" | 48.00" | .002" per Ft | $788.73 |
