Fully Keyed Shafts - Precision
1045 Steel-Rockwell B95, 2024/T4 Aluminum-Brinell 120, 316 Stainless Steel-Rockwell B85

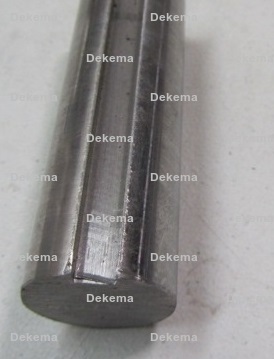

Fully Keyed Precision Shafts
Straightness Tolerance .012" per Ft., Chamfered Ends
| Part # | Material | Shaft OD | OD Tolerance | Length | Keyway Width | Keyway Depth | Price |
|---|---|---|---|---|---|---|---|
| Shaft-1676 | 1045 Steel | .312" | -.0005"/-.0025" | 3.00" | .093" | .047" | $15.84 |
| Shaft-1677 | 1045 Steel | .312" | -.0005"/-.0025" | 6.00" | .093" | .047" | $24.92 |
| Shaft-1679 | 1045 Steel | .312" | -.0005"/-.0025" | 12.00" | .093" | .047" | $35.42 |
| Shaft-1680 | 1045 Steel | .312" | -.0005"/-.0025" | 18.00" | .093" | .047" | $40.68 |
| Shaft-1681 | 1045 Steel | .312" | -.0005"/-.0025" | 24.00" | .093" | .047" | $53.08 |
| Shaft-1682 | 1045 Steel | .312" | -.0005"/-.0025" | 36.00" | .093" | .047" | $71.42 |
| Shaft-1683 | 1045 Steel | .312" | -.0005"/-.0025" | 48.00" | .093" | .047" | $93.95 |
| Shaft-1684 | 1045 Steel | .312" | -.0005"/-.0025" | 60.00" | .093" | .047" | $115.75 |
| Shaft-1685 | 1045 Steel | .312" | -.0005"/-.0025" | 72.00" | .093" | .047" | $130.78 |
| Shaft-1686 | 1045 Steel | .375" | -.0005"/-.0025" | 3.00" | .093" | .047" | $13.58 |
| Shaft-1687 | 1045 Steel | .375" | -.0005"/-.0025" | 6.00" | .093" | .047" | $21.32 |
| Shaft-1689 | 1045 Steel | .375" | -.0005"/-.0025" | 12.00" | .093" | .047" | $32.66 |
| Shaft-1690 | 1045 Steel | .375" | -.0005"/-.0025" | 18.00" | .093" | .047" | $44.32 |
| Shaft-1691 | 1045 Steel | .375" | -.0005"/-.0025" | 24.00" | .093" | .047" | $52.84 |
| Shaft-1692 | 1045 Steel | .375" | -.0005"/-.0025" | 36.00" | .093" | .047" | $74.60 |
| Shaft-1693 | 1045 Steel | .375" | -.0005"/-.0025" | 48.00" | .093" | .047" | $107.85 |
| Shaft-1694 | 1045 Steel | .375" | -.0005"/-.0025" | 60.00" | .093" | .047" | $130.42 |
| Shaft-1695 | 1045 Steel | .375" | -.0005"/-.0025" | 72.00" | .093" | .047" | $138.05 |
| Shaft-1696 | 1045 Steel | .500" | -.0005"/-.0025" | 3.00" | .125" | .062" | $17.36 |
| Shaft-1697 | 1045 Steel | .500" | -.0005"/-.0025" | 6.00" | .125" | .062" | $27.66 |
| Shaft-1699S | 1045 Steel | .500" | -.0005"/-.0025" | 12.00" | .125" | .062" | $35.34 |
| Shaft-1700 | 1045 Steel | .500" | -.0005"/-.0025" | 18.00" | .125" | .062" | $47.05 |
| Shaft-1701 | 1045 Steel | .500" | -.0005"/-.0025" | 24.00" | .125" | .062" | $63.42 |
| Shaft-1702 | 1045 Steel | .500" | -.0005"/-.0025" | 36.00" | .125" | .062" | $80.40 |
| Shaft-1703 | 1045 Steel | .500" | -.0005"/-.0025" | 48.00" | .125" | .062" | $113.64 |
| Shaft-1704 | 1045 Steel | .500" | -.0005"/-.0025" | 60.00" | .125" | .062" | $129.12 |
| Shaft-1705 | 1045 Steel | .500" | -.0005"/-.0025" | 72.00" | .125" | .062" | $150.97 |
| Shaft-1706 | 1045 Steel | .625" | -.0005"/-.0025" | 3.00" | .187" | .093" | $17.96 |
| Shaft-1707 | 1045 Steel | .625" | -.0005"/-.0025" | 6.00" | .187" | .093" | $28.86 |
| Shaft-1709 | 1045 Steel | .625" | -.0005"/-.0025" | 12.00" | .187" | .093" | $42.42 |
| Shaft-1710 | 1045 Steel | .625" | -.0005"/-.0025" | 18.00" | .187" | .093" | $51.70 |
| Shaft-1711 | 1045 Steel | .625" | -.0005"/-.0025" | 24.00" | .187" | .093" | $70.74 |
| Shaft-1712 | 1045 Steel | .625" | -.0005"/-.0025" | 36.00" | .187" | .093" | $102.34 |
| Shaft-1713 | 1045 Steel | .625" | -.0005"/-.0025" | 48.00" | .187" | .093" | $148.78 |
| Shaft-1714 | 1045 Steel | .625" | -.0005"/-.0025" | 60.00" | .187" | .093" | $174.79 |
| Shaft-1715 | 1045 Steel | .625" | -.0005"/-.0025" | 72.00" | .187" | .093" | $174.19 |
| Shaft-1716 | 1045 Steel | .687" | -.0005"/-.0025" | 3.00" | .187" | .093" | $18.55 |
| Shaft-1717 | 1045 Steel | .687" | -.0005"/-.0025" | 6.00" | .187" | .093" | $29.78 |
| Shaft-1719 | 1045 Steel | .687" | -.0005"/-.0025" | 12.00" | .187" | .093" | $44.62 |
| Shaft-1720 | 1045 Steel | .687" | -.0005"/-.0025" | 18.00" | .187" | .093" | $56.54 |
| Shaft-1721 | 1045 Steel | .687" | -.0005"/-.0025" | 24.00" | .187" | .093" | $75.24 |
| Shaft-1722 | 1045 Steel | .687" | -.0005"/-.0025" | 36.00" | .187" | .093" | $105.84 |
| Shaft-1723 | 1045 Steel | .687" | -.0005"/-.0025" | 48.00" | .187" | .093" | $158.59 |
| Shaft-1724 | 1045 Steel | .687" | -.0005"/-.0025" | 60.00" | .187" | .093" | $192.32 |
| Shaft-1725 | 1045 Steel | .687" | -.0005"/-.0025" | 72.00" | .187" | .093" | $230.71 |
| Shaft-1726 | 1045 Steel | .750" | -.0005"/-.0025" | 3.00" | .187" | .093" | $18.86 |
| Shaft-1727 | 1045 Steel | .750" | -.0005"/-.0025" | 6.00" | .187" | .093" | $30.98 |
| Shaft-1729 | 1045 Steel | .750" | -.0005"/-.0025" | 12.00" | .187" | .093" | $45.74 |
| Shaft-1730 | 1045 Steel | .750" | -.0005"/-.0025" | 18.00" | .187" | .093" | $57.82 |
| Shaft-1731 | 1045 Steel | .750" | -.0005"/-.0025" | 24.00" | .187" | .093" | $71.70 |
| Shaft-1732 | 1045 Steel | .750" | -.0005"/-.0025" | 36.00" | .187" | .093" | $96.14 |
| Shaft-1733 | 1045 Steel | .750" | -.0005"/-.0025" | 48.00" | .187" | .093" | $144.28 |
| Shaft-1734 | 1045 Steel | .750" | -.0005"/-.0025" | 60.00" | .187" | .093" | $165.28 |
| Shaft-1735 | 1045 Steel | .750" | -.0005"/-.0025" | 72.00" | .187" | .093" | $194.14 |
| Shaft-1736 | 1045 Steel | .812" | -.0005"/-.0025" | 3.00" | .187" | .093" | $19.78 |
| Shaft-1737 | 1045 Steel | .812" | -.0005"/-.0025" | 6.00" | .187" | .093" | $32.20 |
| Shaft-1738 | 1045 Steel | .812" | -.0005"/-.0025" | 12.00" | .187" | .093" | $50.08 |
| Shaft-1739 | 1045 Steel | .812" | -.0005"/-.0025" | 18.00" | .187" | .093" | $67.50 |
| Shaft-1740 | 1045 Steel | .812" | -.0005"/-.0025" | 24.00" | .187" | .093" | $87.26 |
| Shaft-1741 | 1045 Steel | .812" | -.0005"/-.0025" | 36.00" | .187" | .093" | $79.30 |
| Shaft-1742 | 1045 Steel | .812" | -.0005"/-.0025" | 48.00" | .187" | .093" | $116.81 |
| Shaft-1743 | 1045 Steel | .812" | -.0005"/-.0025" | 60.00" | .187" | .093" | $224.11 |
| Shaft-1744 | 1045 Steel | .812" | -.0005"/-.0025" | 72.00" | .187" | .093" | $221.01 |
| Shaft-1745 | 1045 Steel | .875" | -.0005"/-.0025" | 3.00" | .187" | .093" | $20.08 |
| Shaft-1746 | 1045 Steel | .875" | -.0005"/-.0025" | 6.00" | .187" | .093" | $33.42 |
| Shaft-1748 | 1045 Steel | .875" | -.0005"/-.0025" | 12.00" | .187" | .093" | $54.42 |
| Shaft-1749 | 1045 Steel | .875" | -.0005"/-.0025" | 18.00" | .187" | .093" | $73.30 |
| Shaft-1750 | 1045 Steel | .875" | -.0005"/-.0025" | 24.00" | .187" | .093" | $94.76 |
| Shaft-1751 | 1045 Steel | .875" | -.0005"/-.0025" | 36.00" | .187" | .093" | $137.66 |
| Shaft-1752 | 1045 Steel | .875" | -.0005"/-.0025" | 48.00" | .187" | .093" | $206.34 |
| Shaft-1753 | 1045 Steel | .875" | -.0005"/-.0025" | 60.00" | .187" | .093" | $243.08 |
| Shaft-1754 | 1045 Steel | .875" | -.0005"/-.0025" | 72.00" | .187" | .093" | $291.93 |
| Shaft-1755 | 1045 Steel | .937" | -.0005"/-.0025" | 3.00" | .250" | .125" | $20.68 |
| Shaft-1756 | 1045 Steel | .937" | -.0005"/-.0025" | 6.00" | .250" | .125" | $34.62 |
| Shaft-1758 | 1045 Steel | .937" | -.0005"/-.0025" | 12.00" | .250" | .125" | $57.08 |
| Shaft-1759 | 1045 Steel | .937" | -.0005"/-.0025" | 18.00" | .250" | .125" | $75.88 |
| Shaft-1760 | 1045 Steel | .937" | -.0005"/-.0025" | 24.00" | .250" | .125" | $98.20 |
| Shaft-1761 | 1045 Steel | .937" | -.0005"/-.0025" | 36.00" | .250" | .125" | $142.50 |
| Shaft-1762 | 1045 Steel | .937" | -.0005"/-.0025" | 48.00" | .250" | .125" | $213.83 |
| Shaft-1763 | 1045 Steel | .937" | -.0005"/-.0025" | 60.00" | .250" | .125" | $252.08 |
| Shaft-1764 | 1045 Steel | .937" | -.0005"/-.0025" | 72.00" | .250" | .125" | $302.55 |
| Shaft-1765 | 1045 Steel | 1.00" | -.0005"/-.0025" | 3.00" | .250" | .125" | $22.20 |
| Shaft-1766 | 1045 Steel | 1.00" | -.0005"/-.0025" | 6.00" | .250" | .125" | $37.04 |
| Shaft-1768 | 1045 Steel | 1.00" | -.0005"/-.0025" | 12.00" | .250" | .125" | $59.74 |
| Shaft-1769 | 1045 Steel | 1.00" | -.0005"/-.0025" | 18.00" | .250" | .125" | $76.86 |
| Shaft-1770 | 1045 Steel | 1.00" | -.0005"/-.0025" | 24.00" | .250" | .125" | $90.38 |
| Shaft-1771 | 1045 Steel | 1.00" | -.0005"/-.0025" | 36.00" | .250" | .125" | $135.54 |
| Shaft-1772 | 1045 Steel | 1.00" | -.0005"/-.0025" | 48.00" | .250" | .125" | $203.26 |
| Shaft-1773 | 1045 Steel | 1.00" | -.0005"/-.0025" | 60.00" | .250" | .125" | $239.23 |
| Shaft-1774 | 1045 Steel | 1.00" | -.0005"/-.0025" | 72.00" | .250" | .125" | $279.15 |
| Shaft-1775 | 1045 Steel | 1.125" | -.0005"/-.0025" | 3.00" | .250" | .125" | $23.42 |
| Shaft-1776 | 1045 Steel | 1.125" | -.0005"/-.0025" | 6.00" | .250" | .125" | $39.78 |
| Shaft-1778 | 1045 Steel | 1.125" | -.0005"/-.0025" | 12.00" | .250" | .125" | $70.68 |
| Shaft-1779 | 1045 Steel | 1.125" | -.0005"/-.0025" | 18.00" | .250" | .125" | $87.04 |
| Shaft-1780 | 1045 Steel | 1.125" | -.0005"/-.0025" | 24.00" | .250" | .125" | $105.80 |
| Shaft-1781 | 1045 Steel | 1.125" | -.0005"/-.0025" | 36.00" | .250" | .125" | $142.38 |
| Shaft-1782 | 1045 Steel | 1.125" | -.0005"/-.0025" | 48.00" | .250" | .125" | $213.54 |
| Shaft-1783 | 1045 Steel | 1.125" | -.0005"/-.0025" | 60.00" | .250" | .125" | $266.61 |
| Shaft-1784 | 1045 Steel | 1.125" | -.0005"/-.0025" | 72.00" | .250" | .125" | $319.99 |
| Shaft-1785 | 1045 Steel | 1.187" | -.0005"/-.0025" | 3.00" | .250" | .125" | $25.24 |
| Shaft-1786 | 1045 Steel | 1.187" | -.0005"/-.0025" | 6.00" | .250" | .125" | $43.43 |
| Shaft-1788 | 1045 Steel | 1.187" | -.0005"/-.0025" | 12.00" | .250" | .125" | $72.78 |
| Shaft-1789 | 1045 Steel | 1.187" | -.0005"/-.0025" | 18.00" | .250" | .125" | $89.48 |
| Shaft-1790 | 1045 Steel | 1.187" | -.0005"/-.0025" | 24.00" | .250" | .125" | $110.96 |
| Shaft-1791 | 1045 Steel | 1.187" | -.0005"/-.0025" | 36.00" | .250" | .125" | $146.24 |
| Shaft-1792 | 1045 Steel | 1.187" | -.0005"/-.0025" | 48.00" | .250" | .125" | $219.32 |
| Shaft-1793 | 1045 Steel | 1.187" | -.0005"/-.0025" | 60.00" | .250" | .125" | $274.11 |
| Shaft-1794 | 1045 Steel | 1.187" | -.0005"/-.0025" | 72.00" | .250" | .125" | $356.16 |
| Shaft-1795 | 1045 Steel | 1.25" | -.001"/-.003" | 3.00" | .250" | .125" | $26.14 |
| Shaft-1797 | 1045 Steel | 1.25" | -.001"/-.003" | 12.00" | .250" | .125" | $76.08 |
| Shaft-1798 | 1045 Steel | 1.25" | -.001"/-.003" | 18.00" | .250" | .125" | $95.54 |
| Shaft-1799 | 1045 Steel | 1.25" | -.001"/-.003" | 24.00" | .250" | .125" | $116.66 |
| Shaft-1800 | 1045 Steel | 1.25" | -.001"/-.003" | 36.00" | .250" | .125" | $161.14 |
| Shaft-1801 | 1045 Steel | 1.25" | -.001"/-.003" | 48.00" | .250" | .125" | $229.58 |
| Shaft-1802 | 1045 Steel | 1.25" | -.001"/-.003" | 60.00" | .250" | .125" | $286.96 |
| Shaft-1803 | 1045 Steel | 1.25" | -.001"/-.003" | 72.00" | .250" | .125" | $320.32 |
| Shaft-1804 | 1045 Steel | 1.312" | -.001"/-.003" | 3.00" | .312" | .156" | $27.66 |
| Shaft-1805 | 1045 Steel | 1.312" | -.001"/-.003" | 6.00" | .312" | .156" | $47.96 |
| Shaft-1807 | 1045 Steel | 1.312" | -.001"/-.003" | 12.00" | .312" | .156" | $87.42 |
| Shaft-1808 | 1045 Steel | 1.312" | -.001"/-.003" | 18.00" | .312" | .156" | $119.18 |
| Shaft-1809 | 1045 Steel | 1.312" | -.001"/-.003" | 24.00" | .312" | .156" | $145.64 |
| Shaft-1810 | 1045 Steel | 1.312" | -.001"/-.003" | 36.00" | .312" | .156" | $201.36 |
| Shaft-1811 | 1045 Steel | 1.312" | -.001"/-.003" | 48.00" | .312" | .156" | $302.10 |
| Shaft-1812 | 1045 Steel | 1.312" | -.001"/-.003" | 60.00" | .312" | .156" | $377.38 |
| Shaft-1813 | 1045 Steel | 1.312" | -.001"/-.003" | 72.00" | .312" | .156" | $410.84 |
| Shaft-1814 | 1045 Steel | 1.375" | -.001"/-.003" | 3.00" | .312" | .156" | $30.38 |
| Shaft-1815 | 1045 Steel | 1.375" | -.001"/-.003" | 6.00" | .312" | .156" | $53.72 |
| Shaft-1817 | 1045 Steel | 1.375" | -.001"/-.003" | 12.00" | .312" | .156" | $85.24 |
| Shaft-1818 | 1045 Steel | 1.375" | -.001"/-.003" | 18.00" | .312" | .156" | $110.66 |
| Shaft-1819 | 1045 Steel | 1.375" | -.001"/-.003" | 24.00" | .312" | .156" | $141.46 |
| Shaft-1820 | 1045 Steel | 1.375" | -.001"/-.003" | 36.00" | .312" | .156" | $195.98 |
| Shaft-1821 | 1045 Steel | 1.375" | -.001"/-.003" | 48.00" | .312" | .156" | $279.42 |
| Shaft-1822 | 1045 Steel | 1.375" | -.001"/-.003" | 60.00" | .312" | .156" | $332.88 |
| Shaft-1823 | 1045 Steel | 1.375" | -.001"/-.003" | 72.00" | .312" | .156" | $399.59 |
| Shaft-1824 | 1045 Steel | 1.437" | -.001"/-.003" | 3.00" | .375" | .187" | $31.30 |
| Shaft-1825 | 1045 Steel | 1.437" | -.001"/-.003" | 6.00" | .375" | .187" | $54.92 |
| Shaft-1827 | 1045 Steel | 1.437" | -.001"/-.003" | 12.00" | .375" | .187" | $111.68 |
| Shaft-1828 | 1045 Steel | 1.437" | -.001"/-.003" | 18.00" | .375" | .187" | $119.50 |
| Shaft-1829 | 1045 Steel | 1.437" | -.001"/-.003" | 24.00" | .375" | .187" | $150.62 |
| Shaft-1830 | 1045 Steel | 1.437" | -.001"/-.003" | 36.00" | .375" | .187" | $209.08 |
| Shaft-1831 | 1045 Steel | 1.437" | -.001"/-.003" | 48.00" | .375" | .187" | $305.74 |
| Shaft-1832 | 1045 Steel | 1.437" | -.001"/-.003" | 60.00" | .375" | .187" | $364.27 |
| Shaft-1833 | 1045 Steel | 1.437" | -.001"/-.003" | 72.00" | .375" | .187" | $437.26 |
| Shaft-1834 | 1045 Steel | 1.50" | -.001"/-.003" | 3.00" | .375" | .187" | $31.90 |
| Shaft-1835 | 1045 Steel | 1.50" | -.001"/-.003" | 6.00" | .375" | .187" | $56.74 |
| Shaft-1837 | 1045 Steel | 1.50" | -.001"/-.003" | 12.00" | .375" | .187" | $92.58 |
| Shaft-1838 | 1045 Steel | 1.50" | -.001"/-.003" | 18.00" | .375" | .187" | $127.80 |
| Shaft-1839 | 1045 Steel | 1.50" | -.001"/-.003" | 24.00" | .375" | .187" | $161.16 |
| Shaft-1840 | 1045 Steel | 1.50" | -.001"/-.003" | 36.00" | .375" | .187" | $223.32 |
| Shaft-1841 | 1045 Steel | 1.50" | -.001"/-.003" | 48.00" | .375" | .187" | $335.06 |
| Shaft-1842 | 1045 Steel | 1.50" | -.001"/-.003" | 60.00" | .375" | .187" | $389.38 |
| Shaft-1843 | 1045 Steel | 1.50" | -.001"/-.003" | 72.00" | .375" | .187" | $467.34 |
| Shaft-1844 | 1045 Steel | 1.625" | -.001"/-.003" | 3.00" | .375" | .187" | $39.48 |
| Shaft-1845 | 1045 Steel | 1.625" | -.001"/-.003" | 6.00" | .375" | .187" | $68.25 |
| Shaft-1847 | 1045 Steel | 1.625" | -.001"/-.003" | 12.00" | .375" | .187" | $112.66 |
| Shaft-1848 | 1045 Steel | 1.625" | -.001"/-.003" | 18.00" | .375" | .187" | $159.80 |
| Shaft-1849 | 1045 Steel | 1.625" | -.001"/-.003" | 24.00" | .375" | .187" | $181.10 |
| Shaft-1850 | 1045 Steel | 1.625" | -.001"/-.003" | 36.00" | .375" | .187" | $278.76 |
| Shaft-1851 | 1045 Steel | 1.625" | -.001"/-.003" | 48.00" | .375" | .187" | $384.78 |
| Shaft-1852 | 1045 Steel | 1.625" | -.001"/-.003" | 60.00" | .375" | .187" | $458.72 |
| Shaft-1852S | 1045 Steel | 1.625" | -.001"/-.003" | 72.00" | .375" | .187" | $550.54 |
| Shaft-1853 | 1045 Steel | 1.75" | -.001"/-.003" | 3.00" | .375" | .187" | $40.68 |
| Shaft-1854 | 1045 Steel | 1.75" | -.001"/-.003" | 6.00" | .375" | .187" | $70.68 |
| Shaft-1856 | 1045 Steel | 1.75" | -.001"/-.003" | 12.00" | .375" | .187" | $110.92 |
| Shaft-1857 | 1045 Steel | 1.75" | -.001"/-.003" | 18.00" | .375" | .187" | $149.58 |
| Shaft-1858 | 1045 Steel | 1.75" | -.001"/-.003" | 24.00" | .375" | .187" | $185.42 |
| Shaft-1859 | 1045 Steel | 1.75" | -.001"/-.003" | 36.00" | .375" | .187" | $278.22 |
| Shaft-1860 | 1045 Steel | 1.75" | -.001"/-.003" | 48.00" | .375" | .187" | $417.12 |
| Shaft-1861 | 1045 Steel | 1.75" | -.001"/-.003" | 60.00" | .375" | .187" | $521.25 |
| Shaft-1862 | 1045 Steel | 1.75" | -.001"/-.003" | 72.00" | .375" | .187" | $625.63 |
| Shaft-1863 | 1045 Steel | 1.937" | -.001"/-.0035" | 3.00" | .500" | .250" | $43.72 |
| Shaft-1864 | 1045 Steel | 1.937" | -.001"/-.0035" | 6.00" | .500" | .250" | $77.04 |
| Shaft-1866 | 1045 Steel | 1.937" | -.001"/-.0035" | 12.00" | .500" | .250" | $120.08 |
| Shaft-1867 | 1045 Steel | 1.937" | -.001"/-.0035" | 18.00" | .500" | .250" | $153.28 |
| Shaft-1868 | 1045 Steel | 1.937" | -.001"/-.0035" | 24.00" | .500" | .250" | $223.34 |
| Shaft-1869 | 1045 Steel | 1.937" | -.001"/-.0035" | 36.00" | .500" | .250" | $334.96 |
| Shaft-1870 | 1045 Steel | 1.937" | -.001"/-.0035" | 48.00" | .500" | .250" | $502.41 |
| Shaft-1871 | 1045 Steel | 1.937" | -.001"/-.0035" | 60.00" | .500" | .250" | $627.99 |
| Shaft-1872 | 1045 Steel | 1.937" | -.001"/-.0035" | 72.00" | .500" | .250" | $753.56 |
| Shaft-1873 | 1045 Steel | 2.00" | -.001"/-.0035" | 3.00" | .500" | .250" | $44.92 |
| Shaft-1874 | 1045 Steel | 2.00" | -.001"/-.0035" | 6.00" | .500" | .250" | $78.86 |
| Shaft-1876 | 1045 Steel | 2.00" | -.001"/-.0035" | 12.00" | .500" | .250" | $130.32 |
| Shaft-1877 | 1045 Steel | 2.00" | -.001"/-.0035" | 18.00" | .500" | .250" | $173.86 |
| Shaft-1878 | 1045 Steel | 2.00" | -.001"/-.0035" | 24.00" | .500" | .250" | $242.40 |
| Shaft-1879 | 1045 Steel | 2.00" | -.001"/-.0035" | 36.00" | .500" | .250" | $363.56 |
| Shaft-1880 | 1045 Steel | 2.00" | -.001"/-.0035" | 48.00" | .500" | .250" | $545.32 |
| Shaft-1881 | 1045 Steel | 2.00" | -.001"/-.0035" | 60.00" | .500" | .250" | $681.36 |
| Shaft-1882 | 1045 Steel | 2.00" | -.001"/-.0035" | 72.00" | .500" | .250" | $817.66 |
| Shaft-1883 | 1045 Steel | 2.187" | -.001"/-.0035" | 3.00" | .500" | .250" | $49.48 |
| Shaft-1884 | 1045 Steel | 2.187" | -.001"/-.0035" | 6.00" | .500" | .250" | $97.96 |
| Shaft-1886 | 1045 Steel | 2.187" | -.001"/-.0035" | 12.00" | .500" | .250" | $161.58 |
| Shaft-1887 | 1045 Steel | 2.187" | -.001"/-.0035" | 18.00" | .500" | .250" | $215.42 |
| Shaft-1888 | 1045 Steel | 2.187" | -.001"/-.0035" | 24.00" | .500" | .250" | $300.54 |
| Shaft-1889 | 1045 Steel | 2.187" | -.001"/-.0035" | 36.00" | .500" | .250" | $450.54 |
| Shaft-1890 | 1045 Steel | 2.187" | -.001"/-.0035" | 48.00" | .500" | .250" | $675.87 |
| Shaft-1891 | 1045 Steel | 2.187" | -.001"/-.0035" | 60.00" | .500" | .250" | $844.62 |
| Shaft-1892 | 1045 Steel | 2.187" | -.001"/-.0035" | 72.00" | .500" | .250" | $1,013.64 |
| Shaft-1893 | 1045 Steel | 2.25" | -.001"/-.0035" | 3.00" | .500" | .250" | $52.80 |
| Shaft-1894 | 1045 Steel | 2.25" | -.001"/-.0035" | 6.00" | .500" | .250" | $105.24 |
| Shaft-1896 | 1045 Steel | 2.25" | -.001"/-.0035" | 12.00" | .500" | .250" | $169.34 |
| Shaft-1897 | 1045 Steel | 2.25" | -.001"/-.0035" | 18.00" | .500" | .250" | $231.42 |
| Shaft-1898 | 1045 Steel | 2.25" | -.001"/-.0035" | 24.00" | .500" | .250" | $322.88 |
| Shaft-1899 | 1045 Steel | 2.25" | -.001"/-.0035" | 36.00" | .500" | .250" | $412.96 |
| Shaft-1900 | 1045 Steel | 2.25" | -.001"/-.0035" | 48.00" | .500" | .250" | $726.09 |
| Shaft-1901 | 1045 Steel | 2.25" | -.001"/-.0035" | 60.00" | .500" | .250" | $907.42 |
| Shaft-1902 | 1045 Steel | 2.25" | -.001"/-.0035" | 72.00" | .500" | .250" | $1,088.97 |
| Shaft-1903 | 1045 Steel | 2.437" | -.001"/-.0035" | 3.00" | .625" | .312" | $59.48 |
| Shaft-1904 | 1045 Steel | 2.437" | -.001"/-.0035" | 6.00" | .625" | .312" | $118.86 |
| Shaft-1906 | 1045 Steel | 2.437" | -.001"/-.0035" | 12.00" | .625" | .312" | $191.06 |
| Shaft-1907 | 1045 Steel | 2.437" | -.001"/-.0035" | 18.00" | .625" | .312" | $260.96 |
| Shaft-1908 | 1045 Steel | 2.437" | -.001"/-.0035" | 24.00" | .625" | .312" | $364.04 |
| Shaft-1909 | 1045 Steel | 2.437" | -.001"/-.0035" | 36.00" | .625" | .312" | $546.12 |
| Shaft-1910 | 1045 Steel | 2.437" | -.001"/-.0035" | 48.00" | .625" | .312" | $818.97 |
| Shaft-1911 | 1045 Steel | 2.437" | -.001"/-.0035" | 60.00" | .625" | .312" | $1,023.56 |
| Shaft-1912 | 1045 Steel | 2.437" | -.001"/-.0035" | 72.00" | .625" | .312" | $1,228.42 |
| Shaft-1913 | 1045 Steel | 2.50" | -.001"/-.0035" | 3.00" | .625" | .312" | $65.24 |
| Shaft-1914 | 1045 Steel | 2.50" | -.001"/-.0035" | 6.00" | .625" | .312" | $130.38 |
| Shaft-1915 | 1045 Steel | 2.50" | -.001"/-.0035" | 12.00" | .625" | .312" | $209.84 |
| Shaft-1916 | 1045 Steel | 2.50" | -.001"/-.0035" | 18.00" | .625" | .312" | $286.52 |
| Shaft-1917 | 1045 Steel | 2.50" | -.001"/-.0035" | 24.00" | .625" | .312" | $408.60 |
| Shaft-1918 | 1045 Steel | 2.50" | -.001"/-.0035" | 36.00" | .625" | .312" | $605.62 |
| Shaft-1919 | 1045 Steel | 2.50" | -.001"/-.0035" | 48.00" | .625" | .312" | $878.86 |
| Shaft-1920 | 1045 Steel | 2.50" | -.001"/-.0035" | 60.00" | .625" | .312" | $1,124.02 |
| Shaft-1921 | 1045 Steel | 2.50" | -.001"/-.0035" | 72.00" | .625" | .312" | $1,349.02 |
| Shaft-2157 | 2024-T4 Aluminum | .312" | -.0005"/-.0025" | 6.00" | .093" | .047" | $22.92 |
| Shaft-2158 | 2024-T4 Aluminum | .312" | -.0005"/-.0025" | 12.00" | .093" | .047" | $30.50 |
| Shaft-2159 | 2024-T4 Aluminum | .312" | -.0005"/-.0025" | 24.00" | .093" | .047" | $52.30 |
| Shaft-2160 | 2024-T4 Aluminum | .375" | -.0005"/-.0025" | 6.00" | .093" | .047" | $25.90 |
| Shaft-2161 | 2024-T4 Aluminum | .375" | -.0005"/-.0025" | 12.00" | .093" | .047" | $39.84 |
| Shaft-2162 | 2024-T4 Aluminum | .375" | -.0005"/-.0025" | 24.00" | .093" | .047" | $71.10 |
| Shaft-2163 | 2024-T4 Aluminum | .500" | -.0005"/-.0025" | 6.00" | .125" | .062" | $27.42 |
| Shaft-2164 | 2024-T4 Aluminum | .500" | -.0005"/-.0025" | 12.00" | .125" | .062" | $45.16 |
| Shaft-2165 | 2024-T4 Aluminum | .500" | -.0005"/-.0025" | 24.00" | .125" | .062" | $77.54 |
| Shaft-2166 | 2024-T4 Aluminum | .625" | -.0005"/-.0025" | 6.00" | .187" | .093" | $30.68 |
| Shaft-2167 | 2024-T4 Aluminum | .625" | -.0005"/-.0025" | 12.00" | .187" | .093" | $48.26 |
| Shaft-2168 | 2024-T4 Aluminum | .625" | -.0005"/-.0025" | 24.00" | .187" | .093" | $83.16 |
| Shaft-2169 | 2024-T4 Aluminum | .750" | -.0005"/-.0025" | 6.00" | .187" | .093" | $33.42 |
| Shaft-2170 | 2024-T4 Aluminum | .750" | -.0005"/-.0025" | 12.00" | .187" | .093" | $54.98 |
| Shaft-2171 | 2024-T4 Aluminum | .750" | -.0005"/-.0025" | 24.00" | .187" | .093" | $102.54 |
| Shaft-1976 | 304 Stainless Steel | .375" | -.001"/-.0025" | 3.00" | .093" | .047" | $14.74 |
| Shaft-1977 | 304 Stainless Steel | .375" | -.001"/-.0025" | 6.00" | .093" | .047" | $23.14 |
| Shaft-1979 | 304 Stainless Steel | .375" | -.001"/-.0025" | 12.00" | .093" | .047" | $35.62 |
| Shaft-1980 | 304 Stainless Steel | .375" | -.001"/-.0025" | 24.00" | .093" | .047" | $65.24 |
| Shaft-1981 | 304 Stainless Steel | .375" | -.001"/-.0025" | 36.00" | .093" | .047" | $74.18 |
| Shaft-1982 | 304 Stainless Steel | .375" | -.001"/-.0025" | 48.00" | .093" | .047" | $111.12 |
| Shaft-1983 | 304 Stainless Steel | .375" | -.001"/-.0025" | 60.00" | .093" | .047" | $177.52 |
| Shaft-1984 | 304 Stainless Steel | .375" | -.001"/-.0025" | 72.00" | .093" | .047" | $208.61 |
| Shaft-1985 | 304 Stainless Steel | .500" | -.001"/-.0025" | 3.00" | .093" | .047" | $18.00 |
| Shaft-1986 | 304 Stainless Steel | .500" | -.001"/-.0025" | 6.00" | .093" | .047" | $29.90 |
| Shaft-1988 | 304 Stainless Steel | .500" | -.001"/-.0025" | 12.00" | .093" | .047" | $50.24 |
| Shaft-1989 | 304 Stainless Steel | .500" | -.001"/-.0025" | 24.00" | .093" | .047" | $90.90 |
| Shaft-1990 | 304 Stainless Steel | .500" | -.001"/-.0025" | 36.00" | .093" | .047" | $135.54 |
| Shaft-1991 | 304 Stainless Steel | .500" | -.001"/-.0025" | 48.00" | .093" | .047" | $204.13 |
| Shaft-1992 | 304 Stainless Steel | .500" | -.001"/-.0025" | 60.00" | .093" | .047" | $249.65 |
| Shaft-1993 | 304 Stainless Steel | .500" | -.001"/-.0025" | 72.00" | .093" | .047" | $302.28 |
| Shaft-1994 | 304 Stainless Steel | .625" | -.001"/-.0025" | 3.00" | .187" | .062" | $21.74 |
| Shaft-1995 | 304 Stainless Steel | .625" | -.001"/-.0025" | 6.00" | .187" | .062" | $37.14 |
| Shaft-1997 | 304 Stainless Steel | .625" | -.001"/-.0025" | 12.00" | .187" | .062" | $64.96 |
| Shaft-1998 | 304 Stainless Steel | .625" | -.001"/-.0025" | 24.00" | .187" | .062" | $121.42 |
| Shaft-1999 | 304 Stainless Steel | .625" | -.001"/-.0025" | 36.00" | .187" | .062" | $181.06 |
| Shaft-2000 | 304 Stainless Steel | .625" | -.001"/-.0025" | 48.00" | .187" | .062" | $272.80 |
| Shaft-2001 | 304 Stainless Steel | .625" | -.001"/-.0025" | 60.00" | .187" | .062" | $326.53 |
| Shaft-2002 | 304 Stainless Steel | .625" | -.001"/-.0025" | 72.00" | .187" | .062" | $388.27 |
| Shaft-2003 | 304 Stainless Steel | .750" | -.001"/-.0025" | 3.00" | .187" | .062" | $27.48 |
| Shaft-2004 | 304 Stainless Steel | .750" | -.001"/-.0025" | 6.00" | .187" | .062" | $49.14 |
| Shaft-2006 | 304 Stainless Steel | .750" | -.001"/-.0025" | 12.00" | .187" | .062" | $85.24 |
| Shaft-2007 | 304 Stainless Steel | .750" | -.001"/-.0025" | 24.00" | .187" | .062" | $164.34 |
| Shaft-2008 | 304 Stainless Steel | .750" | -.001"/-.0025" | 36.00" | .187" | .062" | $248.40 |
| Shaft-2009 | 304 Stainless Steel | .750" | -.001"/-.0025" | 48.00" | .187" | .062" | $369.64 |
| Shaft-2010 | 304 Stainless Steel | .750" | -.001"/-.0025" | 60.00" | .187" | .062" | $437.71 |
| Shaft-2011 | 304 Stainless Steel | .750" | -.001"/-.0025" | 72.00" | .187" | .062" | $520.57 |
| Shaft-2012 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 3.00" | .250" | .125" | $29.00 |
| Shaft-2013 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 6.00" | .250" | .125" | $51.90 |
| Shaft-2015 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 12.00" | .250" | .125" | $95.72 |
| Shaft-2016 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 24.00" | .250" | .125" | $192.92 |
| Shaft-2017 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 36.00" | .250" | .125" | $289.28 |
| Shaft-2018 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 48.00" | .250" | .125" | $433.88 |
| Shaft-2019 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 60.00" | .250" | .125" | $488.55 |
| Shaft-2020 | 304 Stainless Steel | 1.00" | -.001"/-.0025" | 72.00" | .250" | .125" | $589.11 |
| Shaft-2021 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 3.00" | .250" | .125" | $34.46 |
| Shaft-2022 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 6.00" | .250" | .125" | $68.76 |
| Shaft-2024 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 12.00" | .250" | .125" | $137.12 |
| Shaft-2025 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 24.00" | .250" | .125" | $288.32 |
| Shaft-2026 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 36.00" | .250" | .125" | $432.06 |
| Shaft-2027 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 48.00" | .250" | .125" | $648.15 |
| Shaft-2028 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 60.00" | .250" | .125" | $733.51 |
| Shaft-2029 | 304 Stainless Steel | 1.25" | -.001"/-.0025" | 72.00" | .250" | .125" | $701.23 |
| Shaft-2030 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 3.00" | .250" | .125" | $48.94 |
| Shaft-2031 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 6.00" | .250" | .125" | $97.70 |
| Shaft-2033 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 12.00" | .250" | .125" | $195.28 |
| Shaft-2034 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 24.00" | .250" | .125" | $410.56 |
| Shaft-2035 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 36.00" | .250" | .125" | $615.34 |
| Shaft-2036 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 48.00" | .250" | .125" | $923.37 |
| Shaft-2037 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 60.00" | .250" | .125" | $912.30 |
| Shaft-2038 | 304 Stainless Steel | 1.50" | -.001"/-.0025" | 72.00" | .250" | .125" | $1,018.25 |
| Shaft-2039 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 3.00" | .500" | .250" | $91.30 |
| Shaft-2040 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 6.00" | .500" | .250" | $182.40 |
| Shaft-2042 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 12.00" | .500" | .250" | $364.36 |
| Shaft-2043 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 24.00" | .500" | .250" | $766.88 |
| Shaft-2044 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 36.00" | .500" | .250" | $1,150.16 |
| Shaft-2045 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 48.00" | .500" | .250" | $1,680.88 |
| Shaft-2046 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 60.00" | .500" | .250" | $1,906.01 |
| Shaft-2047 | 304 Stainless Steel | 2.00" | -.001"/-.0025" | 72.00" | .500" | .250" | $2,049.09 |
| Shaft-2048 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 3.00" | .500" | .250" | $111.50 |
| Shaft-2049 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 6.00" | .500" | .250" | $222.44 |
| Shaft-2051 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 12.00" | .500" | .250" | $445.02 |
| Shaft-2052 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 24.00" | .500" | .250" | $846.70 |
| Shaft-2053 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 36.00" | .500" | .250" | $1,372.34 |
| Shaft-2054 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 48.00" | .500" | .250" | $2,001.05 |
| Shaft-2055 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 60.00" | .500" | .250" | $2,084.59 |
| Shaft-2056 | 304 Stainless Steel | 2.187" | -.001"/-.0025" | 72.00" | .500" | .250" | $2,501.81 |
| Shaft-2057 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 3.00" | .625" | .312" | $139.04 |
| Shaft-2058 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 6.00" | .625" | .312" | $277.78 |
| Shaft-2060 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 12.00" | .625" | .312" | $555.22 |
| Shaft-2061 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 24.00" | .625" | .312" | $1,168.66 |
| Shaft-2062 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 36.00" | .625" | .312" | $1,665.34 |
| Shaft-2063 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 48.00" | .625" | .312" | $2,497.87 |
| Shaft-2064 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 60.00" | .625" | .312" | $2,602.12 |
| Shaft-2065 | 304 Stainless Steel | 2.437" | -.001"/-.0025" | 72.00" | .625" | .312" | $3,188.69 |
| Shaft-2067 | 316 Stainless Steel | .375" | -.001"/-.0025" | 3.00" | .093" | .047" | $20.90 |
| Shaft-2068 | 316 Stainless Steel | .375" | -.001"/-.0025" | 6.00" | .093" | .047" | $33.00 |
| Shaft-2070 | 316 Stainless Steel | .375" | -.001"/-.0025" | 12.00" | .093" | .047" | $48.34 |
| Shaft-2071 | 316 Stainless Steel | .375" | -.001"/-.0025" | 24.00" | .093" | .047" | $76.76 |
| Shaft-2072 | 316 Stainless Steel | .375" | -.001"/-.0025" | 36.00" | .093" | .047" | $114.18 |
| Shaft-2073 | 316 Stainless Steel | .375" | -.001"/-.0025" | 48.00" | .093" | .047" | $122.21 |
| Shaft-2074 | 316 Stainless Steel | .375" | -.001"/-.0025" | 60.00" | .093" | .047" | $247.13 |
| Shaft-2075 | 316 Stainless Steel | .375" | -.001"/-.0025" | 72.00" | .093" | .047" | $290.91 |

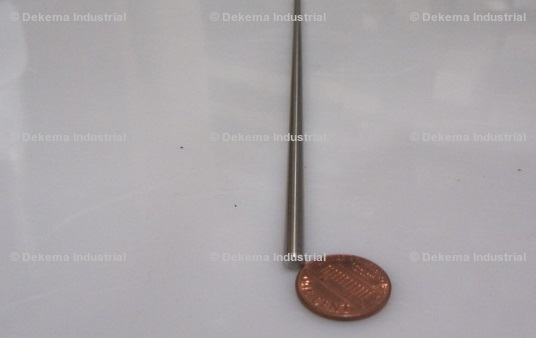

| Shaft-2076 | 316 Stainless Steel | .500" | -.001"/-.0025" | 3.00" | .125" | .062" | $25.46 |
| Shaft-2077 | 316 Stainless Steel | .500" | -.001"/-.0025" | 6.00" | .125" | .062" | $42.74 |
| Shaft-2079 | 316 Stainless Steel | .500" | -.001"/-.0025" | 12.00" | .125" | .062" | $71.48 |
| Shaft-2080 | 316 Stainless Steel | .500" | -.001"/-.0025" | 24.00" | .125" | .062" | $122.68 |
| Shaft-2081 | 316 Stainless Steel | .500" | -.001"/-.0025" | 36.00" | .125" | .062" | $182.90 |
| Shaft-2082 | 316 Stainless Steel | .500" | -.001"/-.0025" | 48.00" | .125" | .062" | $274.90 |
| Shaft-2083 | 316 Stainless Steel | .500" | -.001"/-.0025" | 60.00" | .125" | .062" | $291.19 |
| Shaft-2084 | 316 Stainless Steel | .500" | -.001"/-.0025" | 72.00" | .125" | .062" | $451.43 |
| Shaft-2085 | 316 Stainless Steel | .625" | -.001"/-.0025" | 3.00" | .125" | .062" | $30.92 |
| Shaft-2086 | 316 Stainless Steel | .625" | -.001"/-.0025" | 6.00" | .125" | .062" | $53.06 |
| Shaft-2088 | 316 Stainless Steel | .625" | -.001"/-.0025" | 12.00" | .125" | .062" | $92.46 |
| Shaft-2089 | 316 Stainless Steel | .625" | -.001"/-.0025" | 24.00" | .125" | .062" | $163.32 |
| Shaft-2090 | 316 Stainless Steel | .625" | -.001"/-.0025" | 36.00" | .125" | .062" | $244.80 |
| Shaft-2091 | 316 Stainless Steel | .625" | -.001"/-.0025" | 48.00" | .125" | .062" | $368.56 |
| Shaft-2092 | 316 Stainless Steel | .625" | -.001"/-.0025" | 60.00" | .125" | .062" | $496.47 |
| Shaft-2093 | 316 Stainless Steel | .625" | -.001"/-.0025" | 72.00" | .125" | .062" | $415.47 |
| Shaft-2094 | 316 Stainless Steel | .750" | -.001"/-.0025" | 3.00" | .187" | .093" | $38.98 |
| Shaft-2095 | 316 Stainless Steel | .750" | -.001"/-.0025" | 6.00" | .187" | .093" | $69.82 |
| Shaft-2097 | 316 Stainless Steel | .750" | -.001"/-.0025" | 12.00" | .187" | .093" | $120.58 |
| Shaft-2098 | 316 Stainless Steel | .750" | -.001"/-.0025" | 24.00" | .187" | .093" | $225.94 |
| Shaft-2099 | 316 Stainless Steel | .750" | -.001"/-.0025" | 36.00" | .187" | .093" | $346.54 |
| Shaft-2100 | 316 Stainless Steel | .750" | -.001"/-.0025" | 48.00" | .187" | .093" | $507.19 |
| Shaft-2101 | 316 Stainless Steel | .750" | -.001"/-.0025" | 60.00" | .187" | .093" | $664.15 |
| Shaft-2102 | 316 Stainless Steel | .750" | -.001"/-.0025" | 72.00" | .187" | .093" | $791.09 |
| Shaft-2103 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 3.00" | .250" | .125" | $41.90 |
| Shaft-2104 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 6.00" | .250" | .125" | $76.30 |
| Shaft-2106 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 12.00" | .250" | .125" | $110.38 |
| Shaft-2107 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 24.00" | .250" | .125" | $270.14 |
| Shaft-2108 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 36.00" | .250" | .125" | $390.66 |
| Shaft-2109 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 48.00" | .250" | .125" | $586.03 |
| Shaft-2110 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 60.00" | .250" | .125" | $742.56 |
| Shaft-2111 | 316 Stainless Steel | 1.00" | -.001"/-.0025" | 72.00" | .250" | .125" | $679.33 |
| Shaft-2112 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 3.00" | .250" | .125" | $48.96 |
| Shaft-2113 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 6.00" | .250" | .125" | $97.76 |
| Shaft-2115 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 12.00" | .250" | .125" | $194.92 |
| Shaft-2116 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 24.00" | .250" | .125" | $389.18 |
| Shaft-2117 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 36.00" | .250" | .125" | $580.06 |
| Shaft-2118 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 48.00" | .250" | .125" | $875.20 |
| Shaft-2119 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 60.00" | .250" | .125" | $1,094.95 |
| Shaft-2120 | 316 Stainless Steel | 1.25" | -.001"/-.0025" | 72.00" | .250" | .125" | $1,176.83 |
| Shaft-2121 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 3.00" | .375" | .187" | $69.56 |
| Shaft-2122 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 6.00" | .375" | .187" | $139.00 |
| Shaft-2124 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 12.00" | .375" | .187" | $277.44 |
| Shaft-2125 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 24.00" | .375" | .187" | $554.28 |
| Shaft-2126 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 36.00" | .375" | .187" | $831.22 |
| Shaft-2127 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 48.00" | .375" | .187" | $1,203.60 |
| Shaft-2128 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 60.00" | .375" | .187" | $1,391.86 |
| Shaft-2129 | 316 Stainless Steel | 1.50" | -.001"/-.0025" | 72.00" | .375" | .187" | $1,670.55 |
| Shaft-2130 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 3.00" | .500" | .250" | $129.68 |
| Shaft-2131 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 6.00" | .500" | .250" | $259.12 |
| Shaft-2133 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 12.00" | .500" | .250" | $517.50 |
| Shaft-2134 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 24.00" | .500" | .250" | $1,034.92 |
| Shaft-2135 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 36.00" | .500" | .250" | $1,552.50 |
| Shaft-2136 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 48.00" | .500" | .250" | $2,327.75 |
| Shaft-2137 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 60.00" | .500" | .250" | $2,601.08 |
| Shaft-2138 | 316 Stainless Steel | 2.00" | -.001"/-.0025" | 72.00" | .500" | .250" | $3,034.77 |
| Shaft-2139 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 3.00" | .500" | .250" | $158.26 |
| Shaft-2140 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 6.00" | .500" | .250" | $315.92 |
| Shaft-2142 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 12.00" | .500" | .250" | $632.36 |
| Shaft-2143 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 24.00" | .500" | .250" | $1,262.32 |
| Shaft-2144 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 36.00" | .500" | .250" | $1,899.96 |
| Shaft-2145 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 48.00" | .500" | .250" | $2,842.46 |
| Shaft-2146 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 60.00" | .500" | .250" | $3,082.90 |
| Shaft-2147 | 316 Stainless Steel | 2.187" | -.001"/-.0025" | 72.00" | .500" | .250" | $3,700.07 |
| Shaft-2148 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 3.00" | .625" | .312" | $197.44 |
| Shaft-2149 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 6.00" | .625" | .312" | $394.82 |
| Shaft-2151 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 12.00" | .625" | .312" | $788.40 |
| Shaft-2152 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 24.00" | .625" | .312" | $1,576.86 |
| Shaft-2153 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 36.00" | .625" | .312" | $2,364.50 |
| Shaft-2154 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 48.00" | .625" | .312" | $3,546.35 |
| Shaft-2155 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 60.00" | .625" | .312" | $3,841.96 |
| Shaft-2156 | 316 Stainless Steel | 2.437" | -.001"/-.0025" | 72.00" | .625" | .312" | $4,610.71 |
