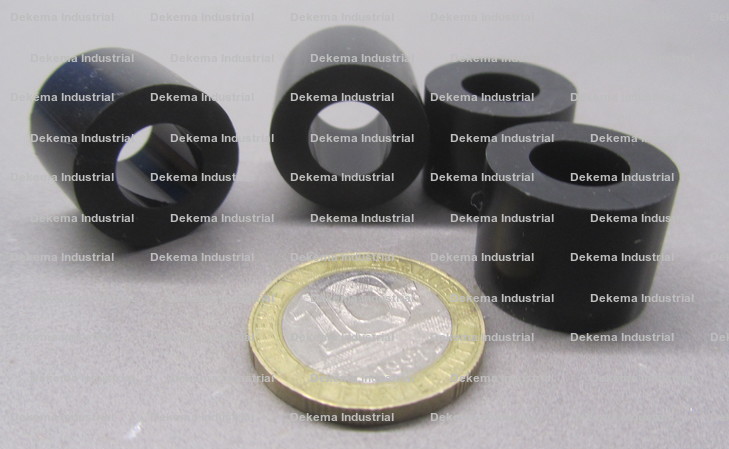

LDPE Spacers
| LDPE Spacers - OD Tol. +/- .010", ID Tol. +/- .010" | |||||
| Part # | OD | ID | Length | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|
| Spacer-2739 | .187" | .115" | .187" | 20 | $15.64 |
| Spacer-2741 | .187" | .115" | .312" | 20 | $17.76 |
| Spacer-2742 | .187" | .115" | .375" | 20 | $18.33 |
| Spacer-2743 | .187" | .115" | .500" | 20 | $18.67 |
| Spacer-2744 | .250" | .115" | .187" | 20 | $15.73 |
| Spacer-2745 | .250" | .115" | .250" | 20 | $17.07 |
| Spacer-2746 | .250" | .115" | .312" | 20 | $18.20 |
| Spacer-2747 | .250" | .115" | .375" | 20 | $21.63 |
| Spacer-2748 | .250" | .115" | .500" | 20 | $25.01 |
| Spacer-2749 | .250" | .140" | .187" | 20 | $15.64 |
| Spacer-2750 | .250" | .140" | .250" | 20 | $16.27 |
| Spacer-2751 | .250" | .140" | .312" | 20 | $17.17 |
| Spacer-2752 | .250" | .140" | .375" | 20 | $17.76 |
| Spacer-2753 | .250" | .140" | .500" | 20 | $20.32 |
| Spacer-2754 | .312" | .192" | .187" | 20 | $16.36 |
| Spacer-2755 | .312" | .192" | .250" | 20 | $17.01 |
| Spacer-2756 | .312" | .192" | .312" | 20 | $17.26 |
| Spacer-2757 | .312" | .192" | .375" | 20 | $18.92 |
| Spacer-2758 | .312" | .192" | .500" | 20 | $21.40 |
| Spacer-2759 | .375" | .192" | .250" | 20 | $19.09 |
| Spacer-2760 | .375" | .192" | .375" | 20 | $21.25 |
| Spacer-2761 | .375" | .192" | .500" | 20 | $23.24 |
| Spacer-2762 | .375" | .192" | .750" | 20 | $26.44 |
| Spacer-2763 | .375" | .192" | 1.00" | 20 | $30.07 |
| Spacer-2764 | .375" | .192" | 1.50" | 20 | $33.51 |
| Spacer-2765 | .500" | .192" | .187" | 20 | $16.75 |
| Spacer-2766 | .500" | .192" | .250" | 20 | $17.40 |
| Spacer-2767 | .500" | .192" | .375" | 20 | $17.89 |
| Spacer-2768 | .500" | .192" | .500" | 20 | $19.97 |
| Spacer-2769 | .500" | .192" | .750" | 20 | $24.94 |
| Spacer-2770 | .500" | .192" | 1.00" | 20 | $27.53 |
| Spacer-2771 | .500" | .260" | .187" | 20 | $20.53 |
| Spacer-2772 | .500" | .260" | .250" | 20 | $15.96 |
| Spacer-2773 | .500" | .260" | .312" | 20 | $21.16 |
| Spacer-2774 | .500" | .260" | .375" | 20 | $21.16 |
| Spacer-2775 | .500" | .260" | .500" | 20 | $22.21 |
| Spacer-2776 | .500" | .260" | .625" | 20 | $22.21 |
| Spacer-2777 | .500" | .260" | .750" | 20 | $23.45 |
| Spacer-2778 | .500" | .260" | .875" | 20 | $24.27 |
| Spacer-2779 | .500" | .260" | 1.00" | 20 | $24.61 |
| Spacer-2780 | .500" | .260" | 1.50" | 20 | $30.34 |
| Spacer-2781 | .500" | .260" | 1.75" | 10 | $19.55 |
| Spacer-2782 | .500" | .260" | 2.00" | 10 | $19.92 |
| Spacer-2783 | .750" | .260" | .500" | 20 | $21.56 |
| Spacer-2784 | .750" | .260" | .750" | 20 | $25.57 |
| Spacer-2785 | .750" | .260" | 1.00" | 20 | $29.21 |
| Spacer-2786 | .750" | .260" | 1.75" | 10 | $22.78 |
| Spacer-2787 | .750" | .260" | 2.00" | 10 | $31.22 |
| Spacer-2788 | .750" | .325" | .500" | 20 | $24.29 |
| Spacer-2789 | .750" | .325" | .750" | 20 | $33.20 |
| Spacer-2790 | .750" | .325" | 1.00" | 10 | $19.92 |
| Spacer-2791 | .750" | .325" | 1.75" | 10 | $26.58 |
| Spacer-2792 | .750" | .325" | 2.00" | 10 | $30.51 |
| Spacer-2793 | .750" | .385" | .500" | 20 | $20.14 |
| Spacer-2794 | .750" | .385" | .750" | 20 | $22.87 |
| Spacer-2795 | .750" | .385" | 1.00" | 20 | $22.87 |
| Spacer-2796 | .750" | .385" | 1.50" | 20 | $33.53 |
| Spacer-2797 | .750" | .385" | 1.75" | 20 | $35.76 |
| Spacer-2798 | .750" | .385" | 2.00" | 10 | $26.50 |
| Spacer-2799 | .750" | .385" | 2.50" | 10 | $34.27 |
| Spacer-2800 | .750" | .385" | 2.75" | 5 | $20.97 |
| Spacer-2801 | .750" | .385" | 3.00" | 5 | $20.72 |
| Spacer-2802 | 1.00" | .510" | .500" | 20 | $27.91 |
| Spacer-2803 | 1.00" | .510" | .750" | 20 | $33.70 |
| Spacer-2804 | 1.00" | .510" | 1.00" | 10 | $22.05 |
| Spacer-2805 | 1.00" | .510" | 1.50" | 10 | $29.12 |
| Spacer-2806 | 1.00" | .510" | 1.75" | 10 | $31.73 |
| Spacer-2807 | 1.00" | .510" | 2.00" | 5 | $30.15 |
| Spacer-2808 | 1.00" | .510" | 2.50" | 5 | $31.92 |
| Spacer-2809 | 1.00" | .510" | 2.75" | 5 | $33.62 |
| Spacer-2810 | 1.00" | .510" | 3.00" | 5 | $34.56 |
| Screw size number | SAE diameter (inch) | Metric diameter (mm) | Screw size number | SAE diameter (inch) | Metric diameter (mm) | |
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
