.562" Long Spacers
| .562" Length Spacers | ||||||||
| Part # | Material | Screw Size | OD | OD Tol | ID | ID Tol | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|---|---|
| Spacer-054 | 18-8 Stainless Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.73 |
| Spacer-092 | 18-8 Stainless Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $4.46 |
| Spacer-073 | 18-8 Stainless Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $4.81 |
| Spacer-109 | 18-8 Stainless Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $4.54 |
| Spacer-126 | 18-8 Stainless Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.46 |
| Spacer-527 | 18-8 Stainless Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $6.56 |
| Spacer-618 | 18-8 Stainless Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $6.69 |
| Spacer-1555 | 18-8 Stainless Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $9.61 |
| Spacer-143 | 18-8 Stainless Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $4.46 |
| Spacer-557 | 18-8 Stainless Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $6.56 |
| Spacer-644 | 18-8 Stainless Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $6.69 |
| Spacer-1580 | 18-8 Stainless Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $10.09 |
| Spacer-587 | 18-8 Stainless Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $6.56 |
| Spacer-670 | 18-8 Stainless Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $6.69 |
| Spacer-1605 | 18-8 Stainless Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $10.09 |
| Spacer-1653 | 18-8 Stainless Steel | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $18.95 |
| Spacer-696 | 18-8 Stainless Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $6.69 |
| Spacer-1630 | 18-8 Stainless Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $10.09 |
| Spacer-1668 | 18-8 Stainless Steel | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $18.95 |
| Spacer-245 | Aluminum 2011-T3 | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $1.33 |
| Spacer-264 | Aluminum 2011-T3 | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $1.33 |
| Spacer-3112 | Aluminum 2011-T3 | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $1.41 |
| Spacer-281 | Aluminum 2011-T3 | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $1.41 |
| Spacer-298 | Aluminum 2011-T3 | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $1.33 |
| Spacer-947 | Aluminum 2011-T3 | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $2.99 |
| Spacer-1038 | Aluminum 2011-T3 | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $3.12 |
| Spacer-1891 | Aluminum 2011-T3 | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $4.38 |
| Spacer-315 | Aluminum 2011-T3 | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $1.33 |
| Spacer-977 | Aluminum 2011-T3 | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $2.99 |
| Spacer-1063 | Aluminum 2011-T3 | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $3.12 |
| Spacer-1916 | Aluminum 2011-T3 | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $4.38 |
| Spacer-1007 | Aluminum 2011-T3 | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $2.99 |
| Spacer-1088 | Aluminum 2011-T3 | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $3.12 |
| Spacer-1941 | Aluminum 2011-T3 | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $4.38 |
| Spacer-1989 | Aluminum 2011-T3 | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $4.99 |
| Spacer-1113 | Aluminum 2011-T3 | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $3.12 |
| Spacer-1966 | Aluminum 2011-T3 | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $4.38 |
| Spacer-2004 | Aluminum 2011-T3 | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $4.99 |
| Spacer-415 | Nylon 6-6 Natural | 2 | .187" | +/-.015" | .090" | +/-.005" | 100 | $38.29 |
| Spacer-428 | Nylon 6-6 Natural | 2 | .250" | +/-.015" | .090" | +/-.005" | 100 | $40.08 |
| Spacer-2872 | Nylon 6-6 Natural | 4 | .187" | +/-.015" | .115" | +/-.005" | 100 | $38.37 |
| Spacer-439 | Nylon 6-6 Natural | 4 | .250" | +/-.015" | .115" | +/-.005" | 100 | $40.16 |
| Spacer-451 | Nylon 6-6 Natural | 6 | .250" | +/-.015" | .140" | +/-.005" | 100 | $40.08 |
| Spacer-1413 | Nylon 6-6 Natural | 6 | .312" | +/-.015" | .140" | +/-.005" | 100 | $38.57 |
| Spacer-1459 | Nylon 6-6 Natural | 6 | .375" | +/-.015" | .140" | +/-.005" | 100 | $40.22 |
| Spacer-2276 | Nylon 6-6 Natural | 6 | .500" | +/-.015" | .140" | +/-.005" | 100 | $38.52 |
| Spacer-462 | Nylon 6-6 Natural | 8 | .250" | +/-.015" | .166" | +/-.005" | 100 | $40.08 |
| Spacer-2864 | Nylon 6-6 Natural | 8 | .312" | +/-.015" | .166" | +/-.005" | 100 | $38.57 |
| Spacer-1478 | Nylon 6-6 Natural | 8 | .375" | +/-.015" | .166" | +/-.005" | 100 | $40.22 |
| Spacer-2300 | Nylon 6-6 Natural | 8 | .500" | +/-.015" | .166" | +/-.005" | 100 | $38.52 |
| Spacer-1436 | Nylon 6-6 Natural | 10 | .312" | +/-.015" | .192" | +/-.005" | 100 | $38.57 |
| Spacer-1497 | Nylon 6-6 Natural | 10 | .375" | +/-.015" | .192" | +/-.005" | 100 | $40.22 |

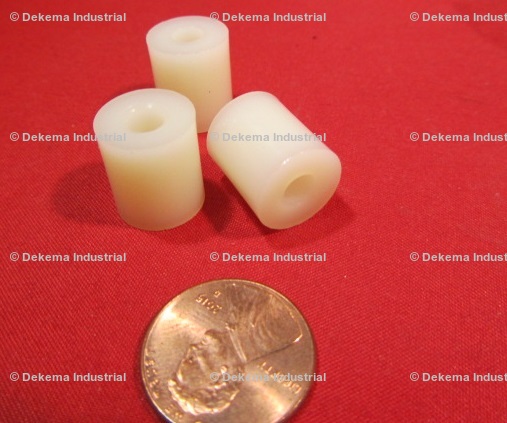

| Spacer-2324 | Nylon 6-6 Natural | 10 | .500" | +/-.015" | .192" | +/-.005" | 100 | $38.52 |
| Spacer-2348 | Nylon 6-6 Natural | 1/4" | .500" | +/-.015" | .252" | +/-.005" | 100 | $38.52 |
| Spacer-160 | Zinc Plated Brass | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $4.92 |
| Spacer-2991 | Zinc Plated Brass | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $4.02 |
| Spacer-3001 | Zinc Plated Brass | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $5.23 |
| Spacer-2990 | Zinc Plated Brass | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $4.10 |
| Spacer-2949 | Zinc Plated Brass | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $4.02 |
| Spacer-772 | Zinc Plated Brass | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $5.39 |
| Spacer-803 | Zinc Plated Brass | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $6.16 |
| Spacer-1723 | Zinc Plated Brass | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $9.25 |
| Spacer-3013 | Zinc Plated Brass | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $4.21 |
| Spacer-2960 | Zinc Plated Brass | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $5.39 |
| Spacer-850 | Zinc Plated Brass | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $6.16 |
| Spacer-1747 | Zinc Plated Brass | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $9.25 |
| Spacer-2959 | Zinc Plated Brass | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $5.39 |
| Spacer-874 | Zinc Plated Brass | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $6.16 |
| Spacer-1771 | Zinc Plated Brass | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $9.25 |
| Spacer-1817 | Zinc Plated Brass | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $12.74 |
| Spacer-898 | Zinc Plated Brass | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $6.46 |
| Spacer-1795 | Zinc Plated Brass | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $9.69 |
| Spacer-1833 | Zinc Plated Brass | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $13.37 |
| Spacer-332 | Zinc Plated Steel | 2 | .187" | +/-.003" | .090" | +.010"/-0 | 1 | $5.49 |
| Spacer-352 | Zinc Plated Steel | 2 | .250" | +/-.003" | .090" | +.010"/-0 | 1 | $5.64 |
| Spacer-3024 | Zinc Plated Steel | 4 | .187" | +/-.003" | .115" | +.010"/-0 | 1 | $5.82 |
| Spacer-387 | Zinc Plated Steel | 4 | .250" | +/-.003" | .115" | +.010"/-0 | 1 | $5.72 |
| Spacer-369 | Zinc Plated Steel | 6 | .250" | +/-.003" | .140" | +.010"/-0 | 1 | $5.93 |
| Spacer-1190 | Zinc Plated Steel | 6 | .312" | +/-.003" | .140" | +.010"/-0 | 1 | $5.28 |
| Spacer-3063 | Zinc Plated Steel | 6 | .375" | +/-.003" | .140" | +.010"/-0 | 1 | $5.28 |
| Spacer-2081 | Zinc Plated Steel | 6 | .500" | +/-.003" | .140" | +.010"/-0 | 1 | $6.25 |
| Spacer-404 | Zinc Plated Steel | 8 | .250" | +/-.003" | .166" | +.010"/-0 | 1 | $5.93 |
| Spacer-1220 | Zinc Plated Steel | 8 | .312" | +/-.003" | .166" | +.010"/-0 | 1 | $5.28 |
| Spacer-3062 | Zinc Plated Steel | 8 | .375" | +/-.003" | .166" | +.010"/-0 | 1 | $5.28 |
| Spacer-2106 | Zinc Plated Steel | 8 | .500" | +/-.003" | .166" | +.010"/-0 | 1 | $6.25 |
| Spacer-1250 | Zinc Plated Steel | 10 | .312" | +/-.003" | .192" | +.010"/-0 | 1 | $5.53 |
| Spacer-3061 | Zinc Plated Steel | 10 | .375" | +/-.003" | .192" | +.010"/-0 | 1 | $5.53 |
| Spacer-2131 | Zinc Plated Steel | 10 | .500" | +/-.003" | .192" | +.010"/-0 | 1 | $6.54 |
| Spacer-2179 | Zinc Plated Steel | 10 | .625" | +/-.003" | .192" | +.010"/-0 | 1 | $7.38 |
| Spacer-3060 | Zinc Plated Steel | 12 | .375" | +/-.003" | .218" | +.010"/-0 | 1 | $5.53 |
| Spacer-2156 | Zinc Plated Steel | 1/4" | .500" | +/-.003" | .252" | +.010"/-0 | 1 | $6.54 |
| Spacer-2195 | Zinc Plated Steel | 1/4" | .625" | +/-.003" | .252" | +.010"/-0 | 1 | $7.38 |
| Screw size number | SAE diameter (inch) | Metric diameter (mm) | Screw size number | SAE diameter (inch) | Metric diameter (mm) | |
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
