Slotted Spring Pins: 10mm Dia.

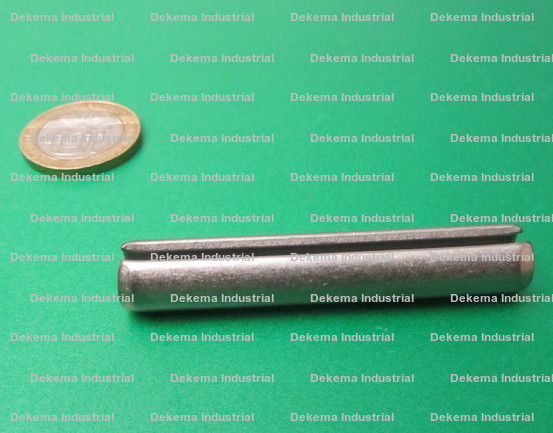

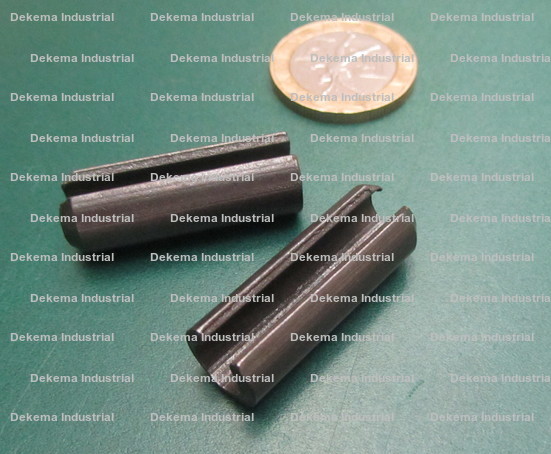

| 10mm Dia. Slotted Spring Pins | |||||
| Part # | Diameter | Length | Material | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|
| DSP-1265 | 10mm | 100mm | 18-8 Stainless Steel | 2 | $27.44 |
| DSP-1261 | 10mm | 24mm | 18-8 Stainless Steel | 10 | $28.56 |
| DSP-1260 | 10mm | 30mm | 18-8 Stainless Steel | 5 | $18.26 |
| DSP-1259 | 10mm | 36mm | 18-8 Stainless Steel | 4 | $23.68 |
| DSP-1258 | 10mm | 40mm | 18-8 Stainless Steel | 20 | $23.68 |
| DSP-1256 | 10mm | 50mm | 18-8 Stainless Steel | 5 | $33.99 |
| DSP-1255 | 10mm | 60mm | 18-8 Stainless Steel | 2 | $23.04 |
| DSP-1225 | 10mm | 80mm | 18-8 Stainless Steel | 2 | $27.56 |
| DSP-403 | 10mm | 14mm | High Carbon Spring Steel | 100 | $47.66 |
| DSP-401 | 10mm | 16mm | High Carbon Spring Steel | 100 | $75.16 |
| DSP-400 | 10mm | 18mm | High Carbon Spring Steel | 100 | $55.16 |
| DSP-399 | 10mm | 20mm | High Carbon Spring Steel | 100 | $90.16 |
| DSP-385 | 10mm | 22mm | High Carbon Spring Steel | 100 | $97.66 |
| DSP-397 | 10mm | 24mm | High Carbon Spring Steel | 100 | $55.68 |
| DSP-409 | 10mm | 26mm | High Carbon Spring Steel | 100 | $110.16 |
| DSP-395 | 10mm | 28mm | High Carbon Spring Steel | 100 | $117.66 |
| DSP-394 | 10mm | 30mm | High Carbon Spring Steel | 100 | $65.68 |
| DSP-393 | 10mm | 32mm | High Carbon Spring Steel | 100 | $135.16 |
| DSP-392 | 10mm | 36mm | High Carbon Spring Steel | 100 | $78.18 |
| DSP-391 | 10mm | 40mm | High Carbon Spring Steel | 25 | $33.19 |
| DSP-390 | 10mm | 45mm | High Carbon Spring Steel | 100 | $172.66 |
| DSP-389 | 10mm | 50mm | High Carbon Spring Steel | 100 | $101.08 |
| DSP-388 | 10mm | 55mm | High Carbon Spring Steel | 100 | $205.16 |
| DSP-387 | 10mm | 60mm | High Carbon Spring Steel | 100 | $121.08 |
| DSP-386 | 10mm | 70mm | High Carbon Spring Steel | 100 | $252.66 |
| DSP-421 | 10mm | 75mm | High Carbon Spring Steel | 100 | $275.16 |
| DSP-423 | 10mm | 80mm | High Carbon Spring Steel | 100 | $155.74 |
| DSP-398 | 10mm | 90mm | High Carbon Spring Steel | 100 | $310.16 |
| DSP-433 | 10mm | 95mm | High Carbon Spring Steel | 100 | $325.16 |
| DSP-432 | 10mm | 100mm | High Carbon Spring Steel | 100 | $191.42 |
| Tolerances | |
| Lengths 0-1.0" | +/-.015" |
| Lengths 1.125"-2.0" | +/-.020" |
| Lengths 2.25"-3.0" | +/-.025" |
| Lengths 3.25" and up | +/-.030" |
| Lengths 0-24mm | +/- .40mm |
| Lengths 26mm-50mm | +/- .50mm |
| Lengths 55mm-60mm | +/- .60mm |
| Lengths 80mm and up | +/- .75mm |
| Metric | Imperial Inches | ||||||||||||||||||||
| Nominal Dia. | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | 1/16" | 5/64" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | |
| Act. Dia | Min. mm | 2.13 | 2.65 | 3.15 | 4.20 | 5.25 | 6.25 | 8.30 | 0.066 | 0.083 | 0.099 | 0.131 | 0.162 | 0.194 | 0.226 | 0.258 | 0.321 | 0.385 | 0.448 | 0.513 | 0.640 |
| Max. mm | 2.25 | 2.78 | 3.30 | 4.40 | 5.50 | 6.50 | 8.63 | 0.069 | 0.086 | 0.103 | 0.135 | 0.137 | 0.199 | 0.232 | 0.264 | 0.330 | 0.395 | 0.459 | 0.524 | 0.653 | |
| Wall Thickness | * | * | * | * | * | * | * | 0.012 | 0.018 | 0.022 | 0.028 | 0.032 | 0.040 | 0.048 | 0.048 | 0.062 | 0.077 | 0.077 | 0.094 | 0.125 | |
| Suggested | Min. mm | 2.00 | 2.50 | 3.00 | 4.00 | 5.10 | 6.00 | 8.00 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.312 | 0.375 | 0.437 | 0.500 | 0.625 |
| Hole Size | Max. mm | 2.10 | 2.60 | 3.10 | 4.12 | 5.12 | 6.12 | 8.15 | 0.065 | 0.081 | 0.097 | 0.129 | 0.160 | 0.192 | 0.224 | 0.256 | 0.318 | 0.382 | 0.445 | 0.510 | 0.636 |
| Shear Strength Lbs | 562 | 876 | 1236 | 2158 | 3372 | 4945 | 8767 | * | * | * | * | * | * | * | * | * | * | * | * | * | |
| Shear Strength Lbs 18-8 SS | * | * | * | * | * | * | * | 250 | 460 | 670 | 1090 | 1600 | 2425 | 3400 | 4100 | 6300 | 9500 | 11500 | 15800 | 18800 | |
| Shear Strength Lbs 420 SS | * | * | * | * | * | * | * | 430 | 800 | 1150 | 1875 | 2750 | 4150 | 5850 | 7050 | 10800 | 16300 | 19800 | 27100 | 46000 | |
