Coiled Spring Pins: Plain Steel (C1070-C1095)

Steel Coiled Spring Pin
Plain Steel (C1070-C1095) Coiled Spring Pins
Part # Diameter (in.) Dia. Tol. (in.) Length (in.) Pkg. Qty. Pkg. Price
DSP-990 0.062 0.010 0.250 400 $35.68
DSP-1055 0.062 0.010 0.312 400 $34.56
DSP-978 0.062 0.010 0.500 400 $35.08
DSP-1051 0.062 0.010 0.750 400 $32.24
DSP-1050 0.062 0.010 1.000 200 $18.80
DSP-1049 0.078 0.010 0.312 400 $34.56
DSP-1048 0.078 0.010 0.375 400 $35.04
DSP-1047 0.078 0.010 0.500 200 $17.68
DSP-1046 0.078 0.010 0.625 200 $18.68
DSP-1045 0.078 0.010 0.750 200 $18.52
DSP-1044 0.078 0.010 1.000 200 $18.04
DSP-1043 0.093 0.010 0.250 200 $18.32
DSP-1029 0.093 0.010 0.375 200 $18.96
DSP-1041 0.093 0.010 0.500 200 $18.36
DSP-1053 0.093 0.010 0.625 200 $20.44
DSP-1039 0.093 0.010 0.750 200 $21.52
DSP-1037 0.093 0.010 1.000 200 $18.76
DSP-1036 0.093 0.010 1.500 200 $27.36

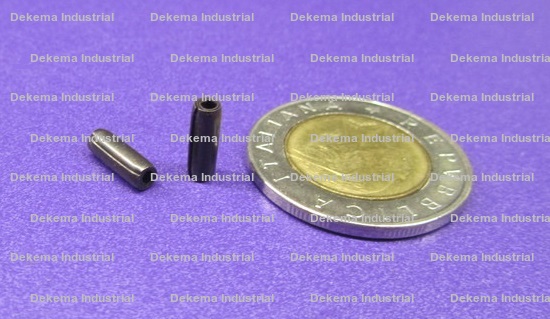

DSP-1035 0.125 0.010 0.375 200 $21.88
DSP-1034 0.125 0.010 0.500 200 $20.80
DSP-1033 0.125 0.010 0.625 200 $22.36
DSP-1031 0.125 0.010 0.750 200 $24.12
DSP-1065 0.125 0.010 1.000 200 $27.08
DSP-1040 0.125 0.010 1.250 200 $30.44
DSP-1042 0.125 0.010 1.500 100 $29.82
DSP-1032 0.156 0.010 0.500 200 $28.28
DSP-1075 0.156 0.010 0.500 200 $30.44
DSP-1074 0.156 0.010 0.625 100 $31.62
DSP-1076 0.156 0.010 0.625 200 $29.64
DSP-1073 0.156 0.010 1.000 100 $30.28
DSP-1072 0.156 0.010 1.500 50 $22.42
DSP-1071 0.156 0.010 2.000 100 $29.54
DSP-1070 0.187 0.010 0.500 50 $18.10
DSP-1069 0.187 0.010 0.750 100 $21.20
DSP-1054 0.187 0.010 1.000 100 $24.14
DSP-1066 0.187 0.010 1.500 50 $21.48
DSP-1078 0.187 0.010 2.000 50 $18.56
DSP-1064 0.187 0.010 2.500 50 $26.50
DSP-1068 0.218 0.010 0.750 100 $24.56
DSP-1063 0.218 0.010 1.000 100 $29.28
DSP-1062 0.218 0.010 1.500 50 $35.38
DSP-1060 0.218 0.010 2.000 50 $43.82
DSP-1061 0.250 0.010 1.000 100 $12.39
DSP-1059 0.250 0.010 1.125 50 $34.33
DSP-1058 0.250 0.010 1.250 50 $28.79
DSP-1057 0.250 0.010 1.500 50 $21.80
DSP-1056 0.250 0.010 2.000 50 $26.14
DSP-1030 0.250 0.010 2.500 25 $26.60
DSP-1002 0.250 0.010 3.000 50 $34.68
DSP-1001 0.250 0.010 3.500 25 $19.88
DSP-1027 0.250 0.010 3.500 50 $19.88
DSP-1067 0.312 0.010 1.000 50 $23.12
DSP-1000 0.312 0.010 1.250 50 $29.64
DSP-999 0.312 0.010 1.500 50 $28.68
DSP-998 0.312 0.010 1.750 25 $36.39
DSP-997 0.312 0.010 2.000 25 $36.75
DSP-995 0.312 0.010 2.500 25 $53.00
DSP-994 0.312 0.010 3.000 20 $24.28
DSP-993 0.312 0.010 4.000 20 $32.40
DSP-996 0.375 0.010 1.000 20 $33.60
DSP-980 0.375 0.010 1.500 5 $17.15

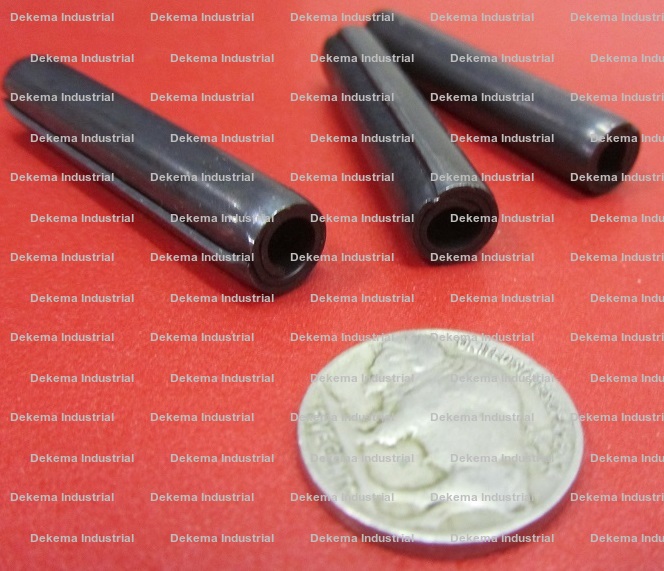

DSP-1003 0.375 0.010 2.000 5 $28.98
DSP-991 0.375 0.010 2.000 20 $27.64
DSP-989 0.375 0.010 3.000 10 $24.40

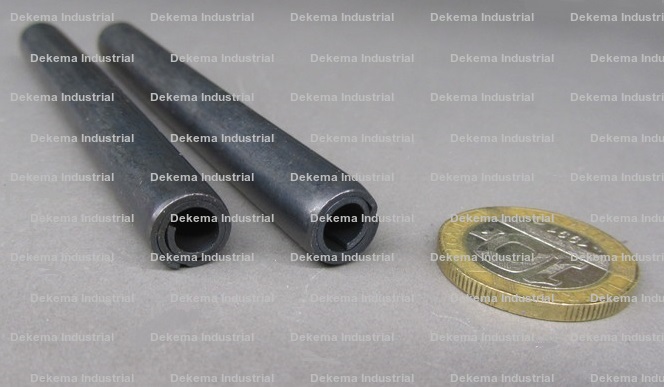

DSP-987 0.375 0.010 3.500 5 $31.66
DSP-986 2mm +/- 0.25mm 8mm 100 $28.64
DSP-985 2mm +/- 0.25mm 10mm 100 $29.08
DSP-984 2mm +/- 0.25mm 12mm 100 $29.32
DSP-983 2mm +/- 0.25mm 18mm 100 $29.32
DSP-988 2.5mm +/- 0.25mm 8mm 100 $32.24
DSP-982 2.5mm +/- 0.25mm 12mm 50 $17.64
DSP-981 2.5mm +/- 0.25mm 16mm 100 $33.88
DSP-1015 3mm +/- 0.25mm 8mm 50 $32.88
DSP-1017 3mm +/- 0.25mm 12mm 50 $36.87
DSP-992 3mm +/- 0.25mm 18mm 50 $22.28
DSP-1026 3mm +/- 0.25mm 25mm 50 $25.44
DSP-1025 4mm +/- 0.25mm 9.5mm 50 $25.44
DSP-1024 4mm +/- 0.25mm 14mm 50 $28.64
DSP-1023 4mm +/- 0.25mm 19mm 50 $34.28
DSP-1022 4mm +/- 0.25mm 24mm 25 $39.88
DSP-1021 4mm +/- 0.25mm 30mm 50 $29.04
DSP-1020 4mm +/- 0.25mm 36mm 50 $32.24
DSP-1019 5mm +/- 0.25mm 12mm 50 $32.24
DSP-1018 5mm +/- 0.25mm 20mm 50 $25.04
DSP-1004 5mm +/- 0.25mm 30mm 50 $29.00
DSP-1016 5mm +/- 0.25mm 36mm 50 $32.28
DSP-1028 5mm +/- 0.25mm 36mm 50 $32.24
DSP-1014 6mm +/- 0.25mm 16mm 50 $29.04
DSP-1013 6mm +/- 0.25mm 20mm 50 $26.00
DSP-1012 6mm +/- 0.25mm 24mm 50 $32.28
DSP-1011 6mm +/- 0.25mm 30mm 25 $22.58
DSP-1010 6mm +/- 0.25mm 36mm 10 $25.96
DSP-1009 8mm +/- 0.25mm 19mm 10 $23.60
DSP-1008 8mm +/- 0.25mm 25mm 10 $24.72
DSP-1007 8mm +/- 0.25mm 30mm 5 $13.63
DSP-1006 8mm +/- 0.25mm 35mm 10 $34.42
DSP-1005 8mm +/- 0.25mm 40mm 10 $29.90
DSP-1151 8mm +/- 0.25mm 45mm 5 $35.91


Tolerances
Lengths 0-1.0" +/-.015"
Lengths 1.125"-2.0" +/-.020"
Lengths 2.25"-3.0" +/-.025"
Lengths  3.25" and up +/-.030"
Lengths 0-24mm +/- .40mm
Lengths 26mm-50mm +/- .50mm
Lengths 55mm-60mm +/- .60mm
Lengths 80mm and up +/- .75mm

Metric Imperial Inches
Nominal Dia.   M2 M2.5 M3 M4 M5 M6 M8 1/16" 5/64" 3/32" 1/8" 5/32" 3/16" 7/32" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8"
Act. Dia Min. mm 2.13 2.65 3.15 4.20 5.25 6.25 8.30 0.066 0.083 0.099 0.131 0.162 0.194 0.226 0.258 0.321 0.385 0.448 0.513 0.640
  Max. mm 2.25 2.78 3.30 4.40 5.50 6.50 8.63 0.069 0.086 0.103 0.135 0.137 0.199 0.232 0.264 0.330 0.395 0.459 0.524 0.653
Wall Thickness   * * * * * * * 0.012 0.018 0.022 0.028 0.032 0.040 0.048 0.048 0.062 0.077 0.077 0.094 0.125
Suggested Min. mm 2.00 2.50 3.00 4.00 5.10 6.00 8.00 0.062 0.078 0.094 0.125 0.156 0.187 0.219 0.250 0.312 0.375 0.437 0.500 0.625
Hole Size Max. mm 2.10 2.60 3.10 4.12 5.12 6.12 8.15 0.065 0.081 0.097 0.129 0.160 0.192 0.224 0.256 0.318 0.382 0.445 0.510 0.636
Shear Strength Lbs   562 876 1236 2158 3372 4945 8767 * * * * * * * * * * * * *
Shear Strength Lbs 18-8 SS   * * * * * * * 250 460 670 1090 1600 2425 3400 4100 6300 9500 11500 15800 18800
Shear Strength Lbs 420 SS   * * * * * * * 430 800 1150 1875 2750 4150 5850 7050 10800 16300 19800 27100 46000
