Spring Pins: Slotted High Carbon Spring Steel

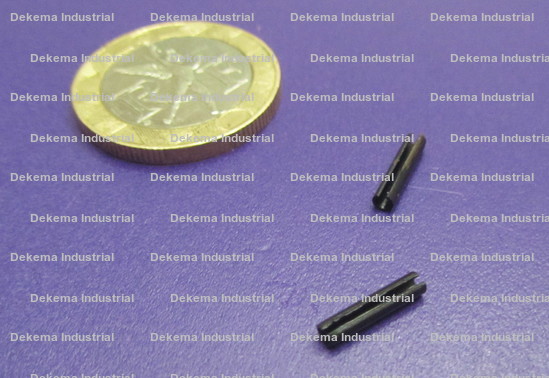

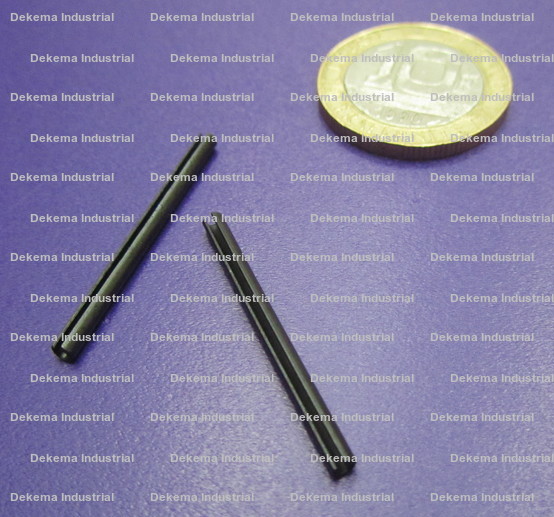

| Metric Slotted 1070-1090 Spring Steel Spring Pins | ||||
| Part # | Diameter | Length | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|
| DSP-1199 | 1.5mm | 4mm | 200 | $34.48 |
| DSP-1198 | 1.5mm | 5mm | 200 | $28.96 |
| DSP-1197 | 1.5mm | 6mm | 200 | $33.04 |
| DSP-1196 | 1.5mm | 8mm | 200 | $35.40 |
| DSP-1194 | 1.5mm | 12mm | 100 | $20.56 |
| DSP-355 | 2mm | 5mm | 300 | $25.44 |
| DSP-354 | 2mm | 6mm | 300 | $25.80 |
| DSP-353 | 2mm | 8mm | 100 | $12.13 |
| DSP-352 | 2mm | 10mm | 300 | $26.58 |
| DSP-351 | 2mm | 12mm | 100 | $12.13 |
| DSP-350 | 2mm | 14mm | 100 | $12.34 |
| DSP-349 | 2mm | 16mm | 100 | $12.51 |
| DSP-348 | 2mm | 18mm | 100 | $13.77 |
| DSP-334 | 2mm | 20mm | 200 | $19.84 |
| DSP-346 | 2mm | 22mm | 200 | $20.28 |
| DSP-358 | 2mm | 24mm | 200 | $20.64 |
| DSP-412 | 2mm | 26mm | 200 | $21.84 |
| DSP-360 | 2mm | 28mm | 200 | $22.56 |
| DSP-343 | 2mm | 30mm | 200 | $24.48 |
| DSP-342 | 2.5mm | 5mm | 300 | $26.40 |
| DSP-341 | 2.5mm | 6mm | 300 | $26.82 |
| DSP-340 | 2.5mm | 8mm | 200 | $18.28 |
| DSP-339 | 2.5mm | 10mm | 200 | $18.72 |
| DSP-338 | 2.5mm | 12mm | 200 | $18.88 |
| DSP-336 | 2.5mm | 14mm | 200 | $19.12 |
| DSP-335 | 2.5mm | 16mm | 200 | $19.84 |
| DSP-370 | 2.5mm | 18mm | 200 | $20.08 |
| DSP-1193 | 2.5mm | 20mm | 200 | $29.90 |
| DSP-347 | 2.5mm | 22mm | 200 | $20.64 |
| DSP-382 | 2.5mm | 24mm | 200 | $21.20 |
| DSP-381 | 2.5mm | 26mm | 200 | $22.56 |
| DSP-380 | 2.5mm | 28mm | 200 | $23.84 |
| DSP-1192 | 2.5mm | 30mm | 100 | $16.90 |
| DSP-378 | 3mm | 4mm | 200 | $27.74 |
| DSP-377 | 3mm | 5mm | 200 | $19.04 |
| DSP-376 | 3mm | 6mm | 200 | $31.37 |
| DSP-375 | 3mm | 8mm | 200 | $20.08 |
| DSP-374 | 3mm | 10mm | 200 | $30.72 |
| DSP-373 | 3mm | 12mm | 200 | $31.03 |
| DSP-359 | 3mm | 14mm | 200 | $32.42 |
| DSP-371 | 3mm | 16mm | 200 | $32.15 |
| DSP-384 | 3mm | 18mm | 200 | $29.35 |
| DSP-369 | 3mm | 20mm | 100 | $14.65 |
| DSP-368 | 3mm | 22mm | 200 | $22.56 |
| DSP-367 | 3mm | 24mm | 200 | $23.20 |
| DSP-366 | 3mm | 26mm | 200 | $24.48 |
| DSP-365 | 3mm | 28mm | 200 | $25.08 |
| DSP-364 | 3mm | 30mm | 200 | $26.60 |
| DSP-363 | 3mm | 32mm | 200 | $27.92 |
| DSP-362 | 3mm | 36mm | 200 | $30.52 |
| DSP-361 | 3mm | 40mm | 200 | $33.08 |
| DSP-322 | 3.5mm | 4mm | 200 | $20.52 |
| DSP-383 | 3.5mm | 5mm | 200 | $21.08 |
| DSP-307 | 3.5mm | 8mm | 200 | $21.92 |
| DSP-305 | 3.5mm | 10mm | 200 | $22.20 |
| DSP-303 | 3.5mm | 12mm | 200 | $22.56 |
| DSP-302 | 3.5mm | 14mm | 200 | $22.84 |
| DSP-301 | 3.5mm | 16mm | 200 | $23.28 |
| DSP-300 | 3.5mm | 18mm | 200 | $23.96 |
| DSP-299 | 3.5mm | 20mm | 200 | $24.40 |
| DSP-298 | 3.5mm | 22mm | 200 | $25.08 |
| DSP-284 | 3.5mm | 24mm | 200 | $25.76 |
| DSP-296 | 3.5mm | 26mm | 200 | $26.60 |
| DSP-308 | 3.5mm | 28mm | 200 | $27.80 |
| DSP-293 | 3.5mm | 30mm | 200 | $29.08 |
| DSP-292 | 3.5mm | 32mm | 200 | $30.76 |
| DSP-291 | 3.5mm | 36mm | 200 | $31.84 |
| DSP-290 | 3.5mm | 40mm | 200 | $34.40 |
| DSP-289 | 4mm | 4mm | 200 | $22.56 |
| DSP-287 | 4mm | 5mm | 200 | $23.20 |
| DSP-286 | 4mm | 6mm | 200 | $23.52 |
| DSP-320 | 4mm | 8mm | 200 | $23.84 |
| DSP-295 | 4mm | 10mm | 200 | $24.28 |
| DSP-332 | 4mm | 12mm | 200 | $24.48 |
| DSP-331 | 4mm | 14mm | 200 | $24.80 |
| DSP-330 | 4mm | 16mm | 200 | $25.08 |
| DSP-329 | 4mm | 18mm | 200 | $26.04 |
| DSP-328 | 4mm | 20mm | 200 | $26.60 |
| DSP-327 | 4mm | 22mm | 200 | $27.80 |
| DSP-326 | 4mm | 24mm | 200 | $28.16 |
| DSP-325 | 4mm | 26mm | 200 | $28.56 |
| DSP-323 | 4mm | 28mm | 200 | $30.52 |
| DSP-309 | 4mm | 30mm | 200 | $31.84 |
| DSP-321 | 4mm | 32mm | 200 | $33.08 |
| DSP-333 | 4mm | 36mm | 200 | $35.80 |
| DSP-1178 | 4mm | 40mm | 100 | $30.07 |
| DSP-319 | 4mm | 45mm | 100 | $31.90 |
| DSP-318 | 4mm | 50mm | 100 | $20.84 |
| DSP-317 | 5mm | 5mm | 200 | $27.92 |
| DSP-316 | 5mm | 6mm | 200 | $28.16 |
| DSP-315 | 5mm | 10mm | 200 | $28.84 |
| DSP-314 | 5mm | 12mm | 200 | $29.08 |
| DSP-313 | 5mm | 14mm | 200 | $31.20 |
| DSP-312 | 5mm | 16mm | 200 | $32.44 |
| DSP-311 | 5mm | 18mm | 200 | $34.40 |
| DSP-310 | 5mm | 20mm | 200 | $32.36 |
| DSP-285 | 5mm | 22mm | 100 | $28.28 |
| DSP-413 | 5mm | 24mm | 100 | $29.42 |
| DSP-459 | 5mm | 26mm | 100 | $29.31 |
| DSP-458 | 5mm | 28mm | 100 | $33.76 |
| DSP-457 | 5mm | 30mm | 100 | $25.05 |
| DSP-455 | 5mm | 32mm | 100 | $35.82 |
| DSP-454 | 5mm | 36mm | 100 | $37.25 |
| DSP-453 | 5mm | 40mm | 100 | $38.68 |
| DSP-465 | 5mm | 50mm | 100 | $29.16 |
| DSP-452 | 5mm | 55mm | 100 | $62.58 |
| DSP-449 | 5mm | 60mm | 100 | $67.58 |
| DSP-451 | 5mm | 70mm | 100 | $72.58 |
| DSP-450 | 5mm | 75mm | 100 | $80.08 |
| DSP-436 | 5mm | 80mm | 100 | $60.08 |
| DSP-448 | 6mm | 10mm | 200 | $32.44 |
| DSP-460 | 6mm | 12mm | 200 | $33.08 |
| DSP-1189 | 6mm | 14mm | 200 | $33.56 |
| DSP-446 | 6mm | 16mm | 100 | $25.47 |
| DSP-445 | 6mm | 20mm | 100 | $21.54 |
| DSP-444 | 6mm | 22mm | 100 | $42.58 |
| DSP-443 | 6mm | 24mm | 100 | $45.08 |
| DSP-1183 | 6mm | 26mm | 100 | $39.98 |
| DSP-442 | 6mm | 28mm | 100 | $52.58 |
| DSP-441 | 6mm | 30mm | 100 | $35.08 |
| DSP-440 | 6mm | 32mm | 100 | $57.58 |
| DSP-438 | 6mm | 36mm | 100 | $40.08 |
| DSP-1213 | 6mm | 40mm | 100 | $29.38 |
| DSP-1215 | 6mm | 45mm | 50 | $32.57 |
| DSP-1224 | 6mm | 50mm | 100 | $26.88 |
| DSP-473 | 6mm | 55mm | 100 | $82.58 |
| DSP-337 | 6mm | 70mm | 100 | $100.08 |

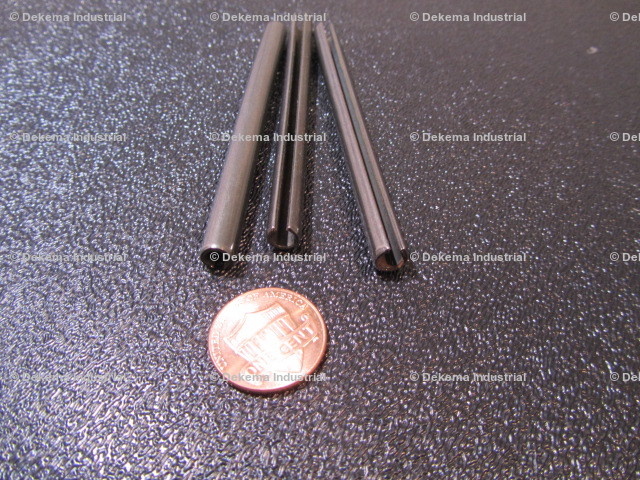

| DSP-485 | 6mm | 80mm | 100 | $115.08 |
| DSP-306 | 6mm | 90mm | 100 | $82.58 |
| DSP-484 | 6mm | 95mm | 100 | $170.08 |
| DSP-483 | 6mm | 100mm | 100 | $84.90 |
| DSP-482 | 8mm | 10mm | 100 | $52.58 |
| DSP-481 | 8mm | 12mm | 100 | $35.08 |
| DSP-480 | 8mm | 14mm | 100 | $62.58 |
| DSP-479 | 8mm | 16mm | 100 | $55.08 |
| DSP-478 | 8mm | 18mm | 100 | $57.58 |
| DSP-477 | 8mm | 20mm | 100 | $72.58 |
| DSP-461 | 8mm | 22mm | 50 | $25.60 |
| DSP-487 | 8mm | 24mm | 50 | $37.14 |
| DSP-472 | 8mm | 26mm | 50 | $31.66 |
| DSP-470 | 8mm | 28mm | 50 | $42.50 |
| DSP-469 | 8mm | 30mm | 50 | $35.53 |
| DSP-464 | 8mm | 32mm | 50 | $48.62 |
| DSP-463 | 8mm | 36mm | 50 | $51.32 |
| DSP-468 | 8mm | 40mm | 50 | $42.33 |
| DSP-474 | 8mm | 45mm | 50 | $58.38 |
| DSP-475 | 8mm | 50mm | 25 | $25.32 |
| DSP-476 | 8mm | 55mm | 25 | $29.37 |
| DSP-456 | 8mm | 60mm | 25 | $32.50 |
| DSP-396 | 8mm | 70mm | 100 | $162.58 |
| DSP-408 | 8mm | 75mm | 100 | $152.58 |
| DSP-407 | 8mm | 80mm | 100 | $205.08 |
| DSP-406 | 8mm | 90mm | 100 | $227.58 |
| DSP-405 | 8mm | 95mm | 100 | $242.58 |
| DSP-402 | 8mm | 100mm | 100 | $133.78 |
| DSP-403 | 10mm | 14mm | 100 | $47.58 |
| DSP-401 | 10mm | 16mm | 100 | $75.08 |
| DSP-400 | 10mm | 18mm | 100 | $55.08 |
| DSP-399 | 10mm | 20mm | 100 | $90.08 |
| DSP-385 | 10mm | 22mm | 100 | $97.58 |
| DSP-397 | 10mm | 24mm | 100 | $55.68 |
| DSP-409 | 10mm | 26mm | 100 | $110.08 |
| DSP-395 | 10mm | 28mm | 100 | $117.58 |
| DSP-394 | 10mm | 30mm | 100 | $65.68 |
| DSP-393 | 10mm | 32mm | 100 | $135.08 |
| DSP-392 | 10mm | 36mm | 100 | $78.18 |
| DSP-391 | 10mm | 40mm | 25 | $33.11 |
| DSP-390 | 10mm | 45mm | 100 | $172.58 |
| DSP-389 | 10mm | 50mm | 100 | $101.08 |
| DSP-388 | 10mm | 55mm | 100 | $205.08 |
| DSP-387 | 10mm | 60mm | 100 | $121.08 |
| DSP-386 | 10mm | 70mm | 100 | $252.58 |
| DSP-421 | 10mm | 75mm | 100 | $275.08 |
| DSP-423 | 10mm | 80mm | 100 | $155.74 |
| DSP-398 | 10mm | 90mm | 100 | $310.08 |
| DSP-433 | 10mm | 95mm | 100 | $325.08 |
| DSP-432 | 10mm | 100mm | 100 | $191.42 |
| DSP-431 | 12mm | 20mm | 100 | $350.08 |
| DSP-430 | 12mm | 22mm | 100 | $352.58 |
| DSP-429 | 12mm | 24mm | 100 | $362.58 |
| DSP-428 | 12mm | 26mm | 100 | $372.58 |
| DSP-427 | 12mm | 28mm | 100 | $380.08 |
| DSP-426 | 12mm | 30mm | 100 | $207.44 |
| DSP-434 | 12mm | 32mm | 100 | $402.58 |
| DSP-425 | 12mm | 36mm | 100 | $410.08 |
| DSP-410 | 12mm | 40mm | 100 | $222.60 |
| DSP-435 | 12mm | 45mm | 100 | $427.58 |
| DSP-420 | 12mm | 50mm | 10 | $29.21 |
| DSP-419 | 12mm | 55mm | 100 | $452.58 |
| DSP-418 | 12mm | 60mm | 10 | $34.73 |
| DSP-417 | 12mm | 70mm | 100 | $495.08 |
| DSP-416 | 12mm | 75mm | 100 | $510.08 |
| DSP-415 | 12mm | 80mm | 100 | $532.58 |
| DSP-414 | 12mm | 90mm | 100 | $547.58 |
| DSP-411 | 12mm | 95mm | 100 | $755.08 |
| DSP-357 | 12mm | 100mm | 25 | $501.06 |
| Tolerances | |
| Lengths 0-1.0" | +/-.015" |
| Lengths 1.125"-2.0" | +/-.020" |
| Lengths 2.25"-3.0" | +/-.025" |
| Lengths 3.25" and up | +/-.030" |
| Lengths 0-24mm | +/- .40mm |
| Lengths 26mm-50mm | +/- .50mm |
| Lengths 55mm-60mm | +/- .60mm |
| Lengths 80mm and up | +/- .75mm |
| Metric | Imperial Inches | ||||||||||||||||||||
| Nominal Dia. | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | 1/16" | 5/64" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | |
| Act. Dia | Min. mm | 2.13 | 2.65 | 3.15 | 4.20 | 5.25 | 6.25 | 8.30 | 0.066 | 0.083 | 0.099 | 0.131 | 0.162 | 0.194 | 0.226 | 0.258 | 0.321 | 0.385 | 0.448 | 0.513 | 0.640 |
| Max. mm | 2.25 | 2.78 | 3.30 | 4.40 | 5.50 | 6.50 | 8.63 | 0.069 | 0.086 | 0.103 | 0.135 | 0.137 | 0.199 | 0.232 | 0.264 | 0.330 | 0.395 | 0.459 | 0.524 | 0.653 | |
| Wall Thickness | * | * | * | * | * | * | * | 0.012 | 0.018 | 0.022 | 0.028 | 0.032 | 0.040 | 0.048 | 0.048 | 0.062 | 0.077 | 0.077 | 0.094 | 0.125 | |
| Suggested | Min. mm | 2.00 | 2.50 | 3.00 | 4.00 | 5.10 | 6.00 | 8.00 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.312 | 0.375 | 0.437 | 0.500 | 0.625 |
| Hole Size | Max. mm | 2.10 | 2.60 | 3.10 | 4.12 | 5.12 | 6.12 | 8.15 | 0.065 | 0.081 | 0.097 | 0.129 | 0.160 | 0.192 | 0.224 | 0.256 | 0.318 | 0.382 | 0.445 | 0.510 | 0.636 |
| Shear Strength Lbs | 562 | 876 | 1236 | 2158 | 3372 | 4945 | 8767 | * | * | * | * | * | * | * | * | * | * | * | * | * | |
| Shear Strength Lbs 18-8 SS | * | * | * | * | * | * | * | 250 | 460 | 670 | 1090 | 1600 | 2425 | 3400 | 4100 | 6300 | 9500 | 11500 | 15800 | 18800 | |
| Shear Strength Lbs 420 SS | * | * | * | * | * | * | * | 430 | 800 | 1150 | 1875 | 2750 | 4150 | 5850 | 7050 | 10800 | 16300 | 19800 | 27100 | 46000 | |
