304 Stainless Steel Tubes
| 304 Stainless Steel Tubes - Technical Data | ||||||
| Part # | OD | ID | OD Tolerance | Wall | Length | Price |
|---|---|---|---|---|---|---|
| DMT-218 | .125" | .069" | +-0.003" | .028" | 12" | $10.22 - 4 pc |
| DMT-219 | .187" | .131" | +-0.003" | .028" | 12" | $11.56 - 4 pc |
| DMT-220 | .250" | .194" | +-0.003" | .028" | 12" | $12.40 - 4 Pc |
| DMT-230 | .312" | .256" | +-0.003" | .028" | 12" | $14.46 - 3 Pc |
| DMT-222 | .375" | .319" | +-0.003" | .028" | 12" | $15.92 - 2 Pc |

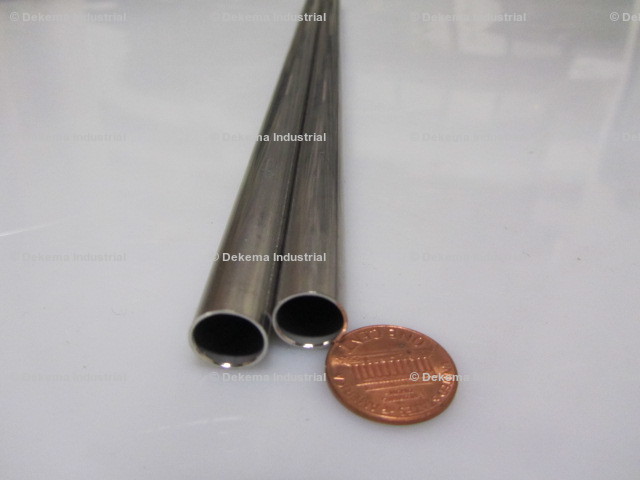

| DMT-215 | .437" | .381" | +-0.003" | .028" | 12" | $18.20 - 2 Pc |
| DMT-224 | .500" | .444" | +-0.003" | .028" | 12" | $20.60 - 2 Pc |
| DMT-206 | 2.00" | 1.00" | +-0.023" | .250" | 24" | $338.00 |
| DMT-199 | 2.00" | 1.00" | +-0.023" | .250" | 48" | $587.78 |
| DMT-212 | 2.00" | 1.25" | +-0.023" | .375" | 12" | $260.36 |
| DMT-622 | 2.00" | 1.25" | +-0.023" | .375" | 24" | $452.22 |
| DMT-621 | 2.00" | 1.25" | +-0.023" | .375" | 48" | $786.42 |
| DMT-225 | 2.00" | 1.50" | +-0.023" | .250" | 12" | $194.60 |
| DMT-213 | 2.25" | 1.50" | +-0.023" | .375" | 12" | $323.28 |
| DMT-623 | 2.25" | 1.50" | +-0.023" | .375" | 24" | $561.52 |
| DMT-624 | 2.25" | 1.50" | +-0.023" | .375" | 48" | $976.50 |
| DMT-226 | 2.25" | 1.75" | +-0.023" | .250" | 12" | $208.48 |
| DMT-214 | 2.25" | 1.75" | +-0.023" | .250" | 24" | $362.12 |
| DMT-208 | 2.25" | 1.75" | +-0.023" | .250" | 48" | $629.70 |
| DMT-649 | 2.50" | 1.50" | +-0.023" | .500" | 12" | $390.74 |
| DMT-232 | 2.50" | 1.50" | +-0.023" | .500" | 24" | $678.72 |
| DMT-855 | 2.50" | 1.50" | +-0.023" | .500" | 48" | $1,180.34 |
| DMT-237 | 2.50" | 1.75" | +-0.023" | .375" | 12" | $282.26 |
| DMT-771 | 2.50" | 1.75" | +-0.031" | .375" | 24" | $490.28 |
| DMT-761 | 2.50" | 1.75" | +-0.031" | .375" | 48" | $852.60 |
| DMT-227 | 2.50" | 2.00" | +-0.023" | .250" | 12" | $205.54 |
| DMT-204 | 2.50" | 2.00" | +-0.023" | .250" | 24" | $356.98 |
| DMT-209 | 2.50" | 2.00" | +-0.023" | .250" | 48" | $620.78 |
| DMT-650 | 2.75" | 1.75" | +-0.023" | .500" | 12" | $375.76 |
| DMT-233 | 2.75" | 1.75" | +-0.023" | .500" | 24" | $652.68 |
| DMT-825 | 2.75" | 1.75" | +-0.023" | .500" | 48" | $1,135.04 |
| DMT-772 | 2.75" | 2.00" | +-0.031" | .375" | 24" | $540.34 |
| DMT-768 | 2.75" | 2.00" | +-0.023" | .375" | 12" | $311.08 |
| DMT-228 | 2.75" | 2.25" | +-0.023" | .250" | 12" | $269.78 |
| DMT-203 | 2.75" | 2.25" | +-0.023" | .250" | 24" | $468.58 |
| DMT-759 | 2.75" | 2.25" | +-0.023" | .250" | 48" | $814.88 |
| DMT-660 | 3.00" | 2.00" | +-0.031" | .500" | 12" | $417.22 |
| DMT-234 | 3.00" | 2.00" | +-0.031" | .500" | 24" | $724.70 |
| DMT-239 | 3.00" | 2.00" | +-0.031" | .500" | 48" | $1,260.30 |
| DMT-223 | 3.00" | 2.25" | +-0.031" | .375" | 12" | $359.72 |
| DMT-773 | 3.00" | 2.25" | +-0.031" | .375" | 24" | $624.82 |
| DMT-769 | 3.00" | 2.25" | +-0.031" | .375" | 48" | $1,086.60 |
| DMT-229 | 3.00" | 2.50" | +-0.031" | .250" | 12" | $239.38 |
| DMT-202 | 3.00" | 2.50" | +-0.031" | .250" | 24" | $415.78 |
| DMT-210 | 3.00" | 2.50" | +-0.031" | .250" | 48" | $723.04 |
| DMT-625 | 3.25" | 1.75" | +-0.031" | .750" | 12" | $681.74 |
| DMT-196 | 3.25" | 1.75" | +-0.031" | .750" | 24" | $1,184.24 |
| DMT-190 | 3.25" | 1.75" | +-0.031" | .750" | 48" | $2,059.50 |
| DMT-652 | 3.25" | 2.25" | +-0.031" | .500" | 12" | $436.98 |
| DMT-235 | 3.25" | 2.25" | +-0.031" | .500" | 24" | $759.06 |
| DMT-762 | 3.25" | 2.25" | +-0.031" | .500" | 48" | $1,320.04 |
| DMT-195 | 3.25" | 2.50" | +-0.031" | .375" | 12" | $402.98 |
| DMT-775 | 3.25" | 2.50" | +-0.031" | .375" | 24" | $700.00 |
| DMT-777 | 3.25" | 2.50" | +-0.031" | .375" | 48" | $1,217.32 |
| DMT-651 | 3.50" | 2.00" | +-0.031" | .750" | 12" | $717.12 |
| DMT-197 | 3.50" | 2.00" | +-0.031" | .750" | 24" | $1,245.70 |
| DMT-194 | 3.50" | 2.00" | +-0.031" | .750" | 48" | $2,166.38 |
| DMT-645 | 3.50" | 2.50" | +-0.031" | .500" | 12" | $473.34 |
| DMT-658 | 3.50" | 2.50" | +-0.031" | .500" | 24" | $802.18 |
| DMT-763 | 3.50" | 2.50" | +-0.031" | .500" | 48" | $1,395.02 |
| DMT-207 | 3.50" | 3.00" | +-0.031" | .250" | 12" | $298.14 |
| DMT-201 | 3.50" | 3.00" | +-0.031" | .250" | 24" | $517.86 |
| DMT-216 | 3.50" | 3.00" | +-0.031" | .250" | 48" | $900.56 |
| DMT-193 | 3.75" | 2.50" | +-0.031" | .625" | 12" | $423.50 |
| DMT-188 | 3.75" | 2.50" | +-0.031" | .625" | 24" | $735.64 |
| DMT-191 | 3.75" | 2.50" | +-0.031" | .625" | 48" | $1,279.32 |
| DMT-654 | 3.75" | 2.75" | +-0.031" | .500" | 12" | $489.26 |
| DMT-238 | 3.75" | 2.75" | +-0.031" | .500" | 24" | $849.84 |
| DMT-764 | 3.75" | 2.75" | +-0.031" | .500" | 48" | $1,477.94 |
| DMT-205 | 3.75" | 3.25" | +-0.031" | .250" | 12" | $349.78 |
| DMT-221 | 3.75" | 3.25" | +-0.031" | .250" | 24" | $607.56 |
| DMT-211 | 3.75" | 3.25" | +-0.031" | .250" | 48" | $1,056.56 |
| DMT-618 | 4.00" | 2.50" | +-0.031" | .750" | 12" | $732.58 |
| DMT-217 | 4.00" | 2.50" | +-0.031" | .750" | 24" | $1,272.56 |
| DMT-198 | 4.00" | 2.50" | +-0.031" | .750" | 48" | $2,213.10 |
| DMT-189 | 4.00" | 2.75" | +-0.031" | .625" | 12" | $632.98 |
| DMT-187 | 4.00" | 2.75" | +-0.031" | .625" | 24" | $1,099.54 |
| DMT-192 | 4.00" | 2.75" | +-0.031" | .625" | 48" | $1,912.20 |
| DMT-240 | 4.00" | 3.00" | +-0.031" | .500" | 12" | $562.96 |
| DMT-753 | 4.00" | 3.25" | +-0.031" | .375" | 12" | $418.82 |
| DMT-200 | 4.00" | 3.25" | +-0.031" | .375" | 24" | $727.50 |
| DMT-767 | 4.00" | 3.25" | +-0.031" | .375" | 48" | $1,265.16 |
