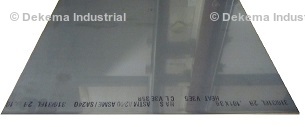

316-2B Stainless Steel Sheets
Better corrosion resistance than Type 304. Low carbon chromium-nickel stainless with good weldability and temperature resistance. Can only be strain hardened (Cold formed). Max. temp. to maintain corrosion resistance is 1600 degrees F.
Length and Width Tolerances +/-.125"
| 316-2B Stainless Steel Sheets - ASTM A240 | |||||
| Part # | Thickness | Thickness Tolerance | Width | Length | Price |
|---|---|---|---|---|---|
| DMS-2502 | .024" | +/-.003" | 12" | 12" | $61.80 |
| DMS-5565 | .024" | +/-.003" | 12" | 24" | $103.12 |
| DMS-5557 | .024" | +/-.003" | 24" | 24" | $179.22 |
| DMS-5582 | .024" | +/-.003" | 24" | 36" | $188.32 |
| DMS-2126 | .030" | +/-.002 | 12" | 12" | $67.40 |
| DMS-5564 | .030" | +/-.004" | 12" | 24" | $112.38 |
| DMS-5556 | .030" | +/-.004" | 24" | 24" | $181.74 |
| DMS-5581 | .030" | +/-.004" | 24" | 36" | $238.08 |
| DMS-5755 | .036" | +/-.004" | 12" | 12" | $78.84 |
| DMS-2135 | .036" | +/-.002 | 12" | 24" | $125.72 |
| DMS-5555 | .036" | +/-.004" | 24" | 24" | $188.18 |
| DMS-5580 | .036" | +/-.004" | 24" | 36" | $272.94 |
| DMS-2124 | .048" | +/-.003 | 12" | 12" | $120.39 |
| DMS-2143 | .048" | +/-.003 | 12" | 24" | $163.92 |
| DMS-2161 | .048" | +/-.003 | 24" | 24" | $284.96 |
| DMS-2504 | .048" | +/-.002 | 24" | 36" | $355.86 |
| DMS-2123 | .060" | +/-.003 | 12" | 12" | $117.46 |
| DMS-2133 | .060" | +/-.003 | 12" | 24" | $187.34 |
| DMS-2223 | .060" | +/-.003 | 24" | 24" | $406.72 |
| DMS-2494 | .060" | +/-.003 | 24" | 36" | $406.72 |
| DMS-6962 | .062" | +/-.006" | 2.00" | 12" | $42.76 |
| DMS-6872 | .062" | +/-.006" | 3.00" | 24" | $111.90 |
| DMS-6874 | .062" | +/-.006" | 4.00" | 12" | $74.50 |
| DMS-6862 | .062" | +/-.006" | 6.00" | 24" | $182.48 |
| DMS-2122 | .075" | +/-.004 | 12" | 12" | $141.08 |
| DMS-2132 | .075" | +/-.004 | 12" | 24" | $225.00 |
| DMS-2493 | .075" | +/-.004 | 24" | 36" | $488.54 |
| DMS-2121 | .105" | +/-.005 | 12" | 12" | $183.48 |
| DMS-2131 | .105" | +/-.005 | 12" | 24" | $292.64 |
| DMS-2500 | .105" | +/-.005 | 24" | 24" | $508.80 |
| DMS-2492 | .105" | +/-.005 | 24" | 36" | $635.42 |
| DMS-2112 | .120" | +/-.005 | 12" | 12" | $173.74 |
| DMS-2130 | .120" | +/-.005 | 12" | 24" | $308.48 |
| DMS-2499 | .120" | +/-.005 | 24" | 24" | $573.06 |
| DMS-5584 | .120" | +/-.010" | 24" | 36" | $715.70 |
| DMS-6875 | .125" | +/-.010" | 2.00" | 12" | $65.90 |
| DMS-6871 | .125" | +/-.010" | 3.00" | 24" | $172.50 |
| DMS-6873 | .125" | +/-.010" | 4.00" | 12" | $114.84 |
| DMS-6869 | .125" | +/-.010" | 6.00" | 24" | $281.34 |
