Size 4 Taper Pins
| Size 4 Taper Pins Major Diameter .250", Diameter Tolerance +.0013"/-.0007" |
|||||
| Part # | Material | Small End Diameter (in.) | Length (in.) | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|
| DMTP-303 | 18-8 Stainless Steel | .156 | 4.50 | 3 | $23.22 |
| DMTP-135 | 18-8 Stainless Steel | .167 | 4.00 | 25 | $135.00 |
| DMTP-134 | 18-8 Stainless Steel | .188 | 3.00 | 25 | $95.00 |
| DMTP-302 | 18-8 Stainless Steel | .193 | 2.75 | 10 | $26.40 |
| DMTP-133 | 18-8 Stainless Steel | .198 | 2.50 | 25 | $71.50 |
| DMTP-301 | 18-8 Stainless Steel | .203 | 2.25 | 10 | $26.40 |
| DMTP-300 | 18-8 Stainless Steel | .208 | 2.00 | 10 | $24.22 |
| DMTP-299 | 18-8 Stainless Steel | .214 | 1.75 | 10 | $22.20 |
| DMTP-132 | 18-8 Stainless Steel | .219 | 1.50 | 25 | $43.00 |
| DMTP-131 | 18-8 Stainless Steel | .224 | 1.25 | 25 | $37.00 |

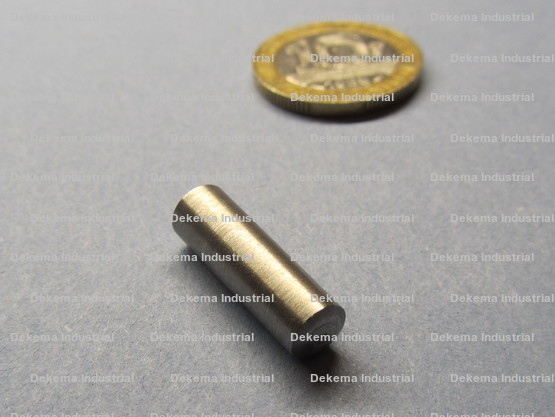

| DMTP-129 | 18-8 Stainless Steel | .234 | .750 | 25 | $33.50 |
| DMTP-240 | Plain Steel | .156 | 4.50 | 20 | $27.60 |
| DMTP-068 | Plain Steel | .167 | 4.00 | 100 | $115.20 |
| DMTP-067 | Plain Steel | .188 | 3.00 | 100 | $90.40 |
| DMTP-241 | Plain Steel | .193 | 2.75 | 25 | $23.16 |
| DMTP-066 | Plain Steel | .198 | 2.50 | 100 | $77.86 |
| DMTP-064 | Plain Steel | .203 | 2.25 | 100 | $65.34 |
| DMTP-063 | Plain Steel | .208 | 2.00 | 100 | $65.34 |
| DMTP-062 | Plain Steel | .214 | 1.75 | 100 | $78.66 |
| DMTP-061 | Plain Steel | .219 | 1.50 | 100 | $57.26 |
| DMTP-060 | Plain Steel | .224 | 1.25 | 100 | $52.68 |
| DMTP-059 | Plain Steel | .229 | 1.00 | 100 | $47.68 |
| DMTP-304 | Plain Steel | .234 | .750 | 50 | $23.16 |
