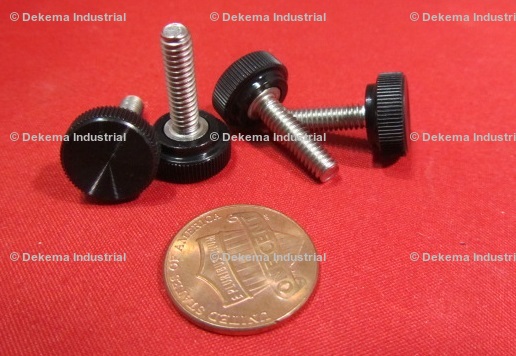

18-8 Stainless Knurled Head Thumb Screws
Straight Shoulder - Listed Length is measured from under the shoulder.
| Part # | Thread Size | Head Diameter | Head Height | Shoulder Diameter | Shoulder Length | Length | Price Each |
|---|---|---|---|---|---|---|---|
| MTHS-489 | 4-40 | .375" | .093" | .250" | .125" | .250" | $8.06 |
| MTHS-490 | 4-40 | .375" | .093" | .250" | .125" | .375" | $8.23 |
| MTHS-521 | 4-40 | .375" | .093" | .250" | .125" | .437" | $8.23 |
| MTHS-519 | 4-40 | .375" | .093" | .250" | .125" | .500" | $8.61 |
| MTHS-518 | 6-32 | .437" | .219" | .375" | .125" | .375" | $9.28 |
| MTHS-671 | 6-32 | .437" | .219" | .375" | .125" | .500" | $9.53 |
| MTHS-492 | 6-32 | .437" | .219" | .375" | .125" | .562" | $10.60 |
| MTHS-493 | 8-32 | .437" | .219" | .375" | .125" | .312" | $10.60 |
| MTHS-494 | 8-32 | .500" | .219" | .375" | .125" | .312" | $13.23 |
| MTHS-495 | 8-32 | .437" | .219" | .375" | .125" | .375" | $10.60 |
| MTHS-496 | 8-32 | .500" | .219" | .375" | .125" | .375" | $13.23 |
| MTHS-497 | 8-32 | .437" | .219" | .375" | .125" | .437" | $10.60 |
| MTHS-498 | 8-32 | .500" | .219" | .375" | .125" | .437" | $13.65 |
| MTHS-499 | 8-32 | .437" | .219" | .375" | .125" | .500" | $11.13 |
| MTHS-500 | 8-32 | .500" | .219" | .375" | .125" | .500" | $13.98 |
| MTHS-501 | 8-32 | .437" | .219" | .375" | .125" | .562" | $11.13 |
| MTHS-502 | 8-32 | .500" | .219" | .375" | .125" | .625" | $13.98 |
| MTHS-503 | 10-32 | .500" | .219" | .375" | .125" | .312" | $13.23 |
| MTHS-504 | 10-32 | .500" | .219" | .375" | .125" | .375" | $13.23 |
| MTHS-536 | 10-32 | .500" | .219" | .375" | .125" | .437" | $13.63 |
| MTHS-506 | 10-32 | .500" | .219" | .375" | .125" | .500" | $13.90 |
| MTHS-507 | 10-32 | .500" | .219" | .375" | .125" | .562" | $13.90 |
| MTHS-508 | 10-32 | .500" | .219" | .375" | .125" | .625" | $13.90 |
| MTHS-517 | 10-32 | .500" | .219" | .375" | .125" | .750" | $14.42 |
| MTHS-552 | 1/4"-20 | 1.00" | .250" | .500" | .375" | .312" | $26.08 |
| MTHS-561 | 1/4"-20 | 1.00" | .250" | .500" | .375" | .375" | $26.86 |
| MTHS-558 | 1/4"-20 | 1.00" | .250" | .500" | .375" | .500" | $27.93 |
| MTHS-555 | 1/4"-20 | 1.00" | .250" | .500" | .375" | .625" | $30.03 |
| MTHS-540 | 1/4"-20 | 1.00" | .250" | .500" | .375" | .750" | $32.11 |
| MTHS-563 | 1/4"-20 | 1.00" | .250" | .500" | .375" | 1.00" | $33.93 |
| MTHS-548 | 1/4"-20 | 1.00" | .250" | .500" | .375" | 1.25" | $33.93 |
| MTHS-546 | 5/16"-18 | 1.25" | .250" | .625" | .500" | .500" | $39.18 |
| MTHS-544 | 5/16"-18 | 1.25" | .250" | .625" | .500" | .625" | $40.51 |
| MTHS-542 | 5/16"-18 | 1.25" | .250" | .625" | .500" | .750" | $43.66 |
| MTHS-674 | 5/16"-18 | 1.25" | .250" | .625" | .500" | 1.00" | $47.08 |
| MTHS-619 | 5/16"-18 | 1.25" | .250" | .625" | .500" | 1.25" | $51.55 |
| MTHS-617 | 5/16"-18 | 1.25" | .250" | .625" | .500" | 1.50" | $53.88 |
| MTHS-615 | 3/8"-16 | 1.375" | .312" | .750" | .687" | .625" | $63.35 |
| MTHS-613 | 3/8"-16 | 1.375" | .312" | .750" | .687" | .750" | $65.71 |
| MTHS-611 | 3/8"-16 | 1.375" | .312" | .750" | .687" | 1.00" | $68.08 |
| MTHS-609 | 3/8"-16 | 1.375" | .312" | .750" | .687" | 1.25" | $70.45 |
| MTHS-612 | 3/8"-16 | 1.375" | .312" | .750" | .687" | 1.50" | $71.75 |
| MTHS-640 | 1/2"-13 | 1.375" | .312" | .875" | .687" | 1.00" | $68.08 |
| MTHS-753 | 1/2"-13 | 1.375" | .312" | .875" | .687" | 1.50" | $71.50 |
| MTHS-751 | 1/2"-13 | 1.375" | .312" | .875" | .687" | 2.00" | $73.83 |
