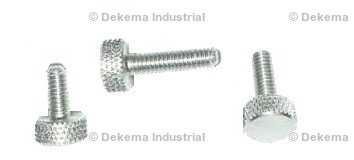

18-8 Stainless Knurled Low Head Thumb Screws
Metric, Unslotted
| Part # | Thread Size | Head Diameter | Head Height | Thread Pitch | Thread Length | Price Each |
|---|---|---|---|---|---|---|
| MTHS-451 | M3 | 8mm | 5mm | .5mm | 8mm | $8.00 |
| MTHS-452 | M3 | 8mm | 5mm | .5mm | 9mm | $8.17 |
| MTHS-453 | M3 | 8mm | 5mm | .5mm | 11mm | $8.50 |
| MTHS-454 | M3 | 8mm | 5mm | .5mm | 13mm | $8.88 |
| MTHS-455 | M3.5 | 8mm | 5mm | .6mm | 8mm | $8.12 |
| MTHS-456 | M3.5 | 8mm | 5mm | .6mm | 9mm | $8.27 |
| MTHS-457 | M3.5 | 8mm | 5mm | .6mm | 11mm | $8.63 |
| MTHS-458 | M3.5 | 8mm | 5mm | .6mm | 13mm | $9.01 |
| MTHS-459 | M4 | 10mm | 5mm | .7mm | 9mm | $10.35 |
| MTHS-460 | M4 | 10mm | 5mm | .7mm | 11mm | $10.94 |
| MTHS-461 | M4 | 10mm | 5mm | .7mm | 13mm | $11.50 |
| MTHS-462 | M4 | 10mm | 5mm | .7mm | 14mm | $11.99 |
| MTHS-463 | M4 | 10mm | 5mm | .7mm | 16mm | $12.72 |
| MTHS-464 | M5 | 11mm | 5mm | .8mm | 9mm | $13.06 |
| MTHS-465 | M5 | 11mm | 5mm | .8mm | 11mm | $13.52 |
| MTHS-466 | M5 | 11mm | 5mm | .8mm | 13mm | $13.90 |
| MTHS-467 | M5 | 11mm | 5mm | .8mm | 14mm | $14.09 |
| MTHS-468 | M5 | 11mm | 5mm | .8mm | 16mm | $14.63 |
| MTHS-682 | M6 | 13mm | 6mm | 1mm | 13mm | $17.99 |
| MTHS-470 | M6 | 13mm | 6mm | 1mm | 15mm | $18.29 |
| MTHS-471 | M6 | 13mm | 6mm | 1mm | 16mm | $18.96 |
| MTHS-472 | M6 | 13mm | 6mm | 1mm | 18mm | $19.57 |
| MTHS-473 | M6 | 13mm | 6mm | 1mm | 19mm | $19.80 |
