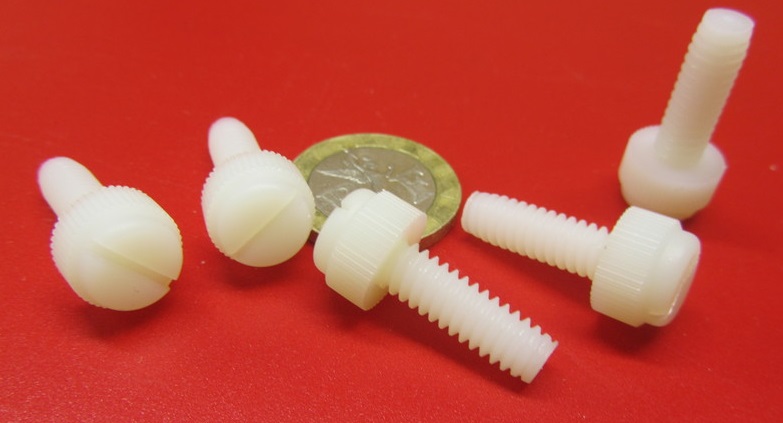

Nylon Knurled Slotted Head Thumb Screws
Natural or Black
Length is measured from under the head
| Part # | Thread Size | Head Diameter | Head Height | Thread Length | Pkg. Qty. | Pkg. Price |
|---|---|---|---|---|---|---|
| MTHS-1016 | 4-40 | .3281" | .219" | .250" | 100 | $27.20 |
| MTHS-1015 | 6-32 | .3437" | .250" | .250" | 100 | $28.24 |
| MTHS-1014 | 6-32 | .3437" | .250" | .500" | 100 | $28.88 |
| MTHS-985 | 6-32 | .3437" | .250" | .750" | 100 | $28.12 |
| MTHS-1025 | 6-32 | .3437" | .250" | 1.00" | 100 | $29.48 |
| MTHS-988 | 8-32 | .3906" | .2812" | .187" | 100 | $27.04 |
| MTHS-960 | 8-32 | .3906" | .2812" | .375" | 100 | $27.32 |
| MTHS-959 | 8-32 | .3906" | .2812" | .500" | 100 | $27.52 |
| MTHS-958 | 8-32 | .3906" | .2812" | .750" | 100 | $27.68 |
| MTHS-957 | 8-32 | .3906" | .2812" | 1.00" | 100 | $27.84 |
| MTHS-956 | 8-32 | .3906" | .2812" | 1.25" | 100 | $28.52 |
| MTHS-955 | 10-32 | .4062" | .312" | .250" | 100 | $29.16 |
| MTHS-954 | 10-32 | .4062" | .312" | .375" | 100 | $29.56 |
| MTHS-953 | 10-32 | .4062" | .312" | .500" | 100 | $29.72 |
| MTHS-952 | 10-32 | .4062" | .312" | .750" | 100 | $30.08 |
| MTHS-951 | 10-32 | .4062" | .312" | 1.00" | 100 | $30.28 |
| MTHS-938 | 10-32 | .4062" | .312" | 1.50" | 100 | $31.00 |
| MTHS-949 | 1/4"-20 | .4843" | .312" | .500" | 100 | $33.80 |
| MTHS-961 | 1/4"-20 | .4843" | .312" | .750" | 100 | $34.12 |
| MTHS-947 | 1/4"-20 | .4843" | .312" | 1.00" | 100 | $34.44 |
| MTHS-946 | 1/4"-20 | .4843" | .312" | 1.25" | 100 | $34.84 |
| MTHS-945 | 1/4"-20 | .4843" | .312" | 1.50" | 100 | $35.28 |
| MTHS-944 | 1/4"-20 | .4843" | .312" | 1.75" | 100 | $19.30 |
