Spring Pins: Slotted High Carbon Spring Steel

Click Here for Metric HCS Spring Pin Sizes

Part #	Diameter (in.)	Length (in.)	Pkg. Qty.	Pkg. Price
Slotted 1070-1090 Spring Steel Spring Pins
DSP-1222	0.062	0.187	1000	$27.92
DSP-1220	0.062	0.250	1000	$27.88
DSP-1219	0.062	0.312	1000	$29.84
DSP-1217	0.062	0.375	1000	$30.12
DSP-1216	0.062	0.437	1000	$30.96
DSP-072	0.062	0.500	400	$20.64
DSP-1202	0.062	0.562	500	$20.92
DSP-073	0.062	0.625	400	$21.28
DSP-1214	0.062	0.687	500	$21.16
DSP-074	0.062	0.750	400	$22.08
DSP-076	0.062	0.750	1000	$33.44
DSP-075	0.062	0.875	400	$23.04
DSP-559	0.062	1.000	300	$18.06
DSP-1226	0.078	0.187	100	$8.61
DSP-1212	0.078	0.250	1000	$30.68
DSP-1211	0.078	0.312	500	$18.64
DSP-1210	0.078	0.375	1000	$29.32
DSP-1209	0.078	0.437	500	$20.36
DSP-1208	0.078	0.500	1000	$30.68
DSP-1207	0.078	0.562	500	$20.92
DSP-1206	0.078	0.625	1000	$35.72
DSP-1205	0.078	0.687	100	$10.29
DSP-1204	0.078	0.750	500	$18.34
DSP-1052	0.078	0.812	100	$10.90
DSP-1253	0.078	0.875	1000	$37.08
DSP-1104	0.078	1.000	500	$22.86
DSP-953	0.078	1.250	500	$27.76
DSP-952	0.078	1.500	500	$30.04
DSP-951	0.093	0.187	1000	$32.68
DSP-950	0.093	0.250	1000	$27.44
DSP-949	0.093	0.312	1000	$30.96
DSP-948	0.093	0.375	1000	$28.44
DSP-947	0.093	0.437	1000	$31.64
DSP-077	0.093	0.500	400	$21.52
DSP-946	0.093	0.562	1000	$30.48
DSP-078	0.093	0.625	400	$22.48
DSP-945	0.093	0.687	500	$22.84
DSP-079	0.093	0.750	2000	$23.28
DSP-080	0.093	0.875	400	$24.08
DSP-944	0.093	0.937	500	$24.36
DSP-081	0.093	1.000	400	$24.72
DSP-082	0.093	1.125	400	$25.12
DSP-083	0.093	1.250	400	$26.32
DSP-931	0.093	1.375	500	$31.44
DSP-942	0.093	1.500	250	$38.30
DSP-488	0.125	0.250	1000	$27.08
DSP-499	0.125	0.312	1000	$35.12

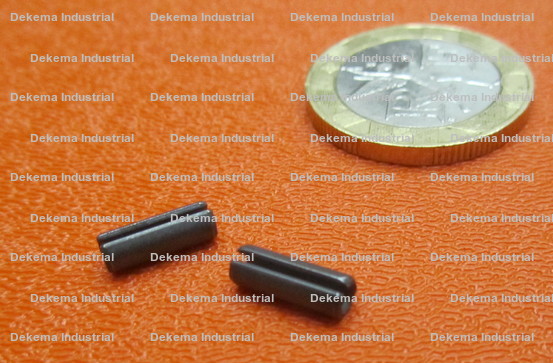

DSP-511	0.125	0.375	1000	$21.64

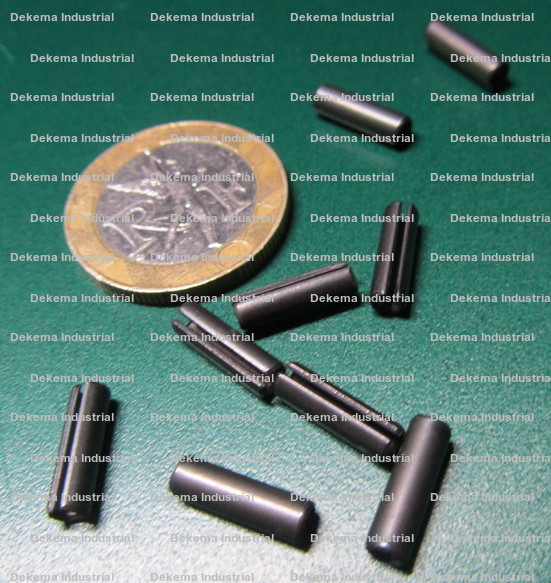

DSP-497	0.125	0.437	1000	$23.56
DSP-084	0.125	0.500	400	$22.48
DSP-496	0.125	0.562	500	$18.48
DSP-085	0.125	0.625	400	$23.28
DSP-495	0.125	0.687	500	$19.76

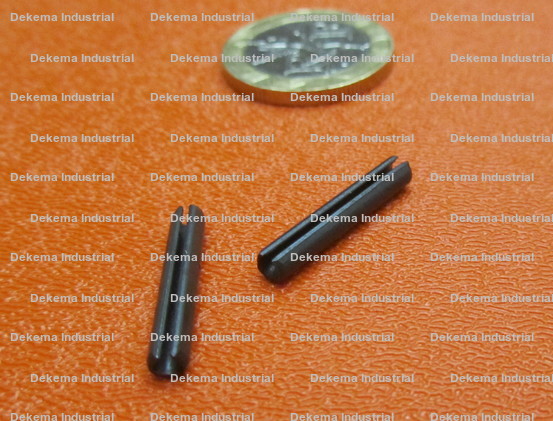

DSP-086	0.125	0.750	400	$24.16
DSP-494	0.125	0.812	1000	$27.44
DSP-087	0.125	0.875	400	$22.72
DSP-088	0.125	1.000	400	$23.76
DSP-089	0.125	1.125	400	$24.72
DSP-754	0.125	1.250	100	$19.64
DSP-091	0.125	1.375	400	$27.12
DSP-092	0.125	1.500	250	$30.80
DSP-093	0.125	1.625	300	$22.08
DSP-094	0.125	1.750	300	$23.28
DSP-095	0.125	1.875	300	$26.22
DSP-096	0.125	2.000	300	$24.78
DSP-493	0.125	2.250	200	$28.80
DSP-491	0.125	2.500	200	$31.12

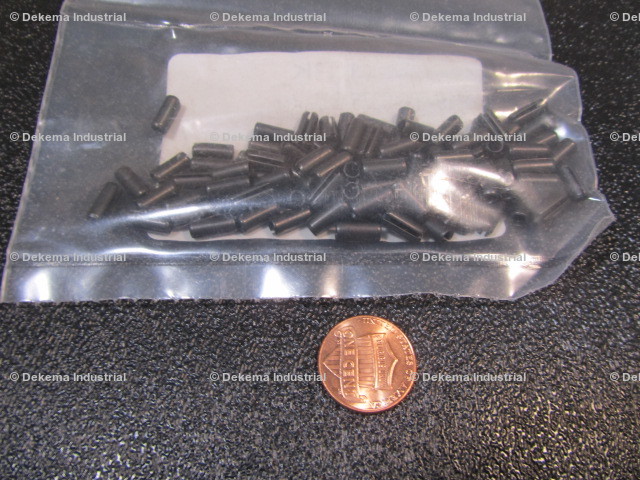

DSP-492	0.156	0.375	400	$24.24
DSP-490	0.156	0.500	500	$19.12
DSP-489	0.156	0.625	500	$21.44
DSP-523	0.156	0.750	500	$23.10
DSP-525	0.156	0.875	500	$23.88
DSP-500	0.156	1.000	500	$27.44
DSP-534	0.156	1.125	250	$17.68
DSP-533	0.156	1.250	50	$8.69
DSP-532	0.156	1.375	50	$8.92
DSP-531	0.156	1.500	250	$27.97
DSP-530	0.156	1.750	250	$23.58
DSP-529	0.156	2.000	50	$16.63
DSP-528	0.156	2.500	200	$26.52
DSP-527	0.187	0.375	500	$29.82
DSP-526	0.187	0.437	500	$27.48
DSP-512	0.187	0.500	500	$21.24
DSP-524	0.187	0.562	500	$23.20
DSP-097	0.187	0.625	400	$24.96
DSP-536	0.187	0.687	300	$23.40
DSP-098	0.187	0.750	400	$26.40
DSP-522	0.187	0.812	500	$30.54
DSP-099	0.187	0.875	400	$27.52
DSP-100	0.187	1.000	300	$22.08
DSP-101	0.187	1.125	300	$24.12
DSP-102	0.187	1.250	300	$25.50
DSP-103	0.187	1.375	300	$25.80
DSP-104	0.187	1.500	200	$18.12
DSP-105	0.187	1.625	200	$19.12
DSP-106	0.187	1.750	200	$20.04
DSP-108	0.187	2.000	200	$22.32
DSP-109	0.187	2.250	200	$23.96
DSP-110	0.187	2.500	200	$24.88
DSP-520	0.187	2.750	100	$29.92
DSP-111	0.187	3.000	100	$17.18
DSP-519	0.218	0.500	200	$20.12
DSP-518	0.218	0.625	50	$8.90
DSP-517	0.218	0.750	300	$26.76
DSP-516	0.218	1.000	300	$26.76
DSP-515	0.218	1.250	200	$23.84
DSP-514	0.218	1.500	200	$26.40
DSP-513	0.218	1.750	100	$18.92
DSP-596	0.218	2.000	200	$32.12
DSP-661	0.218	2.250	100	$21.40
DSP-584	0.218	2.500	25	$12.11
DSP-657	0.218	2.750	25	$13.29
DSP-656	0.218	3.000	50	$51.05
DSP-112	0.250	0.625	125	$17.34
DSP-113	0.250	0.750	5	$25.50
DSP-114	0.250	0.875	125	$23.94
DSP-115	0.250	1.000	200	$18.80
DSP-116	0.250	1.125	125	$24.52
DSP-117	0.250	1.250	200	$21.00
DSP-118	0.250	1.375	125	$38.32
DSP-119	0.250	1.500	125	$26.65
DSP-120	0.250	1.625	125	$35.13
DSP-121	0.250	1.750	125	$38.32
DSP-122	0.250	1.875	200	$28.76
DSP-123	0.250	2.000	200	$29.24
DSP-124	0.250	2.250	200	$32.92
DSP-125	0.250	2.500	125	$29.90
DSP-126	0.250	2.750	125	$40.53
DSP-127	0.250	3.000	125	$43.21
DSP-654	0.250	3.250	50	$50.02
DSP-129	0.250	3.500	125	$48.65
DSP-130	0.312	0.750	200	$22.04
DSP-131	0.312	0.875	200	$23.96
DSP-132	0.312	1.000	125	$27.91
DSP-133	0.312	1.250	125	$36.83
DSP-134	0.312	1.375	200	$30.96
DSP-135	0.312	1.500	125	$45.71
DSP-136	0.312	1.625	200	$35.76
DSP-137	0.312	1.750	125	$48.78
DSP-138	0.312	1.875	100	$27.58
DSP-139	0.312	2.000	125	$53.86
DSP-140	0.312	2.250	100	$25.30
DSP-141	0.312	2.500	100	$26.52
DSP-142	0.312	2.750	100	$30.94
DSP-143	0.312	3.000	50	$35.44
DSP-144	0.312	3.250	10	$14.53
DSP-145	0.312	3.500	50	$39.16
DSP-146	0.312	3.750	25	$36.39
DSP-653	0.312	4.000	50	$34.96
DSP-147	0.375	1.000	100	$24.90
DSP-148	0.375	1.250	100	$28.76
DSP-149	0.375	1.500	100	$33.18
DSP-150	0.375	1.750	10	$9.17
DSP-151	0.375	2.000	100	$43.38
DSP-152	0.375	2.250	10	$11.42
DSP-153	0.375	2.500	50	$54.44
DSP-154	0.375	2.750	10	$22.32
DSP-155	0.375	3.000	10	$22.80
DSP-156	0.375	3.250	100	$71.10
DSP-157	0.375	3.500	5	$9.66
DSP-158	0.375	3.750	10	$19.95
DSP-159	0.375	4.000	100	$84.94
DSP-160	0.437	1.000	100	$40.08
DSP-161	0.437	1.250	100	$47.58
DSP-162	0.437	1.500	100	$50.08
DSP-163	0.437	1.750	5	$13.90
DSP-164	0.437	2.000	5	$5.77
DSP-165	0.437	2.250	100	$80.08
DSP-166	0.437	2.500	100	$68.28
DSP-167	0.437	2.750	100	$90.08
DSP-168	0.437	3.000	100	$70.12
DSP-652	0.437	4.000	10	$28.83
DSP-169	0.500	1.250	5	$12.45
DSP-170	0.500	1.750	100	$62.50
DSP-171	0.500	2.000	100	$65.46
DSP-172	0.500	2.250	100	$75.96
DSP-173	0.500	2.500	100	$80.28

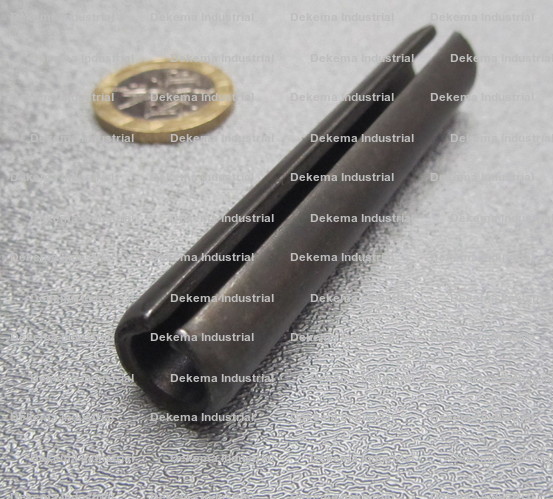

DSP-174	0.500	2.750	100	$87.94
DSP-175	0.500	3.000	100	$91.86
DSP-176	0.500	3.250	5	$14.42
DSP-177	0.500	3.500	5	$15.26
DSP-650	0.500	3.750	20	$34.76
DSP-649	0.500	4.000	5	$30.93
DSP-635	0.625	3.000	1	$41.56
DSP-1228	0.625	4.000	1	$56.84
DSP-647	0.625	4.000	1	$35.86

Tolerances
Lengths 0-1.0"	+/-.015"
Lengths 1.125"-2.0"	+/-.020"
Lengths 2.25"-3.0"	+/-.025"
Lengths  3.25" and up	+/-.030"
Lengths 0-24mm	+/- .40mm
Lengths 26mm-50mm	+/- .50mm
Lengths 55mm-60mm	+/- .60mm
Lengths 80mm and up	+/- .75mm

Metric							Imperial Inches
Nominal Dia.		M2	M2.5	M3	M4	M5	M6	M8	1/16"	5/64"	3/32"	1/8"	5/32"	3/16"	7/32"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"
Act. Dia	Min. mm	2.13	2.65	3.15	4.20	5.25	6.25	8.30	0.066	0.083	0.099	0.131	0.162	0.194	0.226	0.258	0.321	0.385	0.448	0.513	0.640
	Max. mm	2.25	2.78	3.30	4.40	5.50	6.50	8.63	0.069	0.086	0.103	0.135	0.137	0.199	0.232	0.264	0.330	0.395	0.459	0.524	0.653
Wall Thickness		*	*	*	*	*	*	*	0.012	0.018	0.022	0.028	0.032	0.040	0.048	0.048	0.062	0.077	0.077	0.094	0.125
Suggested	Min. mm	2.00	2.50	3.00	4.00	5.10	6.00	8.00	0.062	0.078	0.094	0.125	0.156	0.187	0.219	0.250	0.312	0.375	0.437	0.500	0.625
Hole Size	Max. mm	2.10	2.60	3.10	4.12	5.12	6.12	8.15	0.065	0.081	0.097	0.129	0.160	0.192	0.224	0.256	0.318	0.382	0.445	0.510	0.636
Shear Strength Lbs		562	876	1236	2158	3372	4945	8767	*	*	*	*	*	*	*	*	*	*	*	*	*
Shear Strength Lbs 18-8 SS		*	*	*	*	*	*	*	250	460	670	1090	1600	2425	3400	4100	6300	9500	11500	15800	18800
Shear Strength Lbs 420 SS		*	*	*	*	*	*	*	430	800	1150	1875	2750	4150	5850	7050	10800	16300	19800	27100	46000
