G5, G9 Glass Reinforced Melamine Tubes .125" Wall
G5, G9 Glass Reinforced Melamine (grayish brown or white) Technical Data Sheet
This grade is composed of a continuous glass woven cloth base impregnated with a
melamine resin binder. Melamines are the hardest of all laminates, exhibiting
good dimensional stability and arc resistance. It is also caustic resistant.
Chemical
Resistance Chart
NEMA grades G5 and G9 Glass-Cloth Reinforced Melamine -- natural color is typically a grayish brown. These grades are composed of a continuous glass woven cloth base impregnated with a melamine resin binder. (Melamine resins, once cured, are the hardest, most rigid and abrasion resistant of the standard resins employed in the production of industrial laminates. However, prolonged exposure to high temperature can adversely affect its mechanical and electrical strength properties. Arc resistance, however, may remain unaffected despite excessive thermal exposure.) Melamines are the hardest of laminates, exhibiting good dimensional stability and arc resistance. It's also caustic resistant. A key difference between NEMA Grades G5 and G9 are that G9 is more resistant to the elements of the environment. Thus, G9 can be safely substituted where G5 is called for.
NEMA G-5 certs to MIL-I-24768/8 GMG ,
IEC 60893-3 Type 3 MF GC 201
NEMA G-9 certs to MIL-I-24768/1 GME, IEC 60893-3 Type 3 MF GC 201
| G5, G9 Tube Wall Thickness Options | |||
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
G5, G9 Tubes .125" Wall Thickness |
||||
| Part # | OD (in.) | ID (in.) | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|
| DPT-1614 | .438 | .187 | 18 Feet | $52.18 |

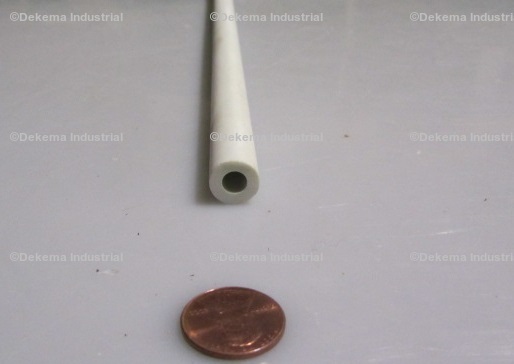

| DPT-1618 | .500 | .25 | 15 Feet | $56.71 |
| DPT-1622 | .563 | .312 | 15 Feet | $61.23 |
| DPT-1626 | .625 | .375 | 15 Feet | $44.28 |
| DPT-1630 | .688 | .437 | 15 Feet | $47.33 |

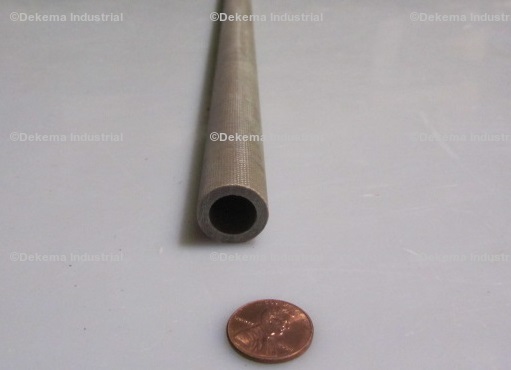

| DPT-1634 | .750 | .500 | 18 Feet | $50.38 |
| DPT-1639 | .813 | .562 | 15 Feet | $53.43 |
| DPT-1643 | .813 | .562 | 15 Feet | $53.43 |
| DPT-1649 | .875 | .625 | 18 Feet | $35.33 |
| DPT-1654 | .938 | .687 | 18 Feet | $37.23 |

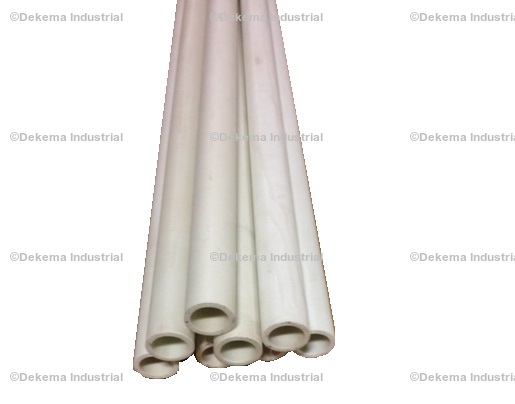

| DPT-1658 | 1.00 | .750 | 21 Feet | $39.16 |
| DPT-20239 | 1.062 | .812 | 21 Feet | $41.06 |
| DPT-1664 | 1.125 | .875 | 21 Feet | $42.96 |
| DPT-20237 | 1.187 | .937 | 18 Feet | $44.86 |

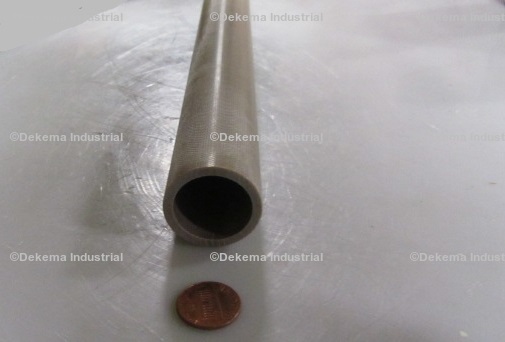

| DPT-1670 | 1.250 | 1.00 | 18 Feet | $46.76 |
| DPT-20235 | 1.312 | 1.062 | 18 Feet | $48.66 |

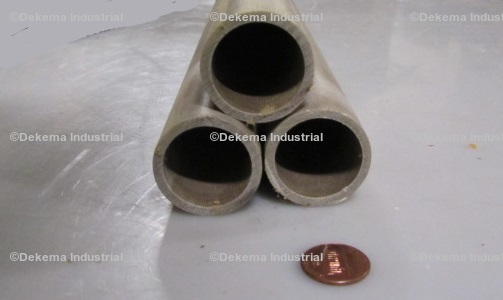

| DPT-20260 | 1.375 | 1.125 | 18 Feet | $50.58 |
| DPT-20241 | 1.437 | 1.187 | 18 Feet | $52.46 |
| DPT-1674 | 1.500 | 1.250 | 15 Feet | $54.38 |
| DPT-20269 | 1.562 | 1.312 | 15 Feet | $56.28 |
| DPT-20268 | 1.625 | 1.375 | 15 Feet | $58.21 |
| DPT-20267 | 1.688 | 1.437 | 15 Feet | $60.08 |
| DPT-1679 | 1.75 | 1.500 | 15 Feet | $62.00 |

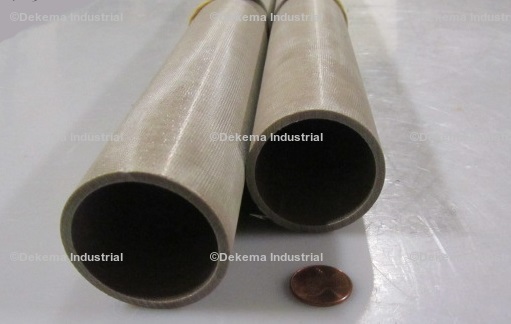

| DPT-20265 | 1.812 | 1.562 | 15 Feet | $63.91 |
| DPT-20264 | 1.875 | 1.625 | 15 Feet | $65.80 |
| DPT-20263 | 1.937 | 1.687 | 12 Feet | $67.71 |
| DPT-1684 | 2.000 | 1.750 | 12 Feet | $69.63 |
| DPT-20261 | 2.062 | 1.812 | 12 Feet | $71.51 |
| DPT-20270 | 2.125 | 1.875 | 12 Feet | $73.43 |
| DPT-20259 | 2.188 | 1.937 | 12 Feet | $75.33 |
| DPT-1689 | 2.250 | 2.000 | 12 Feet | $77.26 |
| DPT-20257 | 2.312 | 2.062 | 12 Feet | $79.13 |
| DPT-20256 | 2.375 | 2.125 | 12 Feet | $81.05 |
| DPT-20255 | 2.437 | 2.187 | 12 Feet | $82.96 |
| DPT-1694 | 2.500 | 2.250 | 12 Feet | $84.85 |
| DPT-20326 | 2.562 | 2.312 | 12 Feet | $86.76 |
| DPT-20250 | 2.625 | 2.375 | 12 Feet | $88.68 |
| DPT-20300 | 2.688 | 2.437 | 9 Feet | $90.55 |
| DPT-1699 | 2.750 | 2.500 | 9 Feet | $92.48 |
| DPT-20363 | 2.812 | 2.562 | 9 Feet | $94.38 |
| DPT-20362 | 2.875 | 2.625 | 9 Feet | $96.31 |
| DPT-20361 | 2.937 | 2.687 | 9 Feet | $98.18 |
| DPT-1704 | 3.00 | 2.750 | 9 Feet | $100.10 |
| DPT-20359 | 3.062 | 2.812 | 9 Feet | $102.01 |
| DPT-20358 | 3.125 | 2.875 | 9 Feet | $103.91 |
| DPT-20347 | 3.188 | 2.937 | 9 Feet | $105.80 |
| DPT-1709 | 3.250 | 3.00 | 9 Feet | $107.73 |
| DPT-20365 | 3.312 | 3.062 | 9 Feet | $109.61 |
| DPT-20354 | 3.375 | 3.125 | 9 Feet | $111.53 |
| DPT-20353 | 3.437 | 3.187 | 9 Feet | $113.43 |
| DPT-1714 | 3.50 | 3.250 | 9 Feet | $115.36 |
| DPT-20351 | 3.562 | 3.312 | 9 Feet | $117.23 |
| DPT-20350 | 3.625 | 3.375 | 9 Feet | $119.16 |
| DPT-20349 | 3.687 | 3.437 | 9 Feet | $121.05 |
| DPT-1719 | 3.750 | 3.50 | 9 Feet | $122.96 |
| DPT-20355 | 3.812 | 3.562 | 9 Feet | $124.85 |
| DPT-20357 | 3.875 | 3.625 | 9 Feet | $126.78 |
| DPT-20383 | 3.937 | 3.687 | 9 Feet | $128.66 |
| DPT-1724 | 4.00 | 3.750 | 9 Feet | $130.58 |
| DPT-20381 | 4.062 | 3.812 | 9 Feet | $132.48 |
| DPT-20380 | 4.125 | 3.875 | 6 Feet | $134.41 |
| DPT-20379 | 4.187 | 3.937 | 6 Feet | $136.28 |
| DPT-1730 | 4.250 | 4.00 | 6 Feet | $138.21 |
| DPT-20377 | 4.312 | 4.062 | 6 Feet | $140.11 |
| DPT-20366 | 4.375 | 4.125 | 6 Feet | $142.03 |
| DPT-20375 | 4.437 | 4.187 | 6 Feet | $143.91 |
| DPT-20384 | 4.500 | 4.250 | 6 Feet | $145.83 |
| DPT-20373 | 4.562 | 4.312 | 6 Feet | $147.73 |
| DPT-20372 | 4.625 | 4.375 | 6 Feet | $149.63 |
| DPT-20371 | 4.687 | 4.438 | 6 Feet | $151.53 |
| DPT-1735 | 4.750 | 4.500 | 6 Feet | $153.46 |
| DPT-20369 | 4.812 | 4.562 | 6 Feet | $155.33 |
| DPT-20368 | 4.875 | 4.625 | 6 Feet | $157.26 |
| DPT-20367 | 4.937 | 4.687 | 6 Feet | $159.16 |
| DPT-20338 | 5.00 | 4.750 | 6 Feet | $161.08 |
| DPT-20310 | 5.062 | 4.812 | 6 Feet | $162.96 |
| DPT-20348 | 5.125 | 4.875 | 6 Feet | $184.76 |
| DPT-20325 | 5.187 | 4.937 | 6 Feet | $186.88 |
| DPT-1740 | 5.250 | 5.00 | 6 Feet | $189.03 |
| DPT-20323 | 5.312 | 5.062 | 6 Feet | $191.16 |
| DPT-20322 | 5.375 | 5.125 | 6 Feet | $193.31 |
| DPT-20321 | 5.437 | 5.187 | 6 Feet | $195.41 |
| DPT-20320 | 5.50 | 5.250 | 6 Feet | $197.58 |
| DPT-16961 | 5.562 | 5.313 | 6 Feet | $199.68 |
| DPT-20309 | 5.625 | 5.375 | 6 Feet | $201.83 |
| DPT-20318 | 5.688 | 5.437 | 6 Feet | $203.96 |
| DPT-1746 | 5.750 | 5.50 | 6 Feet | $206.11 |
| DPT-20138 | 5.812 | 5.562 | 6 Feet | $208.23 |
| DPT-20147 | 5.875 | 5.625 | 6 Feet | $210.38 |
| DPT-20156 | 5.938 | 5.687 | 6 Feet | $212.51 |
| DPT-20145 | 6.000 | 5.750 | 6 Feet | $214.66 |
| DPT-20144 | 6.063 | 5.812 | 6 Feet | $169.33 |
| DPT-20143 | 6.125 | 5.875 | 6 Feet | $218.91 |
| DPT-20142 | 6.187 | 5.937 | 6 Feet | $221.03 |
| DPT-1752 | 6.250 | 6.000 | 6 Feet | $223.18 |
| DPT-20554 | 6.312 | 6.062 | 6 Feet | $209.68 |
| DPT-20440 | 6.375 | 6.125 | 6 Feet | $211.81 |
| DPT-20439 | 6.437 | 6.187 | 6 Feet | $213.91 |
| DPT-20438 | 6.500 | 6.250 | 6 Feet | $216.03 |
| DPT-20437 | 6.562 | 6.312 | 6 Feet | $218.13 |
| DPT-20436 | 6.625 | 6.375 | 6 Feet | $220.28 |
| DPT-20435 | 6.688 | 6.437 | 6 Feet | $222.38 |
| DPT-20434 | 6.750 | 6.500 | 6 Feet | $224.51 |
| DPT-20423 | 6.812 | 6.562 | 6 Feet | $226.61 |
| DPT-20432 | 6.875 | 6.625 | 6 Feet | $228.73 |
| DPT-20441 | 6.938 | 6.687 | 6 Feet | $230.83 |
| DPT-20430 | 7.000 | 6.750 | 6 Feet | $232.98 |
| DPT-20429 | 7.062 | 6.812 | 6 Feet | $235.08 |
| DPT-20428 | 7.125 | 6.875 | 6 Feet | $237.21 |
| DPT-20427 | 7.187 | 6.938 | 6 Feet | $239.31 |
| DPT-20426 | 7.250 | 7.000 | 6 Feet | $241.46 |
| DPT-20425 | 7.312 | 7.062 | 6 Feet | $243.56 |
| DPT-20450 | 7.375 | 7.125 | 6 Feet | $245.68 |
| DPT-20431 | 7.437 | 7.187 | 6 Feet | $247.78 |
| DPT-20433 | 7.500 | 7.250 | 6 Feet | $249.91 |
| DPT-20459 | 7.562 | 7.312 | 6 Feet | $252.01 |
| DPT-20458 | 7.625 | 7.375 | 6 Feet | $254.16 |
| DPT-20457 | 7.688 | 7.437 | 6 Feet | $256.26 |
| DPT-20456 | 7.750 | 7.500 | 6 Feet | $258.38 |
| DPT-20455 | 7.812 | 7.562 | 6 Feet | $260.48 |
| DPT-20454 | 7.875 | 7.625 | 6 Feet | $262.61 |
| DPT-20453 | 7.938 | 7.687 | 6 Feet | $264.71 |
| DPT-20442 | 8.000 | 7.750 | 3 Feet | $266.85 |
| DPT-20451 | 8.062 | 7.812 | 3 Feet | $268.96 |
| DPT-20460 | 8.125 | 7.875 | 3 Feet | $271.08 |
| DPT-20449 | 8.188 | 7.937 | 3 Feet | $273.18 |
| DPT-20448 | 8.250 | 8.000 | 3 Feet | $275.33 |
| DPT-20446 | 8.375 | 8.125 | 3 Feet | $279.56 |
| DPT-20445 | 8.437 | 8.187 | 3 Feet | $281.66 |
| DPT-20444 | 8.500 | 8.250 | 3 Feet | $283.78 |
| DPT-20140 | 8.562 | 8.312 | 3 Feet | $285.88 |
| DPT-20139 | 8.625 | 8.375 | 3 Feet | $288.03 |
| DPT-20110 | 8.688 | 8.437 | 3 Feet | $290.13 |
| DPT-20083 | 8.750 | 8.500 | 3 Feet | $292.26 |
| DPT-20120 | 8.812 | 8.562 | 3 Feet | $294.35 |
| DPT-20098 | 8.875 | 8.625 | 3 Feet | $296.48 |
| DPT-20097 | 8.938 | 8.687 | 3 Feet | $298.58 |
| DPT-20096 | 9.000 | 8.750 | 3 Feet | $300.73 |
| DPT-20095 | 9.062 | 8.812 | 3 Feet | $302.83 |
| DPT-20443 | 9.125 | 8.875 | 3 Feet | $304.96 |
| DPT-20414 | 9.188 | 8.937 | 3 Feet | $307.06 |
| DPT-20386 | 9.250 | 9.000 | 3 Feet | $309.21 |
| DPT-20424 | 9.312 | 9.062 | 3 Feet | $311.30 |
| DPT-20401 | 9.375 | 9.125 | 3 Feet | $313.43 |
| DPT-20400 | 9.437 | 9.187 | 3 Feet | $315.53 |
| DPT-20399 | 9.500 | 9.250 | 3 Feet | $317.66 |
| DPT-20398 | 9.563 | 9.312 | 3 Feet | $319.76 |
| DPT-20397 | 9.625 | 9.375 | 3 Feet | $321.91 |
| DPT-20396 | 9.688 | 9.437 | 3 Feet | $324.00 |
| DPT-20385 | 9.750 | 9.500 | 3 Feet | $326.13 |
| DPT-20394 | 9.812 | 9.562 | 3 Feet | $328.23 |
| DPT-20403 | 9.875 | 9.625 | 3 Feet | $330.36 |
| DPT-20392 | 9.937 | 9.687 | 3 Feet | $332.48 |
| DPT-20391 | 10.00 | 9.750 | 3 Feet | $334.60 |
| DPT-20390 | 10.062 | 9.813 | 3 Feet | $336.71 |
| DPT-20389 | 10.125 | 9.875 | 3 Feet | $338.83 |
| DPT-20388 | 10.187 | 9.937 | 3 Feet | $340.93 |
| DPT-20387 | 10.250 | 10.00 | 3 Feet | $343.08 |
| DPT-20412 | 10.313 | 10.062 | 3 Feet | $345.18 |
| DPT-20393 | 10.375 | 10.125 | 3 Feet | $347.30 |
| DPT-20395 | 10.437 | 10.187 | 3 Feet | $349.41 |
| DPT-20421 | 10.500 | 10.250 | 3 Feet | $351.53 |
| DPT-20420 | 10.563 | 10.312 | 3 Feet | $353.63 |
| DPT-20419 | 10.625 | 10.375 | 3 Feet | $355.78 |
| DPT-20418 | 10.688 | 10.437 | 3 Feet | $357.88 |
| DPT-20417 | 10.750 | 10.500 | 3 Feet | $360.01 |
| DPT-20416 | 10.813 | 10.562 | 3 Feet | $362.10 |
| DPT-20415 | 10.875 | 10.625 | 3 Feet | $364.25 |
| DPT-20404 | 10.937 | 10.687 | 3 Feet | $366.35 |
| DPT-20413 | 11.000 | 10.750 | 3 Feet | $368.48 |
| DPT-20422 | 11.062 | 10.812 | 3 Feet | $370.58 |
| DPT-20411 | 11.125 | 10.875 | 3 Feet | $372.71 |
| DPT-20410 | 11.188 | 10.937 | 3 Feet | $374.80 |
| DPT-20409 | 11.250 | 11.000 | 3 Feet | $376.96 |
| DPT-20408 | 11.313 | 11.062 | 3 Feet | $379.06 |
| DPT-20407 | 11.375 | 11.125 | 3 Feet | $381.18 |
| DPT-20406 | 11.437 | 11.187 | 3 Feet | $383.28 |
| DPT-20478 | 11.500 | 11.250 | 3 Feet | $385.41 |
| DPT-20402 | 11.562 | 11.312 | 3 Feet | $387.51 |
| DPT-20452 | 11.625 | 11.375 | 3 Feet | $389.66 |
| DPT-20516 | 11.687 | 11.437 | 3 Feet | $391.75 |
| DPT-20515 | 11.750 | 11.500 | 3 Feet | $393.88 |
| DPT-20514 | 11.812 | 11.562 | 3 Feet | $395.98 |
| DPT-20513 | 11.875 | 11.625 | 3 Feet | $398.13 |
| DPT-20512 | 11.937 | 11.687 | 3 Feet | $400.23 |
| DPT-20511 | 12.000 | 11.750 | 3 Feet | $402.35 |
| DPT-20510 | 12.062 | 11.812 | 3 Feet | $404.46 |
| DPT-20499 | 12.125 | 11.875 | 3 Feet | $406.58 |
| DPT-20508 | 12.187 | 11.937 | 3 Feet | $408.68 |
| DPT-20517 | 12.250 | 12.000 | 3 Feet | $410.83 |
| DPT-20506 | 12.313 | 12.062 | 3 Feet | $412.93 |
| DPT-20505 | 12.375 | 12.125 | 3 Feet | $415.06 |
| DPT-20504 | 12.437 | 12.187 | 3 Feet | $417.16 |
| DPT-20503 | 12.500 | 12.250 | 3 Feet | $419.28 |
| DPT-20502 | 12.562 | 12.312 | 3 Feet | $421.38 |
| DPT-20501 | 12.625 | 12.375 | 3 Feet | $423.53 |
| DPT-20526 | 12.687 | 12.437 | 3 Feet | $425.63 |
| DPT-20507 | 12.750 | 12.500 | 3 Feet | $427.75 |
| DPT-20509 | 12.812 | 12.562 | 3 Feet | $429.85 |
| DPT-20535 | 12.875 | 12.625 | 3 Feet | $432.01 |
| DPT-20534 | 12.937 | 12.687 | 3 Feet | $434.11 |
| DPT-20533 | 13.000 | 12.750 | 3 Feet | $436.23 |
| DPT-20532 | 13.062 | 12.813 | 3 Feet | $438.33 |
| DPT-20531 | 13.125 | 12.875 | 3 Feet | $440.46 |
| DPT-20530 | 13.187 | 12.937 | 3 Feet | $442.56 |
| DPT-20529 | 13.250 | 13.000 | 3 Feet | $444.71 |
| DPT-20518 | 13.312 | 13.062 | 3 Feet | $446.81 |
| DPT-20527 | 13.375 | 13.125 | 3 Feet | $448.93 |
| DPT-20536 | 13.437 | 13.187 | 3 Feet | $451.03 |
| DPT-20525 | 13.500 | 13.250 | 3 Feet | $453.16 |
| DPT-20524 | 13.562 | 13.312 | 3 Feet | $455.25 |
| DPT-20500 | 13.625 | 13.375 | 3 Feet | $457.41 |
| DPT-20477 | 13.687 | 13.437 | 3 Feet | $459.51 |
| DPT-20476 | 13.750 | 13.500 | 3 Feet | $461.63 |
| DPT-20475 | 13.812 | 13.562 | 3 Feet | $463.73 |
| DPT-20474 | 13.875 | 13.625 | 3 Feet | $465.88 |
| DPT-20473 | 13.937 | 13.687 | 3 Feet | $467.98 |
| DPT-20472 | 14.000 | 13.750 | 3 Feet | $470.10 |
| DPT-20461 | 14.062 | 13.812 | 3 Feet | $472.21 |
| DPT-20470 | 14.125 | 13.875 | 3 Feet | $474.33 |
| DPT-20094 | 14.187 | 13.937 | 3 Feet | $476.43 |
| DPT-20093 | 14.250 | 14.000 | 3 Feet | $478.58 |
| DPT-20082 | 14.312 | 14.062 | 3 Feet | $480.68 |
| DPT-20091 | 14.375 | 14.125 | 3 Feet | $482.81 |
| DPT-20099 | 14.437 | 14.187 | 3 Feet | $484.91 |
| DPT-20089 | 14.500 | 14.250 | 3 Feet | $487.03 |
| DPT-20088 | 14.562 | 14.312 | 3 Feet | $489.16 |
| DPT-20087 | 14.625 | 14.375 | 3 Feet | $491.28 |
| DPT-20086 | 14.687 | 14.437 | 3 Feet | $493.38 |
| DPT-20085 | 14.750 | 14.500 | 3 Feet | $495.50 |
| DPT-20084 | 14.812 | 14.562 | 3 Feet | $497.60 |
| DPT-20108 | 14.875 | 14.625 | 3 Feet | $499.76 |
| DPT-20090 | 14.937 | 14.687 | 3 Feet | $501.86 |
| DPT-20092 | 15.000 | 14.750 | 3 Feet | $503.98 |
| DPT-20117 | 15.062 | 14.812 | 3 Feet | $506.08 |
| DPT-20116 | 15.125 | 14.875 | 3 Feet | $508.21 |
| DPT-20115 | 15.187 | 14.937 | 3 Feet | $510.31 |
| DPT-20114 | 15.250 | 15.000 | 3 Feet | $512.46 |
| DPT-20113 | 15.312 | 15.062 | 3 Feet | $514.56 |
| DPT-20112 | 15.375 | 15.125 | 3 Feet | $516.68 |
| DPT-20111 | 15.437 | 15.187 | 3 Feet | $518.78 |
| DPT-20100 | 15.500 | 15.250 | 3 Feet | $520.93 |
| DPT-20109 | 15.562 | 15.312 | 3 Feet | $523.03 |
| DPT-20118 | 15.625 | 15.375 | 3 Feet | $525.16 |
| DPT-20107 | 15.687 | 15.437 | 3 Feet | $527.26 |
| DPT-20106 | 15.750 | 15.500 | 3 Feet | $529.38 |
| DPT-20105 | 15.812 | 15.562 | 3 Feet | $531.48 |
| DPT-20104 | 15.875 | 15.625 | 3 Feet | $533.63 |
| DPT-20103 | 15.937 | 15.687 | 3 Feet | $535.73 |
| DPT-20102 | 16.000 | 15.750 | 3 Feet | $537.86 |
| DPT-20174 | 16.062 | 15.812 | 3 Feet | $539.96 |
| DPT-20098Q | 16.125 | 15.875 | 3 Feet | $542.08 |
| DPT-20148 | 16.187 | 15.937 | 3 Feet | $544.18 |
| DPT-20212 | 16.250 | 16.000 | 3 Feet | $546.33 |
| DPT-20211 | 16.312 | 16.062 | 3 Feet | $548.43 |
| DPT-20210 | 16.375 | 16.125 | 3 Feet | $550.56 |
| DPT-20209 | 16.437 | 16.187 | 3 Feet | $552.66 |
| DPT-20208 | 16.500 | 16.250 | 3 Feet | $554.81 |
| DPT-20207 | 16.562 | 16.312 | 3 Feet | $556.91 |
| DPT-20206 | 16.625 | 16.375 | 3 Feet | $559.03 |
| DPT-20195 | 16.687 | 16.437 | 3 Feet | $561.13 |
| DPT-20204 | 16.750 | 16.500 | 3 Feet | $563.26 |
| DPT-20213 | 16.812 | 16.562 | 3 Feet | $565.36 |
| DPT-20202 | 16.875 | 16.625 | 3 Feet | $567.51 |
| DPT-20201 | 16.937 | 16.687 | 3 Feet | $569.61 |
| DPT-20479 | 17.000 | 16.750 | 3 Feet | $571.73 |
| DPT-20468 | 17.062 | 16.812 | 3 Feet | $573.83 |
| DPT-20467 | 17.125 | 16.875 | 3 Feet | $575.96 |
| DPT-20466 | 17.187 | 16.937 | 3 Feet | $578.06 |
| DPT-20465 | 17.250 | 17.000 | 3 Feet | $580.21 |
| DPT-20464 | 17.312 | 17.062 | 3 Feet | $582.31 |
| DPT-20463 | 17.375 | 17.125 | 3 Feet | $584.43 |
| DPT-20469 | 17.500 | 17.250 | 3 Feet | $588.68 |
| DPT-20471 | 17.562 | 17.312 | 3 Feet | $590.78 |
| DPT-20497 | 17.625 | 17.375 | 3 Feet | $592.91 |
| DPT-20496 | 17.687 | 17.437 | 3 Feet | $595.01 |
| DPT-20495 | 17.750 | 17.500 | 3 Feet | $597.13 |
| DPT-20493 | 17.875 | 17.625 | 3 Feet | $601.38 |
| DPT-20492 | 17.937 | 17.687 | 3 Feet | $603.48 |
| DPT-20491 | 18.000 | 17.750 | 3 Feet | $605.61 |
| DPT-20480 | 18.062 | 17.812 | 3 Feet | $607.71 |
| DPT-20489 | 18.125 | 17.875 | 3 Feet | $609.83 |
| DPT-20498 | 18.187 | 17.937 | 3 Feet | $611.93 |
| DPT-20487 | 18.250 | 18.000 | 3 Feet | $614.08 |
| DPT-20486 | 18.312 | 18.062 | 3 Feet | $616.18 |
| DPT-20485 | 18.375 | 18.125 | 3 Feet | $618.31 |
| DPT-20484 | 18.437 | 18.187 | 3 Feet | $620.41 |
| DPT-20483 | 18.500 | 18.250 | 3 Feet | $622.56 |
| DPT-20482 | 18.562 | 18.312 | 3 Feet | $624.66 |
| DPT-20481 | 18.625 | 18.375 | 3 Feet | $626.78 |
| DPT-20200 | 18.687 | 18.437 | 3 Feet | $628.88 |
| DPT-20199 | 18.750 | 18.500 | 3 Feet | $631.01 |
| DPT-20198 | 18.812 | 18.563 | 3 Feet | $633.11 |
| DPT-20197 | 18.875 | 18.625 | 3 Feet | $635.26 |
| DPT-20203 | 19.000 | 18.750 | 3 Feet | $639.48 |
| DPT-20205 | 19.062 | 18.812 | 3 Feet | $641.58 |
| DPT-20231 | 19.125 | 18.875 | 3 Feet | $643.71 |
| DPT-20230 | 19.187 | 18.937 | 3 Feet | $645.81 |
| DPT-20229 | 19.250 | 19.000 | 3 Feet | $647.96 |
| DPT-20228 | 19.312 | 19.062 | 3 Feet | $650.06 |
| DPT-20227 | 19.375 | 19.125 | 3 Feet | $652.18 |
| DPT-20226 | 19.500 | 19.250 | 3 Feet | $656.43 |
| DPT-20225 | 19.562 | 19.312 | 3 Feet | $658.53 |
| DPT-20223 | 19.687 | 19.437 | 3 Feet | $662.76 |
| DPT-20232 | 19.750 | 19.500 | 3 Feet | $664.88 |
| DPT-20221 | 19.812 | 19.562 | 3 Feet | $666.98 |
| DPT-16446 | 19.875 | 19.625 | 3 Feet | $669.13 |
| DPT-20222 | 18.937 | 19.687 | 3 Feet | $637.36 |
| DPT-16963 | 19.937 | 19.687 | 3 Feet | $671.23 |
| DPT-16962 | 20.000 | 19.750 | 3 | $673.36 |
| nominal inches, | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
