L and LE Linen Fabric Reinforced Phenolic Tubing 1/16" Wall
Linen L and LE Linen Fabric
Reinforced Phenolic Tubing - natural (light tan to
brown) Technical Data Sheet
This grade is composed of a continuous Linen woven cloth
impregnated with a phenolic resin binder. This grade contains a fine weave linen
and, like the canvas phenolic, is known for it's mechanical properties. The
finer weave allows for machining more intricate details than Canvas, like gear
teeth. This grade is not recommended for primary insulation.
NEMA grades L and LE Linen Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a fine weave linen and, like the canvas phenolic, is known for its mechanical properties. The finer weave allows for machining more intricate details than canvas grade, such as gear teeth, etc. These grades are not recommended for primary electrical insulation, but grade LE exhibits superior moisture resistance to grades L, C and CE, and thus is an adequate insulator for a fair number of applications.
NEMA L certs to MIL-I-24768/15- FBI, IEC 60893-3 Type 4 PF CC 305
NEMA LE certs to MIL-I-24768/13 FBE, IEC 60893-3 Type 4 PF CC 305
Click Here For Land LE Rods or Sheets
| L and LE Tubing Wall Thickness | ||
| 1.00" | ||
Can be made in 3 foot lengths 30-36" or 4 Foot Lengths 42-48"

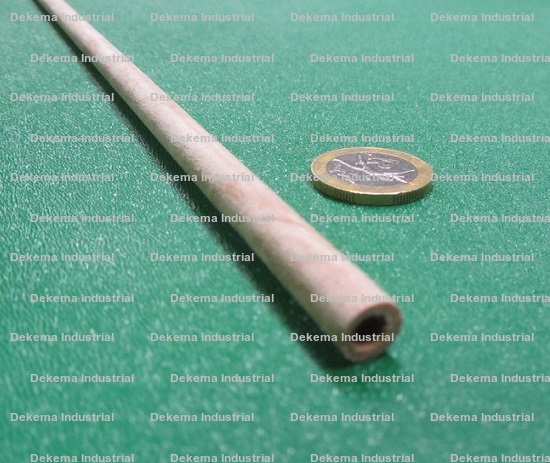

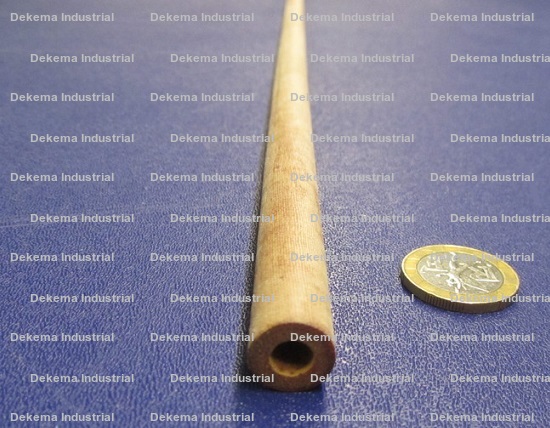

| Land LE Linen Fabric Reinforced Phenolic Tubing .062" Wall Thickness Lead Times May Apply for Non Stocked Items |
||||
| Part # | OD (in.) | ID (in.) | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|
| DPT-14493 | .250 | .125 | 24 Feet | $67.30 |
| DPT-2180 | .313 | .187 | 51 Feet | $28.83 |
| DPT-2184 | .375 | .250 | 48 Feet | $30.71 |
| DPT-2188 | .438 | .312 | 45 Feet | $32.61 |

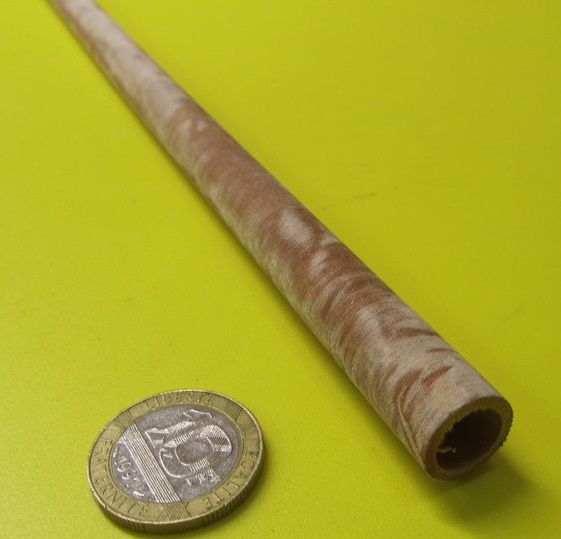

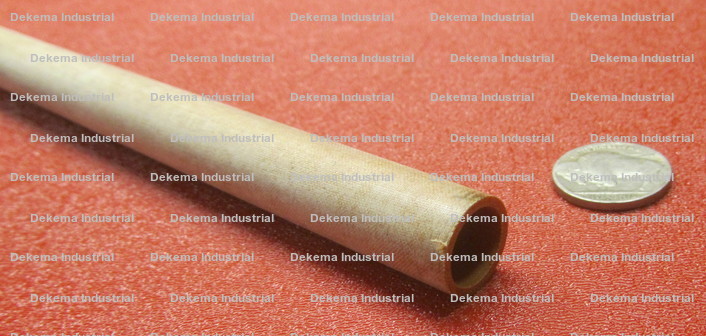

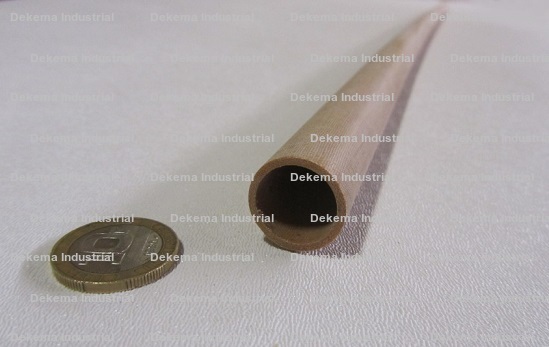

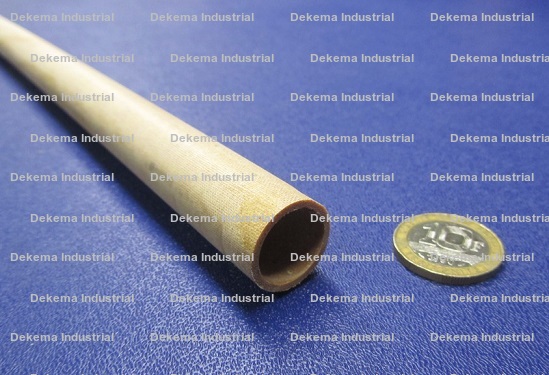

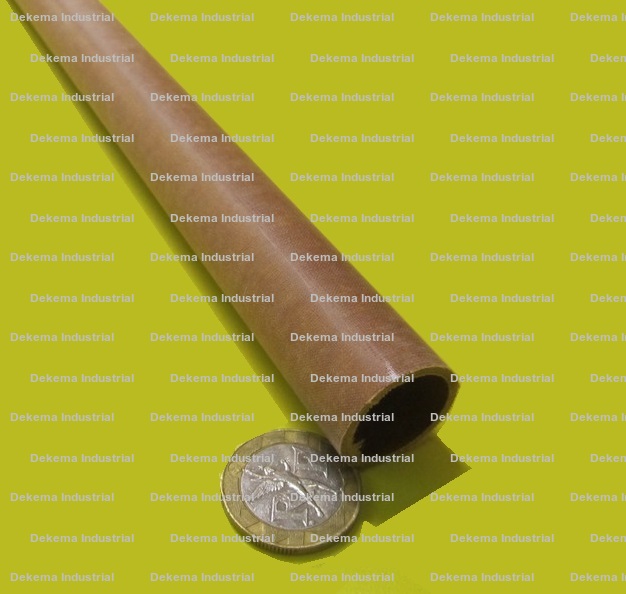

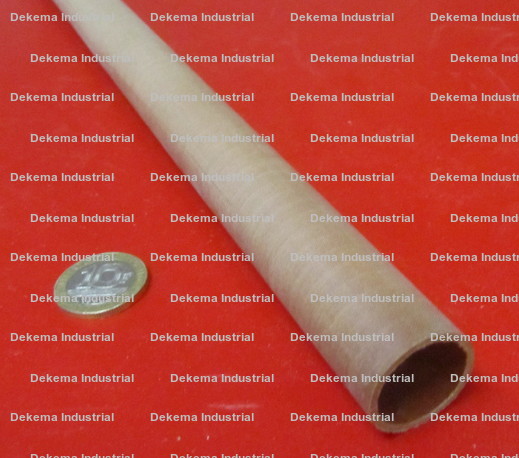

| DPT-2192 | .500 | .375 | 75 Feet | $19.15 |
| DPT-2196 | .563 | .437 | 72 Feet | $20.21 |
| DPT-2200 | .625 | .500 | 66 Feet | $21.26 |
| DPT-2206 | .688 | .562 | 60 Feet | $22.31 |
| DPT-2211 | .750 | .625 | 63 Feet | $23.83 |
| DPT-2217 | .813 | .687 | 60 Feet | $24.90 |
| DPT-2220 | .875 | .750 | 57 Feet | $25.98 |

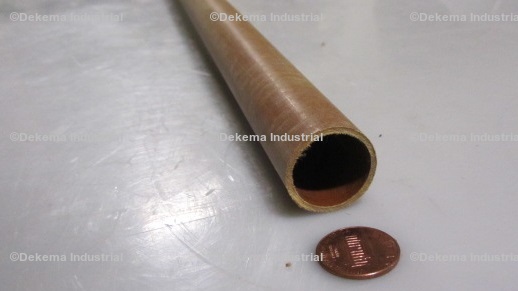

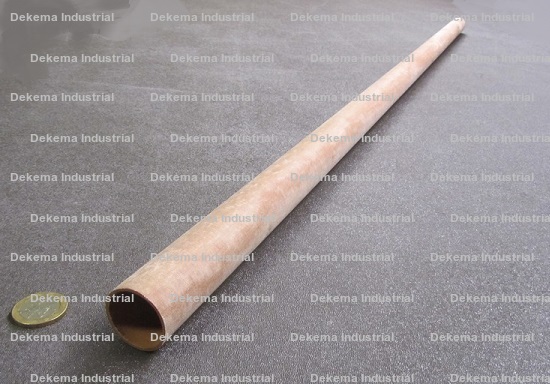

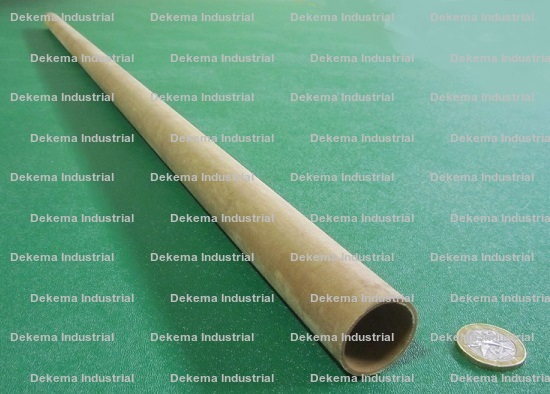

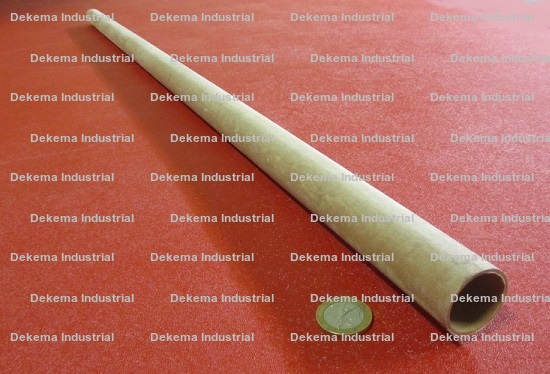

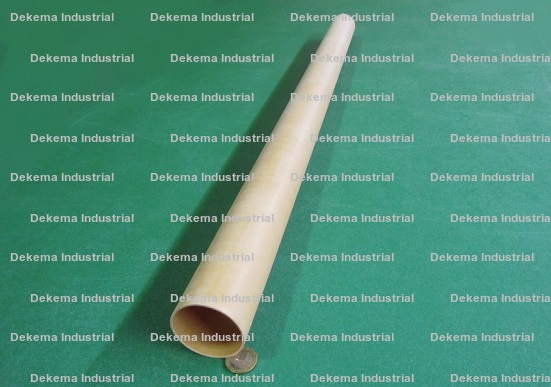

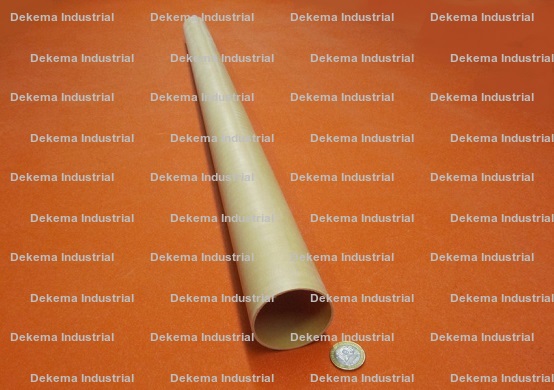

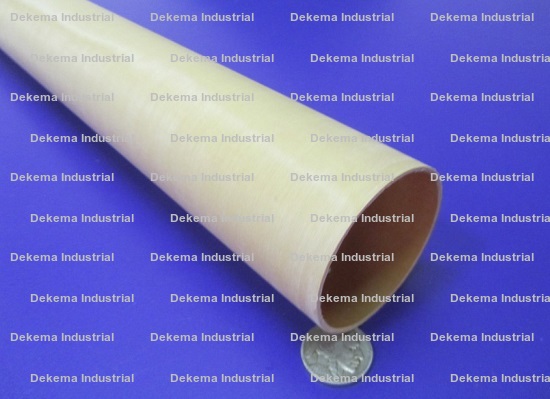

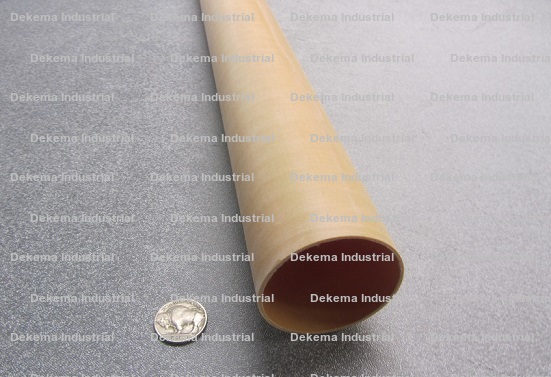

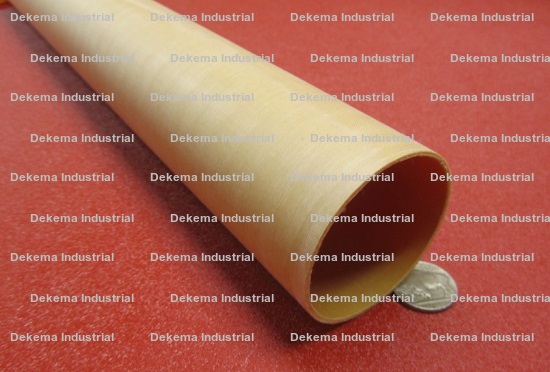

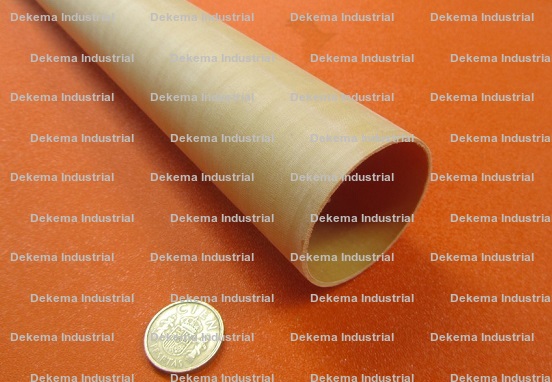

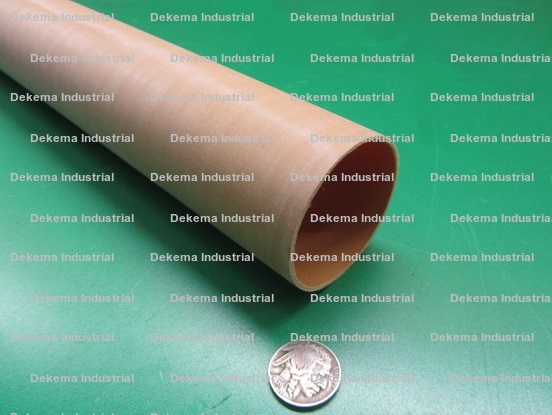

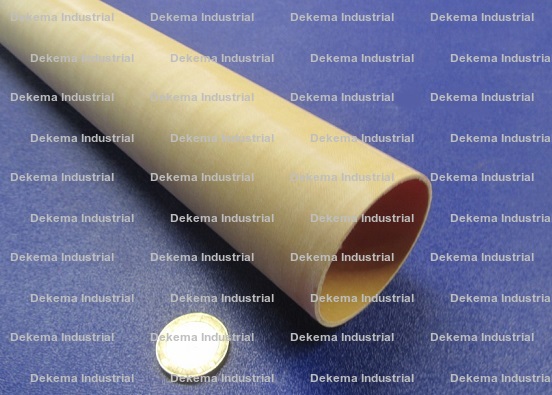

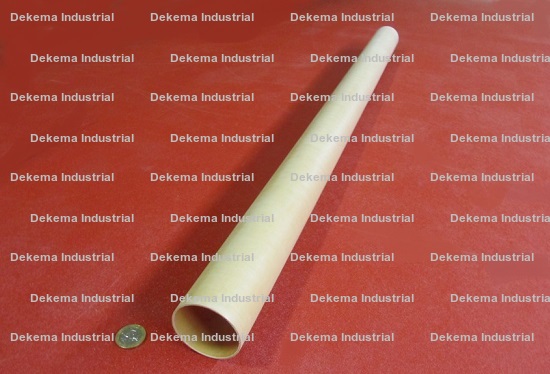

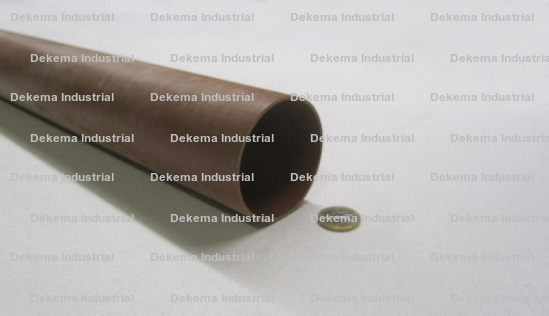

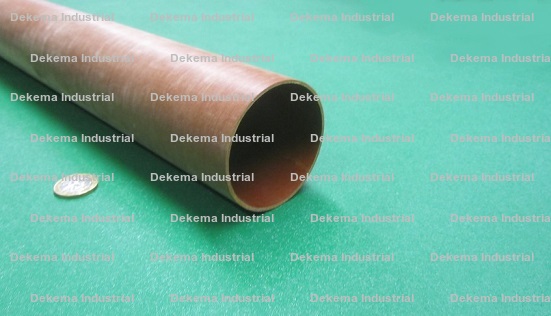

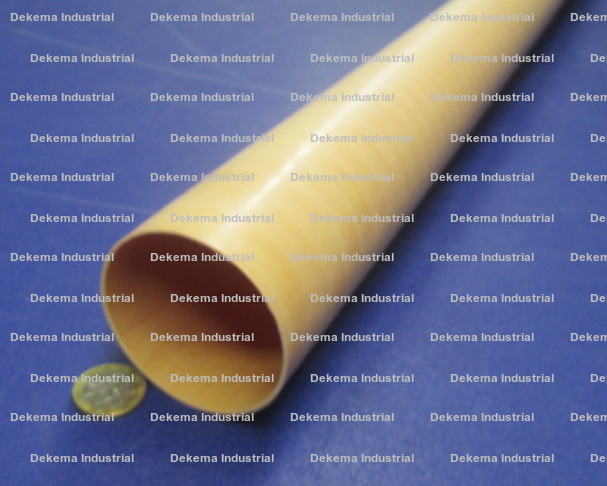

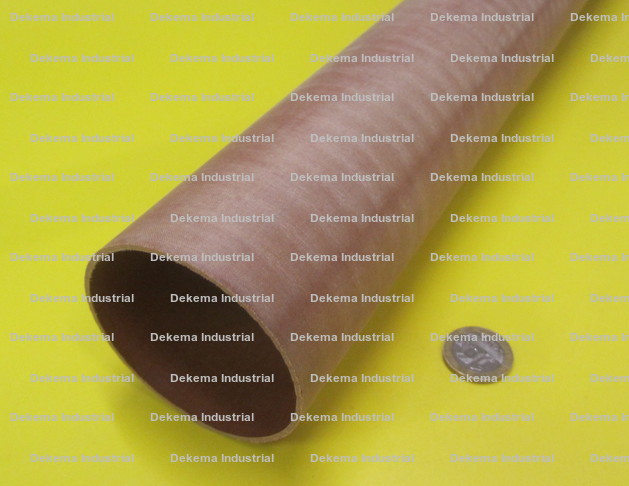

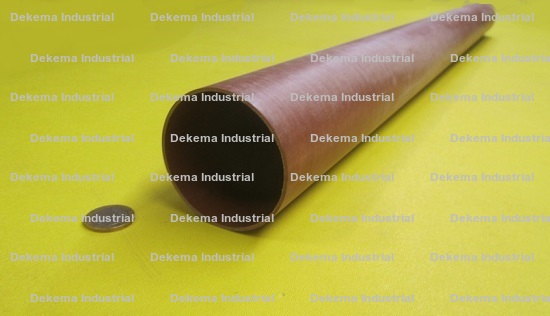

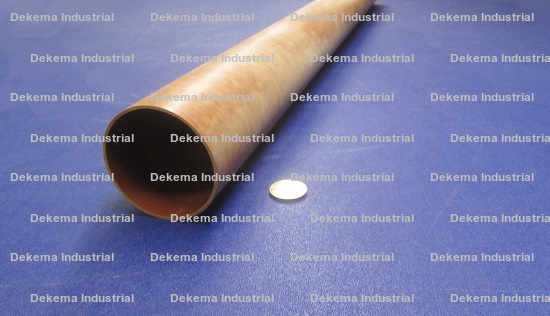

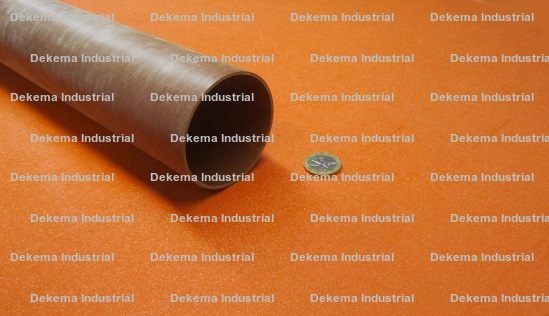

| DPT-14443 | .938 | .812 | 54 Feet | $27.05 |
| DPT-2225 | 1.00 | .875 | 54 Feet | $28.11 |
| DPT-14444 | 1.062 | .937 | 51 Feet | $29.18 |
| DPT-2231 | 1.125 | 1.00 | 48 Feet | $30.26 |
| DPT-14445 | 1.187 | 1.062 | 48 Feet | $31.31 |
| DPT-14446 | 1.250 | 1.125 | 45 Feet | $32.38 |
| DPT-14447 | 1.312 | 1.187 | 45 Feet | $33.43 |
| DPT-2236 | 1.375 | 1.250 | 42 Feet | $34.53 |
| DPT-14448 | 1.437 | 1.312 | 42 Feet | $35.58 |
| DPT-4767 | 1.500 | 1.375 | 42 Feet | $36.66 |
| DPT-14478 | 1.562 | 1.437 | 39 Feet | $37.71 |
| DPT-2241 | 1.625 | 1.500 | 39 Feet | $38.78 |
| DPT-14510 | 1.688 | 1.562 | 39 Feet | $39.86 |
| DPT-14500 | 1.750 | 1.625 | 36 Feet | $40.93 |
| DPT-14490 | 1.812 | 1.687 | 36 Feet | $41.98 |
| DPT-2246 | 1.875 | 1.750 | 36 Feet | $43.06 |
| DPT-14502 | 1.937 | 1.812 | 33 Feet | $44.13 |
| DPT-14503 | 2.000 | 1.875 | 33 Feet | $45.21 |
| DPT-14504 | 2.062 | 1.937 | 33 Feet | $46.25 |
| DPT-2251 | 2.125 | 2.000 | 33 Feet | $47.33 |
| DPT-14505 | 2.188 | 2.062 | 30 Feet | $48.38 |
| DPT-14506 | 2.250 | 2.125 | 30 Feet | $49.46 |
| DPT-14507 | 2.312 | 2.187 | 30 Feet | $50.53 |
| DPT-2256 | 2.375 | 2.250 | 30 Feet | $51.61 |
| DPT-14508 | 2.437 | 2.312 | 30 Feet | $52.66 |
| DPT-14480 | 2.500 | 2.375 | 27 Feet | $53.73 |
| DPT-14501 | 2.562 | 2.437 | 27 Feet | $54.81 |
| DPT-2261 | 2.625 | 2.500 | 27 Feet | $55.88 |
| DPT-14499 | 2.688 | 2.562 | 27 Feet | $56.93 |
| DPT-14471 | 2.750 | 2.625 | 27 Feet | $58.01 |
| DPT-14472 | 2.812 | 2.687 | 27 Feet | $59.06 |

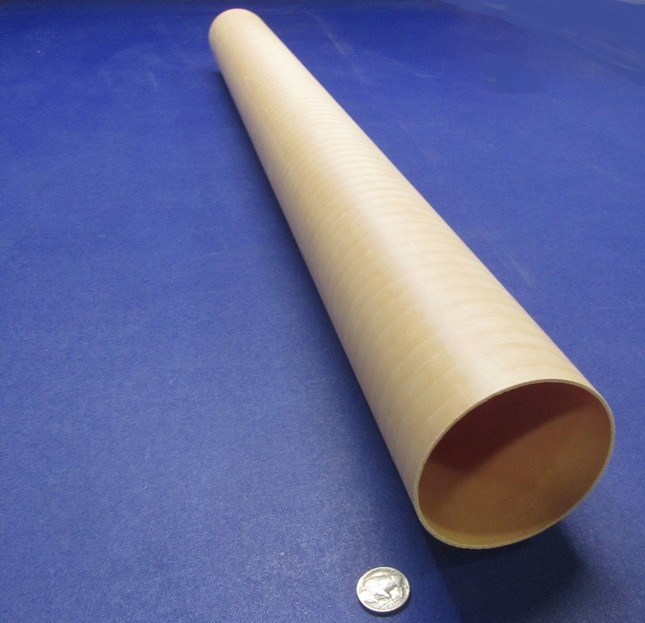

| DPT-2266 | 2.875 | 2.750 | 24 Feet | $60.13 |
| DPT-14473 | 2.937 | 2.812 | 24 Feet | $61.21 |
| DPT-14474 | 3.000 | 2.875 | 24 Feet | $62.28 |

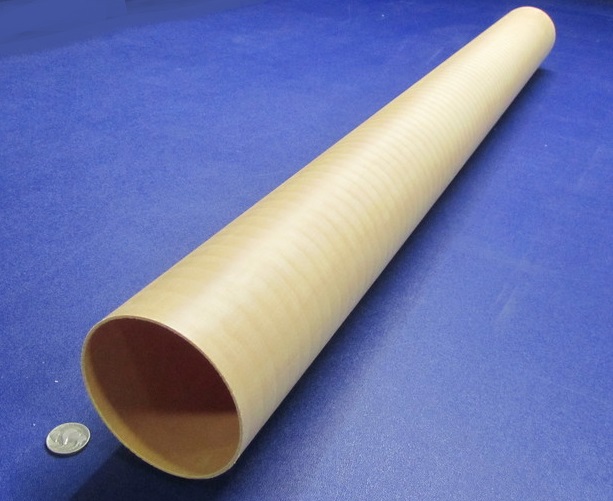

| DPT-14475 | 3.062 | 2.937 | 24 Feet | $63.33 |

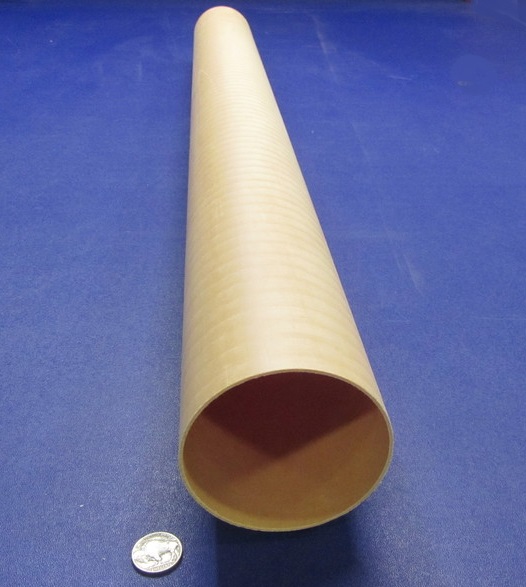

| DPT-2271 | 3.125 | 3.000 | 24 Feet | $64.41 |

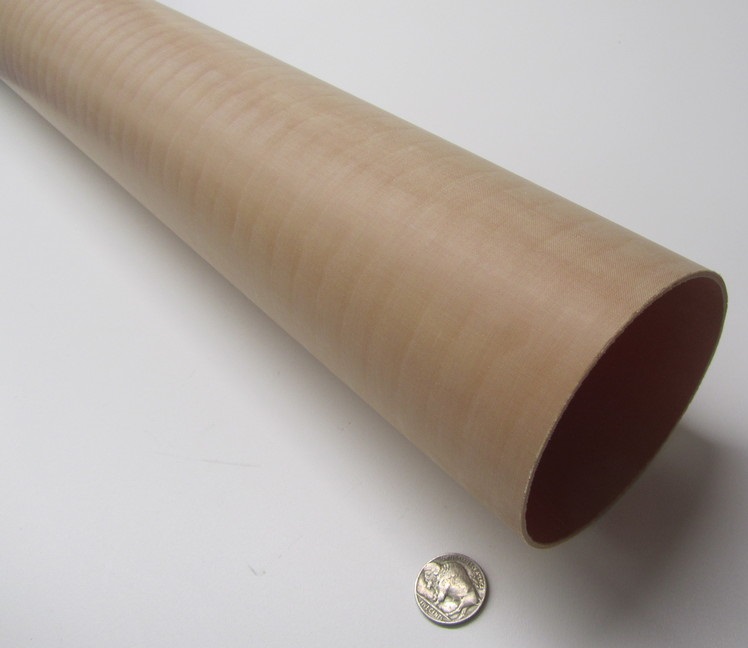

| DPT-14476 | 3.188 | 3.062 | 24 Feet | $65.48 |

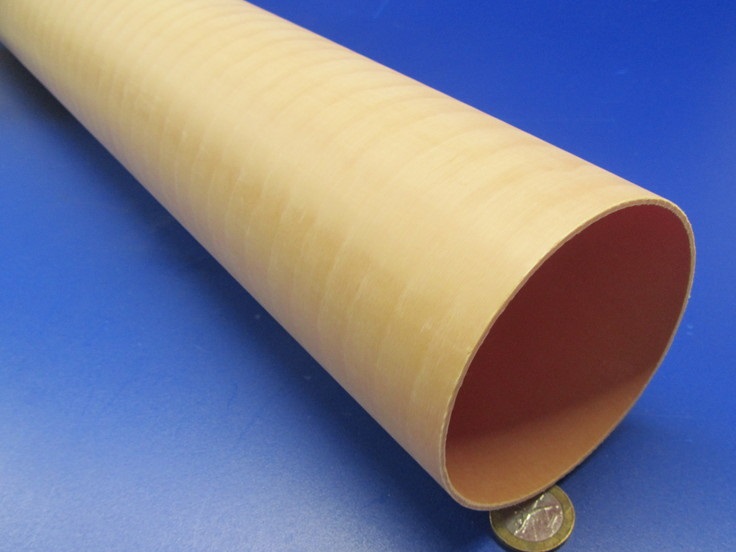

| DPT-14477 | 3.250 | 3.125 | 24 Feet | $66.55 |

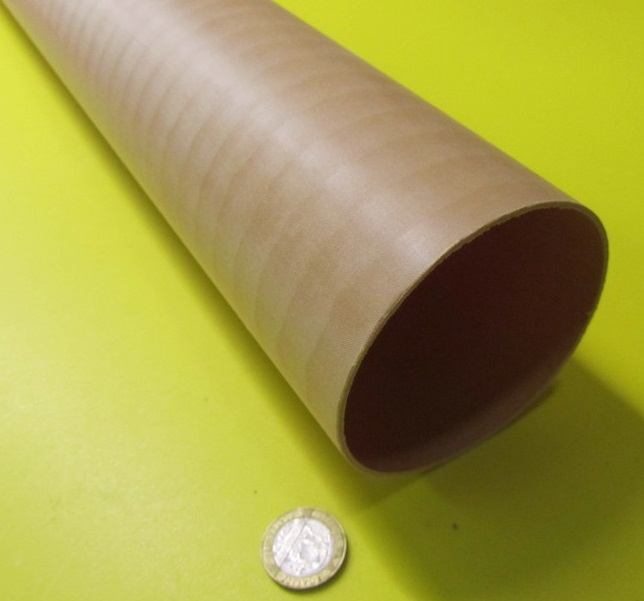

| DPT-2276 | 3.375 | 3.250 | 21 Feet | $68.68 |

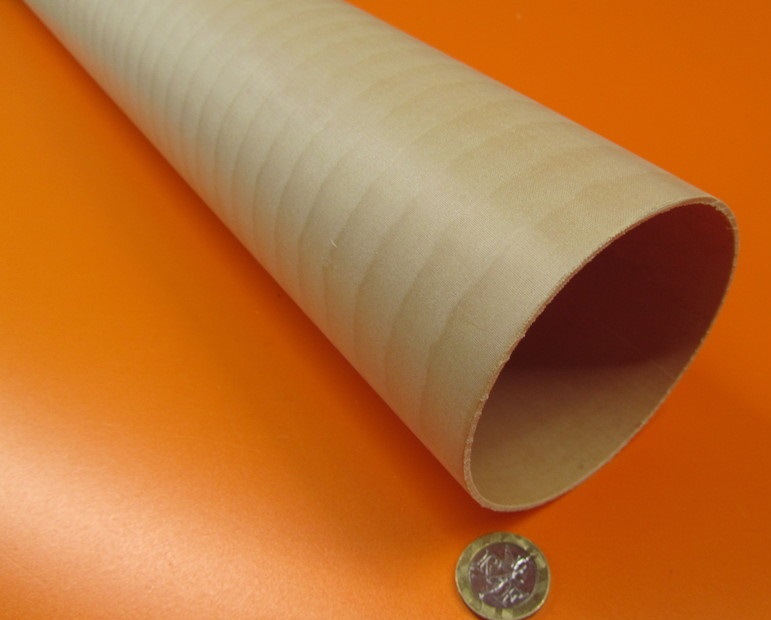

| DPT-14489 | 3.437 | 3.312 | 21 Feet | $69.73 |

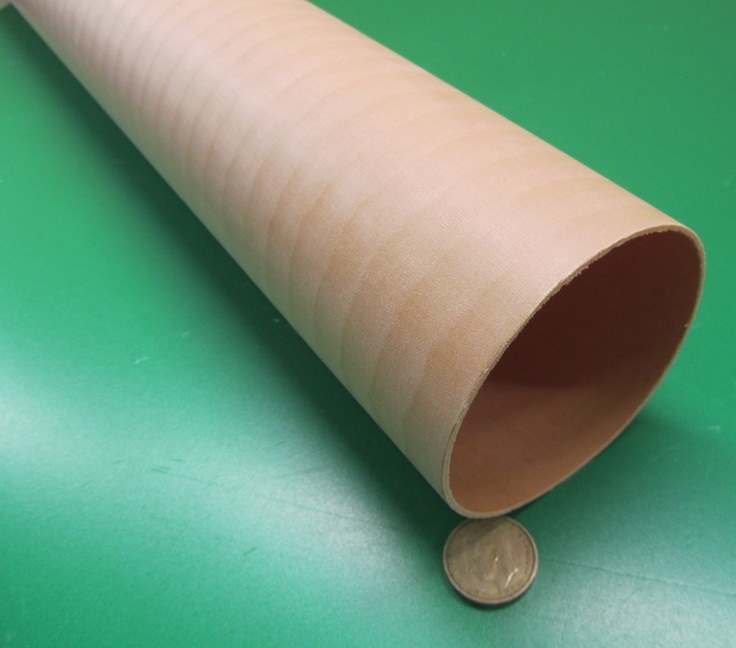

| DPT-14479 | 3.500 | 3.375 | 21 Feet | $70.83 |

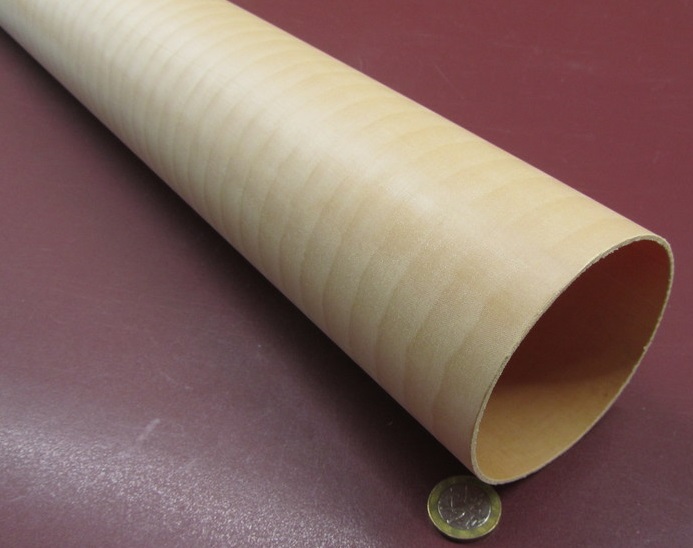

| DPT-14470 | 3.562 | 3.437 | 21 Feet | $71.88 |

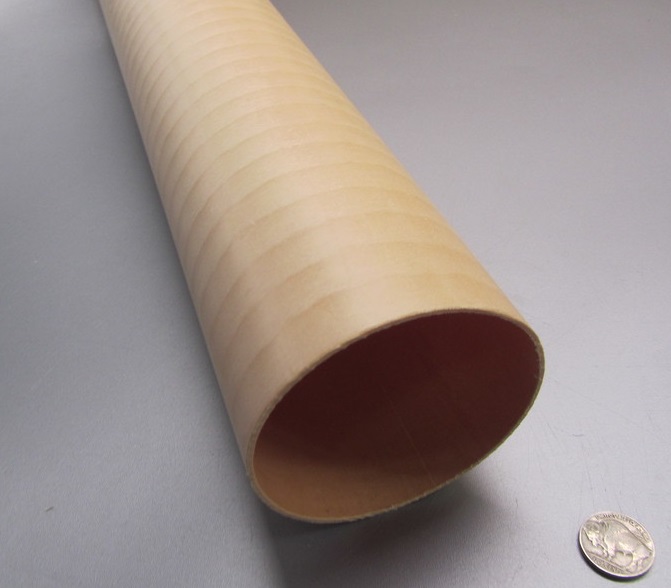

| DPT-2281 | 3.625 | 3.500 | 21 Feet | $72.96 |

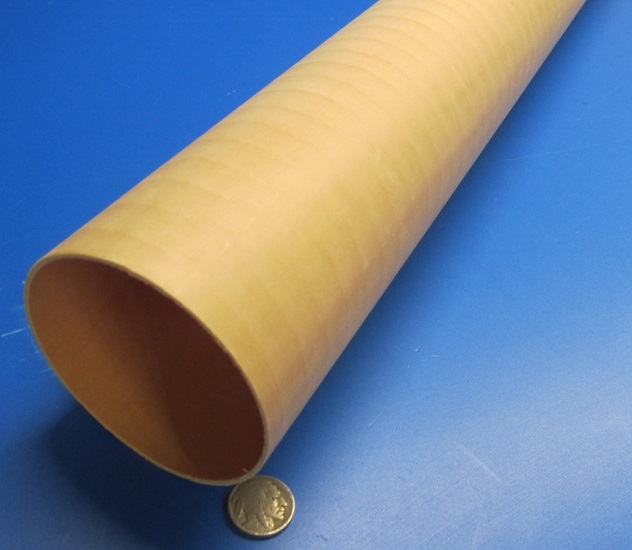

| DPT-14481 | 3.687 | 3.562 | 21 Feet | $74.01 |

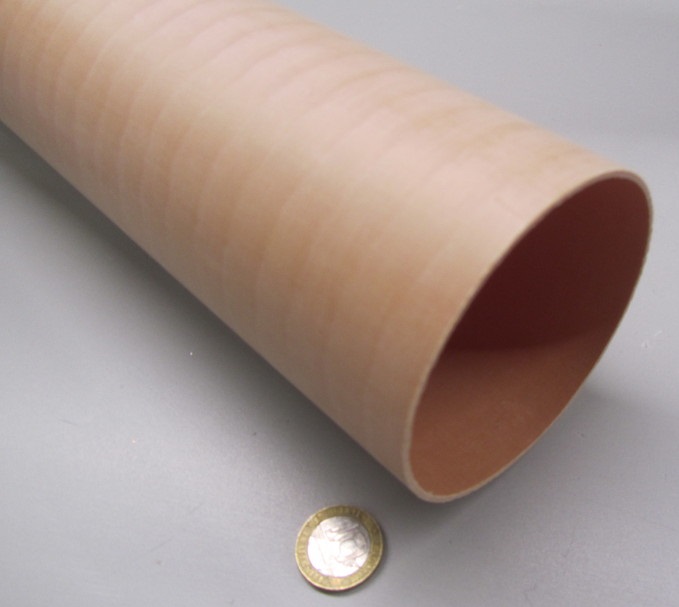

| DPT-14482 | 3.750 | 3.625 | 21 Feet | $75.08 |

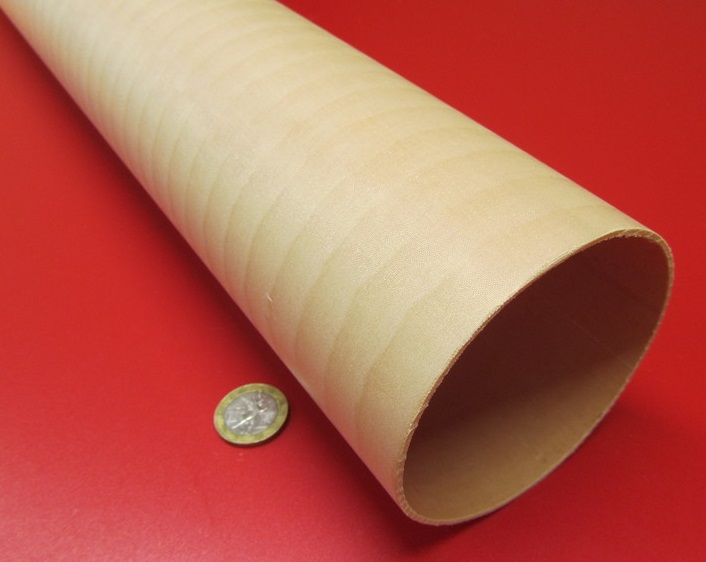

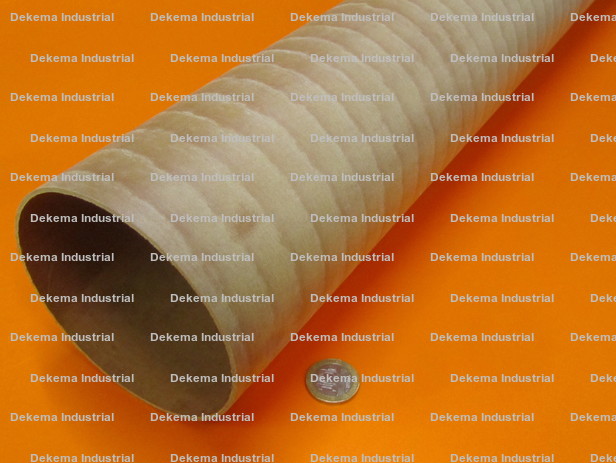

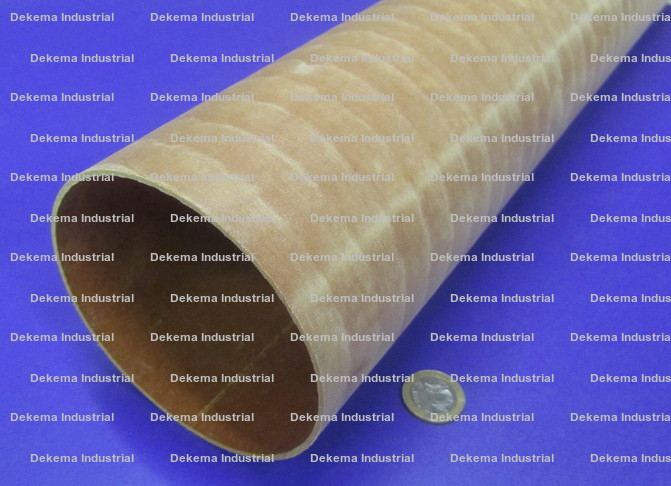

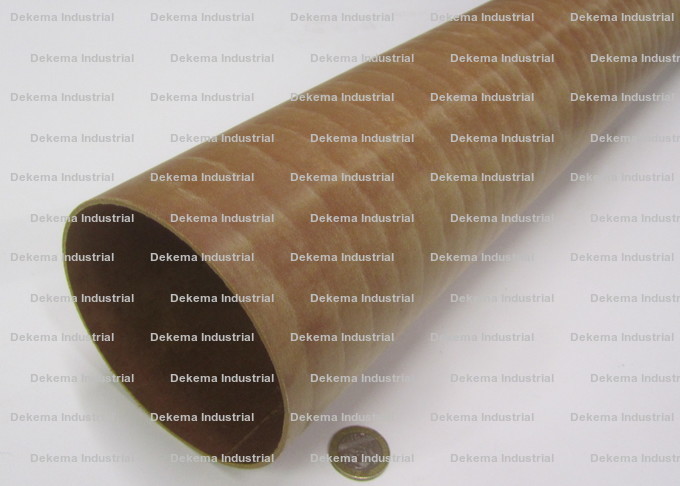

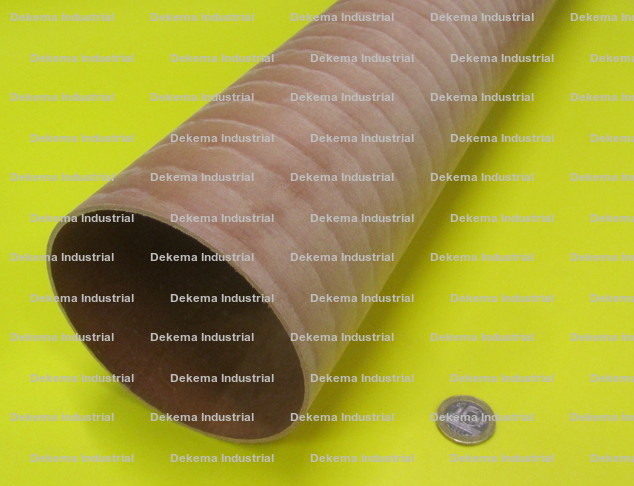

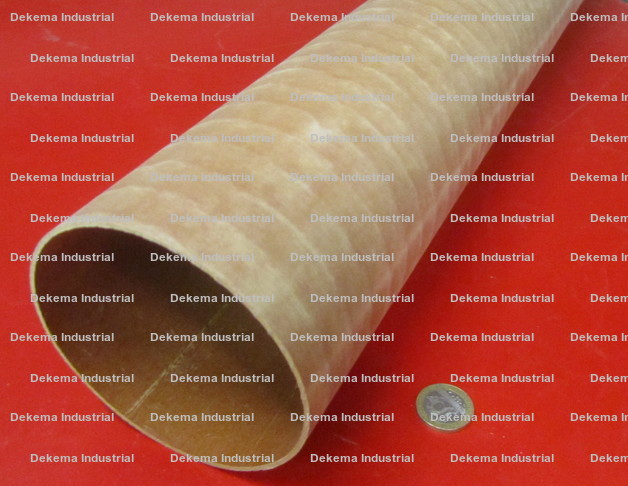

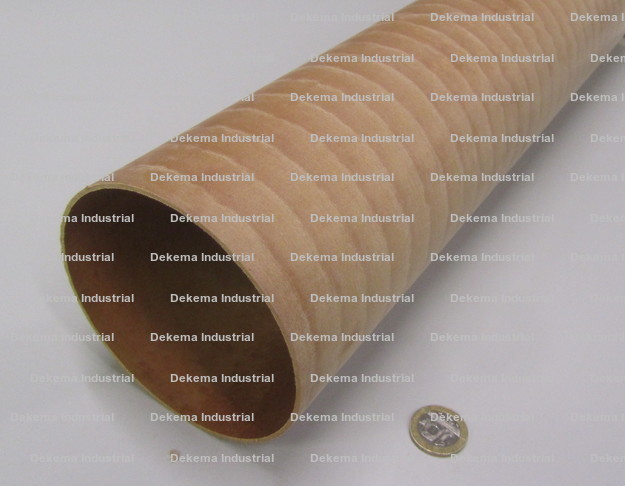

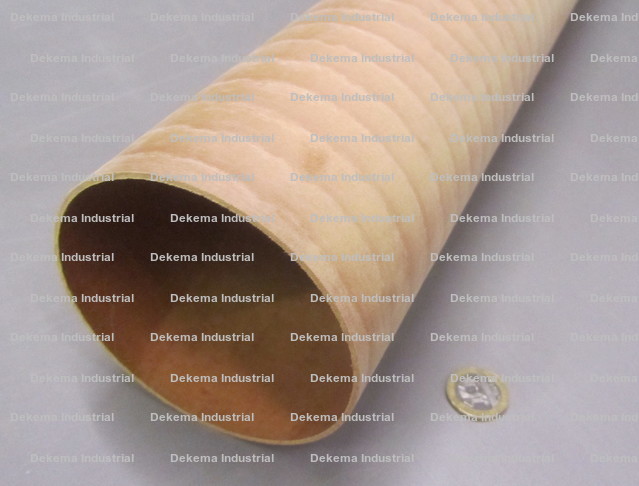

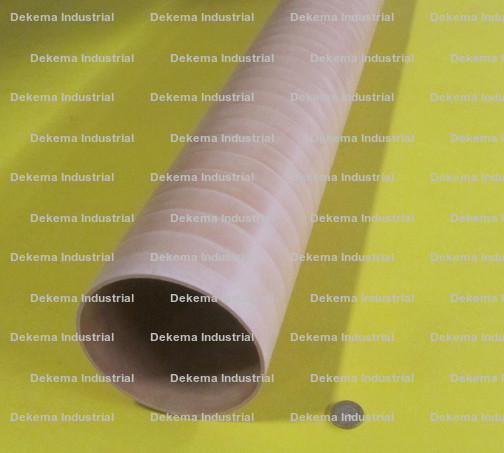

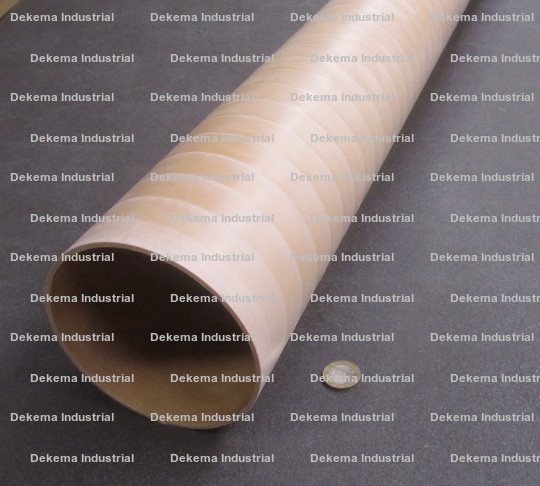

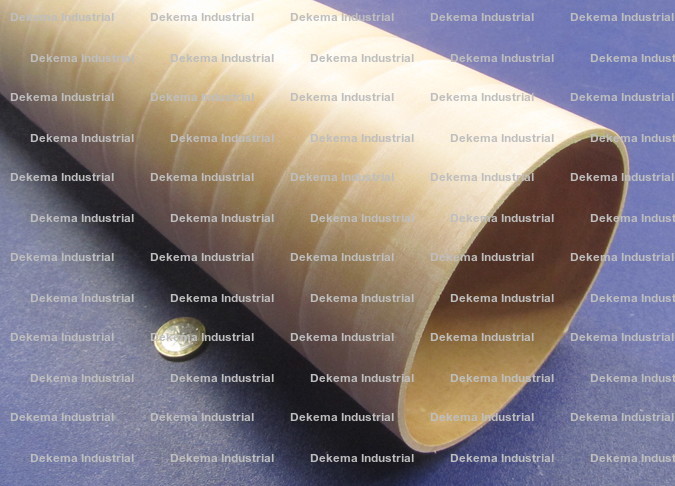

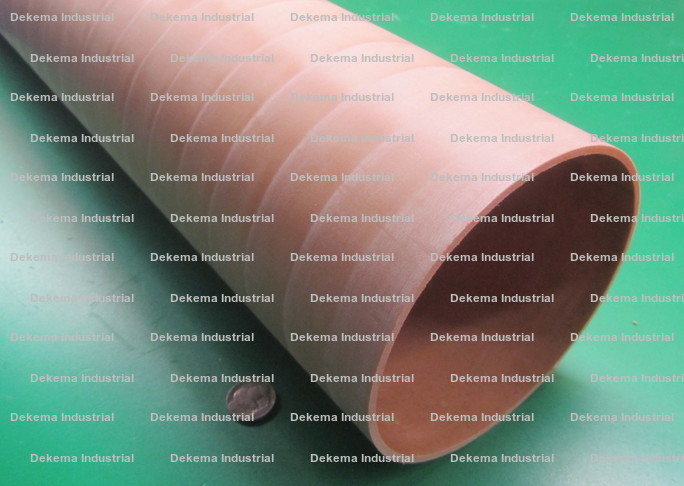

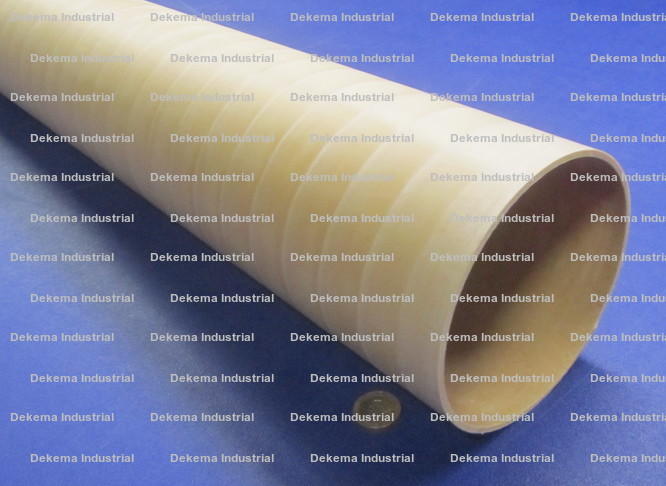

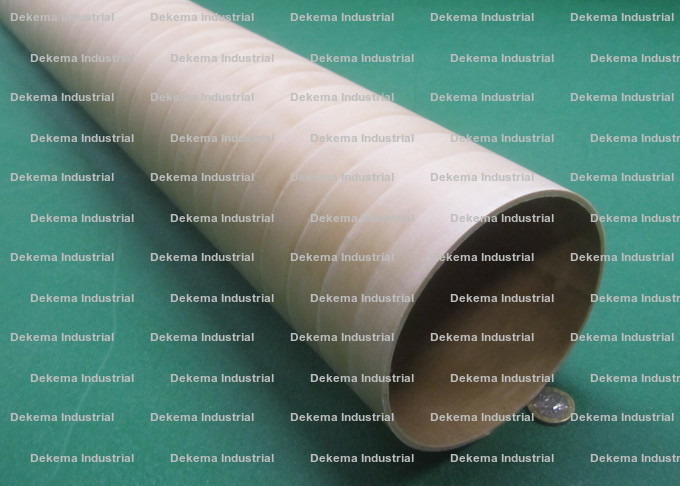

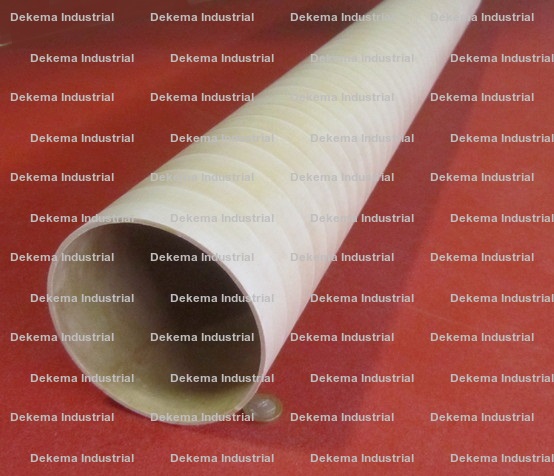

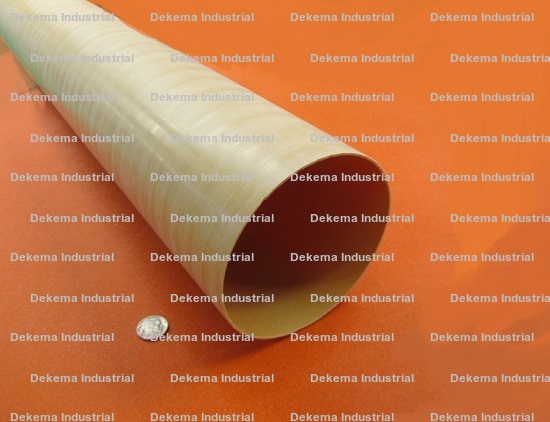

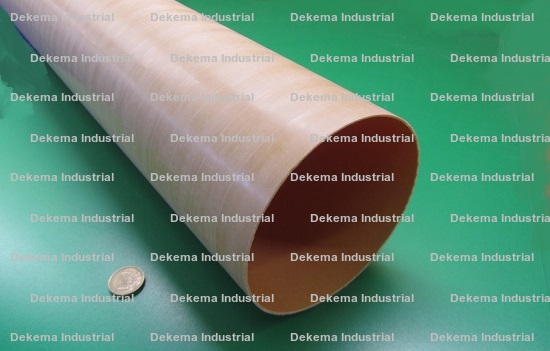

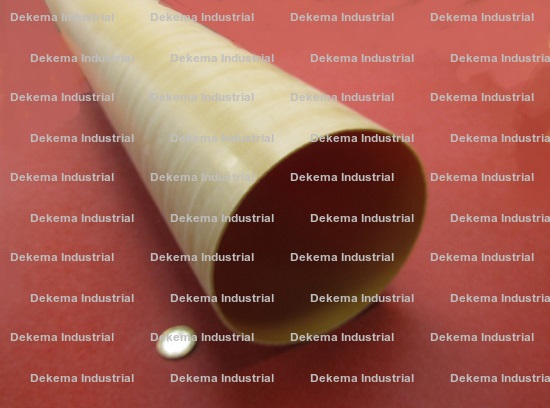

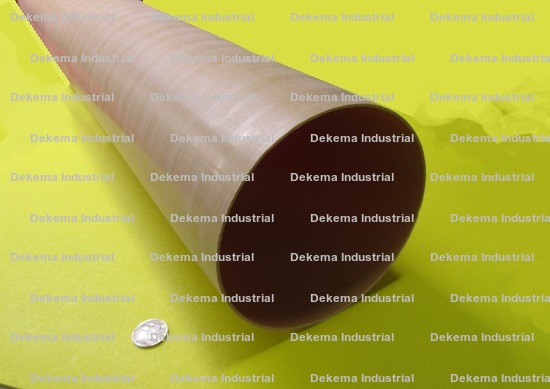

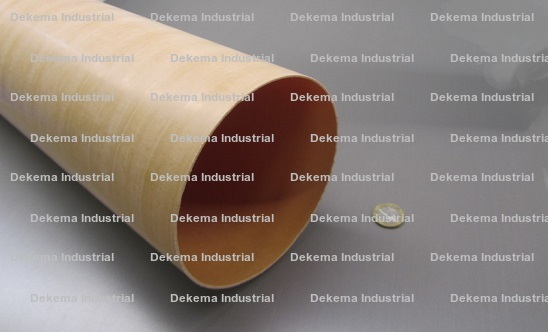

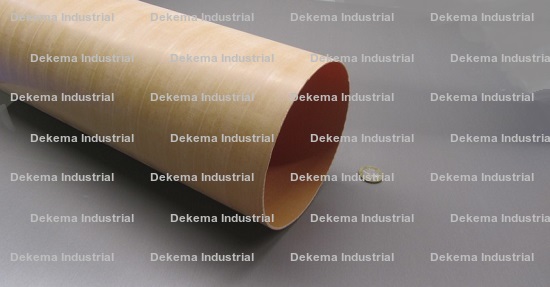

| DPT-14483 | 3.812 | 3.687 | 21 Feet | $76.16 |
| DPT-2286 | 3.875 | 3.750 | 21 Feet | $77.23 |
| DPT-14484 | 3.937 | 3.812 | 21 Feet | $78.28 |
| DPT-14485 | 4.000 | 3.875 | 21 Feet | $79.36 |
| DPT-14486 | 4.062 | 3.937 | 18 Feet | $80.43 |
| DPT-2291 | 4.125 | 4.000 | 18 Feet | $81.51 |
| DPT-14487 | 4.187 | 4.062 | 18 Feet | $82.56 |
| DPT-14488 | 4.250 | 4.125 | 18 Feet | $83.63 |
| DPT-14410 | 4.312 | 4.187 | 18 Feet | $84.68 |
| DPT-14350 | 4.375 | 4.250 | 18 Feet | $85.76 |
| DPT-14431 | 4.437 | 4.312 | 18 Feet | $86.83 |
| DPT-14371 | 4.500 | 4.375 | 18 Feet | $87.91 |
| DPT-14372 | 4.562 | 4.438 | 18 Feet | $88.96 |
| DPT-2296 | 4.625 | 4.500 | 18 Feet | $90.03 |
| DPT-14373 | 4.687 | 4.562 | 18 Feet | $91.10 |
| DPT-14374 | 4.750 | 4.625 | 18 Feet | $92.18 |
| DPT-14375 | 4.812 | 4.687 | 18 Feet | $93.23 |
| DPT-14376 | 4.875 | 4.750 | 18 Feet | $94.30 |
| DPT-14388 | 4.937 | 4.812 | 18 Feet | $95.36 |
| DPT-14378 | 5.000 | 4.875 | 15 Feet | $106.98 |
| DPT-14369 | 5.062 | 4.937 | 15 Feet | $108.15 |
| DPT-2301 | 5.125 | 5.000 | 15 Feet | $109.36 |
| DPT-14380 | 5.187 | 5.062 | 15 Feet | $110.53 |
| DPT-14381 | 5.250 | 5.125 | 15 Feet | $111.71 |
| DPT-14382 | 5.312 | 5.187 | 15 Feet | $112.88 |
| DPT-14383 | 5.375 | 5.250 | 15 Feet | $114.08 |
| DPT-14384 | 5.437 | 5.313 | 15 Feet | $115.26 |
| DPT-14385 | 5.500 | 5.375 | 15 Feet | $116.46 |
| DPT-14386 | 5.562 | 5.437 | 15 Feet | $117.63 |
| DPT-2307 | 5.625 | 5.500 | 15 Feet | $118.83 |
| DPT-14387 | 5.688 | 5.562 | 12 Feet | $120.01 |
| DPT-14359 | 5.750 | 5.625 | 12 Feet | $121.18 |
| DPT-14357 | 5.812 | 5.687 | 12 Feet | $122.35 |
| DPT-14377 | 5.875 | 5.750 | 12 Feet | $123.55 |
| DPT-14351 | 5.938 | 5.812 | 12 Feet | $124.73 |
| DPT-14352 | 6.000 | 5.875 | 12 Feet | $125.93 |
| DPT-14353 | 6.063 | 5.937 | 12 Feet | $127.11 |
| DPT-2313 | 6.125 | 6.000 | 12 Feet | $128.31 |
| DPT-14354 | 6.187 | 6.062 | 15 Feet | $104.85 |
| DPT-14355 | 6.250 | 6.125 | 15 Feet | $105.96 |
| DPT-14356 | 6.312 | 6.187 | 15 Feet | $107.01 |
| DPT-14368 | 6.375 | 6.250 | 15 Feet | $108.08 |
| DPT-14358 | 6.437 | 6.312 | 15 Feet | $109.16 |
| DPT-14349 | 6.500 | 6.375 | 15 Feet | $110.23 |
| DPT-14360 | 6.562 | 6.437 | 15 Feet | $111.28 |
| DPT-14361 | 6.625 | 6.500 | 15 Feet | $112.35 |
| DPT-14362 | 6.688 | 6.562 | 15 Feet | $113.43 |
| DPT-14363 | 6.750 | 6.625 | 15 Feet | $114.51 |
| DPT-14364 | 6.812 | 6.687 | 15 Feet | $115.55 |
| DPT-14365 | 6.875 | 6.750 | 15 Feet | $116.63 |
| DPT-14366 | 6.938 | 6.812 | 15 Feet | $117.71 |
| DPT-14367 | 7.000 | 6.875 | 15 Feet | $118.78 |
| DPT-14397 | 7.062 | 6.938 | 15 Feet | $119.83 |
| DPT-14428 | 7.125 | 7.000 | 12 Feet | $120.90 |
| DPT-14379 | 7.187 | 7.062 | 12 Feet | $121.98 |
| DPT-14411 | 7.250 | 7.125 | 12 Feet | $123.05 |
| DPT-14412 | 7.312 | 7.187 | 12 Feet | $124.11 |
| DPT-14413 | 7.375 | 7.250 | 12 Feet | $125.18 |
| DPT-14414 | 7.437 | 7.312 | 12 Feet | $126.26 |
| DPT-14415 | 7.500 | 7.375 | 12 Feet | $127.33 |
| DPT-14416 | 7.562 | 7.437 | 12 Feet | $128.38 |
| DPT-14417 | 7.625 | 7.500 | 12 Feet | $129.48 |
| DPT-14429 | 7.688 | 7.562 | 12 Feet | $130.53 |
| DPT-14419 | 7.750 | 7.625 | 12 Feet | $131.61 |
| DPT-14409 | 7.812 | 7.687 | 12 Feet | $132.68 |
| DPT-14421 | 7.875 | 7.750 | 12 Feet | $133.76 |
| DPT-14422 | 7.938 | 7.812 | 12 Feet | $134.81 |
| DPT-14423 | 8.000 | 7.875 | 12 Feet | $135.88 |
| DPT-14424 | 8.062 | 7.937 | 12 Feet | $136.96 |
| DPT-14425 | 8.125 | 8.000 | 12 Feet | $138.03 |
| DPT-14427 | 8.250 | 8.125 | 12 Feet | $140.16 |
| DPT-14399 | 8.312 | 8.187 | 12 Feet | $141.23 |
| DPT-14420 | 8.375 | 8.250 | 12 Feet | $142.31 |
| DPT-14418 | 8.437 | 8.312 | 12 Feet | $143.36 |
| DPT-14390 | 8.500 | 8.375 | 12 Feet | $144.43 |
| DPT-14391 | 8.562 | 8.437 | 12 Feet | $145.51 |
| DPT-14392 | 8.625 | 8.500 | 12 | $146.58 |
| nominal inches, | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
