G10 FR4 Tubes Glass Reinforced Epoxy  .031" (1/32") Wall

(Micarta) (High Pressure Laminates) G10 FR4 Glass Reinforced Epoxy - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

.031" (1/32") Wall Thickness	.062" (1/16")Wall Thickness	.093" (3/32")Wall Thickness	.125" (1/8")Wall Thickness	.187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness	.375" (3/8")Wall Thickness	.500" (1/2")Wall Thickness	.750" (3/4")WallThickness	1.00" Wall Thickness (Max. Possible)

Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts  42-48"

G10FR4 Tube  .031" Wall Thickness **Minimum's Apply, Non Stocked Item Tolerances (Note: Pricing for Over 4.00" Diameter Wound Only)
Part #	Outside Diameter (in.)	Inside Diameter (in.)	Price Per Foot	Minimum Purchase

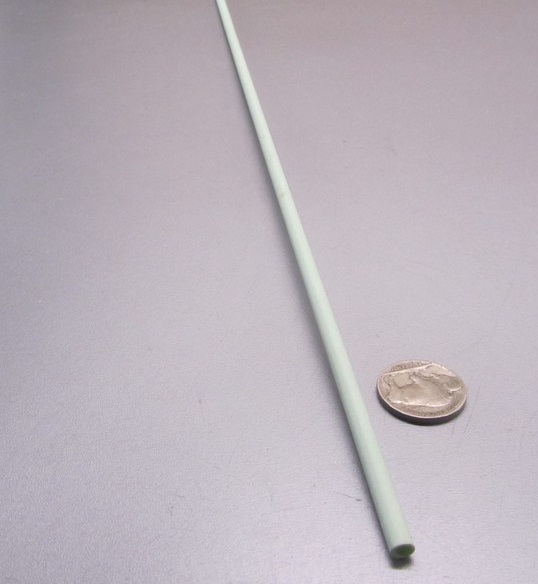

DPT-1331	0.188	0.125	$23.23	21 Feet
DPT-1333	0.250	0.188	$24.21	24 Feet

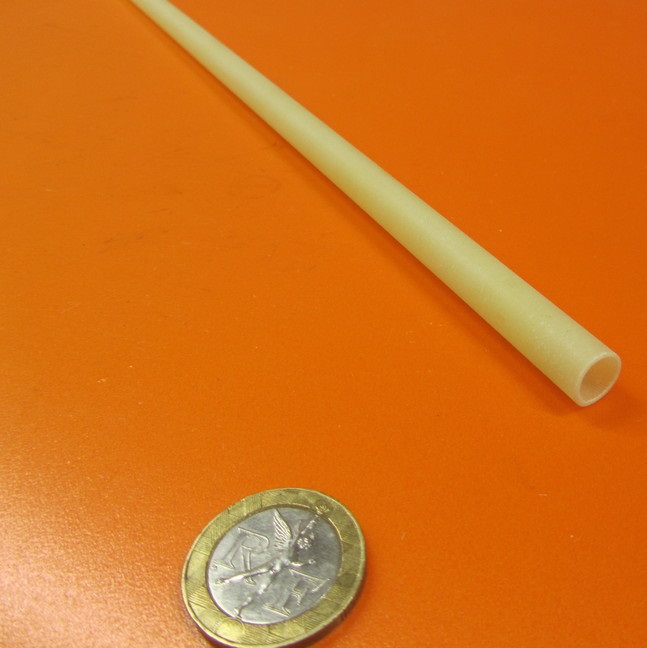

DPT-3115V	0.281	0.218	$24.68	27 Feet
DPT-1337	0.312	0.250	$25.18	27 Feet

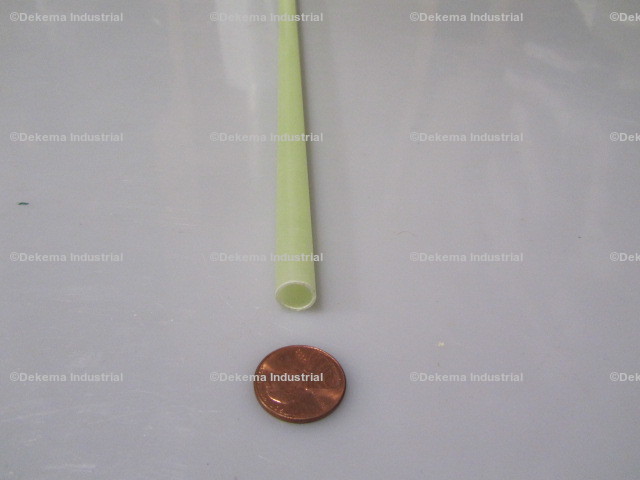

DPT-1341	0.375	0.312	$26.15	27 Feet
DPT-1345	0.437	0.375	$27.13	24 Feet

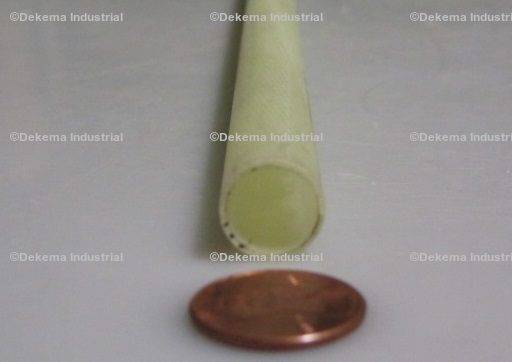

DPT-1349	0.500	0.437	$28.08	24 Feet
DPT-1353	0.562	0.500	$29.06	27 Feet

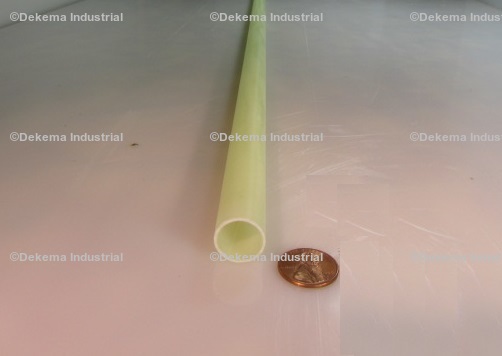

DPT-1359	0.625	0.563	$30.03	24 Feet
DPT-1364	0.687	0.625	$31.00	30 Feet
DPT-1370	0.750	0.688	$31.98	27 Feet
DPT-1373	0.812	0.750	$32.96	27 Feet
DPT-1286V	0.875	0.812	$33.93	27 Feet

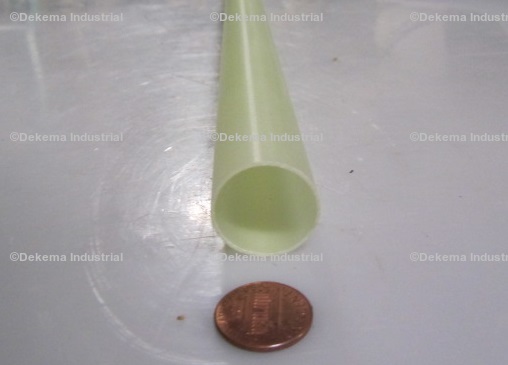

DPT-1378	0.937	0.875	$34.91	24 Feet
DPT-5828	1.000	0.937	$35.88	24 Feet
DPT-5835	1.031	0.969	$36.36	24 Feet

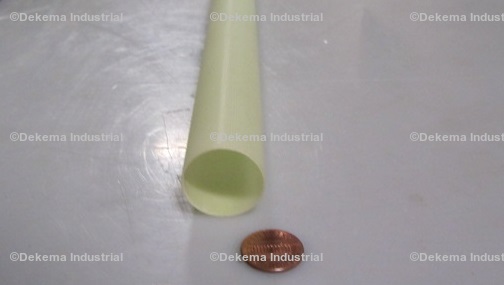

DPT-5198	1.062	1.000	$37.88	24 Feet

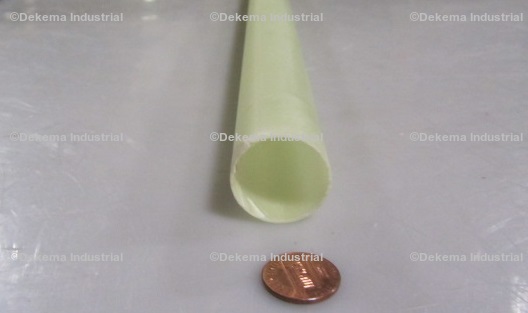

DPT-5837	1.094	1.031	$38.38	24 Feet
DPT-5838	1.125	1.062	$38.88	24 Feet
DPT-5839	1.156	1.094	$39.41	24 Feet

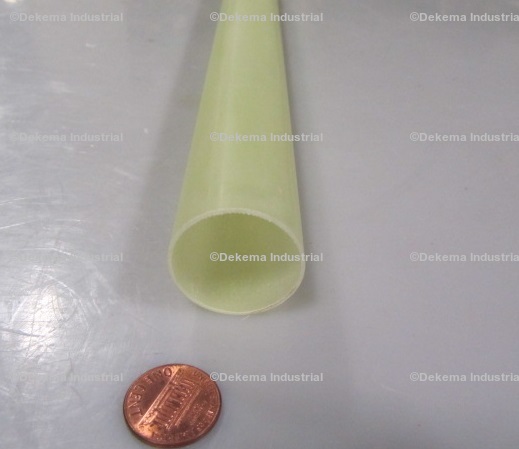

DPT-5840	1.187	1.125	$39.88	21 Feet
DPT-5841	1.250	1.187	$40.88	21 Feet
DPT-5842	1.312	1.250	$41.88	21 Feet
DPT-5843	1.375	1.312	$42.88	21 Feet
DPT-5844	1.437	1.375	$43.91	18 Feet
DPT-5845	1.500	1.437	$44.88	18 Feet

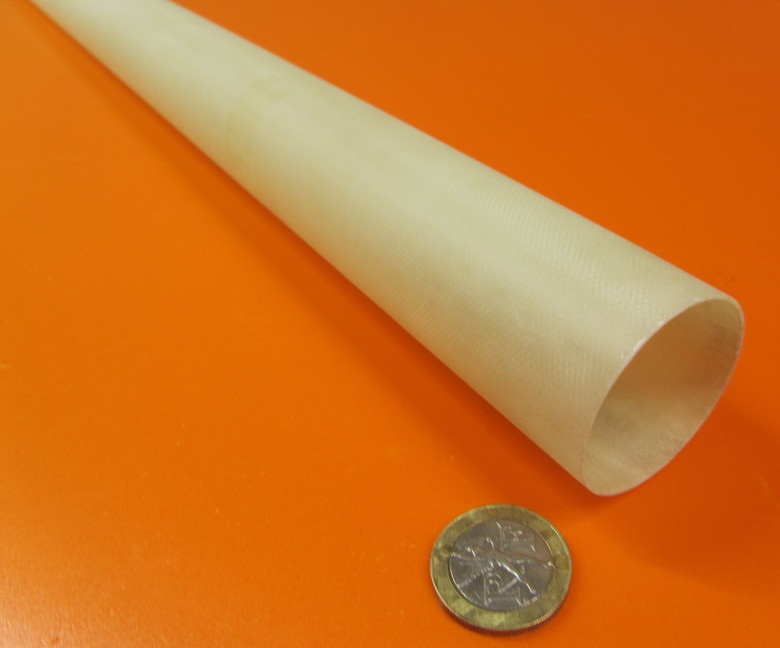

DPT-5846	1.562	1.500	$45.90	18 Feet
DPT-5847	1.625	1.562	$46.88	18 Feet
DPT-5848	1.687	1.625	$47.90	15 Feet
DPT-5829	1.750	1.687	$48.88	18 Feet
DPT-5849	1.812	1.750	$49.91	15 Feet
DPT-5850	1.937	1.875	$51.91	15 Feet
DPT-5851	2.031	1.969	$53.40	15 Feet
DPT-5852	2.094	2.031	$54.41	12 Feet

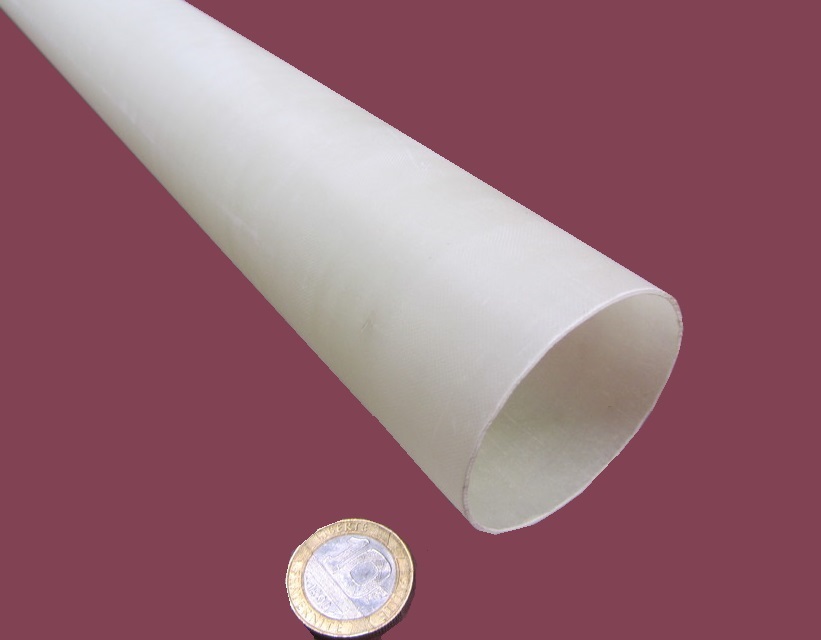

DPT-5853	2.125	2.062	$54.88	12 Feet

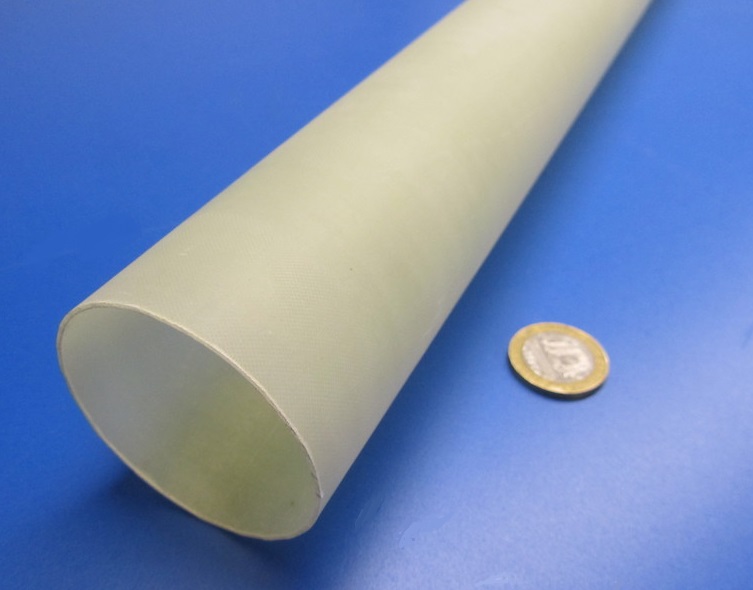

DPT-5854	2.156	2.094	$55.40	12 Feet
DPT-5855	2.187	2.125	$55.90	12 Feet
DPT-5856	2.250	2.187	$56.88	12 Feet
DPT-5857	2.312	2.250	$57.90	12 Feet

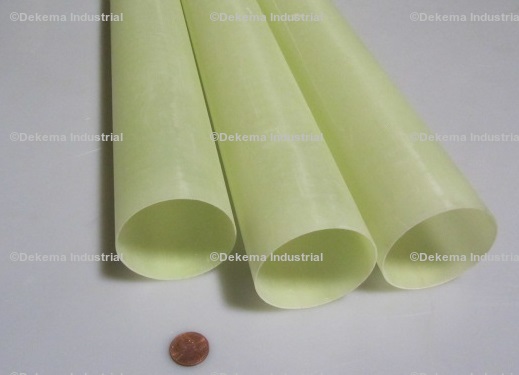

DPT-4624	2.375	2.312	$58.91	12 Feet
DPT-5858	2.437	2.375	$59.91	12 Feet
DPT-5859	2.500	2.437	$60.90	12 Feet
DPT-5860	2.562	2.500	$61.91	12 Feet
DPT-5861	2.625	2.562	$62.90	12 Feet
DPT-5862	2.687	2.625	$63.91	12 Feet
DPT-5863	2.750	2.687	$64.91	9 Feet
DPT-5864	2.812	2.750	$65.90	9 Feet
DPT-5865	2.937	2.875	$67.91	9 Feet
.031" Walls are not available in OD's = to or larger than 3.00"

nominal inches, diameter	plus or minus (�) tolerance, inches
	ID inside diameter		OD outside diameter
	steel mandrel	built-up mandrel
.125" -.749"	.003"	-	.005"
.750" - 1.999"	.004"	-	.005"
2.000" - 4.000"	.006"	-	.008"
