G10 FR4 Tubes Glass Reinforced Epoxy - .093" (3/32") Wall
(Micarta) (High Pressure Laminates) G10 FR4 Glass
Reinforced Epoxy - natural (yellowish to
light green) Technical
Data Sheet Chemical
Resistance Chart
The most versatile all-around laminate and composite,
this grade is a continuous glass woven fabric base impregnated with an epoxy
resin binder. It has extremely high mechanical strength, good dielectric loss
properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC
4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC
202
G10 FR4 Tubes .093" Wall Thickness
**Minimum's Apply, Non Stocked Item
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
Tolerances (Note: Pricing for Over 4.00" Diameter Wound Only)
| Part # | Outside Diameter (in.) | Inside Diameter (in.) | Price Per Foot | Minimum Purchase |
|---|---|---|---|---|
| DPT-1335 | 0.375 | 0.188 | $30.63 | 27 Feet |
| DPT-1339 | 0.437 | 0.250 | $33.06 | 27 Feet |

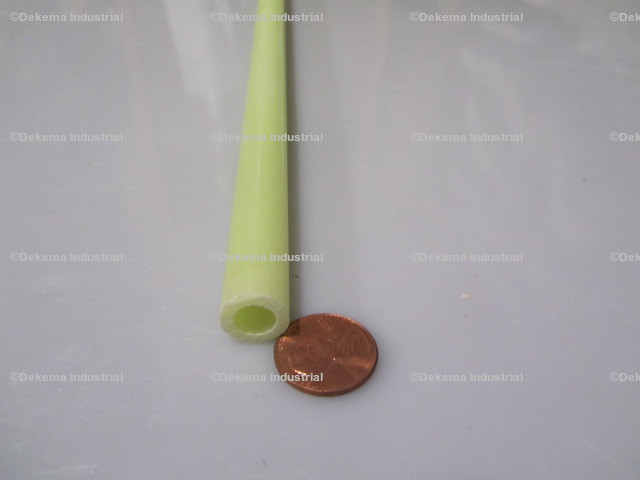

| DPT-1343 | 0.500 | 0.312 | $35.46 | 24 Feet |
| DPT-1347 | 0.562 | 0.375 | $37.86 | 24 Feet |
| DPT-1351 | 0.625 | 0.437 | $40.28 | 21 Feet |
| DPT-1355 | 0.687 | 0.500 | $42.68 | 21 Feet |

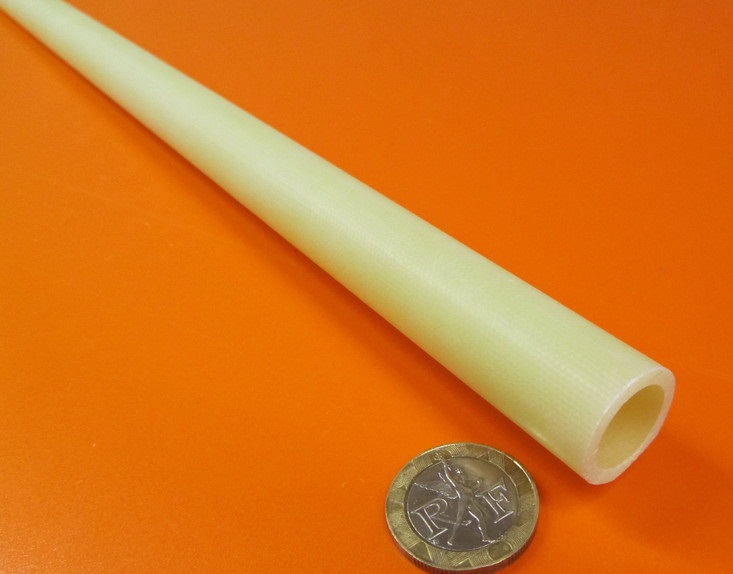

| DPT-6018 | 0.750 | 0.562 | $45.08 | 18 Feet |

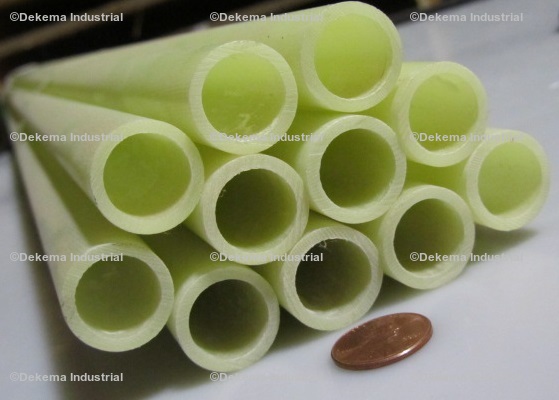

| DPT-1366 | 0.812 | 0.625 | $31.06 | 27 Feet |
| DPT-1375 | 0.937 | 0.750 | $34.21 | 24 Feet |
| DPT-6019 | 1.000 | 0.812 | $35.78 | 24 Feet |
| DPT-6020 | 1.031 | 0.844 | $36.56 | 24 Feet |
| DPT-1384 | 1.062 | 0.875 | $37.36 | 24 Feet |
| DPT-6022 | 1.125 | 0.937 | $38.93 | 21 Feet |
| DPT-6023 | 1.156 | 0.970 | $39.75 | 21 Feet |
| DPT-1390 | 1.187 | 1.000 | $40.51 | 21 Feet |

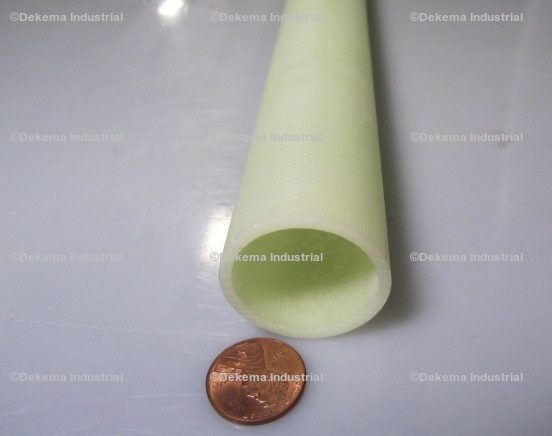

| DPT-6024 | 1.250 | 1.062 | $42.05 | 21 Feet |
| DPT-6025 | 1.312 | 1.125 | $43.66 | 21 Feet |
| DPT-6026 | 1.375 | 1.187 | $45.21 | 18 Feet |
| DPT-6027 | 1.437 | 1.250 | $46.81 | 18 Feet |
| DPT-6028 | 1.500 | 1.312 | $48.36 | 18 Feet |
| DPT-6029 | 1.562 | 1.375 | $49.93 | 18 Feet |
| DPT-6030 | 1.625 | 1.437 | $51.50 | 18 Feet |
| DPT-6031 | 1.687 | 1.500 | $53.08 | 18 Feet |
| DPT-5824 | 1.750 | 1.562 | $54.65 | 15 Feet |
| DPT-6032 | 1.812 | 1.625 | $56.23 | 15 Feet |

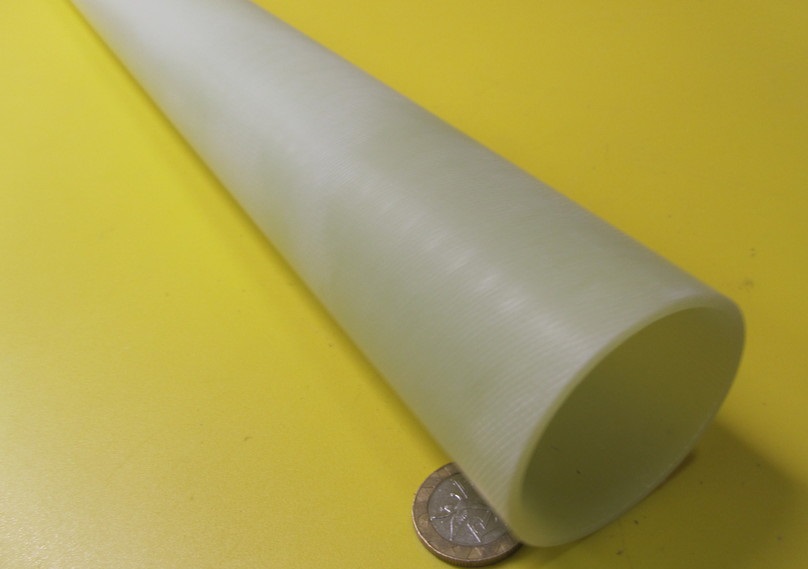

| DPT-6033 | 1.937 | 1.750 | $59.38 | 15 Feet |

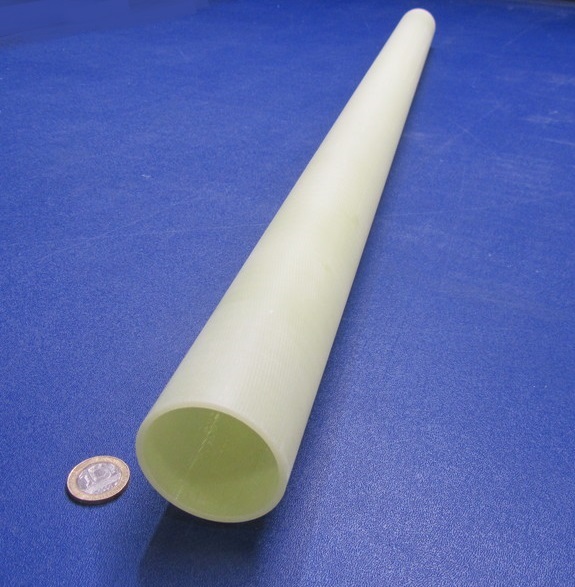

| DPT-6034 | 2.000 | 1.812 | $60.93 | 15 Feet |

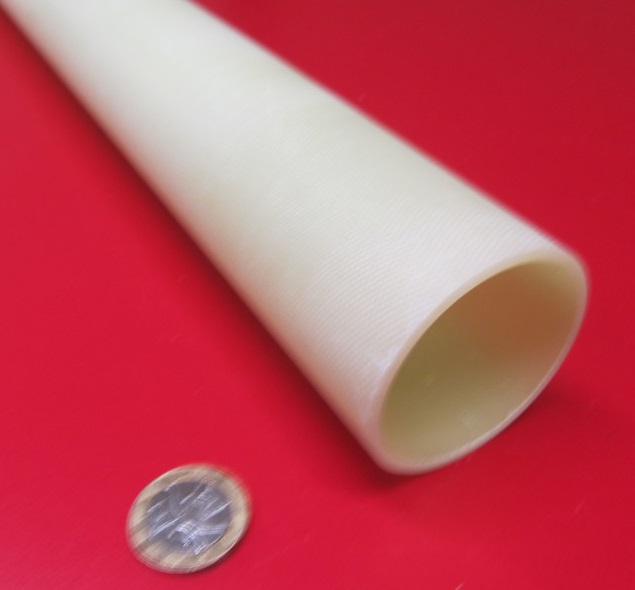

| DPT-6035 | 2.031 | 1.844 | $61.76 | 15 Feet |

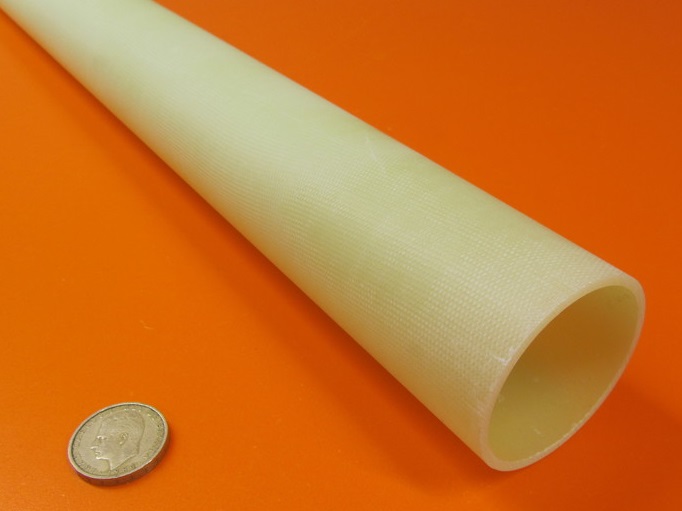

| DPT-6036 | 2.062 | 1.875 | $62.53 | 15 Feet |

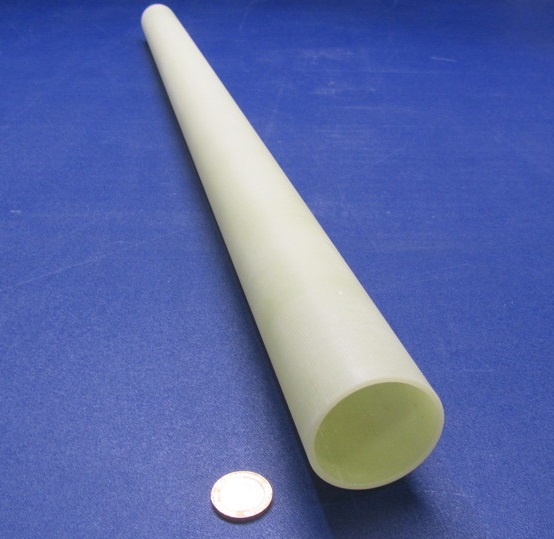

| DPT-6037 | 2.094 | 1.907 | $63.30 | 15 Feet |

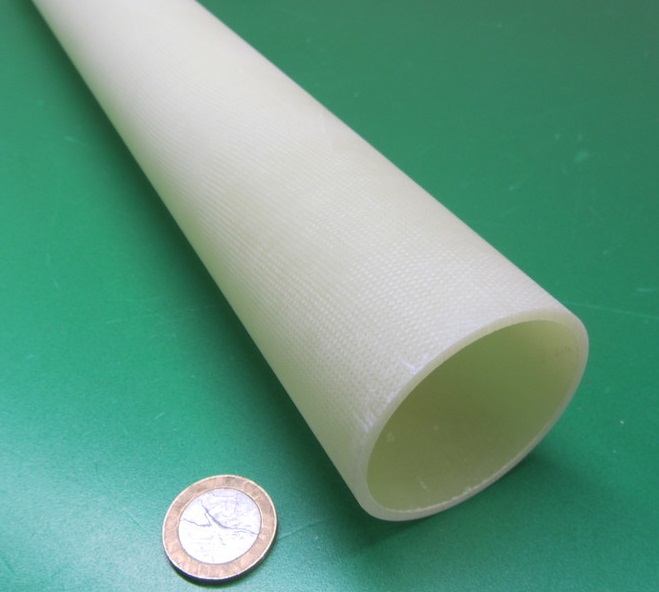

| DPT-6038 | 2.125 | 1.937 | $64.08 | 15 Feet |

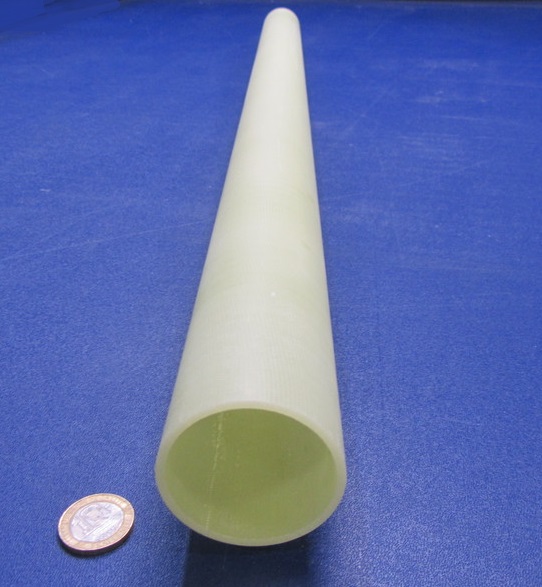

| DPT-6039 | 2.156 | 1.970 | $64.91 | 15 Feet |
| DPT-6040 | 2.187 | 2.000 | $65.68 | 12 Feet |
| DPT-6041 | 2.250 | 2.062 | $67.23 | 12 Feet |
| DPT-6042 | 2.312 | 2.125 | $68.83 | 12 Feet |
| DPT-6043 | 2.375 | 2.187 | $70.38 | 12 Feet |
| DPT-6044 | 2.437 | 2.250 | $71.96 | 12 Feet |
| DPT-6045 | 2.500 | 2.312 | $73.53 | 12 Feet |

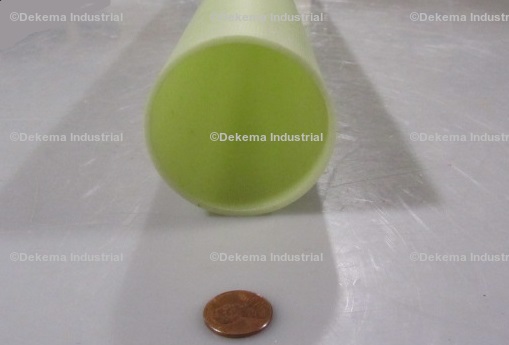

| DPT-6046 | 2.562 | 2.375 | $75.11 | 12 Feet |
| DPT-6047 | 2.625 | 2.437 | $76.68 | 12 Feet |
| DPT-6048 | 2.687 | 2.500 | $78.26 | 12 Feet |
| DPT-5832 | 2.750 | 2.562 | $79.83 | 12 Feet |
| DPT-6049 | 2.812 | 2.625 | $81.41 | 12 Feet |
| DPT-6050 | 2.937 | 2.750 | $84.55 | 9 Feet |
| DPT-5825 | 3.000 | 2.812 | $86.10 | 12 Feet |
| DPT-6051 | 3.031 | 2.844 | $86.93 | 9 Feet |
| DPT-6052 | 3.062 | 2.875 | $87.71 | 9 Feet |
| DPT-6053 | 3.094 | 2.907 | $88.48 | 9 Feet |
| DPT-6054 | 3.125 | 2.937 | $89.26 | 9 Feet |
| DPT-6055 | 3.156 | 2.970 | $90.08 | 9 Feet |

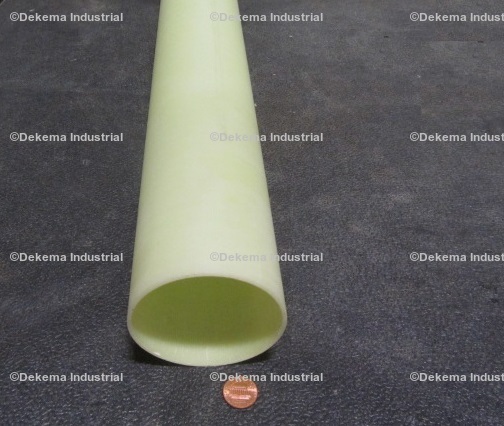

| DPT-6056 | 3.187 | 3.000 | $90.86 | 9 Feet |
| DPT-6056W | 3.250 | 3.062 | $92.41 | 9 Feet |
| DPT-6057 | 3.312 | 3.125 | $93.98 | 9 Feet |
| DPT-6058 | 3.375 | 3.187 | $95.55 | 9 Feet |
| DPT-6059 | 3.437 | 3.250 | $97.13 | 9 Feet |
| DPT-6060 | 3.500 | 3.312 | $98.71 | 9 Feet |
| DPT-6061 | 3.562 | 3.375 | $100.28 | 9 Feet |
| DPT-6062 | 3.625 | 3.437 | $101.86 | 9 Feet |
| DPT-6063 | 3.687 | 3.500 | $103.43 | 9 Feet |
| DPT-6064 | 3.750 | 3.562 | $104.98 | 9 Feet |
| DPT-6065 | 3.812 | 3.625 | $106.58 | 9 Feet |
| DPT-6066 | 3.937 | 3.750 | $109.73 | 9 Feet |
| DPT-6066W | 4.000 | 3.812 | $111.28 | 9 Feet |
| DPT-6067 | 4.031 | 3.844 | $112.11 | 9 Feet |
| DPT-6068 | 4.062 | 3.875 | $112.86 | 9 Feet |
| DPT-6069 | 4.094 | 3.907 | $113.66 | 9 Feet |
| DPT-6070 | 4.125 | 3.937 | $114.43 | 9 Feet |
| DPT-6071 | 4.156 | 3.970 | $115.26 | 9 Feet |

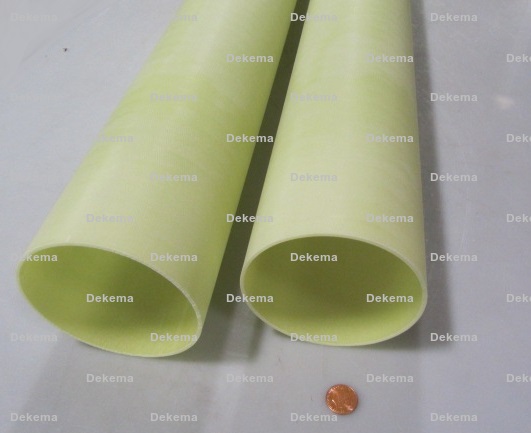

| DPT-6072 | 4.187 | 4.000 | $116.01 | 9 Feet |
| DPT-5833 | 4.250 | 4.062 | $117.58 | 9 Feet |
| DPT-6073 | 4.312 | 4.125 | $119.16 | 6 Feet |
| DPT-6074 | 4.375 | 4.187 | $120.73 | 6 Feet |

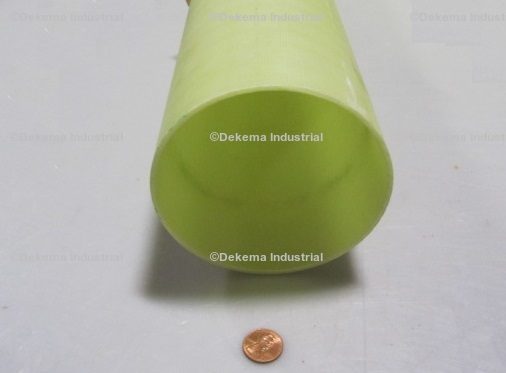

| DPT-6075 | 4.437 | 4.250 | $122.30 | 6 Feet |
| DPT-5933 | 4.500 | 4.312 | $123.85 | 9 Feet |
| DPT-6076 | 4.562 | 4.375 | $125.46 | 6 Feet |
| DPT-6077 | 4.625 | 4.437 | $127.01 | 6 Feet |
| DPT-6078 | 4.687 | 4.500 | $128.61 | 6 Feet |
| DPT-6079 | 4.750 | 4.562 | $130.16 | 6 Feet |
| DPT-6080 | 4.812 | 4.625 | $131.76 | 6 Feet |
| DPT-6081 | 4.937 | 4.750 | $134.88 | 6 Feet |
| DPT-1456P | 5.000 | 4.812 | $136.46 | 6 Feet |
| DPT-6082 | 5.031 | 4.844 | $137.28 | 6 Feet |
| DPT-6083 | 5.062 | 4.875 | $151.93 | 6 Feet |
| DPT-6084 | 5.094 | 4.907 | $152.81 | 6 Feet |
| DPT-6085 | 5.125 | 4.937 | $153.66 | 6 Feet |
| DPT-6086 | 5.156 | 4.970 | $154.58 | 6 Feet |
| DPT-6087 | 5.187 | 5.000 | $155.41 | 6 Feet |
| DPT-6088 | 5.250 | 5.062 | $157.11 | 6 Feet |
| DPT-6089 | 5.312 | 5.125 | $158.86 | 6 Feet |
| DPT-6090 | 5.375 | 5.187 | $160.58 | 6 Feet |
| DPT-6091 | 5.437 | 5.250 | $162.33 | 6 Feet |
| DPT-6092 | 5.500 | 5.312 | $164.06 | 6 Feet |
| DPT-6093 | 5.562 | 5.375 | $165.78 | 6 Feet |
| DPT-6094 | 5.625 | 5.437 | $167.51 | 6 Feet |
| DPT-6095 | 5.687 | 5.500 | $169.26 | 6 Feet |
| DPT-6096 | 5.750 | 5.562 | $170.98 | 6 Feet |
| DPT-6097 | 5.812 | 5.625 | $172.71 | 6 Feet |
| DPT-6098 | 5.937 | 5.750 | $176.18 | 6 Feet |
| DPT-6099 | 6.000 | 5.812 | $177.91 | 6 Feet |
| DPT-6100 | 6.031 | 5.844 | $178.81 | 6 Feet |
| DPT-6101 | 6.062 | 5.875 | $179.66 | 6 Feet |
| DPT-6102 | 6.094 | 5.907 | $180.51 | 6 Feet |
| DPT-6103 | 6.125 | 5.937 | $181.36 | 6 Feet |
| DPT-6104 | 6.156 | 5.970 | $182.28 | 6 Feet |

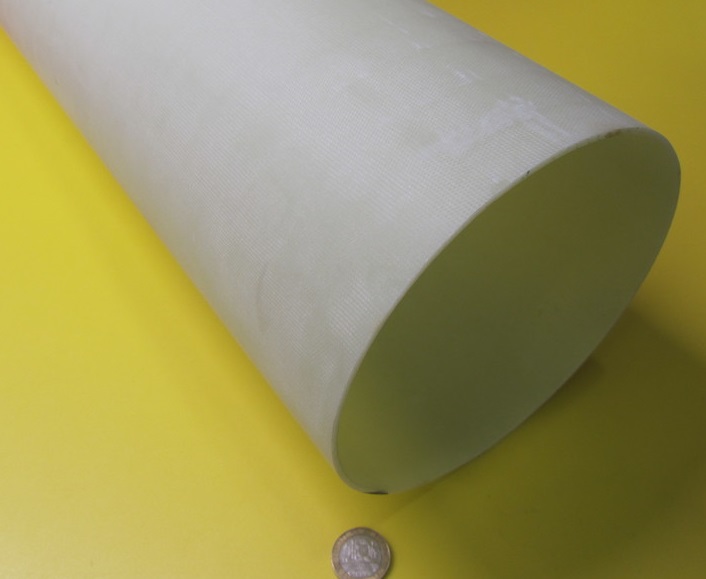

| DPT-5736 | 6.187 | 6.000 | $183.11 | 6 Feet |
| DPT-6105 | 6.250 | 6.062 | $163.83 | 6 Feet |
| DPT-6106 | 6.312 | 6.125 | $165.51 | 6 Feet |
| DPT-6107 | 6.375 | 6.187 | $167.16 | 6 Feet |
| DPT-5723 | 6.437 | 6.250 | $168.83 | 6 Feet |

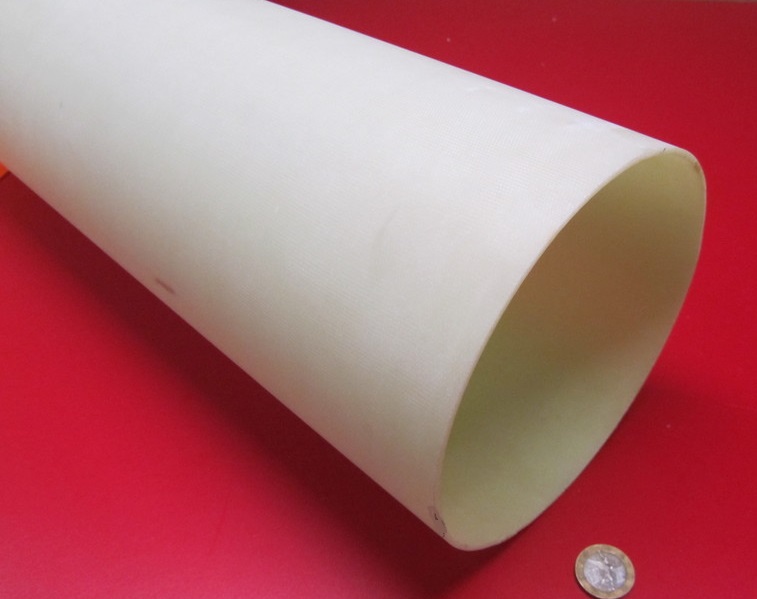

| DPT-6108 | 6.500 | 6.312 | $170.48 | 6 Feet |

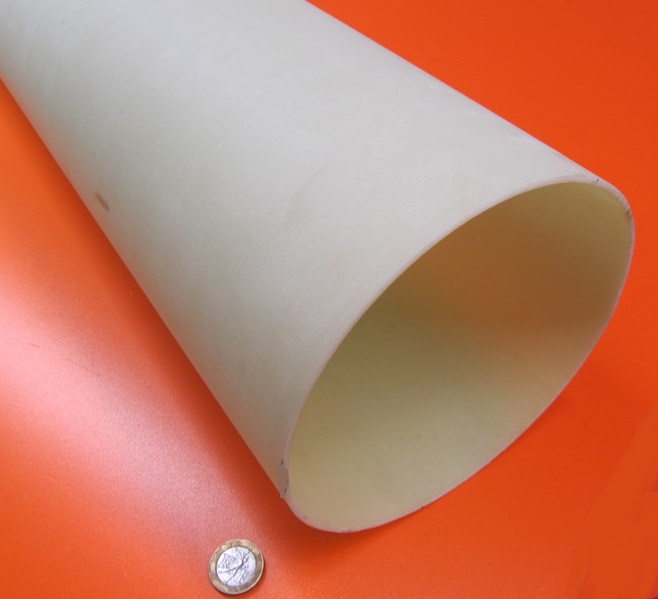

| DPT-6109 | 6.562 | 6.375 | $172.16 | 6 Feet |

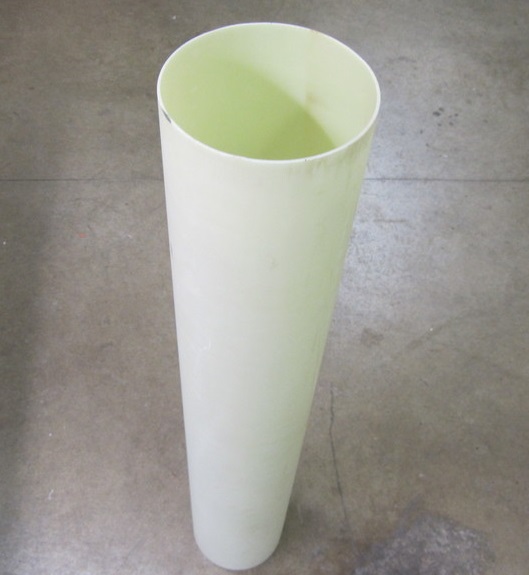

| DPT-6110 | 6.625 | 6.437 | $173.81 | 6 Feet |

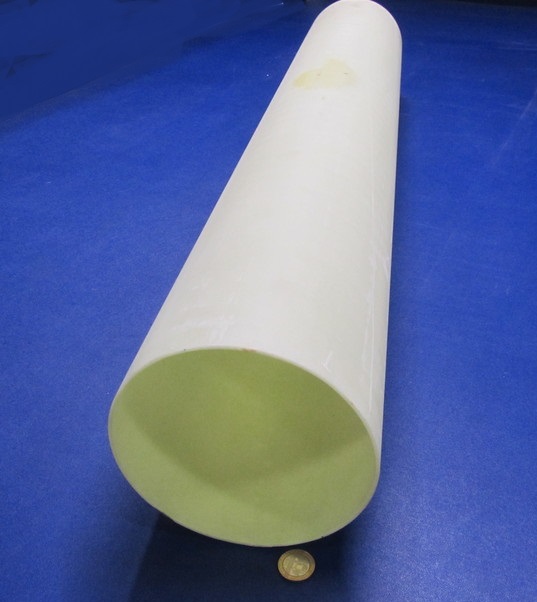

| DPT-6111 | 6.687 | 6.500 | $175.51 | 6 Feet |

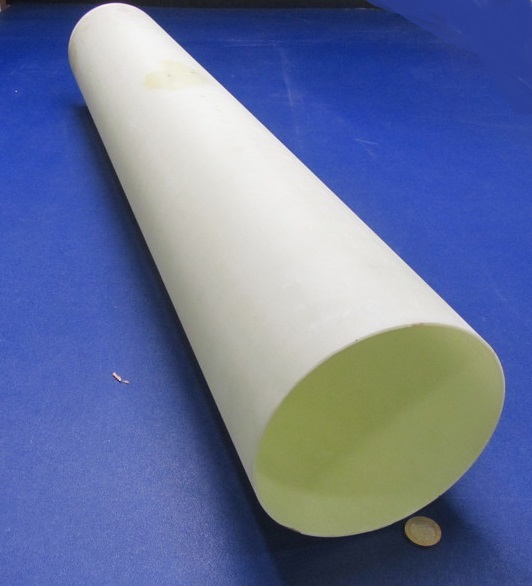

| DPT-6112 | 6.750 | 6.562 | $177.13 | 6 Feet |

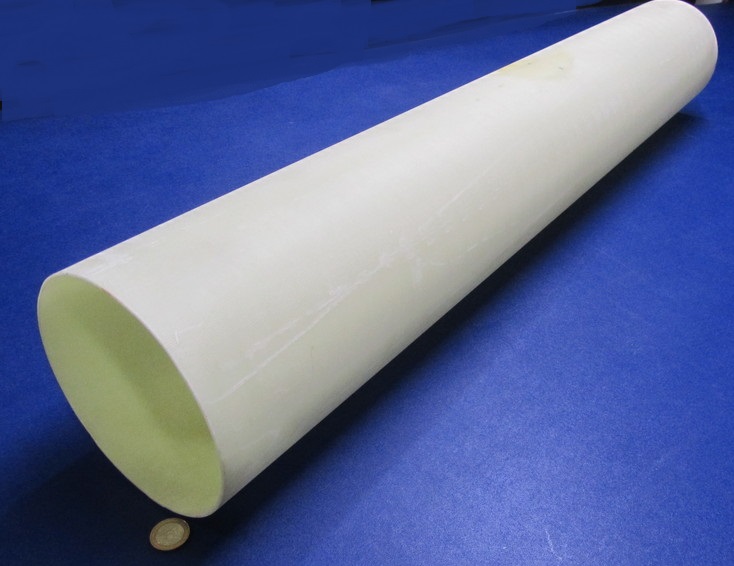

| DPT-6113 | 6.812 | 6.625 | $178.83 | 6 Feet |

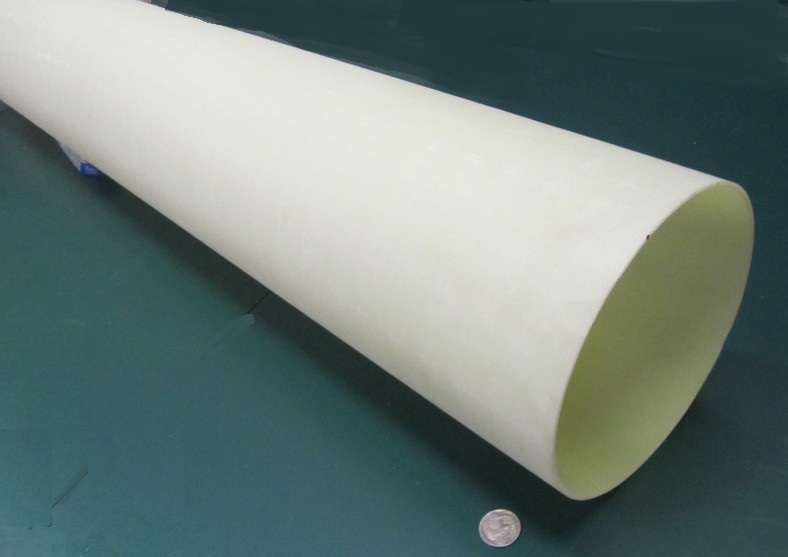

| DPT-6114 | 6.937 | 6.750 | $182.16 | 6 Feet |
| DPT-6115 | 7.000 | 6.812 | $183.81 | 6 Feet |
| DPT-6116 | 7.031 | 6.844 | $184.68 | 6 Feet |
| DPT-6117 | 7.062 | 6.875 | $185.48 | 6 Feet |
| DPT-6118 | 7.094 | 6.907 | $186.31 | 6 Feet |
| DPT-6119 | 7.125 | 6.937 | $187.13 | 6 Feet |
| DPT-6120 | 7.156 | 6.970 | $188.01 | 6 Feet |

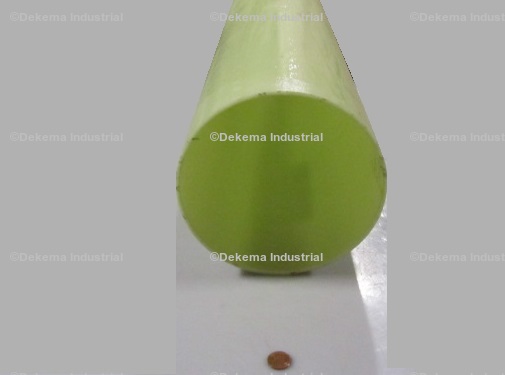

| DPT-6121 | 7.187 | 7.000 | $188.81 | 6 Feet |

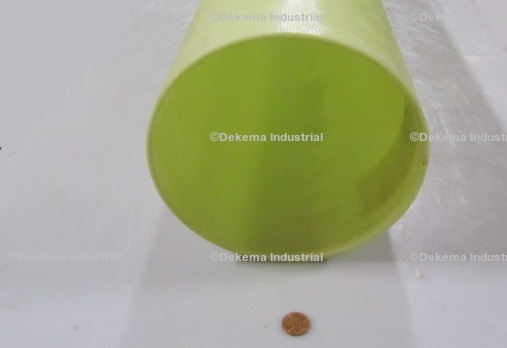

| DPT-6122 | 7.250 | 7.062 | $190.46 | 6 Feet |
| DPT-6123 | 7.312 | 7.125 | $192.13 | 6 Feet |

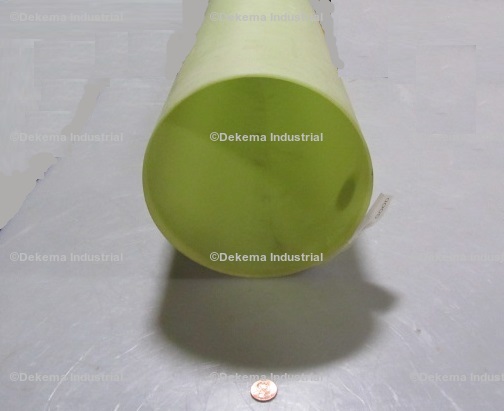

| DPT-6124 | 7.375 | 7.187 | $193.78 | 6 Feet |
| DPT-6125 | 7.437 | 7.250 | $195.46 | 6 Feet |
| DPT-6126 | 7.500 | 7.312 | $197.11 | 6 Feet |

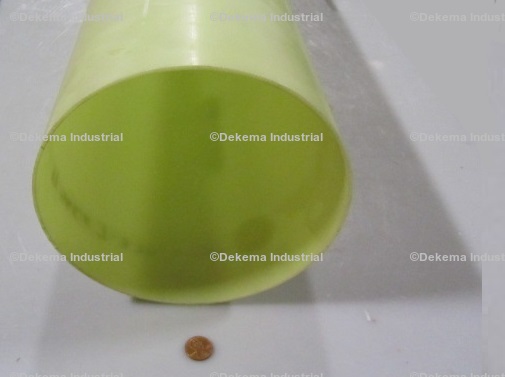

| DPT-6127 | 7.562 | 7.375 | $198.78 | 6 Feet |
| DPT-6128 | 7.625 | 7.437 | $200.43 | 6 Feet |
| DPT-6129 | 7.687 | 7.500 | $202.11 | 6 Feet |
| DPT-6130 | 7.750 | 7.562 | $203.76 | 6 Feet |
| DPT-6131 | 7.812 | 7.625 | $205.43 | 6 Feet |
| DPT-5731 | 7.937 | 7.750 | $208.76 | 6 Feet |
| DPT-6132 | 8.000 | 7.812 | $210.41 | 6 Feet |
| DPT-6133 | 8.031 | 7.844 | $211.28 | 6 Feet |
| DPT-6134 | 8.062 | 7.875 | $212.08 | 6 Feet |
| DPT-6135 | 8.094 | 7.907 | $212.91 | 6 Feet |
| DPT-6136 | 8.125 | 7.937 | $213.73 | 6 Feet |
| DPT-6137 | 8.156 | 7.970 | $214.61 | 6 Feet |
| DPT-6138 | 8.187 | 8.000 | $215.41 | 6 Feet |
| DPT-6140 | 8.312 | 8.125 | $218.73 | 3 Feet |
| DPT-6141 | 8.375 | 8.187 | $220.38 | 3 Feet |
| DPT-6142 | 8.437 | 8.250 | $222.06 | 3 Feet |
| DPT-6143 | 8.500 | 8.312 | $223.71 | 3 Feet |
| DPT-6144 | 8.562 | 8.375 | $225.38 | 3 Feet |
| DPT-6145 | 8.625 | 8.437 | $227.03 | 3 Feet |
| DPT-6146 | 8.687 | 8.500 | $228.71 | 3 Feet |
| DPT-6147 | 8.750 | 8.562 | $230.36 | 3 Feet |
| DPT-6148 | 8.812 | 8.625 | $232.03 | 3 Feet |
| DPT-6149 | 8.937 | 8.750 | $235.36 | 3 Feet |
| DPT-6150 | 9.000 | 8.812 | $237.01 | 3 Feet |
| DPT-6151 | 9.031 | 8.844 | $237.83 | 3 Feet |

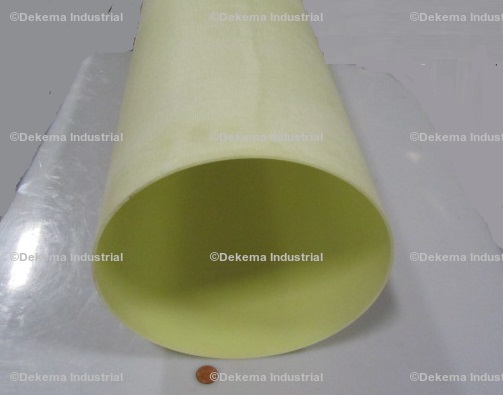

| DPT-6152 | 9.062 | 8.875 | $238.68 | 3 Feet |

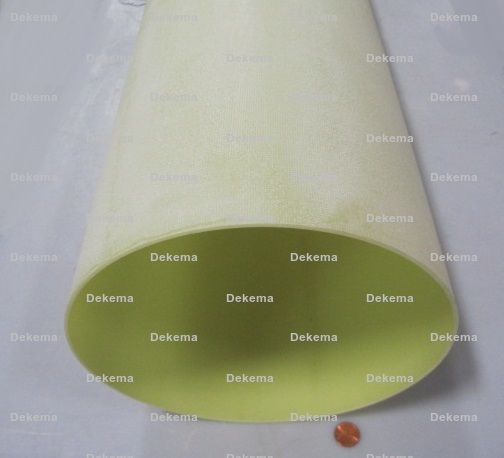

| DPT-6153 | 9.094 | 8.907 | $239.51 | 3 Feet |
| DPT-6154 | 9.125 | 8.937 | $240.33 | 3 Feet |
| DPT-6155 | 9.156 | 8.970 | $241.21 | 3 Feet |
| DPT-6156 | 9.187 | 9.000 | $242.01 | 3 Feet |
| DPT-6157 | 9.250 | 9.062 | $243.66 | 3 Feet |
| DPT-6158 | 9.312 | 9.125 | $245.33 | 3 Feet |
| DPT-6159 | 9.375 | 9.187 | $246.98 | 3 Feet |
| DPT-6160 | 9.437 | 9.250 | $248.66 | 3 Feet |
| DPT-6161 | 9.500 | 9.312 | $250.31 | 3 Feet |
| DPT-6162 | 9.562 | 9.375 | $251.98 | 3 Feet |
| DPT-6163 | 9.625 | 9.437 | $253.63 | 3 Feet |
| DPT-6164 | 9.687 | 9.500 | $255.31 | 3 Feet |
| DPT-6165 | 9.750 | 9.562 | $256.96 | 3 Feet |
| DPT-6166 | 9.812 | 9.625 | $258.63 | 3 Feet |
| DPT-6167 | 9.937 | 9.750 | $261.96 | 3 Feet |

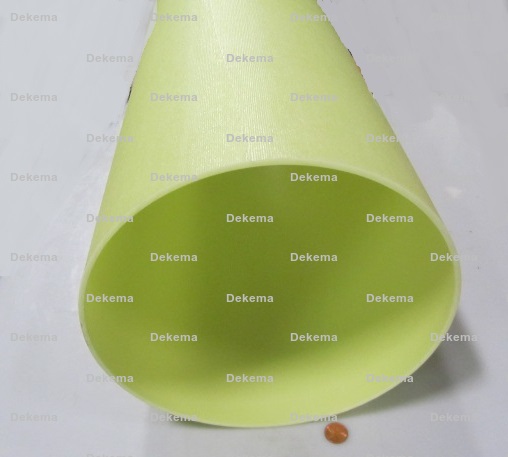

| DPT-6168 | 10.000 | 9.812 | $263.60 | 3 Feet |
| DPT-6483X | 10.031 | 9.845 | $264.48 | 3 Feet |
| DPT-6484X | 10.062 | 9.875 | $265.28 | 6 Feet |
| DPT-6485X | 10.094 | 9.907 | $266.10 | 3 Feet |
| DPT-6486X | 10.125 | 9.937 | $266.93 | 3 Feet |
| DPT-6487X | 10.156 | 9.970 | $267.81 | 3 Feet |
| DPT-6488X | 10.187 | 10.000 | $268.60 | 3 Feet |
| DPT-6489X | 10.250 | 10.062 | $270.25 | 3 Feet |
| DPT-6490X | 10.312 | 10.125 | $271.93 | 3 Feet |
| DPT-6491X | 10.370 | 10.187 | $273.58 | 3 Feet |
| DPT-6492X | 10.437 | 10.250 | $275.25 | 3 Feet |
| DPT-6493X | 10.500 | 10.312 | $276.91 | 3 Feet |
| DPT-6494X | 10.562 | 10.375 | $278.58 | 3 Feet |
| DPT-6495X | 10.625 | 10.437 | $280.23 | 3 Feet |
| DPT-6496X | 10.687 | 10.500 | $281.91 | 3 Feet |
| DPT-6497X | 10.750 | 10.562 | $283.56 | 3 Feet |
| DPT-6498X | 10.812 | 10.625 | $285.23 | 3 Feet |
| DPT-6499X | 10.937 | 10.750 | $288.56 | 3 Feet |
| DPT-6500X | 11.000 | 10.812 | $290.21 | 3 Feet |
| DPT-6501X | 11.031 | 10.845 | $291.08 | 3 Feet |
| DPT-6502X | 11.062 | 10.875 | $291.88 | 3 Feet |
| DPT-6503X | 11.094 | 10.907 | $292.71 | 3 Feet |
| DPT-6504X | 11.125 | 10.937 | $293.53 | 3 Feet |
| DPT-6505X | 11.156 | 10.970 | $294.41 | 3 Feet |
| DPT-6506X | 11.187 | 11.000 | $295.21 | 3 Feet |
| DPT-6507X | 11.250 | 11.000 | $296.85 | 3 Feet |
| DPT-6508X | 11.312 | 11.125 | $298.53 | 3 Feet |
| DPT-6509X | 11.375 | 11.187 | $300.18 | 3 Feet |
| DPT-6510X | 11.437 | 11.250 | $301.85 | 3 Feet |
| DPT-6511X | 11.500 | 11.312 | $303.51 | 3 Feet |
| DPT-6512X | 11.562 | 11.375 | $305.18 | 3 Feet |
| DPT-6513X | 11.625 | 11.437 | $306.83 | 3 Feet |
| DPT-6514X | 11.687 | 11.500 | $308.51 | 3 Feet |
| DPT-6515X | 11.750 | 11.562 | $310.16 | 3 Feet |
| DPT-6516X | 11.812 | 11.625 | $311.83 | 3 Feet |
| DPT-6517X | 11.937 | 11.750 | $315.16 | 3 Feet |
| DPT-6518X | 12.000 | 11.812 | $316.81 | 3 Feet |
| DPT-6519X | 12.031 | 11.845 | $317.68 | 3 Feet |
| DPT-6520X | 12.062 | 11.875 | $318.48 | 3 Feet |
| DPT-6521X | 12.094 | 11.907 | $319.31 | 3 Feet |
| DPT-6522X | 12.125 | 11.937 | $320.13 | 3 Feet |
| DPT-6523X | 12.156 | 11.970 | $321.01 | 3 Feet |
| DPT-6524X | 12.187 | 12.000 | $321.81 | 3 Feet |
| DPT-6525X | 12.250 | 12.062 | $323.46 | 3 Feet |
| DPT-6526X | 12.312 | 12.125 | $325.13 | 3 Feet |
| DPT-6527X | 12.375 | 12.187 | $326.78 | 3 Feet |
| DPT-6528X | 12.437 | 12.250 | $328.46 | 3 Feet |
| DPT-6529X | 12.500 | 12.312 | $330.10 | 3 Feet |
| DPT-6530X | 12.562 | 12.375 | $331.78 | 3 Feet |
| DPT-6531X | 12.625 | 12.437 | $333.43 | 3 Feet |
| DPT-6532X | 12.687 | 12.500 | $335.10 | 3 Feet |
| DPT-6533X | 12.750 | 12.562 | $336.75 | 3 Feet |
| DPT-6534X | 12.812 | 12.625 | $338.43 | 3 Feet |
| DPT-6535X | 12.937 | 12.750 | $341.75 | 3 Feet |
| DPT-6536X | 13.000 | 12.812 | $343.41 | 3 Feet |
| DPT-6537X | 13.031 | 12.845 | $344.28 | 3 Feet |
| DPT-6538X | 13.062 | 12.875 | $345.08 | 3 Feet |
| DPT-6539X | 13.094 | 12.907 | $345.91 | 3 Feet |
| DPT-6540X | 13.125 | 12.937 | $346.73 | 3 Feet |
| DPT-6541X | 13.156 | 12.970 | $347.60 | 3 Feet |
| DPT-6542X | 13.187 | 13.000 | $348.41 | 3 Feet |
| DPT-6543X | 13.250 | 13.062 | $350.06 | 3 Feet |
| DPT-6544X | 13.312 | 13.125 | $351.73 | 3 Feet |
| DPT-6545X | 13.375 | 13.187 | $353.38 | 3 Feet |
| DPT-6546X | 13.437 | 13.250 | $355.06 | 3 Feet |
| DPT-6547X | 13.500 | 13.312 | $356.71 | 3 Feet |
| DPT-6548X | 13.562 | 13.375 | $358.38 | 3 Feet |
| DPT-6549X | 13.625 | 13.437 | $360.03 | 3 Feet |
| DPT-6550X | 13.687 | 13.500 | $361.71 | 3 Feet |
| DPT-6551 | 13.750 | 13.562 | $469.86 | 3 Feet |
| DPT-6552X | 13.812 | 13.625 | $365.03 | 3 Feet |
| DPT-6553X | 13.937 | 13.750 | $368.35 | 3 Feet |
| DPT-6484Q | 14.000 | 13.812 | $370.01 | 3 Feet |
| DPT-6483 | 14.031 | 13.845 | $370.88 | 3 Feet |
| DPT-6484 | 14.062 | 13.875 | $371.68 | 3 Feet |
| DPT-6485 | 14.094 | 13.907 | $372.51 | 3 Feet |
| DPT-6486 | 14.125 | 13.937 | $373.33 | 3 Feet |
| DPT-6487 | 14.156 | 13.970 | $374.23 | 3 Feet |
| DPT-6488 | 14.187 | 14.000 | $375.01 | 3 Feet |
| DPT-6489 | 14.250 | 14.062 | $376.66 | 3 Feet |
| DPT-6490 | 14.312 | 14.125 | $378.33 | 3 Feet |
| DPT-6491 | 14.375 | 14.187 | $379.98 | 3 Feet |
| DPT-6492 | 14.437 | 14.250 | $381.66 | 3 Feet |
| DPT-6493 | 14.500 | 14.312 | $383.30 | 3 Feet |
| DPT-6494 | 14.562 | 14.375 | $384.98 | 3 Feet |
| DPT-6495 | 14.625 | 14.437 | $386.63 | 3 Feet |
| DPT-6496 | 14.687 | 14.500 | $388.30 | 3 Feet |
| DPT-6497 | 14.750 | 14.562 | $389.96 | 3 Feet |
| DPT-6498 | 14.812 | 14.625 | $391.66 | 3 Feet |
| DPT-6499 | 14.937 | 14.750 | $394.98 | 3 Feet |
| DPT-6500 | 15.000 | 14.812 | $396.63 | 3 Feet |
| DPT-6501 | 15.031 | 14.845 | $397.51 | 3 Feet |
| DPT-6502 | 15.062 | 14.875 | $398.30 | 3 Feet |
| DPT-6503 | 15.094 | 14.907 | $399.13 | 3 Feet |
| DPT-6504 | 15.125 | 14.937 | $399.96 | 3 Feet |
| DPT-6505 | 15.156 | 14.970 | $400.83 | 3 Feet |
| DPT-6506 | 15.187 | 15.000 | $401.63 | 3 Feet |
| DPT-6507 | 15.250 | 15.062 | $403.28 | 3 Feet |
| DPT-6508 | 15.312 | 15.125 | $404.96 | 3 Feet |
| DPT-6509 | 15.375 | 15.187 | $406.61 | 3 Feet |
| DPT-6510 | 15.437 | 15.250 | $408.28 | 3 Feet |
| DPT-6511 | 15.500 | 15.312 | $409.93 | 3 Feet |
| DPT-6512 | 15.562 | 15.375 | $411.61 | 3 Feet |
| DPT-6513 | 15.625 | 15.437 | $413.26 | 3 Feet |
| DPT-6514 | 15.687 | 15.500 | $414.93 | 3 Feet |
| DPT-6515 | 15.750 | 15.562 | $416.58 | 3 Feet |
| DPT-6516 | 15.812 | 15.625 | $418.26 | 3 Feet |
| DPT-6517 | 15.937 | 15.750 | $421.58 | 3 Feet |
| DPT-6518 | 16.000 | 15.812 | $423.23 | 3 Feet |
| DPT-6519 | 16.031 | 15.845 | $424.11 | 3 Feet |
| DPT-6520 | 16.062 | 15.875 | $424.91 | 3 Feet |
| DPT-6521 | 16.094 | 15.907 | $425.73 | 3 Feet |
| DPT-6522 | 16.125 | 15.937 | $426.56 | 3 Feet |
| DPT-6523 | 16.156 | 15.970 | $427.43 | 3 Feet |
| DPT-6524 | 16.187 | 16.000 | $428.23 | 3 Feet |
| DPT-6525 | 16.250 | 16.062 | $429.88 | 3 Feet |
| DPT-6526 | 16.312 | 16.125 | $431.56 | 3 Feet |
| DPT-6527 | 16.375 | 16.187 | $433.21 | 3 Feet |
| DPT-6528 | 16.437 | 16.250 | $434.88 | 3 Feet |
| DPT-6529 | 16.500 | 16.312 | $436.53 | 3 Feet |
| DPT-6530 | 16.562 | 16.375 | $438.21 | 3 Feet |
| DPT-6531 | 16.625 | 16.437 | $439.85 | 3 Feet |
| DPT-6532 | 16.687 | 16.500 | $441.53 | 3 Feet |
| DPT-6533 | 16.750 | 16.562 | $443.18 | 3 Feet |
| DPT-6534 | 16.812 | 16.625 | $444.85 | 3 Feet |
| DPT-6535 | 16.937 | 16.750 | $448.18 | 3 Feet |
| DPT-6536 | 17.000 | 16.812 | $449.83 | 3 Feet |
| DPT-6537 | 17.031 | 16.845 | $450.71 | 3 Feet |
| DPT-6538 | 17.062 | 16.875 | $451.50 | 3 Feet |
| DPT-6539 | 17.094 | 16.907 | $452.33 | 3 Feet |
| DPT-6540 | 17.125 | 16.937 | $453.16 | 3 Feet |
| DPT-6541 | 17.156 | 16.970 | $454.03 | 3 Feet |
| DPT-6542 | 17.187 | 17.000 | $454.83 | 3 Feet |
| DPT-6543 | 17.250 | 17.062 | $456.48 | 3 Feet |
| DPT-6544 | 17.312 | 17.125 | $458.16 | 3 Feet |
| DPT-6545 | 17.375 | 17.187 | $459.80 | 3 Feet |
| DPT-6546 | 17.437 | 17.250 | $461.48 | 3 Feet |
| DPT-6547 | 17.500 | 17.312 | $463.13 | 3 Feet |
| DPT-6548 | 17.562 | 17.375 | $464.80 | 3 Feet |
| DPT-6549 | 17.625 | 17.437 | $466.46 | 3 Feet |
| DPT-6550 | 17.687 | 17.500 | $468.13 | 3 Feet |
| DPT-6551 | 17.750 | 17.562 | $469.78 | 3 Feet |
| DPT-6552 | 17.812 | 17.625 | $471.46 | 3 Feet |
| DPT-6553 | 17.937 | 17.750 | $474.78 | 3 Feet |
| DPT-6554 | 18.000 | 17.812 | $476.43 | 3 Feet |
| DPT-6555 | 18.031 | 17.845 | $477.30 | 3 Feet |
| DPT-6556 | 18.062 | 17.875 | $478.11 | 3 Feet |
| DPT-6557 | 18.094 | 17.907 | $478.93 | 3 Feet |
| DPT-6558 | 18.125 | 17.937 | $479.76 | 3 Feet |
| DPT-6559 | 18.156 | 17.970 | $480.63 | 3 Feet |
| DPT-6560 | 18.187 | 18.000 | $481.43 | 3 Feet |
| DPT-6561 | 18.250 | 18.062 | $483.08 | 3 Feet |
| DPT-6562 | 18.312 | 18.125 | $484.76 | 3 Feet |
| DPT-6563 | 18.375 | 18.187 | $486.41 | 3 Feet |
| DPT-6564 | 18.437 | 18.250 | $488.08 | 3 Feet |
| DPT-6565 | 18.500 | 18.312 | $489.73 | 3 Feet |
| DPT-6566 | 18.562 | 18.375 | $491.41 | 3 Feet |
| DPT-6567 | 18.625 | 18.437 | $493.06 | 3 Feet |
| DPT-6568 | 18.687 | 18.500 | $494.73 | 3 Feet |
| DPT-6569 | 18.750 | 18.562 | $496.38 | 3 Feet |
| DPT-6570 | 18.812 | 18.625 | $498.06 | 3 Feet |
| DPT-6571 | 18.937 | 18.750 | $501.38 | 3 Feet |
| DPT-6572 | 19.000 | 18.812 | $503.03 | 3 Feet |
| DPT-6573 | 19.031 | 18.845 | $503.91 | 3 Feet |
| DPT-6574 | 19.062 | 18.875 | $504.71 | 3 Feet |
| DPT-6575 | 19.094 | 18.907 | $505.53 | 3 Feet |
| DPT-6576 | 19.125 | 18.937 | $506.35 | 3 Feet |
| DPT-6577 | 19.156 | 18.970 | $507.23 | 3 Feet |
| DPT-6578 | 19.187 | 19.000 | $508.03 | 3 Feet |
| DPT-6579 | 19.250 | 19.062 | $509.68 | 3 Feet |
| DPT-6580 | 19.312 | 19.125 | $511.35 | 3 Feet |
| DPT-6581 | 19.375 | 19.187 | $513.01 | 3 Feet |
| DPT-6582 | 19.437 | 19.250 | $514.68 | 3 Feet |
| DPT-6583 | 19.500 | 19.312 | $516.33 | 3 Feet |
| DPT-6584 | 19.562 | 19.375 | $518.01 | 3 Feet |
| DPT-6585 | 19.625 | 19.437 | $519.66 | 3 Feet |
| DPT-6586 | 19.687 | 19.500 | $521.33 | 3 Feet |
| DPT-6587 | 19.750 | 19.562 | $522.98 | 3 Feet |
| DPT-6588 | 19.812 | 19.625 | $524.66 | 3 Feet |
| DPT-6589 | 19.937 | 19.750 | $527.98 | 3 Feet |
| DPT-6590 | 20.000 | 19.812 | $529.63 | 3 Ft |
| nominal inches, | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .003" | - | .005" | ||
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
