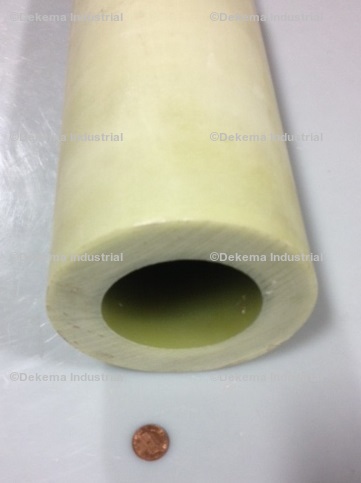

G10 FR4 Tubes Glass Reinforced Epoxy 1.00"
(Micarta) (High Pressure Laminates) G10/FR4 Glass
Reinforced Epoxy - natural (yellowish to
light green) Technical
Data Sheet Chemical
Resistance Chart
The most versatile all-around laminate and composite,
this grade is a continuous glass woven fabric base impregnated with an epoxy
resin binder. It has extremely high mechanical strength, good dielectric loss
properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC
4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC
202
G10 FR4 Tubes 1.00" Wall Options
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
| 3 Ft Minimum's Apply for All Sizes, 2-3 Week Lead Time | |||
| Part # | Outside Diameter (in.) | Inside Diameter (in.) | Price Per Foot |
|---|---|---|---|
| DPT-7876 | 3.000 | 1.000 | $496.01 |
| DPT-7812 | 3.125 | 1.125 | $525.73 |
| DPT-7885 | 3.250 | 1.250 | $555.43 |
| DPT-7884 | 3.375 | 1.375 | $585.16 |
| DPT-7883 | 3.500 | 1.500 | $614.86 |
| DPT-7882 | 3.625 | 1.625 | $644.58 |
| DPT-7881 | 3.750 | 1.750 | $674.28 |
| DPT-7880 | 3.875 | 1.875 | $703.98 |
| DPT-7879 | 4.000 | 2.000 | $733.71 |
| DPT-7887 | 4.125 | 2.125 | $763.41 |
| DPT-7877 | 4.250 | 2.250 | $793.13 |
| DPT-7888 | 4.375 | 2.375 | $822.83 |
| DPT-7875 | 4.500 | 2.500 | $852.56 |
| DPT-7874 | 4.625 | 2.625 | $882.26 |
| DPT-7873 | 4.750 | 2.750 | $911.96 |
| DPT-7872 | 4.875 | 2.875 | $941.68 |
| DPT-818KB | 5.000 | 3.000 | $971.38 |
| DPT-7871 | 5.125 | 3.125 | $1,001.11 |
| DPT-7870 | 5.250 | 3.250 | $1,030.81 |
| DPT-7869 | 5.375 | 3.375 | $1,060.50 |
| DPT-7868 | 5.500 | 3.500 | $1,090.23 |
| DPT-7878 | 5.625 | 3.625 | $1,119.93 |
| DPT-7903 | 5.750 | 3.750 | $1,149.66 |
| DPT-7914 | 5.875 | 3.875 | $1,179.35 |
| DPT-7912 | 6.000 | 4.000 | $1,209.08 |
| DPT-7911 | 6.125 | 4.125 | $1,238.78 |
| DPT-7910 | 6.250 | 4.250 | $1,268.48 |
| DPT-7909 | 6.375 | 4.375 | $1,298.21 |
| DPT-7908 | 6.500 | 4.500 | $1,327.91 |
| DPT-7907 | 6.625 | 4.625 | $1,357.63 |
| DPT-7865 | 6.750 | 4.750 | $1,387.33 |
| DPT-7902 | 6.875 | 4.875 | $1,559.78 |
| DPT-1464 | 7.000 | 5.000 | $1,592.51 |
| DPT-7901 | 7.125 | 5.125 | $1,625.21 |
| DPT-7900 | 7.250 | 5.250 | $1,657.91 |
| DPT-7899 | 7.375 | 5.375 | $1,690.61 |
| DPT-1470 | 7.500 | 5.500 | $1,723.30 |
| DPT-7898 | 7.625 | 5.625 | $1,756.00 |
| DPT-7897 | 7.750 | 5.750 | $1,788.71 |
| DPT-7890 | 7.875 | 5.875 | $1,821.43 |
| DPT-1476 | 8.000 | 6.000 | $1,854.13 |
| DPT-7889 | 8.125 | 6.125 | $1,839.08 |
| DPT-7905 | 8.250 | 6.250 | $1,871.36 |
| DPT-7821 | 8.375 | 6.375 | $1,903.63 |
| DPT-7843 | 8.500 | 6.500 | $1,935.88 |
| DPT-7836 | 8.625 | 6.625 | $1,968.16 |
| DPT-7835 | 8.750 | 6.750 | $2,000.41 |
| DPT-7834 | 8.875 | 6.875 | $2,032.68 |
| DPT-7833 | 9.000 | 7.000 | $2,064.93 |
| DPT-7832 | 9.125 | 7.125 | $2,097.21 |
| DPT-7831 | 9.250 | 7.250 | $2,129.46 |
| DPT-7824 | 9.375 | 7.375 | $2,161.73 |
| DPT-7867 | 9.500 | 7.500 | $2,193.98 |
| DPT-7822 | 9.625 | 7.625 | $2,226.26 |
| DPT-7846 | 9.750 | 7.750 | $2,258.51 |
| DPT-7820 | 9.875 | 7.875 | $2,290.78 |
| DPT-7819 | 10.000 | 8.000 | $2,323.06 |
| DPT-7818 | 10.125 | 8.125 | $2,355.31 |
| DPT-7817 | 10.250 | 8.250 | $2,387.58 |
| DPT-7816 | 10.375 | 8.375 | $2,419.83 |
| DPT-7815 | 10.500 | 8.500 | $2,452.10 |
| DPT-7814 | 10.625 | 8.625 | $2,484.36 |
| DPT-7813 | 10.750 | 8.750 | $2,516.63 |
| DPT-7823 | 10.875 | 8.875 | $2,548.88 |
| DPT-7855 | 11.000 | 9.000 | $2,581.16 |
| DPT-7915 | 11.125 | 9.125 | $2,613.40 |
| DPT-7864 | 11.250 | 9.250 | $2,645.68 |
| DPT-7863 | 11.375 | 9.375 | $2,677.93 |
| DPT-7862 | 11.500 | 9.500 | $2,710.21 |
| DPT-7861 | 11.625 | 9.625 | $2,742.46 |
| DPT-7860 | 11.750 | 9.750 | $2,774.73 |
| DPT-7859 | 11.875 | 9.875 | $2,807.01 |
| DPT-7858 | 12.000 | 10.000 | $2,839.26 |
| DPT-7844 | 12.125 | 10.125 | $2,879.53 |
| DPT-7856 | 12.250 | 10.250 | $2,903.78 |
| DPT-7845 | 12.375 | 10.375 | $2,936.06 |
| DPT-7854 | 12.500 | 10.500 | $2,968.31 |
| DPT-7853 | 12.625 | 10.625 | $3,000.58 |
| DPT-7852 | 12.750 | 10.750 | $3,032.83 |
| DPT-7851 | 12.875 | 10.875 | $3,065.11 |
| DPT-7850 | 13.000 | 11.000 | $3,097.36 |
| DPT-7849 | 13.125 | 11.125 | $3,129.63 |
| DPT-7848 | 13.250 | 11.250 | $3,161.88 |
| DPT-7847 | 13.375 | 11.375 | $3,194.16 |
| DPT-7866 | 13.500 | 11.500 | $3,226.40 |
| DPT-7857 | 13.625 | 11.625 | $3,258.68 |
| DPT-7950 | 13.750 | 11.750 | $3,290.96 |
| DPT-7960 | 13.875 | 11.875 | $3,323.21 |
| DPT-7959 | 14.000 | 12.000 | $3,355.48 |
| DPT-7958 | 14.125 | 12.125 | $3,387.73 |
| DPT-7957 | 14.250 | 12.250 | $3,420.01 |
| DPT-7956 | 14.375 | 12.375 | $3,452.25 |
| DPT-7955 | 14.500 | 12.500 | $3,484.53 |
| DPT-7954 | 14.625 | 12.625 | $3,516.78 |
| DPT-7953 | 14.750 | 12.750 | $3,549.06 |
| DPT-7916 | 14.875 | 12.875 | $3,581.31 |
| DPT-7951 | 15.000 | 13.000 | $3,613.58 |
| DPT-7963 | 15.125 | 13.125 | $3,645.83 |
| DPT-7949 | 15.250 | 13.250 | $3,678.11 |
| DPT-7948 | 15.375 | 13.375 | $3,710.38 |
| DPT-7947 | 15.500 | 13.500 | $3,742.63 |
| DPT-7946 | 15.625 | 13.625 | $3,774.91 |
| DPT-7945 | 15.750 | 13.750 | $3,807.15 |
| DPT-7944 | 15.875 | 13.875 | $3,839.43 |
| DPT-7913 | 16.000 | 14.000 | $3,871.68 |
| DPT-7942 | 16.125 | 14.125 | $3,903.96 |
| DPT-7952 | 16.250 | 14.250 | $3,936.21 |
| DPT-7972 | 16.375 | 14.375 | $3,968.48 |
| DPT-7811 | 16.500 | 14.500 | $4,000.73 |
| DPT-7810 | 16.625 | 14.625 | $4,033.01 |
| DPT-7809 | 16.750 | 14.750 | $4,065.25 |
| DPT-7979 | 16.875 | 14.875 | $4,097.53 |
| DPT-7978 | 17.000 | 15.000 | $4,129.78 |
| DPT-7977 | 17.125 | 15.125 | $4,162.06 |
| DPT-7976 | 17.250 | 15.250 | $4,194.33 |
| DPT-7975 | 17.375 | 15.375 | $4,226.58 |
| DPT-7961 | 17.500 | 15.500 | $4,258.86 |
| DPT-7973 | 17.625 | 15.625 | $4,291.11 |
| DPT-7962 | 17.750 | 15.750 | $4,323.38 |
| DPT-7971 | 17.875 | 15.875 | $4,355.63 |
| DPT-7970 | 18.000 | 16.000 | $4,387.91 |
| DPT-7969 | 18.125 | 16.125 | $4,420.16 |
| DPT-7968 | 18.250 | 16.250 | $4,452.43 |
| DPT-7967 | 18.375 | 16.375 | $4,484.68 |
| DPT-7966 | 18.500 | 16.500 | $4,516.96 |
| DPT-7965 | 18.625 | 16.625 | $4,549.21 |
| DPT-7964 | 18.750 | 16.750 | $4,581.48 |
| DPT-7941 | 18.875 | 16.875 | $4,613.73 |
| DPT-7974 | 19.000 | 17.000 | $4,646.00 |
| DPT-7925 | 19.125 | 17.125 | $4,678.28 |
| DPT-7839 | 19.250 | 17.250 | $4,710.53 |
| DPT-7943 | 19.375 | 17.375 | $4,742.80 |
| DPT-7837 | 19.500 | 17.500 | $4,775.06 |
| DPT-7830 | 19.625 | 17.625 | $4,807.33 |
| DPT-7829 | 19.750 | 17.750 | $4,839.58 |
| DPT-7828 | 19.875 | 17.875 | $4,871.86 |
| DPT-7827 | 20.000 | 18.000 | $4,904.11 |
| DPT-7826 | 20.125 | 18.125 | $4,936.38 |
| DPT-7940 | 20.250 | 18.250 | $4,968.63 |
| DPT-7926 | 20.375 | 18.375 | $5,000.91 |
| DPT-7840 | 20.500 | 18.500 | $5,033.16 |
| DPT-7924 | 20.625 | 18.625 | $5,065.43 |
| DPT-7923 | 20.750 | 18.750 | $5,097.71 |
| DPT-7922 | 20.875 | 18.875 | $5,129.96 |
| DPT-7921 | 21.000 | 19.000 | $5,162.23 |
| DPT-7920 | 21.125 | 19.125 | $5,194.48 |
| DPT-7919 | 21.250 | 19.250 | $5,226.76 |
| DPT-7918 | 21.375 | 19.375 | $5,259.01 |
| DPT-7917 | 21.500 | 19.500 | $5,291.28 |
| DPT-7825 | 21.625 | 19.625 | $5,323.53 |
| DPT-7931 | 21.750 | 19.750 | $5,355.81 |
| DPT-7939 | 21.875 | 19.875 | $5,388.06 |
| DPT-7938 | 22.000 | 20.000 | $6,540.28 |
| DPT-7937 | 22.125 | 20.125 | $6,579.21 |
| DPT-7936 | 22.250 | 20.250 | $6,618.16 |
| DPT-7935 | 22.375 | 20.375 | $6,657.08 |
| DPT-7934 | 22.500 | 20.500 | $6,696.00 |
| DPT-7838 | 22.625 | 20.625 | $6,734.93 |
| DPT-7932 | 22.750 | 20.750 | $6,773.86 |
| DPT-7841 | 22.875 | 20.875 | $6,812.81 |
| DPT-7930 | 23.000 | 21.000 | $6,851.73 |
| DPT-7929 | 23.125 | 21.125 | $6,890.66 |
| DPT-7928 | 23.250 | 21.250 | $6,929.58 |
| DPT-7927 | 23.375 | 21.375 | $6,968.50 |
| DPT-7896 | 23.500 | 21.500 | $7,007.46 |
| DPT-7895 | 23.625 | 21.625 | $7,046.38 |
| DPT-7894 | 23.750 | 21.750 | $7,085.31 |
| DPT-7893 | 23.875 | 21.875 | $7,124.23 |
| DPT-7892 | 24.000 | 22.000 | $7,163.16 |
| Larger sizes are available, please call for pricing. | |||
| nominal inches, | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
