G10 FR4 Tubes Glass Reinforced .250" Wall

G10 FR4 Tube . 250 Wall Thickness



(Micarta) (High Pressure Laminates) G10 FR4 Glass Reinforced - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202



.031" (1/32") Wall Thickness

.062" (1/16")Wall Thickness

.093" (3/32")Wall Thickness

.125" (1/8")Wall Thickness

.187" (3/16")Wall Thickness

.250" (1/4")Wall Thickness

.375" (3/8")Wall Thickness

.500" (1/2")Wall Thickness

.750" (3/4")WallThickness

1.00" Wall Thickness (Max. Possible)

.250 Inch Wall G10 FR4 Tubes

Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts  42-48"

**Minimum's Apply, Non Stocked Item
Part # Outside Diameter (in.) Inside Diameter (in.) Price Per Foot Minimum Purchase
DPT-5100 0.688 0.188 $63.63 9 Feet
DPT-5052 0.750 0.250 $69.55 6 Feet
DPT-1358 1.000 0.500 $93.21 9 Feet
DPT-1363 1.062 0.562 $99.11 9 Feet
DPT-1369 1.125 0.625 $68.66 12 Feet
DPT-6896 1.187 0.687 $72.53 12 Feet
DPT-1381 1.250 0.750 $76.38 12 Feet
DPT-6897 1.312 0.812 $80.26 12 Feet
DPT-1387 1.375 0.875 $84.11 12 Feet
DPT-6898 1.437 0.937 $87.98 12 Feet
DPT-1393 1.500 1.000 $91.83 9 Feet
DPT-6899 1.562 1.062 $95.68 9 Feet
DPT-6900 1.625 1.125 $99.55 9 Feet

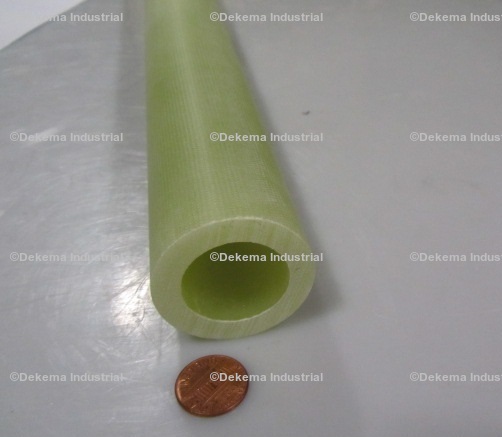

DPT-6901 1.687 1.125 $103.40 9 Feet
DPT-1397 1.750 1.250 $107.30 9 Feet
DPT-6902 1.812 1.312 $111.13 9 Feet
DPT-6903 1.875 1.375 $115.03 9 Feet
DPT-6904 1.937 1.437 $118.85 9 Feet
DPT-1401 2.000 1.500 $122.76 9 Feet
DPT-6905 2.062 1.562 $126.58 9 Feet
DPT-6906 2.125 1.625 $130.48 9 Feet
DPT-6907 2.187 1.687 $134.31 6 Feet
DPT-1406 2.250 1.750 $138.21 6 Feet
DPT-6908 2.312 1.812 $142.03 6 Feet
DPT-6909 2.375 1.875 $145.93 6 Feet
DPT-6910 2.437 1.937 $149.76 6 Feet
DPT-1411 2.500 2.000 $153.66 6 Feet
DPT-6911 2.562 2.062 $157.51 6 Feet
DPT-6912 2.625 2.125 $161.38 6 Feet
DPT-6913 2.687 2.187 $165.23 6 Feet
DPT-1416 2.750 2.250 $169.11 6 Feet
DPT-6914 2.812 2.312 $172.96 6 Feet
DPT-6915 2.875 2.375 $176.86 6 Feet
DPT-6916 2.937 2.437 $180.68 6 Feet
DPT-1421 3.000 2.500 $184.58 6 Feet
DPT-6917 3.062 2.562 $188.41 6 Feet

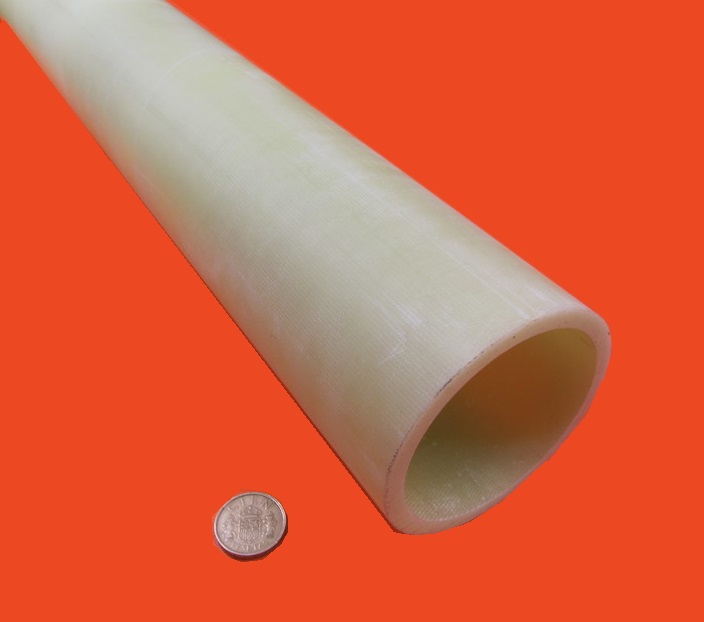

DPT-6918 3.125 2.625 $192.31 6 Feet
DPT-6919 3.187 2.687 $196.13 6 Feet

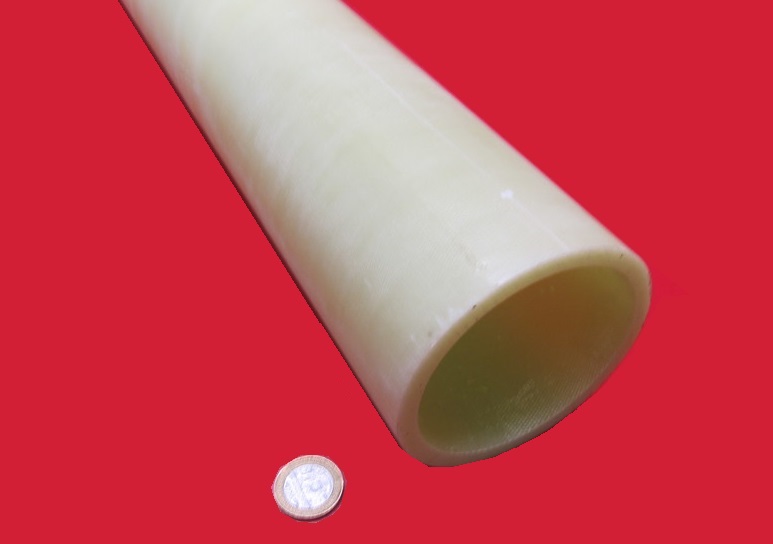

DPT-1426 3.250 2.750 $200.03 6 Feet

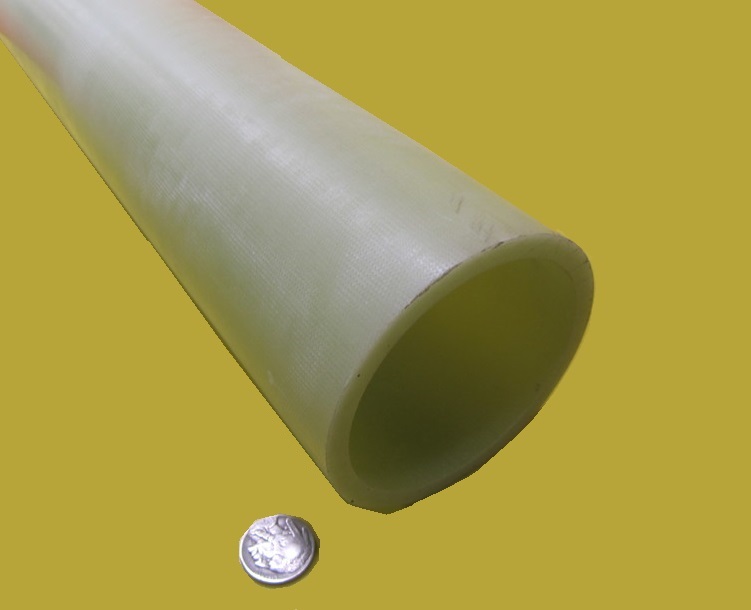

DPT-6920 3.312 2.812 $203.86 6 Feet
DPT-6921 3.375 2.875 $207.76 6 Feet

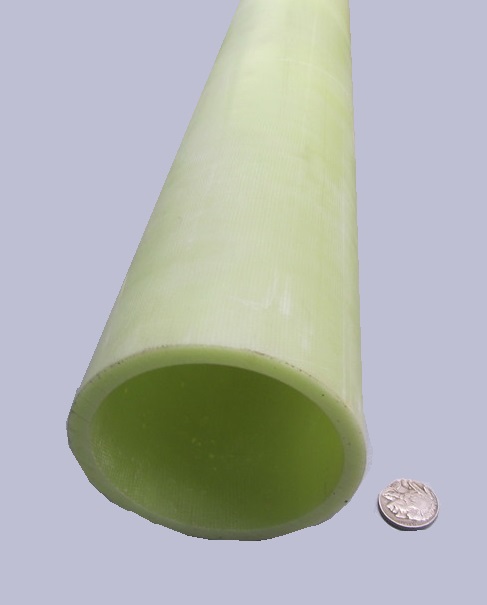

DPT-6922 3.437 2.937 $211.58 6 Feet
DPT-1431 3.500 3.000 $215.48 6 Feet

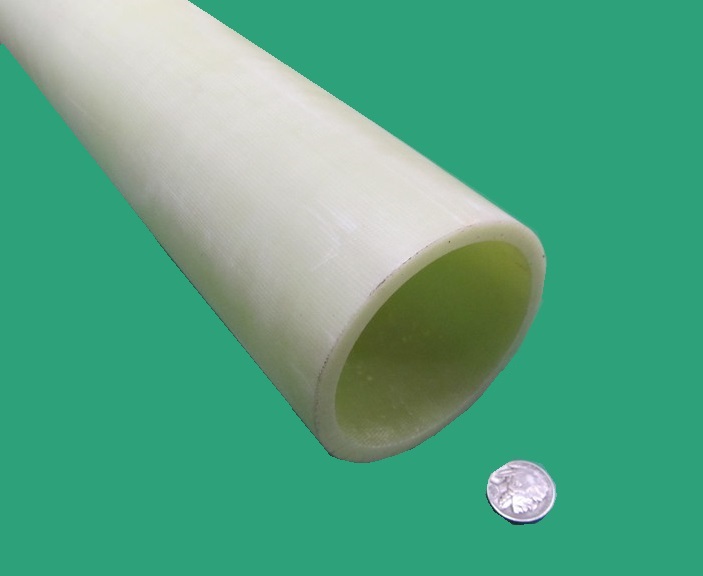

DPT-6923 3.562 3.062 $219.31 6 Feet
DPT-6924 3.625 3.125 $223.21 6 Feet
DPT-6925 3.687 3.187 $227.03 6 Feet
DPT-1436 3.750 3.250 $230.93 6 Feet
DPT-6926 3.812 3.312 $234.78 6 Feet
DPT-6927 3.875 3.375 $238.66 6 Feet
DPT-6928 3.937 3.437 $242.51 6 Feet
DPT-1441 4.000 3.500 $246.38 6 Feet
DPT-6929 4.062 3.562 $250.23 6 Feet
DPT-6930 4.125 3.625 $254.13 6 Feet
DPT-6931 4.187 3.687 $257.96 6 Feet
DPT-1446 4.250 3.750 $261.85 6 Feet
DPT-6932 4.312 3.812 $265.68 6 Feet
DPT-6933 4.375 3.875 $269.58 3 Feet
DPT-1451 4.500 4.000 $277.31 3 Feet
DPT-6934 4.562 4.062 $281.13 3 Feet
DPT-6935 4.625 4.125 $285.03 3 Feet
DPT-6936 4.687 4.187 $288.86 3 Feet
DPT-6937 4.750 4.250 $292.75 3 Feet
DPT-6938 4.812 4.312 $296.58 3 Feet
DPT-6939 4.875 4.375 $300.48 3 Feet

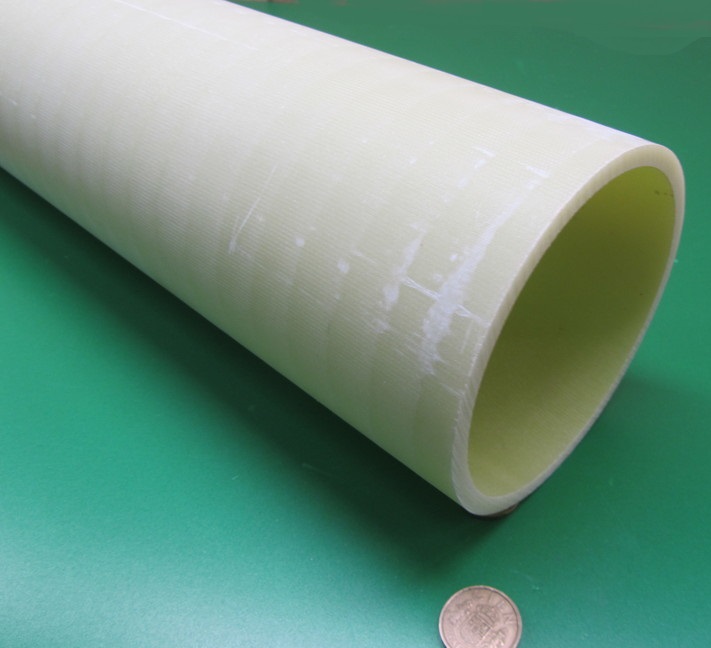

DPT-6940 4.937 4.437 $304.33 3 Feet
DPT-1456 5.000 4.500 $308.21 3 Feet

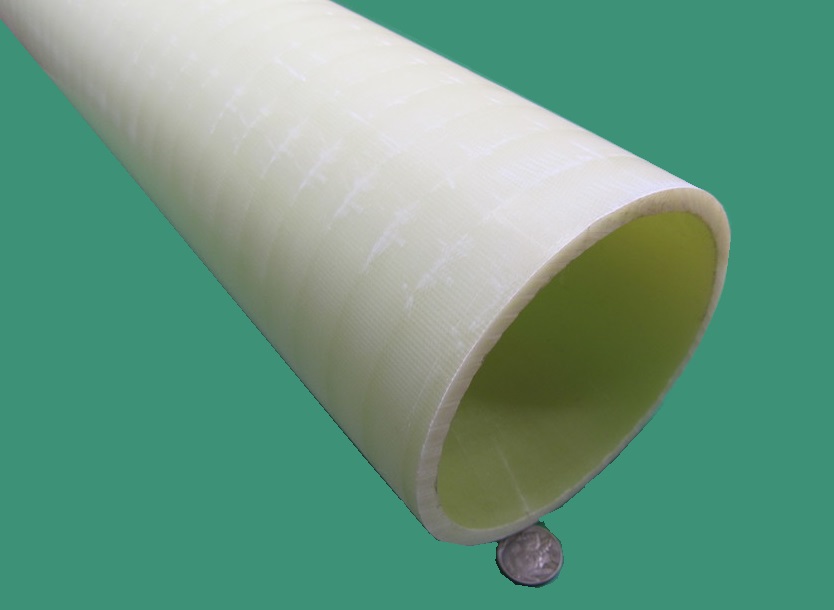

DPT-6941 5.062 4.562 $312.06 3 Feet

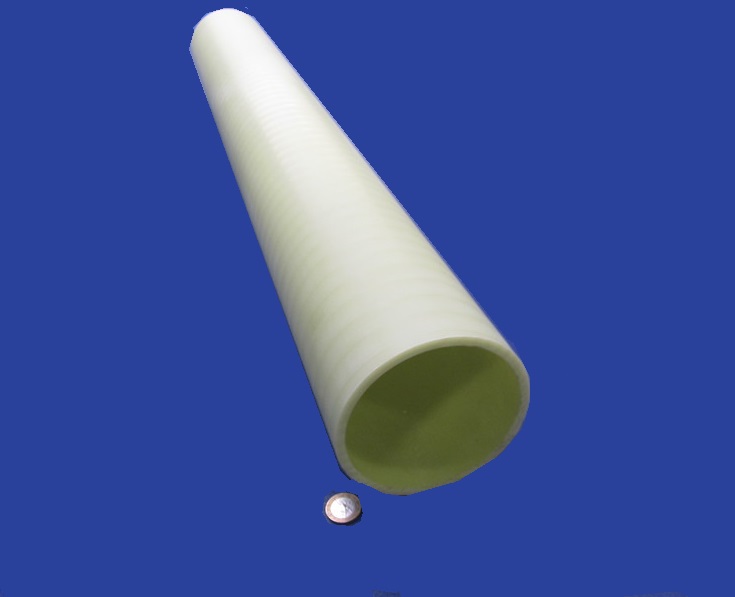

DPT-6942 5.125 4.625 $315.93 3 Feet
DPT-6943 5.187 4.687 $319.78 3 Feet
DPT-6944 5.250 4.750 $323.68 3 Feet
DPT-6945 5.312 4.812 $327.51 3 Feet
DPT-6946 5.375 4.875 $364.78 3 Feet
DPT-6947 5.437 4.937 $368.98 3 Feet
DPT-1461 5.500 5.000 $373.28 3 Feet
DPT-6948 5.562 5.062 $377.51 3 Feet
DPT-6949 5.625 5.125 $381.78 3 Feet
DPT-6950 5.687 5.187 $386.01 3 Feet
DPT-6951 5.750 5.250 $390.28 3 Feet
DPT-6952 5.812 5.312 $394.51 3 Feet
DPT-6953 5.875 5.375 $398.81 3 Feet
DPT-6954 5.937 5.437 $403.00 3 Feet
DPT-1467 6.000 5.500 $407.30 3 Feet
DPT-6955 6.062 5.562 $411.53 3 Feet
DPT-6956 6.125 5.625 $415.80 3 Feet
DPT-6957 6.187 5.687 $420.03 3 Feet
DPT-6958 6.250 5.750 $424.31 3 Feet
DPT-6959 6.312 5.812 $428.53 3 Feet
DPT-6960 6.375 5.875 $432.83 3 Feet
DPT-6961 6.437 5.937 $437.03 3 Feet
DPT-1473 6.500 6.000 $441.33 3 Feet
DPT-6962 6.562 6.062 $407.38 3 Feet
DPT-6963 6.625 6.125 $411.43 3 Feet
DPT-6964 6.687 6.187 $415.43 3 Feet
DPT-6965 6.750 6.250 $419.51 3 Feet
DPT-6966 6.812 6.312 $423.51 3 Feet
DPT-6967 6.875 6.375 $427.58 3 Feet
DPT-6968 6.937 6.437 $431.58 3 Feet
DPT-6969 7.000 6.500 $435.63 3 Feet
DPT-6970 7.062 6.562 $439.63 3 Feet
DPT-6971 7.125 6.625 $443.71 3 Feet
DPT-6972 7.187 6.687 $447.71 3 Feet
DPT-6973 7.250 6.750 $451.75 3 Feet
DPT-6974 7.312 6.812 $455.78 3 Feet
DPT-6975 7.375 6.875 $459.83 3 Feet
DPT-6976 7.437 6.937 $463.83 3 Feet
DPT-6977 7.500 7.000 $467.91 3 Feet
DPT-6978 7.562 7.062 $471.91 3 Feet
DPT-6979 7.625 7.125 $475.96 3 Feet
DPT-6980 7.687 7.187 $479.96 3 Feet
DPT-6981 7.750 7.250 $484.03 3 Feet
DPT-6982 7.812 7.312 $488.03 3 Feet
DPT-6983 7.875 7.375 $492.10 3 Feet
DPT-6984 7.937 7.437 $496.10 3 Feet
DPT-6985 8.000 7.500 $500.16 3 Feet
DPT-6986 8.062 7.562 $504.16 3 Feet
DPT-6987 8.125 7.625 $508.23 3 Feet
DPT-6988 8.187 7.687 $512.23 3 Feet
DPT-6989 8.250 7.750 $516.31 3 Feet
DPT-6990 8.312 7.812 $520.31 3 Feet
DPT-6991 8.375 7.875 $524.36 3 Feet
DPT-6992 8.437 7.937 $528.36 3 Feet
DPT-6993 8.500 8.000 $532.43 3 Feet
DPT-6995 8.625 8.125 $540.48 3 Feet
DPT-6996 8.687 8.187 $544.48 3 Feet
DPT-6997 8.750 8.250 $548.56 3 Feet
DPT-6998 8.812 8.312 $552.56 3 Feet
DPT-6999 8.875 8.375 $556.63 3 Feet
DPT-7000 8.937 8.437 $560.63 3 Feet
DPT-7001 9.000 8.500 $564.68 3 Feet
DPT-7002 9.062 8.562 $568.68 3 Feet
DPT-7003 9.125 8.625 $572.76 3 Feet
DPT-7004 9.187 8.687 $576.76 3 Feet
DPT-7005 9.250 8.750 $580.83 3 Feet
DPT-7006 9.312 8.812 $584.83 3 Feet
DPT-7007 9.375 8.875 $588.88 3 Feet
DPT-7008 9.437 8.937 $592.88 3 Feet
DPT-7009 9.500 9.000 $596.96 3 Feet
DPT-7010 9.562 9.062 $600.96 3 Feet
DPT-7011 9.625 9.125 $605.03 3 Feet
DPT-7012 9.687 9.187 $609.03 3 Feet
DPT-7013 9.750 9.250 $613.08 3 Feet
DPT-7014 9.812 9.312 $617.08 3 Feet
DPT-7015 9.875 9.375 $621.16 3 Feet
DPT-7016 9.937 9.437 $625.16 3 Feet

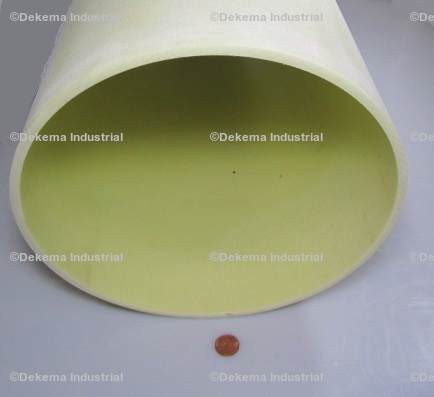

DPT-4841 10.000 9.500 $629.21 3 Feet
DPT-7017 10.062 9.562 $633.21 3 Feet
DPT-7018 10.125 9.625 $637.28 3 Feet
DPT-7019 10.187 9.687 $641.28 3 Feet
DPT-7020 10.250 9.750 $645.36 3 Feet
DPT-7021 10.312 9.812 $649.36 3 Feet
DPT-7022 10.375 9.875 $653.41 3 Feet
DPT-7023 10.437 9.937 $657.41 3 Feet
DPT-7024 10.500 10.000 $661.48 3 Feet
DPT-7025 10.562 10.062 $665.48 3 Feet
DPT-7026 10.625 10.125 $669.56 3 Feet
DPT-7027 10.687 10.187 $673.56 3 Feet
DPT-7028 10.750 10.250 $677.61 3 Feet
DPT-7029 10.812 10.312 $681.61 3 Feet
DPT-7030 10.875 10.375 $685.68 3 Feet
DPT-7031 10.937 10.437 $689.68 3 Feet
DPT-7032 11.000 10.500 $693.73 3 Feet
DPT-7033 11.062 10.562 $697.76 3 Feet
DPT-7034 11.125 10.625 $701.81 3 Feet
DPT-7035 11.187 10.687 $705.81 3 Feet
DPT-7036 11.250 10.750 $709.88 3 Feet
DPT-7037 11.312 10.812 $713.88 3 Feet
DPT-7038 11.375 10.875 $717.93 3 Feet
DPT-7040 11.500 11.000 $726.01 3 Feet
DPT-7041 11.562 11.062 $730.01 3 Feet
DPT-7042 11.625 11.125 $734.08 3 Feet
DPT-7043 11.687 11.187 $738.08 3 Feet
DPT-7047 11.750 11.250 $742.13 3 Feet
DPT-7044 11.812 11.312 $746.13 3 Feet
DPT-7045 11.875 11.375 $750.21 3 Feet
DPT-7046 11.937 11.437 $754.21 3 Feet
DPT-7048 12.000 11.500 $758.28 3 Feet
DPT-7049 12.062 11.562 $762.28 3 Feet
DPT-7050 12.125 11.625 $766.33 3 Feet
DPT-7051 12.187 11.687 $770.33 3 Feet
DPT-7052 12.250 11.750 $774.41 3 Feet
DPT-7053 12.312 11.812 $778.41 3 Feet
DPT-7054 12.375 11.875 $782.46 3 Feet
DPT-7055 12.437 11.937 $786.46 3 Feet
DPT-7056 12.500 12.000 $790.53 3 Feet
DPT-7057 12.562 12.062 $794.53 3 Feet
DPT-7058 12.625 12.125 $798.61 3 Feet
DPT-7059 12.687 12.187 $802.61 3 Feet
DPT-7060 12.750 12.250 $806.66 3 Feet
DPT-7061 12.812 12.312 $810.66 3 Feet
DPT-7062 12.875 12.375 $814.73 3 Feet
DPT-7063 12.937 12.437 $818.73 3 Feet
DPT-7067 13.000 12.500 $822.81 3 Feet
DPT-7068 13.062 12.562 $826.81 3 Feet
DPT-7069 13.125 12.625 $830.86 3 Feet
DPT-7070 13.187 12.687 $834.86 3 Feet
DPT-7071 13.250 12.750 $838.93 3 Feet
DPT-7072 13.312 12.812 $842.93 3 Feet
DPT-7073 13.375 12.875 $847.01 3 Feet
DPT-7074 13.437 12.937 $851.01 3 Feet
DPT-7075 13.500 13.000 $855.06 3 Feet
DPT-7076 13.562 13.062 $859.06 3 Feet
DPT-7077 13.625 13.125 $863.13 3 Feet
DPT-7078 13.687 13.187 $867.13 3 Feet
DPT-7079 13.750 13.250 $871.18 3 Feet
DPT-7080 13.812 13.312 $875.18 3 Feet
DPT-7081 13.875 13.375 $879.26 3 Feet
DPT-7082 13.937 13.437 $883.26 3 Feet
DPT-7083 14.000 13.500 $887.33 3 Feet
DPT-7084 14.062 13.562 $891.33 3 Feet
DPT-7085 14.125 13.625 $895.38 3 Feet
DPT-7086 14.187 13.687 $899.38 3 Feet
DPT-7087 14.250 13.750 $903.46 3 Feet
DPT-7088 14.312 13.812 $907.46 3 Feet
DPT-7089 14.375 13.875 $911.53 3 Feet
DPT-7090 14.437 13.937 $915.53 3 Feet
DPT-7091 14.500 14.000 $919.58 3 Feet
DPT-7092 14.562 14.062 $923.58 3 Feet
DPT-7093 14.625 14.125 $927.66 3 Feet
DPT-7094 14.687 14.187 $931.66 3 Feet
DPT-7095 14.750 14.250 $935.73 3 Feet
DPT-7096 14.812 14.312 $939.73 3 Feet
DPT-7097 14.875 14.375 $943.78 3 Feet
DPT-7098 14.937 14.437 $947.78 3 Feet
DPT-7099 15.000 14.500 $951.86 3 Feet
DPT-7100 15.062 14.562 $955.86 3 Feet
DPT-7101 15.125 14.625 $959.91 3 Feet
DPT-7102 15.187 14.687 $963.91 3 Feet
DPT-7103 15.250 14.750 $967.98 3 Feet
DPT-7104 15.312 14.812 $971.98 3 Feet
DPT-7105 15.375 14.875 $976.06 3 Feet
DPT-7106 15.437 14.937 $980.06 3 Feet
DPT-7107 15.500 15.000 $984.11 3 Feet
DPT-7108 15.562 15.062 $988.11 3 Feet
DPT-7109 15.625 15.125 $992.18 3 Feet
DPT-7110 15.687 15.187 $996.18 3 Feet
DPT-7111 15.750 15.250 $1,000.26 3 Feet
DPT-7112 15.812 15.312 $1,004.26 3 Feet
DPT-7113 15.875 15.375 $1,008.31 3 Feet
DPT-7114 15.937 15.437 $1,012.31 3 Feet
DPT-7115 16.000 15.500 $1,016.38 3 Feet
DPT-7116 16.062 15.562 $1,020.38 3 Feet
DPT-7117 16.125 15.625 $1,024.43 3 Feet
DPT-7118 16.187 15.687 $1,028.46 3 Feet
DPT-7119 16.250 15.750 $1,032.51 3 Feet
DPT-7120 16.312 15.812 $1,036.50 3 Feet
DPT-7121 16.375 15.875 $1,040.58 3 Feet
DPT-7122 16.437 15.937 $1,044.58 3 Feet
DPT-7123 16.500 16.000 $1,048.63 3 Feet
DPT-7124 16.562 16.062 $1,052.63 3 Feet
DPT-7125 16.625 16.125 $1,056.71 3 Feet
DPT-7126 16.687 16.187 $1,060.71 3 Feet
DPT-7127 16.750 16.250 $1,064.78 3 Feet
DPT-7128 16.812 16.312 $1,068.78 3 Feet
DPT-7129 16.875 16.375 $1,072.83 3 Feet
DPT-7130 16.937 16.437 $1,076.83 3 Feet
DPT-7131 17.000 16.500 $1,080.91 3 Feet
DPT-7132 17.062 16.562 $1,084.91 3 Feet
DPT-7133 17.125 16.625 $1,088.98 3 Feet
DPT-7134 17.187 16.687 $1,092.98 3 Feet
DPT-7135 17.250 16.750 $1,097.03 3 Feet
DPT-7136 17.312 16.812 $1,101.03 3 Feet
DPT-7137 17.375 16.875 $1,105.11 3 Feet
DPT-7139 17.500 17.000 $1,113.16 3 Feet
DPT-7140 17.562 17.062 $1,117.16 3 Feet
DPT-7141 17.625 17.125 $1,121.23 3 Feet
DPT-7142 17.687 17.187 $1,125.23 3 Feet
DPT-7143 17.750 17.250 $1,129.30 3 Feet
DPT-7144 17.812 17.312 $1,133.31 3 Feet
DPT-7145 17.875 17.375 $1,137.36 3 Feet
DPT-7146 17.937 17.437 $1,141.36 3 Feet
DPT-7147 18.000 17.500 $1,145.43 3 Feet
DPT-7148 18.062 17.562 $1,149.43 3 Feet
DPT-7149 18.125 17.625 $1,153.50 3 Feet
DPT-7150 18.187 17.687 $1,157.51 3 Feet
DPT-7151 18.250 17.750 $1,161.55 3 Feet
DPT-7152 18.312 17.812 $1,165.55 3 Feet
DPT-7153 18.375 17.875 $1,169.63 3 Feet
DPT-7154 18.437 17.937 $1,173.63 3 Feet
DPT-7155 18.500 18.000 $1,177.71 3 Feet
DPT-7156 18.562 18.062 $1,181.71 3 Feet
DPT-7157 18.625 18.125 $1,185.75 3 Feet
DPT-7158 18.687 18.187 $1,189.75 3 Feet
DPT-7159 18.750 18.250 $1,193.83 3 Feet
DPT-7160 18.812 18.312 $1,197.83 3 Feet
DPT-7161 18.875 18.375 $1,201.88 3 Feet
DPT-7162 18.937 18.437 $1,205.88 3 Feet
DPT-7163 19.000 18.500 $1,209.96 3 Feet
DPT-7164 19.062 18.562 $1,213.96 3 Feet
DPT-7165 19.125 18.625 $1,218.03 3 Feet
DPT-7166 19.187 18.687 $1,222.03 3 Feet
DPT-7167 19.250 18.750 $1,226.08 3 Feet
DPT-7168 19.312 18.812 $1,230.08 3 Feet
DPT-7169 19.375 18.875 $1,234.16 3 Feet
DPT-7170 19.437 18.937 $1,238.16 3 Feet
DPT-7171 19.500 19.000 $1,242.23 3 Feet
DPT-7172 19.562 19.062 $1,246.23 3 Feet
DPT-7173 19.625 19.125 $1,250.28 3 Feet
DPT-7174 19.687 19.187 $1,254.28 3 Feet
DPT-7175 19.750 19.250 $1,258.36 3 Feet
DPT-7176 19.812 19.312 $1,262.36 3 Feet
DPT-7177 19.875 19.375 $1,266.40 3 Feet
DPT-7178 19.937 19.437 $1,270.43 3 Feet
DPT-7179 20.000 19.500 $1,274.48 3 Ft

nominal inches,
diameter

plus or minus (�) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"


*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
