G10 FR4 Tubes Glass Reinforced Epoxy  .375" Wall

(Micarta) (High Pressure Laminates) G10 FR4 Glass Reinforced - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

.031" (1/32") Wall Thickness	.062" (1/16")Wall Thickness	.093" (3/32")Wall Thickness	.125" (1/8")Wall Thickness	.187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness	.375" (3/8")Wall Thickness	.500" (1/2")Wall Thickness	.750" (3/4")WallThickness	1.00" Wall Thickness (Max. Possible)

G10 FR4 Tubes  .375 Inch Wall Thickness

Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts  42-48"

**Minimum's and Lead Times Apply 3 Ft Minimums, unless Noted ** Denotes 6 Ft Minimum Diameter Tolerances
Part #	Outside Diameter (in.)	Inside Diameter (in.)	Price Per Foot
DPT-7308**	1.250	0.500	$56.46

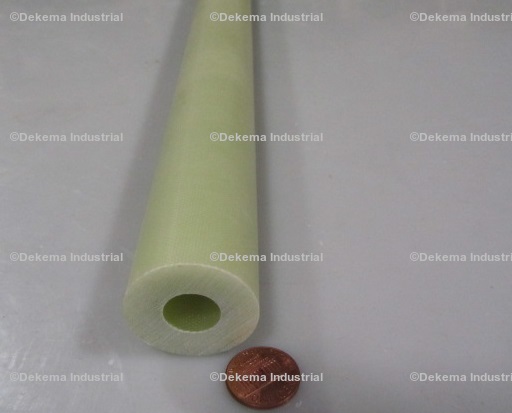

DPT-7291**	1.312	0.562	$59.77
DPT-7292**	1.375	0.625	$63.10
DPT-7293**	1.437	0.687	$66.41
DPT-1131G**	1.500	0.750	$68.90
DPT-7294**	1.562	0.812	$74.24
DPT-7295**	1.625	0.875	$76.56
DPT-7296**	1.687	0.937	$80.39
DPT-7289**	1.750	1.00	$84.22
DPT-7298**	1.812	1.062	$88.04
DPT-7288**	1.875	1.125	$91.84
DPT-7300**	1.937	1.187	$95.67
DPT-1398**	2.000	1.250	$99.50
DPT-7301	2.062	1.312	$169.51
DPT-7302	2.125	1.375	$175.23
DPT-7303	2.187	1.437	$180.88
DPT-1402	2.250	1.500	$186.63
DPT-7304	2.312	1.562	$192.28
DPT-7305	2.375	1.625	$198.03
DPT-7306	2.437	1.687	$203.68
DPT-1407	2.500	1.750	$209.41
DPT-7297	2.562	1.812	$215.06
DPT-7279	2.625	1.875	$220.81
DPT-7214	2.687	1.937	$226.46
DPT-1412	2.750	2.000	$232.21
DPT-7271	2.812	2.062	$237.86
DPT-7272	2.875	2.125	$243.58
DPT-7273	2.937	2.187	$249.23

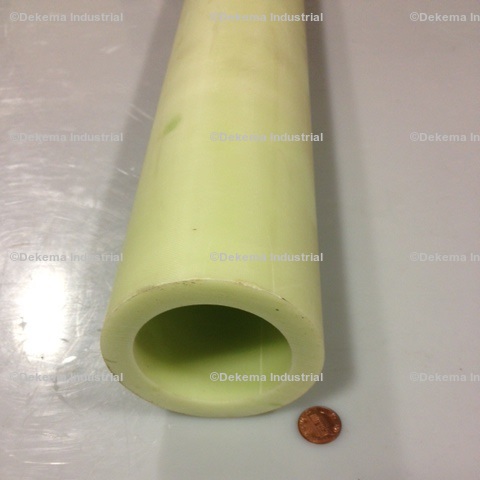

DPT-1417	3.000	2.250	$254.98
DPT-7274	3.062	2.312	$260.63
DPT-7275	3.125	2.375	$266.38
DPT-7276	3.187	2.437	$272.03
DPT-1422	3.250	2.500	$277.75
DPT-7278	3.312	2.562	$283.41
DPT-7309	3.375	2.625	$289.16
DPT-7280	3.437	2.687	$294.81
DPT-1427	3.500	2.750	$300.53
DPT-7282	3.562	2.812	$306.18
DPT-7283	3.625	2.875	$311.93
DPT-7284	3.687	2.937	$317.58
DPT-1432	3.750	3.000	$323.33
DPT-7286	3.812	3.062	$328.98
DPT-7287	3.875	3.125	$334.71
DPT-7277	3.937	3.187	$340.36
DPT-1437	4.000	3.250	$346.10
DPT-7339	4.062	3.312	$351.75
DPT-7307	4.125	3.375	$357.51
DPT-7331	4.187	3.437	$363.16
DPT-1442	4.250	3.500	$368.88
DPT-7332	4.312	3.562	$374.53
DPT-7333	4.375	3.625	$380.28
DPT-7334	4.437	3.687	$385.93
DPT-1447	4.500	3.750	$391.68
DPT-7335	4.562	3.812	$397.33
DPT-7336	4.625	3.875	$403.06
DPT-7329	4.687	3.937	$408.71
DPT-7338	4.750	4.000	$414.46
DPT-7328	4.812	4.062	$420.10
DPT-7340	4.875	4.125	$425.85
DPT-7341	4.937	4.187	$431.50
DPT-7343	5.00	4.25	$437.23
DPT-7501	5.062	4.312	$442.88
DPT-7210	5.125	4.375	$448.63
DPT-7211	5.187	4.437	$454.28
DPT-7212	5.250	4.500	$460.03
DPT-7213	5.312	4.562	$465.68
DPT-7337	5.375	4.25	$471.41
DPT-7321	5.437	4.687	$477.05
DPT-7254	5.500	4.750	$482.81
DPT-7314	5.562	4.812	$488.46
DPT-7315	5.625	4.875	$543.98
DPT-7316	5.687	4.937	$550.21
DPT-7317	5.750	5.00	$556.51
DPT-7312	5.812	5.062	$562.73
DPT-7320	5.875	5.125	$569.06
DPT-7270	5.937	5.187	$575.28
DPT-7322	6.00	5.25	$581.58
DPT-7323	6.062	5.312	$587.81
DPT-7324	6.125	5.375	$594.13
DPT-7325	6.187	5.437	$600.36
DPT-7326	6.250	5.500	$606.68
DPT-7327	6.312	5.562	$612.88
DPT-7318	6.375	5.25	$619.21
DPT-7262	6.437	5.687	$625.43
DPT-7371	6.500	5.750	$631.76
DPT-7256	6.562	5.812	$637.96
DPT-7257	6.625	5.875	$644.28
DPT-7258	6.687	5.937	$650.51
DPT-7259	6.750	6.00	$656.83
DPT-7313	6.812	6.062	$623.13
DPT-7261	6.875	6.125	$629.21
DPT-7342	6.937	6.187	$635.21
DPT-7263	7.00	6.25	$641.31
DPT-7264	7.062	6.312	$647.31
DPT-7265	7.125	6.375	$653.41
DPT-7266	7.187	6.437	$659.41
DPT-7267	7.250	6.500	$665.51
DPT-7268	7.312	6.562	$671.51
DPT-7260	7.375	6.25	$677.61
DPT-7364	7.437	6.687	$683.61
DPT-7357	7.500	6.750	$689.71
DPT-7358	7.562	6.812	$695.71
DPT-7359	7.625	6.875	$701.81
DPT-7360	7.687	6.937	$707.81

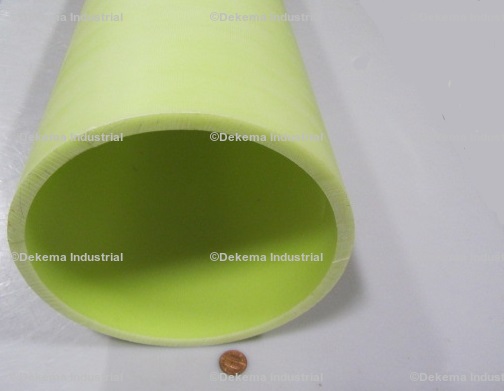

DPT-7361	7.750	7.00	$713.91
DPT-7330	7.812	7.062	$719.91
DPT-7363	7.875	7.125	$726.01
DPT-7354	7.937	7.187	$732.01
DPT-7365	8.00	7.25	$738.11
DPT-7366	8.062	7.312	$744.11
DPT-7367	8.125	7.375	$750.21
DPT-7368	8.187	7.437	$756.21
DPT-7369	8.250	7.500	$762.31
DPT-7370	8.312	7.562	$768.31
DPT-7362	8.375	7.25	$774.41
DPT-7348	8.437	7.687	$780.41
DPT-7253	8.500	7.750	$786.51
DPT-7215	8.562	7.812	$792.51
DPT-7216	8.625	7.875	$798.61
DPT-7217	8.687	7.937	$804.61
DPT-7344	8.750	8.00	$810.71
DPT-7345	8.875	8.125	$822.81
DPT-7356	8.937	8.187	$828.81
DPT-7347	9.00	8.25	$834.91
DPT-7355	9.062	8.312	$840.91
DPT-7349	9.125	8.375	$847.01
DPT-7350	9.187	8.437	$853.01
DPT-7351	9.250	8.500	$859.08
DPT-7352	9.312	8.562	$865.11
DPT-7353	9.375	8.625	$871.18
DPT-7346	9.500	8.750	$883.28
DPT-7204	9.562	8.812	$889.28
DPT-7255	9.625	8.875	$895.38
DPT-7198	9.687	8.937	$901.38
DPT-7199	9.750	9.00	$907.48
DPT-7200	9.812	9.062	$913.48
DPT-7201	9.875	9.125	$919.58
DPT-7196	9.937	9.187	$925.58
DPT-7203	10.00	9.25	$931.68
DPT-7195	10.062	9.312	$937.68
DPT-7205	10.125	9.375	$943.78
DPT-7206	10.187	9.437	$949.78
DPT-7207	10.250	9.500	$955.88
DPT-7208	10.312	9.562	$961.88
DPT-7218	10.375	9.25	$967.98
DPT-7219	10.437	9.687	$973.98
DPT-7202	10.500	9.750	$980.08
DPT-7188	10.562	9.812	$986.08
DPT-7182	10.625	9.875	$992.18
DPT-7183	10.687	9.937	$998.18
DPT-7184	10.750	10.00	$1,004.28
DPT-7180	10.812	10.062	$1,010.28
DPT-7185	10.875	10.125	$1,016.38
DPT-7197	10.937	10.187	$1,022.38
DPT-7187	11.00	10.25	$1,028.48
DPT-7222	11.062	10.312	$1,034.48
DPT-7189	11.125	10.375	$1,040.58
DPT-7190	11.187	10.437	$1,046.58
DPT-7191	11.25	10.50	$1,052.68
DPT-7192	11.312	10.562	$1,058.68
DPT-7193	11.375	10.625	$1,064.78
DPT-7194	11.437	10.687	$1,070.78
DPT-7186	11.500	10.750	$1,076.88
DPT-7246	11.562	10.812	$1,082.88
DPT-7239	11.625	10.875	$1,088.98
DPT-7240	11.687	10.937	$1,094.98
DPT-7241	11.750	11.00	$1,101.08
DPT-7242	11.812	11.062	$1,107.08
DPT-7243	11.875	11.125	$1,113.16
DPT-7220	11.937	11.187	$1,119.16
DPT-7245	12.00	11.25	$1,125.25
DPT-7236	12.062	11.312	$1,131.26
DPT-7247	12.125	11.375	$1,137.36
DPT-7248	12.187	11.437	$1,143.36
DPT-7249	12.25	11.50	$1,149.46
DPT-7250	12.312	11.562	$1,155.46
DPT-7251	12.375	11.625	$1,161.55
DPT-7252	12.437	11.687	$1,167.55
DPT-7244	12.500	11.750	$1,173.66
DPT-7230	12.562	11.812	$1,179.66
DPT-7209	12.687	11.937	$1,191.75
DPT-7223	12.750	12.00	$1,197.86
DPT-7224	12.812	12.062	$1,203.86
DPT-7225	12.875	12.125	$1,209.96
DPT-7226	12.937	12.187	$1,215.96
DPT-7227	13.00	12.25	$1,222.06
DPT-7238	13.062	12.312	$1,228.05
DPT-7229	13.125	12.375	$1,234.16
DPT-7237	13.187	12.437	$1,240.15
DPT-7231	13.25	12.50	$1,246.26
DPT-7232	13.312	12.562	$1,252.25
DPT-7233	13.375	12.625	$1,258.36
DPT-7234	13.437	12.687	$1,264.35

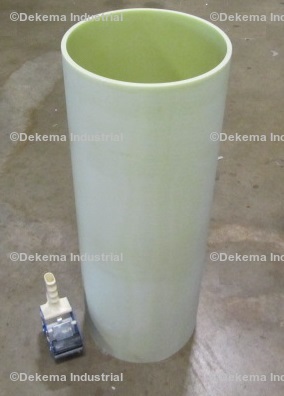

DPT-7235	13.500	12.750	$1,270.46
DPT-7221	13.562	12.812	$1,276.46
DPT-7228	13.625	12.875	$1,282.55
DPT-7460	13.687	12.937	$1,288.55
DPT-7417	13.750	13.00	$1,294.66
DPT-7464	13.812	13.062	$1,300.66
DPT-7463	13.875	13.125	$1,306.75
DPT-7462	13.937	13.187	$1,312.76
DPT-7441	14.00	13.25	$1,318.86
DPT-7442	14.062	13.312	$1,324.85
DPT-7461	14.125	13.375	$1,330.96
DPT-7466	14.187	13.437	$1,336.96
DPT-7459	14.25	13.50	$1,343.06
DPT-7458	14.312	13.562	$1,349.06
DPT-7457	14.375	13.625	$1,355.13
DPT-7481	14.437	13.687	$1,361.15
DPT-7480	14.500	13.750	$1,367.23
DPT-7479	14.562	13.812	$1,373.23
DPT-7440	14.625	13.875	$1,379.33
DPT-7482	14.687	13.937	$1,385.33
DPT-7439	14.750	14.00	$1,391.43
DPT-7419	14.812	14.062	$1,397.43
DPT-7444	14.875	14.125	$1,403.53
DPT-7443	14.937	14.187	$1,409.53
DPT-7447	15.00	14.25	$1,415.63
DPT-7465	15.062	14.312	$1,421.63
DPT-7473	15.125	14.375	$1,427.73
DPT-7476	15.187	14.437	$1,433.73
DPT-7472	15.25	14.50	$1,439.83
DPT-7471	15.312	14.562	$1,445.83
DPT-7470	15.375	14.625	$1,451.93
DPT-7469	15.437	14.687	$1,457.93
DPT-7468	15.500	14.750	$1,464.03
DPT-7467	15.562	14.812	$1,470.03
DPT-7483	15.625	14.875	$1,476.13
DPT-7432	15.687	14.937	$1,482.13
DPT-7425	15.750	15.00	$1,488.23
DPT-7426	15.812	15.062	$1,494.23
DPT-7427	15.875	15.125	$1,500.33
DPT-7428	15.937	15.187	$1,506.33
DPT-7429	16.00	15.25	$1,512.43
DPT-7478	16.062	15.312	$1,518.43
DPT-7431	16.125	15.375	$1,524.53
DPT-7422	16.187	15.437	$1,530.53
DPT-7433	16.25	15.50	$1,536.63
DPT-7434	16.312	15.562	$1,542.63
DPT-7435	16.375	15.625	$1,548.73
DPT-7436	16.437	15.687	$1,554.73
DPT-7437	16.500	15.750	$1,560.83
DPT-7438	16.562	15.812	$1,566.83
DPT-7430	16.625	15.875	$1,572.93
DPT-7452	16.687	15.937	$1,578.93
DPT-7416	16.750	16.00	$1,585.03
DPT-7475	16.812	16.062	$1,591.03
DPT-7474	16.875	16.125	$1,597.10
DPT-7372	16.937	16.187	$1,603.13
DPT-7456	17.00	16.25	$1,609.21
DPT-7455	17.062	16.312	$1,615.21
DPT-7424	17.125	16.375	$1,621.30
DPT-7453	17.187	16.437	$1,627.30
DPT-7423	17.25	16.50	$1,633.41
DPT-7451	17.312	16.562	$1,639.41
DPT-7450	17.375	16.625	$1,645.50
DPT-7449	17.437	16.687	$1,651.51
DPT-7421	17.500	16.750	$1,657.61
DPT-7448	17.562	16.812	$1,663.60
DPT-7477	17.625	16.875	$1,669.71
DPT-7454	17.687	16.937	$1,675.71
DPT-7396	17.750	17.00	$1,681.81
DPT-7418	17.812	17.062	$1,687.81
DPT-7390	17.875	17.125	$1,693.90
DPT-7391	17.937	17.187	$1,699.90
DPT-7392	18.00	17.25	$1,706.00
DPT-7393	18.062	17.312	$1,712.00
DPT-7388	18.125	17.375	$1,718.11
DPT-7395	18.187	17.437	$1,724.11
DPT-7387	18.25	17.50	$1,730.21
DPT-7397	18.312	17.562	$1,736.21
DPT-7398	18.375	17.625	$1,742.30
DPT-7399	18.437	17.687	$1,748.30
DPT-7400	18.500	17.750	$1,754.41
DPT-7401	18.562	17.812	$1,760.41
DPT-7402	18.625	17.875	$1,766.51
DPT-7394	18.687	17.937	$1,772.51
DPT-7380	18.750	18.00	$1,778.60
DPT-7373	18.812	18.062	$1,784.60
DPT-7374	18.875	18.125	$1,790.71
DPT-7375	18.937	18.187	$1,796.71
DPT-7376	19.00	18.25	$1,802.81
DPT-7377	19.062	18.312	$1,808.80
DPT-7389	19.125	18.375	$1,814.90
DPT-7379	19.187	18.437	$1,820.91
DPT-7499	19.25	18.50	$1,827.00
DPT-7381	19.312	18.562	$1,833.00
DPT-7382	19.375	18.625	$1,839.08
DPT-7383	19.437	18.687	$1,845.11
DPT-7384	19.500	18.750	$1,851.18
DPT-7385	19.562	18.812	$1,857.18
DPT-7386	19.625	18.875	$1,863.28
DPT-7378	19.687	18.937	$1,869.28
DPT-7409	19.750	19.00	$1,875.38
DPT-7446	19.812	19.062	$1,881.38
DPT-7405	19.875	19.125	$1,887.48
DPT-7485	19.937	19.187	$1,893.48
DPT-7484	20.00	19.250	$1,899.58

nominal inches, diameter	plus or minus (�) tolerance, inches
	ID inside diameter		OD outside diameter
	steel mandrel	built-up mandrel
.125" -.749"	.003"	-	.005"
.750" - 1.999"	.004"	-	.005"
2.000" - 4.000"	.006"	-	.008"
			*turned	*as wound
4.001" - 12.000"	.010"	-	.025"	plus only
12.001" - 18.000"	.030"	.060"	.030"	plus only
18.001" - 24.000"	.040"	.075"	.035"	plus only
24.001" - 48.000"	.060"	.090"	.040"	plus only
*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
