G10 FR4 Tubes Glass Reinforced  .750 Inch Wall Thickness (3/4")



(Micarta) (High Pressure Laminates) G10FR4 Glass Reinforced - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

.031" (1/32") Wall Thickness	.062" (1/16")Wall Thickness	.093" (3/32")Wall Thickness	.125" (1/8")Wall Thickness	.187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness	.375" (3/8")Wall Thickness	.500" (1/2")Wall Thickness	.750" (3/4")WallThickness	1.00" Wall Thickness (Max. Possible)

3/4" Wall G10 FR4 Tubes

Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts  42-48"

3 Ft Minimum's Apply for All Sizes .750" Wall Selections 3 Ft Minimums, Unless Noted for All Sizes.  ** Denotes 6 Ft Min.
Part #	Outside Diameter (in.)	Inside Diameter (in.)	Price Per Foot
DPT-7690**	2.000	.500	$168.95
DPT-7680**	2.125	.625	$185.81
DPT-7699	2.250	.750	$287.51
DPT-7698	2.375	.875	$309.88

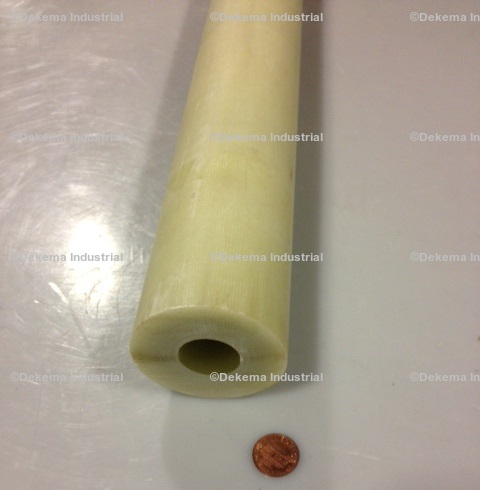

DPT-7697	2.500	1.000	$332.26
DPT-7696	2.625	1.125	$354.66
DPT-7695	2.750	1.250	$377.03
DPT-7694	2.875	1.375	$399.41
DPT-7693	3.000	1.500	$421.81
DPT-7701	3.125	1.625	$444.18
DPT-7691	3.250	1.750	$466.56
DPT-7702	3.375	1.875	$488.96
DPT-7689	3.500	2.000	$511.33
DPT-7688	3.625	2.125	$533.71
DPT-7687	3.750	2.250	$556.11
DPT-7686	3.875	2.375	$578.48
DPT-7685	4.000	2.500	$600.86
DPT-7684	4.125	2.625	$623.26
DPT-7683	4.250	2.750	$645.63
DPT-7682	4.375	2.875	$668.01
DPT-7724	4.500	3.000	$690.41
DPT-7692	4.625	3.125	$712.78
DPT-7712	4.750	3.250	$735.16
DPT-7808	4.875	3.375	$757.53
DPT-7722	5.000	3.500	$779.93
DPT-7720	5.125	3.625	$802.31
DPT-7719	5.250	3.750	$824.68
DPT-7718	5.375	3.875	$847.08
DPT-1453	5.500	4.000	$869.46
DPT-7717	5.625	4.125	$891.83
DPT-7716	5.750	4.250	$914.23
DPT-7715	5.875	4.375	$936.61
DPT-1458	6.000	4.500	$958.98
DPT-7700	6.125	4.625	$981.38
DPT-7713	6.250	4.750	$1,003.76
DPT-7679	6.375	4.875	$1,129.50
DPT-1463	6.500	5.000	$1,154.13
DPT-7711	6.625	5.125	$1,178.78
DPT-7710	6.750	5.250	$1,203.41
DPT-7709	6.875	5.375	$1,228.05
DPT-1469	7.000	5.500	$1,252.68
DPT-7708	7.125	5.625	$1,277.33
DPT-7707	7.250	5.750	$1,301.96
DPT-7706	7.375	5.875	$1,326.61
DPT-1475	7.500	6.000	$1,351.23
DPT-7705	7.625	6.125	$1,330.96
DPT-7704	7.750	6.250	$1,355.13
DPT-7703	7.875	6.375	$1,379.33
DPT-7714	8.000	6.500	$1,403.53
DPT-7650	8.125	6.625	$1,427.73
DPT-7681	8.250	6.750	$1,451.93
DPT-7659	8.375	6.875	$1,476.13
DPT-7658	8.500	7.000	$1,500.33
DPT-7657	8.625	7.125	$1,524.53
DPT-7656	8.750	7.250	$1,548.73
DPT-7655	8.875	7.375	$1,572.93
DPT-7654	9.000	7.500	$1,597.10
DPT-7653	9.125	7.625	$1,621.30
DPT-7661	9.250	7.750	$1,645.50
DPT-7651	9.375	7.875	$1,669.71
DPT-7662	9.500	8.000	$1,693.90
DPT-7649	9.625	8.125	$1,718.11
DPT-7648	9.750	8.250	$1,742.30
DPT-7647	9.875	8.375	$1,766.51
DPT-7646	10.000	8.500	$1,790.71
DPT-7641	10.125	8.625	$1,814.90
DPT-7640	10.250	8.750	$1,839.08
DPT-7639	10.375	8.875	$1,863.28
DPT-7638	10.500	9.000	$1,887.48
DPT-7637	10.625	9.125	$1,911.68
DPT-7652	10.750	9.250	$1,935.88
DPT-7644	10.875	9.375	$1,960.08
DPT-7678	11.000	9.500	$1,984.28
DPT-7677	11.125	9.625	$2,008.48
DPT-7676	11.250	9.750	$2,032.68
DPT-7675	11.375	9.875	$2,056.88
DPT-7674	11.500	10.000	$2,081.06
DPT-7673	11.625	10.125	$2,105.26
DPT-7672	11.750	10.250	$2,129.46
DPT-7671	11.875	10.375	$2,153.65
DPT-7660	12.000	10.500	$2,177.86
DPT-7645	12.125	10.625	$2,202.06
DPT-7723	12.250	10.750	$2,226.26
DPT-7643	12.375	10.875	$2,250.46
DPT-7642	12.500	11.000	$2,274.66
DPT-7669	12.625	11.125	$2,298.86
DPT-7668	12.750	11.250	$2,323.06
DPT-7667	12.875	11.375	$2,347.23
DPT-7666	13.000	11.500	$2,371.43
DPT-7665	13.125	11.625	$2,395.63
DPT-7664	13.250	11.750	$2,419.83
DPT-7663	13.375	11.875	$2,444.03
DPT-7670	13.500	12.000	$2,468.23
DPT-7774	13.625	12.125	$2,492.43
DPT-7784	13.750	12.250	$2,516.63
DPT-7783	13.875	12.375	$2,540.83
DPT-7782	14.000	12.500	$2,565.03
DPT-7781	14.125	12.625	$2,589.21
DPT-7780	14.250	12.750	$2,613.40
DPT-7779	14.375	12.875	$2,637.61
DPT-7778	14.500	13.000	$2,661.81
DPT-7777	14.625	13.125	$2,686.00
DPT-7764	14.750	13.250	$2,710.21
DPT-7775	14.875	13.375	$2,734.40
DPT-7787	15.000	13.500	$2,758.61
DPT-7773	15.125	13.625	$2,782.81
DPT-7772	15.250	13.750	$2,807.01
DPT-7771	15.375	13.875	$2,831.18
DPT-7770	15.500	14.000	$2,855.38
DPT-7769	15.625	14.125	$2,879.58
DPT-7768	15.750	14.250	$2,903.78
DPT-7721	15.875	14.375	$2,927.98
DPT-7766	16.000	14.500	$2,952.18
DPT-7725	16.125	14.625	$2,976.38
DPT-7776	16.250	14.750	$3,000.58
DPT-7796	16.375	14.875	$3,024.78
DPT-7807	16.500	15.000	$3,048.98
DPT-7806	16.625	15.125	$3,073.15
DPT-7805	16.750	15.250	$3,097.36
DPT-7804	16.875	15.375	$3,121.56
DPT-7803	17.000	15.500	$3,145.76
DPT-7802	17.125	15.625	$3,169.96
DPT-7801	17.250	15.750	$3,194.16
DPT-7800	17.375	15.875	$3,218.35
DPT-7799	17.500	16.000	$3,242.56
DPT-7785	17.625	16.125	$3,266.76
DPT-7797	17.750	16.250	$3,290.96
DPT-7786	17.875	16.375	$3,315.13
DPT-7795	18.000	16.500	$3,339.33
DPT-7794	18.125	16.625	$3,363.53
DPT-7793	18.250	16.750	$3,387.73
DPT-7792	18.375	16.875	$3,411.93
DPT-7791	18.500	17.000	$3,436.13
DPT-7790	18.625	17.125	$3,460.33
DPT-7789	18.750	17.250	$3,484.53
DPT-7788	18.875	17.375	$3,508.73
DPT-7765	19.000	17.500	$3,532.93
DPT-7798	19.125	17.625	$3,557.10
DPT-7735	19.250	17.750	$3,581.31
DPT-7763	19.375	17.875	$3,605.51
DPT-7744	19.500	18.000	$3,629.71
DPT-7767	19.625	18.125	$3,653.90
DPT-7742	19.750	18.250	$3,678.11
DPT-7741	19.875	18.375	$3,702.31
DPT-7740	20.00	18.500	$3,726.50
DPT-7751	20.125	18.625	$3,750.71
DPT-7739	20.250	18.750	$3,774.91
DPT-7738	20.375	18.875	$3,799.08
DPT-7746	20.500	19.000	$3,823.28
DPT-7736	20.625	19.125	$3,847.48
DPT-7745	20.750	19.250	$3,871.68
DPT-7734	20.875	19.375	$3,895.88
DPT-7733	21.000	19.500	$3,920.08
DPT-7732	21.125	19.625	$3,944.28
DPT-7731	21.250	19.750	$3,968.48
DPT-7730	21.375	19.875	$3,992.68
DPT-7729	21.500	20.000	$4,846.83
DPT-7728	21.625	20.125	$4,876.03
DPT-7727	21.750	20.250	$4,905.23
DPT-7726	21.875	20.375	$4,934.43
DPT-7737	22.000	20.500	$4,963.63
DPT-7754	22.125	20.625	$4,992.83
DPT-7762	22.250	20.750	$5,022.03
DPT-7761	22.375	20.875	$5,051.23
DPT-7760	22.500	21.000	$5,080.43
DPT-7759	22.625	21.125	$5,109.61
DPT-7758	22.750	21.250	$5,138.80
DPT-7757	22.875	21.375	$5,168.01
DPT-7743	23.000	21.500	$5,197.21
DPT-7755	23.125	21.625	$5,226.41
DPT-7747	23.250	21.750	$5,255.61
DPT-7753	23.375	21.875	$5,284.80
DPT-7750	23.500	22.000	$5,314.01
DPT-7748	23.625	22.125	$5,343.21
DPT-7756	23.750	22.250	$5,372.41
DPT-7749	23.875	22.375	$5,401.58
DPT-7752	24.000	22.500	$5,430.78

nominal inches, diameter	plus or minus (�) tolerance, inches
	ID inside diameter		OD outside diameter
	steel mandrel	built-up mandrel
.125" -.749"	.003"	-	.005"
.750" - 1.999"	.004"	-	.005"
2.000" - 4.000"	.006"	-	.008"
			*turned	*as wound
4.001" - 12.000"	.010"	-	.025"	plus only
12.001" - 18.000"	.030"	.060"	.030"	plus only
18.001" - 24.000"	.040"	.075"	.035"	plus only
24.001" - 48.000"	.060"	.090"	.040"	plus only
*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
