G10 FR4 Tubes Glass Reinforced .500" (1/2") Wall

(Micarta) (High Pressure Laminates) G10 FR4 Glass Reinforced - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

.031" (1/32") Wall Thickness	.062" (1/16")Wall Thickness	.093" (3/32")Wall Thickness	.125" (1/8")Wall Thickness	.187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness	.375" (3/8")Wall Thickness	.500" (1/2")Wall Thickness	.750" (3/4")WallThickness	1.00" Wall Thickness (Max. Possible)

.500" Wall Thickness G10 FR4 Tubes

Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts  42-48"

**Minimum's Apply, Non Stocked Items Unless Otherwise noted 3 Ft Minimums are required, ** Indicates a 6 Ft Minimum
Part #	Outside Diameter (in.)	Inside Diameter (in.)	Price Per Foot
DPT-7410**	1.50	0.500	$90.11
DPT-7310**	1.625	0.625	$101.34
DPT-7311**	1.75	0.750	$112.61
DPT-7319**	1.875	0.875	$123.87
DPT-7403	2.00	1.000	$197.53
DPT-7404	2.125	1.125	$212.61
DPT-7406	2.25	1.250	$227.66
DPT-7408	2.375	1.375	$242.71

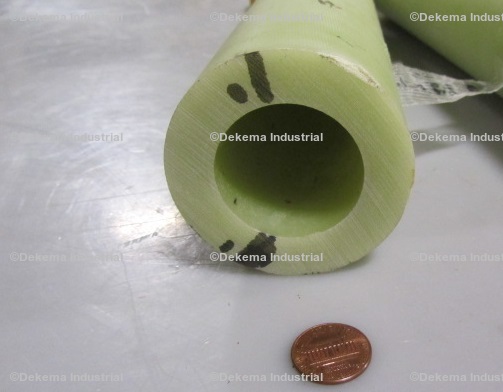

DPT-1403	2.50	1.500	$257.75
DPT-7500	2.625	1.625	$272.81
DPT-1408	2.75	1.750	$287.88
DPT-7411	2.875	1.875	$302.93
DPT-1413	3.00	2.000	$317.98
DPT-7412	3.125	2.125	$333.03
DPT-1418	3.25	2.250	$348.11
DPT-7413	3.375	2.375	$363.16
DPT-1423	3.50	2.500	$378.21
DPT-7414	3.625	2.625	$393.26
DPT-1428	3.75	2.750	$408.30
DPT-7415	3.875	2.875	$423.38
DPT-1433	4.00	3.000	$438.43
DPT-7420	4.125	3.125	$453.48
DPT-1438	4.25	3.250	$468.53
DPT-7497	4.375	3.375	$483.58
DPT-1443	4.50	3.500	$498.66
DPT-7407	4.625	3.625	$513.71
DPT-1448	4.75	3.750	$528.76
DPT-7445	4.875	3.875	$543.81
DPT-1452	5.00	4.000	$558.86
DPT-7496	5.125	4.125	$573.93
DPT-7495	5.250	4.250	$588.98
DPT-7494	5.375	4.375	$604.03
DPT-1457	5.50	4.500	$619.08
DPT-7493	5.625	4.625	$634.16
DPT-7486	5.750	4.750	$649.21
DPT-7492	5.875	4.875	$731.16
DPT-1462	6.00	5.000	$747.73
DPT-7491	6.125	5.125	$764.31
DPT-7490	6.25	5.250	$780.88
DPT-7489	6.375	5.375	$797.46
DPT-1468	6.50	5.500	$814.03
DPT-7488	6.625	5.625	$830.61
DPT-7487	6.75	5.750	$847.16
DPT-7518	6.875	5.875	$863.73
DPT-1474	7.00	6.000	$880.31
DPT-7526	7.125	6.125	$855.06
DPT-7525	7.25	6.250	$871.18
DPT-7524	7.375	6.375	$887.33
DPT-7635	7.50	6.500	$903.46
DPT-7522	7.625	6.625	$919.58
DPT-7544	7.75	6.750	$935.73
DPT-7519	7.875	6.875	$951.86
DPT-7529	8.00	7.000	$967.98
DPT-7517	8.125	7.125	$984.11
DPT-7516	8.25	7.250	$1,000.26
DPT-7515	8.375	7.375	$1,016.38
DPT-7514	8.50	7.500	$1,032.51
DPT-7513	8.625	7.625	$1,048.63
DPT-7512	8.75	7.750	$1,064.78
DPT-7520	8.875	7.875	$1,080.91
DPT-7535	9.00	8.000	$1,097.03
DPT-7543	9.125	8.125	$1,113.16
DPT-7542	9.25	8.250	$1,129.30
DPT-7541	9.375	8.375	$1,145.43
DPT-7540	9.50	8.500	$1,161.55
DPT-7539	9.625	8.625	$1,177.71
DPT-7538	9.75	8.750	$1,193.83
DPT-7527	9.875	8.875	$1,209.96
DPT-7536	10.00	9.000	$1,226.08
DPT-7528	10.125	9.125	$1,242.23
DPT-7534	10.25	9.250	$1,258.36
DPT-7533	10.375	9.375	$1,274.48
DPT-7532	10.50	9.500	$1,290.61
DPT-7531	10.625	9.625	$1,306.75
DPT-7530	10.75	9.750	$1,322.88
DPT-7509	10.875	9.875	$1,339.01
DPT-7537	11.00	10.000	$1,355.13
DPT-7565	11.125	10.125	$1,371.28
DPT-7511	11.25	10.250	$1,387.40
DPT-7572	11.375	10.375	$1,403.53
DPT-7571	11.50	10.500	$1,419.68
DPT-7570	11.625	10.625	$1,435.80
DPT-7569	11.75	10.750	$1,451.93
DPT-7568	11.875	10.875	$1,468.06
DPT-7574	12.00	11.000	$1,484.21
DPT-7566	12.125	11.125	$1,500.33
DPT-7575	12.25	11.250	$1,516.46
DPT-7564	12.375	11.375	$1,532.58
DPT-7563	12.50	11.500	$1,548.73
DPT-7562	12.625	11.625	$1,564.85
DPT-7561	12.75	11.750	$1,580.98
DPT-7560	12.875	11.875	$1,597.10
DPT-7559	13.00	12.000	$1,613.25
DPT-7567	13.125	12.125	$1,629.38
DPT-7582	13.25	12.250	$1,645.50
DPT-7523	13.375	12.375	$1,661.66
DPT-7508	13.50	12.500	$1,677.78
DPT-7507	13.625	12.625	$1,693.90
DPT-7506	13.75	12.750	$1,710.03
DPT-7505	13.875	12.875	$1,726.18
DPT-7504	14.00	13.000	$1,742.30
DPT-7573	14.125	13.125	$1,758.43
DPT-7502	14.25	13.250	$1,774.55
DPT-7510	14.375	13.375	$1,790.71
DPT-7581	14.50	13.500	$1,806.83
DPT-7580	14.625	13.625	$1,822.96
DPT-7579	14.75	13.750	$1,839.08
DPT-7578	14.875	13.875	$1,855.23
DPT-7577	15.00	14.000	$1,871.36
DPT-7576	15.125	14.125	$1,887.48
DPT-7503	15.25	14.250	$1,903.63
DPT-7610	15.375	14.375	$1,919.75
DPT-7602	15.50	14.500	$1,935.88
DPT-7628	15.625	14.625	$1,952.00
DPT-7629	15.75	14.750	$1,968.16
DPT-7630	15.875	14.875	$1,984.28
DPT-7631	16.00	15.000	$2,000.41
DPT-7632	16.125	15.125	$2,016.53
DPT-7545	16.25	15.250	$2,032.68
DPT-7634	16.375	15.375	$2,048.81
DPT-7626	16.50	15.500	$2,064.93
DPT-7609	16.625	15.625	$2,081.06
DPT-7619	16.75	15.750	$2,097.21
DPT-7607	16.875	15.875	$2,113.33
DPT-7605	17.00	16.000	$2,129.46
DPT-7604	17.125	16.125	$2,145.61
DPT-7603	17.25	16.250	$2,161.73
DPT-7633	17.375	16.375	$2,177.86
DPT-7620	17.50	16.500	$2,193.98
DPT-7618	17.625	16.625	$2,210.13
DPT-7617	17.75	16.750	$2,226.26
DPT-7616	17.875	16.875	$2,242.38
DPT-7615	18.00	17.000	$2,258.51
DPT-7614	18.125	17.125	$2,274.66
DPT-7613	18.25	17.250	$2,290.78
DPT-7627	18.375	17.375	$2,306.90
DPT-7611	18.50	17.500	$2,323.06
DPT-7606	18.625	17.625	$2,339.18
DPT-7621	18.75	17.750	$2,355.31
DPT-7622	18.875	17.875	$2,371.43
DPT-7623	19.00	18.000	$2,387.58
DPT-7624	19.125	18.125	$2,403.71
DPT-7625	19.25	18.250	$2,419.83
DPT-7521	19.375	18.375	$2,435.96
DPT-7612	19.50	18.500	$2,452.10
DPT-7553	19.625	18.625	$2,468.23
DPT-7601	19.75	18.750	$2,484.36
DPT-7585	19.875	18.875	$2,500.48
DPT-7608	20.00	19.000	$2,516.63
DPT-7583	20.125	19.125	$2,532.76
DPT-7558	20.25	19.250	$2,548.88
DPT-7557	20.375	19.375	$2,565.03
DPT-7556	20.50	19.500	$2,581.16
DPT-7587	20.625	19.625	$2,597.28
DPT-7554	20.75	19.750	$2,613.40
DPT-7586	20.875	19.875	$2,629.56
DPT-7552	21.00	20.000	$3,192.33
DPT-7551	21.125	20.125	$3,211.78
DPT-7550	21.25	20.250	$3,231.26
DPT-7549	21.375	20.375	$3,250.73
DPT-7548	21.50	20.500	$3,270.18
DPT-7547	21.625	20.625	$3,289.65
DPT-7546	21.75	20.750	$3,309.10
DPT-7555	21.875	20.875	$3,328.58
DPT-7599	22.00	21.000	$3,348.06
DPT-7589	22.125	21.125	$3,367.51
DPT-7590	22.25	21.250	$3,386.98
DPT-7591	22.375	21.375	$3,406.43
DPT-7600	22.50	21.500	$3,425.90
DPT-7592	22.625	21.625	$3,445.38
DPT-7593	22.75	21.750	$3,464.83
DPT-7596	22.875	21.875	$3,484.31
DPT-7595	23.00	22.000	$3,503.76
DPT-7594	23.125	22.125	$3,523.23
DPT-7584	23.25	22.250	$3,542.68
DPT-7597	23.375	22.375	$3,562.15
DPT-7588	23.50	22.500	$3,581.63
DPT-7598	23.75	22.750	$3,620.56
DPT-7636	24.00	23.000	$3,659.48

nominal inches, diameter	plus or minus (�) tolerance, inches
	ID inside diameter		OD outside diameter
	steel mandrel	built-up mandrel
.125" -.749"	.003"	-	.005"
.750" - 1.999"	.004"	-	.005"
2.000" - 4.000"	.006"	-	.008"
			*turned	*as wound
4.001" - 13.000"	.010"	-	.025"	plus only
12.001" - 18.000"	.030"	.060"	.030"	plus only
18.001" - 24.000"	.040"	.075"	.035"	plus only
24.001" - 48.000"	.060"	.090"	.040"	plus only
*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
