G11 Tubes High Temperature Glass Reinforced .031" Wall Thickness
G11 Tubes Glass Reinforced
Epoxy - natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10/FR4, with the addition of a higher operating
temperature and some improved mechanical strength at elevated temperatures.
The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
G11 Tubes .031" Wall Thickness |

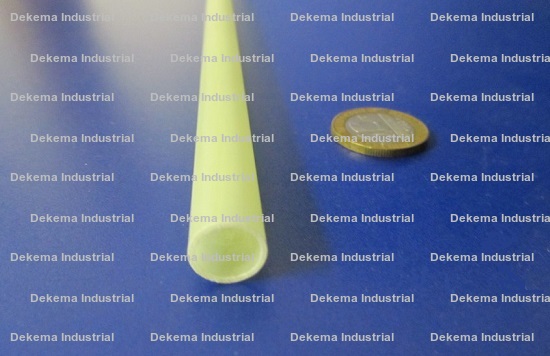

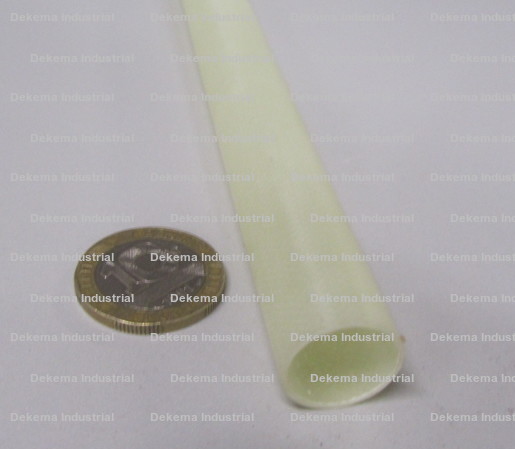

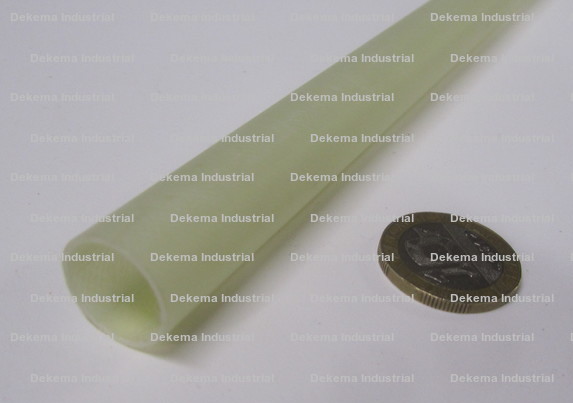

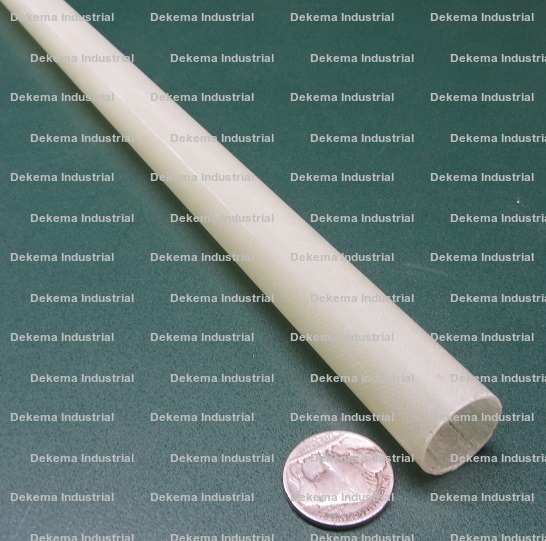

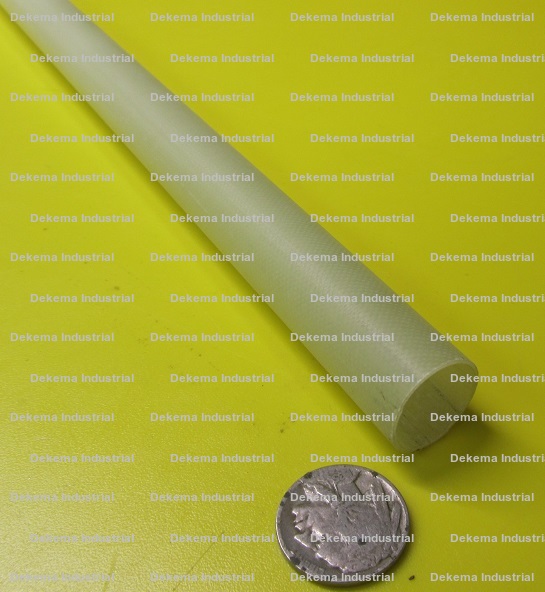

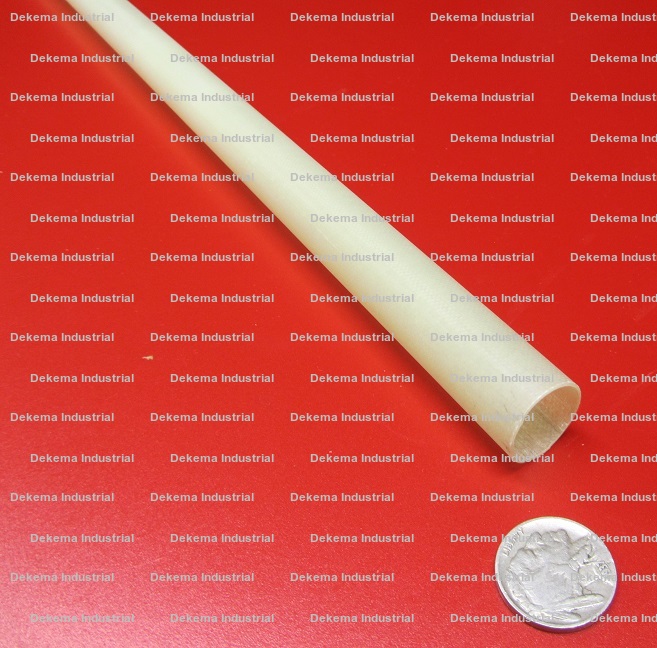

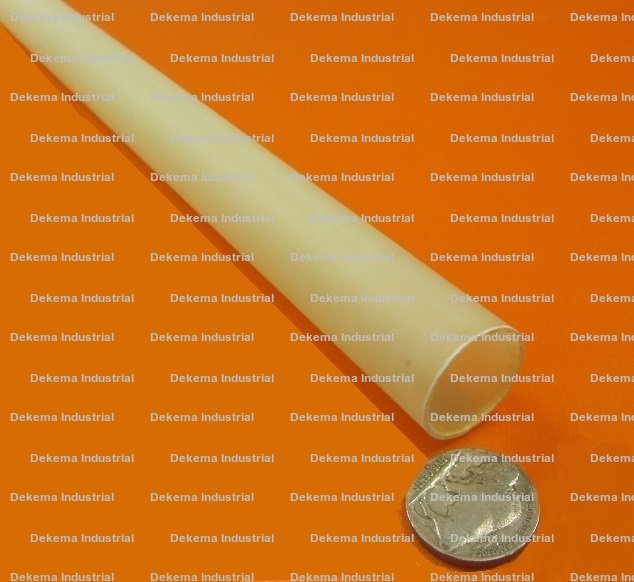

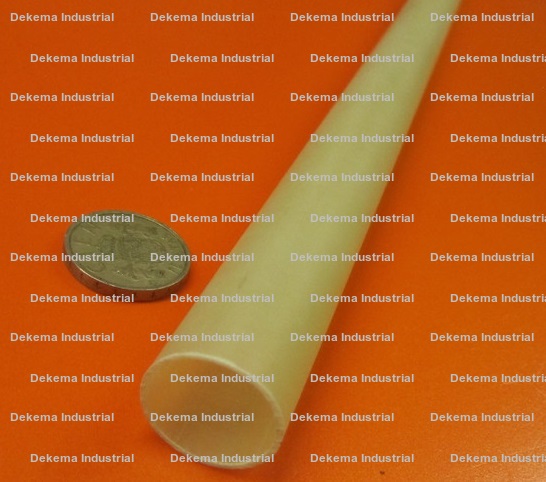

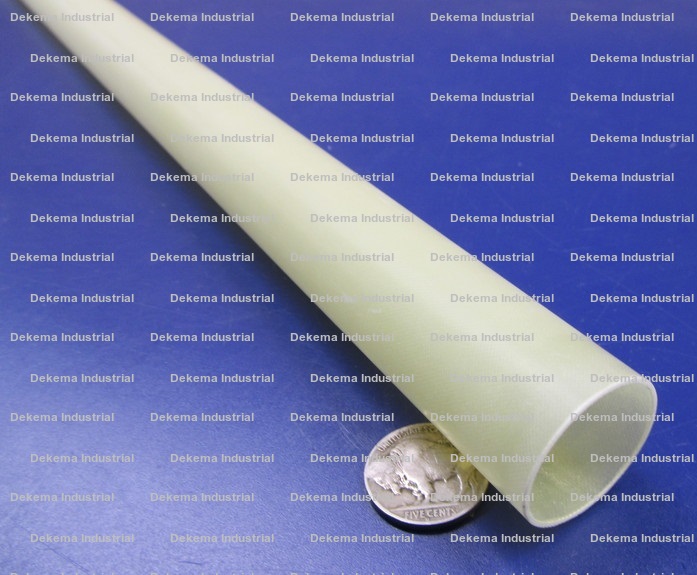

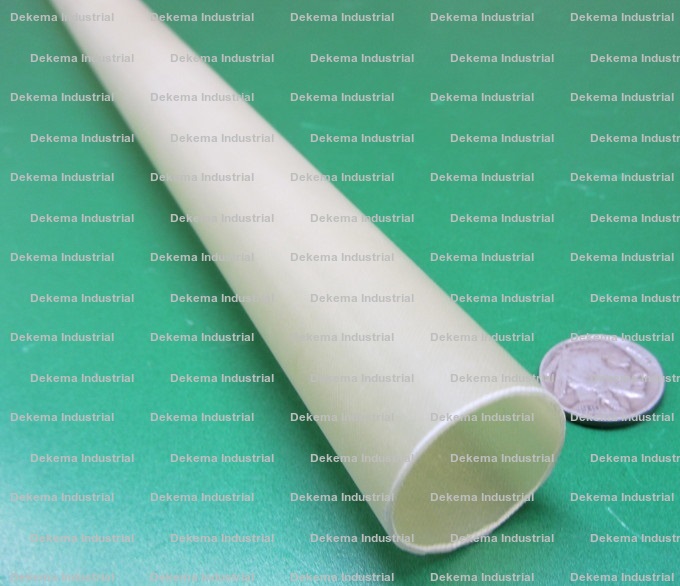

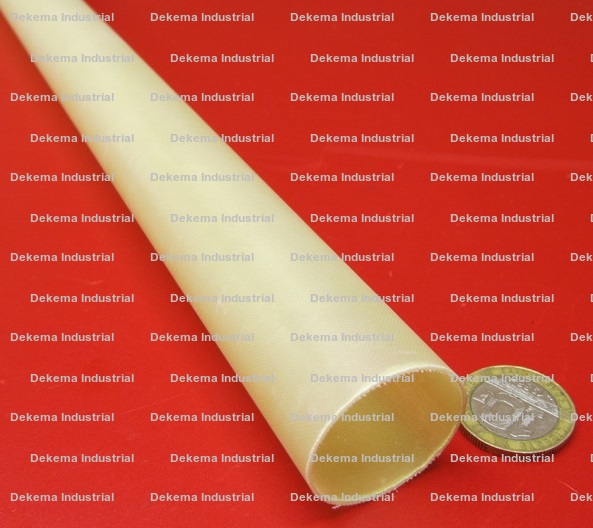

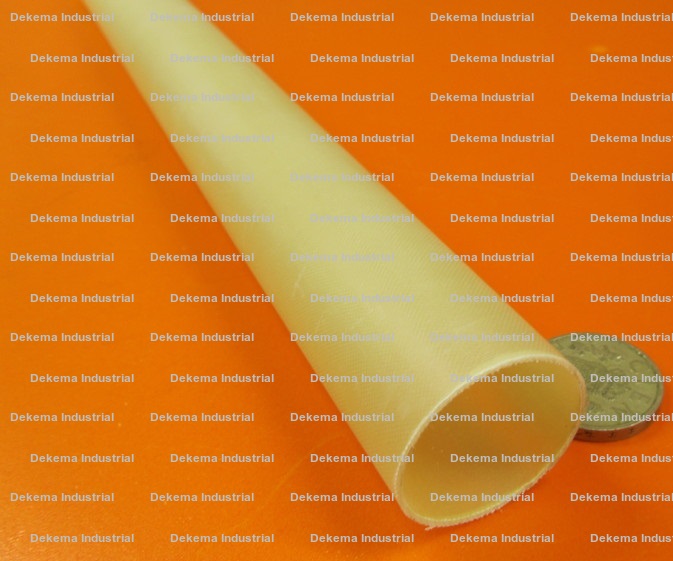

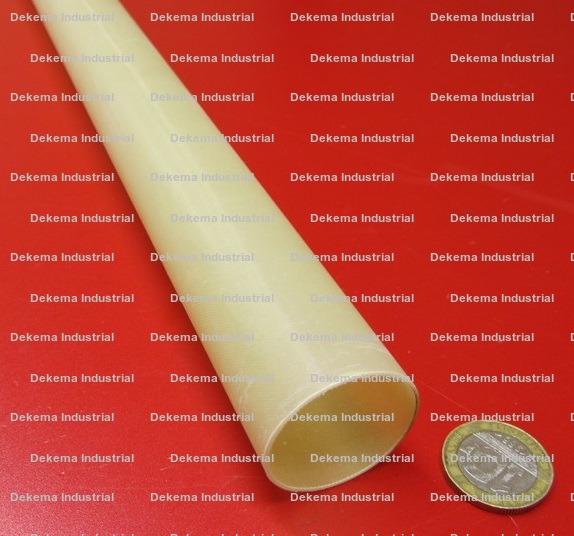

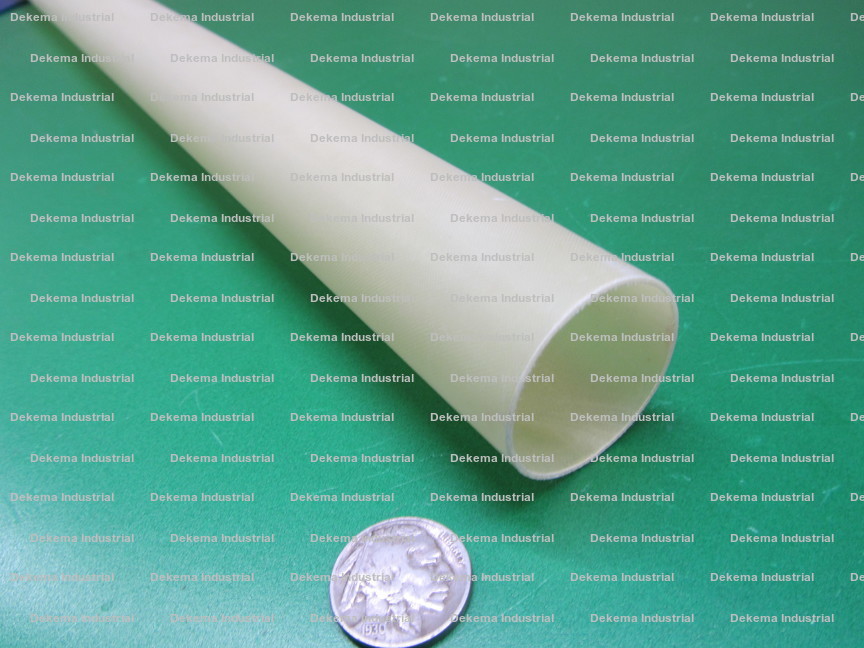

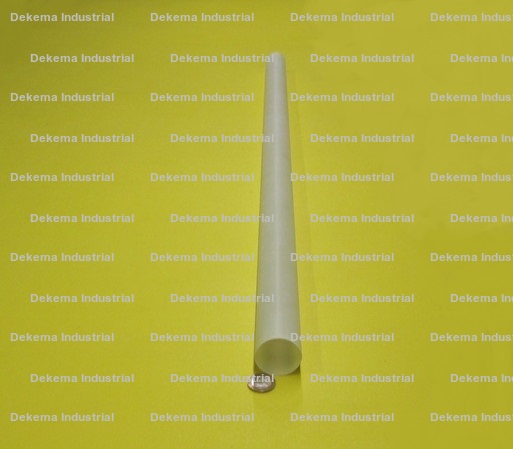

||||
| Part # | OD (in.) | ID (in.) | Price Per Foot | Minimum Purchase |
|---|---|---|---|---|
| DPT-1495 | 0.500 | 0.437 | $27.81 | 21 Feet |
| DPT-1499 | 0.562 | 0.500 | $28.78 | 18 Feet |
| DPT-1505 | 0.625 | 0.562 | $29.73 | 18 Feet |
| DPT-1510 | 0.687 | 0.625 | $30.71 | 27 Feet |
| DPT-1516K | 0.750 | 0.687 | $31.66 | 27 Feet |
| DPT-1519K | 0.812 | 0.750 | $32.63 | 27 Feet |
| DPT-8716 | 0.875 | 0.812 | $33.58 | 27 Feet |
| DPT-1515K | 0.937 | 0.875 | $34.55 | 24 Feet |
| DPT-8735 | 1.000 | 0.937 | $35.50 | 24 Feet |
| DPT-1521 | 1.062 | 1.000 | $36.48 | 24 Feet |
| DPT-8722 | 1.125 | 1.062 | $37.43 | 24 Feet |
| DPT-8731 | 1.187 | 1.125 | $38.41 | 21 Feet |
| DPT-8720 | 1.250 | 1.187 | $39.36 | 21 Feet |
| DPT-8515 | 1.312 | 1.250 | $40.33 | 21 Feet |
| DPT-8718 | 1.375 | 1.312 | $41.28 | 21 Feet |
| DPT-8717 | 1.437 | 1.375 | $42.26 | 21 Feet |

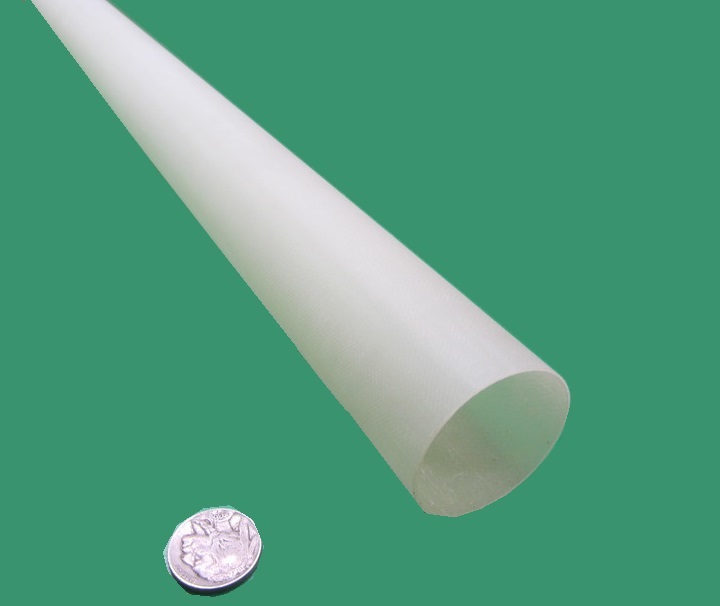

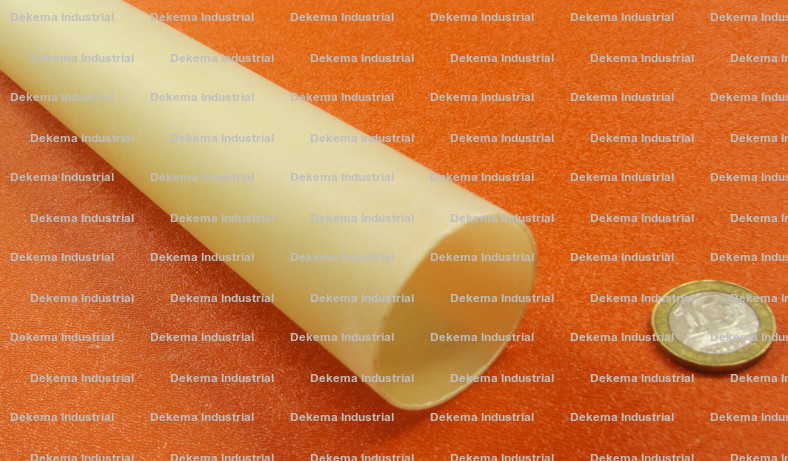

| DPT-8606 | 1.500 | 1.437 | $43.21 | 21 Feet |
| DPT-8477 | 1.562 | 1.500 | $44.18 | 21 Feet |

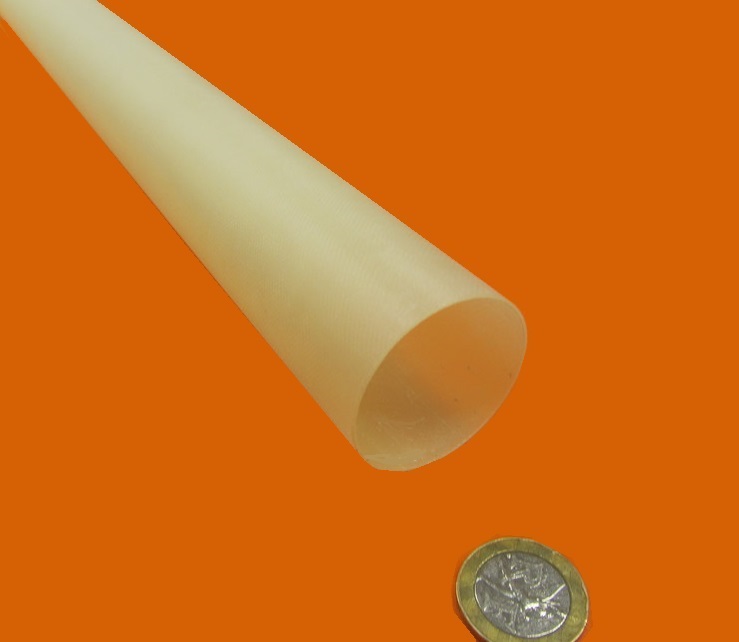

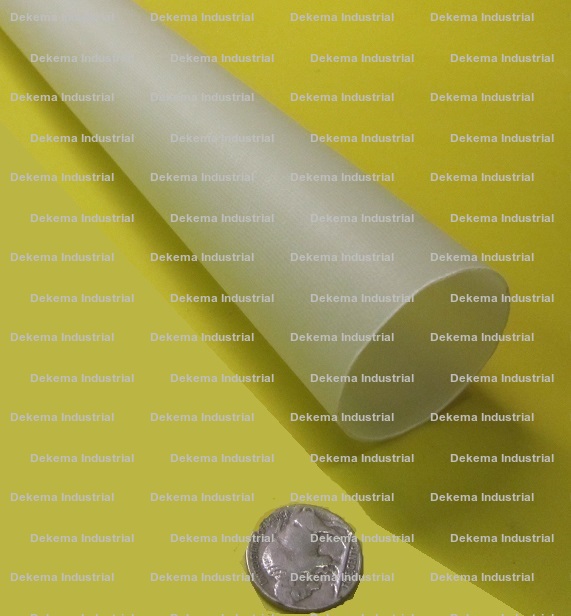

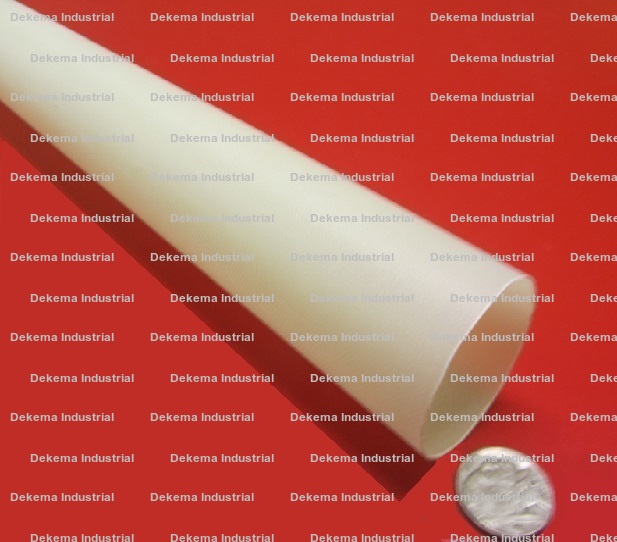

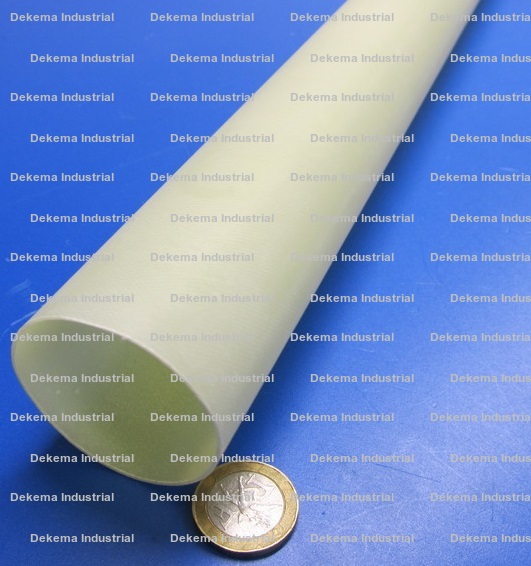

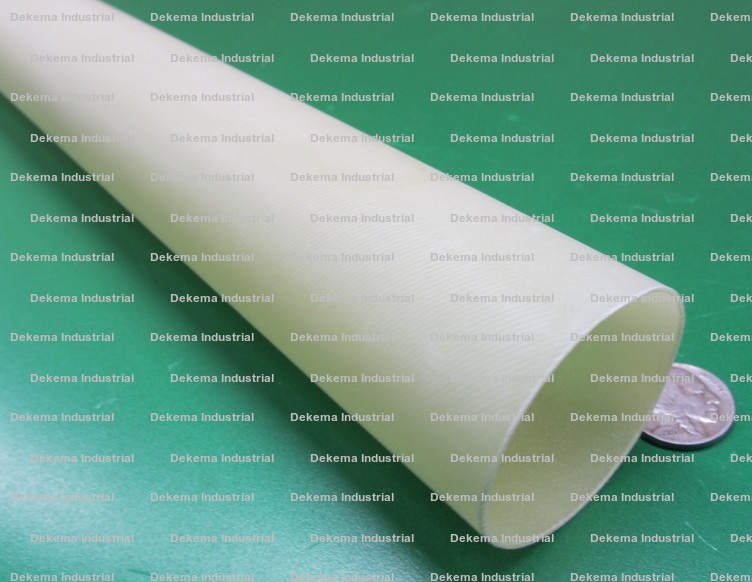

| DPT-8510 | 1.625 | 1.562 | $45.13 | 18 Feet |
| DPT-8509 | 1.687 | 1.625 | $46.11 | 18 Feet |
| DPT-8508 | 1.750 | 1.687 | $47.05 | 18 Feet |
| DPT-8507 | 1.812 | 1.750 | $48.03 | 18 Feet |
| DPT-8496 | 1.875 | 1.812 | $49.00 | 18 Feet |
| DPT-8505 | 1.937 | 1.875 | $49.96 | 18 Feet |
| DPT-8721 | 2.000 | 1.937 | $50.93 | 30 |
| nominal inches, | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
