G11 Tubes High Temp. Glass Reinforced .093" (3/32") Wall Thickness
G11 Tubes Glass Reinforced Tubes - natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10/FR4, with the addition of a higher operating
temperature and some improved mechanical strength at elevated temperatures.
The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
.093" Wall Thickness G11 Tubes |
||||
| Part # | OD (in.) | ID (in.) | Price Per Foot | Minimum Purchase |
|---|---|---|---|---|
| DPT-1481 | 0.375 | 0.187 | $30.33 | 27 Feet |
| DPT-1485 | 0.437 | 0.250 | $32.71 | 27 Feet |
| DPT-1489 | 0.500 | 0.312 | $35.11 | 21 Feet |
| DPT-1493 | 0.562 | 0.375 | $37.48 | 21 Feet |
| DPT-1497 | 0.625 | 0.437 | $39.86 | 18 Feet |
| DPT-1501 | 0.687 | 0.500 | $42.26 | 21 Feet |
| DPT-11030 | 0.750 | 0.562 | $44.63 | 18 Feet |
| DPT-1512 | 0.812 | 0.625 | $32.31 | 21 Feet |
| DPT-11016 | 0.872 | 0.687 | $33.96 | 24 Feet |
| DPT-11063 | 0.937 | 0.750 | $35.58 | 24 Feet |
| DPT-11067 | 1.000 | 0.812 | $37.21 | 24 Feet |
| DPT-1517K | 1.062 | 0.875 | $38.86 | 18 Feet |
| DPT-11069 | 1.125 | 0.937 | $40.48 | 21 Feet |
| DPT-11066 | 1.187 | 1.100 | $42.13 | 21 Feet |
| DPT-11071 | 1.250 | 1.062 | $43.75 | 18 Feet |
| DPT-11072 | 1.312 | 1.125 | $45.40 | 18 Feet |
| DPT-11073 | 1.375 | 1.187 | $47.03 | 18 Feet |
| DPT-11074 | 1.437 | 1.250 | $48.68 | 18 Feet |
| DPT-11075 | 1.500 | 1.312 | $50.31 | 15 Feet |
| DPT-11079 | 1.562 | 1.375 | $51.96 | 15 Feet |
| DPT-11080 | 1.625 | 1.437 | $53.56 | 15 Feet |
| DPT-11078 | 1.687 | 1.500 | $55.21 | 15 Feet |
| DPT-11077 | 1.750 | 1.562 | $56.83 | 15 Feet |
| DPT-11076 | 1.812 | 1.625 | $58.48 | 15 Feet |
| DPT-11070 | 1.875 | 1.687 | $60.11 | 15 Feet |
| DPT-11056 | 1.937 | 1.750 | $61.76 | 15 Feet |
| DPT-11050 | 2.000 | 1.812 | $63.38 | 15 Feet |
| DPT-11051 | 2.062 | 1.875 | $65.03 | 12 Feet |
| DPT-11052 | 2.125 | 1.937 | $66.66 | 12 Feet |
| DPT-11053 | 2.187 | 2.000 | $68.30 | 12 Feet |
| DPT-11058 | 2.250 | 2.062 | $69.93 | 12 Feet |
| DPT-11054 | 2.312 | 2.125 | $71.58 | 12 Feet |
| DPT-11055 | 2.375 | 2.187 | $73.21 | 12 Feet |
| DPT-11065 | 2.437 | 2.250 | $74.86 | 12 Feet |
| DPT-11057 | 2.500 | 2.312 | $76.48 | 12 Feet |
| DPT-11049 | 2.562 | 2.375 | $78.13 | 12 Feet |
| DPT-11059 | 2.625 | 2.437 | $79.76 | 12 Feet |
| DPT-11060 | 2.687 | 2.500 | $81.41 | 12 Feet |
| DPT-11061 | 2.750 | 2.562 | $83.03 | 12 Feet |
| DPT-11062 | 2.812 | 2.625 | $84.68 | 12 Feet |
| DPT-11024 | 2.875 | 2.687 | $86.31 | 12 Feet |
| DPT-10962 | 2.937 | 2.750 | $87.96 | 9 Feet |
| DPT-10965 | 3.000 | 2.812 | $89.55 | 9 Feet |
| DPT-10966 | 3.062 | 2.875 | $91.21 | 9 Feet |
| DPT-10974 | 3.125 | 2.937 | $92.83 | 9 Feet |
| DPT-10975 | 3.187 | 3.000 | $94.48 | 9 Feet |
| DPT-10976 | 3.250 | 3.062 | $96.10 | 9 Feet |
| DPT-10977 | 3.312 | 3.125 | $97.76 | 9 Feet |
| DPT-10978 | 3.375 | 3.187 | $99.38 | 9 Feet |
| DPT-10979 | 3.437 | 3.250 | $101.03 | 9 Feet |
| DPT-10956 | 3.500 | 3.312 | $102.66 | 9 Feet |
| DPT-10954 | 3.562 | 3.375 | $104.30 | 9 Feet |
| DPT-10971 | 3.625 | 3.437 | $105.93 | 9 Feet |
| DPT-10949 | 3.687 | 3.500 | $107.58 | 9 Feet |
| DPT-11007 | 3.750 | 3.562 | $109.21 | 9 Feet |
| DPT-10951 | 3.812 | 3.625 | $110.86 | 9 Feet |
| DPT-11046 | 3.875 | 3.687 | $112.48 | 9 Feet |
| DPT-10953 | 3.937 | 3.750 | $114.13 | 9 Feet |
| DPT-10963 | 4.000 | 3.812 | $115.76 | 9 Feet |
| DPT-10955 | 4.062 | 3.875 | $117.41 | 9 Feet |
| DPT-10947 | 4.125 | 3.937 | $119.03 | 9 Feet |
| DPT-10957 | 4.187 | 4.000 | $120.68 | 9 Feet |
| DPT-10958 | 4.250 | 4.062 | $122.30 | 9 Feet |
| DPT-10959 | 4.312 | 4.125 | $123.96 | 9 Feet |
| DPT-10960 | 4.375 | 4.187 | $125.55 | 9 Feet |
| DPT-10961 | 4.437 | 4.250 | $127.21 | 9 Feet |
| DPT-10982 | 4.500 | 4.312 | $128.83 | 9 Feet |
| DPT-10948 | 4.562 | 4.375 | $130.48 | 9 Feet |
| DPT-10985 | 4.625 | 4.437 | $132.11 | 9 Feet |
| DPT-10986 | 4.687 | 4.500 | $133.76 | 6 Feet |
| DPT-10987 | 4.750 | 4.562 | $135.38 | 6 Feet |
| DPT-10997 | 4.812 | 4.625 | $137.03 | 6 Feet |
| DPT-10989 | 4.875 | 4.687 | $138.66 | 6 Feet |
| DPT-10981 | 4.937 | 4.750 | $140.31 | 6 Feet |
| DPT-10991 | 5.000 | 4.812 | $141.93 | 6 Feet |
| DPT-10992 | 5.062 | 4.875 | $157.66 | 6 Feet |
| DPT-10993 | 5.125 | 4.937 | $159.43 | 6 Feet |
| DPT-10994 | 5.187 | 5.000 | $161.26 | 6 Feet |
| DPT-10995 | 5.250 | 5.062 | $163.03 | 6 Feet |
| DPT-10996 | 5.312 | 5.125 | $164.83 | 6 Feet |
| DPT-10876 | 5.375 | 5.187 | $166.63 | 6 Feet |
| DPT-10589 | 5.437 | 5.250 | $168.43 | 6 Feet |
| DPT-10626 | 5.500 | 5.312 | $170.21 | 6 Feet |
| DPT-10627 | 5.562 | 5.375 | $172.03 | 6 Feet |
| DPT-10628 | 5.625 | 5.437 | $173.81 | 6 Feet |
| DPT-10629 | 5.687 | 5.500 | $175.61 | 6 Feet |
| DPT-10630 | 5.750 | 5.562 | $177.41 | 6 Feet |
| DPT-10631 | 5.812 | 5.625 | $179.21 | 6 Feet |
| DPT-10641 | 5.875 | 5.687 | $181.01 | 6 Feet |
| DPT-10633 | 5.937 | 5.750 | $182.81 | 6 Feet |
| DPT-10625 | 6.000 | 5.812 | $184.58 | 6 Feet |
| DPT-10635 | 6.062 | 5.875 | $186.41 | 6 Feet |

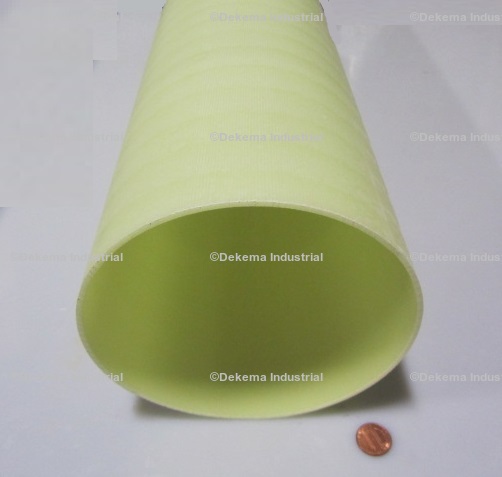

| DPT-10636 | 6.125 | 5.937 | $188.18 | 6 Feet |
| DPT-10637 | 6.187 | 6.000 | $189.98 | 6 Feet |
| DPT-10638 | 6.250 | 6.062 | $170.01 | 6 Feet |
| DPT-10639 | 6.312 | 6.125 | $171.73 | 6 Feet |
| DPT-10640 | 6.375 | 6.187 | $173.46 | 6 Feet |
| DPT-10617 | 6.437 | 6.250 | $175.18 | 6 Feet |
| DPT-10615 | 6.500 | 6.312 | $176.91 | 6 Feet |
| DPT-10632 | 6.562 | 6.375 | $178.63 | 6 Feet |
| DPT-10610 | 6.625 | 6.437 | $180.36 | 6 Feet |
| DPT-10792 | 6.687 | 6.500 | $182.08 | 6 Feet |
| DPT-10612 | 6.750 | 6.562 | $183.81 | 6 Feet |
| DPT-10874 | 6.812 | 6.625 | $185.53 | 6 Feet |
| DPT-10613 | 6.875 | 6.687 | $187.26 | 6 Feet |
| DPT-10614 | 6.937 | 6.750 | $189.01 | 6 Feet |
| DPT-10624 | 7.000 | 6.812 | $190.71 | 6 Feet |
| DPT-10616 | 7.062 | 6.875 | $192.46 | 6 Feet |
| DPT-10608 | 7.125 | 6.937 | $194.16 | 6 Feet |
| DPT-10618 | 7.187 | 7.000 | $195.91 | 6 Feet |
| DPT-10619 | 7.250 | 7.062 | $197.61 | 6 Feet |
| DPT-10620 | 7.312 | 7.125 | $199.36 | 6 Feet |
| DPT-10621 | 7.375 | 7.187 | $201.06 | 6 Feet |
| DPT-10622 | 7.437 | 7.250 | $202.81 | 6 Feet |
| DPT-10609 | 7.500 | 7.312 | $204.51 | 6 Feet |
| DPT-10634 | 7.562 | 7.375 | $206.26 | 6 Feet |
| DPT-10660 | 7.625 | 7.437 | $207.96 | 6 Feet |
| DPT-10661 | 7.687 | 7.500 | $209.71 | 6 Feet |
| DPT-10662 | 7.750 | 7.562 | $211.41 | 6 Feet |
| DPT-10663 | 7.812 | 7.625 | $213.16 | 6 Feet |
| DPT-10664 | 7.875 | 7.687 | $214.86 | 6 Feet |
| DPT-10665 | 7.937 | 7.750 | $216.61 | 6 Feet |
| DPT-10675 | 8.000 | 7.812 | $218.31 | 6 Feet |
| DPT-10667 | 8.062 | 7.875 | $220.06 | 6 Feet |
| DPT-10659 | 8.125 | 7.937 | $221.76 | 6 Feet |
| DPT-10669 | 8.187 | 8.000 | $223.51 | 6 Feet |
| DPT-10671 | 8.312 | 8.125 | $226.96 | 6 Feet |
| DPT-10672 | 8.375 | 8.187 | $228.66 | 6 Feet |
| DPT-10673 | 8.437 | 8.250 | $230.41 | 6 Feet |
| DPT-10674 | 8.500 | 8.312 | $232.11 | 6 Feet |
| DPT-10651 | 8.562 | 8.375 | $233.86 | 6 Feet |
| DPT-10649 | 8.625 | 8.437 | $235.56 | 6 Feet |
| DPT-10666 | 8.687 | 8.500 | $237.31 | 6 Feet |
| DPT-10644 | 8.750 | 8.562 | $239.01 | 6 Feet |
| DPT-10645 | 8.812 | 8.625 | $240.76 | 6 Feet |
| DPT-10646 | 8.875 | 8.687 | $242.46 | 6 Feet |
| DPT-10647 | 8.937 | 8.750 | $244.21 | 6 Feet |
| DPT-10648 | 9.000 | 8.812 | $245.91 | 6 Feet |
| DPT-10658 | 9.062 | 8.875 | $247.66 | 6 Feet |
| DPT-10650 | 9.125 | 8.937 | $249.36 | 6 Feet |
| DPT-10642 | 9.187 | 9.000 | $251.11 | 6 Feet |
| DPT-10652 | 9.250 | 9.062 | $252.81 | 6 Feet |
| DPT-10653 | 9.312 | 9.125 | $254.56 | 6 Feet |
| DPT-10654 | 9.375 | 9.187 | $256.26 | 6 Feet |
| DPT-10655 | 9.437 | 9.250 | $258.01 | 6 Feet |
| DPT-10656 | 9.500 | 9.312 | $259.71 | 6 Feet |
| DPT-10592 | 9.562 | 9.375 | $261.46 | 3 Feet |
| DPT-10668 | 9.625 | 9.437 | $263.16 | 3 Feet |
| DPT-10623 | 9.687 | 9.500 | $264.91 | 3 Feet |
| DPT-10558 | 9.750 | 9.562 | $266.60 | 3 Feet |
| DPT-10559 | 9.812 | 9.625 | $268.35 | 3 Feet |
| DPT-10560 | 9.875 | 9.687 | $270.05 | 3 Feet |
| DPT-10561 | 9.937 | 9.750 | $271.81 | 3 Feet |
| DPT-10562 | 10.000 | 9.812 | $273.51 | 3 Feet |
| DPT-10563 | 10.062 | 9.875 | $275.25 | 3 Feet |
| DPT-10573 | 10.125 | 9.937 | $276.96 | 3 Feet |
| DPT-10565 | 10.187 | 10.000 | $278.71 | 3 Feet |
| DPT-10557 | 10.250 | 10.062 | $280.41 | 3 Feet |
| DPT-10567 | 10.312 | 10.125 | $282.16 | 3 Feet |
| DPT-10568 | 10.375 | 10.187 | $283.86 | 3 Feet |
| DPT-10569 | 10.437 | 10.250 | $285.60 | 3 Feet |
| DPT-10570 | 10.500 | 10.312 | $287.33 | 3 Feet |
| DPT-10571 | 10.562 | 10.375 | $289.06 | 3 Feet |
| DPT-10549 | 10.625 | 10.437 | $290.78 | 3 Feet |
| DPT-10566 | 10.687 | 10.500 | $292.51 | 3 Feet |
| DPT-10564 | 10.750 | 10.562 | $294.23 | 3 Feet |
| DPT-10542 | 10.812 | 10.625 | $295.96 | 3 Feet |
| DPT-10543 | 10.875 | 10.687 | $297.68 | 3 Feet |
| DPT-10544 | 10.937 | 10.750 | $299.41 | 3 Feet |
| DPT-10545 | 11.000 | 10.812 | $301.13 | 3 Feet |
| DPT-10556 | 11.125 | 10.937 | $304.58 | 3 Feet |
| DPT-10548 | 11.187 | 11.000 | $306.30 | 3 Feet |
| DPT-10541 | 11.250 | 11.062 | $308.03 | 3 Feet |
| DPT-10550 | 11.312 | 11.125 | $309.76 | 3 Feet |
| DPT-10551 | 11.375 | 11.187 | $311.48 | 3 Feet |
| DPT-10552 | 11.437 | 11.250 | $313.21 | 3 Feet |
| DPT-10553 | 11.500 | 11.312 | $314.93 | 3 Feet |
| DPT-10554 | 11.562 | 11.375 | $316.66 | 3 Feet |
| DPT-10555 | 11.625 | 11.437 | $318.38 | 3 Feet |
| DPT-10575 | 11.687 | 11.500 | $320.10 | 3 Feet |
| DPT-10600 | 11.750 | 11.562 | $321.83 | 3 Feet |
| DPT-10572 | 11.812 | 11.625 | $323.55 | 3 Feet |
| DPT-10593 | 11.875 | 11.687 | $325.28 | 3 Feet |
| DPT-10594 | 11.937 | 11.750 | $327.01 | 3 Feet |
| DPT-10595 | 12.000 | 11.812 | $328.73 | 3 Feet |
| DPT-10596 | 12.062 | 11.875 | $330.46 | 3 Feet |
| DPT-10597 | 12.125 | 11.937 | $332.18 | 3 Feet |
| DPT-10607 | 12.187 | 12.000 | $333.91 | 3 Feet |
| DPT-10599 | 12.250 | 12.062 | $335.63 | 3 Feet |
| DPT-10591 | 12.312 | 12.125 | $337.35 | 3 Feet |
| DPT-10601 | 12.375 | 12.187 | $339.08 | 3 Feet |
| DPT-10602 | 12.437 | 12.250 | $340.80 | 3 Feet |
| DPT-10603 | 12.500 | 12.312 | $342.53 | 3 Feet |
| DPT-10604 | 12.562 | 12.375 | $344.25 | 3 Feet |
| DPT-10605 | 12.625 | 12.437 | $345.98 | 3 Feet |
| DPT-10606 | 12.687 | 12.500 | $347.71 | 3 Feet |
| DPT-10583 | 12.750 | 12.562 | $349.43 | 3 Feet |
| DPT-10581 | 12.812 | 12.625 | $351.16 | 3 Feet |
| DPT-10598 | 12.875 | 12.687 | $352.88 | 3 Feet |
| DPT-10576 | 12.937 | 12.750 | $354.60 | 3 Feet |
| DPT-10577 | 13.000 | 12.812 | $356.33 | 3 Feet |
| DPT-10578 | 13.062 | 12.875 | $358.06 | 3 Feet |
| DPT-10579 | 13.125 | 12.937 | $359.78 | 3 Feet |
| DPT-10580 | 13.187 | 13.000 | $361.50 | 3 Feet |
| DPT-10590 | 13.250 | 13.062 | $363.23 | 3 Feet |
| DPT-10582 | 13.312 | 13.125 | $364.96 | 3 Feet |
| DPT-10574 | 13.375 | 13.187 | $366.68 | 3 Feet |
| DPT-10584 | 13.437 | 13.250 | $368.43 | 3 Feet |
| DPT-10585 | 13.500 | 13.312 | $370.13 | 3 Feet |
| DPT-10586 | 13.562 | 13.375 | $371.88 | 3 Feet |
| DPT-10587 | 13.625 | 13.437 | $373.58 | 3 Feet |
| DPT-10588 | 13.687 | 13.500 | $375.33 | 3 Feet |
| DPT-10682 | 13.750 | 13.562 | $377.03 | 3 Feet |
| DPT-10547 | 13.812 | 13.625 | $378.78 | 3 Feet |
| DPT-10657 | 13.875 | 13.687 | $380.48 | 3 Feet |
| DPT-10761 | 13.937 | 13.750 | $382.23 | 3 Feet |
| DPT-10762 | 14.000 | 13.812 | $383.93 | 3 Feet |
| DPT-10763 | 14.062 | 13.875 | $385.68 | 3 Feet |
| DPT-10764 | 14.125 | 13.937 | $387.38 | 3 Feet |
| DPT-10765 | 14.187 | 14.000 | $389.13 | 3 Feet |
| DPT-10766 | 14.250 | 14.062 | $390.83 | 3 Feet |
| DPT-10776 | 14.312 | 14.125 | $392.58 | 3 Feet |
| DPT-8503 | 14.375 | 14.187 | $394.28 | 3 Feet |
| DPT-8502 | 14.437 | 14.250 | $396.03 | 3 Feet |
| DPT-8501 | 14.500 | 14.312 | $397.73 | 3 Feet |
| DPT-8500 | 14.562 | 14.375 | $399.48 | 3 Feet |
| DPT-8499 | 14.625 | 14.437 | $401.18 | 3 Feet |
| DPT-8498 | 14.687 | 14.500 | $402.93 | 3 Feet |
| DPT-8524 | 14.750 | 14.562 | $404.63 | 3 Feet |
| DPT-8504 | 14.812 | 14.625 | $406.38 | 3 Feet |
| DPT-8506 | 14.875 | 14.687 | $408.08 | 3 Feet |
| DPT-8534 | 14.937 | 14.750 | $409.83 | 3 Feet |
| DPT-8533 | 15.000 | 14.812 | $411.53 | 3 Feet |
| DPT-8532 | 15.062 | 14.875 | $413.28 | 3 Feet |
| DPT-8531 | 15.125 | 14.937 | $414.98 | 3 Feet |
| DPT-8527 | 15.187 | 15.000 | $416.73 | 3 Feet |
| DPT-10187 | 15.250 | 15.062 | $418.43 | 3 Feet |
| DPT-10186 | 15.312 | 15.125 | $420.18 | 3 Feet |
| DPT-10185 | 15.375 | 15.187 | $421.88 | 3 Feet |
| DPT-10184 | 15.437 | 15.250 | $423.63 | 3 Feet |
| DPT-10183 | 15.500 | 15.312 | $425.33 | 3 Feet |
| DPT-10182 | 15.562 | 15.375 | $427.08 | 3 Feet |
| DPT-10163 | 15.625 | 15.437 | $428.78 | 3 Feet |
| DPT-10138 | 15.687 | 15.500 | $430.53 | 3 Feet |
| DPT-10171 | 15.750 | 15.562 | $432.23 | 3 Feet |
| DPT-10145 | 15.812 | 15.625 | $433.98 | 3 Feet |
| DPT-10144 | 15.875 | 15.687 | $435.68 | 3 Feet |
| DPT-10143 | 15.937 | 15.750 | $437.43 | 3 Feet |
| DPT-10142 | 16.000 | 15.812 | $439.13 | 3 Feet |
| DPT-10141 | 16.062 | 15.875 | $440.88 | 3 Feet |
| DPT-10132 | 16.125 | 15.937 | $442.58 | 3 Feet |
| DPT-10139 | 16.187 | 16.000 | $444.33 | 3 Feet |
| DPT-10147 | 16.250 | 16.062 | $446.03 | 3 Feet |
| DPT-10137 | 16.312 | 16.125 | $447.78 | 3 Feet |
| DPT-10136 | 16.375 | 16.187 | $449.48 | 3 Feet |
| DPT-10135 | 16.437 | 16.250 | $451.23 | 3 Feet |
| DPT-10134 | 16.500 | 16.312 | $452.93 | 3 Feet |
| DPT-10133 | 16.562 | 16.375 | $454.68 | 3 Feet |
| DPT-10155 | 16.625 | 16.437 | $456.38 | 3 Feet |
| DPT-10157 | 16.687 | 16.500 | $458.13 | 3 Feet |
| DPT-10140 | 16.750 | 16.562 | $459.83 | 3 Feet |
| DPT-10162 | 16.812 | 16.625 | $461.58 | 3 Feet |
| DPT-10161 | 16.875 | 16.687 | $463.28 | 3 Feet |
| DPT-10160 | 16.937 | 16.750 | $465.03 | 3 Feet |
| DPT-10159 | 17.000 | 16.812 | $466.75 | 3 Feet |
| DPT-10158 | 17.062 | 16.875 | $468.48 | 3 Feet |
| DPT-10148 | 17.125 | 16.937 | $470.21 | 3 Feet |
| DPT-10156 | 17.187 | 17.000 | $471.93 | 3 Feet |
| DPT-10164 | 17.250 | 17.062 | $473.66 | 3 Feet |
| DPT-10154 | 17.312 | 17.125 | $475.38 | 3 Feet |
| DPT-10153 | 17.375 | 17.187 | $477.10 | 3 Feet |
| DPT-10152 | 17.437 | 17.250 | $478.83 | 3 Feet |
| DPT-10151 | 17.500 | 17.312 | $480.56 | 3 Feet |
| DPT-10150 | 17.562 | 17.375 | $482.28 | 3 Feet |
| DPT-10212 | 17.625 | 17.437 | $484.00 | 3 Feet |
| DPT-10146 | 17.687 | 17.500 | $485.73 | 3 Feet |
| DPT-10196 | 17.750 | 17.562 | $487.46 | 3 Feet |
| DPT-10245 | 17.812 | 17.625 | $489.18 | 3 Feet |
| DPT-10244 | 17.875 | 17.687 | $490.91 | 3 Feet |
| DPT-10243 | 17.937 | 17.750 | $492.63 | 3 Feet |
| DPT-10242 | 18.000 | 17.812 | $494.36 | 3 Feet |
| DPT-10241 | 18.062 | 17.875 | $496.08 | 3 Feet |
| DPT-10240 | 18.125 | 17.937 | $497.81 | 3 Feet |
| DPT-10231 | 18.187 | 18.000 | $499.53 | 3 Feet |
| DPT-10238 | 18.250 | 18.062 | $501.26 | 3 Feet |
| DPT-10246 | 18.312 | 18.125 | $502.98 | 3 Feet |
| DPT-10236 | 18.375 | 18.187 | $504.71 | 3 Feet |
| DPT-10235 | 18.437 | 18.250 | $506.43 | 3 Feet |
| DPT-10234 | 18.500 | 18.312 | $508.16 | 3 Feet |
| DPT-10233 | 18.562 | 18.375 | $509.88 | 3 Feet |
| DPT-10232 | 18.625 | 18.437 | $511.61 | 3 Feet |
| DPT-10254 | 18.687 | 18.500 | $513.33 | 3 Feet |
| DPT-9845 | 18.750 | 18.562 | $515.06 | 3 Feet |
| DPT-10256 | 18.812 | 18.625 | $516.78 | 3 Feet |
| DPT-10239 | 18.875 | 18.687 | $518.51 | 3 Feet |
| DPT-10261 | 18.937 | 18.750 | $520.23 | 3 Feet |
| DPT-10260 | 19.000 | 18.812 | $521.96 | 3 Feet |
| DPT-10259 | 19.062 | 18.875 | $523.68 | 3 Feet |
| DPT-10258 | 19.125 | 18.937 | $525.41 | 3 Feet |
| DPT-10257 | 19.187 | 19.000 | $527.13 | 3 Feet |
| DPT-10247 | 19.250 | 19.062 | $528.86 | 3 Feet |
| DPT-10255 | 19.312 | 19.125 | $530.58 | 3 Feet |
| DPT-10263 | 19.375 | 19.187 | $532.31 | 3 Feet |
| DPT-10253 | 19.437 | 19.250 | $534.03 | 3 Feet |
| DPT-10252 | 19.500 | 19.312 | $535.76 | 3 Feet |
| DPT-10251 | 19.562 | 19.375 | $537.48 | 3 Feet |
| DPT-10250 | 19.625 | 19.437 | $539.21 | 3 Feet |
| DPT-10249 | 19.687 | 19.500 | $540.93 | 3 Feet |
| DPT-10248 | 19.750 | 19.562 | $542.66 | 3 Feet |
| DPT-10229 | 19.812 | 19.625 | $544.41 | 3 Feet |
| DPT-10204 | 19.875 | 19.687 | $546.11 | 3 Feet |
| DPT-10237 | 19.937 | 19.750 | $547.86 | 3 Feet |
| DPT-10211 | 20.000 | 19.812 | $549.56 | 3 |
| nominal inches, | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
