G11 High Temperature. Glass Reinforced Tubes .062" Wall Thickness

G11 Tubes Glass Reinforced Epoxy - natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10 FR4, with the addition of a higher operating temperature and some improved mechanical strength at elevated temperatures.

The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)

 Chemical Resistance Chart

.031" (1/32") Wall Thickness	.062" (1/16")Wall Thickness	.093" (3/32")Wall Thickness	.125" (1/8")Wall Thickness	.187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness	.375" (3/8")Wall Thickness	.500" (1/2")Wall Thickness	.750" (3/4")WallThickness	1.00" Wall Thickness (Max. Possible)

Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts  42-48"

.062" Wall G11 Tube
Part #	OD (in.)	ID (in.)	Price Per Foot	Minimum Purchase
DPT-1478	0.250	0.125	$24.18	27 Feet
DPT-1480	0.312	0.187	$25.88	15 Feet
DPT-1484	0.375	0.250	$27.56	15 Feet
DPT-1488	0.437	0.312	$29.26	12 Feet

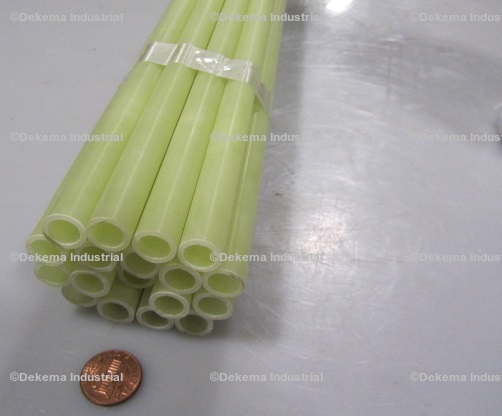

DPT-1492	0.500	0.375	$30.93	12 Feet

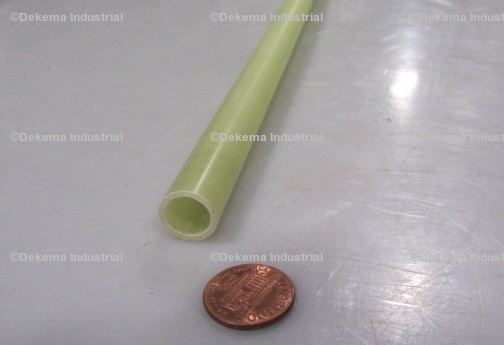

DPT-1496	0.562	0.437	$32.63	12 Feet
DPT-1500	0.625	0.500	$34.33	12 Feet
DPT-1506	0.687	0.562	$36.00	15 Feet

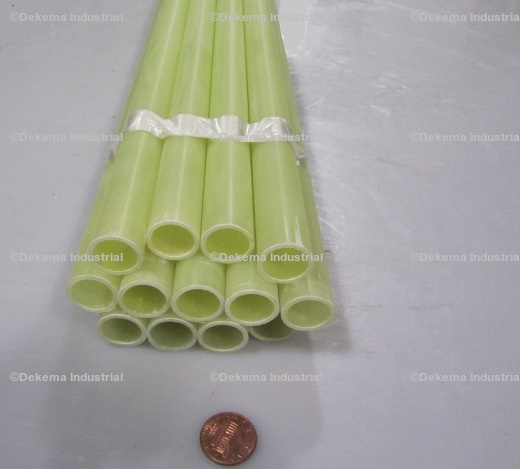

DPT-1511K	0.750	0.625	$25.90	18 Feet
DPT-1517	0.812	0.687	$27.08	18 Feet
DPT-1510K	0.875	0.750	$28.23	21 Feet
DPT-8525	0.937	0.812	$29.41	21 Feet
DPT-1516	1.000	0.875	$30.55	12 Feet
DPT-8523	1.062	0.937	$31.73	18 Feet
DPT-1522	1.125	1.000	$32.88	18 Feet

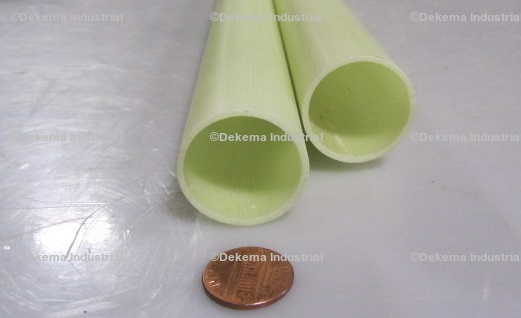

DPT-8521	1.187	1.062	$34.03	18 Feet

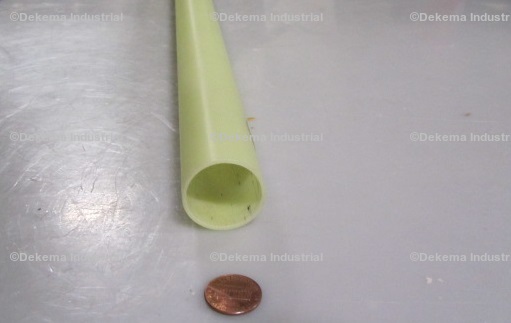

DPT-8520	1.250	1.125	$35.21	18 Feet
DPT-8519	1.312	1.187	$36.36	15 Feet
DPT-1527	1.375	1.250	$37.53	15 Feet
DPT-8517	1.437	1.312	$38.68	15 Feet
DPT-8486	1.500	1.375	$39.86	15 Feet
DPT-8457	1.562	1.437	$41.01	15 Feet
DPT-1532	1.625	1.500	$42.15	15 Feet
DPT-8473	1.687	1.562	$43.30	15 Feet
DPT-8472	1.750	1.625	$44.48	15 Feet
DPT-8471	1.812	1.687	$45.63	15 Feet
DPT-1537	1.875	1.750	$46.81	12 Feet
DPT-8469	1.937	1.812	$47.96	12 Feet
DPT-8468	2.000	1.875	$49.13	12 Feet
DPT-8467	2.062	1.937	$50.28	12 Feet
DPT-1542	2.125	2.000	$51.46	12 Feet
DPT-9223	2.187	2.062	$52.61	12 Feet
DPT-9224	2.250	2.125	$53.78	12 Feet
DPT-9225	2.312	2.187	$54.93	12 Feet
DPT-1547	2.375	2.250	$56.11	12 Feet
DPT-9227	2.437	2.312	$57.26	12 Feet
DPT-9228	2.500	2.375	$58.40	12 Feet
DPT-9229	2.562	2.437	$59.55	9 Feet
DPT-1552	2.625	2.500	$60.73	9 Feet
DPT-9231	2.687	2.562	$61.88	9 Feet
DPT-9232	2.750	2.625	$63.06	9 Feet
DPT-9233	2.812	2.687	$64.21	9 Feet
DPT-1557	2.875	2.750	$65.38	9 Feet
DPT-9235	2.937	2.812	$66.53	9 Feet
DPT-9221	3.000	2.875	$67.71	9 Feet
DPT-9237	3.062	2.937	$68.86	9 Feet
DPT-1562	3.125	3.000	$119.51	9 Feet
DPT-9239	3.187	3.062	$71.18	9 Feet
DPT-9240	3.250	3.125	$72.36	9 Feet
DPT-9241	3.312	3.187	$73.51	9 Feet
DPT-1566	3.375	3.250	$74.65	9 Feet
DPT-9243	3.437	3.312	$75.80	9 Feet
DPT-9244	3.500	3.375	$76.98	9 Feet
DPT-9245	3.562	3.437	$78.13	9 Feet
DPT-1571	3.625	3.500	$79.31	9 Feet
DPT-9247	3.687	3.562	$80.46	9 Feet
DPT-9248	3.750	3.625	$81.63	9 Feet
DPT-9249	3.812	3.687	$82.78	9 Feet
DPT-9206	3.875	3.750	$83.96	9 Feet
DPT-9204	3.937	3.812	$85.10	9 Feet
DPT-9234	4.000	3.875	$86.28	9 Feet
DPT-9193	4.062	3.937	$87.43	9 Feet
DPT-1581	4.125	4.000	$88.60	9 Feet
DPT-9195	4.187	4.062	$89.76	9 Feet
DPT-9196	4.250	4.125	$90.90	6 Feet
DPT-9197	4.312	4.187	$92.08	6 Feet
DPT-9198	4.375	4.250	$93.23	6 Feet
DPT-9199	4.437	4.312	$94.38	6 Feet
DPT-9200	4.500	4.375	$95.55	6 Feet
DPT-9201	4.562	4.437	$96.71	6 Feet
DPT-1586	4.625	4.500	$97.88	6 Feet
DPT-9203	4.687	4.562	$99.03	6 Feet
DPT-9220	4.750	4.625	$100.21	6 Feet
DPT-9717	4.812	4.687	$101.35	6 Feet
DPT-9718	4.875	4.750	$102.53	6 Feet
DPT-9719	4.937	4.812	$103.68	6 Feet
DPT-9720	5.000	4.875	$115.10	6 Feet
DPT-9721	5.062	4.937	$116.38	6 Feet
DPT-1591	5.125	5.000	$117.66	6 Feet
DPT-10870	5.187	5.062	$118.93	6 Feet
DPT-10878	5.250	5.125	$120.21	6 Feet
DPT-10868	5.312	5.187	$121.48	6 Feet
DPT-10867	5.375	5.250	$122.76	6 Feet
DPT-10866	5.437	5.312	$124.03	6 Feet
DPT-10865	5.500	5.375	$125.31	6 Feet
DPT-10864	5.562	5.437	$126.58	6 Feet
DPT-1597	5.625	5.500	$127.86	6 Feet
DPT-10837	5.687	5.562	$129.13	6 Feet
DPT-10812	5.750	5.625	$130.41	6 Feet
DPT-10846	5.812	5.687	$131.68	6 Feet
DPT-10825	5.875	5.750	$132.96	6 Feet
DPT-10824	5.937	5.812	$134.23	6 Feet
DPT-10823	6.000	5.875	$135.51	6 Feet
DPT-10822	6.062	5.937	$136.78	6 Feet
DPT-1603	6.125	6.000	$138.06	6 Feet
DPT-10811	6.187	6.062	$112.86	6 Feet
DPT-10819	6.250	6.125	$114.01	6 Feet
DPT-10827	6.312	6.187	$115.16	6 Feet
DPT-10817	6.375	6.250	$116.31	6 Feet
DPT-10816	6.437	6.312	$117.46	6 Feet
DPT-10815	6.500	6.375	$118.60	6 Feet
DPT-10814	6.562	6.437	$119.76	6 Feet
DPT-10813	6.625	6.500	$120.90	6 Feet
DPT-10835	6.687	6.562	$122.05	6 Feet
DPT-10818	6.750	6.625	$123.21	6 Feet
DPT-10820	6.812	6.687	$124.36	6 Feet
DPT-10843	6.875	6.750	$125.51	6 Feet
DPT-10842	6.937	6.812	$126.66	6 Feet
DPT-10841	7.000	6.875	$127.81	6 Feet
DPT-10840	7.062	6.937	$128.96	6 Feet
DPT-10839	7.125	7.000	$130.13	6 Feet
DPT-10838	7.187	7.062	$131.26	6 Feet
DPT-10828	7.250	7.125	$132.43	6 Feet
DPT-10836	7.312	7.187	$133.56	6 Feet
DPT-10844	7.375	7.250	$134.73	6 Feet
DPT-10834	7.437	7.312	$135.86	6 Feet
DPT-10833	7.500	7.375	$137.03	6 Feet
DPT-10832	7.562	7.437	$138.16	6 Feet
DPT-10831	7.625	7.500	$139.33	6 Feet
DPT-10830	7.687	7.562	$140.46	6 Feet
DPT-10894	7.750	7.625	$141.63	6 Feet
DPT-10826	7.812	7.687	$142.76	6 Feet
DPT-10871	7.875	7.750	$143.93	6 Feet
DPT-10928	7.937	7.812	$145.08	6 Feet
DPT-10927	8.000	7.875	$146.23	6 Feet
DPT-10926	8.062	7.937	$147.38	6 Feet
DPT-10925	8.125	8.000	$148.53	6 Feet
DPT-10923	8.250	8.125	$150.83	6 Feet
DPT-10913	8.312	8.187	$151.98	6 Feet
DPT-10921	8.375	8.250	$153.13	6 Feet
DPT-10929	8.437	8.312	$154.28	6 Feet
DPT-10919	8.500	8.375	$155.43	6 Feet
DPT-10918	8.562	8.437	$156.58	6 Feet
DPT-10917	8.625	8.500	$157.73	6 Feet
DPT-10916	8.687	8.562	$158.88	6 Feet
DPT-10915	8.750	8.625	$160.03	6 Feet
DPT-10937	8.812	8.687	$161.18	6 Feet
DPT-10920	8.875	8.750	$162.33	6 Feet
DPT-10922	8.937	8.812	$163.48	6

nominal inches, diameter	plus or minus (�) tolerance, inches
	ID inside diameter		OD outside diameter
	steel mandrel	built-up mandrel
.125" -.749"	.003"	-	.005"
.750" - 1.999"	.004"	-	.005"
2.000" - 4.000"	.006"	-	.008"
			*turned	*as wound
4.001" - 12.000"	.010"	-	.025"	plus only
12.001" - 18.000"	.030"	.060"	.030"	plus only
18.001" - 24.000"	.040"	.075"	.035"	plus only
24.001" - 48.000"	.060"	.090"	.040"	plus only
*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
