G11 High Temperature Glass Tubes .125" Wall Thickness
G11 Glass Tubes - natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10 FR4, with the addition of a higher operating
temperature and some improved mechanical strength at elevated temperatures.
The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
.125" Wall Thickness G11 Tubes |
||||
| Part # | OD (in.) | ID (in.) | Price Per Foot | Minimum Purchase |
|---|---|---|---|---|
| DPT-1482 | 0.437 | 0.187 | $35.50 | 21 Feet |
| DPT-1486 | 0.500 | 0.250 | $38.58 | 18 Feet |
| DPT-1490 | 0.562 | 0.312 | $41.65 | 15 Feet |
| DPT-1494 | 0.625 | 0.375 | $44.73 | 15 Feet |
| DPT-1498 | 0.687 | 0.437 | $47.81 | 12 Feet |
| DPT-1502 | 0.750 | 0.500 | $50.88 | 18 Feet |
| DPT-1507 | 0.812 | 0.562 | $53.96 | 15 Feet |
| DPT-1513 | 0.875 | 0.625 | $39.21 | 18 Feet |
| DPT-1518 | 0.937 | 0.687 | $41.30 | 18 Feet |
| DPT-10199 | 1.000 | 0.750 | $36.25 | 24 Feet |
| DPT-10221 | 1.062 | 0.812 | $45.53 | 18 Feet |
| DPT-1518K | 1.125 | 0.875 | $47.66 | 15 Feet |
| DPT-10206 | 1.187 | 0.937 | $49.76 | 15 Feet |

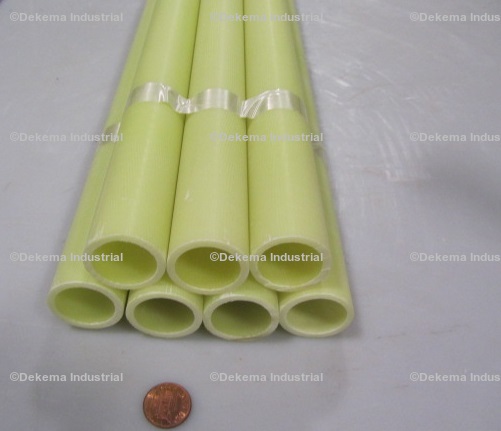

| DPT-1524 | 1.250 | 1.000 | $51.88 | 15 Feet |
| DPT-10227 | 1.312 | 1.062 | $53.98 | 15 Feet |
| DPT-9990 | 1.375 | 1.125 | $56.11 | 15 Feet |
| DPT-10226 | 1.437 | 1.187 | $58.21 | 12 Feet |
| DPT-1528 | 1.500 | 1.250 | $60.33 | 12 Feet |
| DPT-10224 | 1.562 | 1.312 | $62.43 | 12 Feet |
| DPT-10214 | 1.625 | 1.375 | $64.55 | 12 Feet |
| DPT-10222 | 1.687 | 1.437 | $66.66 | 12 Feet |
| DPT-1533 | 1.750 | 1.500 | $68.78 | 12 Feet |
| DPT-10000 | 1.812 | 1.562 | $70.88 | 12 Feet |
| DPT-9989 | 1.875 | 1.625 | $73.01 | 12 Feet |
| DPT-9998 | 1.937 | 1.687 | $75.11 | 9 Feet |
| DPT-1538 | 2.000 | 1.750 | $77.23 | 9 Feet |
| DPT-9996 | 2.062 | 1.812 | $79.33 | 9 Feet |
| DPT-9995 | 2.125 | 1.875 | $81.46 | 9 Feet |
| DPT-9994 | 2.187 | 1.875 | $83.55 | 9 Feet |
| DPT-1543 | 2.250 | 2.000 | $85.68 | 9 Feet |
| DPT-9992 | 2.312 | 2.062 | $87.78 | 9 Feet |
| DPT-9991 | 2.375 | 2.125 | $89.91 | 9 Feet |
| DPT-10219 | 2.437 | 2.187 | $92.01 | 9 Feet |
| DPT-1548 | 2.500 | 2.250 | $94.16 | 9 Feet |
| DPT-9999 | 2.562 | 2.312 | $96.23 | 9 Feet |
| DPT-10218 | 2.625 | 2.375 | $98.38 | 9 Feet |
| DPT-10217 | 2.687 | 2.437 | $100.48 | 9 Feet |
| DPT-1553 | 2.750 | 2.500 | $102.60 | 9 Feet |
| DPT-10113 | 2.812 | 2.562 | $104.71 | 9 Feet |
| DPT-10262 | 2.875 | 2.625 | $106.83 | 9 Feet |
| DPT-10149 | 2.937 | 2.687 | $108.93 | 9 Feet |
| DPT-1558 | 3.000 | 2.750 | $111.05 | 9 Feet |
| DPT-10046 | 3.062 | 2.812 | $113.15 | 9 Feet |
| DPT-10045 | 3.125 | 2.875 | $115.28 | 9 Feet |
| DPT-10044 | 3.187 | 2.937 | $117.38 | 9 Feet |
| DPT-1562 | 3.250 | 3.000 | $119.59 | 9 Feet |
| DPT-10042 | 3.312 | 3.062 | $121.61 | 9 Feet |
| DPT-10033 | 3.375 | 3.125 | $123.73 | 9 Feet |
| DPT-10508 | 3.437 | 3.187 | $125.83 | 9 Feet |
| DPT-1567 | 3.500 | 3.250 | $127.96 | 9 Feet |
| DPT-10611 | 3.562 | 3.312 | $130.06 | 9 Feet |
| DPT-10048 | 3.625 | 3.375 | $132.18 | 9 Feet |
| DPT-10038 | 3.687 | 3.437 | $134.28 | 6 Feet |
| DPT-1572 | 3.750 | 3.500 | $136.41 | 6 Feet |
| DPT-10036 | 3.812 | 3.562 | $138.51 | 6 Feet |
| DPT-10035 | 3.875 | 3.625 | $140.63 | 6 Feet |
| DPT-10034 | 3.937 | 3.687 | $142.73 | 6 Feet |
| DPT-1577 | 4.000 | 3.750 | $144.88 | 6 Feet |
| DPT-10058 | 4.062 | 3.812 | $146.96 | 6 Feet |
| DPT-10041 | 4.125 | 3.875 | $149.11 | 6 Feet |
| DPT-10063 | 4.187 | 3.937 | $151.18 | 6 Feet |
| DPT-1582 | 4.250 | 4.000 | $153.33 | 6 Feet |
| DPT-10061 | 4.312 | 4.062 | $155.43 | 6 Feet |
| DPT-10060 | 4.375 | 4.125 | $157.56 | 6 Feet |
| DPT-10059 | 4.437 | 4.187 | $159.66 | 6 Feet |
| DPT-10049 | 4.500 | 4.250 | $161.78 | 6 Feet |
| DPT-10057 | 4.562 | 4.312 | $163.88 | 6 Feet |
| DPT-10065 | 4.625 | 4.375 | $166.01 | 6 Feet |
| DPT-10055 | 4.687 | 4.437 | $168.11 | 6 Feet |
| DPT-1587 | 4.750 | 4.500 | $170.23 | 6 Feet |
| DPT-10053 | 4.812 | 4.562 | $172.33 | 6 Feet |
| DPT-10052 | 4.875 | 4.625 | $174.46 | 6 Feet |
| DPT-10051 | 4.937 | 4.687 | $176.56 | 6 Feet |
| DPT-10025 | 5.000 | 4.750 | $178.68 | 6 Feet |
| DPT-10064 | 5.062 | 4.812 | $180.78 | 6 Feet |
| DPT-10039 | 5.125 | 4.875 | $200.83 | 6 Feet |
| DPT-10015 | 5.187 | 4.937 | $203.13 | 6 Feet |
| DPT-1592 | 5.250 | 5.000 | $205.48 | 6 Feet |
| DPT-10013 | 5.312 | 5.062 | $207.78 | 6 Feet |
| DPT-10012 | 5.375 | 5.125 | $210.13 | 6 Feet |
| DPT-10011 | 5.437 | 5.187 | $212.43 | 6 Feet |
| DPT-10010 | 5.500 | 5.250 | $214.76 | 6 Feet |
| DPT-10001 | 5.562 | 5.312 | $217.06 | 6 Feet |
| DPT-10008 | 5.625 | 5.375 | $219.41 | 6 Feet |
| DPT-10016 | 5.687 | 5.437 | $221.71 | 6 Feet |
| DPT-1598 | 5.750 | 5.500 | $224.06 | 6 Feet |
| DPT-10005 | 5.812 | 5.562 | $226.36 | 6 Feet |
| DPT-10004 | 5.875 | 5.625 | $228.68 | 6 Feet |
| DPT-10003 | 5.937 | 5.687 | $230.98 | 6 Feet |
| DPT-10023 | 6.000 | 5.750 | $233.33 | 6 Feet |
| DPT-10007 | 6.062 | 5.812 | $212.48 | 6 Feet |
| DPT-10009 | 6.125 | 5.875 | $237.98 | 6 Feet |
| DPT-10031 | 6.187 | 5.937 | $240.28 | 6 Feet |
| DPT-1604 | 6.250 | 6.000 | $242.61 | 6 Feet |
| DPT-10029 | 6.312 | 6.062 | $227.91 | 6 Feet |
| DPT-10028 | 6.375 | 6.125 | $230.23 | 6 Feet |
| DPT-10027 | 6.437 | 6.187 | $232.53 | 6 Feet |
| DPT-10026 | 6.500 | 6.250 | $234.83 | 6 Feet |
| DPT-10017 | 6.562 | 6.312 | $237.13 | 6 Feet |
| DPT-10024 | 6.625 | 6.375 | $239.43 | 6 Feet |
| DPT-10032 | 6.687 | 6.437 | $241.73 | 6 Feet |
| DPT-10022 | 6.750 | 6.500 | $244.06 | 6 Feet |
| DPT-10021 | 6.812 | 6.562 | $246.33 | 6 Feet |
| DPT-10020 | 6.875 | 6.625 | $248.66 | 6 Feet |
| DPT-10019 | 6.937 | 6.687 | $250.93 | 6 Feet |
| DPT-10018 | 7.000 | 6.750 | $253.26 | 6 Feet |
| DPT-10080 | 7.062 | 6.812 | $255.53 | 6 Feet |
| DPT-10130 | 7.125 | 6.875 | $257.85 | 6 Feet |
| DPT-10050 | 7.187 | 6.937 | $260.13 | 6 Feet |
| DPT-10112 | 7.250 | 7.000 | $262.46 | 6 Feet |
| DPT-10111 | 7.312 | 7.062 | $264.73 | 6 Feet |
| DPT-10110 | 7.375 | 7.125 | $267.06 | 3 Feet |
| DPT-10109 | 7.437 | 7.187 | $269.35 | 3 Feet |
| DPT-10108 | 7.500 | 7.250 | $271.66 | 3 Feet |
| DPT-10099 | 7.562 | 7.312 | $273.96 | 3 Feet |
| DPT-10106 | 7.625 | 7.375 | $276.26 | 3 Feet |
| DPT-10114 | 7.687 | 7.437 | $278.56 | 3 Feet |
| DPT-10104 | 7.750 | 7.500 | $280.88 | 3 Feet |
| DPT-10103 | 7.812 | 7.562 | $283.16 | 3 Feet |
| DPT-10102 | 7.875 | 7.625 | $285.48 | 3 Feet |
| DPT-10101 | 7.937 | 7.687 | $287.75 | 3 Feet |
| DPT-10100 | 8.000 | 7.750 | $290.08 | 3 Feet |
| DPT-10122 | 8.062 | 7.812 | $292.35 | 3 Feet |
| DPT-10124 | 8.125 | 7.875 | $294.68 | 3 Feet |
| DPT-10107 | 8.187 | 7.937 | $296.96 | 3 Feet |
| DPT-10129 | 8.250 | 8.000 | $299.28 | 3 Feet |
| DPT-9968 | 8.375 | 8.125 | $303.88 | 3 Feet |
| DPT-10127 | 8.437 | 8.187 | $306.18 | 3 Feet |
| DPT-10126 | 8.500 | 8.250 | $308.48 | 3 Feet |
| DPT-9892 | 8.562 | 8.312 | $310.78 | 3 Feet |
| DPT-9891 | 8.625 | 8.375 | $313.08 | 3 Feet |
| DPT-9890 | 8.687 | 8.437 | $315.38 | 3 Feet |
| DPT-9889 | 8.750 | 8.500 | $317.71 | 3 Feet |
| DPT-9888 | 8.812 | 8.562 | $319.98 | 3 Feet |
| DPT-9641 | 8.875 | 8.625 | $322.30 | 3 Feet |
| DPT-9887 | 8.937 | 8.687 | $324.58 | 3 Feet |
| DPT-9781 | 9.000 | 8.750 | $326.91 | 3 Feet |
| DPT-9780 | 9.062 | 8.812 | $329.18 | 3 Feet |
| DPT-9779 | 9.125 | 8.875 | $331.50 | 3 Feet |
| DPT-9778 | 9.187 | 8.937 | $333.78 | 3 Feet |
| DPT-9777 | 9.250 | 9.000 | $336.10 | 3 Feet |
| DPT-9776 | 9.312 | 9.062 | $338.38 | 3 Feet |
| DPT-9775 | 9.375 | 9.125 | $340.71 | 3 Feet |
| DPT-9773 | 9.500 | 9.250 | $345.31 | 3 Feet |
| DPT-9774 | 9.437 | 9.187 | $343.00 | 3 Feet |
| DPT-9760 | 9.562 | 9.312 | $347.60 | 3 Feet |
| DPT-9771 | 9.625 | 9.375 | $349.91 | 3 Feet |
| DPT-9783 | 9.687 | 9.437 | $352.21 | 3 Feet |
| DPT-9769 | 9.750 | 9.500 | $354.53 | 3 Feet |
| DPT-9768 | 9.812 | 9.562 | $356.81 | 3 Feet |
| DPT-9767 | 9.875 | 9.625 | $359.13 | 3 Feet |
| DPT-9766 | 9.937 | 9.687 | $361.41 | 3 Feet |
| DPT-9765 | 10.000 | 9.750 | $363.73 | 3 Feet |
| DPT-9764 | 10.062 | 9.812 | $366.01 | 3 Feet |
| DPT-9763 | 10.125 | 9.875 | $368.33 | 3 Feet |
| DPT-9762 | 10.187 | 9.937 | $370.61 | 3 Feet |
| DPT-9794 | 10.250 | 10.000 | $372.93 | 3 Feet |
| DPT-9770 | 10.312 | 10.062 | $375.21 | 3 Feet |
| DPT-9772 | 10.375 | 10.125 | $377.53 | 3 Feet |
| DPT-9806 | 10.437 | 10.187 | $379.80 | 3 Feet |
| DPT-9805 | 10.500 | 10.250 | $382.13 | 3 Feet |
| DPT-9804 | 10.562 | 10.312 | $384.43 | 3 Feet |
| DPT-9803 | 10.625 | 10.375 | $386.73 | 3 Feet |
| DPT-9802 | 10.687 | 10.437 | $389.03 | 3 Feet |
| DPT-9801 | 10.750 | 10.500 | $391.35 | 3 Feet |
| DPT-9800 | 10.812 | 10.562 | $393.63 | 3 Feet |
| DPT-9799 | 10.875 | 10.625 | $395.96 | 3 Feet |
| DPT-9798 | 10.937 | 10.687 | $398.23 | 3 Feet |
| DPT-9797 | 11.000 | 10.750 | $400.56 | 3 Feet |
| DPT-9784 | 11.062 | 10.812 | $402.83 | 3 Feet |
| DPT-9795 | 11.125 | 10.875 | $405.16 | 3 Feet |
| DPT-9807 | 11.187 | 10.937 | $407.43 | 3 Feet |
| DPT-9793 | 11.250 | 11.000 | $409.76 | 3 Feet |
| DPT-9792 | 11.312 | 11.062 | $412.03 | 3 Feet |
| DPT-9791 | 11.375 | 11.125 | $414.36 | 3 Feet |
| DPT-9790 | 11.437 | 11.187 | $416.63 | 3 Feet |
| DPT-9789 | 11.500 | 11.250 | $418.96 | 3 Feet |
| DPT-9788 | 11.562 | 11.312 | $421.26 | 3 Feet |
| DPT-9787 | 11.625 | 11.375 | $423.55 | 3 Feet |
| DPT-9785 | 11.750 | 11.500 | $428.18 | 3 Feet |
| DPT-9748 | 11.812 | 11.562 | $430.46 | 3 Feet |
| DPT-9713 | 11.875 | 11.625 | $432.78 | 3 Feet |
| DPT-9761 | 11.937 | 11.687 | $435.06 | 3 Feet |
| DPT-9733 | 12.000 | 11.750 | $437.38 | 3 Feet |
| DPT-9732 | 12.062 | 11.812 | $439.66 | 3 Feet |
| DPT-9731 | 12.125 | 11.875 | $441.98 | 3 Feet |
| DPT-9730 | 12.187 | 11.937 | $444.25 | 3 Feet |
| DPT-9729 | 12.250 | 12.000 | $446.58 | 3 Feet |
| DPT-9728 | 12.312 | 12.062 | $448.85 | 3 Feet |
| DPT-9727 | 12.375 | 12.125 | $451.18 | 3 Feet |
| DPT-9726 | 12.437 | 12.187 | $453.46 | 3 Feet |
| DPT-9725 | 12.500 | 12.250 | $455.78 | 3 Feet |
| DPT-9712 | 12.562 | 12.312 | $458.08 | 3 Feet |
| DPT-9723 | 12.625 | 12.375 | $460.38 | 3 Feet |
| DPT-9735 | 12.687 | 12.437 | $462.68 | 3 Feet |
| DPT-9716 | 12.750 | 12.500 | $465.01 | 3 Feet |
| DPT-9715 | 12.812 | 12.562 | $467.28 | 3 Feet |
| DPT-9714 | 12.875 | 12.625 | $469.60 | 3 Feet |
| DPT-9746 | 12.937 | 12.687 | $471.88 | 3 Feet |
| DPT-9722 | 13.000 | 12.750 | $474.21 | 3 Feet |
| DPT-9724 | 13.062 | 12.812 | $476.48 | 3 Feet |
| DPT-9758 | 13.125 | 12.875 | $478.81 | 3 Feet |
| DPT-9757 | 13.187 | 12.937 | $481.08 | 3 Feet |
| DPT-9756 | 13.250 | 13.000 | $483.41 | 3 Feet |
| DPT-9755 | 13.312 | 13.062 | $485.68 | 3 Feet |
| DPT-9754 | 13.375 | 13.125 | $488.00 | 3 Feet |
| DPT-9753 | 13.437 | 13.187 | $490.28 | 3 Feet |
| DPT-9752 | 13.500 | 13.250 | $492.60 | 3 Feet |
| DPT-9751 | 13.562 | 13.312 | $494.91 | 3 Feet |
| DPT-9750 | 13.625 | 13.375 | $497.21 | 3 Feet |
| DPT-9749 | 13.687 | 13.437 | $499.51 | 3 Feet |
| DPT-9736 | 13.750 | 13.500 | $501.83 | 3 Feet |
| DPT-9747 | 13.812 | 13.562 | $504.11 | 3 Feet |
| DPT-9759 | 13.875 | 13.625 | $506.43 | 3 Feet |
| DPT-9745 | 13.937 | 13.687 | $508.71 | 3 Feet |
| DPT-9744 | 14.000 | 13.750 | $511.03 | 3 Feet |
| DPT-9743 | 14.062 | 13.812 | $513.31 | 3 Feet |
| DPT-9742 | 14.125 | 13.875 | $515.63 | 3 Feet |
| DPT-9741 | 14.187 | 13.937 | $517.91 | 3 Feet |
| DPT-9740 | 14.250 | 14.000 | $520.23 | 3 Feet |
| DPT-9739 | 14.312 | 14.062 | $522.51 | 3 Feet |
| DPT-9738 | 14.375 | 14.125 | $524.83 | 3 Feet |
| DPT-9830 | 14.437 | 14.187 | $527.11 | 3 Feet |
| DPT-9734 | 14.500 | 14.250 | $529.43 | 3 Feet |
| DPT-9796 | 14.562 | 14.312 | $531.73 | 3 Feet |
| DPT-9886 | 14.625 | 14.375 | $534.03 | 3 Feet |
| DPT-9875 | 14.687 | 14.437 | $536.33 | 3 Feet |
| DPT-9884 | 14.750 | 14.500 | $538.66 | 3 Feet |
| DPT-9893 | 14.812 | 14.562 | $540.93 | 3 Feet |
| DPT-9882 | 14.875 | 14.625 | $543.26 | 3 Feet |
| DPT-9881 | 14.937 | 14.687 | $545.53 | 3 Feet |
| DPT-9880 | 15.000 | 14.750 | $547.86 | 3 Feet |
| DPT-9879 | 15.062 | 14.812 | $550.13 | 3 Feet |
| DPT-9878 | 15.125 | 14.875 | $552.46 | 3 Feet |
| DPT-9877 | 15.187 | 14.937 | $554.73 | 3 Feet |
| DPT-9902 | 15.250 | 15.000 | $557.06 | 3 Feet |
| DPT-9883 | 15.312 | 15.062 | $559.33 | 3 Feet |
| DPT-9885 | 15.375 | 15.125 | $561.66 | 3 Feet |
| DPT-9438 | 15.437 | 15.187 | $563.93 | 3 Feet |
| DPT-9911 | 15.500 | 15.250 | $566.26 | 3 Feet |
| DPT-9910 | 15.562 | 15.312 | $568.56 | 3 Feet |
| DPT-9909 | 15.625 | 15.375 | $570.86 | 3 Feet |
| DPT-9908 | 15.687 | 15.437 | $573.16 | 3 Feet |
| DPT-9907 | 15.750 | 15.500 | $575.48 | 3 Feet |
| DPT-9906 | 15.812 | 15.562 | $577.76 | 3 Feet |
| DPT-9905 | 15.875 | 15.625 | $580.08 | 3 Feet |
| DPT-9894 | 15.937 | 15.687 | $582.36 | 3 Feet |
| DPT-9903 | 16.000 | 15.750 | $584.68 | 3 Feet |
| DPT-9912 | 16.062 | 15.812 | $586.96 | 3 Feet |
| DPT-9901 | 16.125 | 15.875 | $589.28 | 3 Feet |
| DPT-9900 | 16.187 | 15.937 | $591.56 | 3 Feet |
| DPT-9899 | 16.250 | 16.000 | $593.88 | 3 Feet |
| DPT-9898 | 16.312 | 16.062 | $596.16 | 3 Feet |
| DPT-9897 | 16.375 | 16.125 | $598.48 | 3 Feet |
| DPT-9896 | 16.437 | 16.187 | $600.76 | 3 Feet |
| DPT-9873 | 16.500 | 16.250 | $603.08 | 3 Feet |
| DPT-9904 | 16.562 | 16.312 | $605.38 | 3 Feet |
| DPT-9876 | 16.625 | 16.375 | $607.68 | 3 Feet |
| DPT-9854 | 16.687 | 16.437 | $609.98 | 3 Feet |
| DPT-9853 | 16.750 | 16.500 | $612.28 | 3 Feet |
| DPT-9852 | 16.812 | 16.562 | $614.58 | 3 Feet |
| DPT-9851 | 16.875 | 16.625 | $616.91 | 3 Feet |
| DPT-9850 | 16.937 | 16.687 | $619.18 | 3 Feet |
| DPT-9849 | 17.000 | 16.750 | $621.51 | 3 Feet |
| DPT-9848 | 17.062 | 16.812 | $623.78 | 3 Feet |
| DPT-9838 | 17.125 | 16.875 | $626.11 | 3 Feet |
| DPT-10944 | 17.187 | 16.937 | $628.38 | 3 Feet |
| DPT-10943 | 17.250 | 17.000 | $630.71 | 3 Feet |
| DPT-10942 | 17.312 | 17.062 | $632.98 | 3 Feet |
| DPT-10941 | 17.375 | 17.125 | $635.31 | 3 Feet |
| DPT-10930 | 17.500 | 17.250 | $639.91 | 3 Feet |
| DPT-10938 | 17.562 | 17.312 | $642.21 | 3 Feet |
| DPT-10946 | 17.625 | 17.375 | $644.51 | 3 Feet |
| DPT-10936 | 17.687 | 17.437 | $646.81 | 3 Feet |
| DPT-10935 | 17.750 | 17.500 | $649.11 | 3 Feet |
| DPT-10933 | 17.875 | 17.625 | $653.73 | 3 Feet |
| DPT-10932 | 17.937 | 17.687 | $656.01 | 3 Feet |
| DPT-10931 | 18.000 | 17.750 | $658.33 | 3 Feet |
| DPT-10905 | 18.062 | 17.812 | $660.61 | 3 Feet |
| DPT-10880 | 18.125 | 17.875 | $662.93 | 3 Feet |
| DPT-10914 | 18.187 | 17.937 | $665.21 | 3 Feet |
| DPT-10893 | 18.250 | 18.000 | $667.53 | 3 Feet |
| DPT-10892 | 18.312 | 18.062 | $669.81 | 3 Feet |
| DPT-10891 | 18.375 | 18.125 | $672.13 | 3 Feet |
| DPT-10890 | 18.437 | 18.187 | $674.41 | 3 Feet |
| DPT-10889 | 18.500 | 18.250 | $676.73 | 3 Feet |
| DPT-10879 | 18.562 | 18.312 | $679.03 | 3 Feet |
| DPT-10887 | 18.625 | 18.375 | $681.33 | 3 Feet |
| DPT-10895 | 18.687 | 18.437 | $683.63 | 3 Feet |
| DPT-10885 | 18.750 | 18.500 | $685.93 | 3 Feet |
| DPT-10884 | 18.812 | 18.562 | $688.23 | 3 Feet |
| DPT-10883 | 18.875 | 18.625 | $690.56 | 3 Feet |
| DPT-10882 | 18.937 | 18.687 | $692.83 | 3 Feet |
| DPT-10881 | 19.000 | 18.750 | $695.16 | 3 Feet |
| DPT-10903 | 19.062 | 18.812 | $697.43 | 3 Feet |
| DPT-10886 | 19.125 | 18.875 | $699.76 | 3 Feet |
| DPT-10888 | 19.187 | 18.937 | $702.03 | 3 Feet |
| DPT-10911 | 19.250 | 19.000 | $704.36 | 3 Feet |
| DPT-10910 | 19.312 | 19.062 | $706.63 | 3 Feet |
| DPT-10909 | 19.375 | 19.125 | $708.96 | 3 Feet |
| DPT-10908 | 19.437 | 19.187 | $711.23 | 3 Feet |
| DPT-10907 | 19.500 | 19.250 | $713.56 | 3 Feet |
| DPT-10906 | 19.562 | 19.312 | $715.86 | 3 Feet |
| DPT-10896 | 19.625 | 19.375 | $718.16 | 3 Feet |
| DPT-10904 | 19.687 | 19.437 | $720.46 | 3 Feet |
| DPT-10912 | 19.750 | 19.500 | $722.76 | 3 Feet |
| DPT-10902 | 19.812 | 19.562 | $725.06 | 3 Feet |
| DPT-10901 | 19.875 | 19.625 | $727.38 | 3 Feet |
| DPT-10900 | 19.937 | 19.687 | $729.66 | 3 Feet |
| DPT-10899 | 20.000 | 19.750 | $731.98 | 3 |
| nominal inches, | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
