Paper X, XX, XXX Reinforced Phenolic Laminate Tubes - .031" Wall Thickness
Paper X/XX/XXX Paper Reinforced Phenolic
- natural (tan)
Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder.
It has good electric strength properties with fair mechanical strength.
Outstanding for use as template material and or backup material.
NEMA
X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to
MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to
MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
NEMA grades X,
XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to
brown. These grades are composed of a paper base impregnated with a phenolic
resin binder. (Phenolics are the oldest, best-known general purpose thermoset
resins. They are among the lowest in cost and easiest to process. Phenolics are
quite adequate for a fair percentage of electrical applications. Generally
speaking, they are not equivalent to epoxies in resistance to moisture,
humidity, dimensional stability, shrinkage and retention of electrical
properties in extreme environments.) The paper reinforced phenolic has good
electric strength properties with fair mechanical strength and are outstanding
for use as template material and/or back-up material.
Click Here for X, XX, XXX or Sheets, Rods
| Select X, XX, XXX Tubing Wall Thickness | ||
| 1.00" | ||
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"

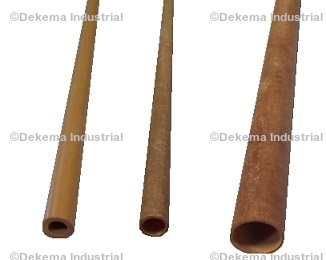

.031" Wall Thickness Paper Phenolic Tubing |
||||
| Part # | OD (in.) | ID (in.) | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|
| DPT-1863 | .250 | .187 | 66 Feet | $22.03 |
| DPT-1867 | .313 | .250 | 66 Feet | $21.78 |
| DPT-1871 | .375 | .312 | 63 Feet | $22.63 |
| DPT-1155 | .438 | .375 | 66 Feet | $22.46 |
| DPT-1875 | .500 | .437 | 63 Feet | $23.25 |
| DPT-1879 | .563 | .500 | 60 Feet | $24.06 |
| DPT-1885 | .625 | .562 | 57 Feet | $24.85 |
| DPT-1890 | .688 | .625 | 57 Feet | $25.66 |
| DPT-1896 | .750 | .687 | 54 Feet | $26.46 |
| DPT-1899 | .813 | .750 | 54 Feet | $27.28 |
| DPT-19741 | .875 | .812 | 51 Feet | $28.08 |
| DPT-1905 | .938 | .875 | 51 Feet | $28.88 |
| DPT-19747 | 1.000 | .937 | 48 Feet | $29.68 |
| DPT-1911 | 1.062 | 1.00 | 48 Feet | $30.48 |
| DPT-19775 | 1.125 | 1.062 | 45 Feet | $31.28 |
| DPT-19774 | 1.187 | 1.125 | 45 Feet | $32.11 |
| DPT-19773 | 1.250 | 1.187 | 42 Feet | $32.91 |
| DPT-5061 | 1.312 | 1.25 | 39 Feet | $37.08 |
| DPT-19771 | 1.375 | 1.312 | 39 Feet | $37.96 |
| DPT-19770 | 1.437 | 1.375 | 36 Feet | $38.86 |
| DPT-19769 | 1.500 | 1.437 | 36 Feet | $39.73 |
| DPT-5064 | 1.563 | 1.500 | 36 Feet | $40.63 |
| DPT-19767 | 1.625 | 1.562 | 33 Feet | $41.50 |
| DPT-23039 | 1.687 | 1.625 | 33 Feet | $42.38 |
| DPT-19776 | 1.688 | 1.625 | 33 Feet | $42.38 |
| DPT-19765 | 1.750 | 1.687 | 33 Feet | $43.28 |
| DPT-19764 | 1.812 | 1.750 | 33 Feet | $44.15 |
| DPT-19763 | 1.875 | 1.812 | 33 Feet | $45.03 |
| DPT-19762 | 1.937 | 1.875 | 30 Feet | $45.93 |
| DPT-19761 | 2.000 | 1.937 | 30 | $46.81 |
| diameter | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
