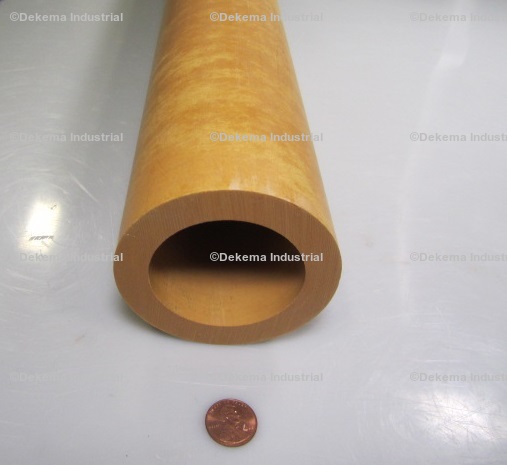

Paper X, XX, XXX Reinforced Phenolic Laminate Tubes 1/2" Wall Thickness
Paper X/XX/XXX Reinforced Phenolic
Tubes - natural
(tan)
Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder.
It has good electric strength properties with fair mechanical strength.
Outstanding for use as template material and or backup material.
NEMA X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
NEMA grades X, XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to brown. These grades are composed of a paper base impregnated with a phenolic resin binder. (Phenolics are the oldest, best-known general purpose thermoset resins. They are among the lowest in cost and easiest to process. Phenolics are quite adequate for a fair percentage of electrical applications. Generally speaking, they are not equivalent to epoxies in resistance to moisture, humidity, dimensional stability, shrinkage and retention of electrical properties in extreme environments.) The paper reinforced phenolic has good electric strength properties with fair mechanical strength and are outstanding for use as template material and/or back-up material.
Click Here for X, XX, XXX or Sheets, Rods
| Select X, XX, XXX Tubing Wall Thickness | ||
| | | |
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
.500" Wall Thickness Paper Phenolic Tubes |
||||
| Part # | OD (in.) | ID (in.) | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|
| DPT-22338 | 1.500 | .500 | 12 Feet | $144.83 |
| DPT-22327 | 1.562 | .562 | 9 Feet | $152.76 |
| DPT-22336 | 1.625 | .625 | 9 Feet | $160.71 |
| DPT-22345 | 1.688 | .687 | 9 Feet | $168.63 |
| DPT-22334 | 1.750 | .750 | 6 Feet | $283.01 |
| DPT-22333 | 1.812 | .812 | 9 Feet | $184.53 |
| DPT-22332 | 1.875 | .875 | 9 Feet | $192.46 |
| DPT-22331 | 1.937 | .937 | 6 Feet | $379.59 |
| DPT-22330 | 2.000 | 1.000 | 6 Feet | $382.76 |
| DPT-22329 | 2.062 | 1.062 | 6 Feet | $385.96 |
| DPT-22354 | 2.125 | 1.125 | 6 Feet | $370.01 |
| DPT-22335 | 2.188 | 1.187 | 6 Feet | $395.51 |
| DPT-22337 | 2.250 | 1.250 | 6 Feet | $264.16 |
| DPT-22363 | 2.312 | 1.312 | 6 Feet | $310.39 |
| DPT-22362 | 2.375 | 1.375 | 6 Feet | $351.43 |
| DPT-22361 | 2.437 | 1.437 | 6 Feet | $290.28 |
| DPT-1926 | 2.500 | 1.500 | 6 Feet | $299.08 |
| DPT-22359 | 2.562 | 1.562 | 6 Feet | $327.51 |
| DPT-22358 | 2.625 | 1.625 | 6 Feet | $330.91 |
| DPT-22357 | 2.688 | 1.687 | 6 Feet | $334.36 |
| DPT-1931 | 2.750 | 1.750 | 6 Feet | $334.03 |
| DPT-22355 | 2.812 | 1.812 | 6 Feet | $341.18 |
| DPT-22364 | 2.875 | 1.875 | 6 Feet | $306.98 |
| DPT-22353 | 2.937 | 1.937 | 6 Feet | $317.23 |
| DPT-1936 | 3.000 | 2.000 | 6 Feet | $368.96 |
| DPT-22351 | 3.062 | 2.062 | 6 Feet | $424.23 |
| DPT-22350 | 3.125 | 2.125 | 6 Feet | $427.38 |
| DPT-22349 | 3.188 | 2.187 | 6 Feet | $430.61 |
| DPT-1941 | 3.250 | 2.250 | 6 Feet | $403.91 |
| DPT-22347 | 3.312 | 2.312 | 6 Feet | $436.98 |
| DPT-22318Q | 3.375 | 2.375 | 6 Feet | $421.38 |
| DPT-22290 | 3.437 | 2.437 | 6 Feet | $430.03 |
| DPT-1946 | 3.500 | 2.500 | 6 Feet | $438.83 |
| DPT-22305Q | 3.562 | 2.562 | 3 Feet | $447.51 |
| DPT-22304Q | 3.625 | 2.625 | 3 Feet | $456.31 |
| DPT-1951 | 3.750 | 2.750 | 3 Feet | $473.78 |
| DPT-22301Q | 3.812 | 2.812 | 3 Feet | $482.46 |
| DPT-22300 | 3.875 | 2.875 | 3 Feet | $491.26 |
| DPT-22289 | 3.937 | 2.937 | 3 Feet | $499.91 |
| DPT-1956 | 4.000 | 3.000 | 3 Feet | $508.71 |
| DPT-22307Q | 4.062 | 3.062 | 3 Feet | $517.38 |
| DPT-22296 | 4.125 | 3.125 | 3 Feet | $526.18 |
| DPT-22295 | 4.187 | 3.187 | 3 Feet | $534.86 |
| DPT-1961 | 4.250 | 3.250 | 3 Feet | $543.66 |
| DPT-22293 | 4.312 | 3.312 | 3 Feet | $552.33 |
| DPT-22292 | 4.375 | 3.375 | 3 Feet | $561.13 |
| DPT-22291 | 4.437 | 3.437 | 3 Feet | $569.78 |
| DPT-1966 | 4.500 | 3.500 | 3 Feet | $578.61 |
| DPT-22297 | 4.562 | 3.562 | 3 Feet | $587.26 |
| DPT-22299 | 4.625 | 3.625 | 3 Feet | $596.06 |
| DPT-22325 | 4.687 | 3.687 | 3 Feet | $398.74 |
| DPT-1971 | 4.750 | 3.750 | 3 Feet | $613.53 |
| DPT-22323 | 4.812 | 3.812 | 3 Feet | $405.11 |
| DPT-22322 | 4.875 | 3.875 | 3 Feet | $408.26 |
| DPT-22321 | 4.937 | 3.937 | 3 Feet | $411.48 |
| DPT-1975 | 5.000 | 4.000 | 3 Feet | $648.48 |
| DPT-22319 | 5.062 | 4.062 | 3 Feet | $389.14 |
| DPT-22308Q | 5.125 | 4.125 | 3 Feet | $665.93 |
| DPT-22317Q | 5.187 | 4.187 | 3 Feet | $674.61 |
| DPT-22326 | 5.250 | 4.250 | 3 Feet | $417.86 |
| DPT-22315Q | 5.312 | 4.312 | 3 Feet | $692.08 |
| DPT-22314Q | 5.375 | 4.375 | 3 Feet | $700.88 |
| DPT-22313Q | 5.437 | 4.438 | 3 Feet | $709.56 |
| DPT-1980 | 5.500 | 4.500 | 3 Feet | $718.36 |
| DPT-22311Q | 5.562 | 4.562 | 3 Feet | $727.01 |
| DPT-22310 | 5.625 | 4.625 | 3 Feet | $735.83 |
| DPT-21810 | 5.688 | 4.687 | 3 Feet | $744.48 |
| DPT-22461 | 5.750 | 4.750 | 3 Feet | $753.28 |
| DPT-22004 | 5.812 | 4.812 | 3 Feet | $761.96 |
| DPT-21506 | 5.875 | 4.875 | 3 Feet | $770.76 |
| DPT-21505 | 5.938 | 4.937 | 3 Feet | $779.43 |
| DPT-1985 | 6.000 | 5.000 | 3 Feet | $788.23 |
| DPT-21503 | 6.063 | 5.062 | 3 Feet | $796.91 |
| DPT-21502 | 6.125 | 5.125 | 3 Feet | $805.71 |
| DPT-21501 | 6.187 | 5.187 | 3 Feet | $814.36 |
| DPT-21500 | 6.250 | 5.250 | 3 Feet | $823.16 |
| DPT-21489 | 6.312 | 5.313 | 3 Feet | $831.83 |
| DPT-21498 | 6.375 | 5.375 | 3 Feet | $840.63 |
| DPT-21507 | 6.437 | 5.437 | 3 Feet | $849.31 |
| DPT-1991 | 6.500 | 5.500 | 3 Feet | $858.11 |
| DPT-21495 | 6.562 | 5.562 | 3 Feet | $866.78 |
| DPT-21494 | 6.625 | 5.625 | 3 Feet | $875.58 |
| DPT-21493 | 6.688 | 5.687 | 3 Feet | $884.23 |
| DPT-21492 | 6.750 | 5.750 | 3 Feet | $893.06 |
| DPT-21491 | 6.812 | 5.812 | 3 Feet | $901.71 |
| DPT-21516 | 6.875 | 5.875 | 3 Feet | $910.51 |
| DPT-21497 | 6.938 | 5.937 | 3 Feet | $919.18 |
| DPT-1997 | 7.000 | 6.000 | 3 Feet | $927.98 |
| DPT-21525 | 7.062 | 6.062 | 3 Feet | $892.81 |
| DPT-21524 | 7.125 | 6.125 | 3 Feet | $901.36 |
| DPT-21523 | 7.187 | 6.187 | 3 Feet | $909.81 |
| DPT-21522 | 7.250 | 6.250 | 3 Feet | $918.38 |
| DPT-21521 | 7.312 | 6.312 | 3 Feet | $926.81 |
| DPT-21520 | 7.375 | 6.375 | 3 Feet | $935.38 |
| DPT-21483 | 7.437 | 6.437 | 3 Feet | $943.81 |
| DPT-21482 | 7.500 | 6.500 | 3 Feet | $952.38 |
| DPT-21481 | 7.562 | 6.562 | 3 Feet | $960.81 |
| DPT-21470 | 7.625 | 6.625 | 3 Feet | $969.38 |
| DPT-21479 | 7.688 | 6.687 | 3 Feet | $977.83 |
| DPT-21488 | 7.750 | 6.750 | 3 Feet | $986.38 |
| DPT-21477 | 7.812 | 6.812 | 3 Feet | $994.83 |
| DPT-21476 | 7.875 | 6.875 | 3 Feet | $1,003.41 |
| DPT-21475 | 7.938 | 6.938 | 3 Feet | $1,011.83 |
| DPT-21474 | 8.000 | 7.000 | 3 Feet | $1,020.41 |
| DPT-21473 | 8.062 | 7.062 | 3 Feet | $1,028.83 |
| DPT-21472 | 8.125 | 7.125 | 3 Feet | $1,037.41 |
| DPT-21544 | 8.188 | 7.187 | 3 Feet | $1,045.86 |
| DPT-21468 | 8.250 | 7.250 | 3 Feet | $1,054.41 |
| DPT-21518 | 8.312 | 7.312 | 3 Feet | $1,062.86 |
| DPT-21582 | 8.375 | 7.375 | 3 Feet | $1,071.43 |
| DPT-21581 | 8.437 | 7.437 | 3 Feet | $1,079.86 |
| DPT-21580 | 8.500 | 7.500 | 3 Feet | $1,088.43 |
| DPT-21579 | 8.562 | 7.562 | 3 Feet | $1,096.85 |
| DPT-21578 | 8.625 | 7.625 | 3 Feet | $1,105.43 |
| DPT-21577 | 8.688 | 7.687 | 3 Feet | $1,113.86 |
| DPT-21576 | 8.750 | 7.750 | 3 Feet | $1,122.43 |
| DPT-21565 | 8.812 | 7.812 | 3 Feet | $1,130.88 |
| DPT-21574 | 8.875 | 7.875 | 3 Feet | $1,139.43 |
| DPT-21583 | 8.938 | 7.937 | 3 Feet | $1,147.88 |
| DPT-21572 | 9.000 | 8.000 | 3 Feet | $1,156.46 |
| DPT-21570 | 9.125 | 8.125 | 3 Feet | $1,173.46 |
| DPT-21569 | 9.188 | 8.187 | 3 Feet | $1,181.88 |
| DPT-21568 | 9.250 | 8.250 | 3 Feet | $1,190.46 |
| DPT-21567 | 9.312 | 8.312 | 3 Feet | $1,198.88 |
| DPT-21592 | 9.375 | 8.375 | 3 Feet | $1,207.46 |
| DPT-21573 | 9.437 | 8.437 | 3 Feet | $1,215.91 |
| DPT-21575 | 9.500 | 8.500 | 3 Feet | $1,224.48 |
| DPT-21601 | 9.563 | 8.562 | 3 Feet | $1,232.91 |
| DPT-21600 | 9.625 | 8.625 | 3 Feet | $1,241.48 |
| DPT-21599 | 9.688 | 8.687 | 3 Feet | $1,249.91 |
| DPT-21598 | 9.750 | 8.750 | 3 Feet | $1,258.48 |
| DPT-21597 | 9.812 | 8.812 | 3 Feet | $1,266.91 |
| DPT-21596 | 9.875 | 8.875 | 3 Feet | $1,275.48 |
| DPT-21595 | 9.937 | 8.937 | 3 Feet | $1,283.93 |
| DPT-21584 | 10.000 | 9.000 | 3 Feet | $1,292.48 |
| DPT-21593 | 10.062 | 9.062 | 3 Feet | $1,300.93 |
| DPT-21602 | 10.125 | 9.125 | 3 Feet | $1,309.50 |
| DPT-21591 | 10.187 | 9.187 | 3 Feet | $1,317.93 |
| DPT-21590 | 10.250 | 9.250 | 3 Feet | $1,326.51 |
| DPT-21589 | 10.313 | 9.312 | 3 Feet | $1,334.93 |
| DPT-21588 | 10.375 | 9.375 | 3 Feet | $1,343.50 |
| DPT-21587 | 10.437 | 9.437 | 3 Feet | $1,351.93 |
| DPT-21586 | 10.500 | 9.500 | 3 Feet | $1,360.50 |
| DPT-21585 | 10.563 | 9.562 | 3 Feet | $1,368.96 |
| DPT-21556 | 10.625 | 9.625 | 3 Feet | $1,377.51 |
| DPT-21528 | 10.688 | 9.687 | 3 Feet | $1,385.96 |
| DPT-21566 | 10.750 | 9.750 | 3 Feet | $1,394.53 |
| DPT-21543 | 10.813 | 9.813 | 3 Feet | $1,402.96 |
| DPT-21542 | 10.875 | 9.875 | 3 Feet | $1,411.53 |
| DPT-21541 | 10.937 | 9.937 | 3 Feet | $1,419.96 |
| DPT-21540 | 11.000 | 10.000 | 3 Feet | $1,428.53 |
| DPT-21539 | 11.062 | 10.062 | 3 Feet | $1,436.96 |
| DPT-21538 | 11.125 | 10.125 | 3 Feet | $1,445.53 |
| DPT-21527 | 11.188 | 10.187 | 3 Feet | $1,453.98 |
| DPT-21536 | 11.250 | 10.250 | 3 Feet | $1,462.55 |
| DPT-21545 | 11.313 | 10.312 | 3 Feet | $1,470.98 |
| DPT-21534 | 11.375 | 10.375 | 3 Feet | $1,479.55 |
| DPT-21533 | 11.437 | 10.437 | 3 Feet | $1,487.98 |
| DPT-21532 | 11.500 | 10.500 | 3 Feet | $1,496.56 |
| DPT-21531 | 11.562 | 10.562 | 3 Feet | $1,504.98 |
| DPT-21530 | 11.625 | 10.625 | 3 Feet | $1,513.55 |
| DPT-21529 | 11.687 | 10.687 | 3 Feet | $1,522.00 |
| DPT-21554 | 11.750 | 10.750 | 3 Feet | $1,530.56 |
| DPT-21535 | 11.812 | 10.812 | 3 Feet | $1,539.01 |
| DPT-21537 | 11.875 | 10.875 | 3 Feet | $1,547.58 |
| DPT-21563 | 11.937 | 10.937 | 3 Feet | $1,556.00 |
| DPT-21562 | 12.000 | 11.000 | 3 Feet | $1,564.58 |
| DPT-21561 | 12.062 | 11.062 | 3 Feet | $1,573.00 |
| DPT-21560 | 12.125 | 11.125 | 3 Feet | $1,581.58 |
| DPT-21559 | 12.187 | 11.187 | 3 Feet | $1,590.01 |
| DPT-21558 | 12.250 | 11.250 | 3 Feet | $1,598.58 |
| DPT-21557 | 12.313 | 11.312 | 3 Feet | $1,607.03 |
| DPT-21546 | 12.375 | 11.375 | 3 Feet | $1,615.58 |
| DPT-21555 | 12.437 | 11.437 | 3 Feet | $1,624.03 |
| DPT-21564 | 12.500 | 11.500 | 3 Feet | $1,632.61 |
| DPT-21553 | 12.562 | 11.562 | 3 Feet | $1,641.03 |
| DPT-21552 | 12.625 | 11.625 | 3 Feet | $1,649.60 |
| DPT-21551 | 12.687 | 11.687 | 3 Feet | $1,658.03 |
| DPT-21550 | 12.750 | 11.750 | 3 Feet | $1,666.61 |
| DPT-21549 | 12.812 | 11.812 | 3 Feet | $1,675.05 |
| DPT-21548 | 12.875 | 11.875 | 3 Feet | $1,683.60 |
| DPT-21547 | 12.937 | 11.937 | 3 Feet | $1,692.05 |
| DPT-21442 | 13.000 | 12.000 | 3 Feet | $1,700.63 |
| DPT-21319 | 13.062 | 12.062 | 3 Feet | $1,709.06 |
| DPT-21471 | 13.125 | 12.125 | 3 Feet | $1,717.63 |
| DPT-21353 | 13.187 | 12.187 | 3 Feet | $1,726.05 |
| DPT-21352 | 13.250 | 12.250 | 3 Feet | $1,734.63 |
| DPT-21351 | 13.312 | 12.312 | 3 Feet | $1,743.06 |
| DPT-21350 | 13.375 | 12.375 | 3 Feet | $1,751.63 |
| DPT-21349 | 13.437 | 12.437 | 3 Feet | $1,760.08 |
| DPT-21348 | 13.500 | 12.500 | 3 Feet | $1,768.63 |
| DPT-21337 | 13.562 | 12.562 | 3 Feet | $1,777.08 |
| DPT-21346 | 13.625 | 12.625 | 3 Feet | $1,785.66 |
| DPT-21355 | 13.687 | 12.687 | 3 Feet | $1,794.08 |
| DPT-21344 | 13.750 | 12.750 | 3 Feet | $1,802.65 |
| DPT-21343 | 13.812 | 12.813 | 3 Feet | $1,811.08 |
| DPT-21342 | 13.875 | 12.875 | 3 Feet | $1,819.66 |
| DPT-21341 | 13.937 | 12.937 | 3 Feet | $1,828.08 |
| DPT-21340 | 14.000 | 13.000 | 3 Feet | $1,836.66 |
| DPT-21339 | 14.062 | 13.062 | 3 Feet | $1,845.11 |
| DPT-21364 | 14.125 | 13.125 | 3 Feet | $1,853.65 |
| DPT-21345 | 14.187 | 13.187 | 3 Feet | $1,862.10 |
| DPT-21347 | 14.250 | 13.250 | 3 Feet | $1,870.68 |
| DPT-21373 | 14.312 | 13.312 | 3 Feet | $1,879.11 |
| DPT-21372 | 14.375 | 13.375 | 3 Feet | $1,887.68 |
| DPT-21371 | 14.437 | 13.437 | 3 Feet | $1,896.10 |
| DPT-21370 | 14.500 | 13.500 | 3 Feet | $1,904.68 |
| DPT-21369 | 14.562 | 13.562 | 3 Feet | $1,913.13 |
| DPT-21368 | 14.625 | 13.625 | 3 Feet | $1,921.68 |
| DPT-21367 | 14.687 | 13.687 | 3 Feet | $1,930.13 |
| DPT-21356 | 14.750 | 13.750 | 3 Feet | $1,938.71 |
| DPT-21365 | 14.812 | 13.812 | 3 Feet | $1,947.13 |
| DPT-21374 | 14.875 | 13.875 | 3 Feet | $1,955.71 |
| DPT-21363 | 14.937 | 13.937 | 3 Feet | $1,964.13 |
| DPT-21362 | 15.000 | 14.000 | 3 Feet | $1,972.71 |
| DPT-21361 | 15.062 | 14.062 | 3 Feet | $1,981.13 |
| DPT-21360 | 15.125 | 14.125 | 3 Feet | $1,989.71 |
| DPT-21359 | 15.187 | 14.187 | 3 Feet | $1,998.16 |
| DPT-21358 | 15.250 | 14.250 | 3 Feet | $2,006.71 |
| DPT-21357 | 15.312 | 14.312 | 3 Feet | $2,015.15 |
| DPT-21328 | 15.375 | 14.375 | 3 Feet | $2,023.73 |
| DPT-21300 | 15.437 | 14.437 | 3 Feet | $2,032.16 |
| DPT-21338 | 15.500 | 14.500 | 3 Feet | $2,040.73 |
| DPT-21315 | 15.562 | 14.562 | 3 Feet | $2,049.15 |
| DPT-21314 | 15.625 | 14.625 | 3 Feet | $2,057.73 |
| DPT-21313 | 15.687 | 14.687 | 3 Feet | $2,066.15 |
| DPT-21312 | 15.750 | 14.750 | 3 Feet | $2,074.73 |
| DPT-21311 | 15.812 | 14.812 | 3 Feet | $2,083.18 |
| DPT-21310 | 15.875 | 14.875 | 3 Feet | $2,091.75 |
| DPT-21299 | 15.937 | 14.937 | 3 Feet | $2,100.18 |
| DPT-21308 | 16.000 | 15.000 | 3 Feet | $2,108.76 |
| DPT-21317 | 16.062 | 15.062 | 3 Feet | $2,117.18 |
| DPT-21306 | 16.125 | 15.125 | 3 Feet | $2,125.76 |
| DPT-21305 | 16.187 | 15.187 | 3 Feet | $2,134.18 |
| DPT-21304 | 16.250 | 15.250 | 3 Feet | $2,142.76 |
| DPT-21303 | 16.312 | 15.312 | 3 Feet | $2,151.21 |
| DPT-21302 | 16.375 | 15.375 | 3 Feet | $2,159.76 |
| DPT-21301 | 16.437 | 15.437 | 3 Feet | $2,168.21 |
| DPT-21326 | 16.500 | 15.500 | 3 Feet | $2,176.78 |
| DPT-21307 | 16.562 | 15.562 | 3 Feet | $2,185.21 |
| DPT-21309 | 16.625 | 15.625 | 3 Feet | $2,193.78 |
| DPT-21335 | 16.687 | 15.687 | 3 Feet | $2,202.21 |
| DPT-21334 | 16.750 | 15.750 | 3 Feet | $2,210.78 |
| DPT-21333 | 16.812 | 15.812 | 3 Feet | $2,219.21 |
| DPT-21332 | 16.875 | 15.875 | 3 Feet | $2,227.78 |
| DPT-21331 | 16.937 | 15.937 | 3 Feet | $2,236.23 |
| DPT-21330 | 17.000 | 16.000 | 3 Feet | $2,244.78 |
| DPT-21329 | 17.062 | 16.062 | 3 Feet | $2,253.23 |
| DPT-21318 | 17.125 | 16.125 | 3 Feet | $2,261.81 |
| DPT-21327 | 17.187 | 16.187 | 3 Feet | $2,270.23 |
| DPT-21336 | 17.250 | 16.250 | 3 Feet | $2,278.81 |
| DPT-21325 | 17.312 | 16.312 | 3 Feet | $2,287.23 |
| DPT-21324 | 17.375 | 16.375 | 3 Feet | $2,295.81 |
| DPT-21323 | 17.437 | 16.437 | 3 Feet | $2,304.23 |
| DPT-21322 | 17.500 | 16.500 | 3 Feet | $2,312.81 |
| DPT-21321 | 17.562 | 16.562 | 3 Feet | $2,321.26 |
| DPT-21320 | 17.625 | 16.625 | 3 Feet | $2,329.83 |
| DPT-21392 | 17.687 | 16.687 | 3 Feet | $2,338.26 |
| DPT-21316 | 17.750 | 16.750 | 3 Feet | $2,346.83 |
| DPT-21366 | 17.812 | 16.812 | 3 Feet | $2,355.26 |
| DPT-21430 | 17.875 | 16.875 | 3 Feet | $2,363.83 |
| DPT-21429 | 17.937 | 16.937 | 3 Feet | $2,372.26 |
| DPT-21428 | 18.000 | 17.000 | 3 Feet | $2,380.83 |
| DPT-21427 | 18.062 | 17.062 | 3 Feet | $2,389.28 |
| DPT-21426 | 18.125 | 17.125 | 3 Feet | $2,397.83 |
| DPT-21425 | 18.187 | 17.187 | 3 Feet | $2,406.28 |
| DPT-21424 | 18.250 | 17.250 | 3 Feet | $2,414.86 |
| DPT-21413 | 18.312 | 17.312 | 3 Feet | $2,423.28 |
| DPT-21422 | 18.375 | 17.375 | 3 Feet | $2,431.86 |
| DPT-21431 | 18.437 | 17.437 | 3 Feet | $2,440.28 |
| DPT-21420 | 18.500 | 17.500 | 3 Feet | $2,448.86 |
| DPT-21419 | 18.562 | 17.562 | 3 Feet | $2,457.28 |
| DPT-21418 | 18.625 | 17.625 | 3 Feet | $2,465.85 |
| DPT-21417 | 18.687 | 17.687 | 3 Feet | $2,474.31 |
| DPT-21416 | 18.750 | 17.750 | 3 Feet | $2,482.86 |
| DPT-21415 | 18.812 | 17.812 | 3 Feet | $2,491.31 |
| DPT-21440 | 18.875 | 17.875 | 3 Feet | $2,499.88 |
| DPT-21421 | 18.937 | 17.937 | 3 Feet | $2,508.31 |
| DPT-21423 | 19.000 | 18.000 | 3 Feet | $2,516.88 |
| DPT-21449 | 19.062 | 18.062 | 3 Feet | $2,525.31 |
| DPT-21448 | 19.125 | 18.125 | 3 Feet | $2,533.88 |
| DPT-21447 | 19.187 | 18.187 | 3 Feet | $2,542.31 |
| DPT-21446 | 19.250 | 18.250 | 3 Feet | $2,550.88 |
| DPT-21445 | 19.312 | 18.312 | 3 Feet | $2,559.33 |
| DPT-21444 | 19.375 | 18.375 | 3 Feet | $2,567.91 |
| DPT-21443 | 19.437 | 18.437 | 3 Feet | $2,576.33 |
| DPT-21432 | 19.500 | 18.500 | 3 Feet | $2,584.91 |
| DPT-21441 | 19.562 | 18.563 | 3 Feet | $2,593.33 |
| DPT-21450 | 19.625 | 18.625 | 3 Feet | $2,601.90 |
| DPT-21439 | 19.687 | 19.687 | 3 Feet | $2,610.33 |
| DPT-21438 | 19.750 | 18.750 | 3 Feet | $2,618.90 |
| DPT-22890 | 19.812 | 18.812 | 3 Feet | $2,627.36 |
| DPT-22889BQ | 19.875 | 18.875 | 3 Feet | $2,635.90 |
| DPT-22878 | 19.937 | 18.937 | 3 Feet | $2,644.36 |
| DPT-22887 | 20.000 | 19.000 | 3 | $2,652.93 |
| diameter | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
