Paper X, XX, XXX Reinforced Phenolic Laminate Tubes - .093" Wall Thickness
Paper X/XX/XXX Paper Reinforced Phenolic
- natural (tan)
Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder.
It has good electric strength properties with fair mechanical strength.
Outstanding for use as template material and or backup material.
NEMA
X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to
MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to
MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
NEMA grades X,
XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to
brown. These grades are composed of a paper base impregnated with a phenolic
resin binder. (Phenolics are the oldest, best-known general purpose thermoset
resins. They are among the lowest in cost and easiest to process. Phenolics are
quite adequate for a fair percentage of electrical applications. Generally
speaking, they are not equivalent to epoxies in resistance to moisture,
humidity, dimensional stability, shrinkage and retention of electrical
properties in extreme environments.) The paper reinforced phenolic has good
electric strength properties with fair mechanical strength and are outstanding
for use as template material and/or back-up material.
Click Here for X, XX, XXX or Sheets, Rods
| Select X, XX, XXX Tubing Wall Thickness | ||
| 1.00" | ||
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"
.093" Wall Thickness Paper Phenolic Tubes |
||||
| Part # | OD (in.) | ID (in.) | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|
| DPT-1865 | .375 | .187 | 60 Feet | $23.25 |
| DPT-1869 | .438 | .250 | 57 Feet | $23.83 |

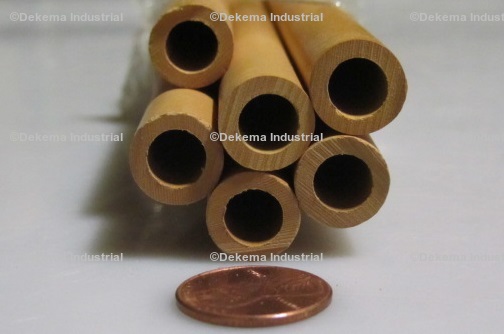

| DPT-1873 | .500 | .312 | 54 Feet | $25.58 |
| DPT-1161 | .563 | .375 | 51 Feet | $26.13 |
| DPT-1877 | .625 | .437 | 48 Feet | $27.78 |
| DPT-1881 | .688 | .500 | 48 Feet | $29.43 |
| DPT-22554 | .750 | .562 | 45 Feet | $31.10 |
| DPT-1892 | .813 | .625 | 42 Feet | $32.75 |
| DPT-22552 | .875 | .687 | 39 Feet | $34.41 |
| DPT-1901 | .938 | .750 | 39 Feet | $36.08 |
| DPT-22550 | 1.000 | .812 | 36 Feet | $37.73 |
| DPT-1907 | 1.062 | .875 | 36 Feet | $39.41 |
| DPT-22548 | 1.125 | .937 | 33 Feet | $41.06 |
| DPT-1913 | 1.187 | 1.000 | 33 Feet | $42.71 |
| DPT-22546 | 1.250 | 1.062 | 30 Feet | $44.36 |
| DPT-22555 | 1.312 | 1.125 | 30 Feet | $46.03 |
| DPT-22544 | 1.375 | 1.187 | 30 Feet | $47.68 |
| DPT-1195 | 1.438 | 1.250 | 27 Feet | $54.28 |
| DPT-22542 | 1.500 | 1.312 | 24 Feet | $56.11 |
| DPT-22541 | 1.562 | 1.375 | 15 Feet | $107.35 |
| DPT-22540 | 1.625 | 1.437 | 21 Feet | $72.01 |
| DPT-5065 | 1.688 | 1.500 | 24 Feet | $61.58 |
| DPT-22611 | 1.750 | 1.562 | 21 Feet | $63.40 |
| DPT-22535 | 1.812 | 1.625 | 24 Feet | $56.88 |
| DPT-22585 | 1.875 | 1.687 | 21 Feet | $67.05 |
| DPT-22649 | 1.937 | 1.750 | 21 Feet | $68.88 |
| DPT-22648 | 2.000 | 1.812 | 21 Feet | $70.71 |
| DPT-22647 | 2.062 | 1.875 | 21 Feet | $72.53 |
| DPT-22646 | 2.125 | 1.937 | 18 Feet | $74.36 |
| DPT-22645 | 2.188 | 2.000 | 18 Feet | $76.18 |
| DPT-22644 | 2.250 | 2.062 | 18 Feet | $78.01 |
| DPT-22643 | 2.312 | 2.125 | 18 Feet | $79.83 |
| DPT-22632 | 2.375 | 2.187 | 18 Feet | $81.66 |
| DPT-22641BQ | 2.437 | 2.250 | 18 Feet | $83.48 |
| DPT-22650 | 2.500 | 2.312 | 18 Feet | $85.31 |
| DPT-22639Q | 2.562 | 2.375 | 18 Feet | $87.15 |
| DPT-22638BQ | 2.625 | 2.437 | 15 Feet | $88.96 |
| DPT-22637BQ | 2.688 | 2.500 | 15 Feet | $90.80 |
| DPT-22636BQ | 2.750 | 2.562 | 15 Feet | $92.60 |
| DPT-22635 | 2.812 | 2.625 | 15 Feet | $94.46 |
| DPT-22634BQ | 2.875 | 2.687 | 15 Feet | $96.26 |
| DPT-22659 | 2.937 | 2.750 | 15 Feet | $98.11 |
| DPT-22640BQ | 3.000 | 2.812 | 15 Feet | $99.91 |
| DPT-22642BQ | 3.062 | 2.875 | 15 Feet | $101.76 |
| DPT-22668 | 3.125 | 2.937 | 15 Feet | $103.55 |

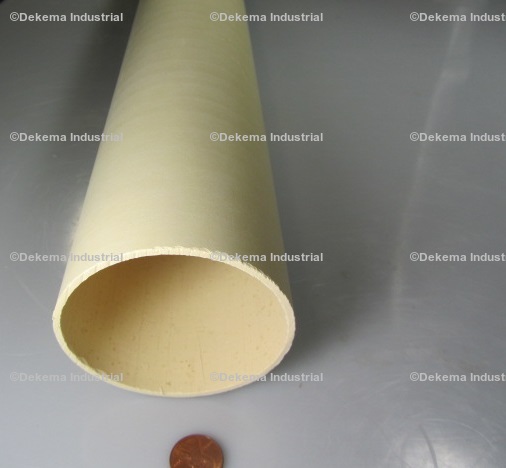

| DPT-22667BQ | 3.188 | 3.000 | 15 Feet | $105.41 |
| DPT-22666 | 3.250 | 3.062 | 15 Feet | $107.21 |
| DPT-22665 | 3.312 | 3.125 | 15 Feet | $109.06 |
| DPT-22664BQ | 3.375 | 3.187 | 12 Feet | $110.86 |
| DPT-22663BQ | 3.437 | 3.250 | 12 Feet | $112.71 |
| DPT-22662BQ | 3.500 | 3.312 | 12 Feet | $114.51 |
| DPT-22651BQ | 3.562 | 3.375 | 12 Feet | $116.35 |
| DPT-22660BQ | 3.625 | 3.437 | 12 Feet | $118.15 |
| DPT-22669BQ | 3.687 | 3.500 | 12 Feet | $120.01 |
| DPT-22658BQ | 3.750 | 3.562 | 12 Feet | $121.80 |
| DPT-22594 | 3.812 | 3.625 | 9 Feet | $327.46 |
| DPT-22657BQ | 3.937 | 3.750 | 12 Feet | $127.30 |
| DPT-22656BQ | 4.000 | 3.812 | 12 Feet | $129.11 |
| DPT-22655 | 4.062 | 3.875 | 12 Feet | $130.96 |
| DPT-22654 | 4.125 | 3.937 | 12 Feet | $132.76 |
| DPT-22653BQ | 4.187 | 4.000 | 12 Feet | $134.61 |
| DPT-22652 | 4.250 | 4.062 | 12 Feet | $136.41 |
| DPT-22623 | 4.312 | 4.125 | 12 Feet | $138.26 |
| DPT-22595 | 4.375 | 4.187 | 9 Feet | $330.11 |
| DPT-22633BQ | 4.437 | 4.250 | 12 Feet | $141.91 |
| DPT-22610BQ | 4.500 | 4.312 | 12 Feet | $143.71 |
| DPT-22609 | 4.562 | 4.375 | 12 Feet | $145.56 |
| DPT-22608 | 4.625 | 4.438 | 12 Feet | $147.38 |
| DPT-22607BQ | 4.687 | 4.500 | 9 Feet | $149.21 |
| DPT-22606 | 4.750 | 4.562 | 9 Feet | $151.03 |
| DPT-22605BQ | 4.812 | 4.625 | 9 Feet | $152.86 |
| DPT-22603 | 4.875 | 4.687 | 9 Feet | $154.68 |
| DPT-22612 | 4.937 | 4.750 | 9 Feet | $156.51 |
| DPT-22601 | 5.000 | 4.812 | 9 Feet | $158.33 |
| DPT-22600 | 5.062 | 4.875 | 9 Feet | $160.16 |
| DPT-22599 | 5.125 | 4.937 | 9 Feet | $322.21 |
| DPT-22598 | 5.187 | 5.000 | 6 Feet | $337.98 |
| DPT-22597 | 5.250 | 5.062 | 6 Feet | $335.36 |
| DPT-22596 | 5.312 | 5.125 | 6 Feet | $332.71 |
| DPT-22621BQ | 5.375 | 5.187 | 9 Feet | $253.88 |
| DPT-22602 | 5.437 | 5.250 | 9 Feet | $256.63 |
| DPT-22604BQ | 5.500 | 5.313 | 9 Feet | $259.35 |
| DPT-22630 | 5.562 | 5.375 | 9 Feet | $262.10 |
| DPT-22629BQ | 5.625 | 5.437 | 9 Feet | $264.83 |
| DPT-22628 | 5.688 | 5.500 | 9 Feet | $267.58 |
| DPT-22627 | 5.750 | 5.562 | 9 Feet | $270.31 |
| DPT-22626BQ | 5.812 | 5.625 | 9 Feet | $273.06 |
| DPT-22625BQ | 5.875 | 5.687 | 9 Feet | $275.78 |
| DPT-22624BQ | 5.938 | 5.750 | 9 Feet | $278.53 |
| DPT-22613BQ | 6.000 | 5.812 | 9 Feet | $281.26 |
| DPT-22622BQ | 6.063 | 5.875 | 9 Feet | $284.00 |
| DPT-22631 | 6.125 | 5.937 | 9 Feet | $286.73 |
| DPT-22620BQ | 6.187 | 6.000 | 9 Feet | $289.48 |
| DPT-22619BQ | 6.250 | 6.062 | 9 Feet | $259.03 |
| DPT-22618 | 6.312 | 6.125 | 9 Feet | $261.68 |
| DPT-22617 | 6.375 | 6.187 | 9 Feet | $264.28 |
| DPT-22616 | 6.437 | 6.250 | 9 Feet | $266.93 |
| DPT-22615 | 6.500 | 6.312 | 9 Feet | $269.53 |
| DPT-22614BQ | 6.562 | 6.375 | 9 Feet | $272.18 |
| DPT-22842 | 6.625 | 6.437 | 9 Feet | $274.81 |
| DPT-22610 | 6.688 | 6.500 | 9 Feet | $277.46 |
| DPT-22813 | 6.750 | 6.562 | 9 Feet | $280.05 |
| DPT-22611BQ | 6.812 | 6.625 | 9 Feet | $282.71 |
| DPT-22612BQ | 6.875 | 6.687 | 9 Feet | $285.31 |
| DPT-22613 | 6.938 | 6.750 | 9 Feet | $287.96 |
| DPT-22614 | 7.000 | 6.812 | 9 Feet | $290.58 |
| DPT-22615BQ | 7.062 | 6.875 | 9 Feet | $293.23 |
| DPT-22625 | 7.125 | 6.938 | 9 Feet | $295.83 |
| DPT-22617BQ | 7.187 | 7.000 | 9 Feet | $298.48 |
| DPT-22609BQ | 7.250 | 7.062 | 9 Feet | $301.08 |
| DPT-22619 | 7.312 | 7.125 | 9 Feet | $303.73 |
| DPT-22620 | 7.375 | 7.187 | 9 Feet | $306.36 |
| DPT-22621 | 7.437 | 7.250 | 9 Feet | $309.00 |
| DPT-22622 | 7.500 | 7.312 | 9 Feet | $311.60 |
| DPT-22623BQ | 7.562 | 7.375 | 9 Feet | $314.26 |
| DPT-22624 | 7.625 | 7.437 | 9 Feet | $316.85 |
| DPT-22601BQ | 7.688 | 7.500 | 9 Feet | $319.51 |
| DPT-22599 | 7.750 | 7.562 | 9 Feet | $322.13 |
| DPT-22616BQ | 7.812 | 7.625 | 9 Feet | $324.78 |
| DPT-22594 | 7.875 | 7.687 | 9 Feet | $327.38 |
| DPT-22595 | 7.938 | 7.750 | 9 Feet | $330.03 |
| DPT-22596 | 8.000 | 7.812 | 6 Feet | $332.63 |
| DPT-22597 | 8.062 | 7.875 | 6 Feet | $335.28 |
| DPT-22598 | 8.125 | 7.937 | 6 Feet | $337.91 |
| DPT-22608BQ | 8.188 | 8.000 | 6 Feet | $340.56 |
| DPT-22592Q | 8.312 | 8.125 | 6 Feet | $345.80 |
| DPT-22602BQ | 8.375 | 8.187 | 6 Feet | $348.41 |
| DPT-22604 | 8.437 | 8.250 | 6 Feet | $351.05 |
| DPT-22606BQ | 8.500 | 8.312 | 6 Feet | $353.68 |
| DPT-22627BQ | 8.562 | 8.375 | 6 Feet | $356.33 |
| DPT-22593 | 8.625 | 8.437 | 6 Feet | $358.93 |
| DPT-22618BQ | 8.688 | 8.500 | 6 Feet | $361.58 |
| DPT-22644BQ | 8.750 | 8.562 | 6 Feet | $364.18 |
| DPT-22645BQ | 8.812 | 8.625 | 6 Feet | $366.83 |
| DPT-22646BQ | 8.875 | 8.687 | 6 Feet | $369.46 |
| DPT-22647BQ | 8.938 | 8.75 | 6 Feet | $372.10 |
| DPT-22648BQ | 9.000 | 8.812 | 6 Feet | $374.71 |
| DPT-22649BQ | 9.062 | 8.875 | 6 Feet | $377.35 |
| DPT-22659BQ | 9.125 | 8.937 | 6 Feet | $379.96 |
| DPT-22651 | 9.188 | 9.000 | 6 Feet | $382.60 |
| DPT-22643BQ | 9.250 | 9.062 | 6 Feet | $385.23 |
| DPT-22653 | 9.312 | 9.125 | 6 Feet | $387.88 |
| DPT-22654BQ | 9.375 | 9.187 | 6 Feet | $390.48 |
| DPT-22655BQ | 9.437 | 9.250 | 6 Feet | $393.13 |
| DPT-22656 | 9.500 | 9.312 | 6 Feet | $395.73 |
| DPT-22657 | 9.563 | 9.375 | 6 Feet | $398.38 |
| DPT-22811BQ | 9.625 | 9.437 | 6 Feet | $401.01 |
| DPT-22843 | 9.688 | 9.500 | 6 Feet | $403.66 |
| DPT-22842BQ | 9.750 | 9.562 | 6 Feet | $406.26 |
| DPT-22841BQ | 9.812 | 9.625 | 6 Feet | $408.91 |
| DPT-22840BQ | 9.875 | 9.687 | 6 Feet | $411.50 |
| DPT-22839 | 9.937 | 9.750 | 3 Feet | $414.16 |
| DPT-22838BQ | 10.000 | 9.813 | 3 Feet | $416.78 |
| DPT-22829 | 10.062 | 9.875 | 3 Feet | $419.43 |
| DPT-22836 | 10.125 | 9.937 | 3 Feet | $422.03 |
| DPT-22844 | 10.187 | 10.00 | 3 Feet | $424.68 |
| DPT-22834 | 10.250 | 10.062 | 3 Feet | $427.28 |
| DPT-22833 | 10.313 | 10.125 | 3 Feet | $429.93 |
| DPT-22832 | 10.375 | 10.187 | 3 Feet | $432.56 |
| DPT-22831 | 10.437 | 10.250 | 3 Feet | $435.21 |
| DPT-22851BQ | 10.500 | 10.312 | 3 Feet | $437.81 |
| DPT-22835 | 10.563 | 10.375 | 3 Feet | $440.46 |
| DPT-22837 | 10.625 | 10.437 | 3 Feet | $443.06 |
| DPT-22859BQ | 10.688 | 10.500 | 3 Feet | $445.71 |
| DPT-22858BQ | 10.750 | 10.562 | 3 Feet | $448.33 |
| DPT-22857BQ | 10.813 | 10.625 | 3 Feet | $450.98 |
| DPT-22907 | 10.875 | 10.687 | 3 Feet | $453.58 |
| DPT-22856 | 10.937 | 10.750 | 3 Feet | $456.23 |
| DPT-22942 | 11.000 | 10.812 | 3 Feet | $458.83 |
| DPT-22855 | 11.062 | 10.875 | 3 Feet | $461.48 |
| DPT-22854 | 11.125 | 10.937 | 3 Feet | $464.11 |
| DPT-22845BQ | 11.188 | 11.000 | 3 Feet | $466.75 |
| DPT-22852BQ | 11.250 | 11.062 | 3 Feet | $469.36 |
| DPT-22860BQ | 11.313 | 11.125 | 3 Feet | $472.01 |
| DPT-22850 | 11.375 | 11.187 | 3 Feet | $474.60 |
| DPT-22849BQ | 11.437 | 11.250 | 3 Feet | $477.26 |
| DPT-22848 | 11.500 | 11.312 | 3 Feet | $479.88 |
| DPT-22847BQ | 11.562 | 11.375 | 3 Feet | $482.53 |
| DPT-22846BQ | 11.625 | 11.437 | 3 Feet | $485.13 |
| DPT-22821 | 11.687 | 11.500 | 3 Feet | $487.78 |
| DPT-22798 | 11.750 | 11.562 | 3 Feet | $490.38 |
| DPT-22830 | 11.812 | 11.625 | 3 Feet | $493.03 |
| DPT-22810BQ | 11.875 | 11.687 | 3 Feet | $495.66 |
| DPT-22809BQ | 11.937 | 11.750 | 3 Feet | $498.30 |
| DPT-22808BQ | 12.000 | 11.812 | 3 Feet | $500.91 |
| DPT-22807BQ | 12.062 | 11.875 | 3 Feet | $503.55 |
| DPT-22806BQ | 12.125 | 11.937 | 3 Feet | $506.16 |
| DPT-22797 | 12.187 | 12.000 | 3 Feet | $508.81 |
| DPT-22804BQ | 12.250 | 12.062 | 3 Feet | $511.43 |
| DPT-22812 | 12.313 | 12.125 | 3 Feet | $514.08 |
| DPT-22802 | 12.375 | 12.187 | 3 Feet | $516.68 |
| DPT-22801BQ | 12.437 | 12.250 | 3 Feet | $519.33 |
| DPT-22800 | 12.500 | 12.312 | 3 Feet | $521.93 |
| DPT-22799 | 12.562 | 12.375 | 3 Feet | $524.58 |
| DPT-22819 | 12.625 | 12.437 | 3 Feet | $527.21 |
| DPT-22803BQ | 12.687 | 12.500 | 3 Feet | $529.86 |
| DPT-22805 | 12.750 | 12.562 | 3 Feet | $532.46 |
| DPT-22827 | 12.812 | 12.625 | 3 Feet | $535.11 |
| DPT-22826 | 12.875 | 12.687 | 3 Feet | $537.71 |
| DPT-22825BQ | 12.937 | 12.750 | 3 Feet | $540.36 |
| DPT-22824 | 13.000 | 12.813 | 3 Feet | $542.98 |
| DPT-22823BQ | 13.062 | 12.875 | 3 Feet | $545.63 |
| DPT-22822BQ | 13.125 | 12.937 | 3 Feet | $548.23 |
| DPT-22813BQ | 13.187 | 13.000 | 3 Feet | $550.88 |
| DPT-22820 | 13.250 | 13.062 | 3 Feet | $553.48 |
| DPT-22828BQ | 13.312 | 13.125 | 3 Feet | $556.13 |
| DPT-22818 | 13.375 | 13.187 | 3 Feet | $558.76 |
| DPT-22817BQ | 13.437 | 13.250 | 3 Feet | $561.41 |
| DPT-22816BQ | 13.500 | 13.312 | 3 Feet | $564.01 |
| DPT-22815BQ | 13.562 | 13.375 | 3 Feet | $566.66 |
| DPT-22814BQ | 13.625 | 13.437 | 3 Feet | $569.26 |
| DPT-22862 | 13.687 | 13.500 | 3 Feet | $571.91 |
| DPT-22910 | 13.750 | 13.562 | 3 Feet | $574.53 |
| DPT-22853BQ | 13.812 | 13.625 | 3 Feet | $577.18 |
| DPT-22906 | 13.875 | 13.687 | 3 Feet | $579.78 |
| DPT-22905BQ | 13.937 | 13.750 | 3 Feet | $582.43 |
| DPT-22904 | 14.000 | 13.812 | 3 Feet | $585.03 |
| DPT-22903 | 14.062 | 13.875 | 3 Feet | $587.68 |
| DPT-22902 | 14.125 | 13.937 | 3 Feet | $590.31 |
| DPT-22893BQ | 14.187 | 14.000 | 3 Feet | $592.96 |
| DPT-22900BQ | 14.250 | 14.062 | 3 Feet | $595.56 |
| DPT-22908 | 14.312 | 14.125 | 3 Feet | $598.21 |
| DPT-22898 | 14.375 | 14.187 | 3 Feet | $600.81 |
| DPT-22897 | 14.437 | 14.250 | 3 Feet | $603.46 |
| DPT-22896BQ | 14.500 | 14.312 | 3 Feet | $606.08 |
| DPT-22895BQ | 14.562 | 14.375 | 3 Feet | $608.73 |
| DPT-22894 | 14.625 | 14.437 | 3 Feet | $611.33 |
| DPT-22916BQ | 14.687 | 14.500 | 3 Feet | $613.98 |
| DPT-22918BQ | 14.750 | 14.562 | 3 Feet | $616.58 |
| DPT-22901BQ | 14.812 | 14.625 | 3 Feet | $619.23 |
| DPT-22923BQ | 14.875 | 14.687 | 3 Feet | $621.86 |
| DPT-22922 | 14.937 | 14.750 | 3 Feet | $624.51 |
| DPT-22921 | 15.000 | 14.812 | 3 Feet | $627.11 |
| DPT-22920 | 15.062 | 14.875 | 3 Feet | $629.76 |
| DPT-22919 | 15.125 | 14.937 | 3 Feet | $632.36 |
| DPT-22909 | 15.187 | 15.000 | 3 Feet | $635.01 |
| DPT-22917BQ | 15.250 | 15.062 | 3 Feet | $637.63 |
| DPT-22925BQ | 15.312 | 15.125 | 3 Feet | $640.28 |
| DPT-22915 | 15.375 | 15.187 | 3 Feet | $642.88 |
| DPT-22914BQ | 15.437 | 15.250 | 3 Feet | $645.53 |
| DPT-22913 | 15.500 | 15.312 | 3 Feet | $648.13 |
| DPT-22912 | 15.562 | 15.375 | 3 Feet | $650.78 |
| DPT-22911BQ | 15.625 | 14.437 | 3 Feet | $653.41 |
| DPT-22885BQ | 15.687 | 15.500 | 3 Feet | $656.06 |
| DPT-22924 | 15.750 | 15.562 | 3 Feet | $658.66 |
| DPT-22899 | 15.812 | 15.625 | 3 Feet | $661.31 |
| DPT-22875BQ | 15.875 | 15.687 | 3 Feet | $663.91 |
| DPT-22874 | 15.937 | 15.750 | 3 Feet | $666.56 |
| DPT-22873BQ | 16.031 | 15.812 | 3 Feet | $669.16 |
| DPT-22872BQ | 16.062 | 15.875 | 3 Feet | $671.83 |
| DPT-22871BQ | 16.125 | 15.937 | 3 Feet | $674.43 |
| DPT-22870 | 16.187 | 16.000 | 3 Feet | $677.08 |
| DPT-22861BQ | 16.250 | 16.062 | 3 Feet | $679.68 |
| DPT-22876BQ | 16.312 | 16.125 | 3 Feet | $682.33 |
| DPT-22875 | 16.375 | 16.187 | 3 Feet | $684.93 |
| DPT-22874BQ | 16.437 | 16.250 | 3 Feet | $687.58 |
| DPT-22873 | 16.500 | 16.312 | 3 Feet | $690.21 |
| DPT-22872 | 16.562 | 16.375 | 3 Feet | $692.86 |
| DPT-22871 | 16.625 | 16.437 | 3 Feet | $695.46 |
| DPT-22870BQ | 16.687 | 16.500 | 3 Feet | $698.11 |
| DPT-22859 | 16.750 | 16.562 | 3 Feet | $700.71 |
| DPT-22868 | 16.812 | 16.625 | 3 Feet | $703.36 |
| DPT-22877 | 16.875 | 16.687 | 3 Feet | $705.98 |
| DPT-22866 | 16.937 | 16.750 | 3 Feet | $708.63 |
| DPT-22865 | 17.000 | 16.812 | 3 Feet | $711.23 |
| DPT-22864 | 17.062 | 16.875 | 3 Feet | $713.88 |
| DPT-22863 | 17.125 | 16.937 | 3 Feet | $716.48 |
| DPT-22862BQ | 17.187 | 17.000 | 3 Feet | $719.13 |
| DPT-22861 | 17.250 | 17.062 | 3 Feet | $721.76 |
| DPT-22886 | 17.312 | 17.125 | 3 Feet | $724.41 |
| DPT-22867 | 17.375 | 17.187 | 3 Feet | $727.01 |
| DPT-22869 | 17.437 | 17.250 | 3 Feet | $729.66 |
| DPT-22895 | 17.500 | 17.312 | 3 Feet | $732.26 |
| DPT-22894BQ | 17.562 | 17.375 | 3 Feet | $734.91 |
| DPT-22893 | 17.625 | 17.437 | 3 Feet | $737.53 |
| DPT-22892 | 17.687 | 17.500 | 3 Feet | $740.18 |
| DPT-22891 | 17.750 | 17.562 | 3 Feet | $742.78 |
| DPT-18872 | 17.812 | 17.625 | 3 Feet | $745.43 |
| DPT-18874 | 17.875 | 17.687 | 3 Feet | $748.03 |
| DPT-18900 | 17.937 | 17.750 | 3 Feet | $750.68 |
| DPT-18899 | 18.000 | 17.812 | 3 Feet | $753.31 |
| DPT-18898 | 18.062 | 17.875 | 3 Feet | $755.96 |
| DPT-18897 | 18.125 | 17.937 | 3 Feet | $758.56 |
| DPT-18896 | 18.187 | 18.000 | 3 Feet | $761.21 |
| DPT-18895 | 18.250 | 18.062 | 3 Feet | $763.81 |
| DPT-18894 | 18.312 | 18.125 | 3 Feet | $766.46 |
| DPT-18883 | 18.375 | 18.187 | 3 Feet | $769.08 |
| DPT-18892 | 18.437 | 18.250 | 3 Feet | $771.73 |
| DPT-18901 | 18.500 | 18.312 | 3 Feet | $774.33 |
| DPT-18890 | 18.562 | 18.375 | 3 Feet | $776.98 |
| DPT-18889 | 18.625 | 18.437 | 3 Feet | $779.58 |
| DPT-18888 | 18.687 | 18.500 | 3 Feet | $782.23 |
| DPT-18887 | 18.750 | 18.563 | 3 Feet | $784.86 |
| DPT-18886 | 18.812 | 18.625 | 3 Feet | $787.51 |
| DPT-18885 | 18.875 | 19.687 | 3 Feet | $790.11 |
| DPT-18957 | 18.937 | 18.750 | 3 Feet | $792.76 |
| DPT-18881 | 19.000 | 18.812 | 3 Feet | $795.36 |
| DPT-18931 | 19.062 | 18.875 | 3 Feet | $798.01 |
| DPT-18995 | 19.125 | 18.937 | 3 Feet | $800.63 |
| DPT-18994 | 19.187 | 19.000 | 3 Feet | $803.28 |
| DPT-18993 | 19.250 | 19.062 | 3 Feet | $805.88 |
| DPT-18992 | 19.312 | 19.125 | 3 Feet | $808.53 |
| DPT-18991 | 19.375 | 19.187 | 3 Feet | $811.13 |
| DPT-18990 | 19.437 | 19.250 | 3 Feet | $813.78 |
| DPT-22941BQ | 19.500 | 19.312 | 3 Feet | $816.41 |
| DPT-22940 | 19.562 | 19.375 | 3 Feet | $819.06 |
| DPT-22939BQ | 19.625 | 19.437 | 3 Feet | $821.66 |
| DPT-22938 | 19.687 | 19.500 | 3 Feet | $824.31 |
| DPT-22937 | 19.750 | 19.562 | 3 Feet | $826.91 |
| DPT-22863BQ | 19.812 | 19.625 | 3 Feet | $829.56 |
| DPT-22943 | 19.875 | 19.687 | 3 Feet | $832.18 |
| DPT-23052 | 19.937 | 19.750 | 3 Feet | $834.83 |
| DPT-22883 | 20.000 | 19.812 | 3 | $837.43 |
| diameter | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
