Paper X, XX, XXX Phenolic Laminate Tubes 3/8" Wall Thickness
Paper X/XX/XXX Paper Reinforced Phenolic
- natural (tan)
Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder.
It has good electric strength properties with fair mechanical strength.
Outstanding for use as template material and or backup material.
NEMA
X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to
MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to
MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
NEMA grades X,
XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to
brown. These grades are composed of a paper base impregnated with a phenolic
resin binder. (Phenolics are the oldest, best-known general purpose thermoset
resins. They are among the lowest in cost and easiest to process. Phenolics are
quite adequate for a fair percentage of electrical applications. Generally
speaking, they are not equivalent to epoxies in resistance to moisture,
humidity, dimensional stability, shrinkage and retention of electrical
properties in extreme environments.) The paper reinforced phenolic has good
electric strength properties with fair mechanical strength and are outstanding
for use as template material and/or back-up material.
Click Here for X, XX, XXX or Sheets, Rods
| Select X, XX, XXX Tubing Wall Thickness | ||
| | | |
Can be made in 3 foot lengths 30-36" or 4 Foot Lenghts 42-48"

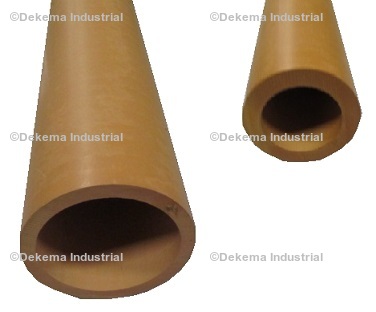

.375" Wall Thickness Paper Phenolic Tubes |
|||||
| Part # | OD (in.) | ID (in.) | Wall | Minimum Purchase | Price Per Foot |
|---|---|---|---|---|---|
| DPT-22896 | 1.250 | .500 | .375 | 15 Feet | $100.71 |
| DPT-22885 | 1.312 | .562 | .375 | 15 Feet | $106.73 |
| DPT-22884 | 1.375 | .625 | .375 | 12 Feet | $112.73 |
| DPT-22883BQ | 1.437 | .687 | .375 | 12 Feet | $118.73 |
| DPT-22882BQ | 1.500 | .750 | .375 | 12 Feet | $124.76 |
| DPT-22881 | 1.562 | .812 | .375 | 12 Feet | $130.76 |
| DPT-22880BQ | 1.625 | .875 | .375 | 12 Feet | $136.76 |
| DPT-22879 | 1.688 | .937 | .375 | 12 Feet | $142.76 |
| DPT-22851 | 1.750 | 1.00 | .375 | 9 Feet | $148.78 |
| DPT-22823 | 1.812 | 1.062 | .375 | 9 Feet | $154.73 |
| DPT-22860 | 1.875 | 1.125 | .375 | 9 Feet | $160.78 |
| DPT-22838 | 1.937 | 1.187 | .375 | 9 Feet | $166.76 |
| DPT-1921 | 2.000 | 1.250 | .375 | 9 Feet | $190.11 |
| DPT-22836BQ | 2.062 | 1.312 | .375 | 9 Feet | $196.66 |
| DPT-21437 | 2.125 | 1.375 | .375 | 9 Feet | $203.33 |
| DPT-21436 | 2.188 | 1.437 | .375 | 9 Feet | $209.88 |
| DPT-1925 | 2.250 | 1.500 | .375 | 9 Feet | $216.53 |
| DPT-21434 | 2.312 | 1.562 | .375 | 6 Feet | $223.11 |
| DPT-21433 | 2.375 | 1.625 | .375 | 6 Feet | $229.76 |
| DPT-21404 | 2.437 | 1.687 | .375 | 6 Feet | $236.31 |
| DPT-1930 | 2.500 | 1.750 | .375 | 6 Feet | $242.98 |
| DPT-21414 | 2.562 | 1.812 | .375 | 6 Feet | $249.53 |
| DPT-21391 | 2.625 | 1.875 | .375 | 6 Feet | $256.21 |
| DPT-21390 | 2.688 | 1.937 | .375 | 6 Feet | $262.75 |
| DPT-1935 | 2.750 | 2.000 | .375 | 6 Feet | $269.41 |
| DPT-21388 | 2.812 | 2.062 | .375 | 6 Feet | $275.98 |
| DPT-21387 | 2.875 | 2.125 | .375 | 6 Feet | $282.63 |
| DPT-21386 | 2.937 | 2.187 | .375 | 6 Feet | $289.18 |
| DPT-1940 | 3.000 | 2.250 | .375 | 6 Feet | $295.85 |
| DPT-21384 | 3.062 | 2.312 | .375 | 6 Feet | $302.41 |
| DPT-21393 | 3.125 | 2.375 | .375 | 6 Feet | $309.08 |
| DPT-21382 | 3.188 | 2.437 | .375 | 6 Feet | $315.63 |
| DPT-1945 | 3.250 | 2.500 | .375 | 6 Feet | $322.28 |
| DPT-21380 | 3.312 | 2.562 | .375 | 6 Feet | $328.85 |
| DPT-21379 | 3.375 | 2.625 | .375 | 6 Feet | $335.50 |
| DPT-21378 | 3.437 | 2.687 | .375 | 6 Feet | $342.05 |
| DPT-1950 | 3.500 | 2.750 | .375 | 6 Feet | $348.73 |
| DPT-21402 | 3.562 | 2.812 | .375 | 6 Feet | $355.28 |
| DPT-21383 | 3.625 | 2.875 | .375 | 6 Feet | $361.93 |
| DPT-21385 | 3.687 | 2.937 | .375 | 6 Feet | $368.51 |
| DPT-1955 | 3.750 | 3.000 | .375 | 6 Feet | $375.16 |
| DPT-21410 | 3.812 | 3.062 | .375 | 6 Feet | $381.71 |
| DPT-21409 | 3.875 | 3.125 | .375 | 6 Feet | $388.38 |
| DPT-21408 | 3.937 | 3.187 | .375 | 6 Feet | $394.93 |

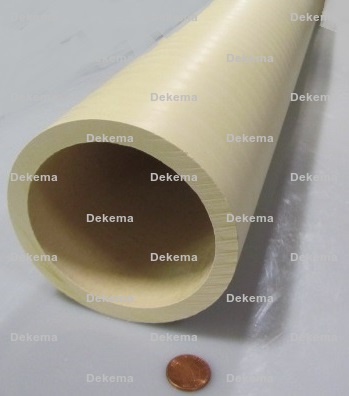

| DPT-1960 | 4.000 | 3.250 | .375 | 6 Feet | $401.61 |
| DPT-21406 | 4.062 | 3.312 | .375 | 6 Feet | $408.16 |
| DPT-21405 | 4.125 | 3.375 | .375 | 6 Feet | $414.80 |
| DPT-21394 | 4.187 | 3.437 | .375 | 6 Feet | $421.38 |
| DPT-1965 | 4.250 | 3.500 | .375 | 6 Feet | $428.03 |
| DPT-21412 | 4.312 | 3.562 | .375 | 6 Feet | $434.58 |
| DPT-21401 | 4.375 | 3.625 | .375 | 6 Feet | $441.26 |
| DPT-21400 | 4.437 | 3.687 | .375 | 3 Feet | $447.81 |
| DPT-1970 | 4.500 | 3.750 | .375 | 3 Feet | $454.48 |
| DPT-21398 | 4.562 | 3.812 | .375 | 3 Feet | $461.03 |
| DPT-21397 | 4.625 | 3.875 | .375 | 3 Feet | $467.68 |
| DPT-21396 | 4.687 | 3.937 | .375 | 3 Feet | $474.25 |
| DPT-21395 | 4.750 | 4.000 | .375 | 3 Feet | $480.91 |
| DPT-21623 | 4.812 | 4.062 | .375 | 3 Feet | $487.46 |
| DPT-21851 | 4.875 | 4.125 | .375 | 3 Feet | $494.13 |
| DPT-21594 | 4.937 | 4.187 | .375 | 3 Feet | $500.68 |
| DPT-21809 | 5.000 | 4.250 | .375 | 3 Feet | $507.33 |
| DPT-21808 | 5.062 | 4.312 | .375 | 3 Feet | $513.91 |
| DPT-21807 | 5.125 | 4.375 | .375 | 3 Feet | $520.56 |
| DPT-21806 | 5.187 | 4.438 | .375 | 3 Feet | $527.11 |
| DPT-21805 | 5.250 | 4.500 | .375 | 3 Feet | $533.78 |
| DPT-21804 | 5.312 | 4.562 | .375 | 3 Feet | $540.33 |
| DPT-21793 | 5.375 | 4.625 | .375 | 3 Feet | $547.01 |
| DPT-21802 | 5.437 | 4.687 | .375 | 3 Feet | $553.56 |
| DPT-21811 | 5.500 | 4.750 | .375 | 3 Feet | $560.21 |
| DPT-21800 | 5.562 | 4.812 | .375 | 3 Feet | $566.78 |
| DPT-21799 | 5.625 | 4.875 | .375 | 3 Feet | $573.43 |
| DPT-21722 | 5.688 | 4.937 | .375 | 3 Feet | $579.98 |
| DPT-21798 | 5.750 | 5.000 | .375 | 3 Feet | $586.66 |
| DPT-21797 | 5.812 | 5.062 | .375 | 3 Feet | $593.21 |
| DPT-21796 | 5.875 | 5.125 | .375 | 3 Feet | $599.88 |
| DPT-21795 | 5.938 | 5.187 | .375 | 3 Feet | $606.43 |
| DPT-21820 | 6.000 | 5.250 | .375 | 3 Feet | $613.08 |
| DPT-21801 | 6.063 | 5.313 | .375 | 3 Feet | $619.63 |
| DPT-21803 | 6.125 | 5.375 | .375 | 3 Feet | $626.31 |
| DPT-21829 | 6.187 | 5.437 | .375 | 3 Feet | $632.86 |
| DPT-21828 | 6.250 | 5.500 | .375 | 3 Feet | $639.53 |
| DPT-21827 | 6.312 | 5.562 | .375 | 3 Feet | $646.08 |
| DPT-21826 | 6.375 | 5.625 | .375 | 3 Feet | $652.73 |
| DPT-21825 | 6.437 | 5.687 | .375 | 3 Feet | $659.31 |
| DPT-21824 | 6.500 | 5.750 | .375 | 3 Feet | $665.96 |
| DPT-21823 | 6.562 | 5.812 | .375 | 3 Feet | $672.51 |
| DPT-21812 | 6.625 | 5.875 | .375 | 3 Feet | $679.18 |
| DPT-21821 | 6.688 | 5.937 | .375 | 3 Feet | $685.73 |
| DPT-21830 | 6.750 | 6.000 | .375 | 3 Feet | $692.41 |
| DPT-21819 | 6.812 | 6.062 | .375 | 3 Feet | $656.86 |
| DPT-21818 | 6.875 | 6.125 | .375 | 3 Feet | $663.28 |
| DPT-21817 | 6.938 | 6.187 | .375 | 3 Feet | $669.61 |
| DPT-21816 | 7.000 | 6.250 | .375 | 3 Feet | $676.06 |
| DPT-21815 | 7.062 | 6.312 | .375 | 3 Feet | $682.38 |
| DPT-21814 | 7.125 | 6.375 | .375 | 3 Feet | $688.81 |
| DPT-21813 | 7.187 | 6.437 | .375 | 3 Feet | $695.13 |
| DPT-21784 | 7.250 | 6.500 | .375 | 3 Feet | $701.56 |
| DPT-21756 | 7.312 | 6.562 | .375 | 3 Feet | $707.88 |
| DPT-21794 | 7.375 | 6.625 | .375 | 3 Feet | $714.31 |
| DPT-21771 | 7.437 | 6.687 | .375 | 3 Feet | $720.63 |
| DPT-21770 | 7.500 | 6.750 | .375 | 3 Feet | $727.06 |
| DPT-21769 | 7.562 | 6.812 | .375 | 3 Feet | $733.38 |
| DPT-21768 | 7.625 | 6.875 | .375 | 3 Feet | $739.81 |
| DPT-21767 | 7.688 | 6.938 | .375 | 3 Feet | $746.13 |
| DPT-21766 | 7.750 | 7.000 | .375 | 3 Feet | $752.58 |
| DPT-21755 | 7.812 | 7.062 | .375 | 3 Feet | $758.91 |
| DPT-21764 | 7.875 | 7.125 | .375 | 3 Feet | $765.33 |
| DPT-21773 | 7.938 | 7.187 | .375 | 3 Feet | $771.66 |
| DPT-21762 | 8.000 | 7.250 | .375 | 3 Feet | $778.08 |
| DPT-21761 | 8.062 | 7.312 | .375 | 3 Feet | $784.41 |
| DPT-21760 | 8.125 | 7.375 | .375 | 3 Feet | $790.83 |
| DPT-21759 | 8.188 | 7.437 | .375 | 3 Feet | $797.16 |
| DPT-21758 | 8.250 | 7.500 | .375 | 3 Feet | $803.58 |
| DPT-21757 | 8.312 | 7.562 | .375 | 3 Feet | $809.91 |
| DPT-21782 | 8.375 | 7.625 | .375 | 3 Feet | $816.33 |
| DPT-21763 | 8.437 | 7.687 | .375 | 3 Feet | $822.66 |
| DPT-21765 | 8.500 | 7.750 | .375 | 3 Feet | $829.11 |
| DPT-21791 | 8.562 | 7.812 | .375 | 3 Feet | $835.43 |
| DPT-21790 | 8.625 | 7.875 | .375 | 3 Feet | $841.86 |
| DPT-21789 | 8.688 | 7.937 | .375 | 3 Feet | $848.18 |
| DPT-21788 | 8.750 | 8.000 | .375 | 3 Feet | $854.61 |
| DPT-21786 | 8.875 | 8.125 | .375 | 3 Feet | $867.36 |
| DPT-21785 | 8.938 | 8.187 | .375 | 3 Feet | $873.68 |
| DPT-21774 | 9.000 | 8.250 | .375 | 3 Feet | $880.11 |
| DPT-21783 | 9.062 | 8.312 | .375 | 3 Feet | $886.43 |
| DPT-21792 | 9.125 | 8.375 | .375 | 3 Feet | $892.86 |
| DPT-21781 | 9.188 | 8.437 | .375 | 3 Feet | $899.18 |
| DPT-21780 | 9.250 | 8.500 | .375 | 3 Feet | $905.61 |
| DPT-21779 | 9.312 | 8.562 | .375 | 3 Feet | $911.96 |
| DPT-21778 | 9.375 | 8.625 | .375 | 3 Feet | $918.38 |
| DPT-21777 | 9.437 | 8.687 | .375 | 3 Feet | $924.71 |
| DPT-21776 | 9.500 | 8.75 | .375 | 3 Feet | $931.13 |
| DPT-21775 | 9.563 | 8.812 | .375 | 3 Feet | $937.46 |
| DPT-21832 | 9.625 | 8.875 | .375 | 3 Feet | $943.88 |
| DPT-21889 | 9.688 | 8.937 | .375 | 3 Feet | $950.21 |
| DPT-21822 | 9.750 | 9.000 | .375 | 3 Feet | $956.63 |
| DPT-21885 | 9.812 | 9.062 | .375 | 3 Feet | $962.96 |
| DPT-21884 | 9.875 | 9.125 | .375 | 3 Feet | $969.38 |
| DPT-21883 | 9.937 | 9.187 | .375 | 3 Feet | $975.71 |
| DPT-21882 | 10.000 | 9.250 | .375 | 3 Feet | $982.13 |
| DPT-21881 | 10.062 | 9.312 | .375 | 3 Feet | $988.46 |
| DPT-21880 | 10.125 | 9.375 | .375 | 3 Feet | $994.91 |
| DPT-21869 | 10.187 | 9.437 | .375 | 3 Feet | $1,001.23 |
| DPT-21878 | 10.250 | 9.500 | .375 | 3 Feet | $1,007.66 |
| DPT-21887 | 10.313 | 9.562 | .375 | 3 Feet | $1,013.98 |
| DPT-21876 | 10.375 | 9.625 | .375 | 3 Feet | $1,020.41 |
| DPT-21875 | 10.437 | 9.687 | .375 | 3 Feet | $1,026.73 |
| DPT-21874 | 10.500 | 9.750 | .375 | 3 Feet | $1,033.16 |
| DPT-21873 | 10.563 | 9.813 | .375 | 3 Feet | $1,039.48 |
| DPT-21872 | 10.625 | 9.875 | .375 | 3 Feet | $1,045.91 |
| DPT-21871 | 10.688 | 9.937 | .375 | 3 Feet | $1,052.23 |
| DPT-21870 | 10.750 | 10.000 | .375 | 3 Feet | $1,058.66 |
| DPT-21896 | 10.813 | 10.062 | .375 | 3 Feet | $1,064.98 |
| DPT-21898 | 10.875 | 10.125 | .375 | 3 Feet | $1,071.43 |
| DPT-21879 | 10.937 | 10.187 | .375 | 3 Feet | $1,077.75 |
| DPT-21905 | 11.000 | 10.250 | .375 | 3 Feet | $1,084.18 |
| DPT-21904 | 11.062 | 10.312 | .375 | 3 Feet | $1,090.50 |
| DPT-21903 | 11.125 | 10.375 | .375 | 3 Feet | $1,096.93 |
| DPT-21902 | 11.188 | 10.437 | .375 | 3 Feet | $1,103.25 |
| DPT-21901 | 11.250 | 10.500 | .375 | 3 Feet | $1,109.68 |
| DPT-21900 | 11.313 | 10.562 | .375 | 3 Feet | $1,116.00 |
| DPT-21899 | 11.375 | 10.625 | .375 | 3 Feet | $1,122.43 |
| DPT-21888 | 11.437 | 10.687 | .375 | 3 Feet | $1,128.76 |
| DPT-21897 | 11.500 | 10.750 | .375 | 3 Feet | $1,135.18 |
| DPT-21907 | 11.562 | 10.812 | .375 | 3 Feet | $1,141.50 |
| DPT-21895 | 11.625 | 10.875 | .375 | 3 Feet | $1,147.96 |
| DPT-21894 | 11.687 | 10.937 | .375 | 3 Feet | $1,154.28 |
| DPT-21893 | 11.750 | 11.000 | .375 | 3 Feet | $1,160.71 |
| DPT-21892 | 11.812 | 11.062 | .375 | 3 Feet | $1,167.03 |
| DPT-21891 | 11.875 | 11.125 | .375 | 3 Feet | $1,173.46 |
| DPT-21890 | 11.937 | 11.187 | .375 | 3 Feet | $1,179.78 |
| DPT-21860 | 12.000 | 11.250 | .375 | 3 Feet | $1,186.21 |
| DPT-21906 | 12.062 | 11.312 | .375 | 3 Feet | $1,192.53 |
| DPT-21877 | 12.125 | 11.375 | .375 | 3 Feet | $1,198.96 |
| DPT-21848 | 12.187 | 11.437 | .375 | 3 Feet | $1,205.28 |
| DPT-21847 | 12.250 | 11.500 | .375 | 3 Feet | $1,211.71 |
| DPT-21846 | 12.313 | 11.562 | .375 | 3 Feet | $1,218.03 |
| DPT-21845 | 12.375 | 11.625 | .375 | 3 Feet | $1,224.48 |
| DPT-21844 | 12.437 | 11.687 | .375 | 3 Feet | $1,230.81 |
| DPT-21843 | 12.500 | 11.750 | .375 | 3 Feet | $1,237.23 |
| DPT-21842 | 12.562 | 11.812 | .375 | 3 Feet | $1,243.55 |
| DPT-21831 | 12.625 | 11.875 | .375 | 3 Feet | $1,249.98 |
| DPT-21840 | 12.687 | 11.937 | .375 | 3 Feet | $1,256.30 |
| DPT-21849 | 12.750 | 12.000 | .375 | 3 Feet | $1,262.73 |
| DPT-21838 | 12.812 | 12.062 | .375 | 3 Feet | $1,269.05 |
| DPT-21837 | 12.875 | 12.125 | .375 | 3 Feet | $1,275.48 |
| DPT-21836 | 12.937 | 12.187 | .375 | 3 Feet | $1,281.81 |
| DPT-21835 | 13.000 | 12.250 | .375 | 3 Feet | $1,288.23 |
| DPT-21834 | 13.062 | 12.312 | .375 | 3 Feet | $1,294.55 |
| DPT-21833 | 13.125 | 12.375 | .375 | 3 Feet | $1,300.98 |
| DPT-21858 | 13.187 | 12.437 | .375 | 3 Feet | $1,307.33 |
| DPT-21839 | 13.250 | 12.500 | .375 | 3 Feet | $1,313.76 |
| DPT-21841 | 13.312 | 12.562 | .375 | 3 Feet | $1,320.08 |
| DPT-21867 | 13.375 | 12.625 | .375 | 3 Feet | $1,326.51 |
| DPT-21866 | 13.437 | 12.687 | .375 | 3 Feet | $1,332.83 |
| DPT-21865 | 13.500 | 12.750 | .375 | 3 Feet | $1,339.25 |
| DPT-21864 | 13.562 | 12.813 | .375 | 3 Feet | $1,345.58 |
| DPT-21863 | 13.625 | 12.875 | .375 | 3 Feet | $1,352.00 |
| DPT-21862 | 13.687 | 12.937 | .375 | 3 Feet | $1,358.33 |
| DPT-21861 | 13.750 | 13.000 | .375 | 3 Feet | $1,364.75 |
| DPT-21850 | 13.812 | 13.062 | .375 | 3 Feet | $1,371.08 |
| DPT-21859 | 13.875 | 13.125 | .375 | 3 Feet | $1,377.51 |
| DPT-21868 | 13.937 | 13.187 | .375 | 3 Feet | $1,383.83 |
| DPT-21857 | 14.000 | 13.250 | .375 | 3 Feet | $1,390.28 |
| DPT-21856 | 14.062 | 13.312 | .375 | 3 Feet | $1,396.61 |
| DPT-21855 | 14.125 | 13.375 | .375 | 3 Feet | $1,403.03 |
| DPT-21854 | 14.187 | 13.437 | .375 | 3 Feet | $1,409.36 |
| DPT-21853 | 14.250 | 13.500 | .375 | 3 Feet | $1,415.78 |
| DPT-21852 | 14.312 | 13.562 | .375 | 3 Feet | $1,422.10 |
| DPT-21746 | 14.375 | 13.625 | .375 | 3 Feet | $1,428.53 |
| DPT-21886 | 14.437 | 13.687 | .375 | 3 Feet | $1,434.85 |
| DPT-21772 | 14.500 | 13.750 | .375 | 3 Feet | $1,441.28 |
| DPT-21658 | 14.562 | 13.812 | .375 | 3 Feet | $1,447.61 |
| DPT-21657 | 14.625 | 13.875 | .375 | 3 Feet | $1,454.03 |
| DPT-21656 | 14.687 | 13.937 | .375 | 3 Feet | $1,460.36 |
| DPT-21655 | 14.750 | 14.000 | .375 | 3 Feet | $1,466.81 |
| DPT-21654 | 14.812 | 14.062 | .375 | 3 Feet | $1,473.13 |
| DPT-21653 | 14.875 | 14.125 | .375 | 3 Feet | $1,479.55 |
| DPT-21652 | 14.937 | 14.187 | .375 | 3 Feet | $1,485.88 |
| DPT-21641 | 15.000 | 14.250 | .375 | 3 Feet | $1,492.30 |
| DPT-21650 | 15.062 | 14.312 | .375 | 3 Feet | $1,498.63 |
| DPT-21659 | 15.125 | 14.375 | .375 | 3 Feet | $1,505.05 |
| DPT-21648 | 15.187 | 14.437 | .375 | 3 Feet | $1,511.38 |
| DPT-21647 | 15.250 | 14.500 | .375 | 3 Feet | $1,517.81 |
| DPT-21646 | 15.312 | 14.562 | .375 | 3 Feet | $1,524.13 |
| DPT-21645 | 15.375 | 14.625 | .375 | 3 Feet | $1,530.56 |
| DPT-21644 | 15.437 | 14.687 | .375 | 3 Feet | $1,536.88 |
| DPT-21643 | 15.500 | 14.750 | .375 | 3 Feet | $1,543.33 |
| DPT-21668 | 15.562 | 14.812 | .375 | 3 Feet | $1,549.66 |
| DPT-21649 | 15.625 | 14.875 | .375 | 3 Feet | $1,556.08 |
| DPT-21651 | 15.687 | 14.937 | .375 | 3 Feet | $1,562.40 |
| DPT-21677 | 15.750 | 15.000 | .375 | 3 Feet | $1,568.83 |
| DPT-21676 | 15.812 | 15.062 | .375 | 3 Feet | $1,575.15 |
| DPT-21675 | 15.875 | 15.125 | .375 | 3 Feet | $1,581.58 |
| DPT-21674 | 15.937 | 15.187 | .375 | 3 Feet | $1,587.91 |
| DPT-21673 | 16.000 | 15.250 | .375 | 3 Feet | $1,594.33 |
| DPT-21672 | 16.062 | 15.312 | .375 | 3 Feet | $1,600.66 |
| DPT-21671 | 16.125 | 15.375 | .375 | 3 Feet | $1,607.08 |
| DPT-21660 | 16.187 | 15.437 | .375 | 3 Feet | $1,613.41 |
| DPT-21669 | 16.250 | 15.500 | .375 | 3 Feet | $1,619.85 |
| DPT-21678 | 16.312 | 15.562 | .375 | 3 Feet | $1,626.18 |
| DPT-21667 | 16.375 | 15.625 | .375 | 3 Feet | $1,632.61 |
| DPT-21666 | 16.437 | 15.687 | .375 | 3 Feet | $1,638.93 |
| DPT-21665 | 16.500 | 15.750 | .375 | 3 Feet | $1,645.36 |
| DPT-21664 | 16.562 | 15.812 | .375 | 3 Feet | $1,651.68 |
| DPT-21663 | 16.625 | 15.875 | .375 | 3 Feet | $1,658.11 |
| DPT-21662 | 16.687 | 15.937 | .375 | 3 Feet | $1,664.43 |
| DPT-21661 | 16.750 | 16.000 | .375 | 3 Feet | $1,670.85 |
| DPT-21632 | 16.812 | 16.062 | .375 | 3 Feet | $1,677.18 |
| DPT-21604 | 16.875 | 16.125 | .375 | 3 Feet | $1,683.60 |
| DPT-21642 | 16.937 | 16.187 | .375 | 3 Feet | $1,689.93 |
| DPT-21619 | 17.000 | 16.250 | .375 | 3 Feet | $1,696.36 |
| DPT-21618 | 17.062 | 16.312 | .375 | 3 Feet | $1,702.71 |
| DPT-21617 | 17.125 | 16.375 | .375 | 3 Feet | $1,709.13 |
| DPT-21616 | 17.187 | 16.437 | .375 | 3 Feet | $1,715.46 |
| DPT-21615 | 17.250 | 16.500 | .375 | 3 Feet | $1,721.88 |
| DPT-21614 | 17.312 | 16.562 | .375 | 3 Feet | $1,728.21 |
| DPT-21603 | 17.375 | 16.625 | .375 | 3 Feet | $1,734.63 |
| DPT-21612 | 17.437 | 16.687 | .375 | 3 Feet | $1,740.96 |
| DPT-21621 | 17.500 | 16.750 | .375 | 3 Feet | $1,747.38 |
| DPT-21610 | 17.562 | 16.812 | .375 | 3 Feet | $1,753.71 |
| DPT-21609 | 17.625 | 16.875 | .375 | 3 Feet | $1,760.13 |
| DPT-21608 | 17.687 | 16.937 | .375 | 3 Feet | $1,766.46 |
| DPT-21607 | 17.750 | 17.000 | .375 | 3 Feet | $1,772.88 |
| DPT-21606 | 17.812 | 17.062 | .375 | 3 Feet | $1,779.23 |
| DPT-21605 | 17.875 | 17.125 | .375 | 3 Feet | $1,785.66 |
| DPT-21630 | 17.937 | 17.187 | .375 | 3 Feet | $1,791.98 |
| DPT-21611 | 18.000 | 17.250 | .375 | 3 Feet | $1,798.41 |
| DPT-21613 | 18.062 | 17.312 | .375 | 3 Feet | $1,804.73 |
| DPT-21639 | 18.125 | 17.375 | .375 | 3 Feet | $1,811.15 |
| DPT-21638 | 18.187 | 17.437 | .375 | 3 Feet | $1,817.48 |
| DPT-21637 | 18.250 | 17.500 | .375 | 3 Feet | $1,823.90 |
| DPT-21636 | 18.312 | 17.562 | .375 | 3 Feet | $1,830.23 |
| DPT-21635 | 18.375 | 17.625 | .375 | 3 Feet | $1,836.66 |
| DPT-21634 | 18.437 | 17.687 | .375 | 3 Feet | $1,842.98 |
| DPT-21633 | 18.500 | 17.750 | .375 | 3 Feet | $1,849.41 |
| DPT-21622 | 18.562 | 17.812 | .375 | 3 Feet | $1,855.73 |
| DPT-21631 | 18.625 | 17.875 | .375 | 3 Feet | $1,862.18 |
| DPT-21640 | 18.687 | 17.937 | .375 | 3 Feet | $1,868.50 |
| DPT-21629 | 18.750 | 18.000 | .375 | 3 Feet | $1,874.93 |
| DPT-21628 | 18.812 | 18.062 | .375 | 3 Feet | $1,881.26 |
| DPT-21627 | 18.875 | 18.125 | .375 | 3 Feet | $1,887.68 |
| DPT-21626 | 18.937 | 18.187 | .375 | 3 Feet | $1,894.01 |
| DPT-21625 | 19.000 | 18.250 | .375 | 3 Feet | $1,900.43 |
| DPT-21624 | 19.062 | 18.312 | .375 | 3 Feet | $1,906.75 |
| DPT-21696 | 19.125 | 18.375 | .375 | 3 Feet | $1,913.18 |
| DPT-21620 | 19.187 | 18.437 | .375 | 3 Feet | $1,919.50 |
| DPT-21670 | 19.250 | 18.500 | .375 | 3 Feet | $1,925.93 |
| DPT-21734 | 19.312 | 18.563 | .375 | 3 Feet | $1,932.25 |
| DPT-21733 | 19.375 | 18.625 | .375 | 3 Feet | $1,938.71 |
| DPT-22691 | 19.437 | 19.687 | .375 | 3 Feet | $1,945.03 |
| DPT-21731 | 19.500 | 18.750 | .375 | 3 Feet | $1,951.46 |
| DPT-22309 | 19.562 | 18.812 | .375 | 3 Feet | $1,957.78 |
| DPT-21729 | 19.625 | 18.875 | .375 | 3 Feet | $1,964.21 |
| DPT-21728 | 19.687 | 18.875 | .375 | 3 Feet | $1,970.53 |
| DPT-21717 | 19.750 | 19.000 | .375 | 3 Feet | $1,976.96 |
| DPT-21726 | 19.812 | 19.062 | .375 | 3 Feet | $1,983.28 |
| DPT-21735 | 19.875 | 19.125 | .375 | 3 Feet | $1,989.71 |
| DPT-21724 | 19.937 | 19.187 | .375 | 3 Feet | $1,996.03 |
| DPT-21723 | 20.000 | 19.250 | .375 | 3 | $2,002.46 |
| diameter | plus or minus (�) tolerance, inches | |||
| ID inside diameter | OD outside diameter | |||
| steel | built-up | |||
| .125" -.749" | .003" | - | .005" | |
| .750" - 1.999" | .004" | - | .005" | |
| 2.000" - 4.000" | .006" | - | .008" | |
| | *turned | *as wound | ||
| 4.001" - 12.000" | .010" | - | .025" | plus only |
| 12.001" - 18.000" | .030" | .060" | .030" | plus only |
| 18.001" - 24.000" | .040" | .075" | .035" | plus only |
| 24.001" - 48.000" | .060" | .090" | .040" | plus only |
| *Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request) | ||||
